Power Acoustik Subwoofer + Hifonics H35 Amplifier Bundle

MOFO-124X 2700W 12" Subwoofer + H35 3000.1D 3000W Monoblock Hercules Series Amp + TC6KIT-0B 1/0G OFC Amp Wiring & BBIC5 2-Ch RCA Cable

EXCLUSIVE
Product videos
highlight-star-icon

• Subwoofer: 2700W Peak
• 1500W RMS
• • Amplifier: 750 Watts RMS x 1 @ 4 ohm
• 1500 Watts RMS x 1 @ 2 ohm
• 3000 Watts RMS x 1 @ 1 ohm
• 1/0 Gauge Power Amplifier Installation Kit
• 2 Channel RCA Audio Interconnect Cable

Learn more about the mofo124x_h3530001d_tc6kit0b_bbic5

We apologize

This item has been discontinued


Loading...
LEX4VT2 main

GROM Audio LEX4VT2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2004-2007 vehicles from Lexus, Toyota

$549.95

List price $559.95

S2-S40 main

Alpine S2-S40

280W Peak (90W RMS) 4" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

2
-15.42%

$109.95

List price $130.00

Product Highlights


• Subwoofer: 2700W Peak
• 1500W RMS
• • Amplifier: 750 Watts RMS x 1 @ 4 ohm
• 1500 Watts RMS x 1 @ 2 ohm
• 3000 Watts RMS x 1 @ 1 ohm
• 1/0 Gauge Power Amplifier Installation Kit
• 2 Channel RCA Audio Interconnect Cable

Description


Power Acoustik brand icon

Authorized dealer

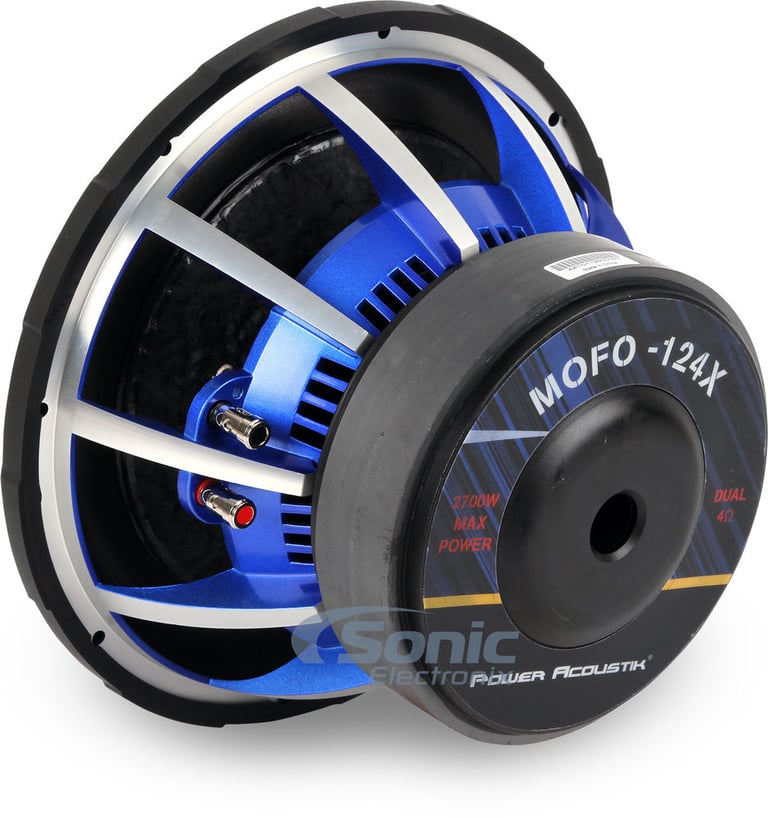

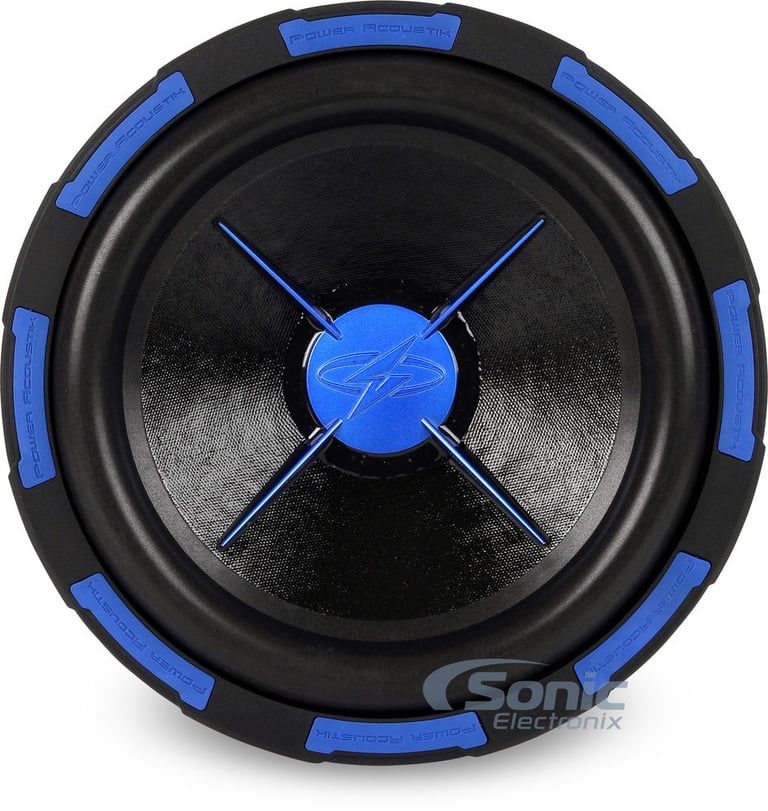

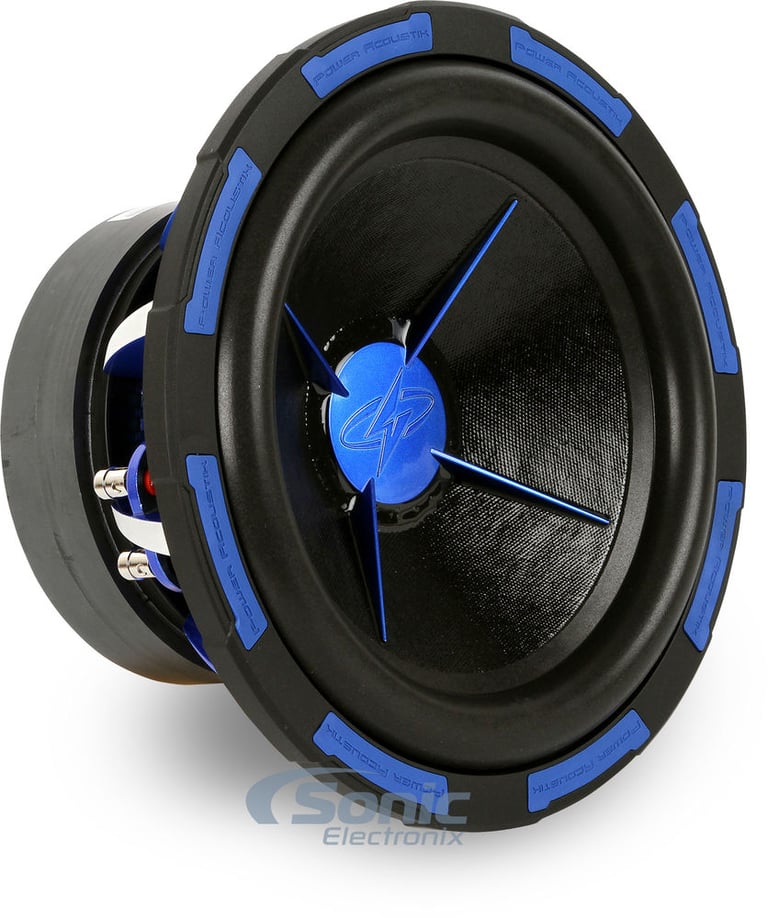

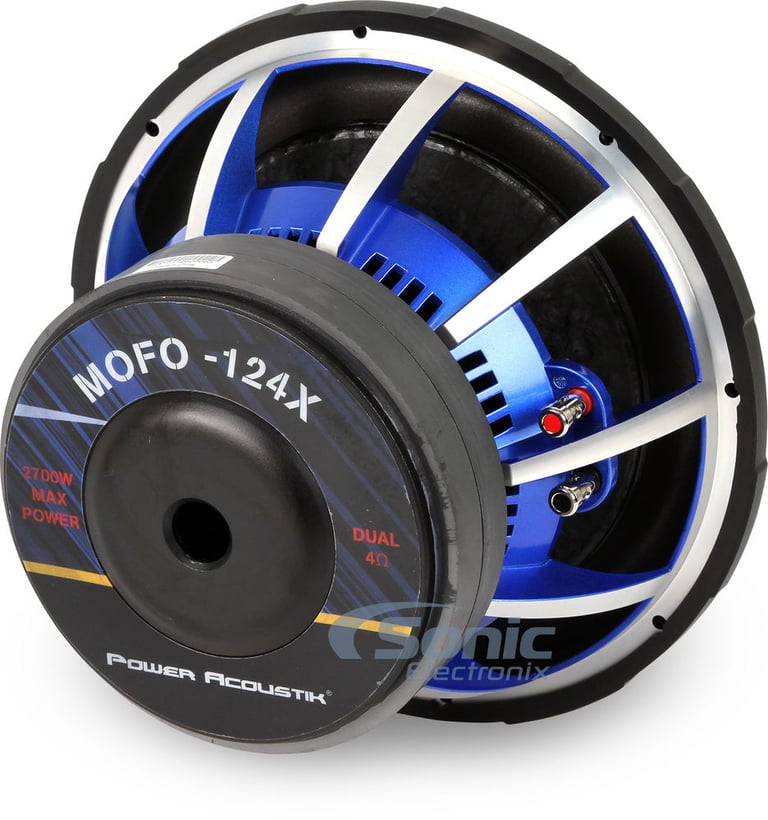

Power Acoustik MOFO-124X

2700W 12" MOFO Series Dual 4 ohm Subwoofer
Quantity: 1

General Features

  • 12" Dual 4 ohm Subwoofer
  • Power Handling:
    • Peak: 2700 watts
    • RMS: 1500 watts
  • Recommended power range: 1000 - 1500 watts RMS
  • Impedance: Dual 4 Ohm

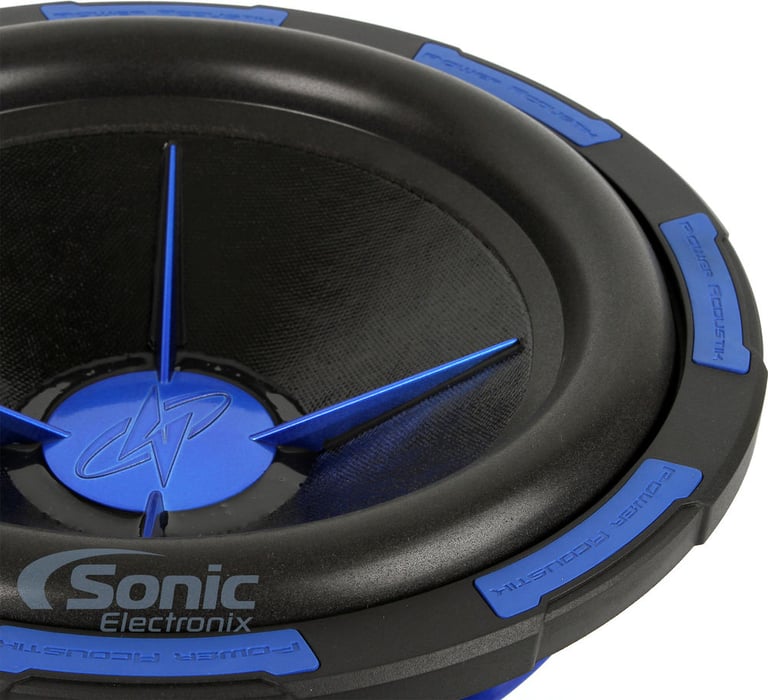

  • Non pressed pulp cone woofer
  • Polyether foam surround for enhanced excursion
  • Die cast aluminum frame
  • 2-1/2" 4-layer voice coil
  • Anodized aluminum former

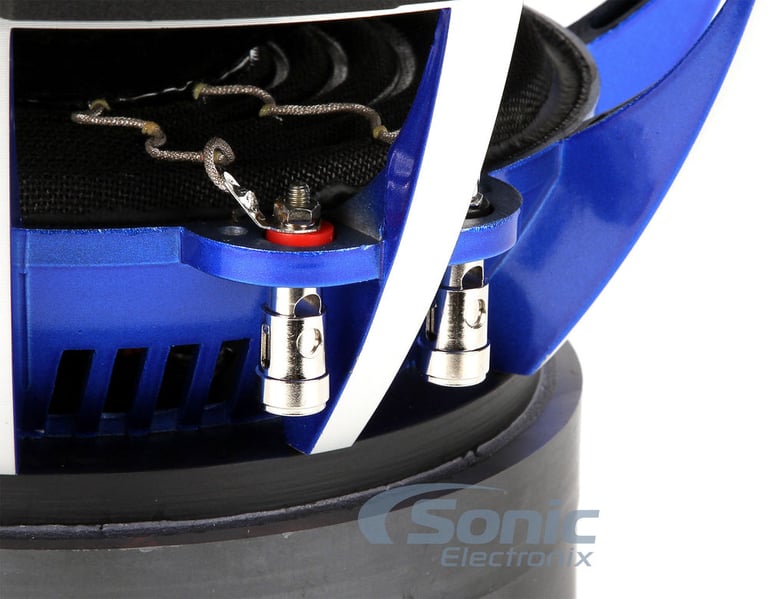

  • Nickel plated 8 gauge compression wire terminal
  • 170 oz Strontium ferrite magnet
  • Royal blue finish with diamond cut accents
  • Die cast aluminum voice coil heatsink
  • Dual poly cotton spiders
  • Vented pole piece
  • Mounting Depth: 6-15/16"
  • Recone Kit Power Acoustik MOFO-124X-RC
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

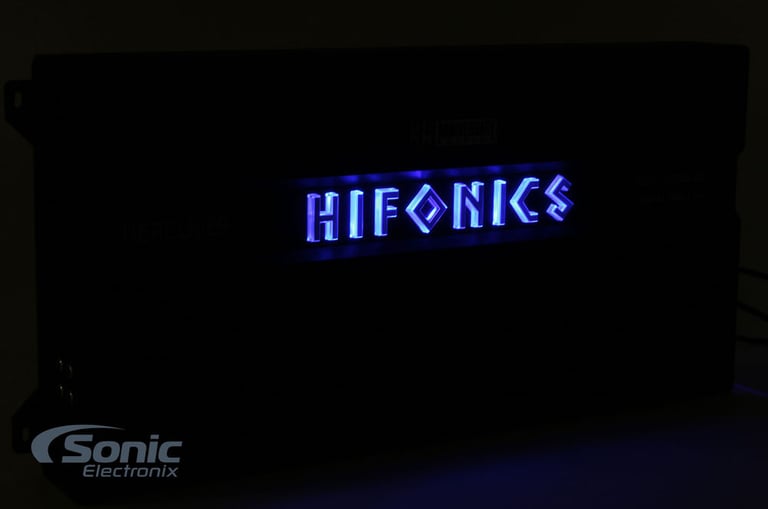

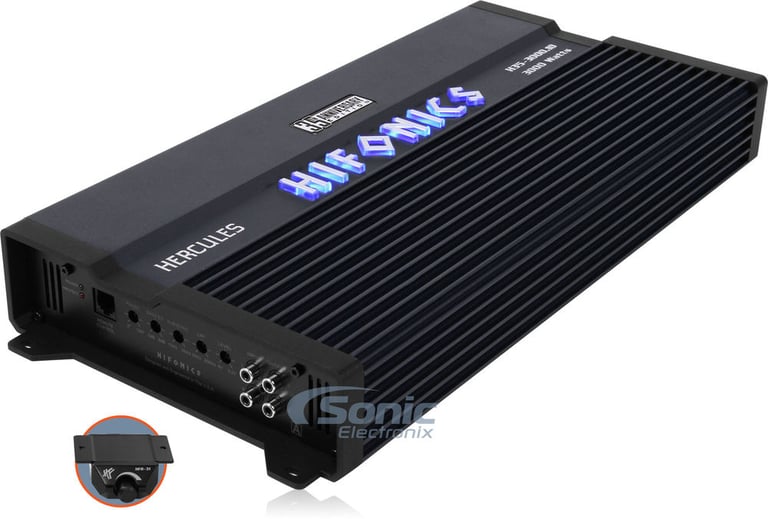

Hifonics Hercules H353000.1D LTD (H35 3000.1D)

3000W Hercules 35th Anniversary Edition Super Class-D 1-Ohm Stable H35 3000.1D Monoblock Amplifier
Quantity: 1


General Features:

  • Hifonics 35th Year Anniversary LTD HS35-3000.1D Amplifier
  • Super Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 375 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1500 watts x 1 chan.
  • Sonic Electronix Dynamic Power Rating*:
    • 4 ohm: 664 watts x 1 chan.
    • 2 ohm: 1135 watts x 1 chan.
    • 1 ohm: 1833 wattts x 1 chan.
  • Twin Turbo Coil PS Pulse Width Modulated MOSFET power supply - keeps voltage constant through the Ultra-Fi output devices

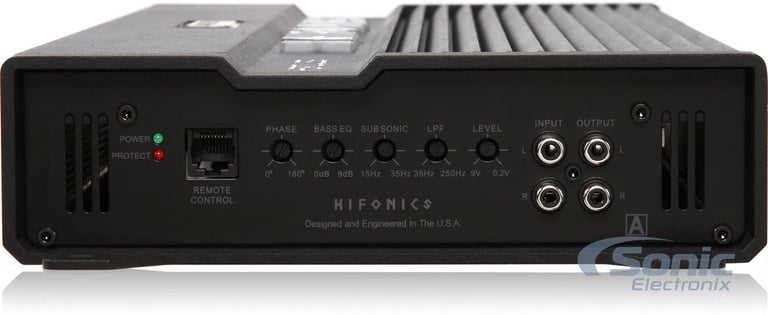

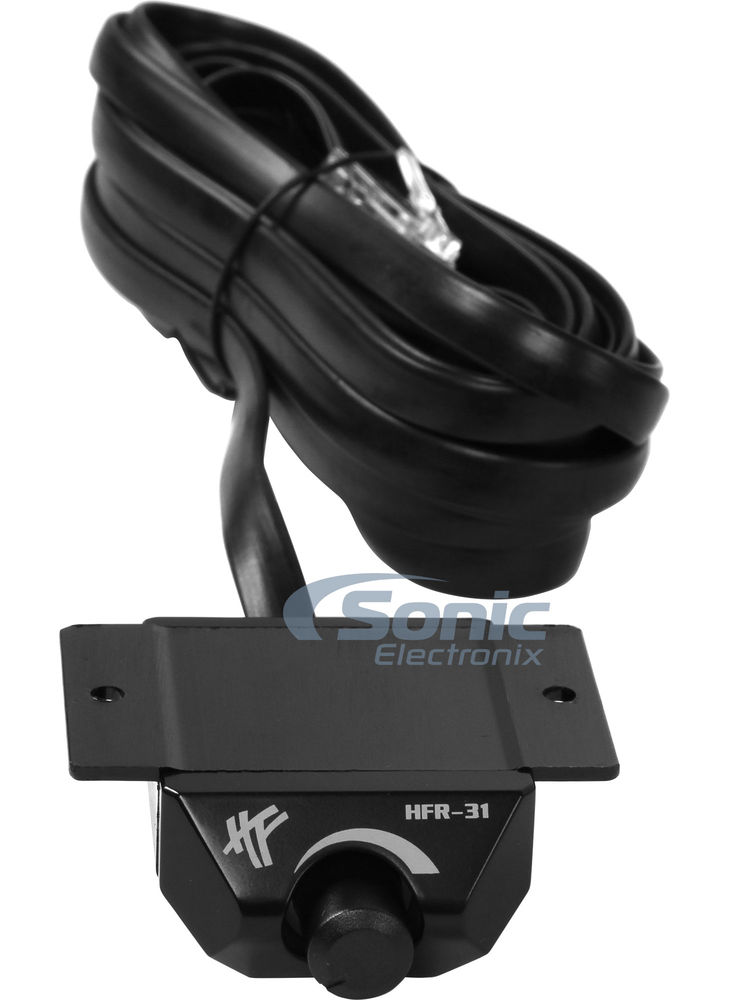

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Strappable Amplifier to daisy chain amplifiers
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

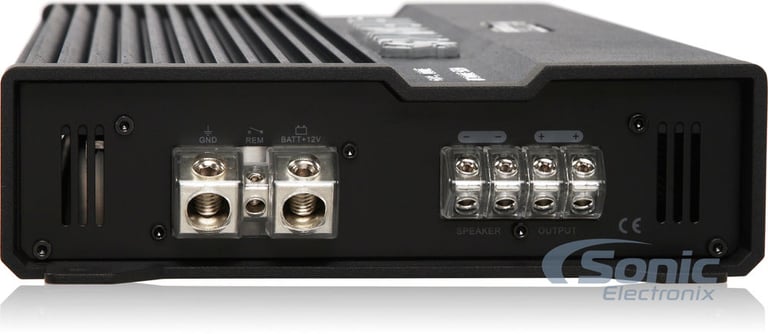

  • Nickel plated RCA, Speaker and Power connections
  • Input sensitivity: 200mV - 9V
  • Frequency Response: 15 - 250 Hz
  • Signal to Noise Ration: >80dB
  • Variable low-pass filter: 35- 250Hz, 12 dB/octave
  • Subsonic filter: 15- 35Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 45Hz
  • Variable Phase: 0 - 180°
  • Fuse Rating: 200A fuse recommended, not supplied
  • 0/1 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the HS35-3000.1D Installation Guide

TruConnex TC6KIT-0B by Metra

1/0 Gauge Full Spec OFC Amplifier Wiring Kit for Systems up to 1500 Watts
Quantity: 1

General Features:

  • 1/0 gauge Power Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1500 watts
  • Premium Oxygen Free Copper power and ground wire provides optimal power transfer
  • Terminals are Nickel-plated for excellent signal transfer
  • ANL Fuse holder offers ideal protection
  • True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Package Includes:

  1. 17 ft. of 1/0 AWG Red power cable

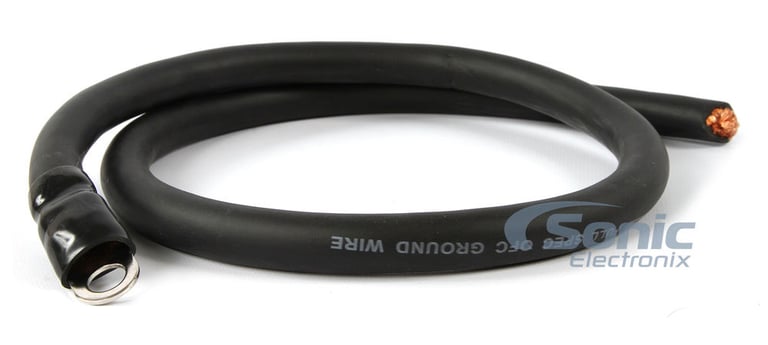

  2. 3 ft. of 1/0 AWG Gray ground cable

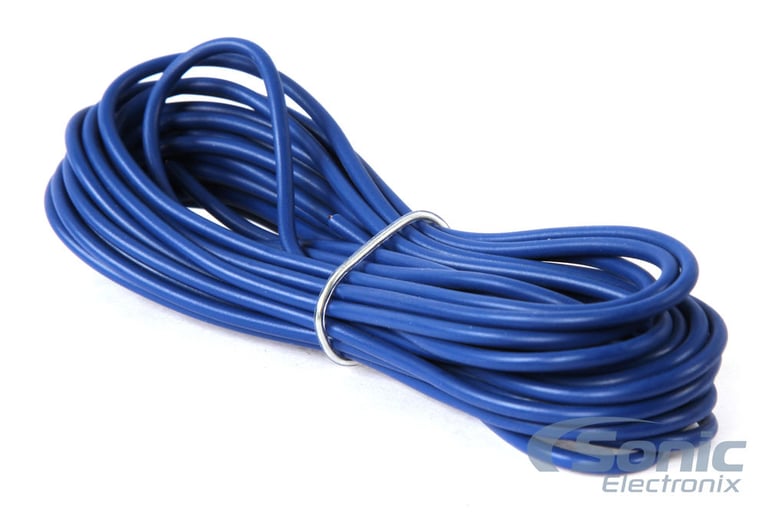

  3. 17 ft. of Blue remote turn-on wire
  4. In-line mini ANL fuseholder
  5. 60 Amp mini ANL fuse
  6. Ring Terminals
  7. Ground Terminals
  8. Vinyl Cable Ties
  9. Screws
  10. Butt connectors
  11. Spade Terminals
  12. Grommets

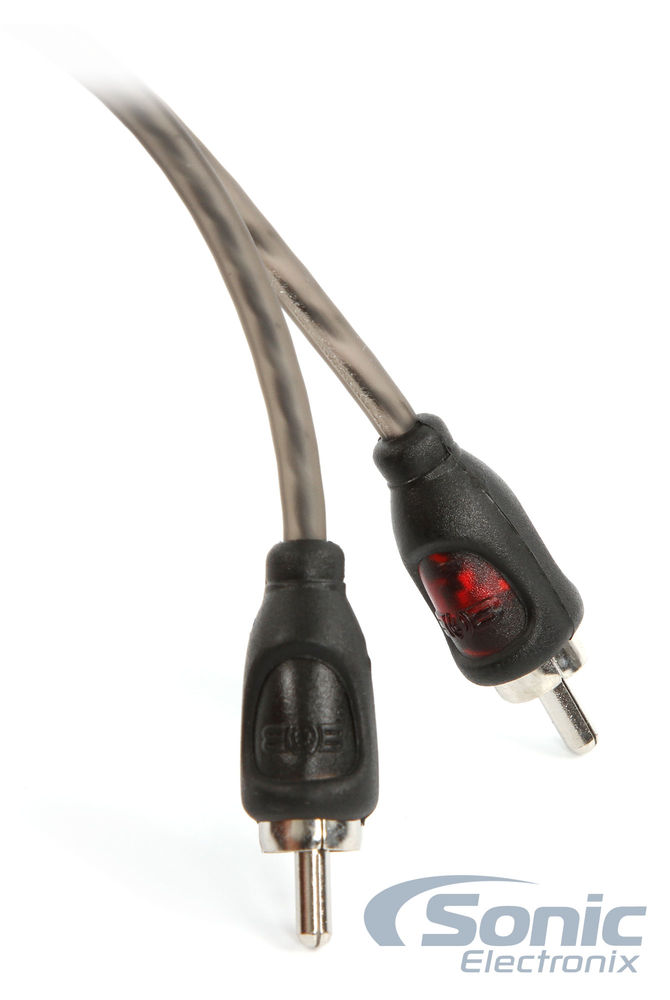

Belva BBIC5

5m (16.4 Ft) 2-Channel RCA Audio Interconnect Cable (CCA)
Quantity: 1

General Features:

  • Audio Interconnect Cable (CCA)
  • 2-Channel RCA, perfect for stacking, strapping or connecting amps
  • Helical Twist construction minimizes noise and interference
  • Patented high tolerance compact machined metal end
  • Packed in resealable bag
  • Length: 5m (16.4 feet)
  • Also available in 9.8 Ft.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-15.39%

$109.99

List price $129.99

H672 main

Cerwin-Vega H672

540W Peak (180W RMS) 6.75" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$159.99

List price $191.99

DMDX675 main

Diamond Audio DMDX675

300W Peak (100W RMS) 6.75" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

CK 165 main

Hertz CK 165

570W Peak (190W RMS) 6.5" Cento Series 2-way 4-ohm Component Speaker System

1
-16.67%

$399.99

List price $480.00

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

CK 165L main

Hertz CK 165L

600W Peak (200W RMS) 6.5" Cento Series 2-way 4-ohm Component Speaker System

2
-13.05%

$399.99

List price $460.00

S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total RMS Power Output
3000 watts
Speaker Level Inputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
35 - 350 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Subwoofer Specifications
Series
MOFO Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
1500 watts
Peak Power Handling
2700 watts
Woofer Surround
Polyether Foam
Woofer Composition
Non-Pressed Paper
Minimum Sealed Box Volume
1.00 cubic feet
Maximum Sealed Box Volume
3.00 cubic feet
Minimum Ported Box Volume
2.00 cubic feet
Maximum Ported Box Volume
3.00 cubic feet
Sensitivity
Not specified by manufacturer
Frequency Response
Not specified by manufacturer
Xmax (millimeters)
15 mm
Top-Mount Depth (Mounting Depth)
6-15/16"
Cutout Diameter
11-1/4"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MOFO-124X_H35 3000.1D_TC6KIT-0B_BBIC5

Weight:

49.55lbs

Internal SKU:

mofo124x_h3530001d_tc6kit0b_bbic5

Internal Product ID:

109741

Product and How-to Videos


  • Hifonics H35-3000.1D Amplifier Dyno Test | SMD D'Amore AD-1
  • Power Acoustik MOFOX Car Subwoofers | Redesigned for 2013!

Customer Ratings & Reviews


Power Acoustik Subwoofer + Hifonics H35 Amplifier Bundle thumbnail image

5 star
84%
4 star
13%
3 star
1%
2 star
0%
1 star
2%



Durability
4.7
Value
4.8
Features
4.7
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Poor quality

The following review is for BBIC5, which is a part of the bundle you are viewing.

I had ordered a Kicker pk8 amplifier wiring kit and these were part of a package that only Sonic had offered. To put it shortly, one of the jacks was grounding out when I plugged it all the way in the RCA jacks in the headunit. It was causing a lot of doubts in the equipment in my system, but I got down to the root and these were the culprit. I contacted Sonic and they gladly replaced the with a set of StreetWire RCA's that worked just fine when I installed them. Thanks Sonic! But as far as these go, I wouldn't recommend them. Spend a little more and get some better ones.

By Sumgruuvz on July 23, 2015

56 found this helpful


Great RCA Cable

The following review is for BBIC5, which is a part of the bundle you are viewing.

I used this with a 5 channel kenwood amp and a pioneer head unit. worked like it should.

By Scott on January 19, 2015

61 found this helpful


Belva BBIC5

The following review is for BBIC5, which is a part of the bundle you are viewing.

high quality wire , good ends, great price what else could you ask for?

By Anonymous on May 31, 2018 Checkmark Icon Verified purchase

37 found this helpful


Just what I needed

The following review is for BBIC5, which is a part of the bundle you are viewing.

I would recommend this product to anyone looking to do a simple set up! Great quality and easy to use.

By Avery on February 15, 2017 Checkmark Icon Verified purchase

37 found this helpful


Good Quality - Met My Needs

The following review is for BBIC5, which is a part of the bundle you are viewing.

Pros:
This product looks, feels and functions exactly the way you would expect.
Good quality

Cons:
I haven't discovered anything of concern

I would def recommend this product.
I Have Found Sonic Electronix To Be Superior In Customer Service, Products and Shipping

By Joe on May 1, 2016 Checkmark Icon Verified purchase

35 found this helpful


Nice and durable

The following review is for BBIC5, which is a part of the bundle you are viewing.

This design is awesome rca ends fit nice and tight and it solved a ground noise problem that I couldn’t fix with the other rca jacks.

By Anonymous on October 1, 2019

34 found this helpful


Belva BBIC5

The following review is for BBIC5, which is a part of the bundle you are viewing.

These came along with my powered sub. They were well made, and quite long enough, to reach the back of my suv.

By Anonymous on May 31, 2018

35 found this helpful


Great value

The following review is for BBIC5, which is a part of the bundle you are viewing.

Really good nice cables good quality very pleased with them will buy again as needed love them...

By Shaila on April 18, 2018

33 found this helpful


decent cables they work

The following review is for BBIC5, which is a part of the bundle you are viewing.

Got this in a package deal not extremely long, go from dash to amp under passenger seat. Overall feel is light ,
connections aren't extremely firm but have not been any issue.

By Eric on July 2, 2016

32 found this helpful


Good RCA cables.

The following review is for BBIC5, which is a part of the bundle you are viewing.

These RCA cables were perfect for long run to amp. The price was right also.

By Mike on April 23, 2016 Checkmark Icon Verified purchase

32 found this helpful




P312D2S small

Rockford Fosgate Shallow-Mount Punch P312D2S

Dual 2 ohms Stage 3 Punch 12" Shallow-Mount Subwoofer

$109.99

List price $279.99

HK1397 small

MA Audio HK1397 / HK1398

$449.99

List price $706.99

12W0 small

JL Audio 12W0 12" ( 12W0-4 )

(9)

$94.99

List price $149.99

URT-483 small

American International URT-483

Factory Radio Removal Tool Set for Ford Vehicles

(2)

$4.99

List price $9.99

KD-NX5000 small

JVC KD-NX5000 R/B

In-Dash 3.5" TFT-LCD Monitor with Hard Drive GPS Navigation Built-In, DVD, CD/MP3 Receiver and Remote

(17)

$399.95

List price $1049.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2020 Toyota Avalon

2005 Saab 9-7X

2004 Lexus RX330

2006 Lexus LX470

1978 Mazda RX-4

2000 Honda Prelude

2008 Subaru Forester

2014 Subaru Outback

2006 Saab 9-3

2024 Mitsubishi Outlander

Vehicle
Store
Delete

2002 Harley Davidson FLTR Road Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
