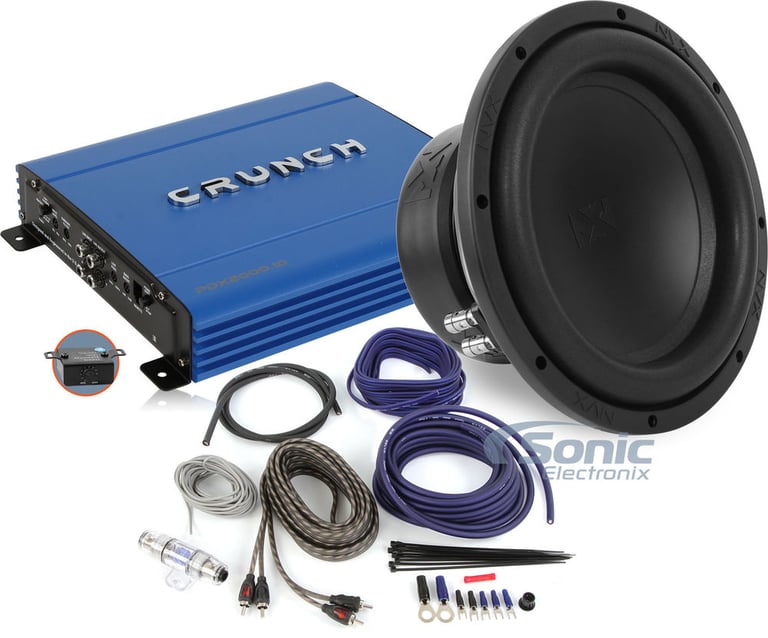

NVX 10" Subwoofer + Crunch Amplifier Bundle

General Features:

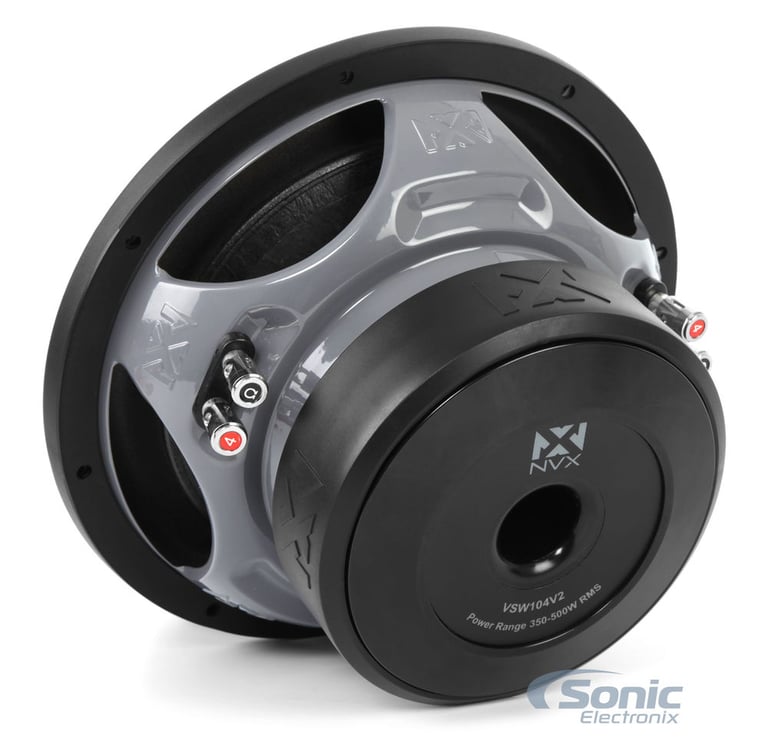

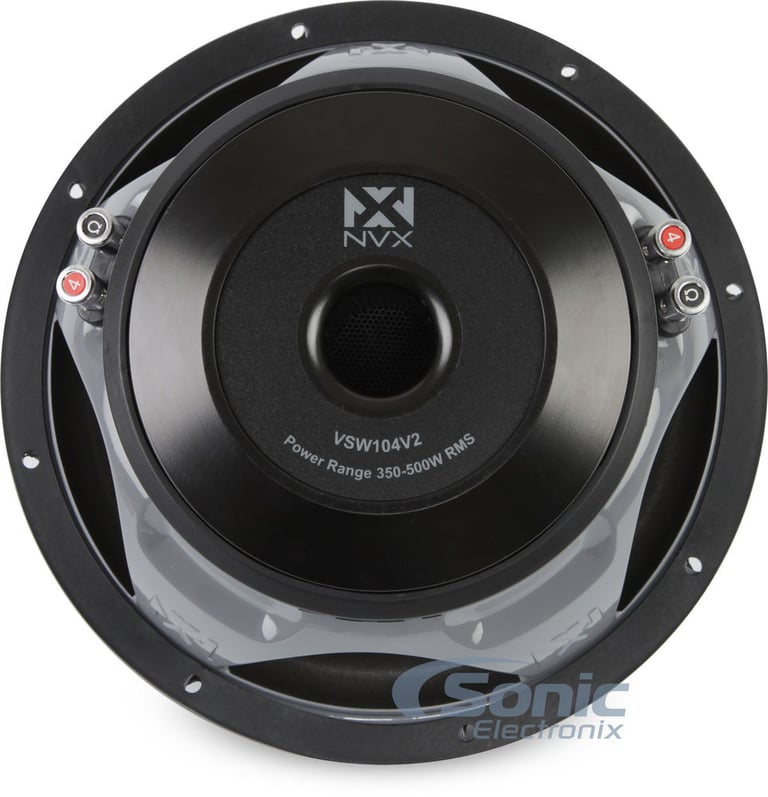

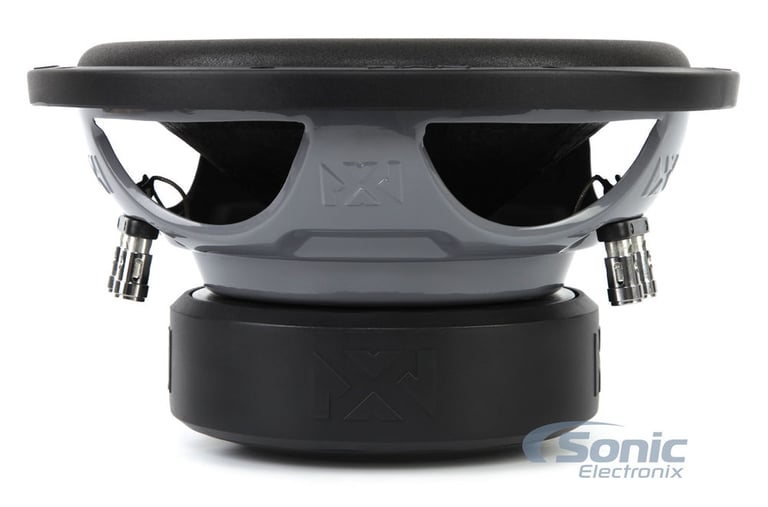

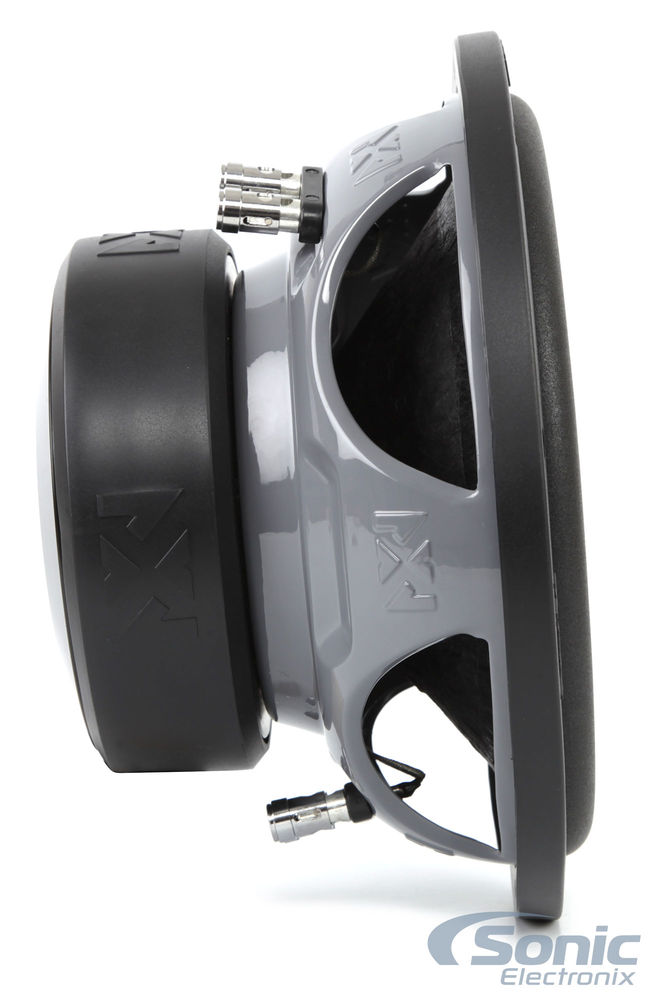

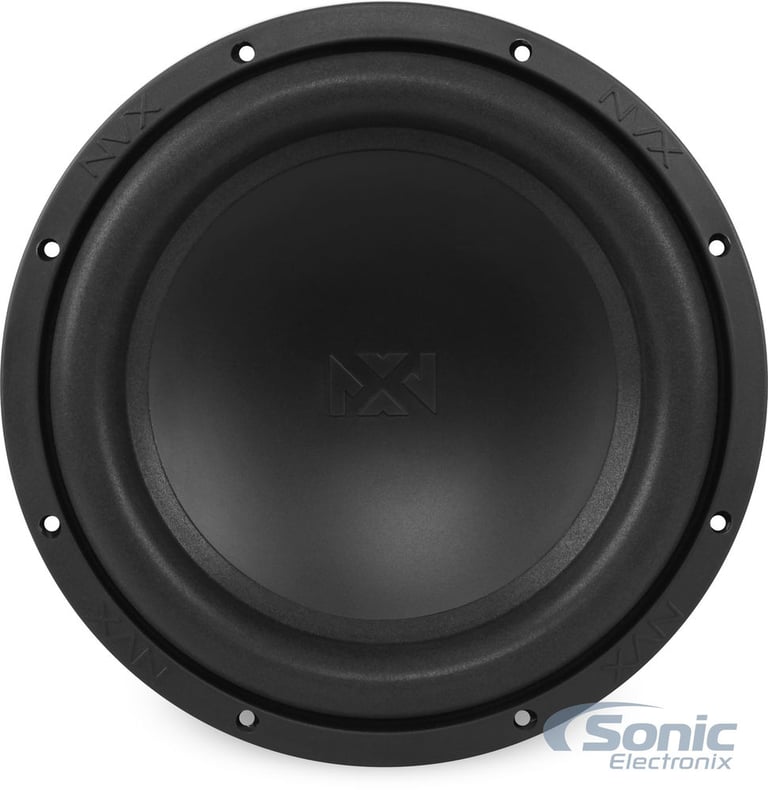

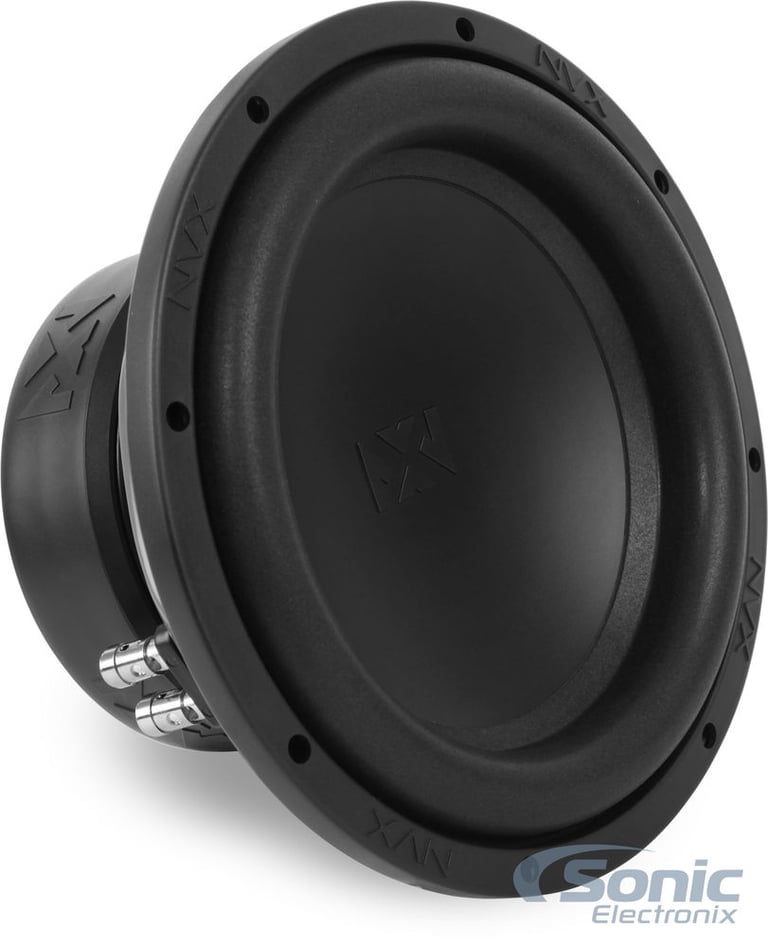

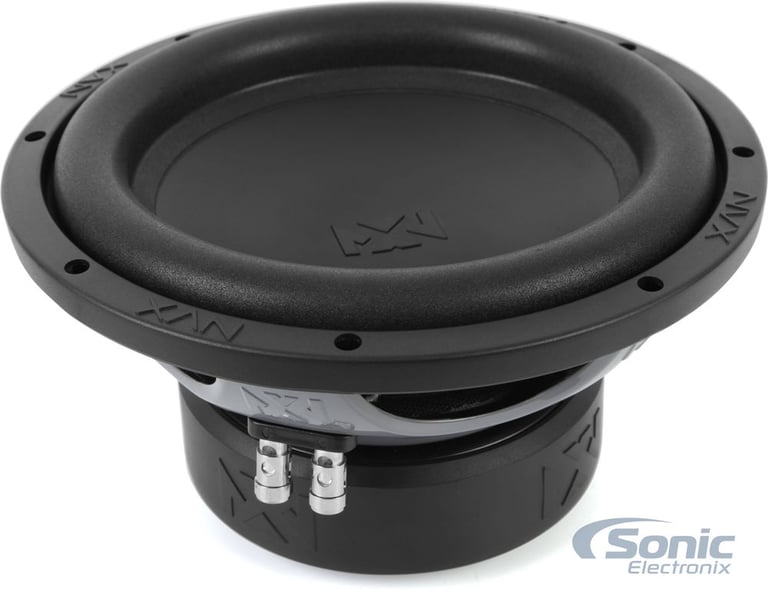

• 10" VS-Series Version 2 Dual 4-ohm Car Subwoofer
• Power Handling:
• RMS: 500 watts
• Recommended power range: 350 - 500 RMS
• Aluminum Shorting Ring to prevent rises in inductance
• Non Pressed Paper cone
• High Roll Custom Blended Foam surround
• Stamped Steel basket
• 60oz Y30 High Energy Ferrite Magnet
• Impedance: Dual 4 Ohm
• Mounting depth: 5.00" (127 mm)
• Cutout diameter: 9.15" (236 mm)
• Mounting Diameter: 9.65" (245 mm)
• Overall Diameter: 10.35" (263 mm)
• Frequency Response: 20 - 200 Hz
• Sensitivity: 87 dB (1W/M)
• Xmax: 11mm
• Fs: 30 Hz
• Sd: 33.00 cm²
• Resonance Frequency (Fs): 30 Hz
• Net Weight: 13.15 lbs (5.95 kg)
• Recommended Ported Enclosure: 0.70ft³
• Recommended Sealed Enclosure: 1.00ft³
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

Additional Information:

Why a 10" Subwoofer? Choosing the right subwoofer size can be a difficult decision to make. To help with your decision, you can check out our K-Base Article, that breaks down the difference in the sound generated by the four most common subwoofer sizes. Click Here to read about The Differences In Subwoofer Sizes.

General Features:

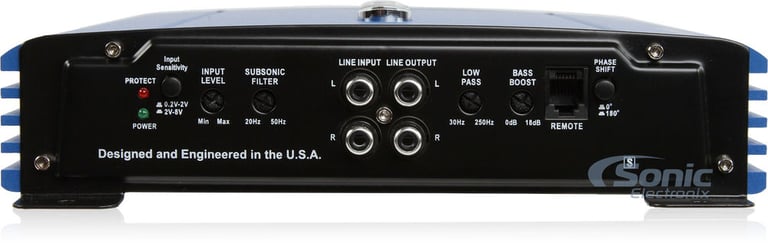

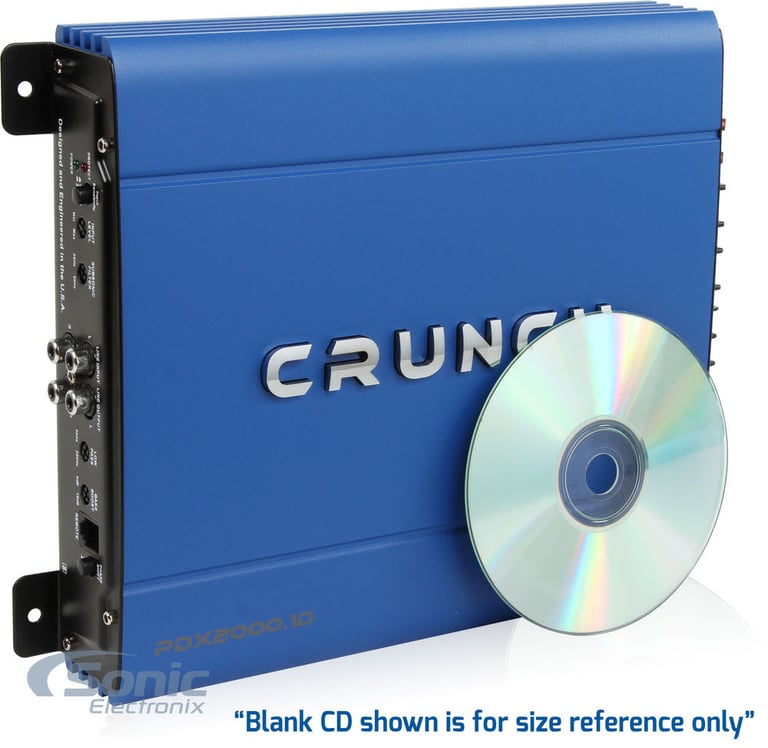

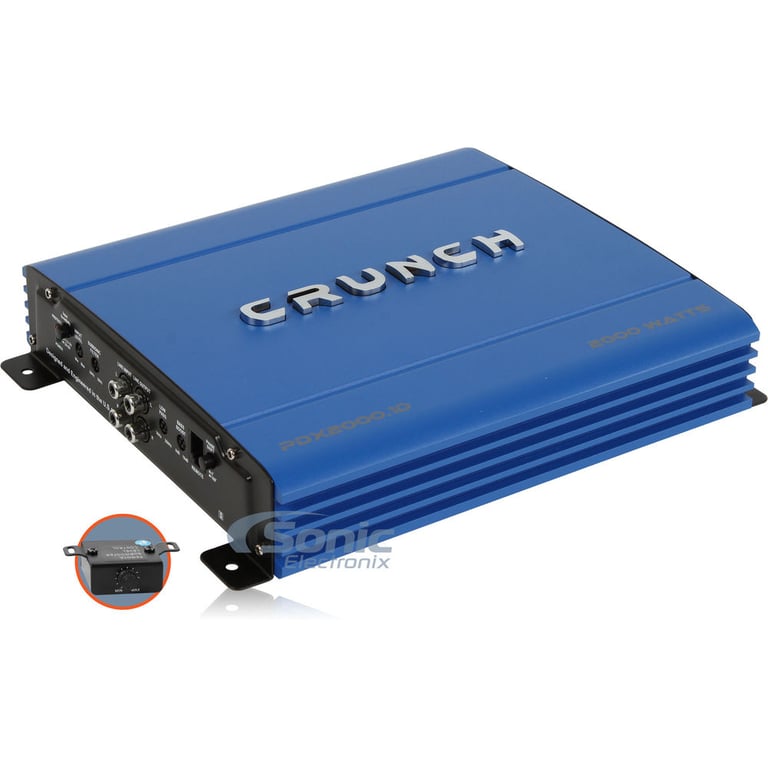

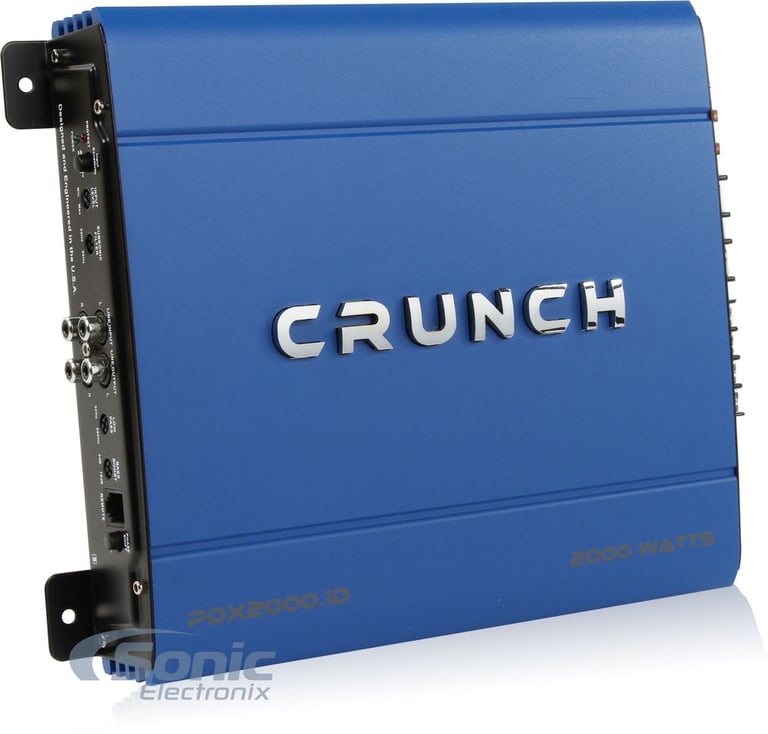

• PDX Series Monoblock Class D Car Amplifier
• MAX Power Rating:
• 4 ohm: 400 watts x 1 chan.
• 2 ohm: 1000 watts x 1 chan.
• 1 ohm: 2000 watts x 1 chan.
• RMS Power Rating:
• 4 ohm: 200 watts x 1 chan.
• 2 ohm: 500 watts x 1 chan.
• 1 ohm: 1000 watts x 1 chan.
• SEPP (Single Ended Push-Pull) output technology
• Pulse Width Modulated power supply
• LED power (green) and protect (red) indicators

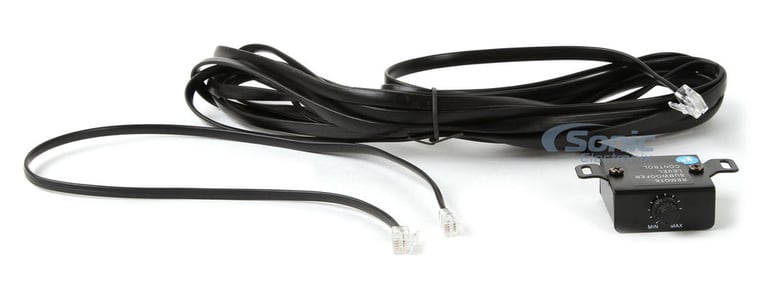

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Slow un-mute soft start turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

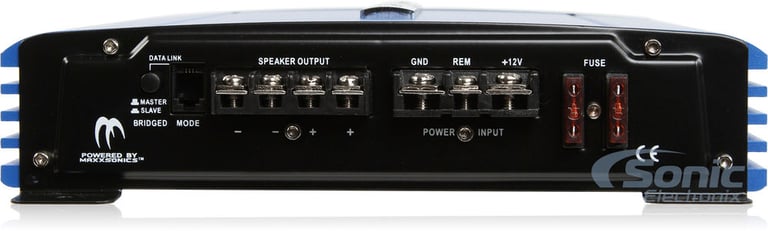

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Silver-plated RCA level inputs
• Silver-plated screw terminals
• Master/Slave power strapping capable
• Input sensitivity: 200mV-6V
• Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
• Variable Subsonic filter:20 - 50 Hz
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Damping factor: >200
• Frequency response: 20 - 250 Hz
• Fuse rating: 40A x 2
• Dimensions: 15-3/4"L x 9-7/8"W x 2-1/16"H
• 4 gauge power and ground wiring is recommended for installation.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features:

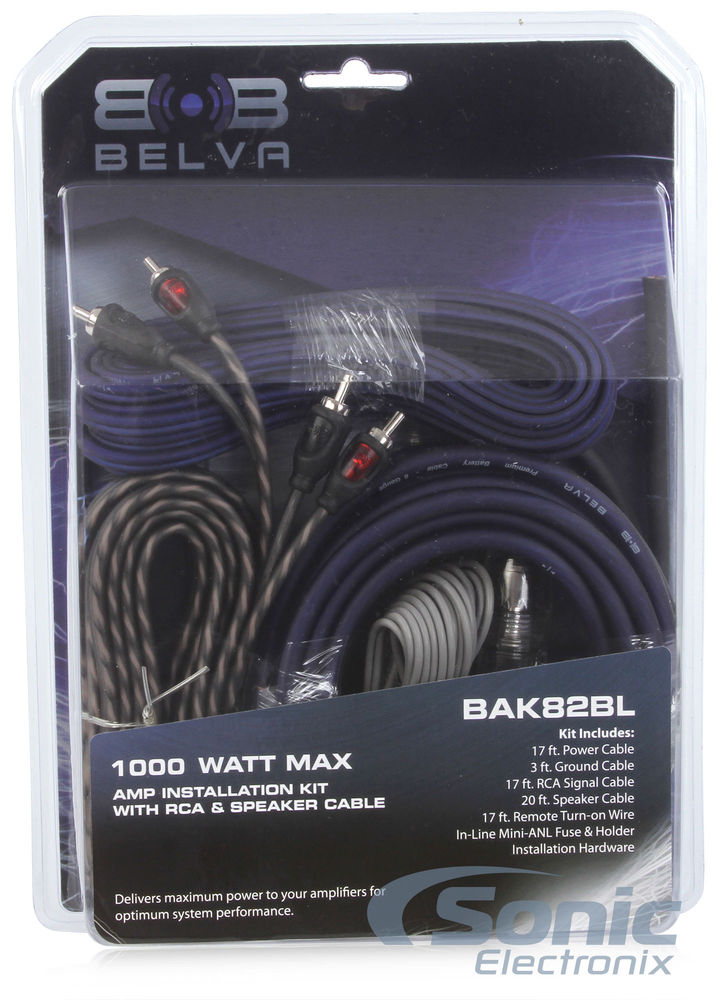

• Complete 8 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 500 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• Mini-ANL Fuse holder with a 60 amp Mini-ANL fuse offers ideal protection
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

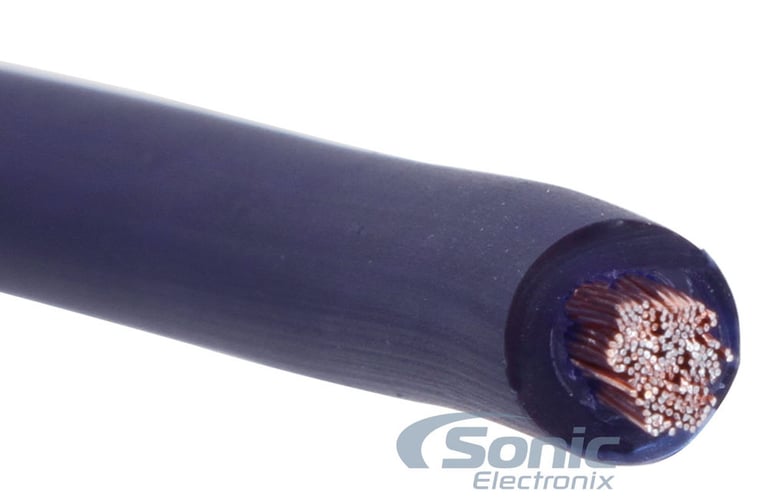

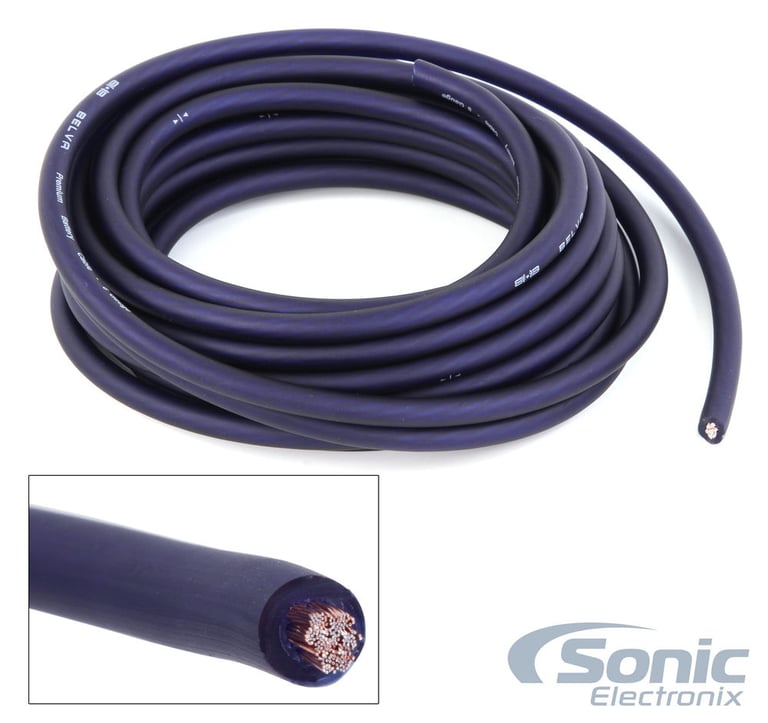

1. 17 ft. (5.2 meters) Blue 8 gauge power wire

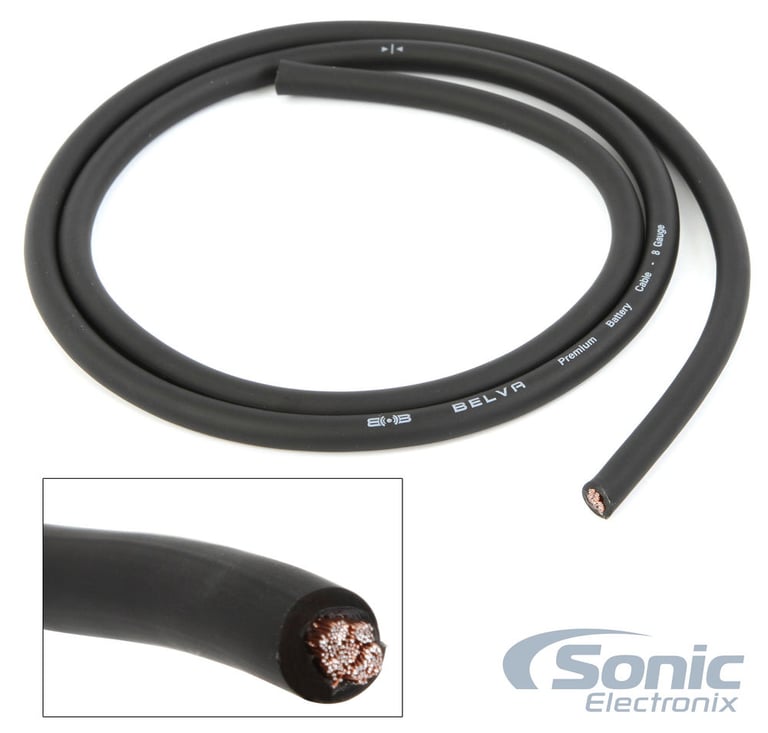

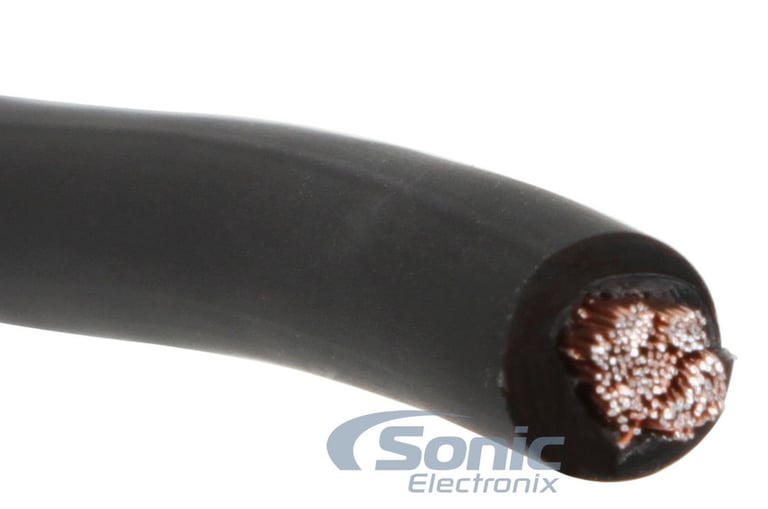

2. 3 ft. (.91 meters) Black 8 gauge ground wire

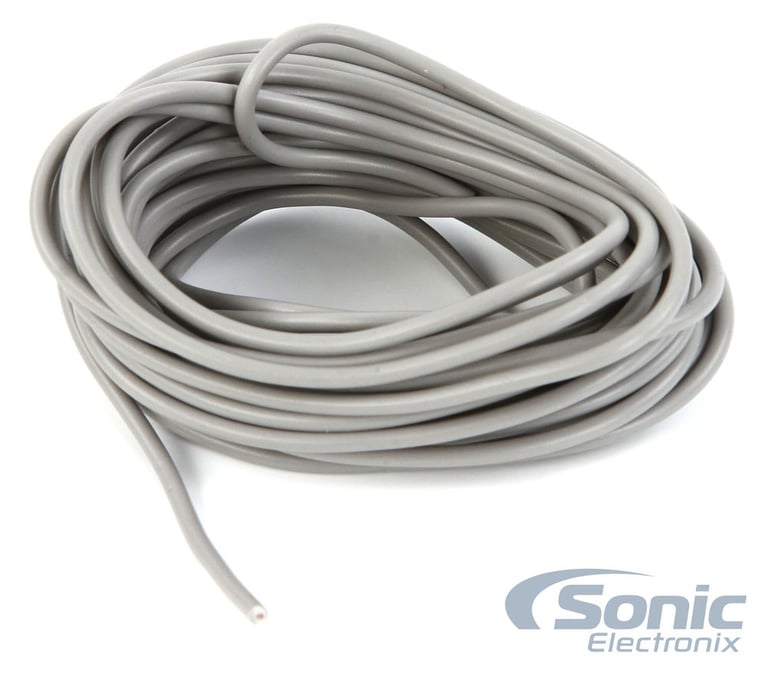

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

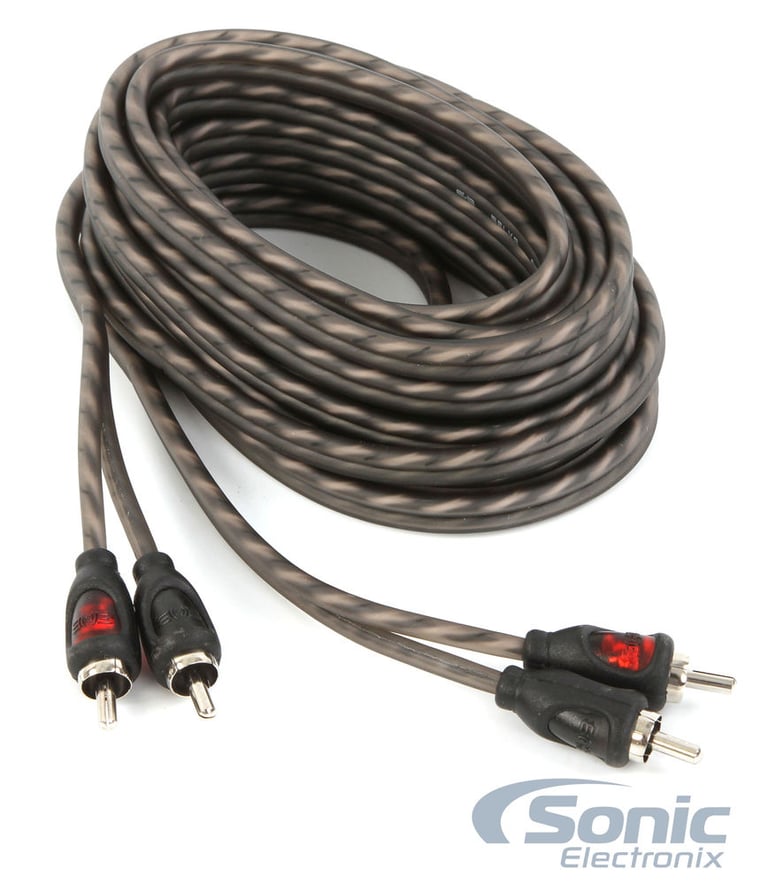

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

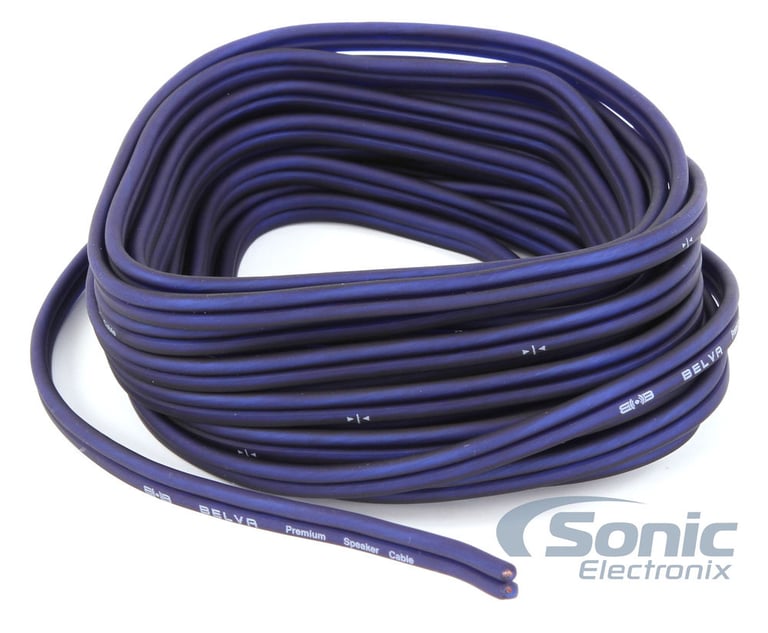

5. 20 ft. (6.1 meters) Speaker cable

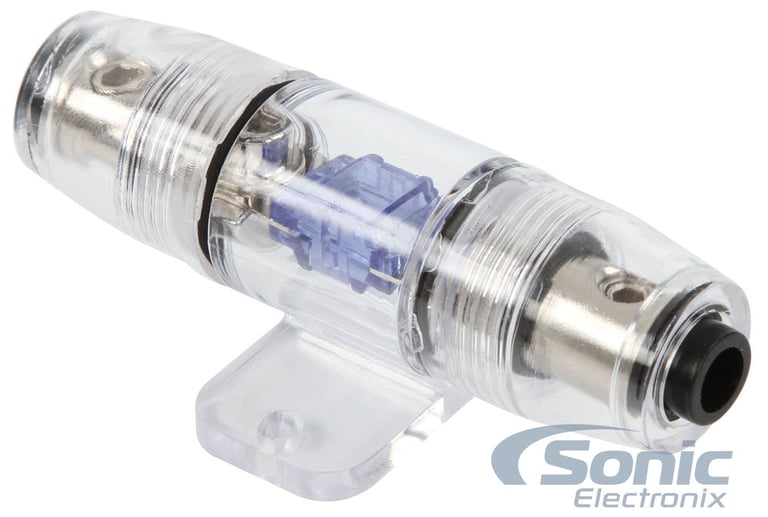

6. One In-line Mini-ANL Fuse Holder with a 60 amp Mini-ANL fuse

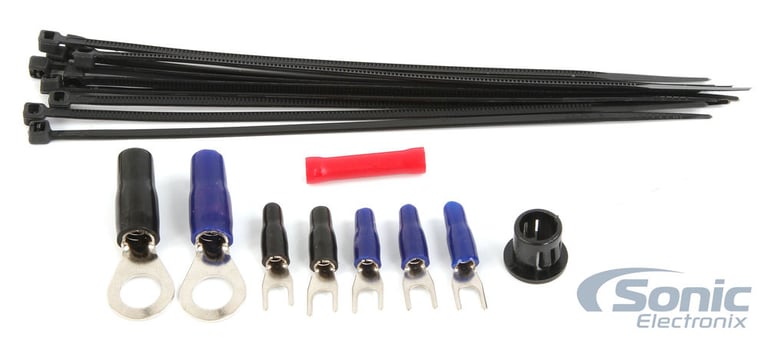

7. One black rubber firewall grommet
8. One 8 Gauge Blue chrome plated ring terminals
9. One 8 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
