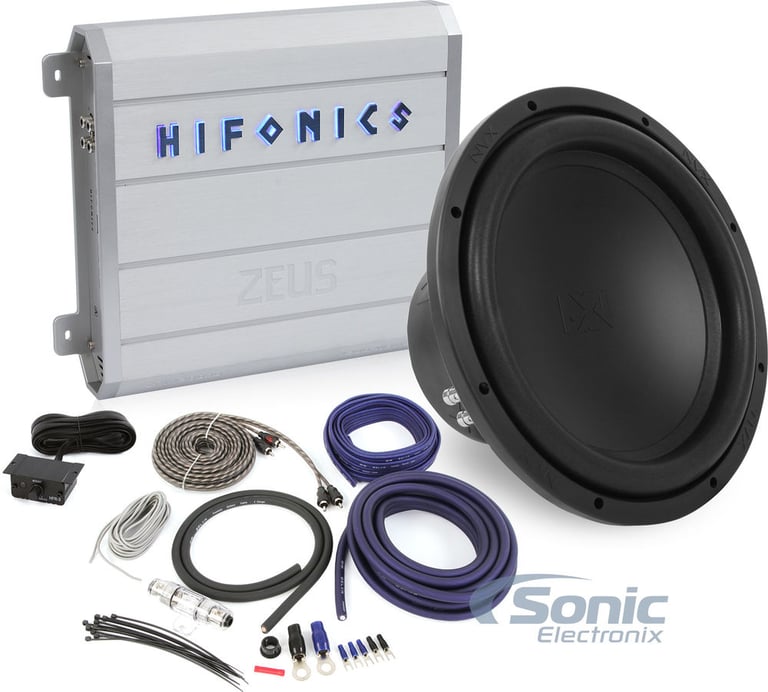

NVX 12" Subwoofer + Hifonics Zeus Amplifier Bundle

General Features:

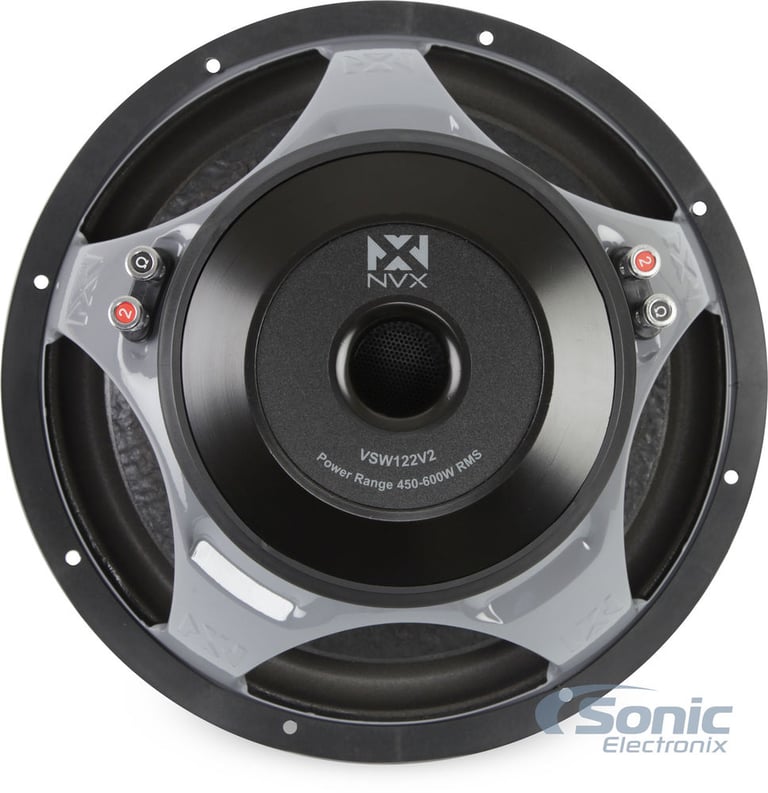

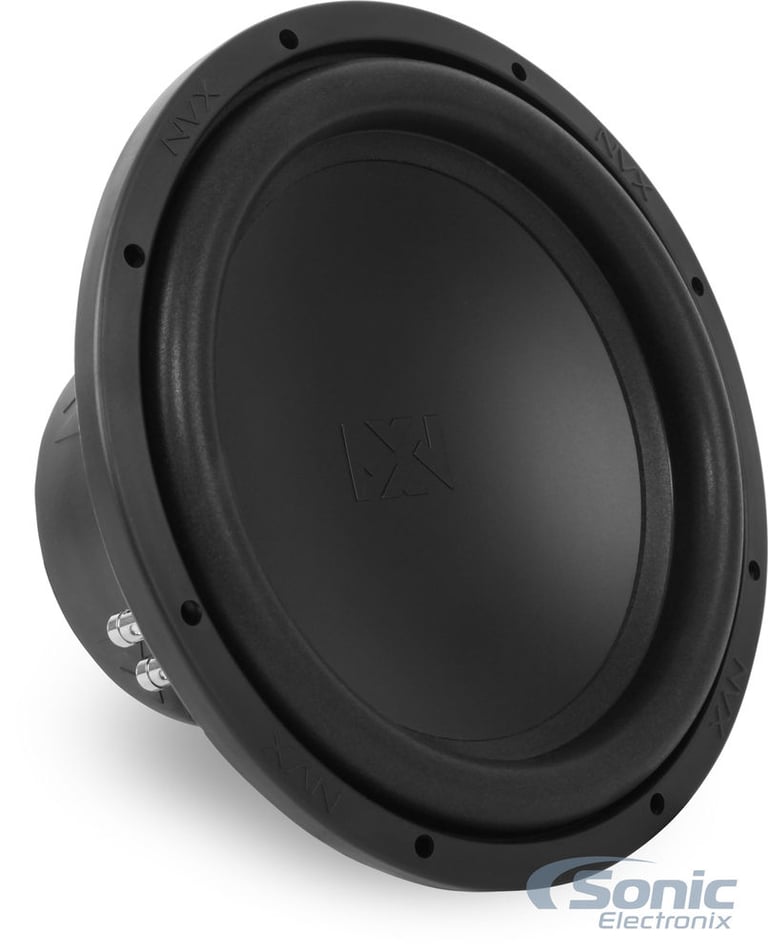

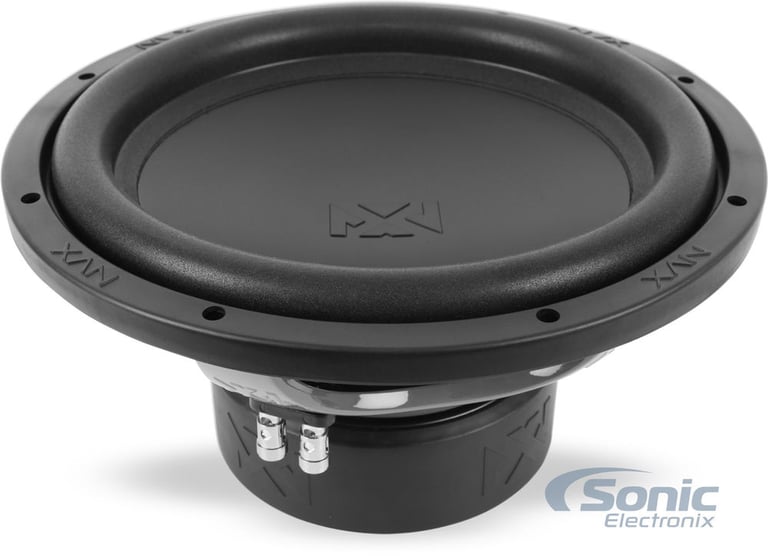

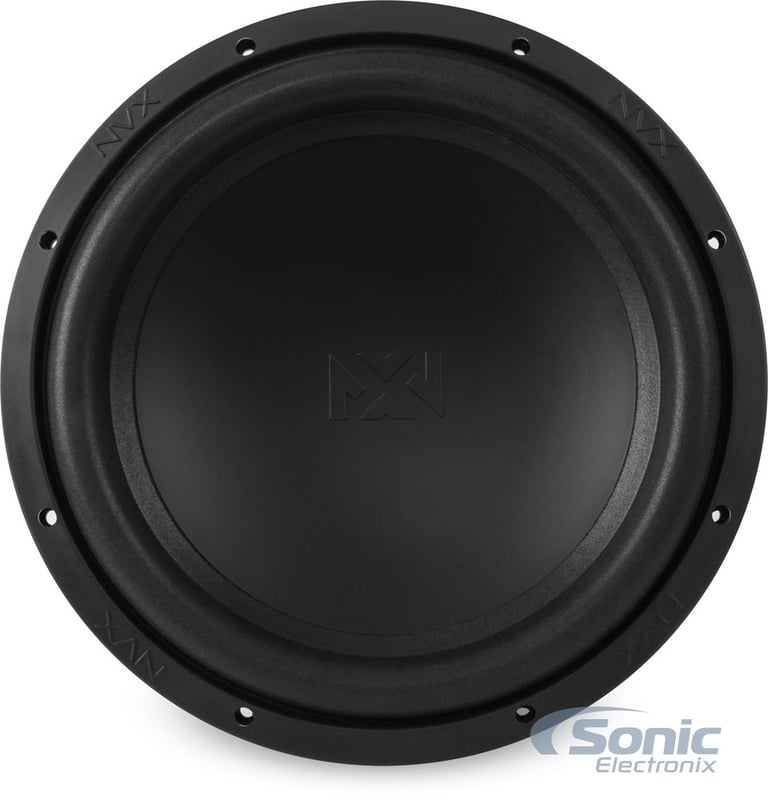

• 12" VS-Series Version 2 Dual 2-ohm Car Subwoofer
• Power Handling:
• RMS: 450 - 600watts
• Recommended power range: 225 - 600 RMS
• Aluminum Shorting Ring to prevent rises in inductance
• Non Pressed Paper cone
• High Roll Custom Blended Foam surround

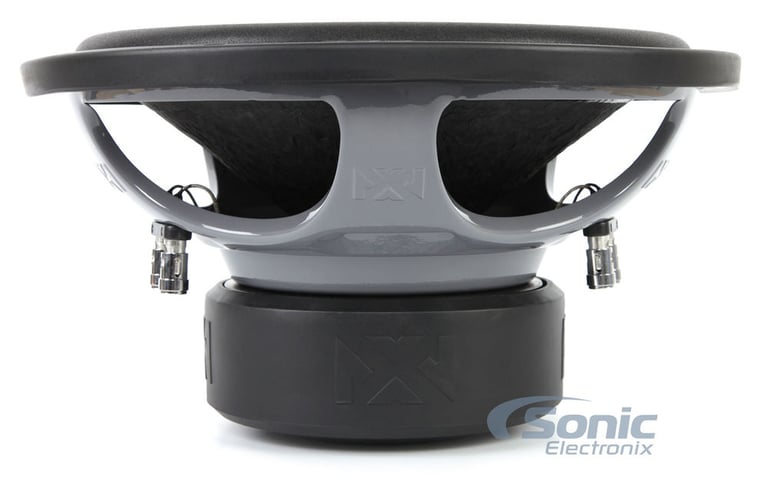

• Stamped Steel basket
• 100oz Y30 High Energy Ferrite Magnet
• Impedance: Dual 2 Ohm
• Mounting depth: 5.95" (151 mm)
• Cutout diameter: 11.12" (282.50 mm)
• Mounting Diameter: 11.63" (295.50 mm)
• Overall Diamter: 12.44" (316 mm)
• Frequency Response: 20 - 200 Hz
• Sensitivity: 90 dB (1W/M)
• Xmax: 12mm
• Sd: 49.08 cm²
• Resonance Frequency (Fs): 25 Hz
• Net Weight: 15.58 lbs (7.05 kg)
• Recommended Ported Enclosure: 1.75ft³
• Recommended Sealed Enclosure: 1.25ft³
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

Additional Information:

Why a 12" Subwoofer? Choosing the right subwoofer size can be a difficult decision to make. To help with your decision, you can check out our K-Base Article, that breaks down the difference in the sound generated by the four most common subwoofer sizes. Click Here to read about The Differences In Subwoofer Sizes.

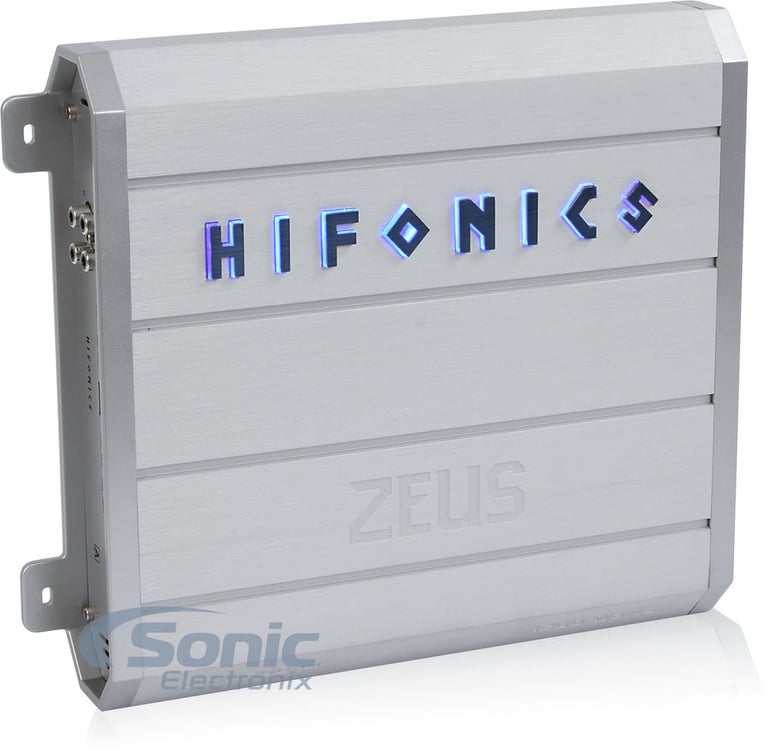

• Zeus Series Single Channel Monoblock Class D Car Amplifier
• Max Power Rating:
  • 4 ohm: 400 watts x 1 chan.
  • 2 ohm: 600 watts x 1 chan.
  • 1 ohm: 1200 watts x 1 chan.
• Max power output: 1200 watts
• Simpatico coil design (SPC) Ultra-Fi Pulse Width Modulated MOSFET power supply
• LED power (blue) and protect (red) indicators

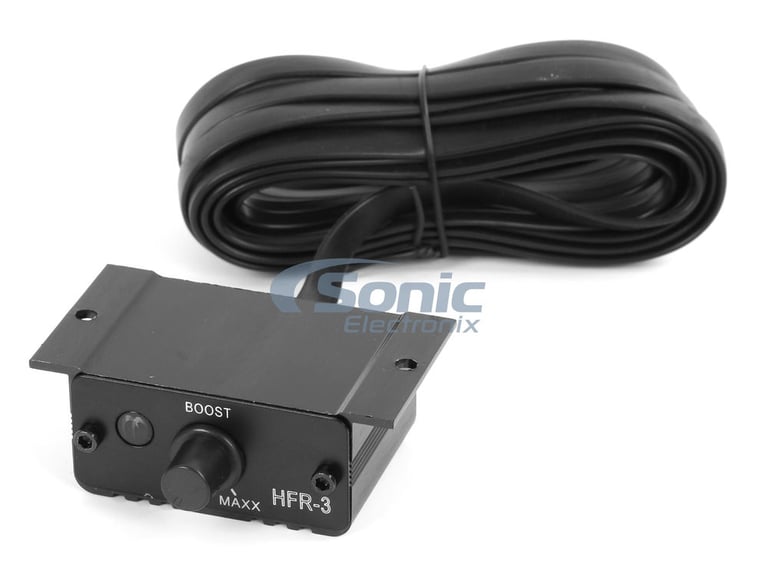

• Wired HFR-3 remote bass level control included
• Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
• Blue illuminated Hifonics badge
• Soft start sound function
• Mono channel operation

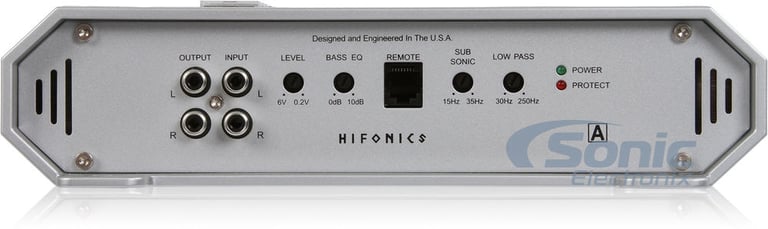

• Preamp RCA outputs to daisy chain multiple amps
• 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)

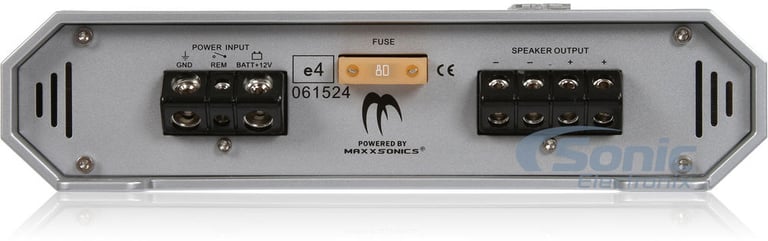

• Dual 12 gauge speaker terminals simplify hookup
• Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
• Silver nickle-plated RCA level inputs
• Silver nickle-plated screw terminals
• Input sensitivity:
  • Variable level: 200mV-6V
• Variable low-pass filter (30-250 Hz, 24 dB/octave)
• Subsonic filter (15-35 Hz)
• Damping factor: >200
• Frequency response: 15-250 Hz
• Dimensions: 12"L x 10"W x 2-7/16"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features:

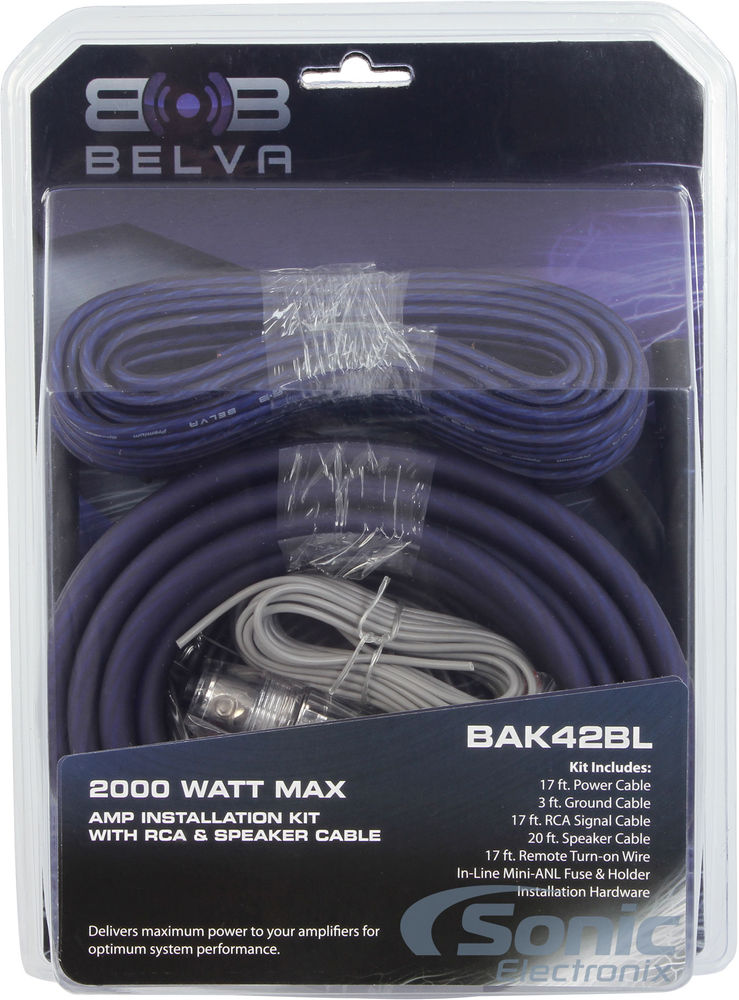

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available as 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

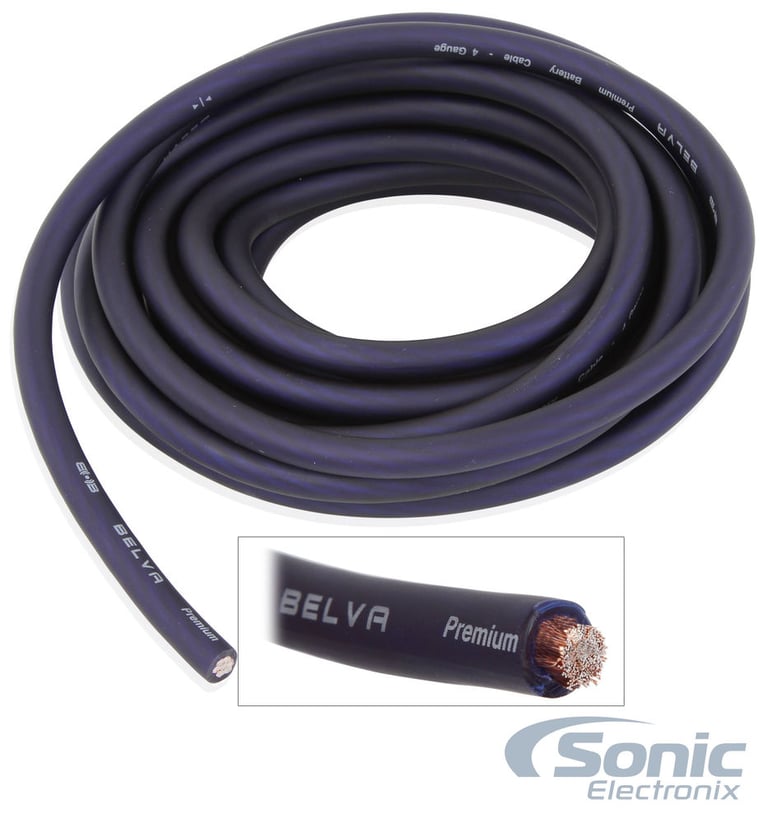

1. 17 ft. (5.2 meters) Blue 4 gauge power wire

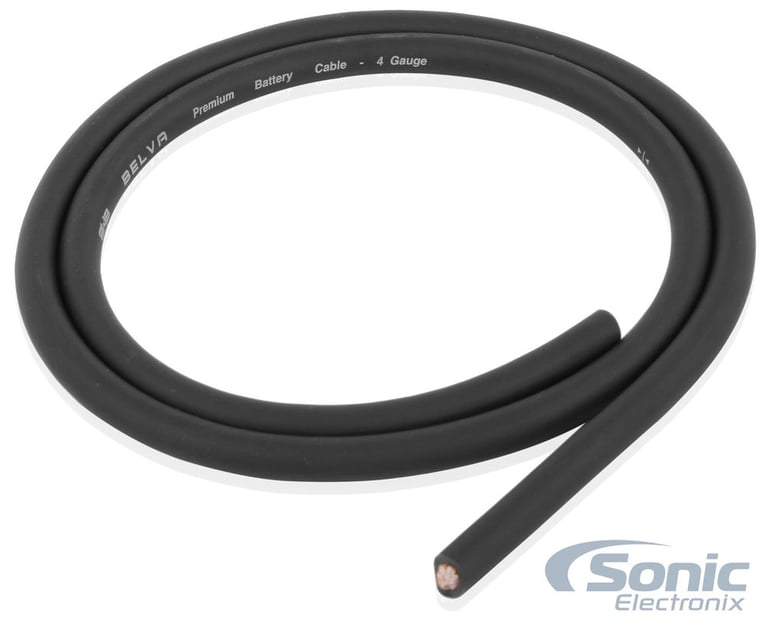

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

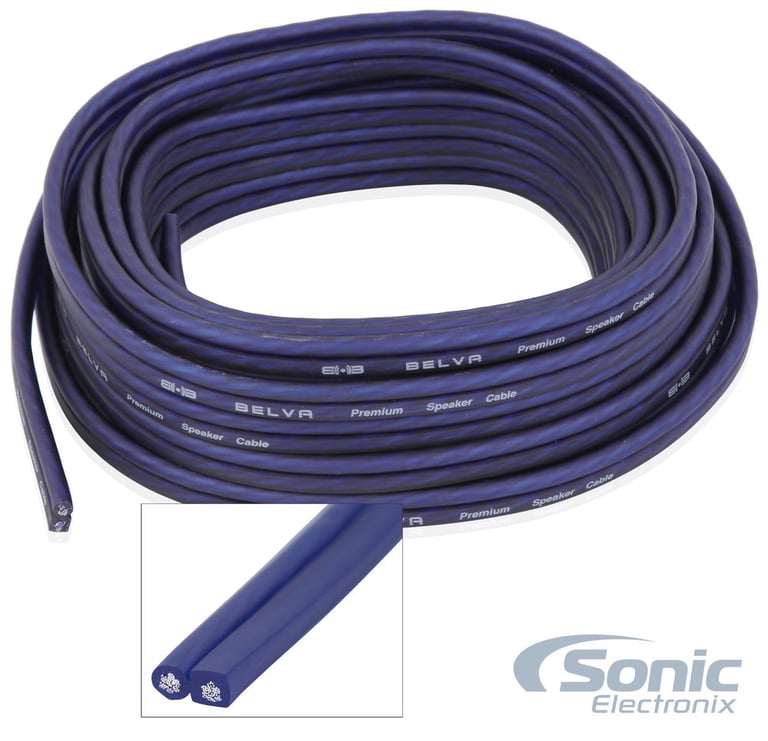

5. 20 ft. (6.1 meters) Speaker cable
6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

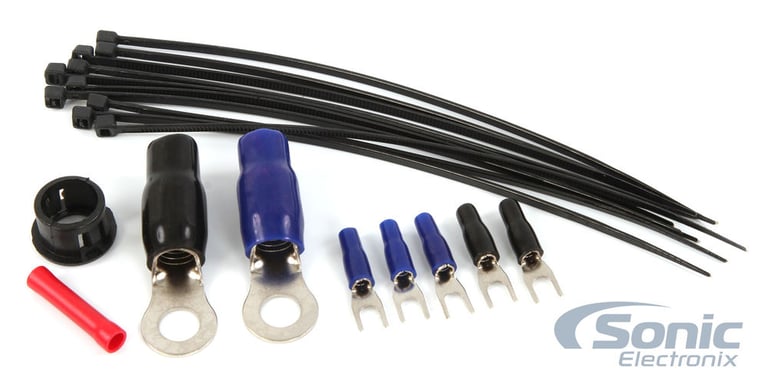

7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
