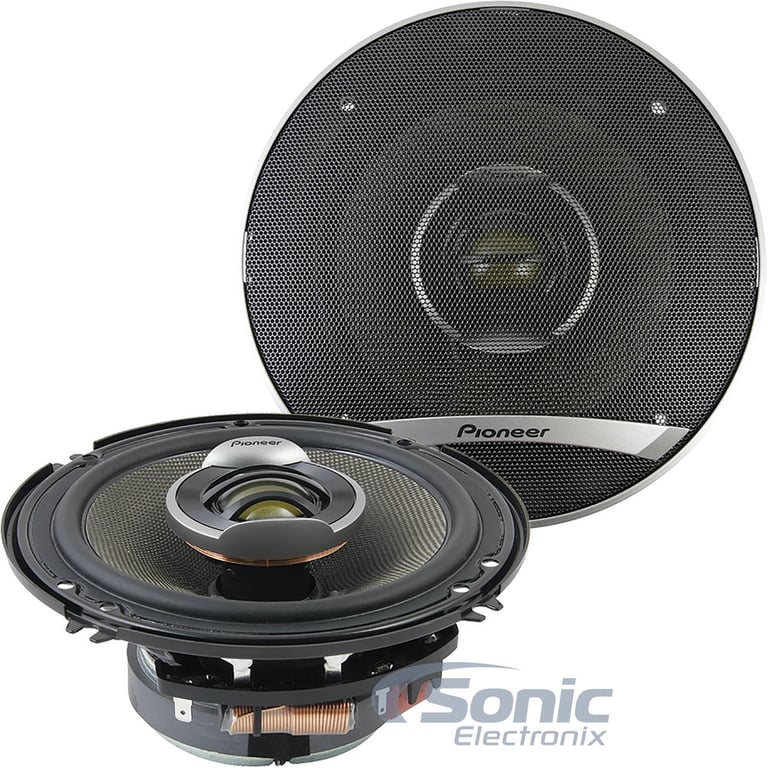

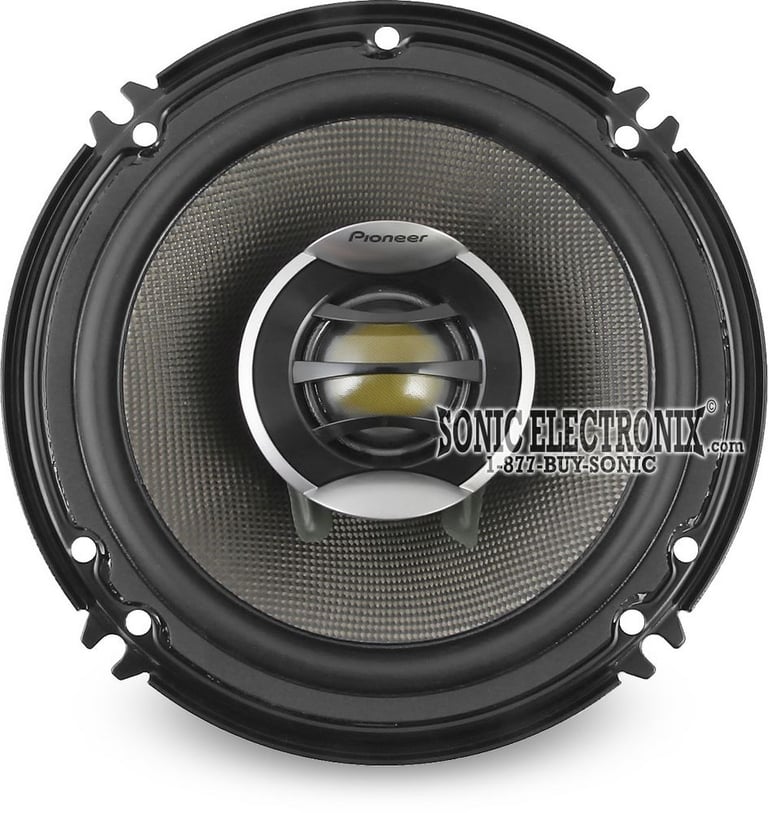

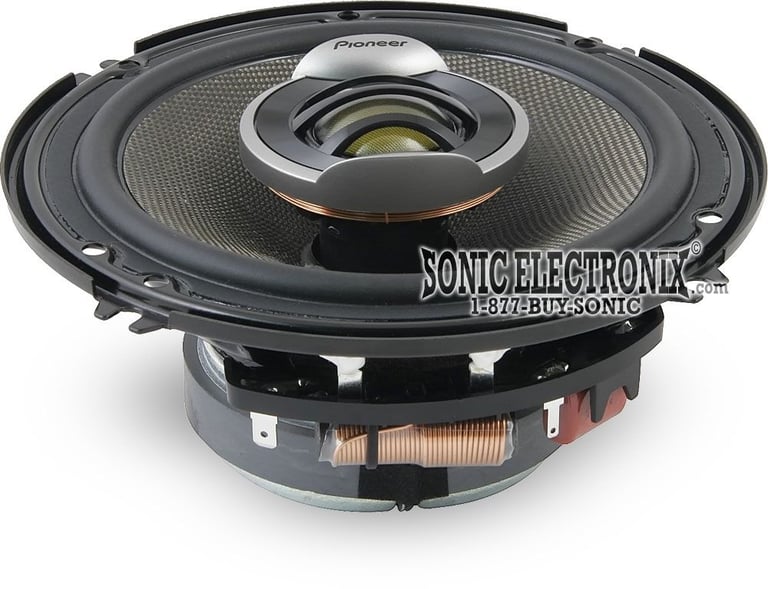

Pioneer TS-D1602R

120W 6.5" 2-Way D-Series Coaxial Speakers w/ PEI Tweeters

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Peak Power: 520W
• RMS Power: 120W
• 1-1/8" Soft Dome Tweeters with Magnetic Fluid and Neodymium Magnet
• Mounting Depth: 2-3/8"
• Injection Molded Matrix Aramid-Basalt Fiber Composite Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 88dB

Learn more about the tsd1602r

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

MET-CH14 main

Metra MET-CH14

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in

-10.38%

$94.99

List price $105.99

SOOCR-26 main

CRUX SOOCR-26 Wiring Interface

Install a New Car Stereo and Retain Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-35.71%

$75.60

List price $117.60

95-6556G main

Metra 95-6556G Dash Kit

Install a new Double-DIN car stereo in select 2006-2007 Commander

1
-41.56%

$44.99

List price $76.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

Product Highlights


• Peak Power: 520W
• RMS Power: 120W
• 1-1/8" Soft Dome Tweeters with Magnetic Fluid and Neodymium Magnet
• Mounting Depth: 2-3/8"
• Injection Molded Matrix Aramid-Basalt Fiber Composite Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 88dB

Description


Pioneer brand icon

Authorized dealer



General Features

  • 6-1/2" D-Series Car Speakers
  • Power Handling:
    • Peak: 520 watts per pair / 260 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Recommended power range: 15 - 70 watts RMS per channel
  • Injection molded matrix aramid-basalt fiber composite cone woofer
  • Butyl rubber surround
  • 1-1/8" Soft dome with magnetic fluid and neodymium magnet
  • Rear chamber tweeter structure
  • Full depth basket design for fuller bass response
  • Dispersion control wave guides
  • Compatible for mounting on GM 6-1/2" installation

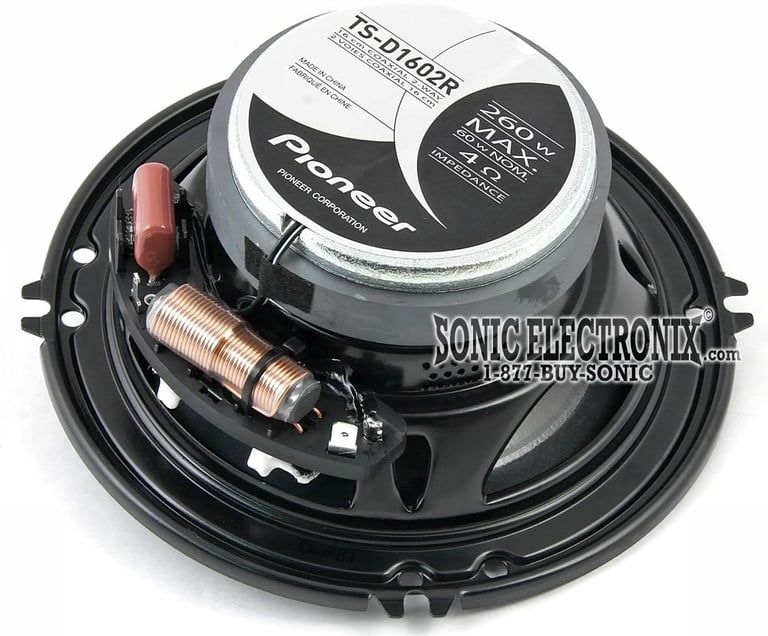

  • Built-in 12 dB/octave low/high pass crossover
  • Glass-imide voice coil bobbin
  • Conex damper

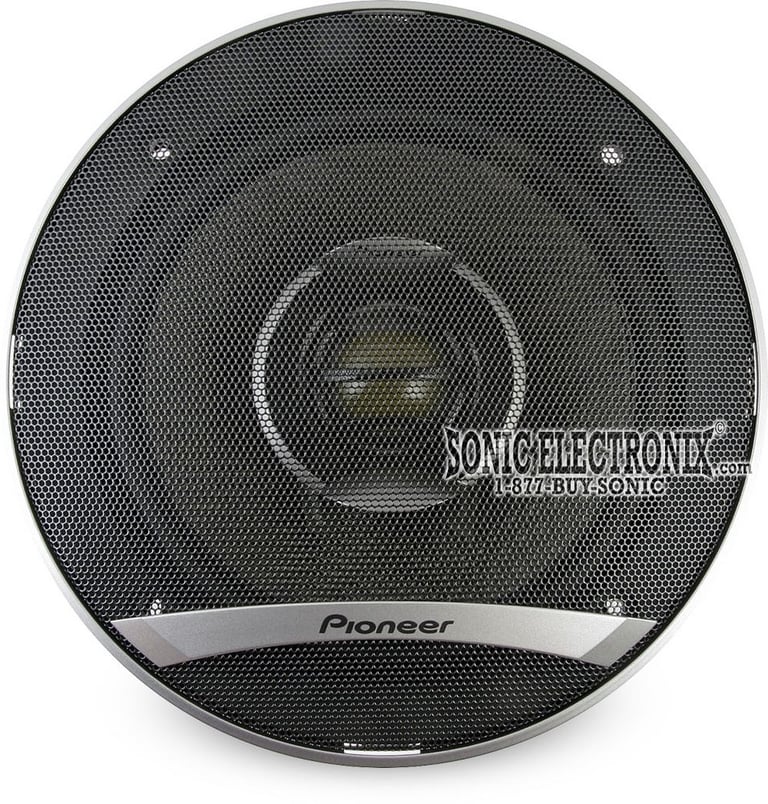

  • Includes speaker grilles
  • Voice coil size and type (if listed)
  • Nominal impedance: 4 ohm
  • Top-mount depth: 2-3/8"
  • 1-year SonicElectronix.com warranty

Priced Per Pair

Product history:

Pioneer TS-D1602R thumbnail
(newest, current model)
Pioneer TS-D161R thumbnail
(previous model, replaced by Pioneer TS-D1602R)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00


Best selling similar products

46CSC654 small

Kicker CSC65 (46CSC654)

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(123)

$79.96

List price $119.99

Club 622 small

JBL Club 622

• 180 watts Peak Each, 60 watts RMS Each
• Silk Edge Driven Dome tweeters with 0dB or -3dB adjustable output levels
• UV-Resistant Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 93 dB

(5)

$99.95

List price $139.95

43DSC6504 small

Kicker DSC650 (43DSC6504)

• 240 watts Peak Each, 60 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome zero-protrusion tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(28)

$84.99

List price $94.99

Specifications & Details


Speaker Specifications
Series
D-Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6-1/2"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Injection Molded Polypropylene with Aramid Fiber Composite
Woofer Surround
Butyl Rubber
Peak Power Handling
260 watts
RMS Power Handling
60 watts
Sensitivity
88 dB
Frequency Response
35 - 32000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-3/8"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-D1602R

Weight:

6.00lbs

Internal SKU:

tsd1602r

Internal Product ID:

11269

Product and How-to Videos


  • Replace your Car Speakers and Upgrade to Better Sound | Sonic Electronix
  • How To Test Speaker Polarity | Tips & Demo | Car Audio 101

Customer Ratings & Reviews


Pioneer TS-D1602R thumbnail image

5 star
86%
4 star
11%
3 star
0%
2 star
0%
1 star
3%



Durability
4.8
Value
4.8
Features
4.6
Design
4.9
Usability
4.8

Customer Reviews

Sort by:

Loading...

Audiophile Qualities

Needed to replace 4x 6.5" speakers in my Jaguar XK8 ..., I did choose the TS-D series since in mho they are engineered also with a great emphasis on acoustic music, like classic and jazz ..., telltale sign is the soft domes which is very similar to ones used in high end home system speakers, better performance is also insured by use of 12dB high pass & 6 dB low pass filters for the tweeter/woofer and that with a very decent quality of capacitors and coils ..., so sound quality is no wonder matching the build quality .., the upper highs of the tweeter are a little dull which is what can expected form the seize of 1.1/8" soft dome.., the woofer are excellent all the way down to 80Hz ..., pretty much a perfect unit for use with subwoofer(s) & a pair of dash mounted super tweeters

By JagOwner on November 9, 2013

55 found this helpful


Excellent Choice

Added to the rear doors of 2011 Kia Sportage. These are massive, well built speakers with tweeters that work great off axis. (one of the criteria for me due to the position of the speakers in the doors) Very good sound, doors needed a masive amount of deadening, but the result is worth the trouble. Get 'em while you can.

By Mike on May 16, 2011

51 found this helpful


Best 6.5" Speakers Ever Produced

These speakers first of all, rock. The sound is great. I have had these speakers for 4 years. They have outlived 1 car, a pair of 6.5" Sony speakers, a set of 6.5" Kickers, and 2 amps. Best car audio purchase ever.

By Rob on May 2, 2011

50 found this helpful


Good for the money

These speakers are not 6-1/2" speakers. They have a rather large frame so the actual speaker comes out be about an inch shorter than your average 6-1/2". Aside from that these things have super clear highs and mids and can handle most bass (if u have them properly amped u wont here any thumping but it will sound clear). Good buy if you are replacing stock speakers in the door.

By ClarityNotInsanity on January 9, 2012

50 found this helpful


Good Value

Great speakers. These speakers fit for the back of the 2011 Subaru Forester however not the front (depth hits window). I used the Clarion SRG1621R for the front.

By Carlito on June 14, 2012

46 found this helpful


Great Sounding Speaker

i order these speakes about six months ago i absolutely love them. They sound great, i have them hooked up to my aftermarket HU. They put off 80 watts per channel, they sound great on it, a must buy.

By Michael on August 16, 2013

44 found this helpful


Great Speakers

What a nice pair of speakers! Can't get them to distort. Also purchased a pair of Pioneer TD D100ZR and they sound great together!

By Jose on December 26, 2011

45 found this helpful


awesome speakers

Installed this speakers in my truck what difference it made. Love the sound. Recommend them highly. You will also enjoy them.

By C-los M on September 19, 2011

45 found this helpful


awesome

Just an all round great speaker. I've got bairly any bass running through them, but with a high pass filter these things have awesome clarity and great depth.

By Daniel on May 5, 2011

45 found this helpful


Great buy!!

Awsome item, great price

By Stephen on March 10, 2011

45 found this helpful
