Infinity 750 Watt Complete Car Audio Package with Bluetooth Amplifier

General Features

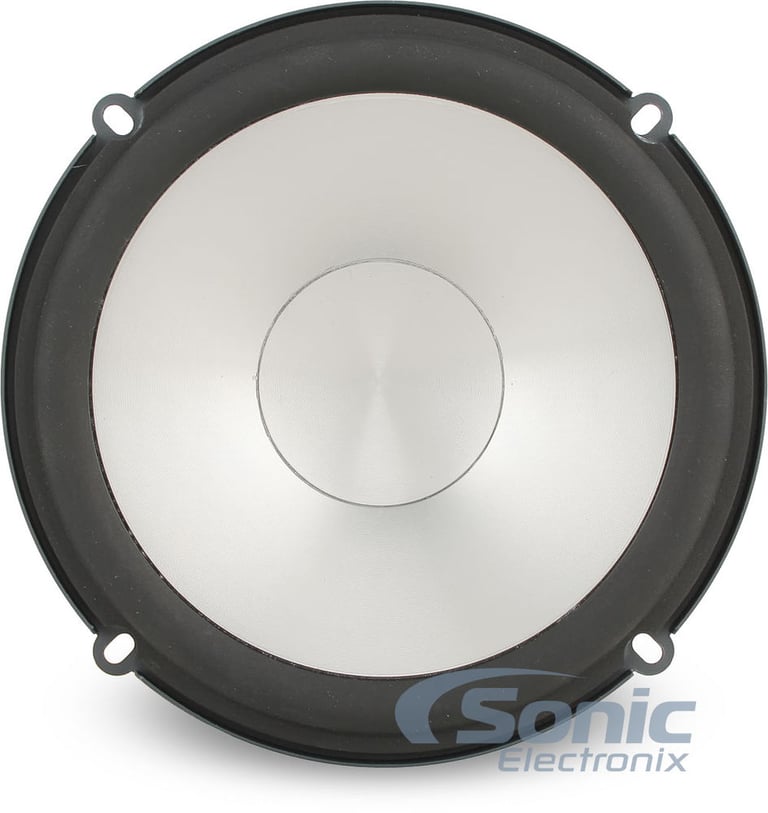

• 6-1/2" 2-way Reference Series Component System
• Power Handling:
• Peak: 540 watts per set / 270 watts each side
• RMS: 180 watts per set / 90 watts each side
• Recommended Power Range: 10 - 150 watts RMS per channel
• Nominal Impedance: 2 ohm
• 1" Edge-driven textile dome tweeter
• Plus One+ woofer cone design offers greater bass output and increased efficiency
• Injection-molded polypropylene cone woofer
• Hi-Roll rubber surround
• Selectable tweeter output level: 0 / +3 dB
• 2-way external crossover network (18 dB/octave, 3,500 Hz crossover point)
• Starfish mounting brackets for easy tweeter installation included
• True Four Ohm Technology - speaker's 2 ohm impedance combines with OEM speaker wire impedance for a 4 ohm load. Aftermarket speaker wire greater than 18 gauge will gain natural 2 ohm load.
• Top-mount Depth (woofer): 2-1/16"
• Cutout Dimensions (woofer: 5"
• Top-mount Depth (tweeter): ~7/8"
• Cutout Dimensions (tweeter): 1-13/16"
• Frequency Response: 53 - 21,000 Hz
• Sensitivity: 93dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• Also Found As: Reference X REF-6500cfx

General Features

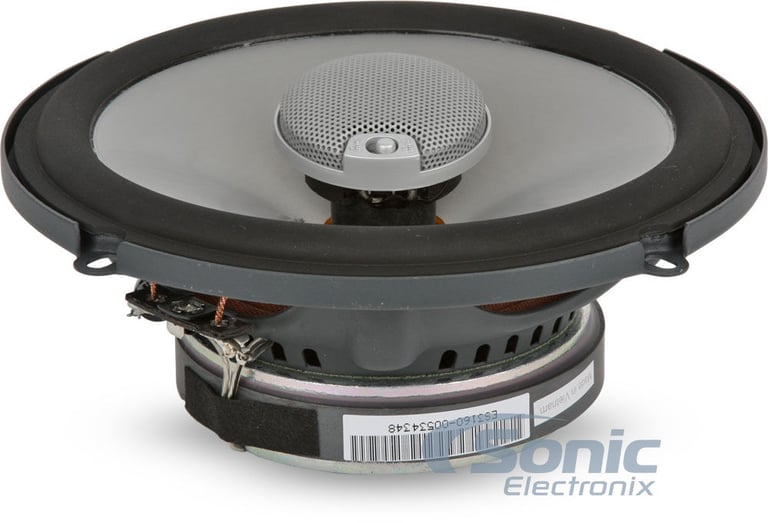

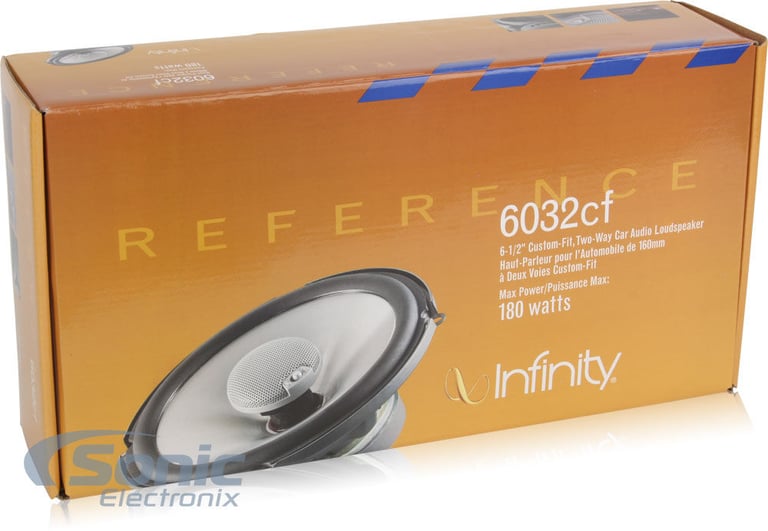

• 6-1/2" (and 6-3/4" locations) Reference Series 2-way Car Speakers
• Power Handling:
• Peak: 360 watts per pair / 180 watts each
• RMS: 120 watts per pair / 60 watts each
• Recommended Power Range: 10 - 100 watts RMS per channel
• Nominal Impedance: 2 ohm
• Injection-molded polypropylene cone woofer
• Hi-Roll rubber surround
• Plus One+ woofer cone design offers greater bass output and increased efficiency

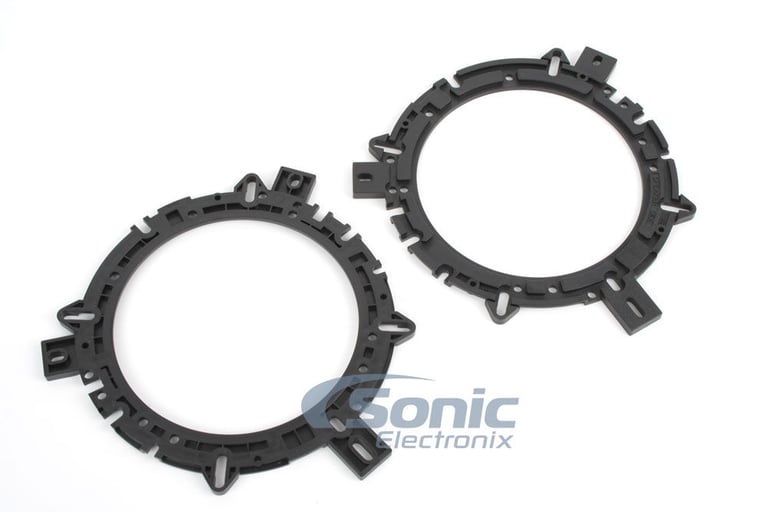

• Intermount III mounting system for a perfect fit in 6-3/4" openings
• 1" Edge-driven textile dome tweeter
• Unipivot allows the tweeter to be pointed at the listeners location even when the speaker is mounted off axis. This optimizes the stereo image and ensures a more uniform response
• Tweeter level adjustment (0 dB, 3 dB)
• Starfish mounting brackets for easy tweeter installation included
• True Four Ohm Technology - speaker's 2 ohm impedance combines with OEM speaker wire impedance for a 4 ohm load. Aftermarket speaker wire greater than 18 gauge will gain natural 2 ohm load.
• Top-mount Depth: 2-1/8"
• Cutout Dimensions: 5-3/8"
• Frequency Response: 53 - 21,000 Hz
• Sensitivity: 93dB
• No Grilles Included
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features:

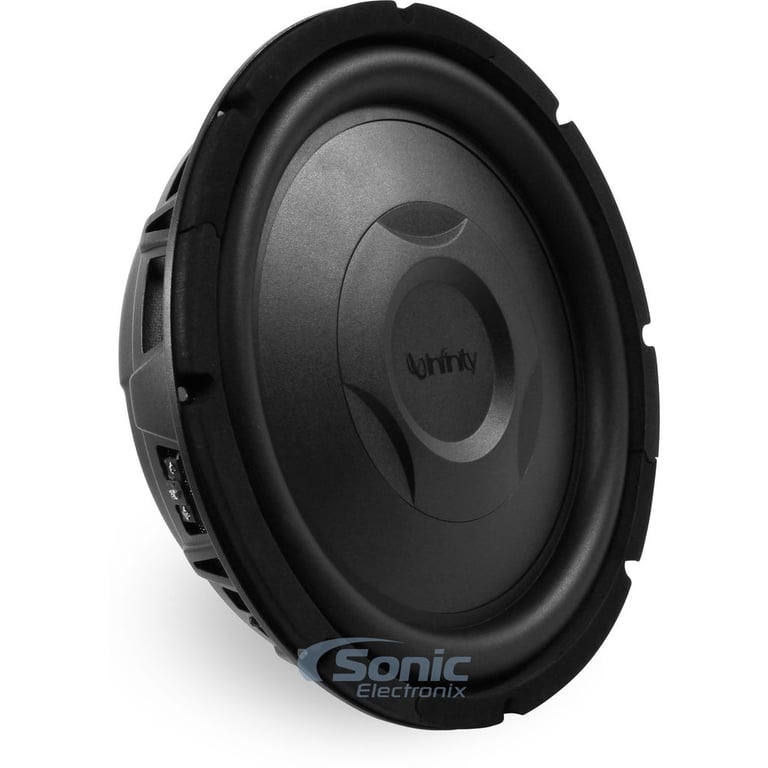

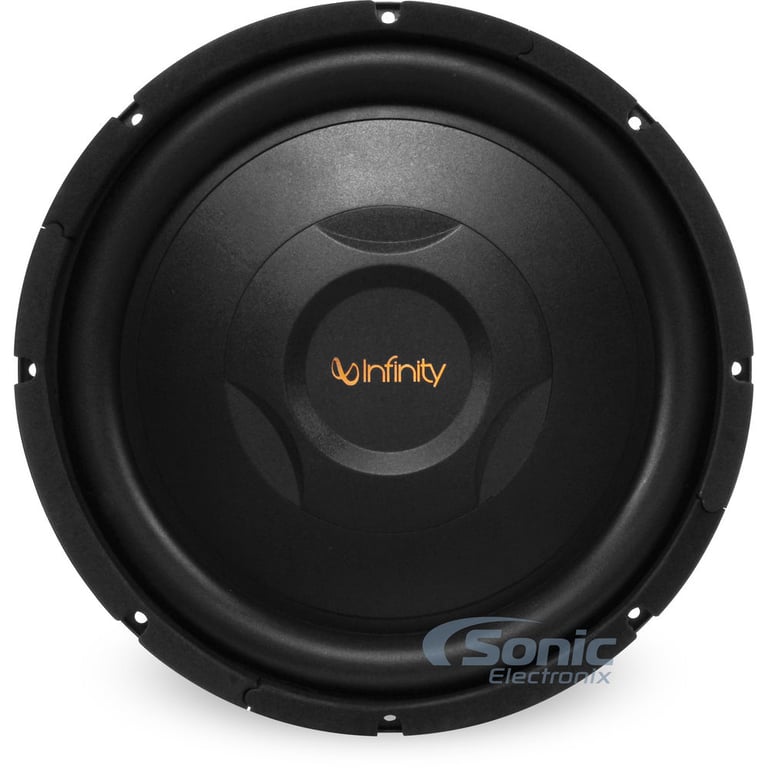

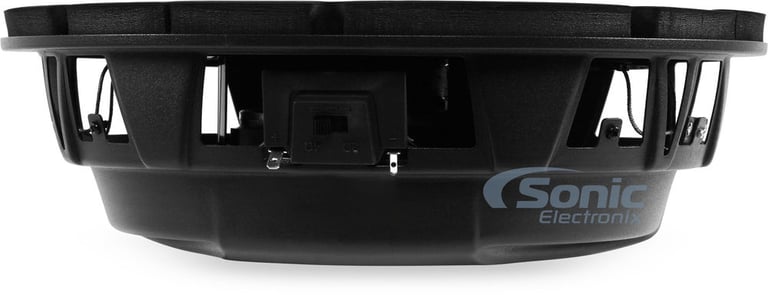

• 12" Reference Series Shallow Mount Single Voice Coil Selectable Smart Impedance™ Subwoofer
• Power Handling:
• Peak: 1000 watts
• RMS: 250 watts
• Polypropylene Cone
• Rubber Surround
• 2" Single Voice Coil
• Impedance: 2 or 4 ohm (Selectable)
• Top-mount depth: 3.25"
• Overall Diameter: 12.25"
• Cutout Diameter: 11.125"
• Frequency Response: 27 - 175 Hz
• Sensitivity: 92 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Check out the Infinity REF1200S Owner's Manual

• 12" Single Sealed Ultra Slim Series Subwoofer Enclosure
• High power handling
• Designed and engineered to maximize specific subwoofers
• High performance in tight space applications
• Completely miter and dado end panels
• Premium carpeted finish

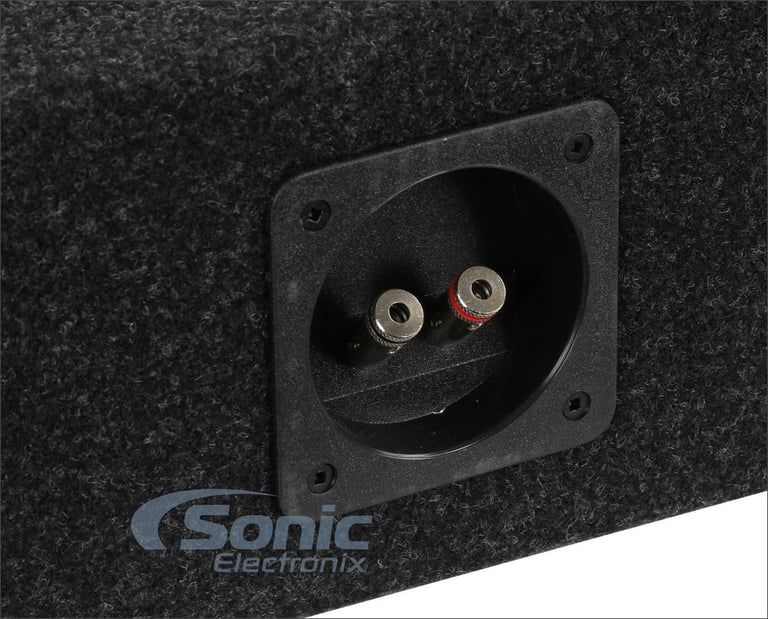

• Silver spring loaded terminal cups
• 3/4" MDF construction
• Glued and braced with fasteners
• Total box volume: 0.62 cubic feet
• Dimensions: 15"D x 24"W x 5"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

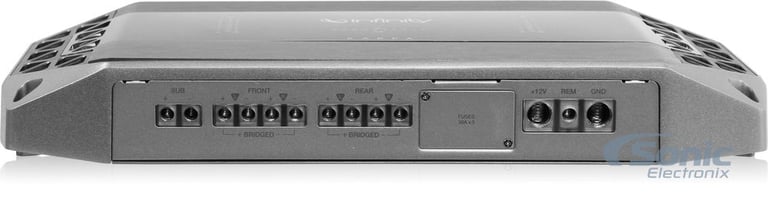

General Features:

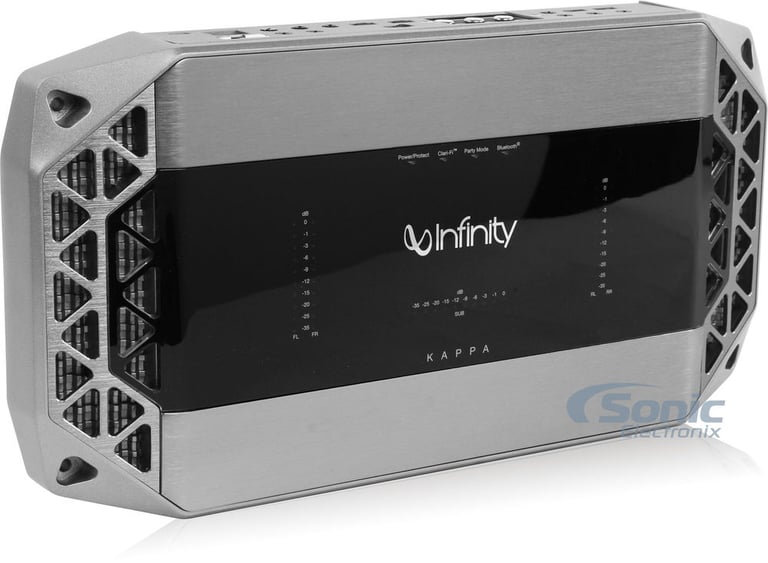

• Infinity Kappa Series K5
• Class-D FullRange 2-Ohm Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 75 watts x 4 chan.
• 2 ohm: 100 watts x 4 chan.
• Bridged, 4 ohm: 200 watts x 2 chan.
• Signal to Noise: >75dB
• Subwoofer Channel:
• 4 ohm: 200 watts x 1 chan.
• 2 ohm: 350 watts x 1 chan.
• Signal to Noise: >80dB
• Total power output: 2300 watts
• Pulse Width Modulated MOSFET power supply
• 4/3/2 or mono channel operation
• Speaker-level (high-level) inputs
• Full range line outputs to daisy chain multiple amps
• Sleek, brushed steel industrial design
• Bluetooth Streaming: wireless audio streaming from phones and other devices. Receive phone calls by touching a button on the control panel. Plays through the car audio system In Party Mode, multi-pairing capability that enables Bluetooth devices to stream audio individually. When Party Mode is selected from the cabin-mounted control panel, anyone in the car can drive the music
• Clari-fi™ Technology: A predictive algorithm that analyzes music files and improves highly compressed digital music files in real time.
• Wired control panel: has an omni-directional microphone and puts functions at your fingertips. Activate Bluetooth pairing, accept/end phone calls, select Party Mode and cancel Clari-Fi™
• ADAS Input: The ADAS input will override the audio signal when connected to Advanced Driver Assistant System (ADAS) accessories for safety.
• Upgradable Firmware via the microUSB port
• 19.09"W x 9.02"D x 4.02"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

What's in the Box

1. Amplifier
2. Cabin-mounted control panel
3. Spare fuses (2)
4. Owner's Manual

Amplifier Kit Features:

• Complete 4 Gauge Amplifier Installation Kit for 5- or 6-Channel Amplifiers
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium power and ground wire provides optimal power transfer
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• Direct-connect engineering
• Fewer connections for less signal distortion
• ANL/mini ANL Fuse holder offers ideal protection for high powered systems
• Envy-Flex cable and wire
• Full spec cable is true to gauge
• Strand Count: 1862
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Kit includes:

1. 20 ft. (6.1 meters) Frosted Blue 4 gauge main power wire with seamless crimp ring terminal and 6 ft. expandable sleeving
2. 3 ft. (.91 meters) Frosted Gray 4 gauge main ground wire with seamless crimp ring terminal

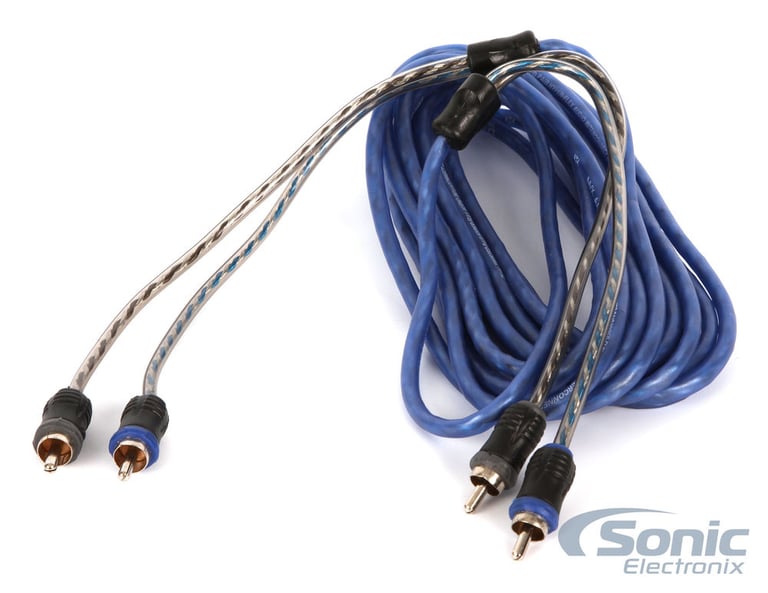

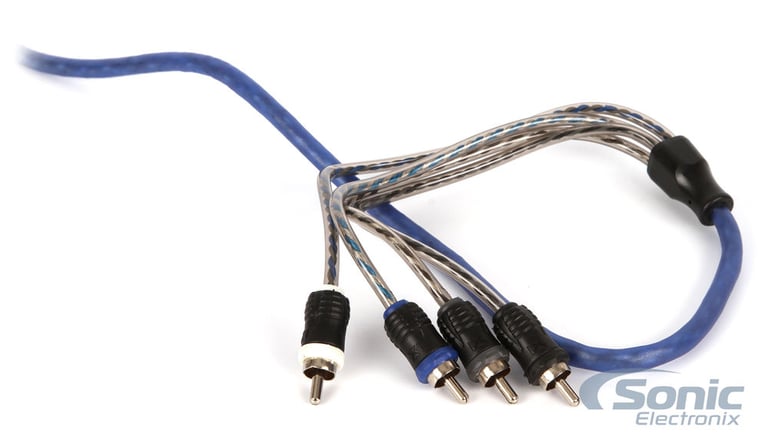

3. 2 Sets of RCAs Included: One 16 ft. (5 meters) 4-channel (NVX XIV45) and One 16 ft. (5 meter) 2-Channel (NVX XIV25) twisted construction RCA interconnect Cable
4. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

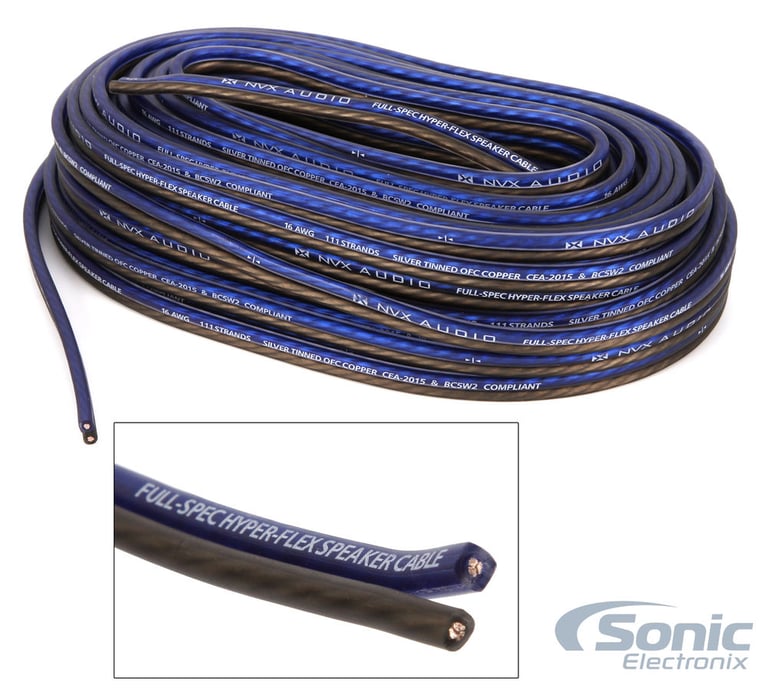

5. 60 ft. Total (18.29 meters) of Frosted Black/Blue 16 gauge speaker wire

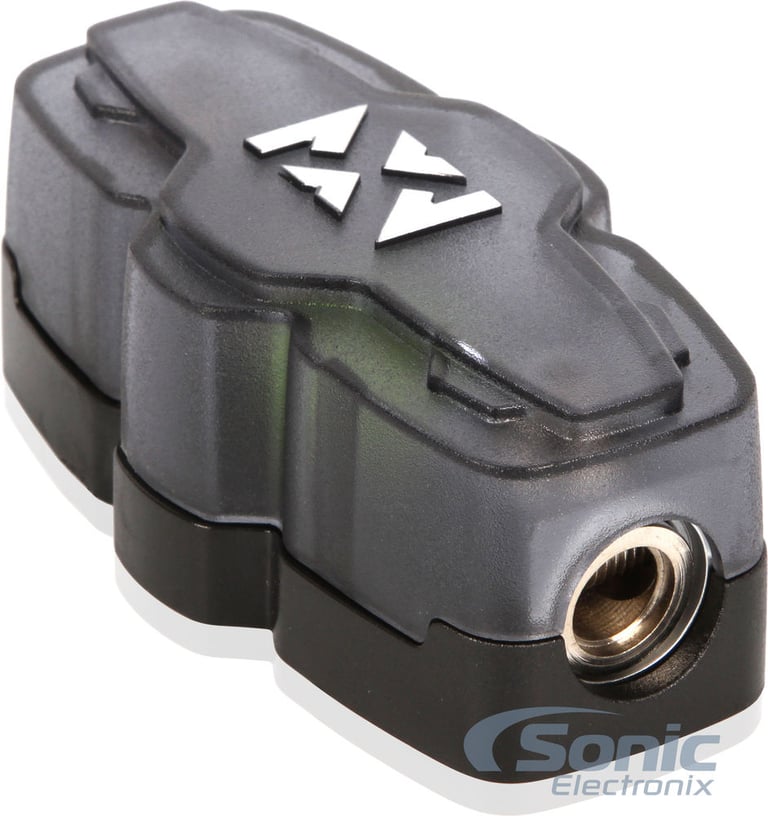

6. One NVX XMANL04 ANL/Mini-ANL fuse holder with 100 amp Mini-ANL fuse
7. One 1/2" black rubber firewall grommet
8. Two black 4 gauge nickel-plated spade terminals
9. Three blue 16 gauge spade lugs
10. Four 16 gauge quick disconnects
11. Two black 16 gauge spade terminal
12. Two 18 gauge red butt connector
13. Ten 6" black zip ties
