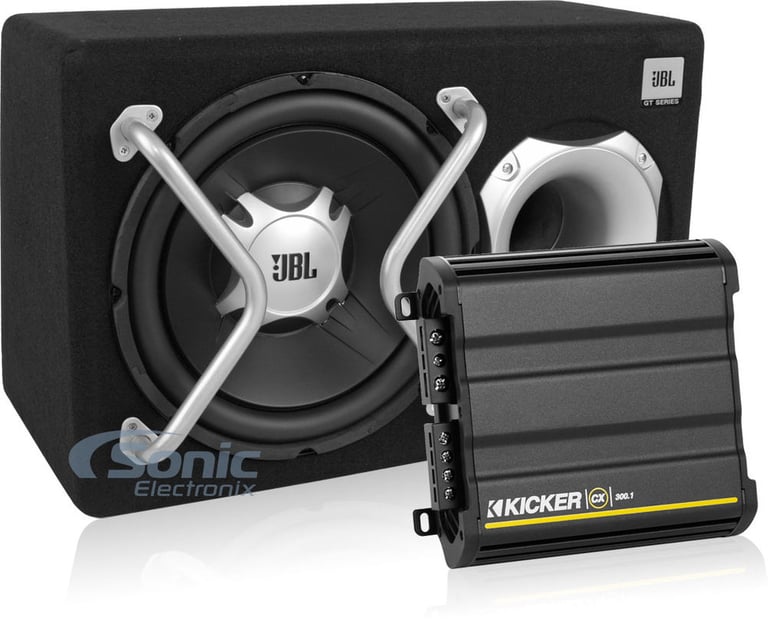

600 Watt JBL and Kicker 12" Ported Bass Package

1100 Watts Peak Single 12" GT Series Bass-Reflex Subwoofer Enclosure + 600W Max CX Series Class D Monoblock Amplifier

JBL
Shop all JBL
EXCLUSIVE
highlight-star-icon

• JBL Loaded Tuned Slipstream Ported Enclosure
• 12" Single GT Series Subwoofer
• 275 Watts RMS
• 1100 Peak RMS
• 2 Ohm Final Impedance
• RMS: 150W x 1 @ 4 ohm, 300W x 1 @ 2 ohm
• Total Peak Power: 600W
• CEA-2006 Compliant
• Bass Boost 0-12 dB at 40 Hz
• Vertical Mounting Option
• Dimensions: 7-3/16"W x 8-1/8"D x 2-3/8"H

Learn more about the gt51202br_12cx3001

We apologize

This item has been discontinued


Loading...
SAVW6 main

Scosche SAVW6

Speaker Adapters for select 1998-2018 vehicles from Volkswagen, Audi

4
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
Limited time!
KFC-1366S main

Kenwood KFC-1366S

520W Peak (60W RMS) 5.25" Sport Series 2 Way Coaxial 4-ohm Car Speakers

3
-38.75%

$49.00

List price $80.00

Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

PR753T main

Infinity Primus 753T (PR753T)

240W Peak (80W RMS) 3/4” Primus Series 3-ohm Edge-Driven Silk Dome Tweeters

1
-30.02%

$69.95

List price $99.95

C1-075ct main

JL Audio C1-075ct

50W RMS 0.75" C1 Series 8-ohm Component Dome Tweeters

5

Description


JBL brand icon

Authorized dealer

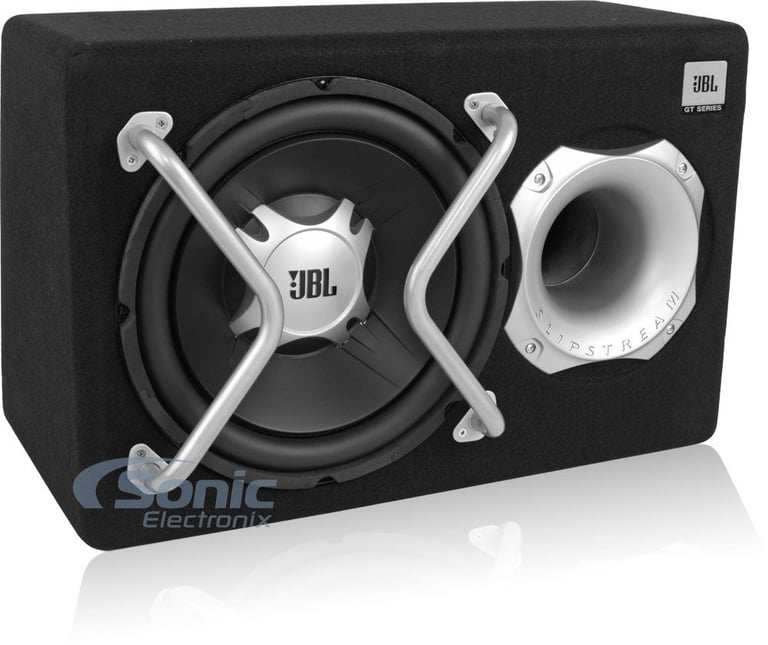

JBL GT5-1202BR

Single 12" GT Series Bass-Reflex Subwoofer Box/Enclosure
Quantity: 1

Subwoofer Features:

  • 12" Single GT Series Subwoofer
  • Power Handling:
    • Peak: 1100 watts
    • RMS: 275 watts
  • Recommended power range: 100 - 300 watts RMS @ 2 ohm
  • Nominal Impedance: 2 ohm
  • Polypropylene cone woofer
  • Rubber surround
  • Rubber coated tinsel leads
  • Vented motor structure
  • Dual-stacked, oversized magnets
  • Sensitivity: 90 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty (subwoofer only)

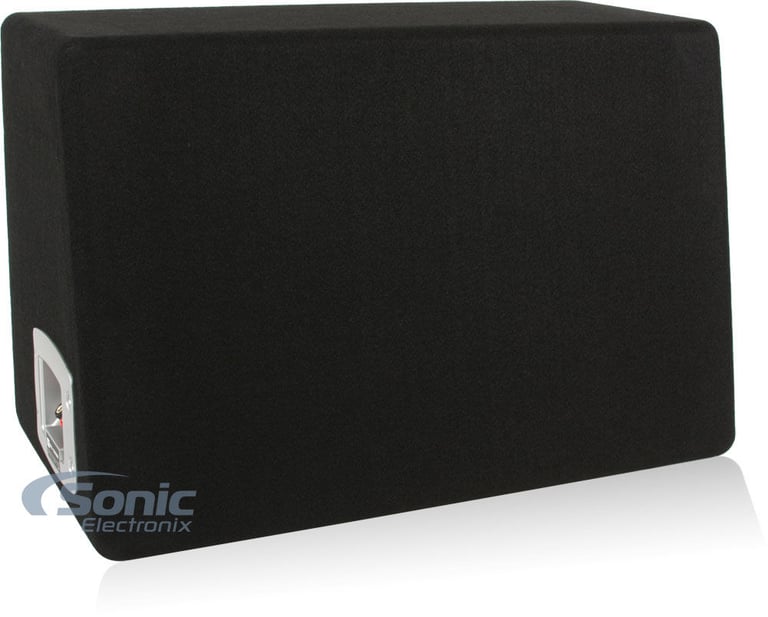

Enclosure Specifications:

  • JBL Tuned Slipstream Ported Enclosure
  • Designed specifically for the JBL GT5-12 subwoofer
  • Tuned to an optimal 45-150 frequency response
  • Recommended power handling: 100-275 watts RMS
  • Wired internally for a final impedance of 2 ohm
  • Covered in black carpet for looks and durability
  • Sturdy grill protects the subwoofer from unnecessary damage

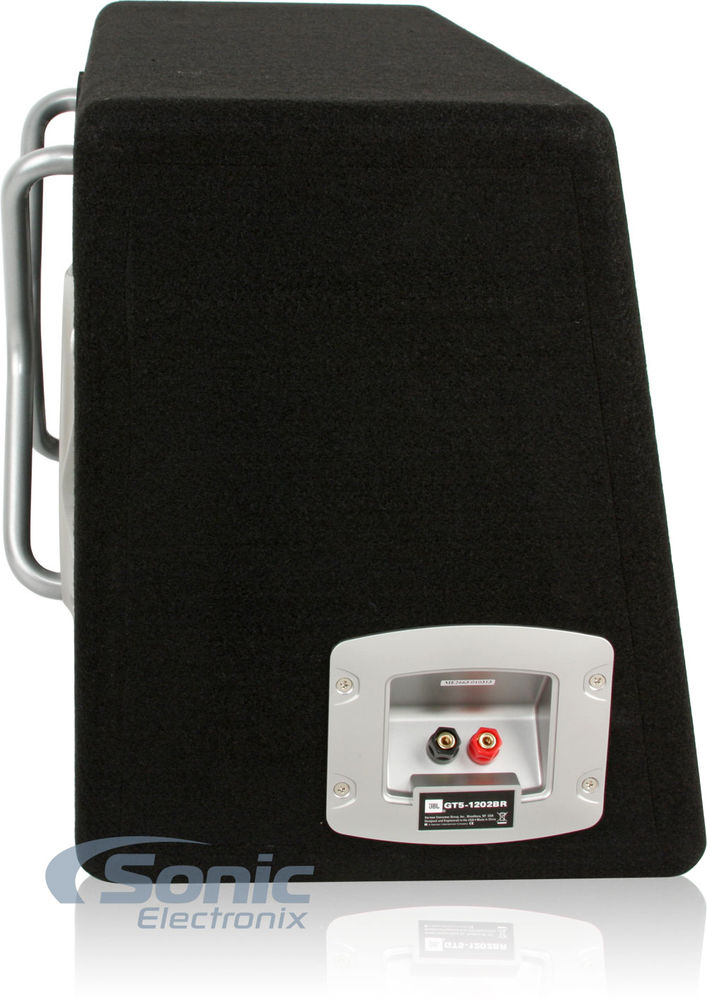

  • Gold plated terminals or excellent connectivity
  • Banana clip ready
  • Made from durable 3/4" MDF (Medium Density Fiberboard
  • Dimensions: 10-15/16"D1 x 14"D2 x 22-5/8"W x 14-9/16"H

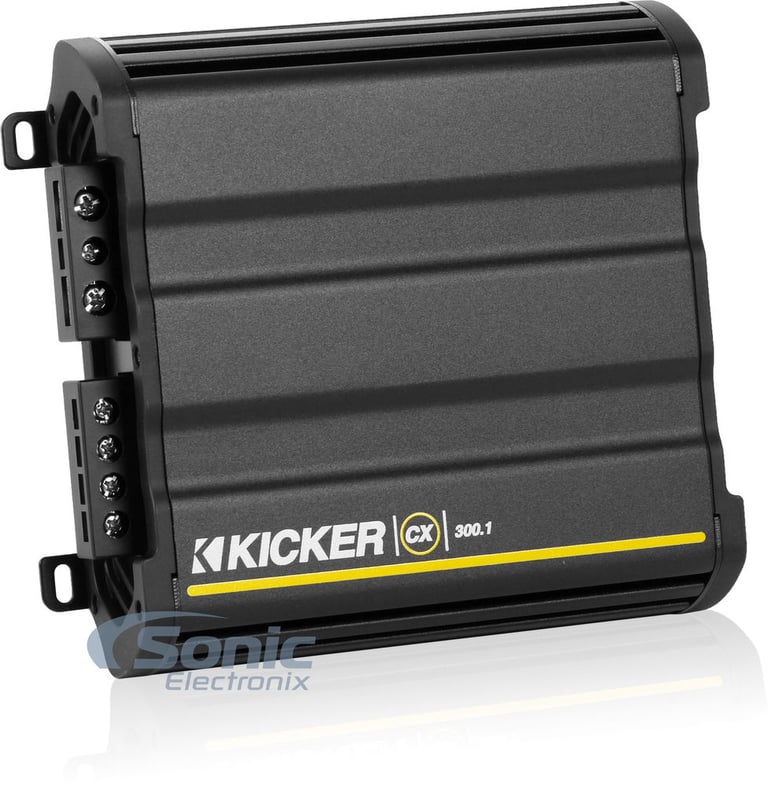

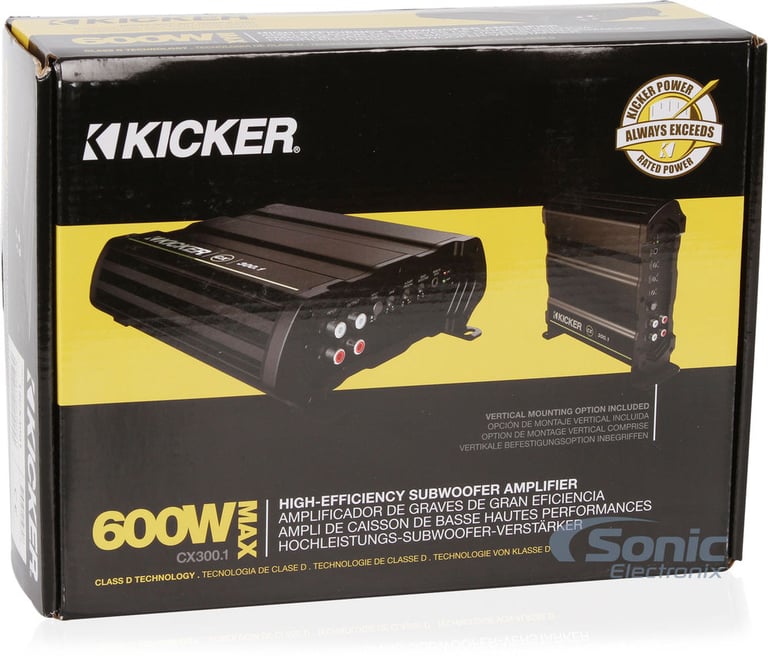

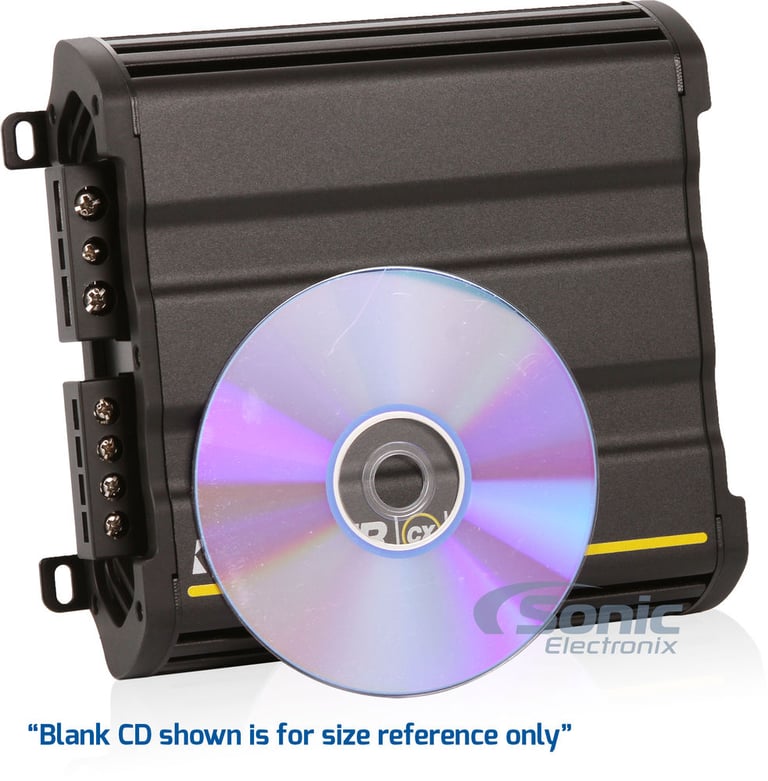

Kicker CX300.1 (12CX300.1)

600W Max CX Series Class D Monoblock Car Amplifier
Quantity: 1

Kicker Always Exceeds Rated Power

General Features:

  • CX Series Single-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
  • Max power output: 600 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

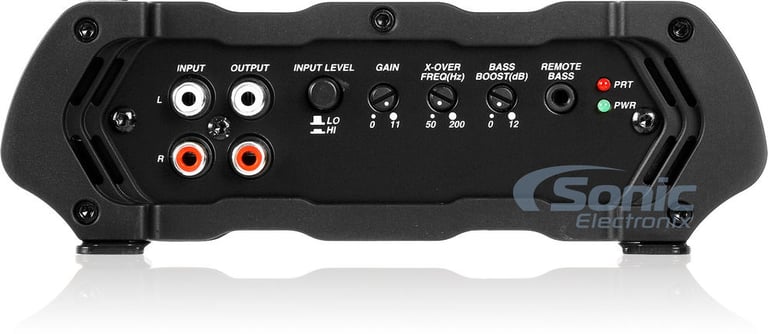

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 40 Hz)
  • Single channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

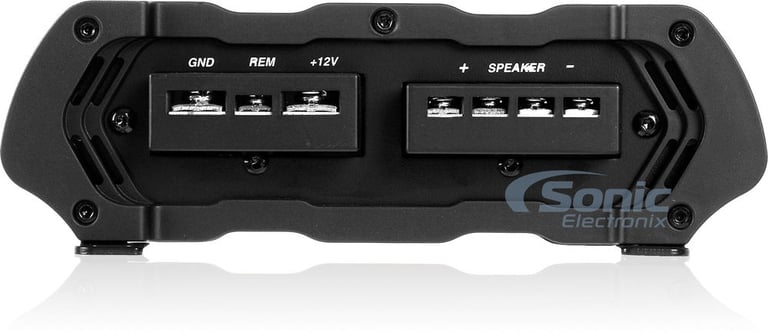

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Options Level Remote available, sold separately: Kicker CXARC
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable low-pass filter (50-200 Hz, 12 dB/octave)
  • Subsonic filter (24 dB at 25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 25-200 Hz
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • KICKER® will provide an additional One-Year Extended Warranty when you purchase a qualifying KICKER® Installation Kit at the time of your KICKER® amplifier purchase.
  • Dimensions: 7-3/16"W x 8-1/8"D x 2-3/8"H
  • Authorized Internet Dealer
  • 2-year Manufacturer's Warranty (extends to 3 years when purchased with a Kicker amp kit)
Also Found As: CX3001, 12-CX3001, 12 CX 3001

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$456.68

List price $593.98

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$279.99

List price $369.98

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$279.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

VSW124V3_NDA15001_XKIT42 small

NVX VSW124v3 + NDA15001 + XKIT42

• Two 12" VSW124v3 VS-Series 600W RMS Subwoofers
• 3000W Peak (1500W RMS) Class D NDA15001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(175)

$569.96

List price $743.96

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Peak Power Output
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
275 watts
Total RMS Power Handling
275 watts
Peak Power Handling
1100 watts
Total Peak Power Handling
1100 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Sensitivity
90 dB
Frequency Response
45 - 150 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
14-9/16"
Width
22-5/8"
Depth
10-15/16"
Second Width
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GT5-1202BR_12CX3001

Weight:

39.60lbs

Internal SKU:

gt51202br_12cx3001

Internal Product ID:

116431

Customer Ratings & Reviews


600 Watt JBL and Kicker 12

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.7
Features
4.5
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Kicker 300 Watt Class D Sub Amp

The following review is for CX300.1, which is a part of the bundle you are viewing.

I have been very pleased, so far, with this amp. The Connectors are of Very Good Quality. The Unit is Small and easy to fit under my Seat. I have not Tuned my System yet, as I need to replace the Factory Speakers and don't want to do it all over again. It is definitely added the Bottom End to my System without any Tweeking. I play my System as loud as I can without causing much Distortion. After driving to or from work, I've touched the Amplifier to see how warm it is. It is Cold. Not Cool, but Cold. I'm running Two 4 Ohm Sub Voice Coils in Parallel for a Two Ohm Load. I am very impressed. The only Negative, if you can call it that, is that my Stereo has only 1 Sub Out, but the Amp has Two Inputs. I had to add a "Y" to feed both Inputs. (Without the "Y", the Amplifier was noticably Lower in Volume.) I am very happy with this purchase.

By Robert on April 25, 2014

62 found this helpful


Quite surprised

The following review is for CX300.1, which is a part of the bundle you are viewing.

This tiny little amp really puts out a good amount of power. As always with kicker it's cleaaaaan. I ended up wanting more watts in the end but this is a very high quality amplifier.

Not the most featured amp but it performs well in tight spaces. Gets warm but not hot.

By Ryan on January 19, 2014

55 found this helpful


big things come in small packages

The following review is for CX300.1, which is a part of the bundle you are viewing.

just as the title states this is bar none the best bang for your buck works perfectly in my pickup.
pros:
just as you would expect from kicker, exactly whatthe description states

cons:
disappointed that it did not com with the remote bass and no kicker stickers

all i all anther great product from kicker and another satsified costumer from sonicelectronix

By justin on April 1, 2014

54 found this helpful


Perfect amp for my subs

The following review is for CX300.1, which is a part of the bundle you are viewing.

Bought this amp with the Kicker 10DC102 subs and they're a perfect match for each other. no over heating whats so ever. great amp.

By Anthony on August 4, 2013

55 found this helpful


Great Amp

The following review is for CX300.1, which is a part of the bundle you are viewing.

It comes exactly as described and performs very very well.

By zFeeTz on April 17, 2015

41 found this helpful


Crazy amp

The following review is for CX300.1, which is a part of the bundle you are viewing.

This amp is best for beginners who get thir first sub. When i got my first set of subs, i used 2 inifinity references 10 inch, and the amp was emitting 300rms, it was still pounding! Worth the price

By Anonymous on March 16, 2015

38 found this helpful


Pretty decent so far...

The following review is for CX300.1, which is a part of the bundle you are viewing.

Installed and paired it with the Polk Audio DXi1201 sub which handles the exact power that this amp puts out. Seems to be perfect mach.

Anyways a little advice: if your head unit has a dedicated sub output and sub controls built in (x-over frequency and gain output) set the gain on this amp to the middle, crossover frequency about 1/3 the way up, and bass boost about a hair up from 0. Use your HU's sub controls to tune it in and save yourself the backache from going back and forth from the amp to the HU trying to tune it in.

By Matthew on December 16, 2015 Checkmark Icon Verified purchase

26 found this helpful


Great bang for your buck!

The following review is for GT5-1202BR, which is a part of the bundle you are viewing.

Purchased this product, and used it with an amp I had laying around for the time being (150w RMS Kenwood) and it absolutely BUMPS! It could be a little more clear, but that's probably because its not getting enough watts. Overall, its a great subwoofer, I would recommend it if you want a better than average sound system.

By illin on April 24, 2012

33 found this helpful


great bass

The following review is for CX300.1, which is a part of the bundle you are viewing.

i used this speaker for my 2010 lexus & its perfect.. I thought this amount of wattage would kill my battery, & it didnt. The deep bass of this speaker is nice & dont be fooled by the size of this small speaker because it produced LOUD bass. I would recommend this to anybody

By javon on January 24, 2016

25 found this helpful


Lil thumper

The following review is for CX300.1, which is a part of the bundle you are viewing.

Ive got this wired to 2 comp 10's in custom made sealed box's for my silverado ext cab and it sounds excellent. Sounds great for a low cost,low watt system.

By Eric on February 12, 2016 Checkmark Icon Verified purchase

24 found this helpful




MP301-2GBLK small

Coby MP301-2GBLK 2GB Micro MP3 Player With LCD Display - Black

2GB Portable Plug & Play MP3/WMA Player w/ LCD Display and Built-in Flash Memory (MP3012G, MP-301 2G)

$18.99

List price $29.99

S2FFFM-257 50/50 (White/Chrome) small

Skullcandy 50/50 S2FFFM-257 (White/Chrome)

Blue & Chrome 50/50 Series In-Ear Headphones Headset with In-Line Remote/Mic

$29.99

List price $49.99

S2FFFM-236 50/50 (Plum/Chrome) small

Skullcandy 50/50 S2FFFM-236 - Plum/Chrome

Plum & Chrome 50/50 Series In-Ear Headphones Headset with In-Line Remote/Mic

$32.95

List price $49.99

No picture

Power Acoustik PT-700MHR R/B

7" Universal TFT-LCD Headrest Monitor with Remote (also works as stand-alone)

$59.99

List price $199.99

MDR-EX34SC/PNK small

Sony MDR-EX34SC/PNK (MDREX34SC) In-Ear Headphones - Pink

9mm EX Inner-Ear Earphones with Passive Speaker Carrying Case

$5.99

List price $29.95

HX-P230RD small

HMDX Audio HX-P230RD JAM Classic (Strawberry Red)

JAM Classic Series Wireless Bluetooth Speaker with Auxiliary Input & Built-in Rechargeable Battery

(5)

$18.99

List price $49.99

MR-550-G small

Jensen MR-550 (Green)

Portable AM/FM Radio Boombox Speaker System

$14.99

List price $29.99

ICON-AMP-SILVER small

NuForce Icon Amp Silver (NF-ICON-AMP-SILVER) Stereo Amplifier

Stereo Amplifier with Two 24W Outputs and RCA

$139.95

List price $189.00

UM1 (Clear) small

Westone UM1 Clear Universal Monitor Series Earphones In-Ear Headphones

Universal-Fit Musician's Monitor Series In-Ear Single Full-Range Balanced Armature Earbuds (79254)

$129.00

List price $165.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2006 Subaru Baja

2016 Audi Q5

2016 BMW M3

2015 Nissan Frontier

1970 Ford Thunderbird

2001 Toyota Sienna

2003 Dodge Durango

2012 Ford Edge

2008 Audi A4

2020 Kia Soul

Vehicle
Store
Delete

2013 Can-Am Commander E LSV

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
