MB Quart MBQBRO-STG6A-1

Product Details:

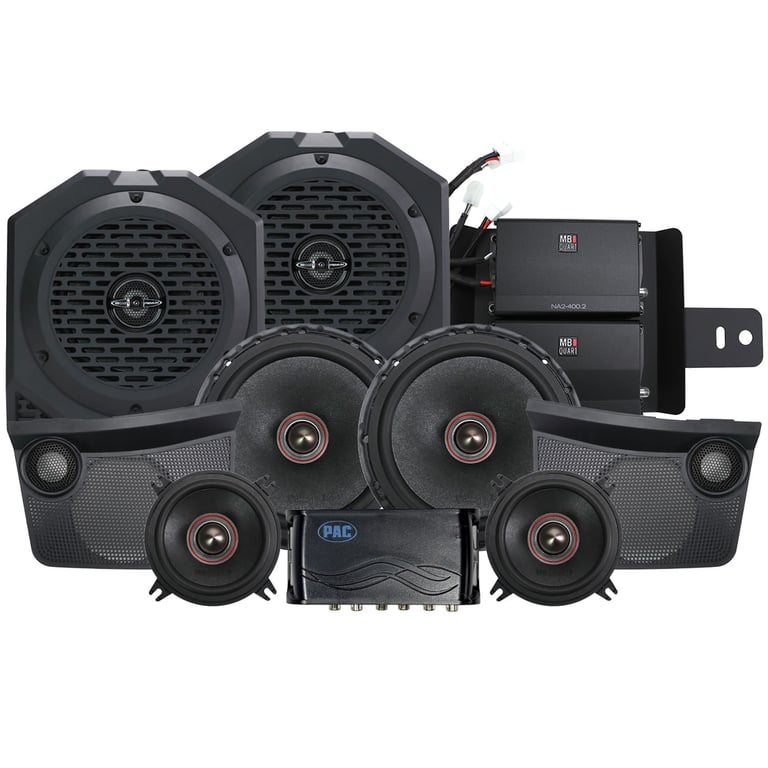

• System includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier

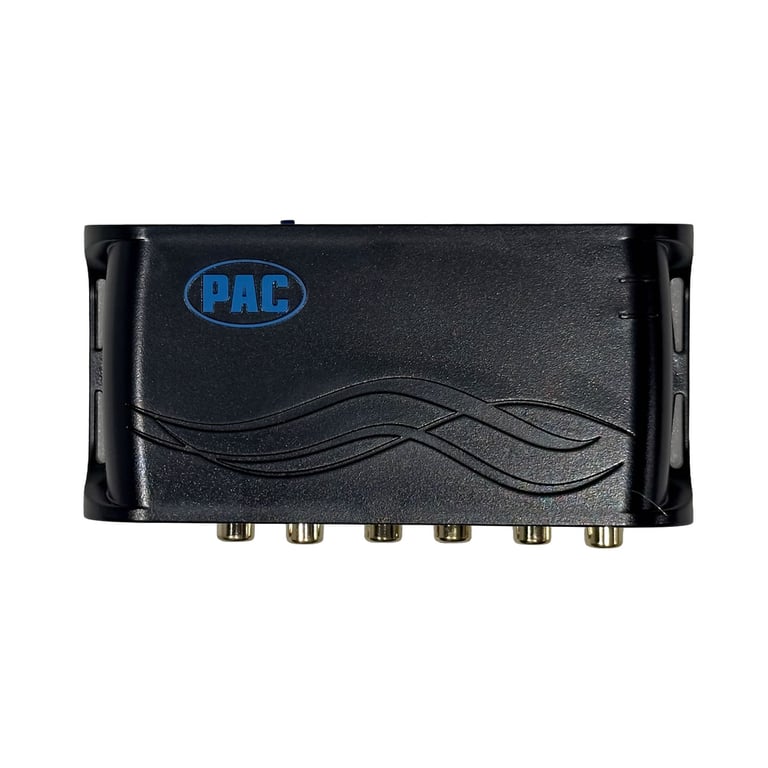

• Includes PAC module for integrating into the OEM B&O audio systems
• Designed for OEM B&O audio systems
• Engineered to match and compliment the factory fit and finish of your vehicle
• Enclosures for speakers integrate with no loss of passenger space
• Plug and Play design for easy installation, no major drilling or cutting required
• Estimated Install Time: 240 Min (4-Hours)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• Compatible with select 2021-2024 Bronco

MB Quart BS1-316 6.5" 3-Way Component Front Speakers

• 6.5" Ford Tuned Series 3-Way Component Speakers
• Power Handling:
• Peak: 400 watts per pair / 200 watts each
• RMS: 200 watts per pair / 100 watts each
• Lightweight pop paper with mica blend cone material
• Durable rubber speaker surround material
• 1" Magnesium dome tweeters for non-fatiguing high frequencies
• True 3-way design with two 6.5" midbass drivers and two 4" midbass drivers

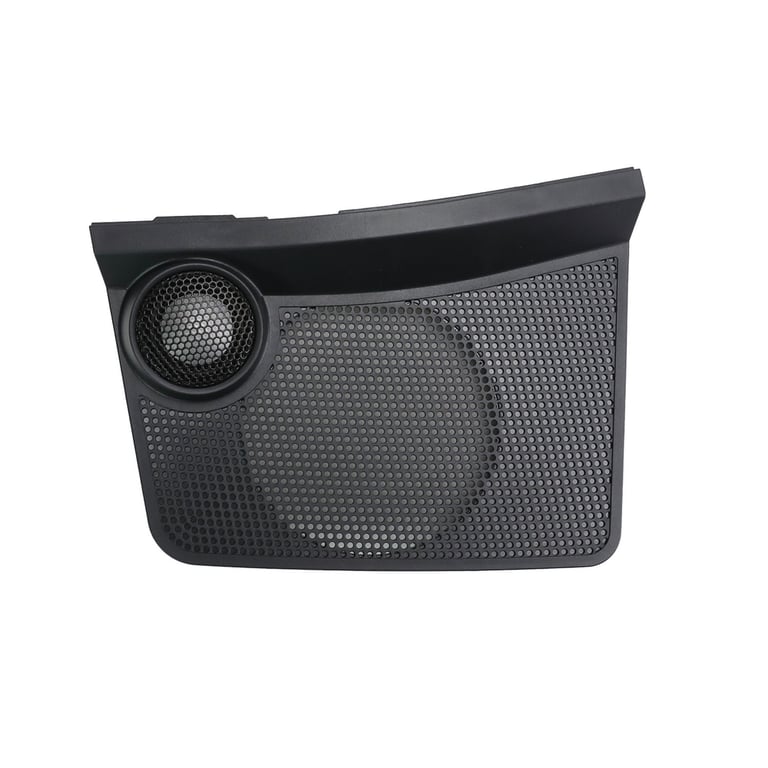

• Dash panel speaker grille with built-in tweeter mounting

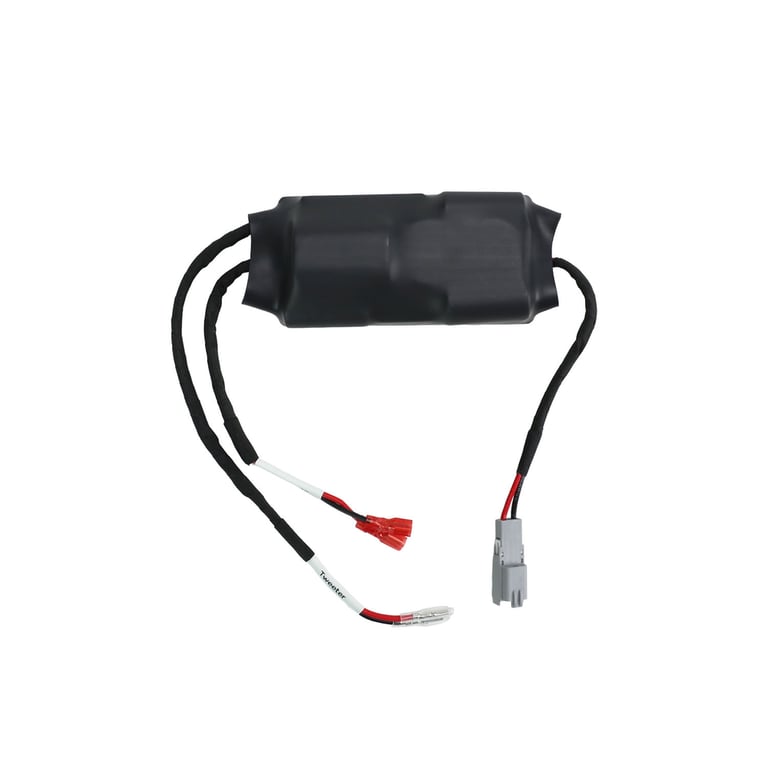

• Dash speaker crossovers and kickpanel crossovers for optimal frequency

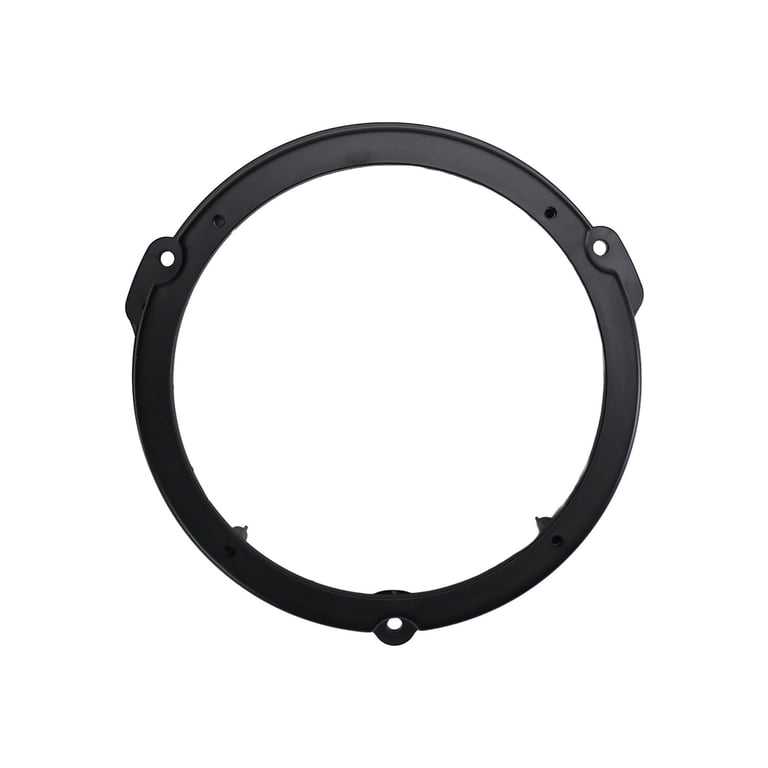

• Comes complete with all necessary mounting hardware
• Impedance: 4-ohm
• Frequency Response: 20 - 22000 Hz
• Sensitivity: 85.5dB
• MFR #: BS1-316

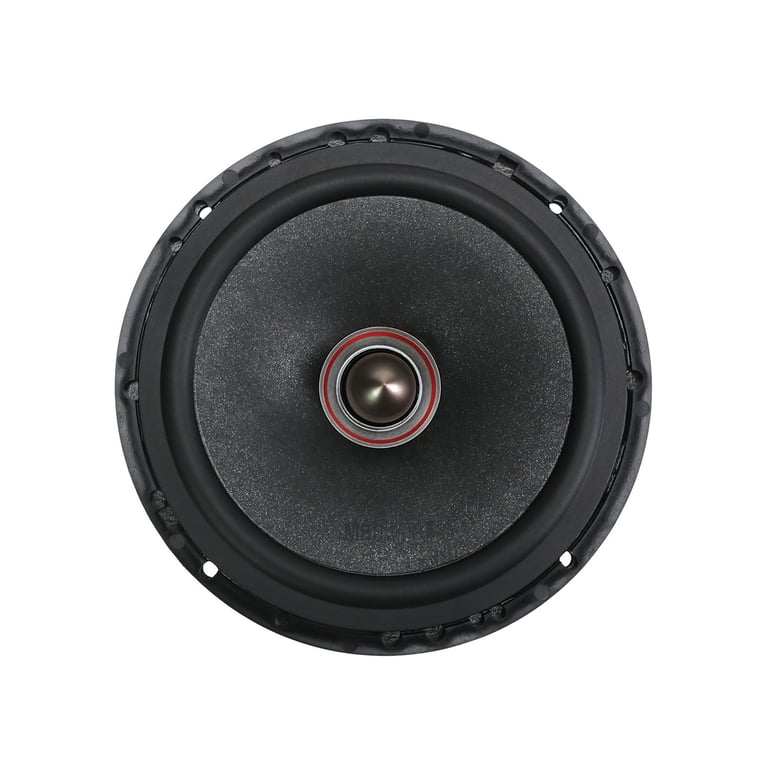

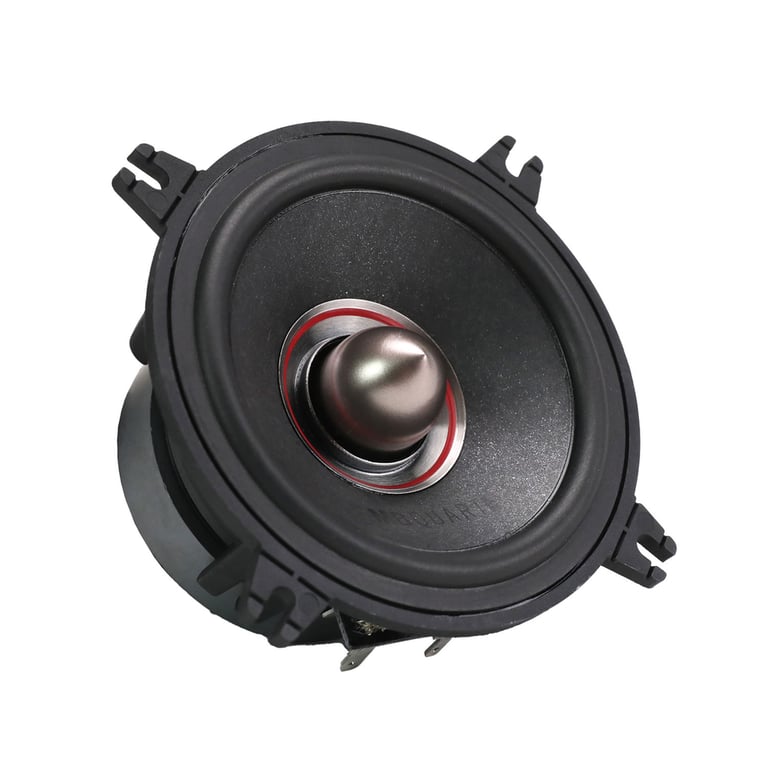

MB Quart BC1-116 6.5" 2-Way Coaxial Rear Speakers

• 6.5" Ford Tuned Series 2-Way Coaxial Speakers
• Power Handling:
• Peak: 220 watts per pair / 110 watts each
• RMS: 110 watts per pair / 55 watts each
• Lightweight pop paper with mica blend cone material
• Durable rubber speaker surround material

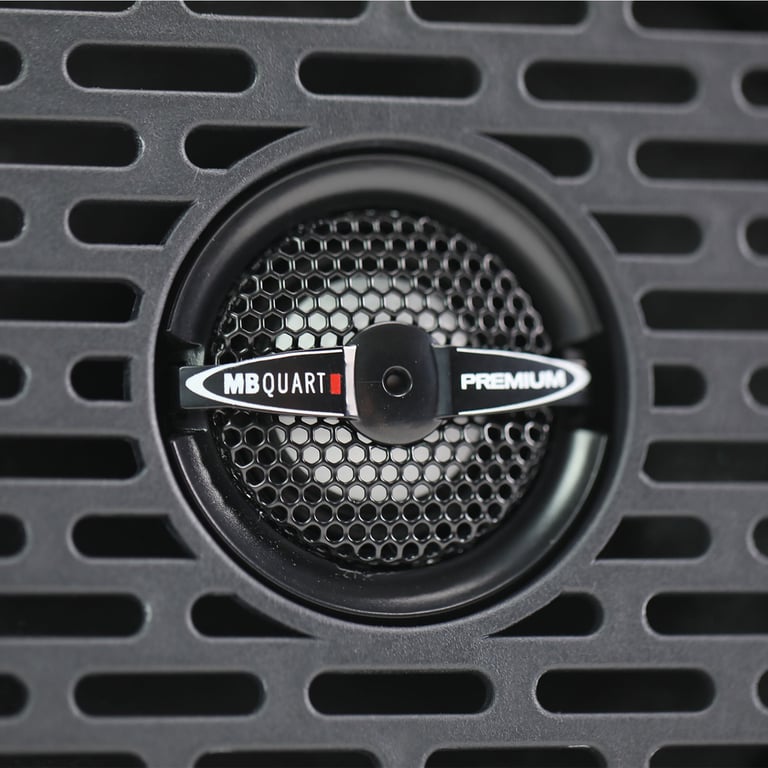

• 1" Magnesium dome tweeters for non-fatiguing high frequencies
• WideSphere tweeter technology for higher frequency
• Utilizes a 12dB external crossover network

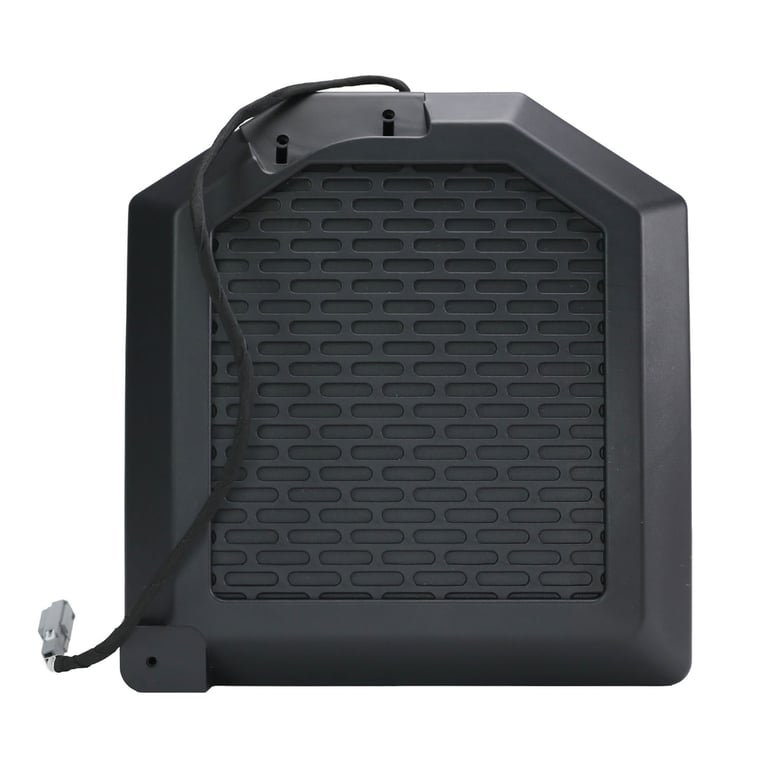

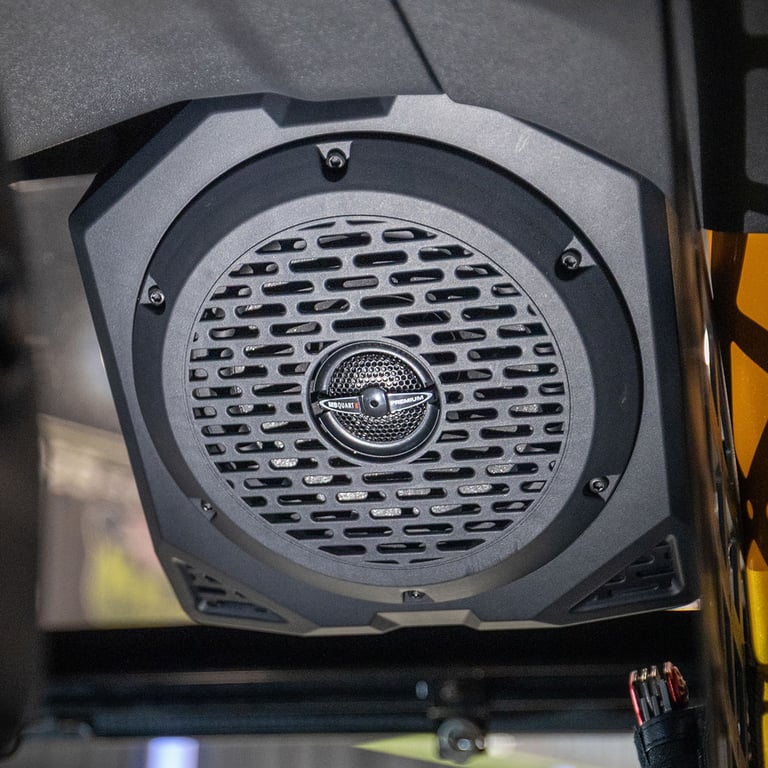

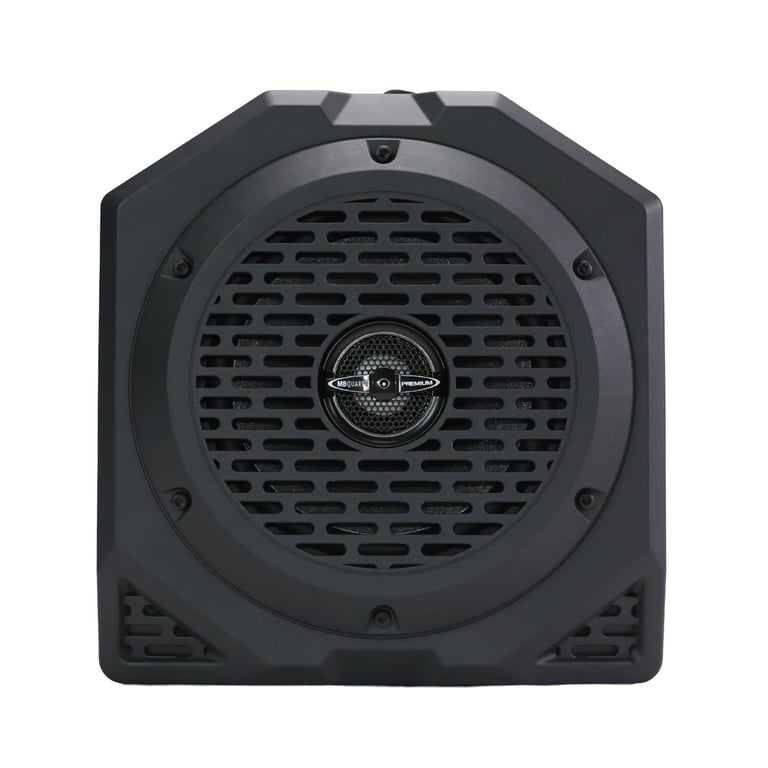

• Includes rear pillar mounted speaker enclosures

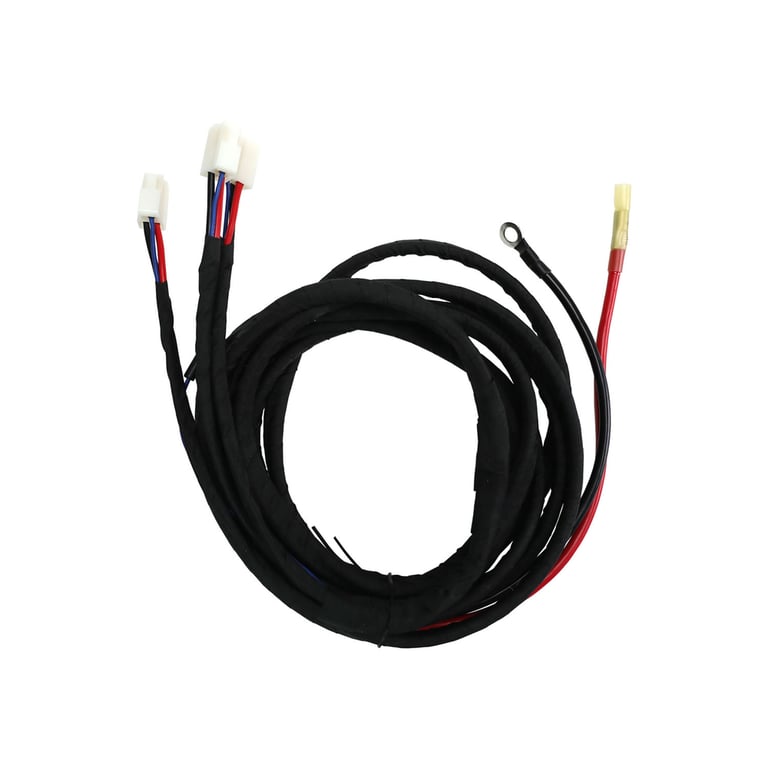

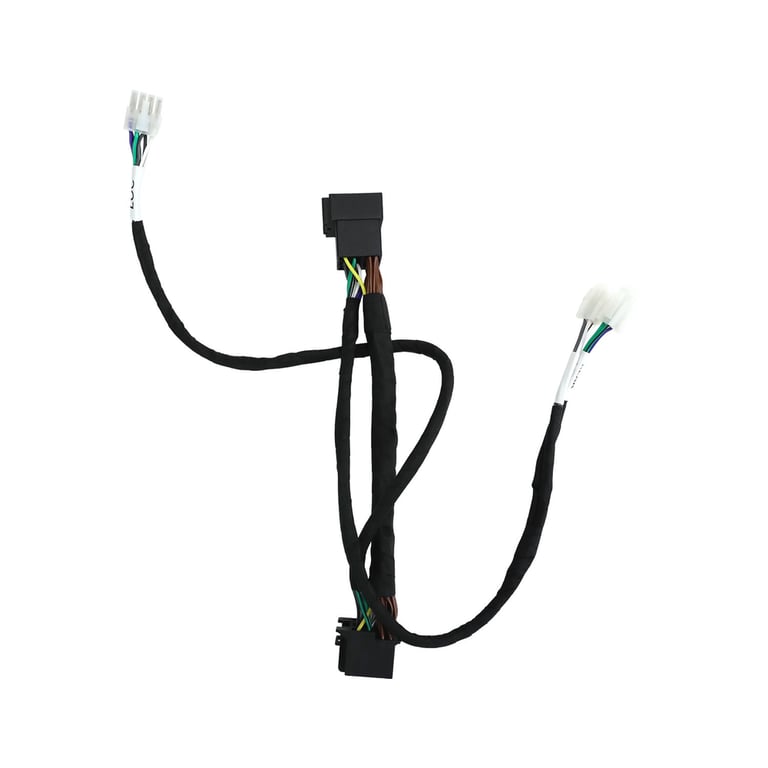

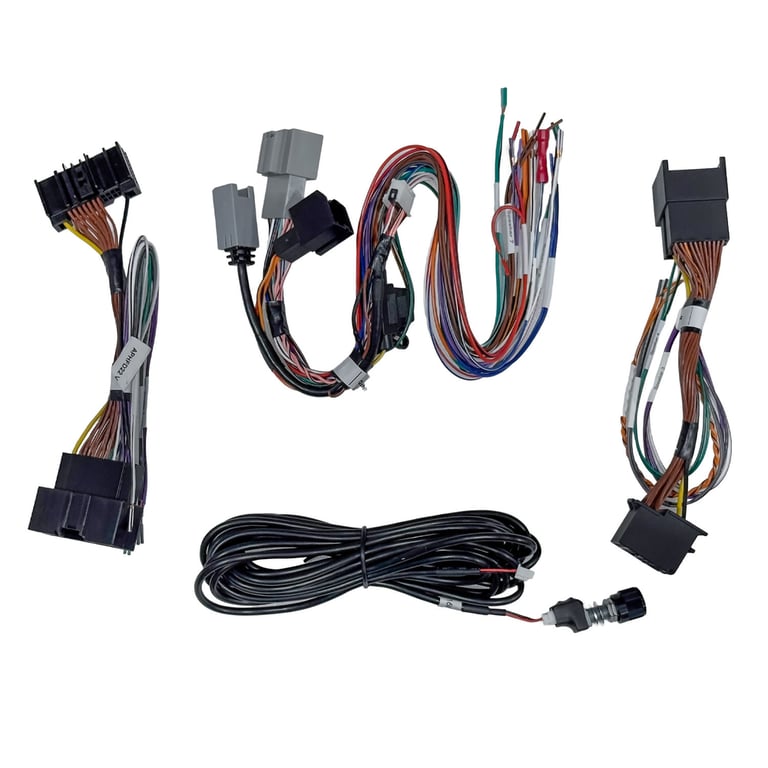

• Also comes with an OEM adaptor plug harness for quick installation
• Impedance: 4-ohm
• Frequency Response: 55 - 22000 Hz
• Sensitivity: 88.5dB
• MFR #: BC1-116

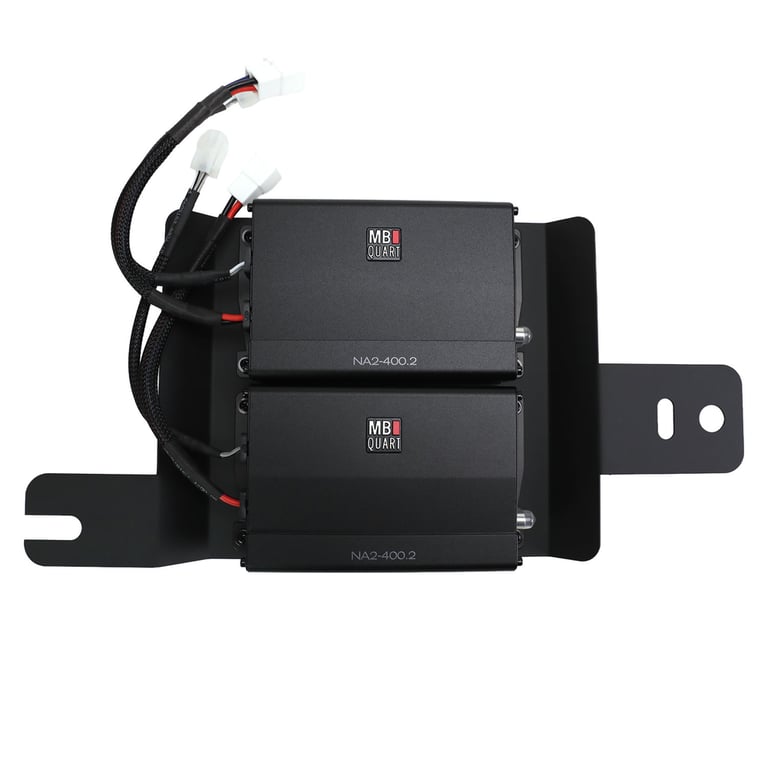

MB Quart NA2-400.2 2-Channel Amplifier

• Class-D Full Range 2-ohm Stable 2-Channel Amplifier
• Power Specifications
• 4 ohm: 100 watts x 2 channels
• 2 ohm: 200 watts x 2 channels
• Total power output: 400 watts
• LED power and protect status indicators
• IPX5 rated with conformal coated PC boards for water resistance
• Q-Stasis pre-amplifier stage significantly reduces incoming noise
• Supports two-channel or bridged mono mode operation
• Features a switched FULL / LPF / HPF crossover for precise frequency control
• PWM MOSFET power supply with minimal heat generation
• High-temperature chassis with aluminum heat sink for optimal heat dissipation
• Simpatico dual-coil design for enhanced performance

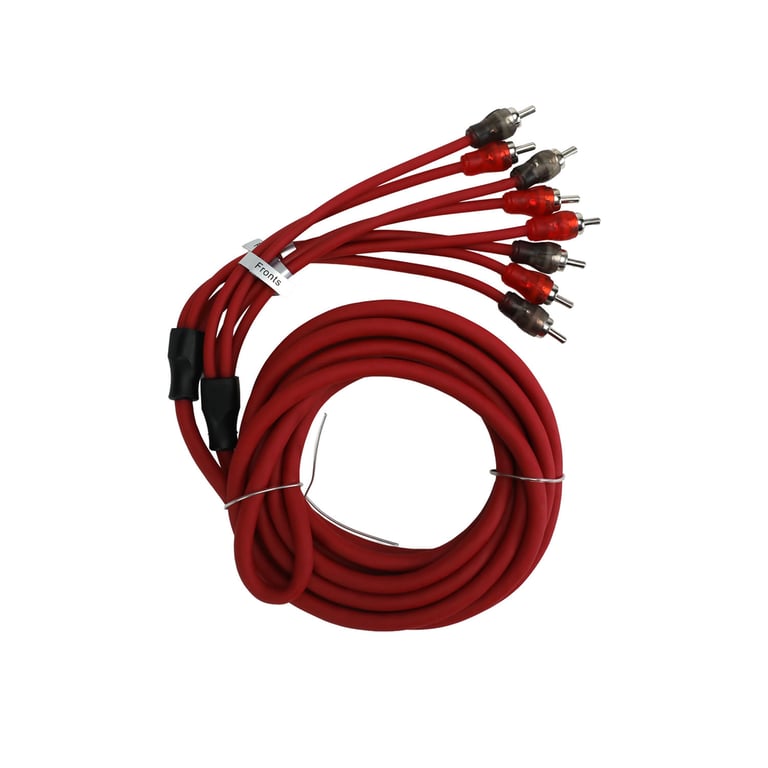

• Includes quick-disconnect wires and RCA connections
• Nickel-plated, corrosion-resistant connections and hex screw terminals
• Monitor thermal, overload, DC, and speaker short protection
• Frequency Response: 20 - 20000 Hz
• Signal to Noise Ratio: 90dB
• Variable low-pass filter: 50 - 300 Hz
• Variable high-pass filter: 15 - 300 Hz
• MFR #: NA2-400.2
