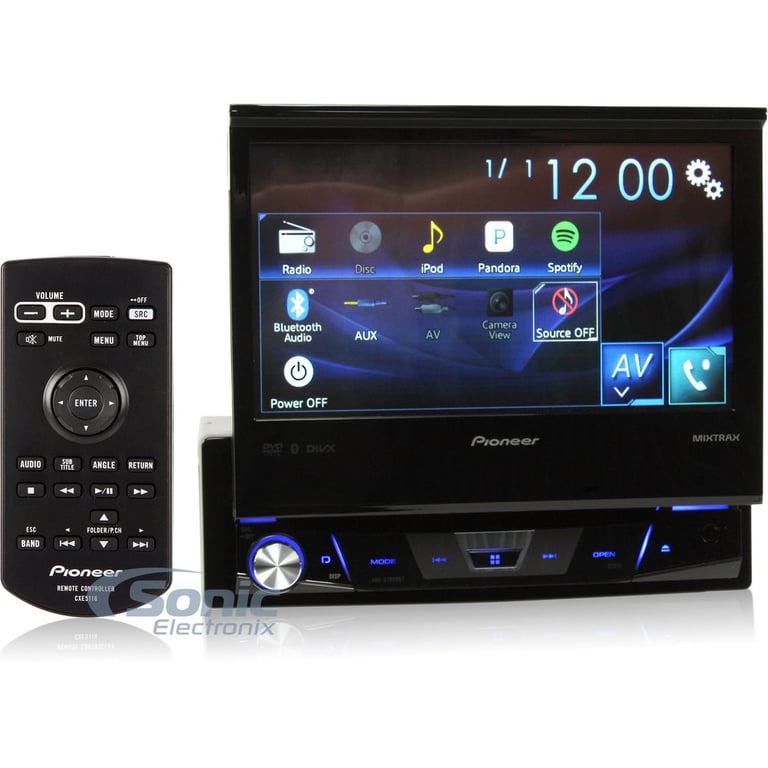

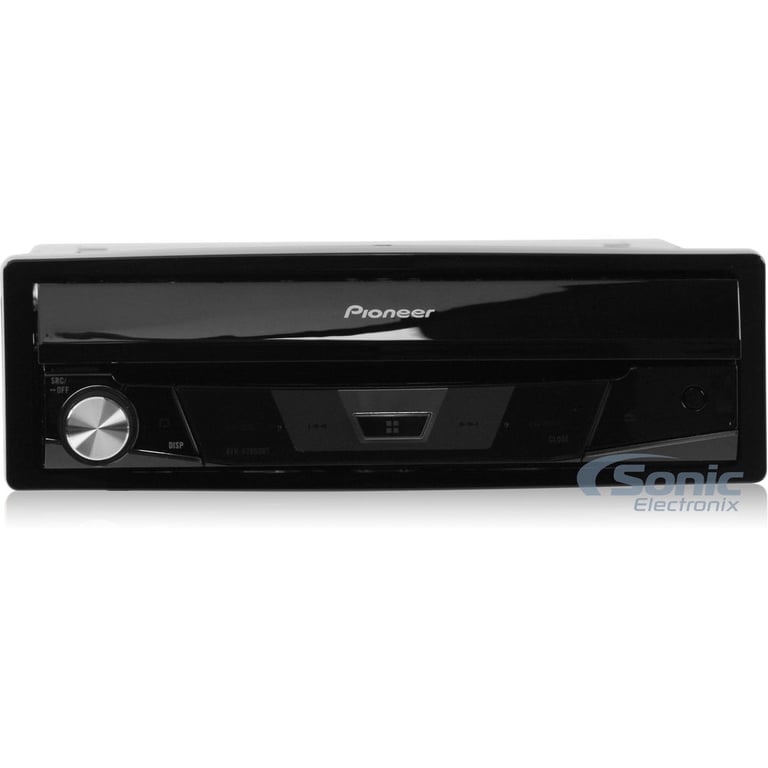

Pioneer AVH-X7800BT

Single DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo with 7" Flip-Out Display, Spotify & Pandora Control and AppRadio One (Open Box Complete)

Pioneer
Shop all Pioneer
highlight-star-icon

• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
• Built-in Bluetooth
• 3 Sets of 4V Preamp Outputs
• 13-band graphic equalizer
• Pioneer AppRadio One: view and control compatible iPhone and Android smartphone apps
• Spotify & Pandora control for select mobile devices
• Compatible with Apple iPhone 6/6+ and iOS 8+ software
• 7" TFT Active Matrix Driving Display

Learn more about the ls-avhx7800bt-obc278213

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

AVH-X Headunits: Preview at CES 2016




















General Features:

  • Item Condition: Like New, Open Box, Complete
    Not Refurbished

  • Pioneer AVH-X7800DVD In-Dash A/V Receiver
  • Features the responsive, powerful and intuitive NEX user interface
  • Improved, Clear Resistive Touchscreen
  • Dual Bluetooth connection allows for two phones to be connected simultaneously
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels, 5% THD
    • CEA2006: 14 watts x 4 channels, <1% THD
  • Theft-deterrent, detachable face plate
  • AM/FM RDS tuner with 18FM/6AM presets
  • MP3 ID3 Tag Display (Title/Artist/Album)

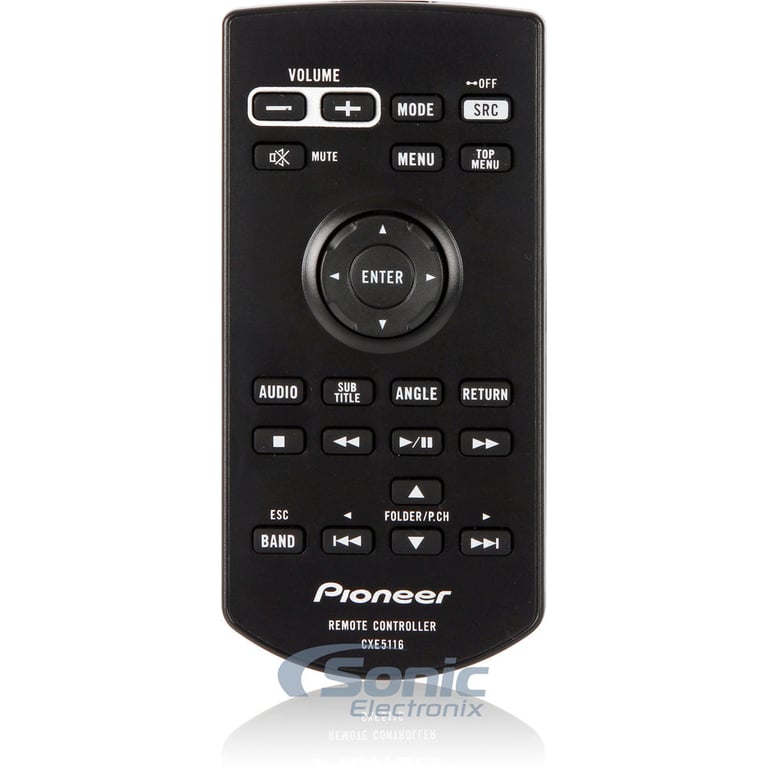

  • Remote control included
  • 7" Flip-out TFT Active Matrix Driving Display
  • On/Off Dimmer Setting & Brightness Control
  • Variable button/key color illumination
  • 13 Background, splash screen displays
  • Home screen shortcuts customization
  • Resolution: WVGA, 800 x 480
  • Signal to Noise Ratio: 91dBA
  • Dimensions (chassis): 7-1/8" W x 2" H x 6-1/4" D
  • Effective display area: 6-1/8" x 3-3/8"
  • 30 Day Sonic Electronix Warranty

Playback and Audio Features:

  • Pioneer MIXTRAX creates a nonstop mix of your music library, with effects
  • Spotify control for iPhone/iPod via USB
  • Pandora control for iPhone/iPod via USB
  • Pioneer AppRadio One: view and control compatible iPhone and Android smartphone apps
  • FLAC file playback capability at up to 48 kHz/24 bit high resolution, via USB
  • Android Music Support
    • For Android devices running operating system 4.0 or later
    • Connect and listen to music stored on a device, without the need for an app
    • Made possible by using Media Transfer Protocol (MTP)
    • Access music via USB stored on an Android device and operate basic operations
    • Available Sources: Audio & AppRadioOne
      To use an Android Device for Control of Pandora and/or Spotify, consider the Pioneer AVH-X2800BS
  • Compatible with Apple iPhone 6/6+ and iOS 8+ software
    Review manual for details

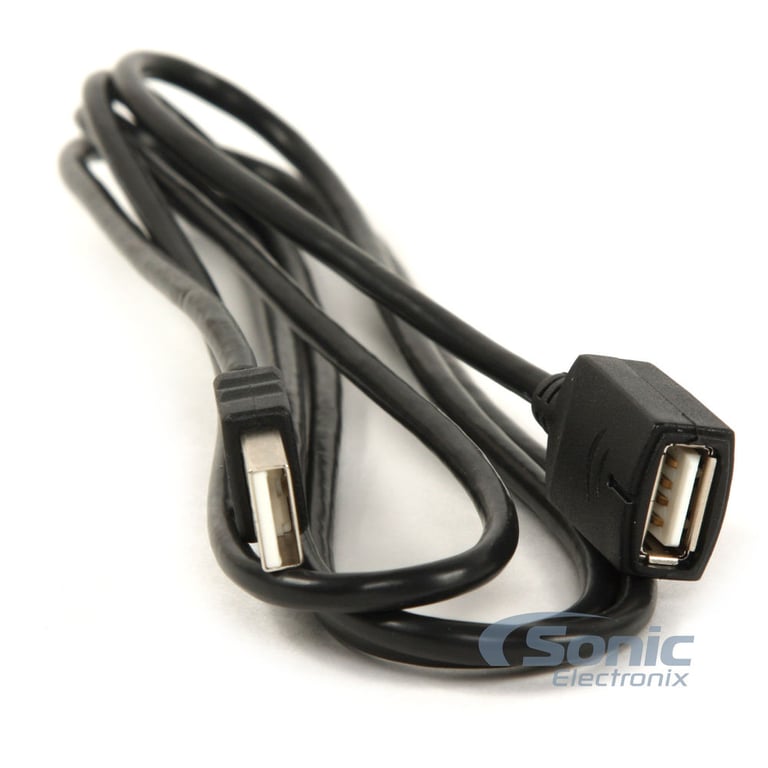

    • iPod/iPhone with Lightning Connector requires standard USB to Apple Lightning connector
    • iPod/iPhone with 30-Pin Connector requires Pioneer CD-IU201V
      • The Pioneer CD-IU201V will take up both the 3.5mm Input and USB Input
      • Available Sources: Audio, Video, Pandora, Spotify, and AppRadioOne
  • 24-bit Digital to Analog Converter
  • 3.5mm Rear A/V Auxiliary Input
  • Rear USB: FLAC/MP3WMA/AAC/WAV/H.264/MPEG4/JPEG
  • CD/CD-R/RW: MP3//WMA/AAC/DivX/MPEG1/MPEG2/MPEG4
  • 7 preset equalizer curves: S.Bass / Powerful / Natural / Vocal / Flat / Custom 1 / Custom 2
  • 13-band graphic equalizer
    • ±12 dB Gain at 50 Hz / 80 Hz / 125 Hz / 200 Hz / 315 Hz / 500 Hz / 800 Hz / 1.25 kHz / 2 kHz / 3.15 kHz / 5 kHz / 8 kHz / 12.5 kHz
  • Selectable-Point High-pass Filter and Low-pass Filter
    (Standard mode, see Manual for "Network Mode")
    • HPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz / 160 Hz / 200 Hz
    • LPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz / 160 Hz / 200 Hz
    • +10 dB to -24 dB variable gain
  • Selectable Crossover Slopes: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF
  • Selectable Phase: Normal / Reverse
  • Variable Bass Boost: 0 - +12 dB
  • Adjustable time alignment, subwoofer control and listening position selector
  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Siri® Eyes Free for iPhone® 4s or newer
  • Google Voice (VR) compatible for Android Devices
  • Bluetooth version 3.0 +EDR certified
  • Wideband Speech for double sampling frequency and bandwidth
  • Dual Bluetooth connection allows for two phones to be connected simultaneously
    • When two phones are connected, if an incoming call is received on the second phone while you are talking on the first, the dial confirmation screen for the second phone will be displayed.
    • If two phones are auto-connected, the phone book of the second phone is displayed
    • If two phones are auto-connected, Siri Eyes Free Mode will be set on the second phone
    • During a conversation, you can switch to private mode to talk directly on phone
      For off-road use
  • Works with most Bluetooth enabled cell phones

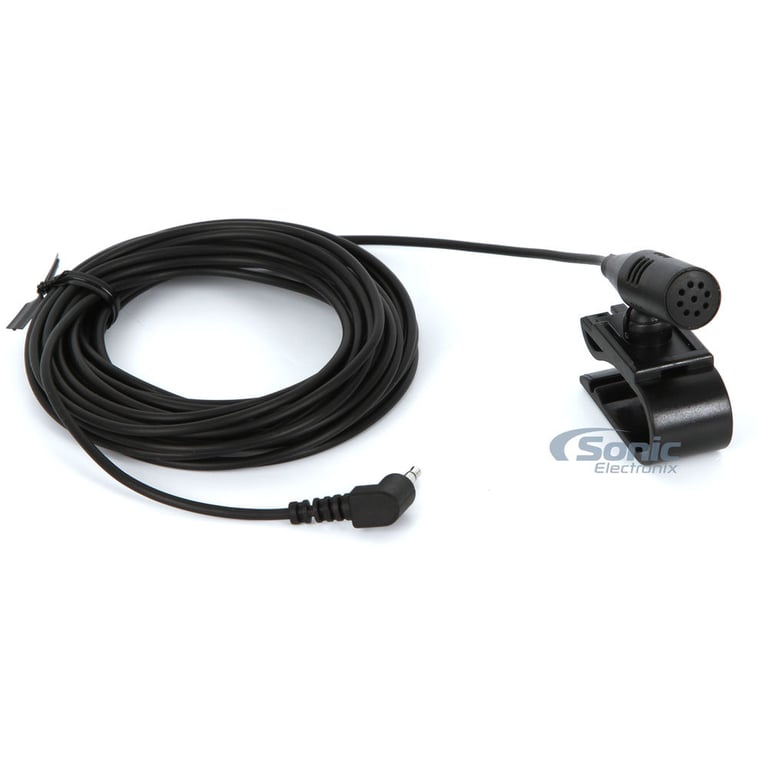

  • Includes an external wired microphone for clear, convenient, distortion-free talking
  • Bluetooth Profiles Supported:
    • HFP 1.6: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP 1.5: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • SSP: Secure Simple Pairing, this improves the pairing experience for Bluetooth devices, while increasing the use and strength of security.
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications

Expandability Options:

  • Navigation Ready: Pioneer AVIC-U260 required, sold separately
  • Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
  • Rear RCA Video Output: Used for connection to separate monitors and other devices
  • Rear RCA Video Input: Used for connection auxiliary A/V devices to headunit


Check out the Pioneer AVH-X7800DVD User Manual



Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
13-band graphic equalizer
Display Type
TFT-LCD Display
Touchscreen
Yes
Screen Size
6.2"
Display Adjustment
Brightness
Color
Contrast
Dimmer
Hue
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
Expandability Features
Inputs
Audio/Video (Rear)
Backup Camera
Outputs
Composite Video (RCA)
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
30 days
Labor Warranty Duration
30 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

AVH-X7800BT-2

Weight:

8.00lbs

Internal SKU:

ls-avhx7800bt-obc278213

Internal Product ID:

116521
