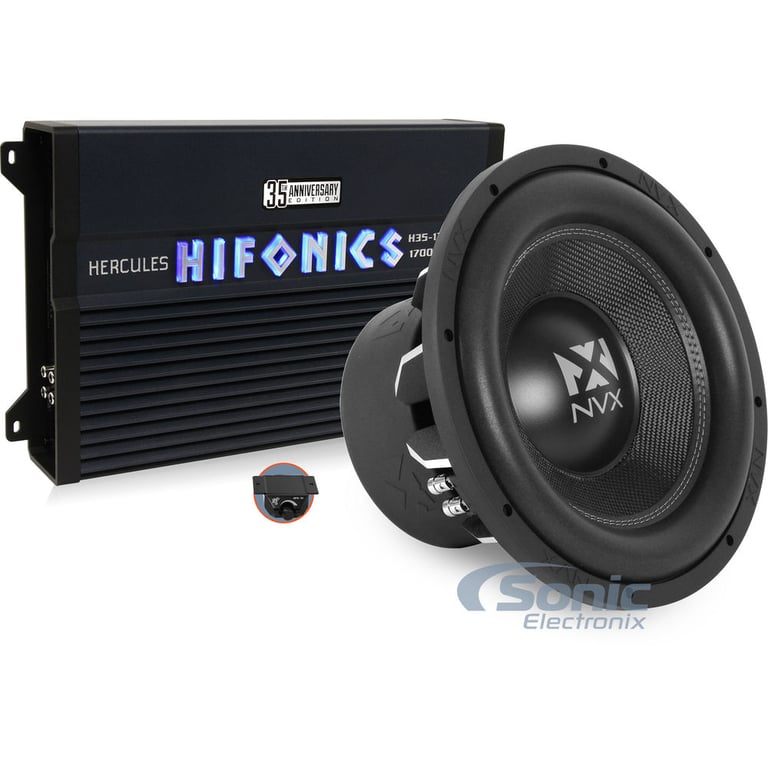

1000W NVX and Hifonics 12" Bass Package

1000W 12" VC-Series Dual 2-ohm Car Subwoofer + 1700W Max Hercules 35th Anniversary Limited Edition Class-D Monoblock Amplifier

NVX
Shop all NVX
EXCLUSIVE
Product videos
highlight-star-icon

• Power Range (RMS) 850-1000 Watts
• Woven Fiber Pressed Paper Cone
• Custom High Roll Foam Surround With Nylon Stitching
• Die Cast Aluminum Basket
• Dual Nomex Spiders
• 250 Watts x 1 @ 4 ohm
• 500 Watts x 1 @ 2 ohm
• 1000 Watts x 1 @ 1 ohm
• Twin Turbo Coil PS Pulse Width Modulated MOSFET power supply
• Ultra-Fi output devices

Learn more about the vcw122_h3517001d

We apologize

This item has been discontinued


Loading...
70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
95-5000B main

Metra 95-5000B Dash Kit

Install a new Double-DIN car stereo in select 2000-2006 LS and Thunderbird (Black)

1
-40.76%

$15.99

List price $26.99

Product Highlights


• Power Range (RMS) 850-1000 Watts
• Woven Fiber Pressed Paper Cone
• Custom High Roll Foam Surround With Nylon Stitching
• Die Cast Aluminum Basket
• Dual Nomex Spiders
• 250 Watts x 1 @ 4 ohm
• 500 Watts x 1 @ 2 ohm
• 1000 Watts x 1 @ 1 ohm
• Twin Turbo Coil PS Pulse Width Modulated MOSFET power supply
• Ultra-Fi output devices

Description


NVX brand icon

Authorized dealer

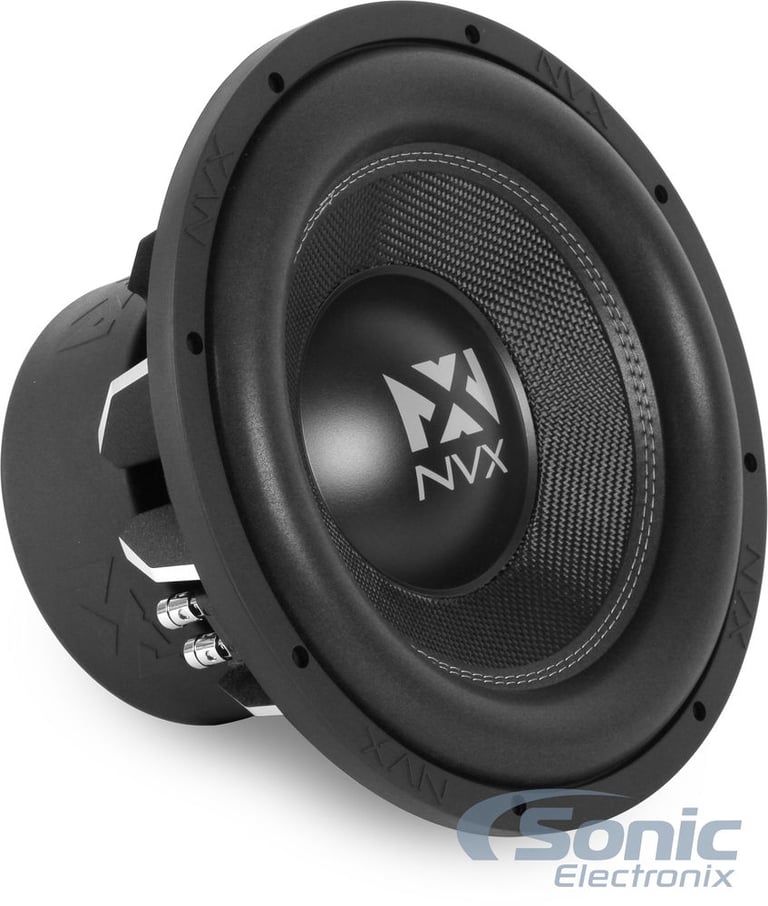

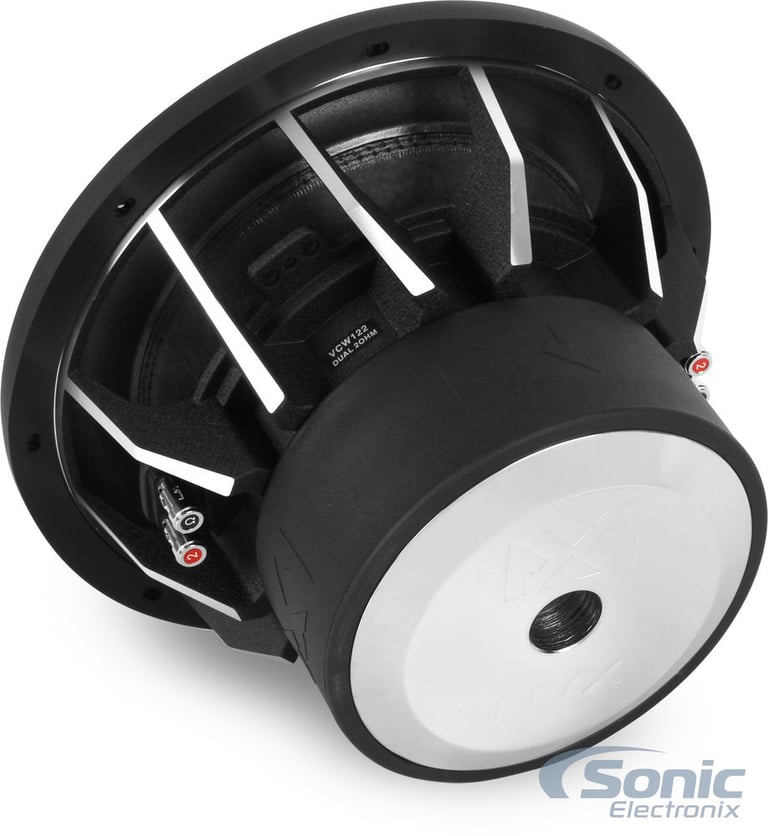

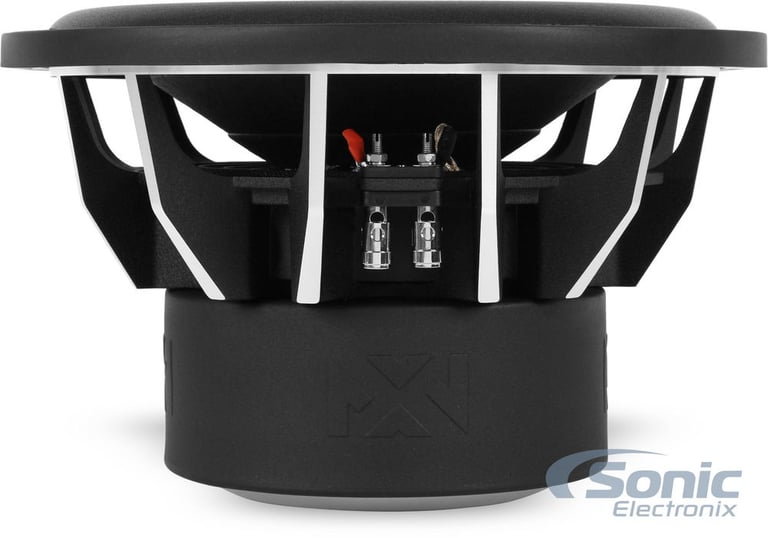

NVX VCW122 Version 3 (VCW122v3)

2400W Peak (1200W RMS) 12" VC-Series v3 Dual 2-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 2 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts
    • RMS: 1200 watts

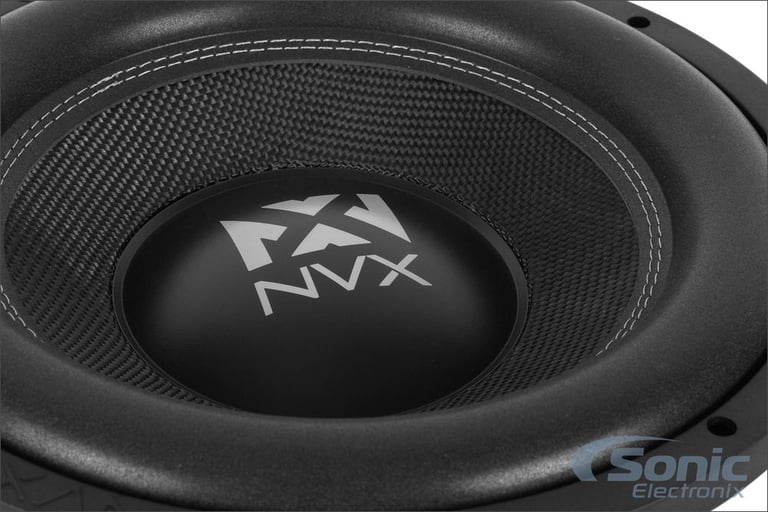

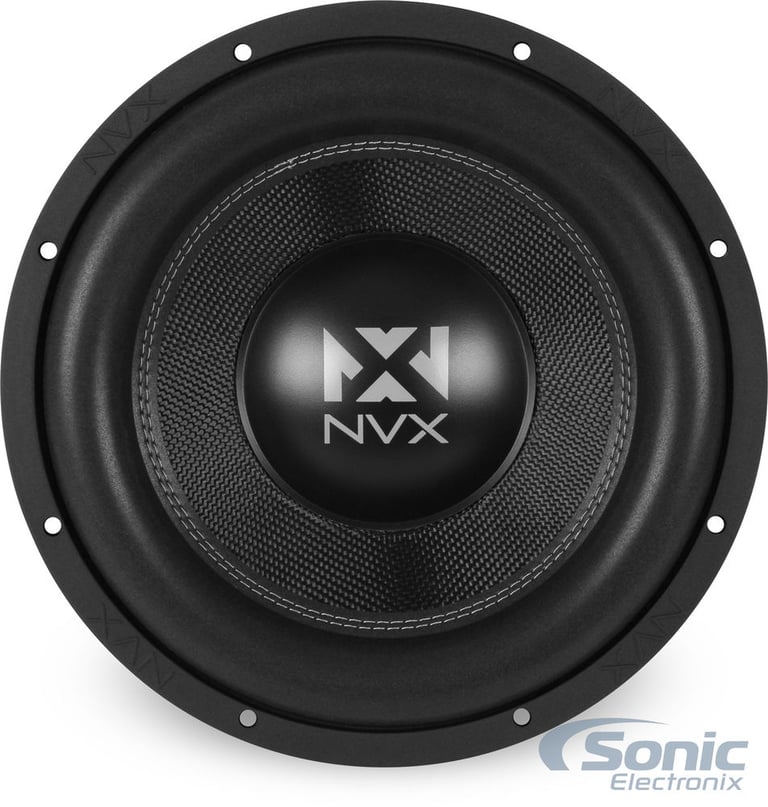

  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket

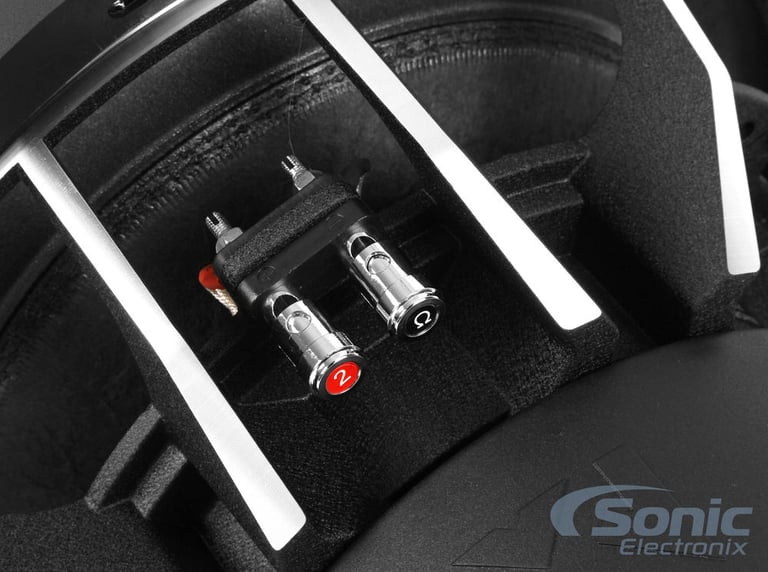

  • Dual progressive-roll spiders with integrated flat-braided leads
  • 3" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One-piece T-Yoke with integrated gap venting
  • 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 23 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 25 Hz
  • Sensitivity: 85 dB (1W/1m)
  • Optimal sealed box volume: 0.85 cubic feet
  • Optimal ported box volume: 1.85 cubic feet
  • Top-mount depth: 7.02"
  • Cutout diameter: 11.26"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

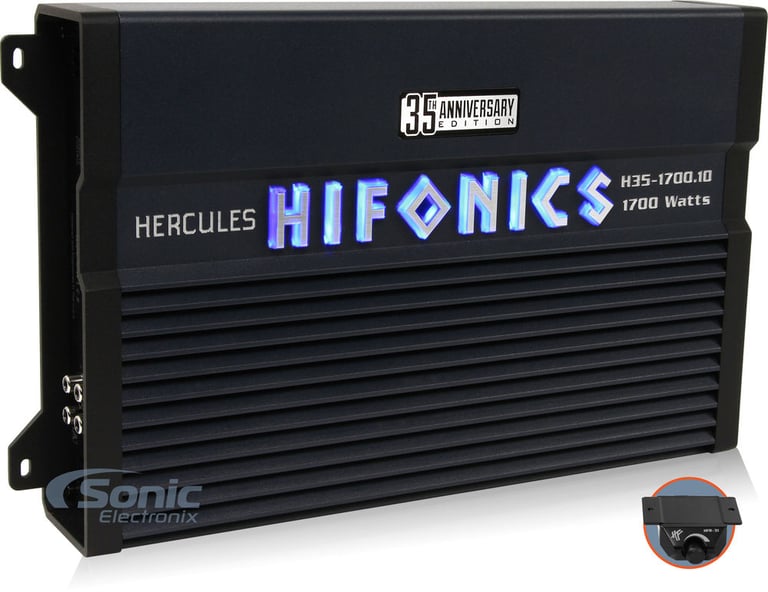

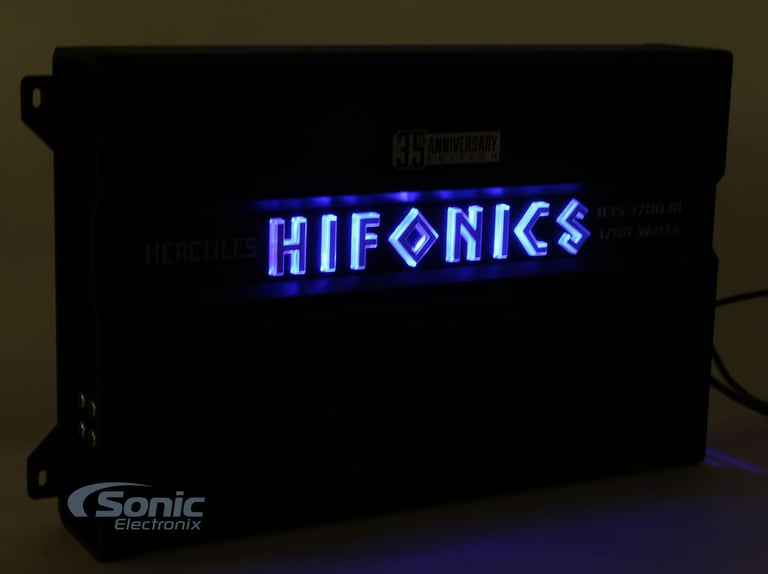

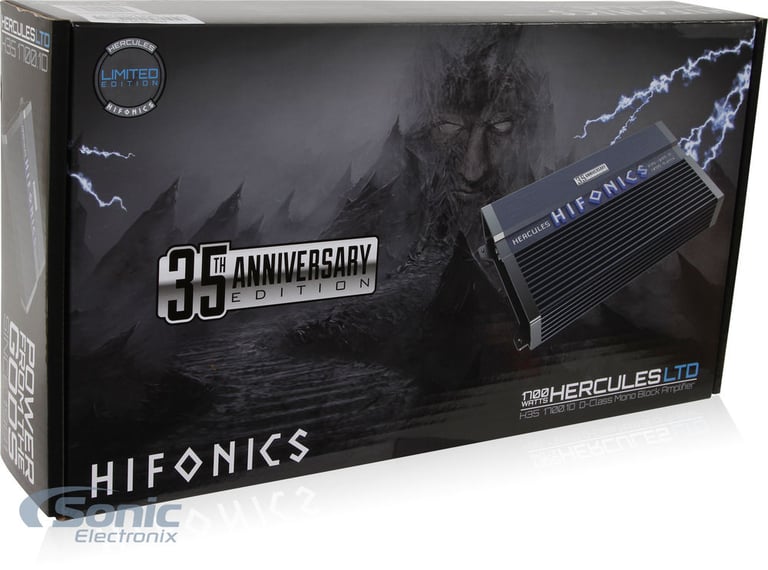

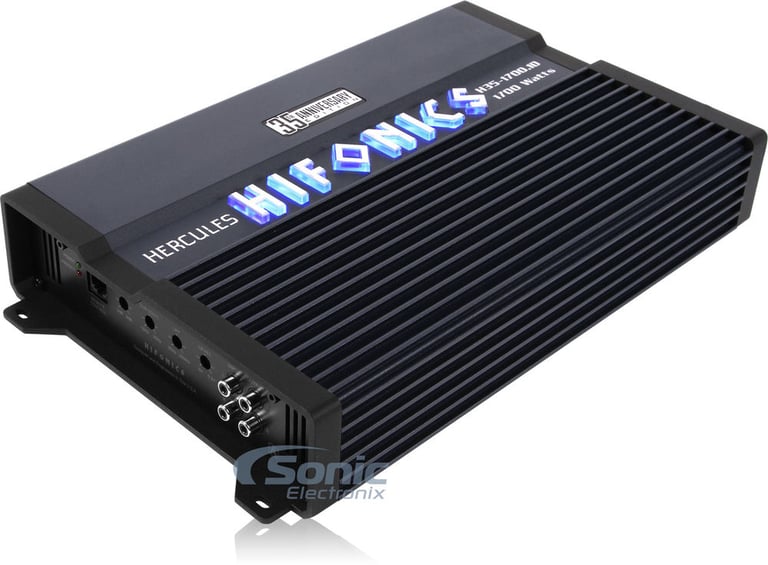

Hifonics Hercules H351700.1D (H35 1700.1D)

1700W Max Hercules 35th Anniversary Limited Edition Super Class-D 1-Ohm Stable H35 1700.1D Monoblock Amplifier
Quantity: 1


General Features:

  • Hifonics 35th Year Anniversary LTD H35-1700.1D Amplifier
  • Super Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 210 watts x 1 chan.
    • 2 ohm: 425 watts x 1 chan.
    • 1 ohm: 850 watts x 1 chan.
  • Sonic Electronix Dynamic Power Rating*:
    • 4 ohm: 316 watts x 1 chan.
    • 2 ohm: 559 watts x 1 chan.
    • 1 ohm: 893 wattts x 1 chan.
  • Total power output: 1700 watts
  • Twin Turbo Coil PS Pulse Width Modulated MOSFET power supply - keeps voltage constant through the Ultra-Fi output devices

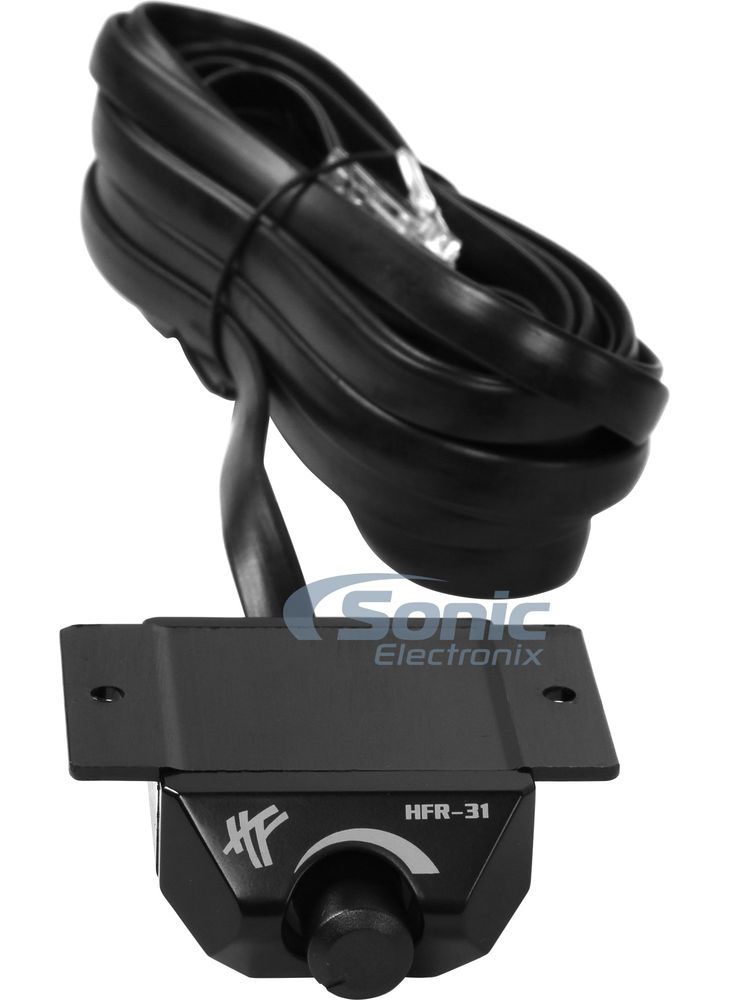

  • Illuminated Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

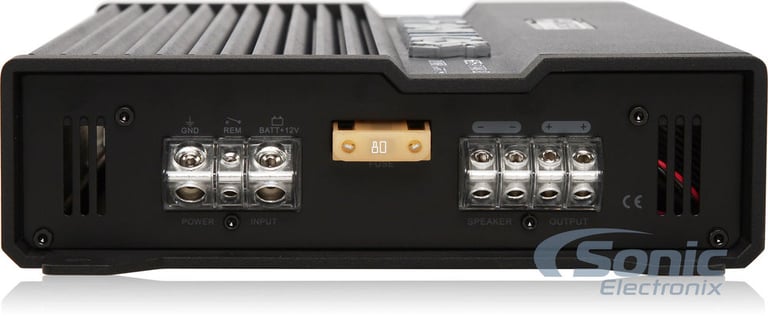

  • Nickel plated RCA, Speaker and Power connections

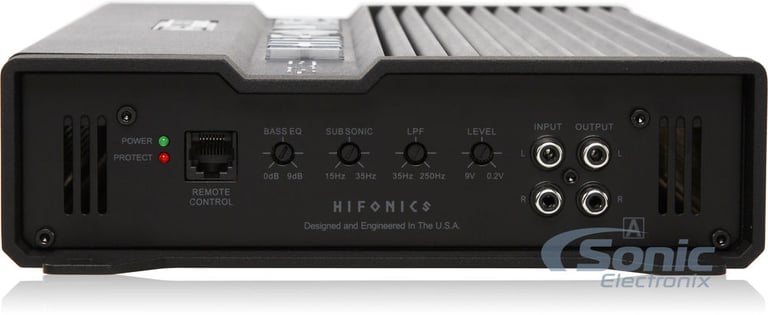

  • Input sensitivity: 200mV - 9V
  • Frequency Response: 15 - 250 Hz
  • Signal to Noise Ration: >80 dB
  • Variable low-pass filter: 35 - 250Hz, 12 dB/octave
  • Subsonic filter: 15- 35Hz
  • Variable Bass Boost: 0 to +9 dB bass boost at 45Hz
  • Fuse Rating: 80 A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

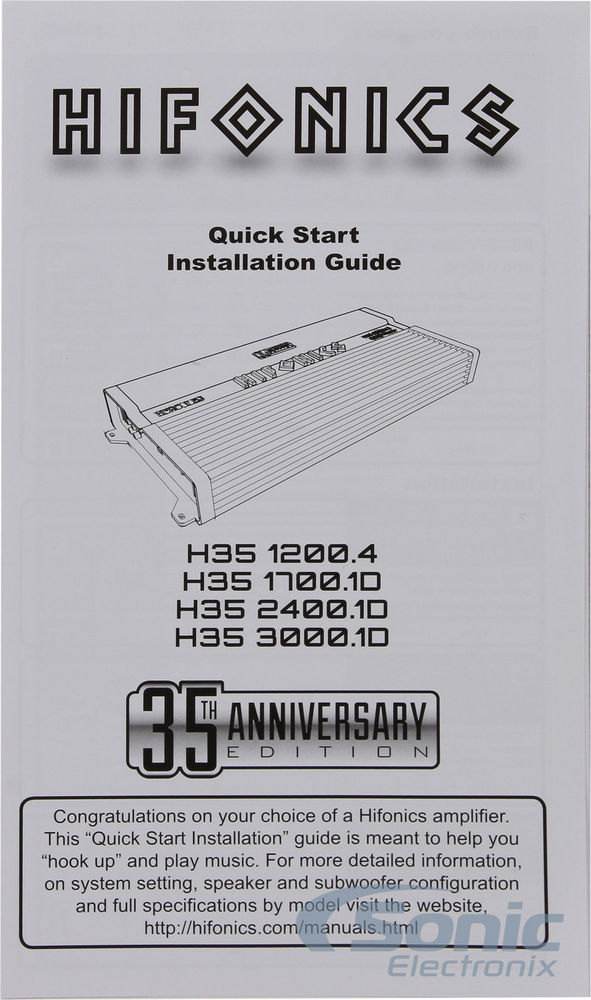

Check out the H35-1700.1D Installation Guide

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1700 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
35 - 350 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1
Subwoofer Specifications
Series
VC Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
1000 watts
Peak Power Handling
2000 watts
Woofer Surround
High Roll Foam
Woofer Composition
Woven Fiber Pressed Paper
Sensitivity
85 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
20 mm
Top-Mount Depth (Mounting Depth)
7.02"
Cutout Diameter
10.83"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VCW122_H35 1700.1D

Weight:

43.90lbs

Internal SKU:

vcw122_h3517001d

Internal Product ID:

116605

Product and How-to Videos


  • NVX VC-Series Subwoofers
  • Hifonics H35-1700.1D Amplifier Dyno Test | SMD D'Amore AD-1
  • NVX VCW 12" Subwoofer Demo | VCW124 Bass Test

Customer Ratings & Reviews


1000W NVX and Hifonics 12

5 star
88%
4 star
9%
3 star
2%
2 star
1%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
4.9
Usability
4.9

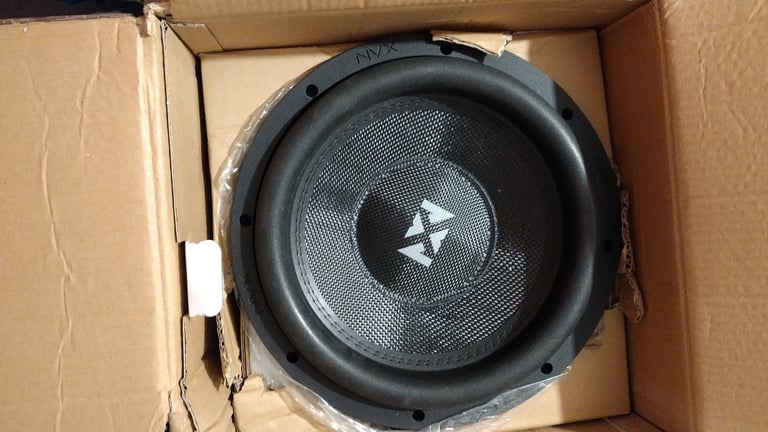

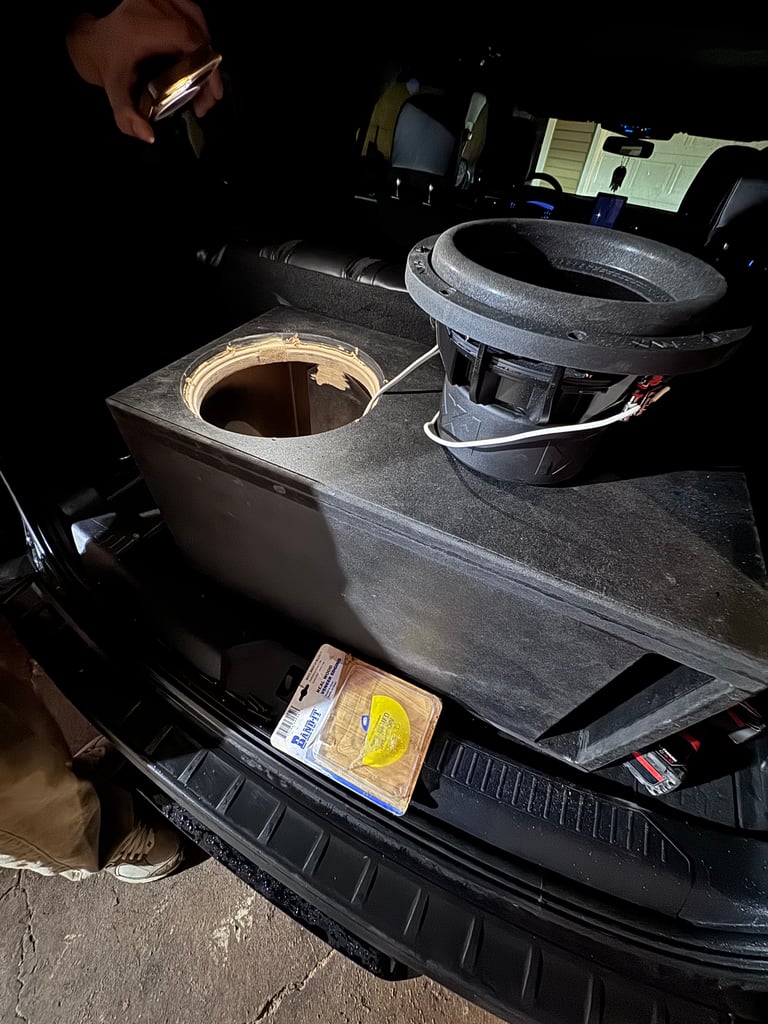

Customer Photos & Videos
