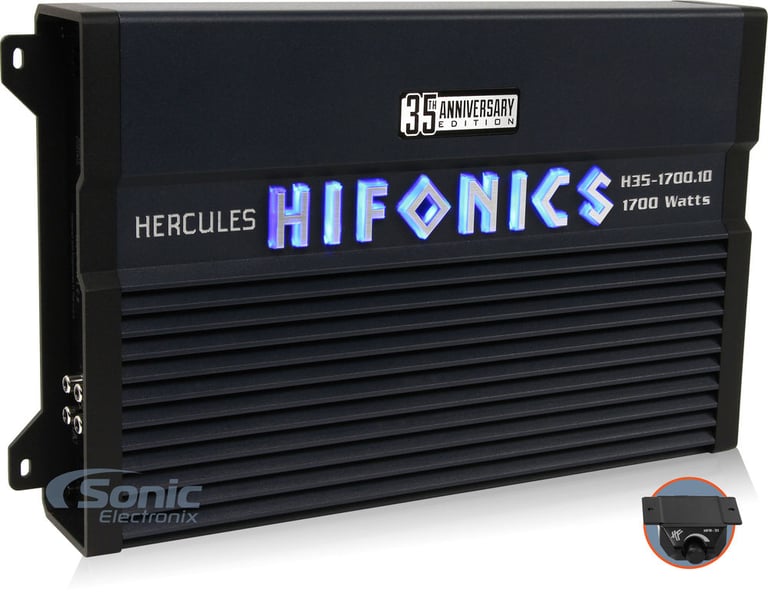

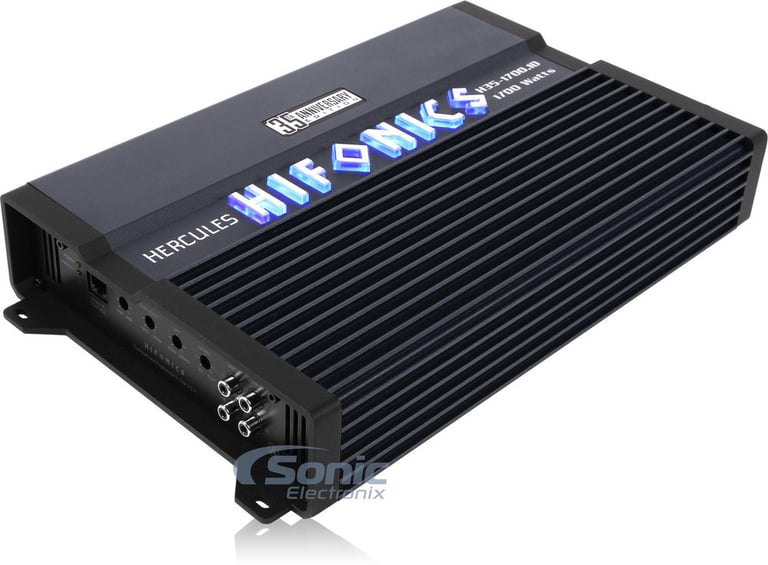

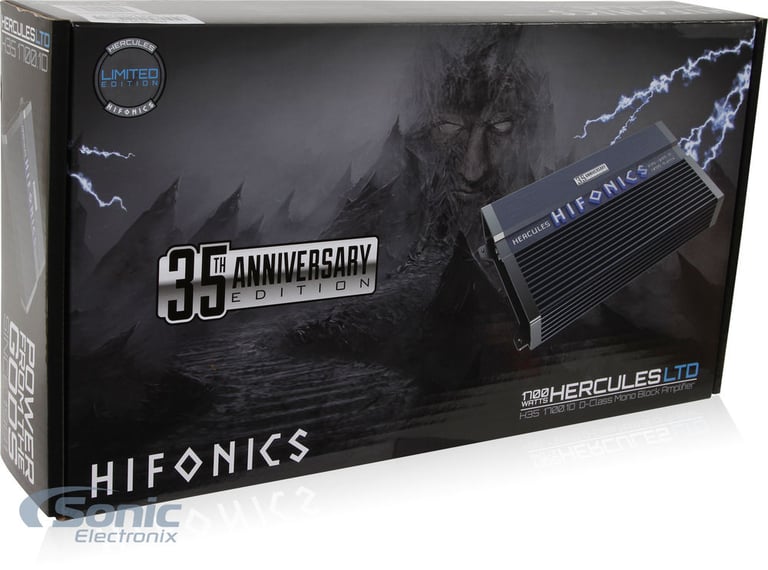

Hifonics Hercules H351700.1D (H35 1700.1D)

1700W Max Hercules 35th Anniversary Limited Edition Super Class-D 1-Ohm Stable H35 1700.1D Monoblock Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• 210 Watts x 1 @ 4 ohm
• 425 Watts x 1 @ 2 ohm
• 850 Watts x 1 @ 1 ohm
• Twin Turbo Coil PS Pulse Width Modulated MOSFET power supply
• Ultra-Fi output devices

Learn more about the h3517001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-9101 main

Metra 82-9101

6" to 6 3/4" Speaker Adapter for select 2000-2023 vehicles from Audi

1
-56.27%

$13.99

List price $31.99

NSH-8601 main

NVX NSH-8601 Speaker Harness for 2008-2024 Audi

Install New Speakers in select 2008-2024 vehicles from Audi

1
-38.49%

$7.99

List price $12.99

P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

84
TS-A653FH main

Pioneer TS-A653FH

680W Peak (150W RMS) 6.5" A Series 2-way 4-ohm Coaxial Car Speakers

1
-16.68%

$99.99

List price $120.00

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

JBL Stage3 627F (STAGE3627FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 2-way Coaxial 3-ohm Speakers

3
-20.01%

$79.95

List price $99.95

Product Highlights


• 210 Watts x 1 @ 4 ohm
• 425 Watts x 1 @ 2 ohm
• 850 Watts x 1 @ 1 ohm
• Twin Turbo Coil PS Pulse Width Modulated MOSFET power supply
• Ultra-Fi output devices

Description


Hifonics brand icon

Authorized dealer




Hifonics Transformers

Efficient Circuitry:

The efficient and audiophile grade electrical components are secured to double-sided military grade glass resin epoxy circuit boards. This along with the stronger copper traces creates efficient circuitry for high voltage to pass through with no noticeable distortion.




Twin Turbo power supply

Twin Turbo Power Supply:

The Hercules 35 uses a Pulse Width Modulated MOSFET power supply design. The twin turbo coil PS maximizes the voltage from you car to the output MOSFET devices by keeping the voltage contanst through the Ultra-Fi output devices.




Ultra-Fi MOSFET outputs

Ultra-Fi MOSFET Outputs:

The Ultra-Fi MOSFET outputs produce high power with minimal distortion. They are typically used for music production where high power, efficient cooling and minimal distortion are key. The Hercules 35 Series is designed with everything needed to play your music the way it should be heard.




Sonic Electronix Power Certified Amplifier

Hifonics Hercules H351700.1D monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings. Learn more about this amp's Sonic Electronix Certified Power Here!

Impedance
Claimed Output
Certified Results
Dynamic Results
4 Ω
210W @ 14.4v
306W @ 14.52v
316W @ 14.68v
2 Ω
425W @ 14.4v
510W @ 14.4v
559W @ 14.5v
1 Ω
850W @ 14.4v
781W @ 14.42v
893W @ 14.48v




General Features:

  • Hifonics 35th Year Anniversary LTD H35-1700.1D Amplifier
  • Super Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 210 watts x 1 chan.
    • 2 ohm: 425 watts x 1 chan.
    • 1 ohm: 850 watts x 1 chan.
  • Sonic Electronix Dynamic Power Rating*:
    • 4 ohm: 316 watts x 1 chan.
    • 2 ohm: 559 watts x 1 chan.
    • 1 ohm: 893 wattts x 1 chan.
  • Total power output: 1700 watts
  • Twin Turbo Coil PS Pulse Width Modulated MOSFET power supply - keeps voltage constant through the Ultra-Fi output devices

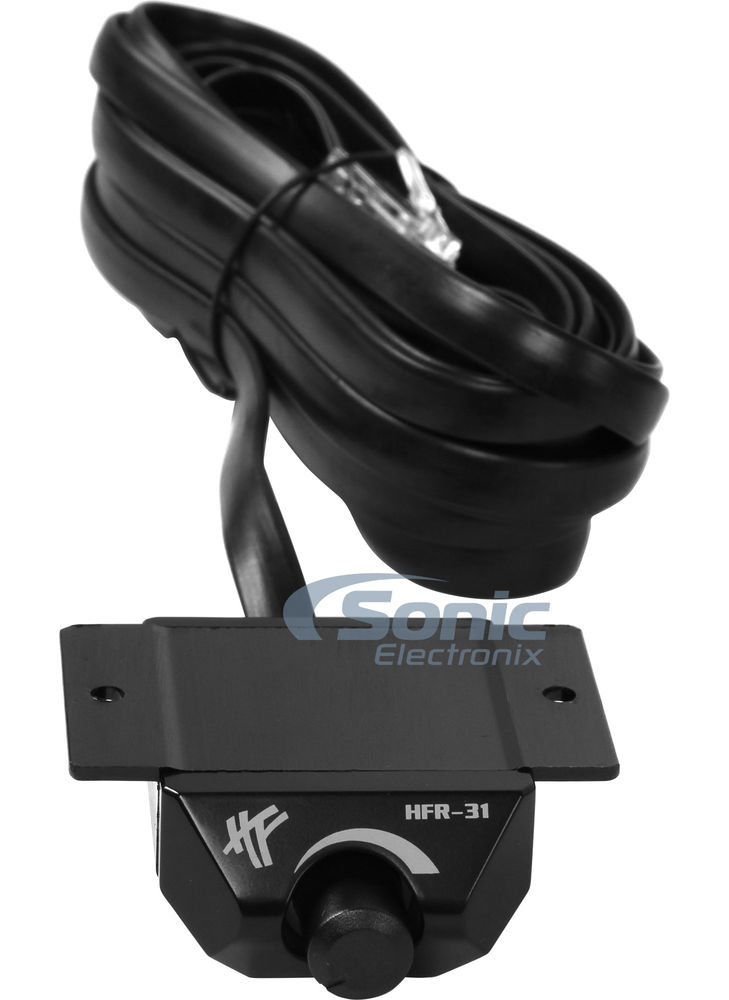

  • Illuminated Wired remote bass level control included

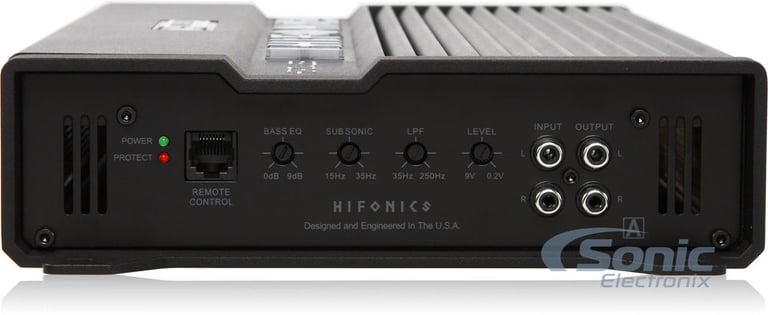

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

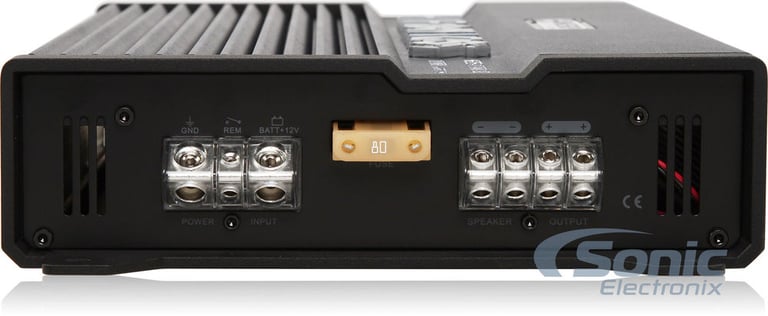

  • Nickel plated RCA, Speaker and Power connections
  • Input sensitivity: 200mV - 9V
  • Frequency Response: 15 - 250 Hz
  • Signal to Noise Ration: >80 dB
  • Variable low-pass filter: 35 - 250Hz, 12 dB/octave
  • Subsonic filter: 15- 35Hz
  • Variable Bass Boost: 0 to +9 dB bass boost at 45Hz
  • Fuse Rating: 80 A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

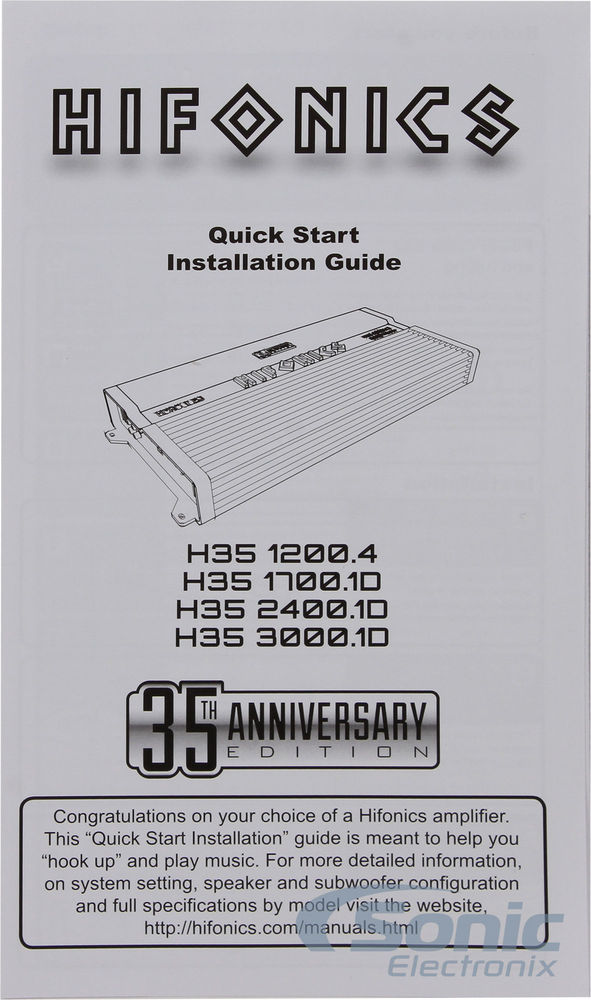

Check out the H35-1700.1D Installation Guide

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA800.1 small

Kicker CXA800.1 (46CXA8001T)

• 300 watts x 1 channel @ 4 ohm
• 600 watts x 1 channel @ 2 ohm
• 800 watts x 1 channel @ 1 ohm
• Total RMS Power: 800 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$299.99

List price $329.99

NDA15001 small

NVX NDA15001

• 670 watts x 1 channel @ 4 ohm
• 1100 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(27)

$199.99

List price $287.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
210 watts x 1 channel
RMS Power @ 2 ohms
425 watts x 1 channel
RMS Power @ 1 ohm
850 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
425 watts x 1 channel
Peak Power @ 2 ohms
850 watts x 1 channel
Peak Power @ 1 ohm
1700 watts x 1 channel
Amplifier Specifications
Series
Hercules LTD Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1700 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
35 - 350 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1
Strappable
No
Sonic Certified Amplifier
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

H35 1700.1D

Weight:

10.40lbs

Internal SKU:

h3517001d

Internal Product ID:

107441

Product and How-to Videos


  • Hifonics H35-1700.1D Amplifier Dyno Test | SMD D'Amore AD-1
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Hifonics Hercules H351700.1D (H35 1700.1D) thumbnail image

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4
Features
4.8
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Looks perfect

Received this amp today, opened it up and looks very well built. Its a dark blue and matches my project car perfectly. I can't wait to run it and try it out. I bought both mono and 4 channel 35th anniversary edition. Would buy again.

By Jacob on February 12, 2016 Checkmark Icon Verified purchase

3 found this helpful


Re: great amp

Not to big plenty of power. I would recvomend only two amps one is rockville and the other one hifonics..little puppy works great i truly adore this little beast.

By Polywog on January 11, 2017

2 found this helpful


Bad ass amplifier

Like this website..they got good deals and most of all they possess the items well and safe

By edison on August 15, 2016

1 found this helpful


over rated

It puts out a good sound quality, but is only a true 781 watts @1ohm @14.4 volts.

By ryan on July 18, 2016 Checkmark Icon Verified purchase

1 found this helpful




PX100/PX200 Headband Padding (088115) small

Sennheiser PX 100-II/PX 200-II/PXC 250 Headband Padding (Black)

Genuine Authentic PX 100-II/100-II-i/PX 200-II/200-II-i/PXC 250/PXC 270 Headband Padding

(1)

$7.95

List price $19.95

04-07-chevy-malibu-fdspkg small

NVX Front N-Series Speaker Upgrade Kit for 2004-2007 Chevy Malibu

Pair of 6.5" NVX N-Series Speaker Upgrade Kit with Metra Harnesses | Fits select 2004-2007 Malibu

(93)

$65.99

List price $120.98

F250R00C20A-TN small

MTX Audio Thunderform F250R00C20A-TN (Charcoal, Amplified)

Ford F-250 Regular Cab 2000-2006, Amplified 2 10" 4 ohms Vehicle Specific Thunderform Sub Enclosure

$649.95

List price $749.95

10CAMARO99 small

Dual 10" Enclosure: 1993 - 2002 Camaro / Firebird

$109.99

List price $219.99

PPS4-8, XBAF8, SDSK2, SDRLR1, BTK106 small

Rockford Fosgate PPS4-8 with Speaker Accessories

200W Peak (100W RMS) 8” Punch Pro Series Midrange Speaker

(161)

$145.75

List price $182.70

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Lexus GS300

2005 Infiniti QX56

2014 Audi S5

2018 Honda HR-V

2007 Toyota FJ Cruiser

2019 Lexus RC300

2005 BMW 760i

1969 Ford Custom 500

1967 Mercury Capri

2000 Acura Integra

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
