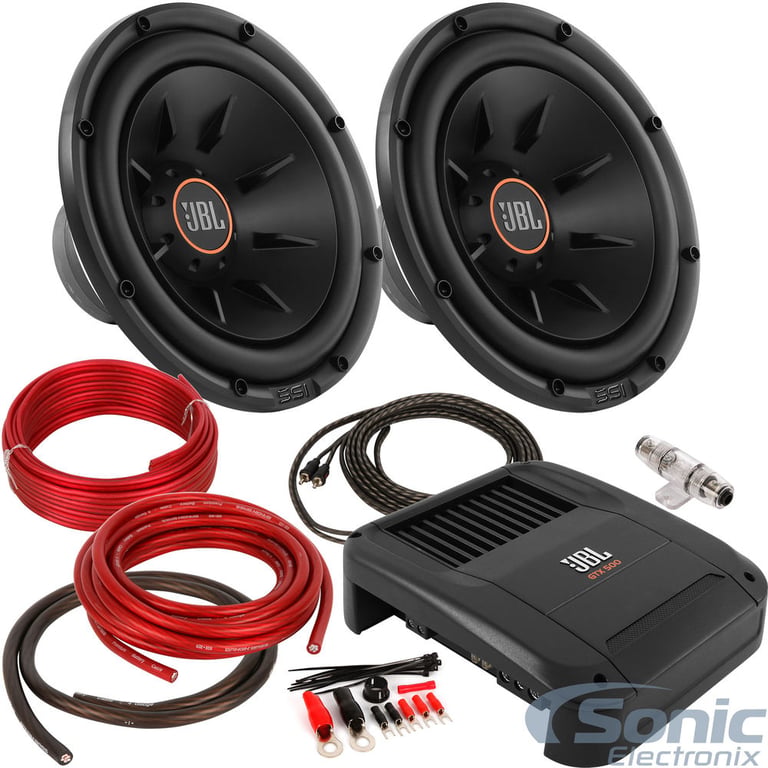

JBL Series II 500 Watt RMS Dual 10" Bass Package (S21024 + GTX500)

General Features:

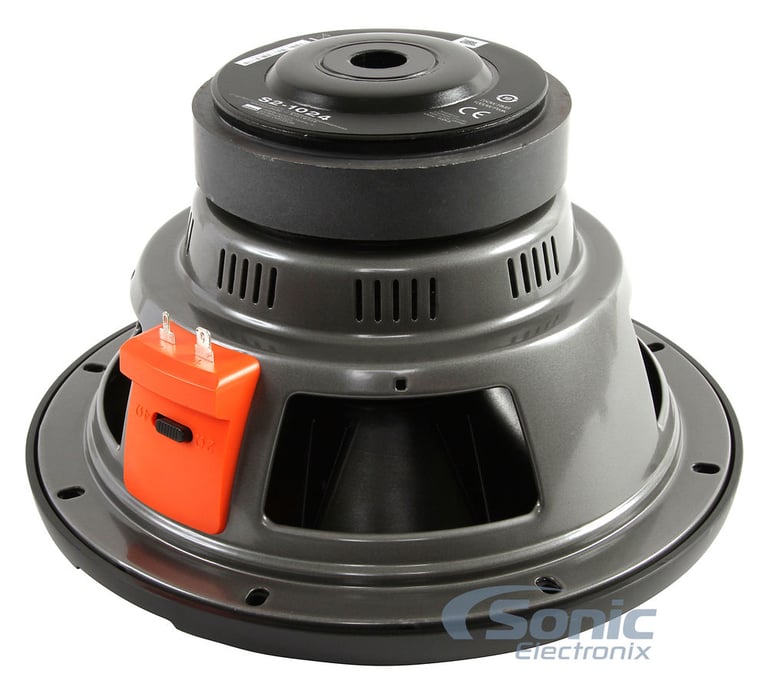

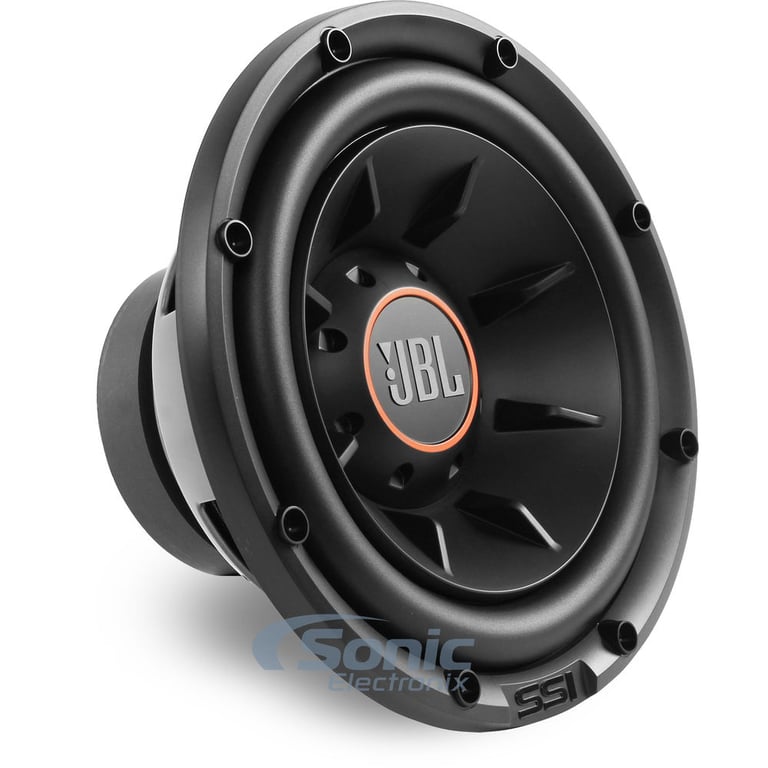

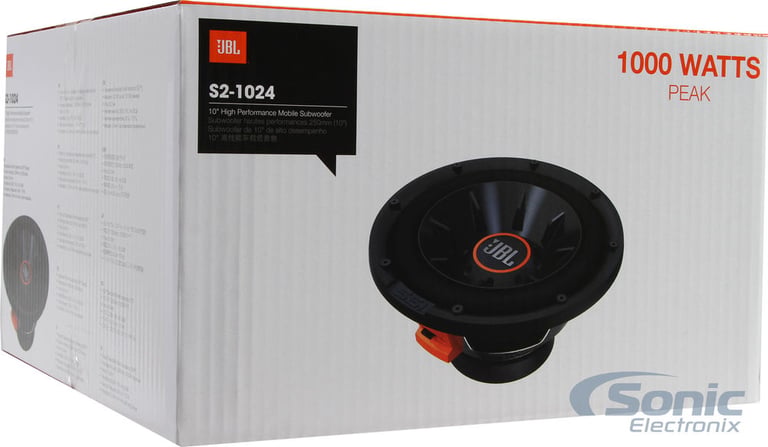

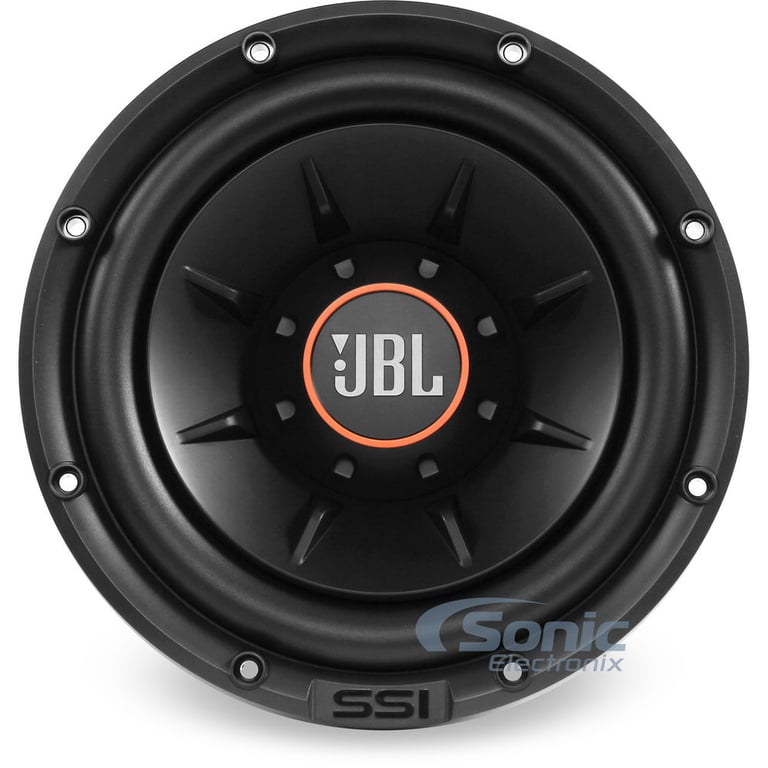

• 10" Series II Car Audio Subwoofer
• Power Handling:
• Peak: 2000 watts per pair / 1000 watts each
• RMS: 500 watts per pair / 250 watts each
• Polypropylene Cone
• Nitrile Butadiene Rubber (NBR) Surround

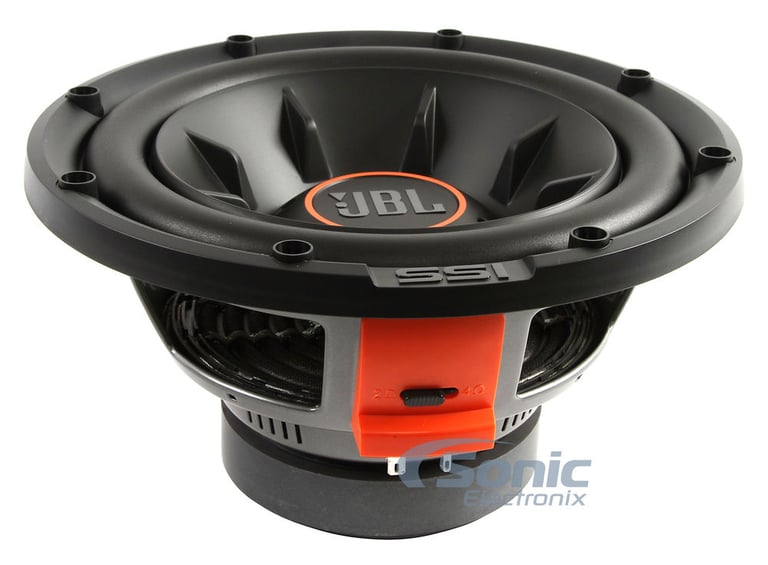

• SSI™ (Selectable Smart Impedance)
• Oversized 2.0" Voice Coil
• Spade Quck-connect Terminals
• Stamped Steel Basket Frame
• Top-mount depth: 5-5/8"
• Cutout diameter: 9"
• Frequency Response: 30 ~ 175 Hz
• Xmax: 9.25 mm
• Sensitivity: 92 dB
• Sealed Enclosure Recommendation: 0.50ft³
• Ported Enclosure Recommendation: 1.50ft³
• *Infinite-baffle Mountable
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

*Infinite-baffle mounting is possible, but the subwoofer's mechanical power handling will be reduced because there will be no volume of air to stiffen the subwoofer's suspension and prevent overexcursion. If you choose infinite-baffle mounting, consider the RMS and peak power-handling ratings to be half of what is listed

General Features:

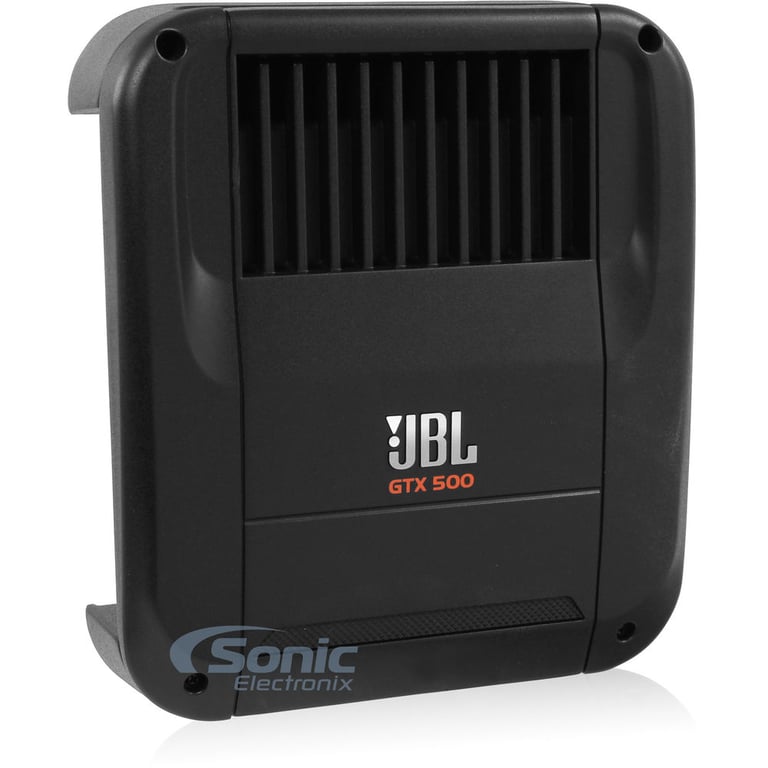

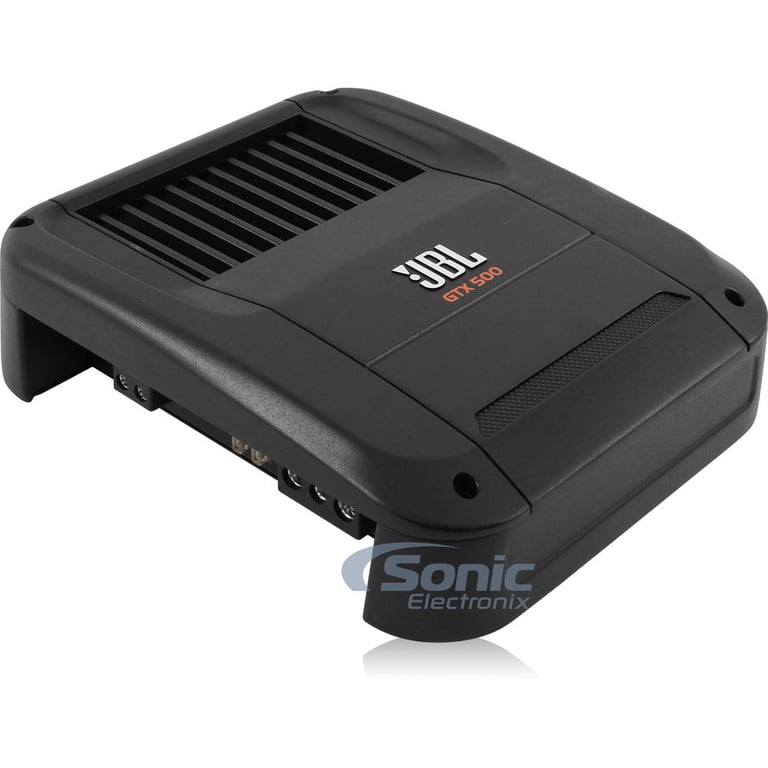

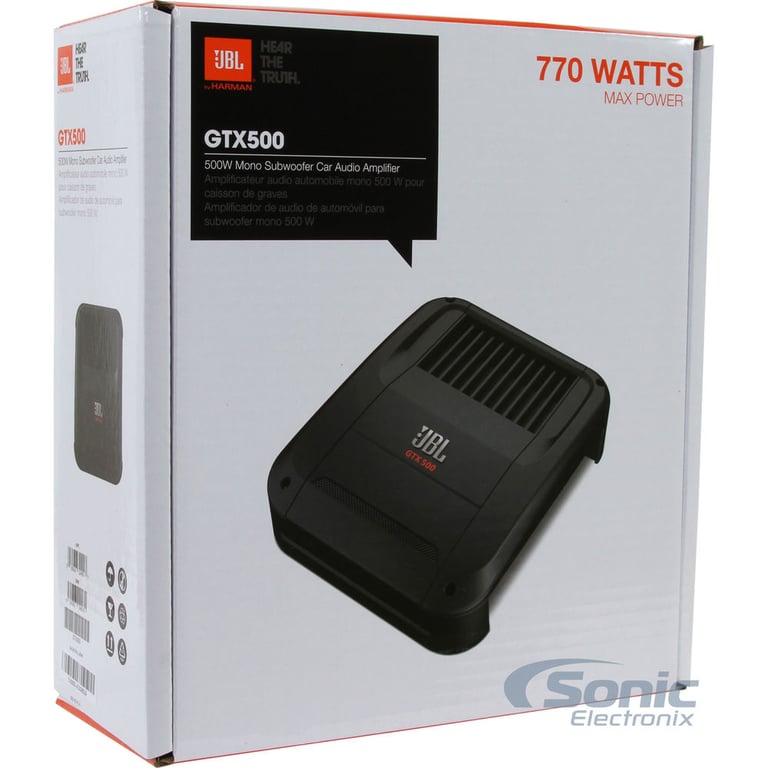

• JBL Mono Subwoofer Amplifier
• RMS Power Rating:
• 4 ohm: 350 watts x 1 chan.
• 2 ohm: 500 watts x 1 chan.
• 1 ohm: ----------N/A----------
• Total max power output: 770 watts
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Signal sensing turn-on

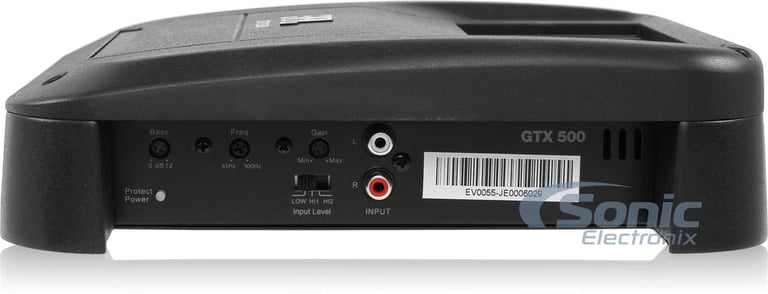

• Speaker-level (high-level) inputs

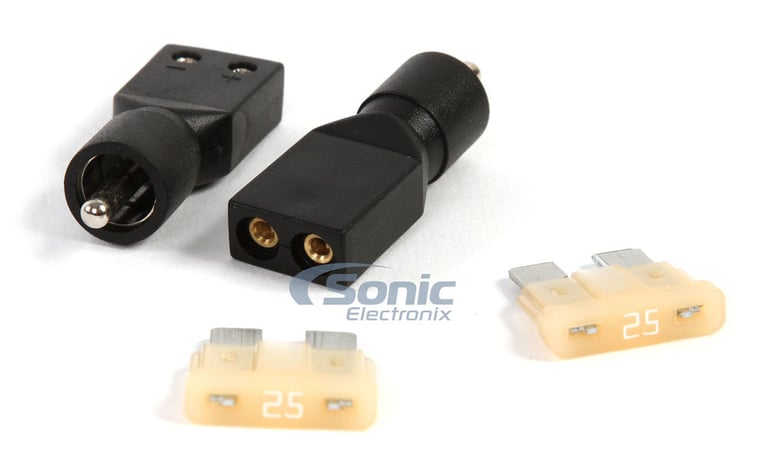

• Bare wire-to-RCA adapters included
• Removable endcaps for clean installs
• Nickel plated Power, Ground and Speaker connections
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• High-density split-dome convection heat-sink for extreme heat dissipation
• Input sensitivity:
• Low level: 100mV - 2V
• High level: 2V - 15V
• Frequency Response: 20 - 200 Hz (±0.5 dB); 10 - 300 Hz (±3dB)
• Signal to Noise Ratio: > 80 dB
• Variable Bass Boost: 0 to +12 dB @ 45Hz
• Variable low-pass filter: 40 - 280 Hz

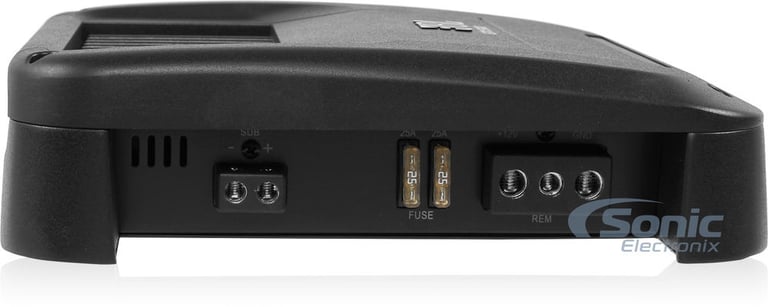

• Fuse Rating: 25A x 2
• 4 gauge power and ground wiring is recommended for installation.
• Dimensions: 8-3/8"W x 9-11/16"L x 2-9/16"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

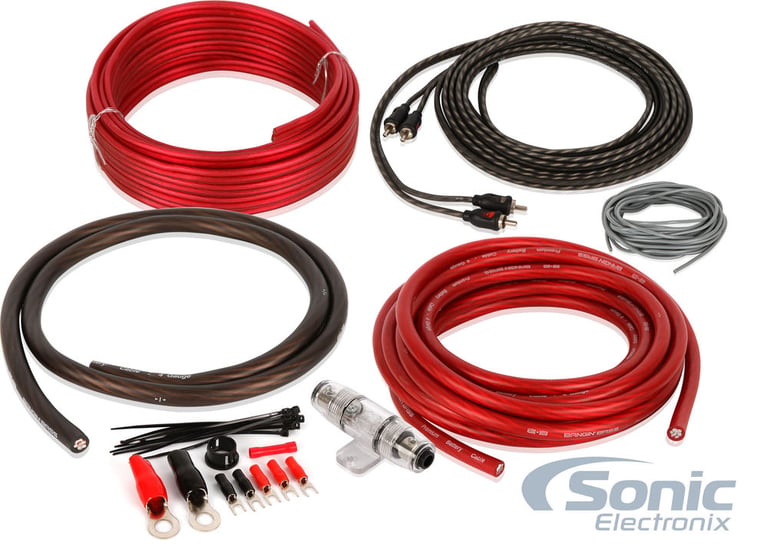

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference

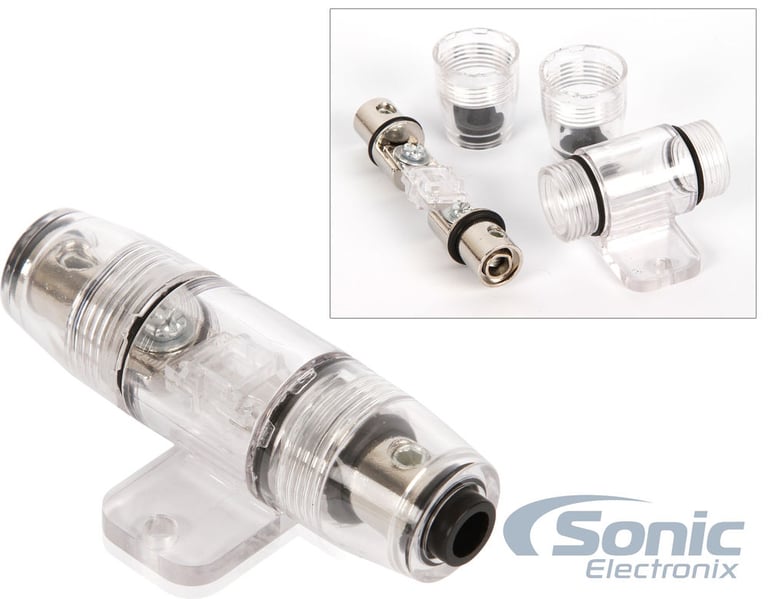

• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available in Black, Blue and as a 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

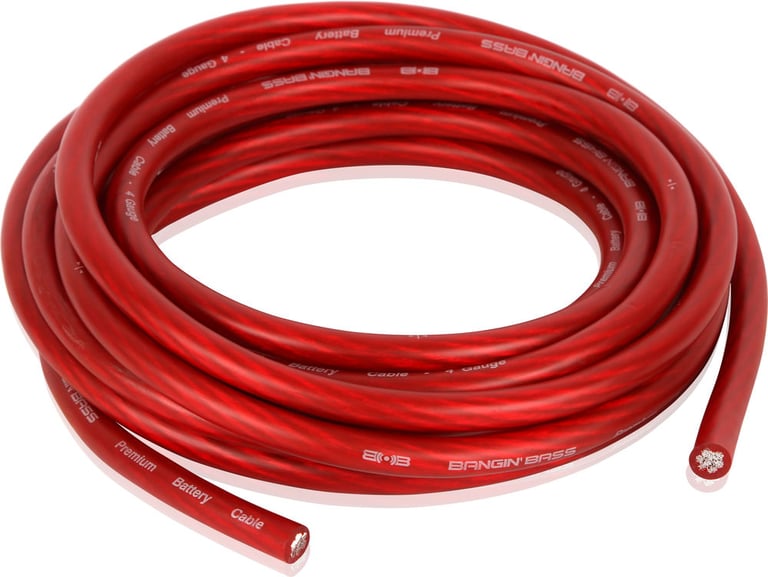

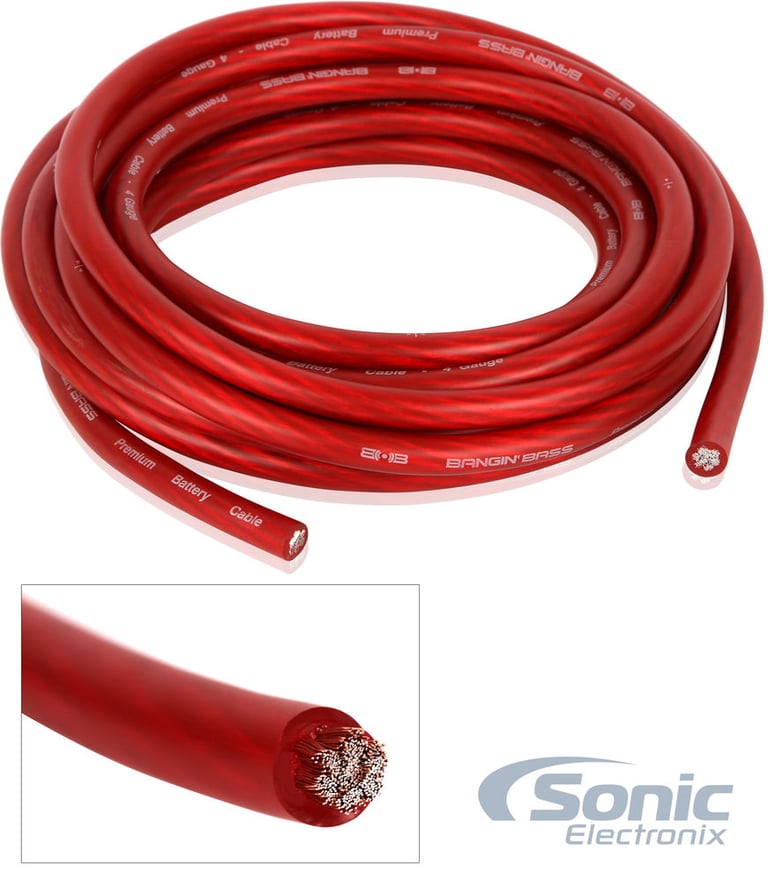

1. 17 ft. (5.2 meters) Red 4 gauge power wire

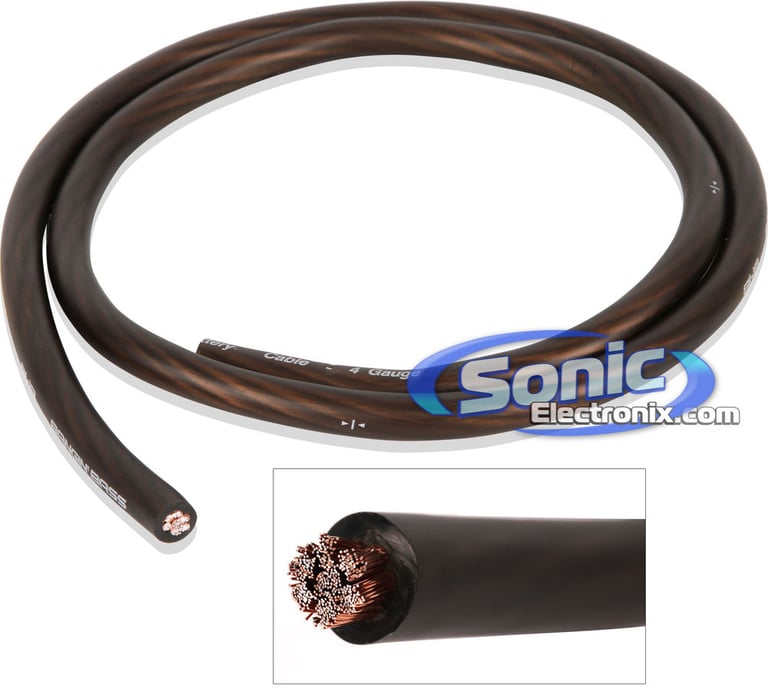

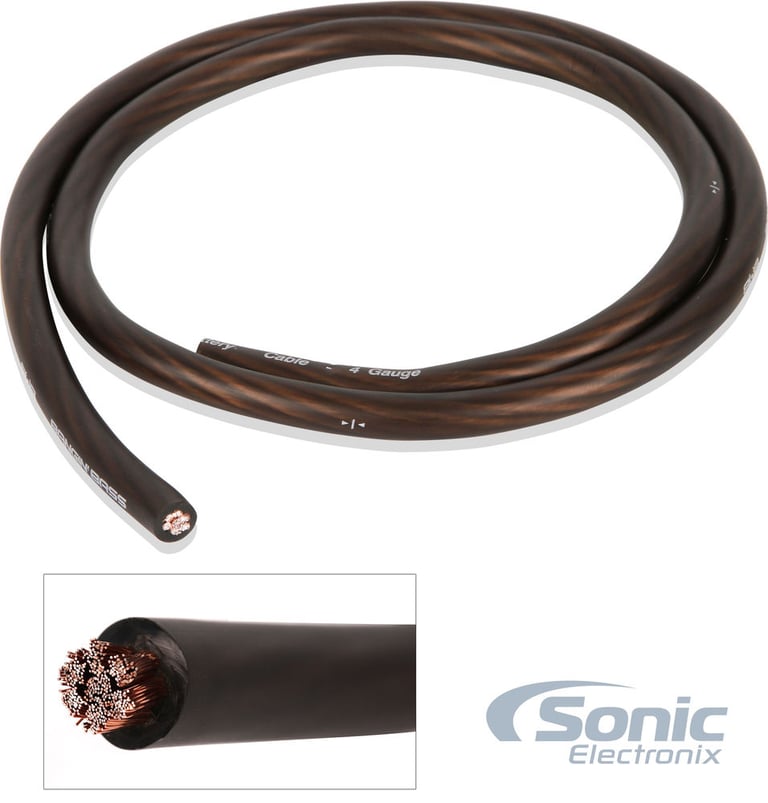

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

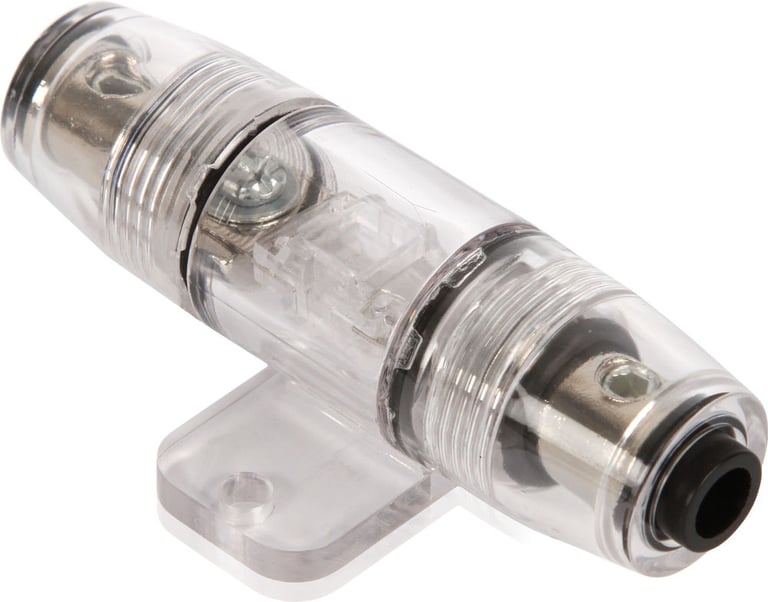

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. One 4 Gauge red chrome plated ring terminals
9. One 4 Gauge black chrome plated ring terminal
10. Three 18 Gauge red Spade terminal
11. Two 18 Gauge black Spade terminal
12. One 18 Gauge red butt connector
13. Ten 4" Black zip ties
