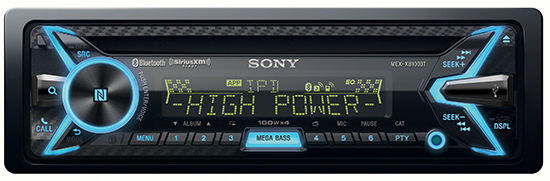

Sony MEX-XB100BT Open Box Complete

General Features:

• NoteItem Condition: Open Box (Incomplete): Missing Installation Hardware. Item was previously installed.
• Sony MEX-XB100BT In-Dash Receiver with built-in 4-channel Amplifier
• CEA-2006 compliant Class-D amplifier
• Power Output:
• Peak 4 ohm: 100 watts x 4 channels
• RMS (CEA) 4 ohm: 40 watts x 4 channels
• With this unique stereo by Sony, you can power your front and rear door speakers using the built-in amp!
• Subwoofer Direct Connect - with this feature you ONE rear channel to generate 60 watts RMS to power a subwoofer!
• Be sure to connect a 4- 8 ohm subwoofer to either of the rear speaker leads. Do not connect a speaker to the other rear speaker lead.
• One-touch Bluetooth phone pairing for audio streaming using new NFC technology!
• Use NFC to pair your phone or other device simply by touching the device to the stereo (android)
• Stream audio with ease and precision clarity
• USB Bluetooth Pairing for iPhone (iOS 5.0+)
• Detachable face plate
• Variable color illumination
• Dynamic 2 zone color illuminator
• Sound and color synchronization
• SongPal and Siri Control
• USB provides 1.5 Amps of charging power
• Wiring harness includes a compact power module
• Delivers twice the amount of power that conventional receiver amps can
• Compact design allows it to tuck in the dash behind the receiver
• Sony recommends a direct to battery constant power connection for optimal performance
• 10 - 16 Gauge OFC Power/Ground Wiring Recommended
• Rockford Fosgate RFK10 10 AWG Power Kit Available
• Signal-to-Noise Ratio: 120 dB
• Frequency Response: 10 - 20,000 Hz
• Wow and Flutter : Below measurable limit
• Remote control included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Playback and Audio Features:

• AAV (Advanced Auto Mode) adjusts the level of all playback sources to the optimum level
• Need help turning on this feature? Click Here!
• 3 Sets of 5V preamp outputs (front, rear and subwoofer)
• Preout Impedance : 220 ohm
• CD/CD-R/RW, MP3/WMA/AAC/FLAC
• RDS AM/FM tuner with 18FM/12AM presets
• iPod and iPhone Ready: Standard USB-to-iPod Cable and USB-to-Lightning Cable compatible
• Music playback for Android devices
• Works with Pandora
• SongPal App system control
• Allows you to use your smartphone or tablet as a system remote
• Adjusts system sound and display settings, select available music sources and hear SMS, Twitter, Facebook and Calendar notifications
• Reply to text messages with your voice via supported voice recognition
• Quick-BroZer search function provides quick and easy music access
• Search by artist, album, genre, song or playlist to quickly find the song you're looking for
• Jump Mode allows you to skim through a category in 10% increments
• DSEE and ClearAudio+™ provide outstanding sound quality
• Digital Sound Enhancement Engine (DSEE):
• Revitalizes and extends the audio frequencies typically lost during the compression process of audio files
• Ensures natural sound quality
• ClearAudio+™ renders incredibly vibrant sound with enhanced bass and crystal clear highs
• Not available when using EQ10 or Mega Bass functions
• 10-band equalizer EQ with +/- 6 dB adjustmen
• 32 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4 kHz, 8 kHz and 16 kHz
• Intelligent Mega Bass functionality
• Digital Signal Processing features:
• ClearAudio+
• Time Alignment
• DSEE
• AAV
• Digital High and Low Pass Filters
• RBE
• Front USB Input w/ Sliding Door Cover
• 24-bit Digital to Analog Converter
• Subwoofer direct connection
• 3.5mm Front Audio Auxiliary Input
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Supports A2DP audio streaming
• Works with most Bluetooth enabled cell phones
• Includes a external wired microphone for clear, convenient talking
• NFC pairing for Android & USB Pairing for iPhone

Expandability Options:

• SiriusXM Satellite Radio Ready: SiriusXM Radio Package and subscription required and sold separately
• Steering Wheel Control Ready: PAC ControlPRO or Axxess ASWC-1 are required and sold separately

Recommended Configurations, Sony MEX-XB100BT+

• Four Speakers Setup

• Two Pair (4) of Sony XS-FB1630 6-1/2" 3-Way FB Series Coaxial Car Speakers
• Two Pair (4) of Sony XS-FB1330 5-1/4" 3-Way FB Series Coaxial Car Speakers
• Two Pair (4) of Sony XS-FB6930 6"x9" 3-Way FB Series Coaxial Car Speakers
• Any Two + Two Combination From Above Selection

• Two Speakers + Subwoofer Setup

• One Sony XS-GS80L 8" GS Series Single 4 Ohm Subwoofer +
  Pair of Sony XS-FB1630 6-1/2" Coaxial Car Speakers
• One Sony XS-GS80L 8" GS Series Single 4 Ohm Subwoofer +
  Pair of Sony XS-FB1330 5-1/2" Coaxial Car Speakers
• One Sony XS-GS80L 8" GS Series Single 4 Ohm Subwoofer +
  Pair of Sony XS-FB6930 6"x9" Coaxial Car Speakers

• Full Range Amplified Setup

• Sony XM-GS100 600W GS Series Monoblock Amplifier +
  One/Two Sony XS-GSW121 12" GS Series Single 4 Ohm Subwoofer +
  Pair of Sony XS-FB1630 6-1/2" Coaxial Car Speakers (connected to headunit)
• Sony XM-GS100 600W GS Series Monoblock Amplifier +
  One/Two Sony XS-GSW121 12" GS Series Single 4 Ohm Subwoofer +
  Pair of Sony XS-FB1330 5-1/4" Coaxial Car Speakers (connected to headunit)
• Sony XM-GS100 600W GS Series Monoblock Amplifier +
  One/Two Sony XS-GSW121 12" GS Series Single 4 Ohm Subwoofer +
  Pair of Sony XS-FB6930 6"x9" Coaxial Car Speakers (connected to headunit)

What's in the Box?

1. Sony MEX-XB100BT Receiver
2. Wireless Remote
3. External Microphone
4. Wiring Harness
5. Power Module
6. Brackets
7. User Guide

MEX-XB100BT Resources:

What Else Does Sony Offer?

Check out the 2015 Sony Catalog to see what else is new from Sony in 2015

¹"70 watts" is based on preliminary testing and is not a guarantee. Individual results may vary.
