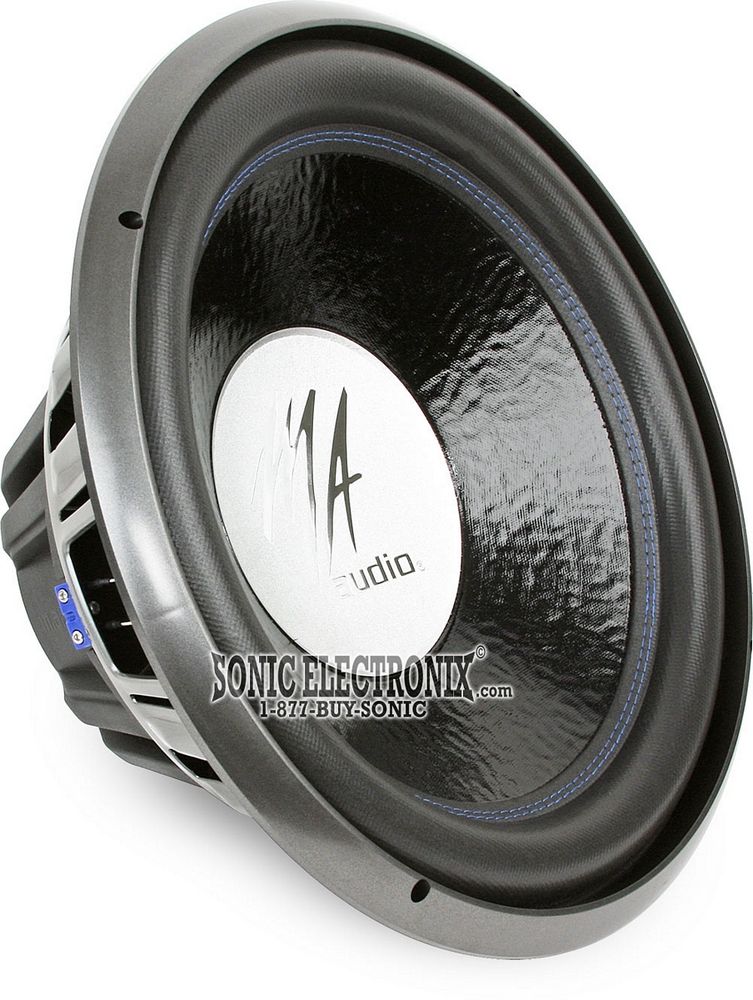

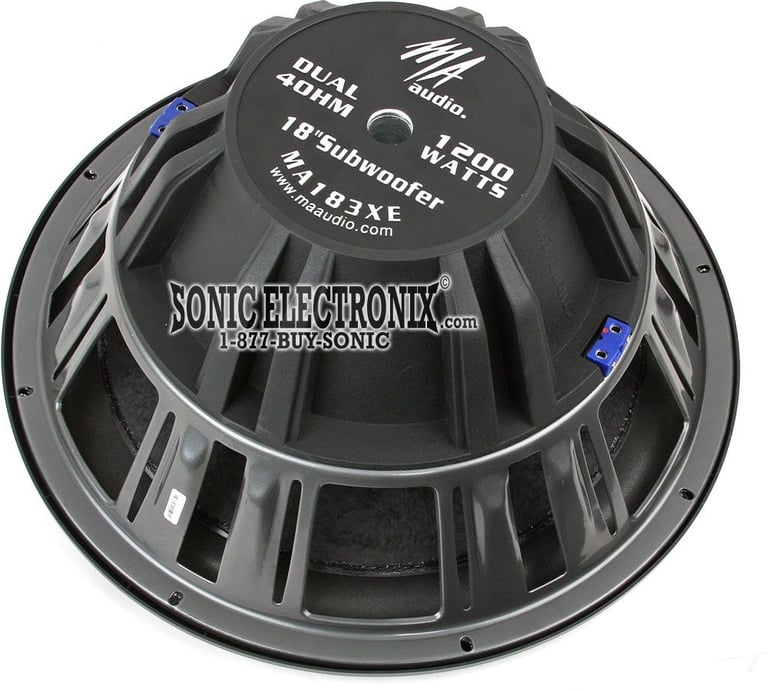

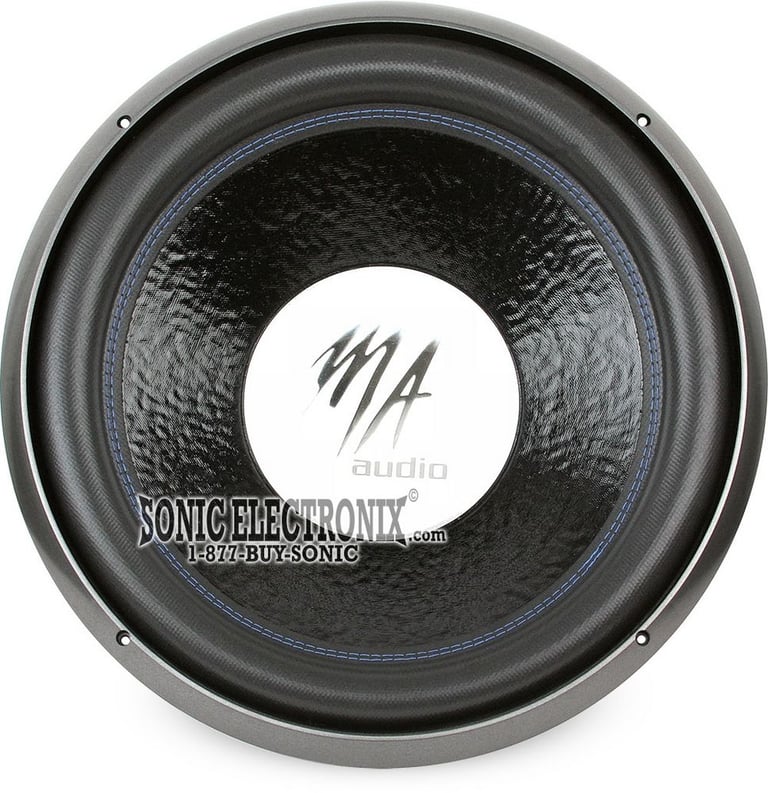

MA Audio MA183XE

18" Dual 4 ohm XE Series Subwoofer

MA Audio
Shop all MA Audio
Product videos
highlight-star-icon

18" Dual 4 Ohm XE Series Subwoofer • 1200W Max • 600W RMS • Non pressed paper cone woofer • Double stitching rubber surround with glass fiber reinforcement • Dual 4 ohm copper coated aluminum voice coils • 200oz. Double stacked strontium magnets

Learn more about the ma183xe

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

40-SB10 main

Metra 40-SB10

Antenna Adapter for select 2005-2025 vehicles from Subaru

7
-26.68%

$10.99

List price $14.99

82-3412 main

Metra 82-3412

Speaker Adapter Bracket for select 1998-2024 vehicles from Chevrolet, GMC, Subaru

1
-34.63%

$16.99

List price $25.99

70-8901 main

Metra 70-8901 Wiring Harness

Install a new car stereo in select 1990-2013 vehicles from Subaru

12
-30.03%

$6.99

List price $9.99

SBK923G main

American International SBK923G

Single DIN or Double DIN Stereo Dash Kit for select 2005-2009 Outback and Legacy (Gray)

-60.95%

$24.99

List price $64.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
CMR2724 main

Jensen CMR2724

7" Double DIN Touch Screen Digital Multimedia Receiver with Bluetooth

4
-25.00%

$82.49

List price $109.99

T1650-S main

Rockford Fosgate Power T1 T1650-S

320W Peak (160W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

1

Product Highlights


18" Dual 4 Ohm XE Series Subwoofer • 1200W Max • 600W RMS • Non pressed paper cone woofer • Double stitching rubber surround with glass fiber reinforcement • Dual 4 ohm copper coated aluminum voice coils • 200oz. Double stacked strontium magnets

Description


MA Audio brand icon

Authorized dealer

  • 18" Dual 4 Ohm XE Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Non pressed paper cone woofer
  • Double stitching rubber surround with glass fiber reinforcement
  • Die-cast basket
  • Dual laminated progressive Dupont spider
  • "CoilVent" T-yoke allows for greater power handling while keeping voice coils cool
  • Polypropylene dust cap
  • Platinum plated block terminals
  • Plastic sealant gasket
  • Kapton voice coil former
  • Dual 4 ohm copper coated aluminum voice coils
  • 200oz. Double stacked strontium magnets
  • Sensitivity: 89dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

2008 MA Audio New Release

Product history:

MA Audio MA183XE thumbnail
(newest, current model)
MA Audio MA180XE thumbnail
(previous model, replaced by MA Audio MA183XE)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MA Audio MA183XE Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MA Audio MA183XE Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MA Audio MA183XE Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MA Audio MA183XE Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

T2S2-13 small

Rockford Fosgate Power T2 T2S2-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 87 dB

$1099.99

List price $1099.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
18"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
89 dB
Xmax (millimeters)
30 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Silver
Woofer Composition
Reinforced Paper
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.75 cubic feet
Maximum Sealed Box Volume
2.50 cubic feet
Minimum Ported Box Volume
5.0 cubic feet
Maximum Ported Box Volume
5.0 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/2"
Cutout Diameter
16-3/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MA183XE

Weight:

39.00lbs

Internal SKU:

ma183xe

Internal Product ID:

11892

Product and How-to Videos


Customer Ratings & Reviews


MA Audio MA183XE thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Ridiculous

This sub is a beast. Just the looks of it make you speechless. Defiantly the most flexible 18" sub I've owned. Very heavy duty competition sub. A must have, Especially for people who listen to rap.

By Danny on July 10, 2008

9 found this helpful


The big boy

this sub blows your mind. i have one in a 02 Dakota and it kicks. Not only is this big boy loud, it's tough. I listen to Rock,rap, and heavy metal ,but it doesn't matter it's all the same in the vibration. A good pick.

By hollywood on March 11, 2009

6 found this helpful


Best subs on site

These subs rip my car apart i have 2 of them in a 13.69ft3 enclosure inside my car.. man sounds like i got some in the trunk to it rattles so bad. My windshield, doors, windows, and roof flex. The hood even vibrates, i havent been to competition yet so i dont know what i'm hitting. I'm using a power acoustik 3000D gothic series.I played them long and hard for long periods of time and i've had them for a couples months now. NO PROBLEM AT ALL. If you got the space buy these subs.

By Desmond on August 11, 2008

4 found this helpful


Great Sub

I bought this sub maybe 2 months ago and boy does she hit. I got it in a custom ported 5.0 cubic foot enclosure and it makes some noise. Had to replace my head unit with a higher end model because it vibrated my dash so bad that cd's would constantly skip. Great bang for the buck.

By Sean on November 24, 2008

3 found this helpful




RT-10K small

Roland RT-10K

Acoustic Trigger Unit (Kick)

$99.00

List price $114.00

CZ500 small

Clarion CZ500

Car Stereo CD/MP3/WMA Receiver with Built-in Bluetooth, USB Port and Aux-In (CZ-500)

(53)

$114.99

List price $249.99

KCA-100BT small

Alpine KCA-100BT

Bluetooth interface adapter module for 2004-2006 Alpine Ai-NET Head Units and Stereos

$139.99

List price $229.99

FSB216 small

MB Quart FSB216

280W Peak (140W RMS) 6.5" Formula Series 2-Way 4-ohm Component Speaker System

(14)

$59.95

List price $125.99

JH300-RB_1260W small

600W Complete MTX Audio + Infinity Reference Bass Package

MTX Audio JackHammer JH300 Amplifier + Infinity 1260W 12" Sub + 8 GA Amp Kit + Sealed Enclosure

(74)

$187.56

List price $459.92

GTR12 small

Boston Acoustics GTR12 12" Tunable Radiator

12" passive radiator for use with Boston G Series Subwoofers

(2)

$44.95

List price $59.95

VTL275 small

Metal Chrome License Plate Frame Rearview Backup Camera

BOYO Vision VTL275

(1)

$155.99

List price $202.99

SHE3590BL/10 small

Philips SHE3590 (Blue)

Deep Bass Music Colors In-Ear Stereo Headphones/Earbuds with Noise Isolating Rubber Eartips Design

(4)

$2.99

List price $19.95

PF2K8 small

Phoenix Gold PF2K8

Complete 8 Gauge Amplifier Installation Kit with RCA Interconnect Cables

(1)

$29.99

List price $59.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Subaru Outback

2016 Audi Q5

1982 Volkswagen Scirocco

2004 Mazda B3000

1994 Mazda B4000

2019 Dodge Durango

2021 Mazda CX-3

Vehicle
Store
Delete

2003 Harley Davidson FXSTD/I Softail Deuce

Vehicle
Store
Delete

2013 Can-Am Commander E LSV

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
