MTX TS9924-22

8000W Peak (4000W RMS) 24" JackHammer Series Dual 2-ohm Subwoofer

MTX
Shop all MTX
Product videos
highlight-star-icon

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

Learn more about the ts992422
Universal fit Icon

Universal – fits most vehicles.

Similar items | Update vehicle | Vehicle store
List price $12500.00
Thanks , You Pay:
-20%

$9999.95

 with warranty
Starting at $485/mo with

Heads up

Your vehicle can use this product in multiple locations. Only a quantity of one can be selected from the product page. You will have the option to adjust the quantity within your cart.

shipping truck icon Free shipping in USA. Provide zip for delivery date.
Dollar Icon
VIP Product Get $1,000.00 in rewards to spend later
Quantity
Available: Ships in 10-14 days
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Loading...
C2R-GM11B main

PAC C2R-GM11B Wiring Interface

Install a new car stereo and retains the safety warning chimes and other factory features in select 2004-2009 vehicles from Chevrolet, Pontiac

4
-58.07%

$116.99

List price $279.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

DSX-A415BT main

Sony DSX-A415BT (DSXA415BT)

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

6
-21.33%

$118.00

List price $149.99

H7692 main

Cerwin-Vega H7692

800W Peak (120W RMS) 6x9" HED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$79.99

List price $95.99

DMX125BT main

Kenwood DMX125BT

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-26.30%

$199.00

List price $270.00

660BRGB main

Boss Elite 660BRGB

Double DIN CD Receiver with Bluetooth (Black)

4

JBL Club 64 (JBLSPKCB64)

360W Peak (120W RMS) 6.5" Club Series 2 Way Coaxial 3-ohms Speakers

2
-21.44%

$109.95

List price $139.95

Current Promotions (2 offers)


Get a Free roll of Belva 16 Gauge Speaker Wire. Simply click the "Add Both to Cart" button and you will see your savings at checkout. This offer cannot be combined with any other coupons or offers.

MTX TS9924-22

100% off


Priced separately $10,012 94

Promo Savings of $12 99

Total price:

$9,999 95

Get a Free roll of NVX 25 ft. of True Spec 12Gauge EnvyFlex Speaker Wire (100% Oxygen-Free Copper). Simply click the "Add Both to Cart" button and you will see your savings at checkout. This offer cannot be combined with any other coupons or offers.

MTX TS9924-22

100% off


Priced separately $10,029 94

Promo Savings of $29 99

Total price:

$9,999 95

Product Highlights


• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

Description


MTX brand icon

Authorized dealer

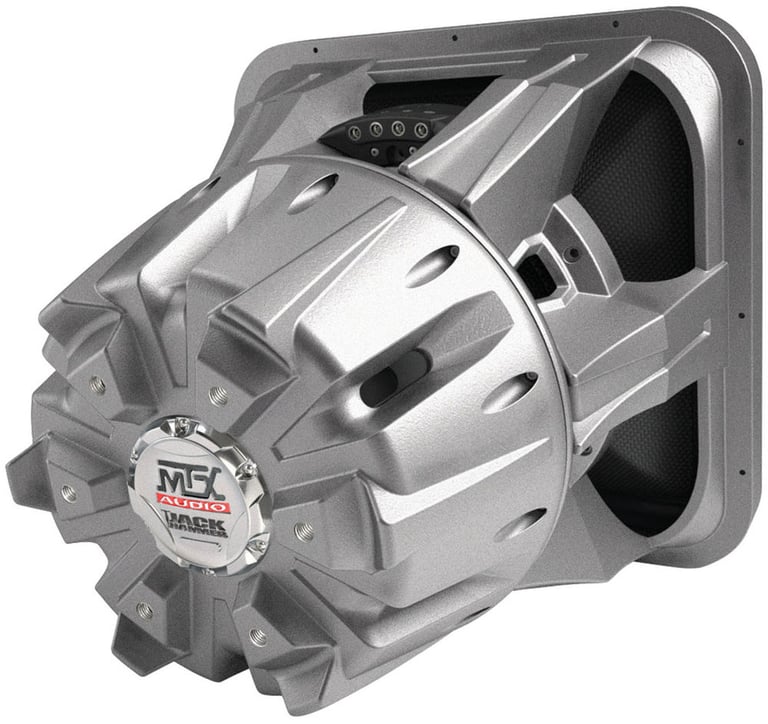

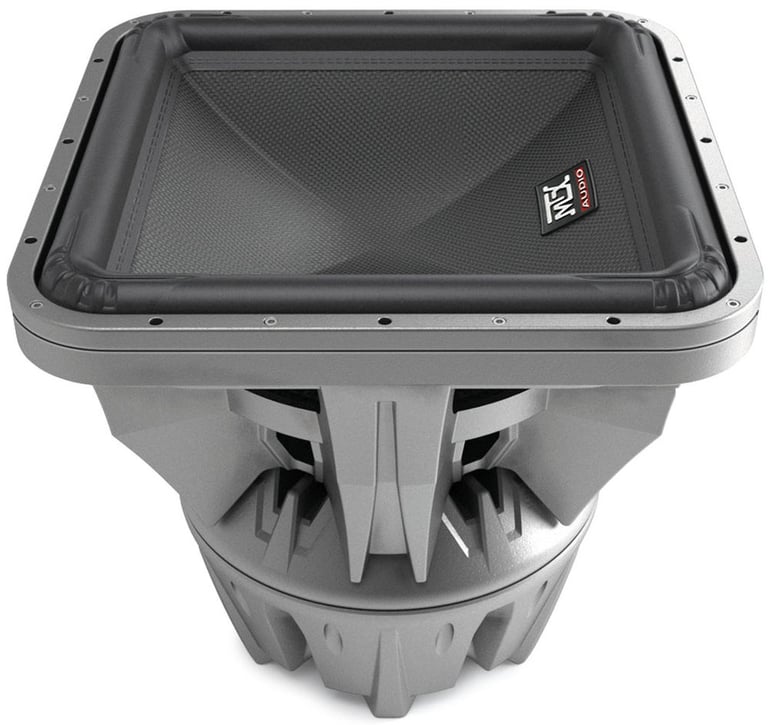

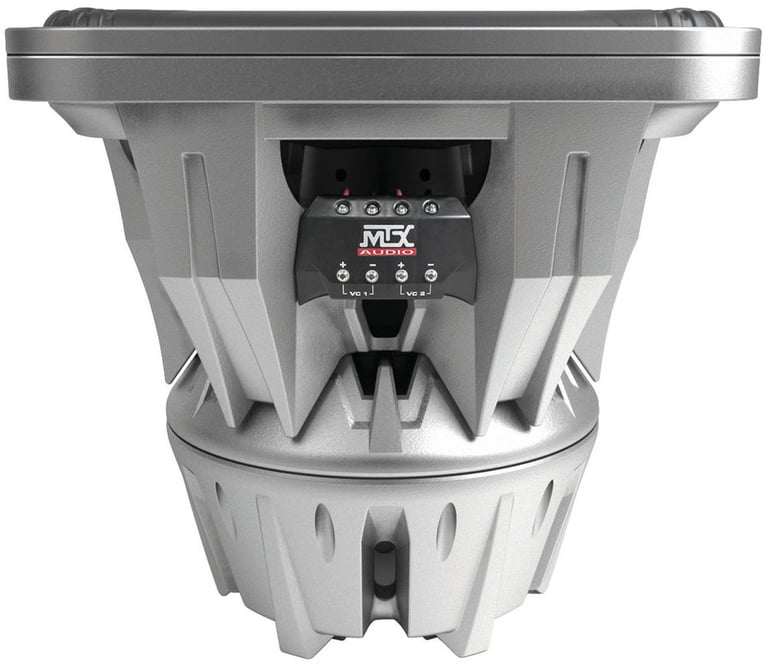

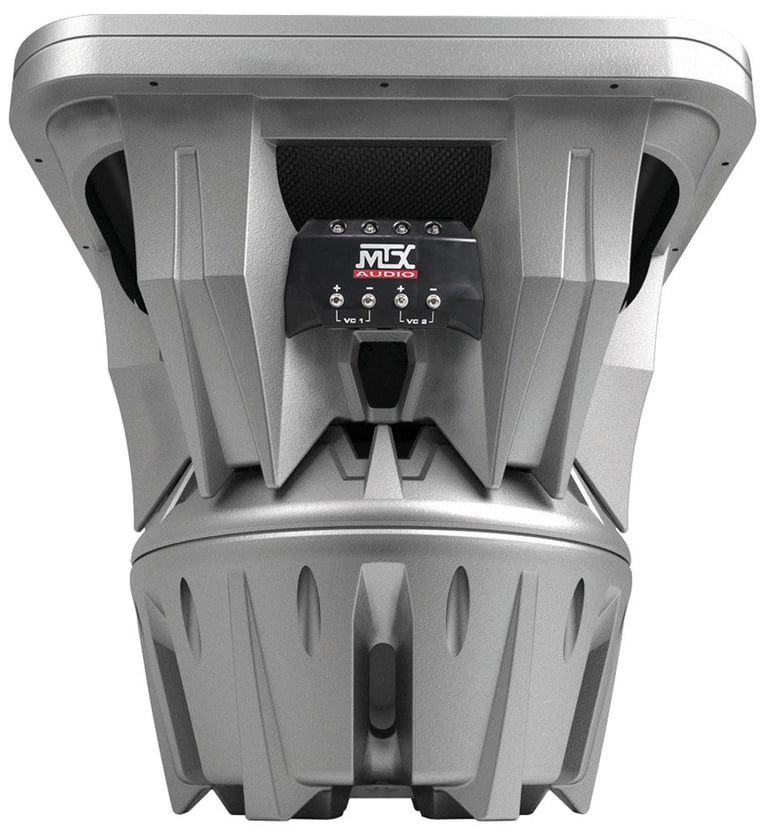

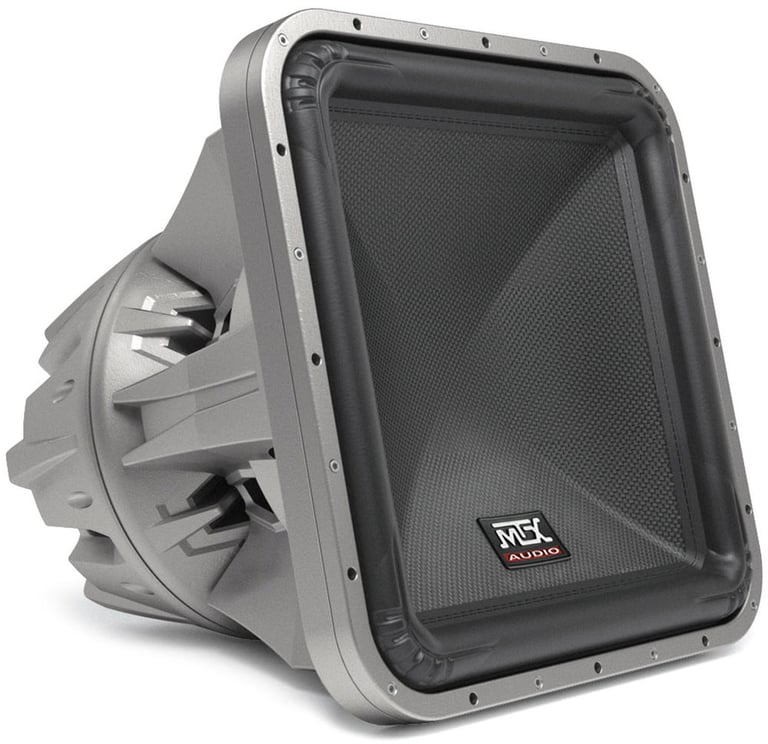

TS9924-22

This monster SuperWoofer weighs over 400 pounds so you may need to plan for some vehicle modifcations including suspension and electrical upgrades. The JackHammer is also an engineering marvel that incorporates key technologies that make it unbelievable. The units starts with a sand cast aluminum basket and 56.25 pound magnet structure causing the unit to stand over 3 feet tall.

Internally, the unit features a 6.5" high temperature voice coil with 17 AWG aluminum wiring allowing the subwoofer to achieve 2.5" of one-way excursion, or Xmax, and the ability to handle 4000 watts RMS. An aluminum shorting and progressive roll spider reduce distortion allowing the subwoofer to play loud and clear even at high output. This unit also features a patented surround design that enables it to move more air than any other subwoofer being manufactured today.

The carbon and glass fiber dustcap has an excellent stiffness to weight ratio increasing sensitivity so the unit is able to deliver high SPL at lower power levels. The high roll surround uses a patented design that increases Xmax and delivers the 2.5" Xmax. The unit is completed with 8 AWG set screw terminals on both voice inputs allowing large power wire to be used to ensure voltage loss is minimized and the subwoofer receives all the power you can send to it.


Product Details:

  • 24" Dual 2 ohm JackHammer Series Subwoofer
  • Power Handling:
    • Peak: 8000 watts
    • RMS: 4000 watts
  • Polypropylene Cone
  • High Roll Foam Surround
  • Carbon and glass fiber dustcap
  • Features high temperature voice coil with 17 AWG aluminum wiring
  • Progressive roll spider to reduce distortion
  • Features patented surround design
  • 6.5" High Temperature Aluminum Voice coil
  • 34.29 mm Xmax
  • 900 oz. Double Stacked magnet motor structure
  • Frequency Response: 20 - 150 Hz
  • Resonance Frequency (Fs): 20 Hz
  • Sensitivity: 92 dB
  • Recommended sealed box volume: 5.47 cubic feet
  • Recommended ported box volume: 10.2 cubic feet
  • Top-mount depth: 24.00"
  • Cutout diameter: 22.25"
  • Authorized Internet Dealer
  • 5 Year Manufacturer's Warranty

  • Priced Individually

PDF IconMTX TS992422 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MTX TS9924-22 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MTX TS9924-22 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MTX TS9924-22 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 MTX TS9924-22 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

Specifications & Details


Subwoofer Specifications
Series
JackHammer Series
Subwoofer Size
24"
Peak Power Handling
8000 watts
RMS Power Handling
4000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
6.5"
Frequency Response
20 - 150 Hz
Sensitivity
92 dB
Xmax (millimeters)
34.29 mm
Subwoofer Design
Square
Main Cone Color
Dark Gray
Woofer Composition
Polypropylene
Woofer Surround
High Roll Foam
Magnet Structure
Double Stacked
Magnet weight
900 oz.
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
5.47 cubic feet
Optimum Ported Box Volume
10.2 cubic feet
Top-Mount Depth (Mounting Depth)
24.00"
Cutout Diameter
22.25"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
20 Hz
Equivalent Compliance (Vas)
18.371 liters
Total Speaker Q Value (Qts)
0.393
Electrical Q Value (Qes)
0.421
Electrical Resistance of Voice Coil (Re)
1.00 ohm
Mechanical Q Value (Qms)
5.950
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

TS9924-22

Weight:

435.00lbs

Internal SKU:

ts992422

Internal Product ID:

43789

Product and How-to Videos


Customer Ratings & Reviews


MTX TS9924-22 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.7
Design
5
Usability
4.7

Customer Reviews

Sort by:

Loading...

JackHammer

I haven't seen any honest (real) reviews on this product, so I decided to finally give my 2cents.
I bought one of these to mount in my walled AMG G63. This vehicle is strictly for advertising and competitions, so it is heavily modified - and it exponentially heavier now =P . It took a lot longer for me to receive it, but I guess I can understand why it took so damn long....the damned thing is HUGE. I wasn't at all prepared to receive it. Anyway..that's my mistake.
To the good stuff.... I have this big guy wired down to 1ohm, being driven by a very underrated DC Audio 3.5k Competition Series Class D amp and it F***ing SLAPS! Obviously this thing is built to move air and holy S*** does it! As ridiculous as it sounds, it doesn't do too bad when casually listening to music...but we only do this to and from shows, typically.
PROS: Honestly the best bang for you buck..as crazy as that may look when you see the price tag. I got a laughable Discount from Sonic but it was a Discount nonetheless...so I'm a happy camper. The sub is LOUD...nuff said. It is built to do what it says it is.
CONS: Only that it's incredibly difficult to move around...but meh.

By Kenny on March 31, 2016

59 found this helpful


The King

I and my brother I got 2 of em in on 2 cactus 5ks strapped getting ready to add 2 more 5ks.
The bottom line is we are going to feed over 10k to each sub.. the box space is like 12 cubes roughly.

By J. Edwards on April 26, 2020

47 found this helpful


By Anonymous Shopper on December 25, 2023

23 found this helpful




KIT-F150 small

iDataLink Maestro KIT-F150 Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2013-2014 F-150 (Requires MRR or MRR2 module)

(4)

$409.99

List price $489.99

CTM-11YB small

Crux CTM-11YB

Commercial Grade Top Mount Camera with 1/3" Sony CCD Sensor and IR LEDs

$153.90

List price $239.40

AAI-GM12 small

PAC AAI-GM12

Dual Auxiliary Audio Input Interface for select 2000-2012 vehicles from Chevrolet, GMC, Pontiac

(5)

$54.99

List price $119.00

11TS10L72 small

Kicker TS10L72 (11TS10L72)

2 Ohm: 10" Angled Vented Sub Enclosure with 1 Solo-Baric 10" L7 S10L7 Subwoofer (TS10L7-2)

(1)

$249.95

List price $449.95

DKGM-15 small

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

(19)

$162.00

List price $252.00

TS-A878 small

Pioneer TS-A878

120W Peak (30W RMS) 3.5" A-Series 2-way 4-ohm Coaxial Speakers for select GM, Ford and Volkswagen models

(31)

$49.99

List price $70.00

XS160GS_2 small

Sony XS160GS (2-Pairs, 4-Total)

1000W Peak (180W RMS) 6.5" GS Series 2-Way Coaxial Car Speakers (2-Pairs)

$296.00

List price $299.98

MVH-S322BT small

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

(7)

$129.99

List price $150.00

G210-4 small

Boston Acoustics G210-4

10" Single 4 ohm G2 Series Car Subwoofer

(3)

$89.95

List price $199.95

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Chevrolet Malibu

1958 Chevrolet Nomad

1989 Dodge Daytona

1994 BMW 318i

2010 Lotus Elise

1995 Lincoln Continental

2008 Lexus LS460

2009 Jeep Commander

1997 Subaru Impreza

2009 Dodge Sprinter

Vehicle
Store
Delete

2025 Can-Am Defender DPS HD9

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
