Pioneer AVH-4200NEX Installation Package for Select 1999-01 Volkswagen

General Features:

• Pioneer AVH-4200NEX In-Dash Receiver
• 7” WVGA Clear Resistive Touchscreen Display
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 17 watts x 4 channels
• AM/FM tuner with 18FM/6AM presets
• Android Auto and Apple Carplay
• Built-in HD Radio
• Siri Eyes Free
• Pioneer MixTrax Technology creates a non-stop mix of your music library
• SiriusXM Radio Ready
• App Radio Mode allows you to use compatible apps directly from the dash (Note: iPhone 5 or newer compatibility requires the purchase of the CD-IH202 interface cable kit (sold separately), Apple® Lightning Digital AV adapter (sold separately), and Apple Lightning to USB cable (sold separately)
• USB Direct control for iPod and iPhone
• iDataLink Maestro
• Dual Zone Entertainment
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Navigation Features:

• Navigation Ready: Pioneer AVIC-U260 required, sold separately

Playback and Audio Features:

• DVD/DVD-R/RW CD/CD-R/RW , MP3/WMA/AAC Playback
• MP3/WMA/AAC/MP4/WAV/FLAC/WMV/JPEG Playback via USB
• Compatible with Apple iPhone 6/6+ and iOS 8 software
• 13-band graphic equalizer
• Rear Auxiliary Input
• 2 Rear USB Inputs
• HDMI input
• SD Card reader for audio and video playback
• 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth Profiles Supported:
• HFP1.6: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• AVRCP1.4: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
• SSP: Secure Simple Pairing
• Works with most Bluetooth enabled cell phones
• Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

• SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required, sold separately
• HD Radio Built-in
• Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
• Composite Video Output: Used for connection to separate monitors and other devices
• 2 Composite Audio/Video Inputs: Used for connecting video accessories such as game consoles, video cameras, etc.

Product Features:

• Install dash kit for Double DIN/ISO Radios
• Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit
• Painted to match factory dash color
• High-grade ABS plastic construction
• Factory style texture
• Kit Includes:

1. Radio Housing

Note: With the installation of this kit, the radio will have a tight fit. Installation and stereo removal can be difficult due to the fit of the car.

Check the Product Information Sheet for more information.

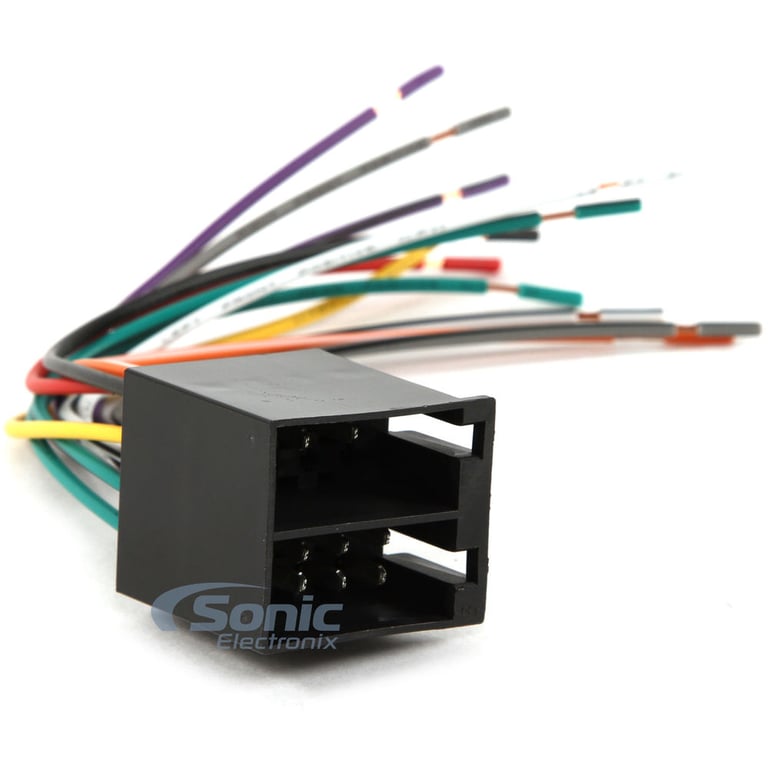

Product Features:

• Plugs into car harness at radio
• Power/4 Speaker
• 16-Pin connector
• Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
• No cutting of factory wiring needed
• Check the Product Instructions to see basic instructions and compatibility list for the Metra 70-1784
• 1-year Manufacturer's warranty

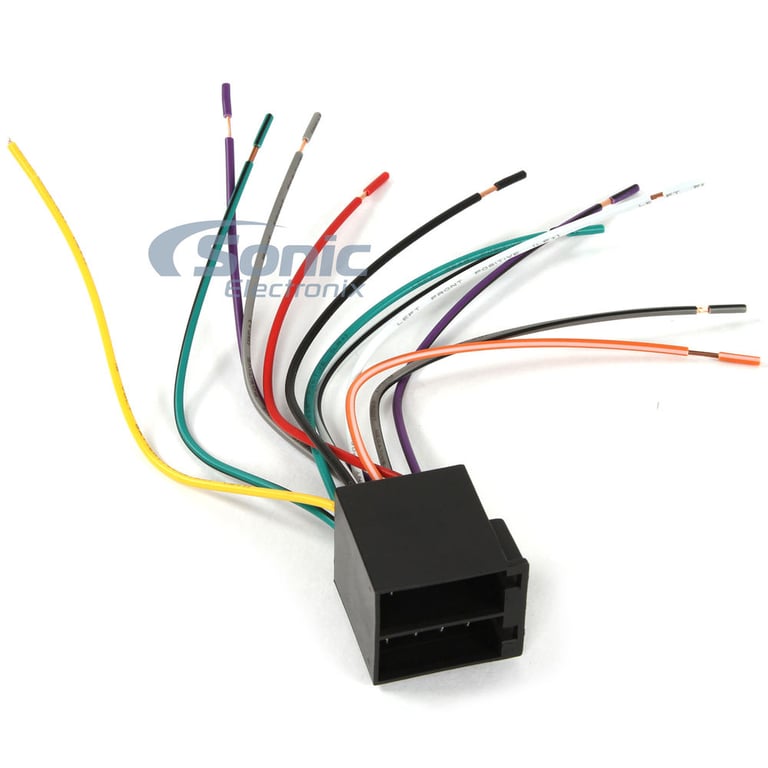

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
