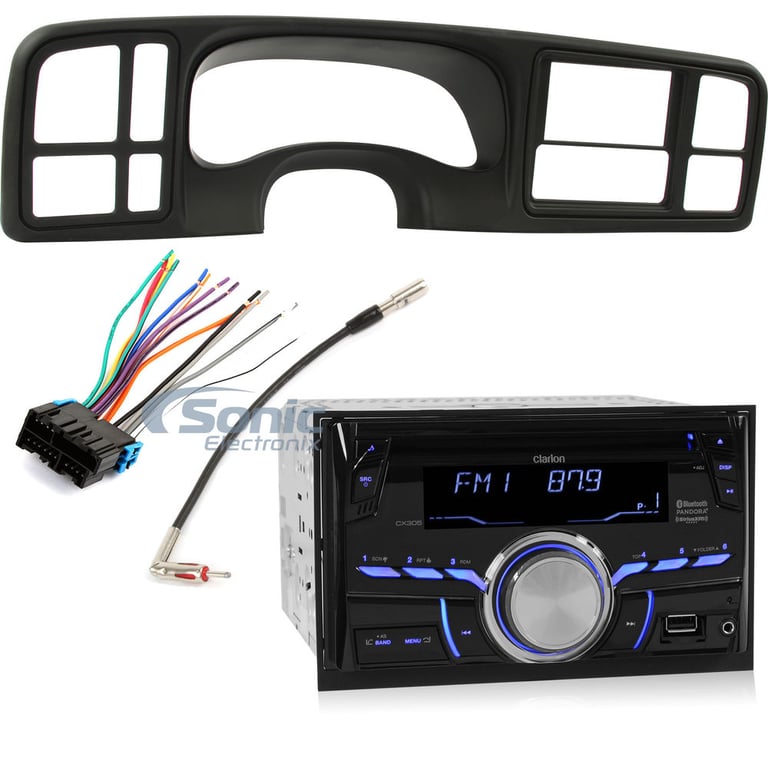

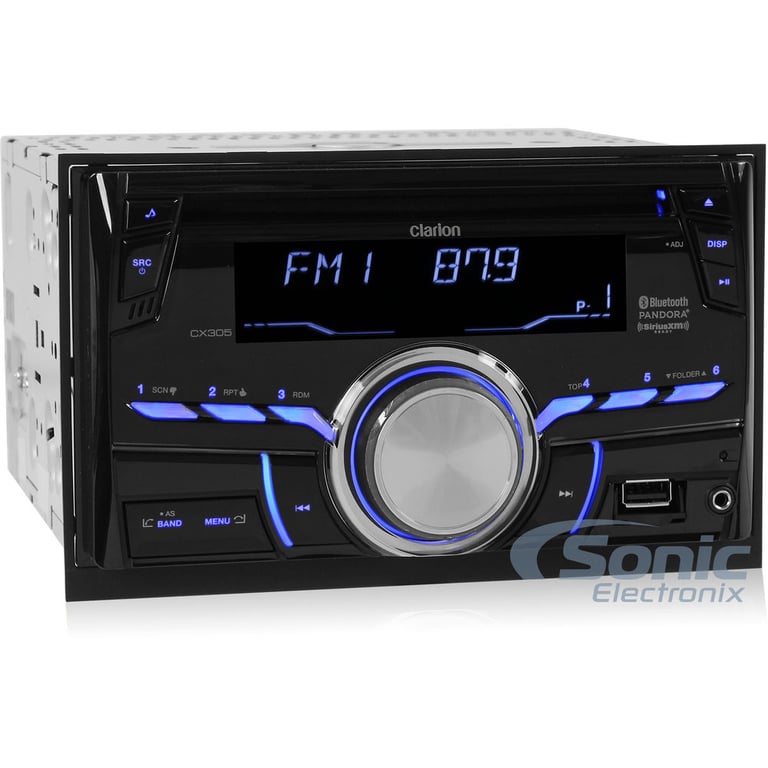

Clarion CX305
Double DIN Bluetooth In-Dash CD Car Stereo with aptX for hands-free calling & audio streaming, 3-band parametric equalize, & Front AUX Input (3.5mm)
Quantity: 1
CX305 Software Improvements Available:
Please visit the Clarion CX305 Software Update page to access the latest version (10/21/2015)
General Features:
 |
 |
 |
 |
 |
 |
- In-Dash AM/FM, CD, MP3, USB Receiver with Remote
- 13-segment 10 X 2-line LCD
- Bluetooth® aptX® Support
- Pandora Support
- Blue illuminated button lighting
- CEA-2006 compliant amplifier
- Power Output:
- Peak: 45 watts x 4 channels
- RMS: 22 watts x 4 channels

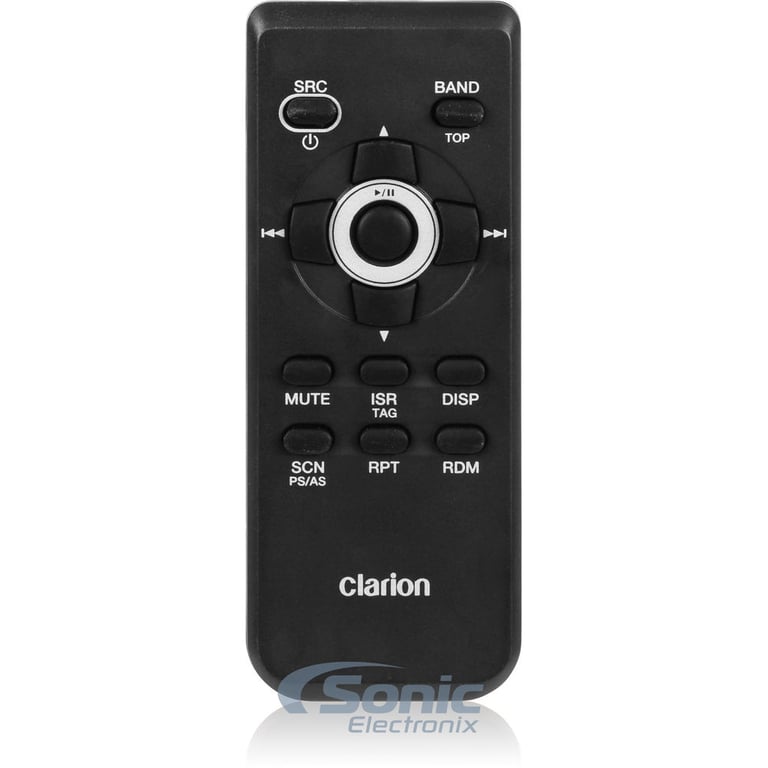

- Wireless remote control included
- CD text information display
- MP3 ID3 Tag Display (Title/Artist/Album)
- 1-year Manufacturer's Warranty
Playback and Audio Features:
- Playback of CD, CD-R, CD-RW, MP3 and WMA
- AM/FM tuner with 18FM/6AM presets
- Compatible with Apple iPhone 6+/6 and iOS 8 software
- 3-band parametric equalizer with 3 preset EQ curves
- Bluetooth® aptX® for Superior Sound Entertainment

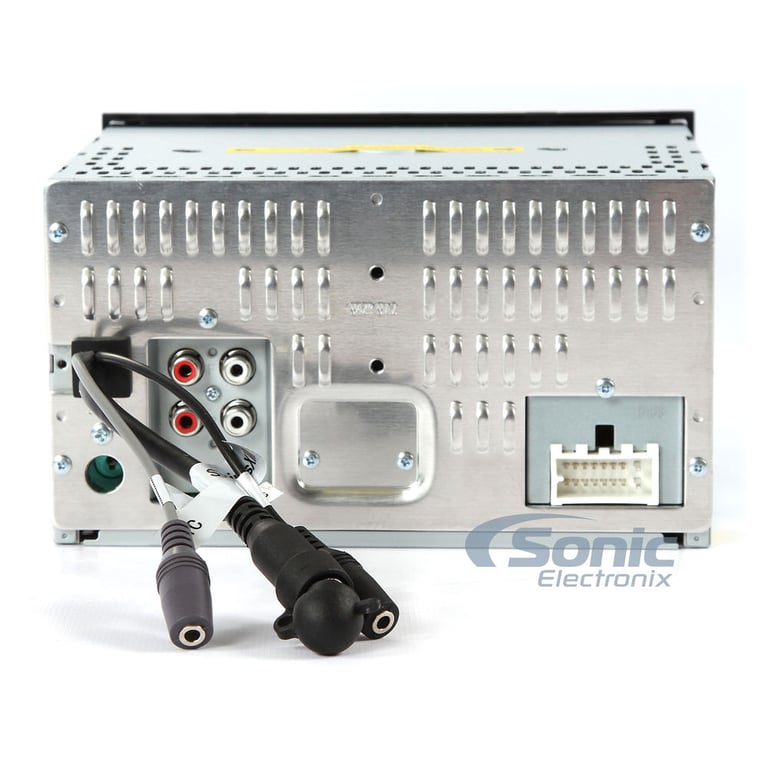

Expandability Options:
- 2 Sets of 2V preamp outputs (front, rear)
- SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 Radio Package and subscription required and sold separately
- iPod and iPhone Ready: Standard USB-to-iPod Cable compatible
- Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
- Front USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
- Steering Wheel Control Ready: PAC ControlPRO (SWI-CP5) or the Axxess ASWC-1 required and sold separately
Bluetooth Features:
- Built-in Bluetooth technology for hands-free talking and audio streaming
- Bluetooth version V2.1+EDR certified
- Works with most Bluetooth enabled cell phones
- Includes a built-in microphone for clear, convenient and distortion-free talking
- External Bluetooth Microphone available and sold separately
Check out the Clarion CX305 Quick Start Guide

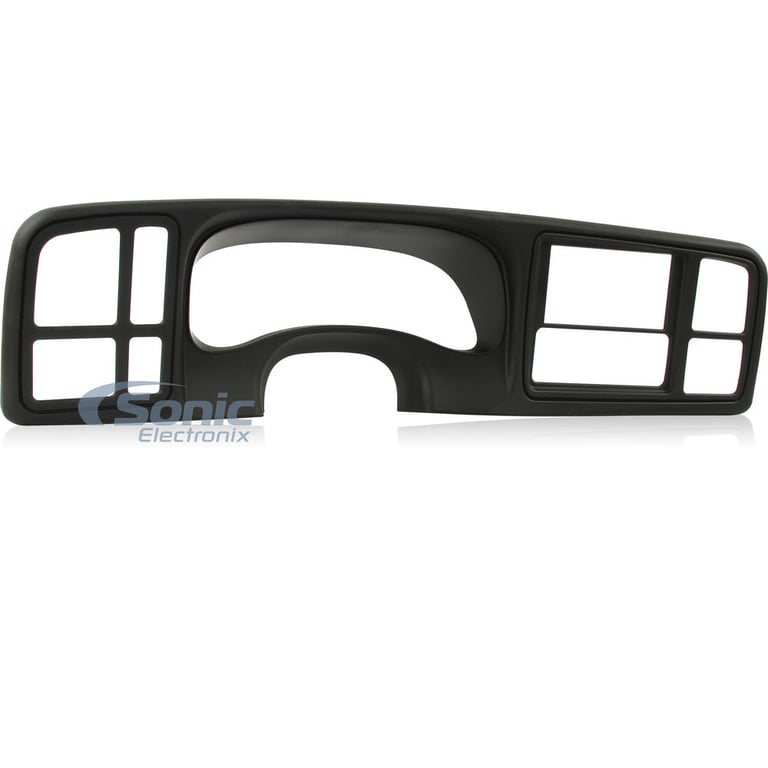

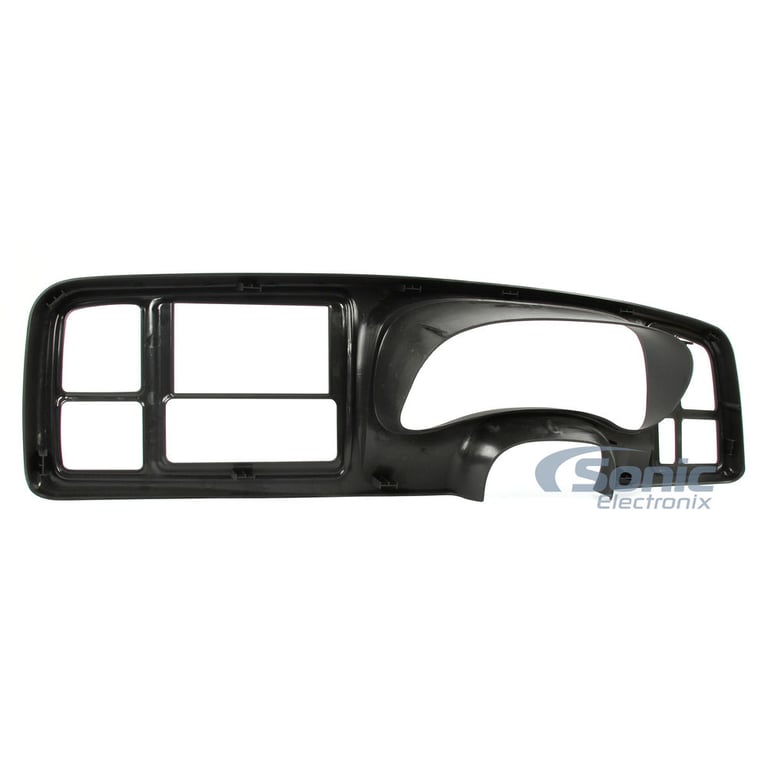

Metra DP-3002B
Double DIN Dash Kit for 1999 - 2002 GM Full-size Trucks and SUV's (models with message center in the factory instrument cluster)
Quantity: 1
General Features:
- *Installation Note: Installation requires the installer to "cut and remove the radio rear support shelf from the dash cavity".
- Installation Dash Kit for Double DIN Radios
- For 1999 - 2002 GM Full-size Trucks and SUV’ s
- Models with message center in the factory instrument cluster**
- Accommodates Double DIN mount
- Designed and manufactured with precision tolerances
- Gapless fit between the dash and the kit
- Painted scratch-resistant matte black finish
- High-grade ABS plastic construction
- Color: Black
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit Includes:
- Radio Trim Panel

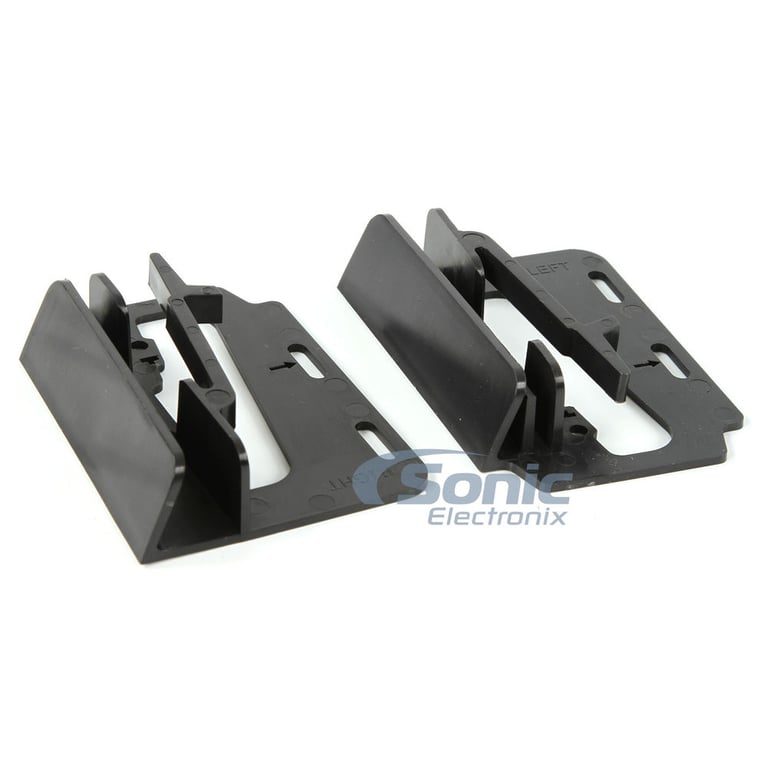

- Radio Housing Brackets

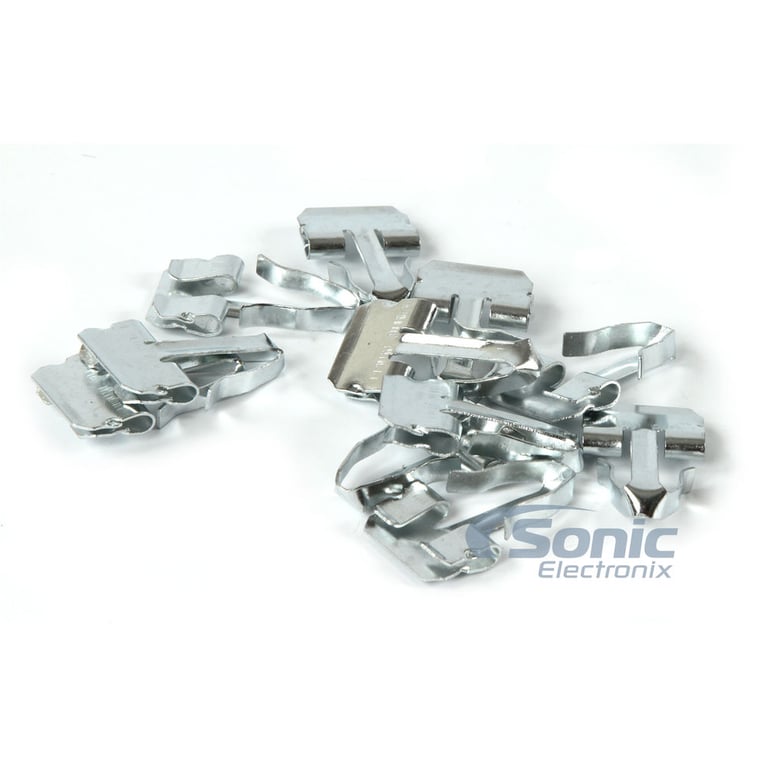

- Panel Clips
- Step by step instructions
Tools Required:
- Panel Removal Tool
- Phillips Screwdriver
Metra's Recommended Wiring and Antenna Connections:
- Wiring Harness:
- Metra 70-1858 (non-amplified models)
- Metra 70-1859 (amplified models)
- Antenna Adapter:

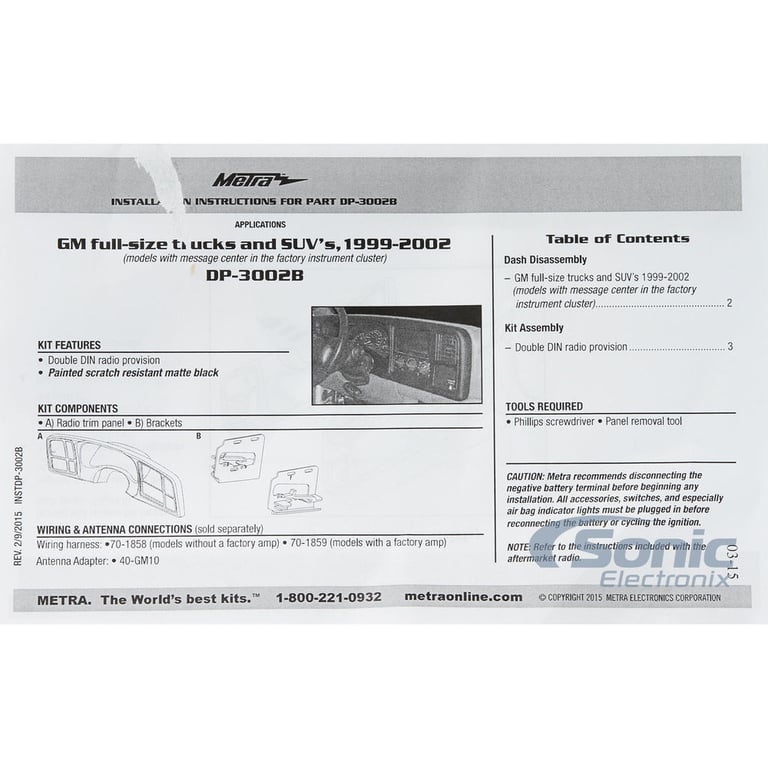

Check out the Metra DP-3002B Owner's Manual
Notes:
*Please consult with a hands-on expert if you are concerned about this procedure.
**OEM Dash must resemble the dash pictured below (Left)

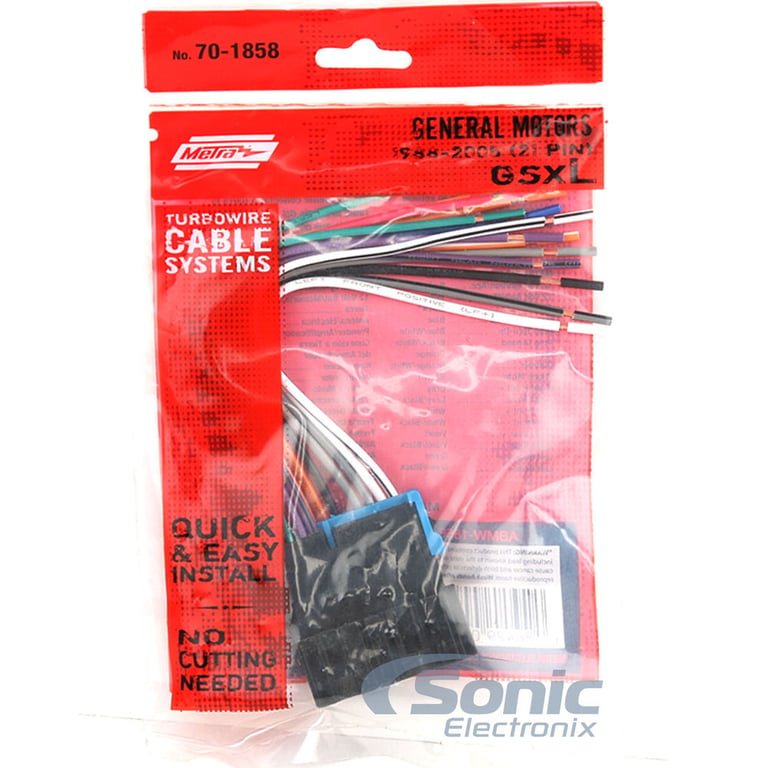

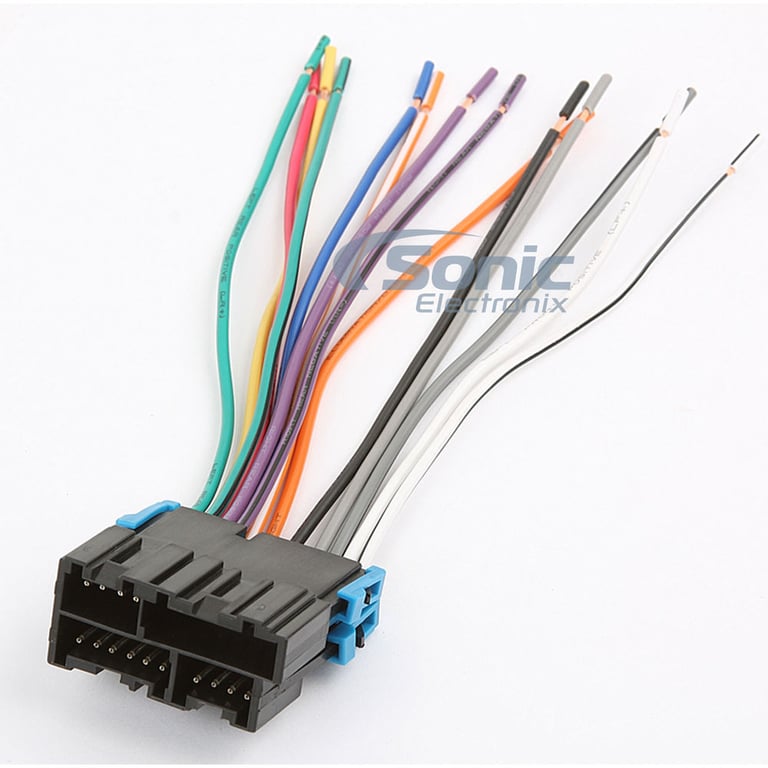

Metra 70-1858
Connects an Aftermarket Receiver to Factory Plug on Select 1988-2002 GM Vehicles
Quantity: 1
Product Features:
- Compatible with select Non-Amplified 1988-2002 GM Vehicles
- Plugs into car harness at radio
- Power/4-Speaker
- 21-Pin plug
- Used for Installing an Aftermarket Receiver to factory plug
- Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
- No need to cut or splice in factory wiring
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)

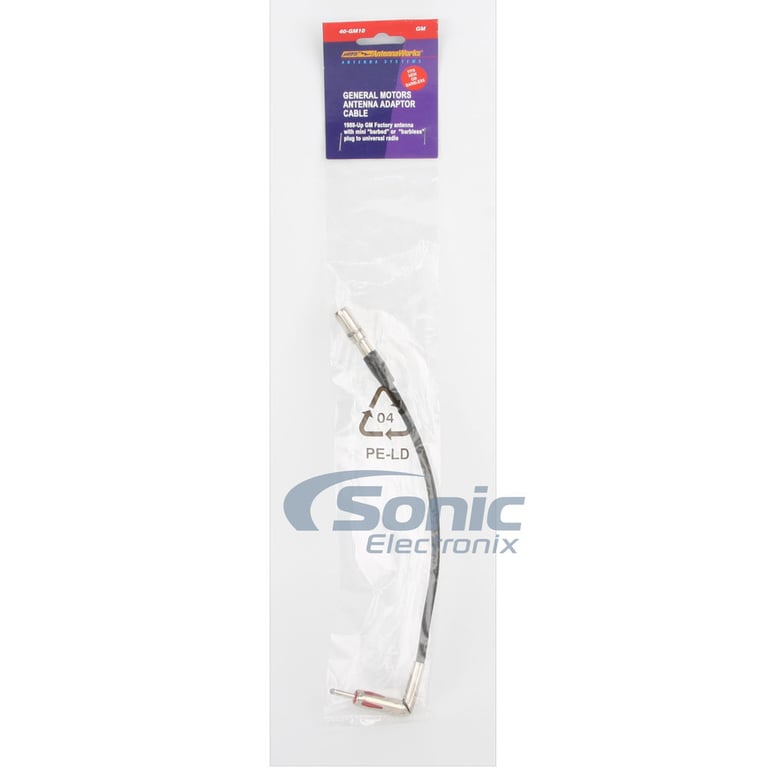

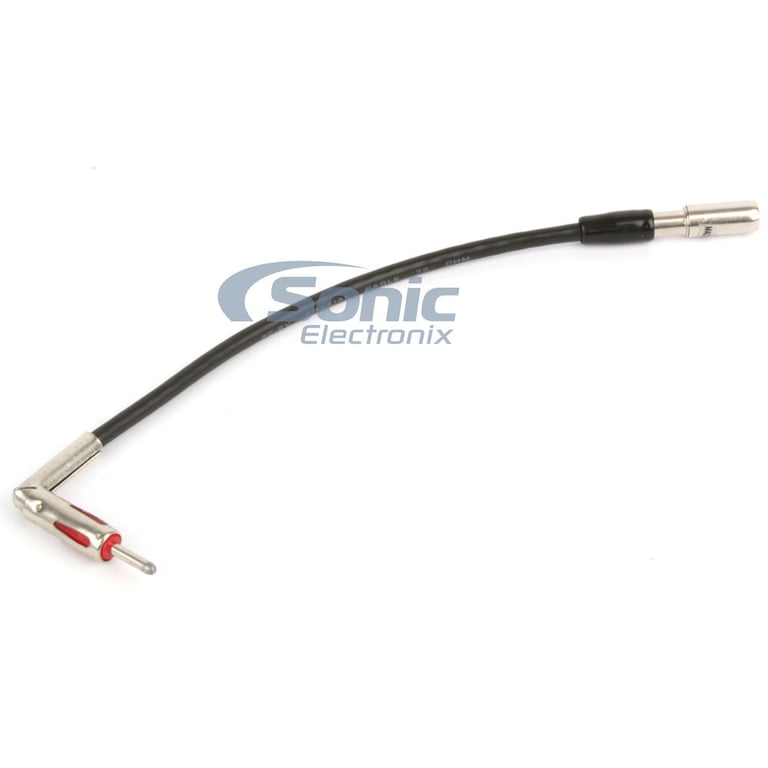

Metra 40-GM10
Factory Antenna to Aftermarket Radio Adapter for Select 1988-2006 GM Vehicles
Quantity: 1
General Features:
- Factory Antenna to Aftermarket Radio Adapter
- For Select 1988-2006 GM Vehicles
- GM factory antenna with mini "barbless" or "barbed" plug to aftermarket radio
- Authorized Internet Dealer
- 1-year Manufacturer's warranty
Equivalent to: Scosche MDA1B & American International GM-6
