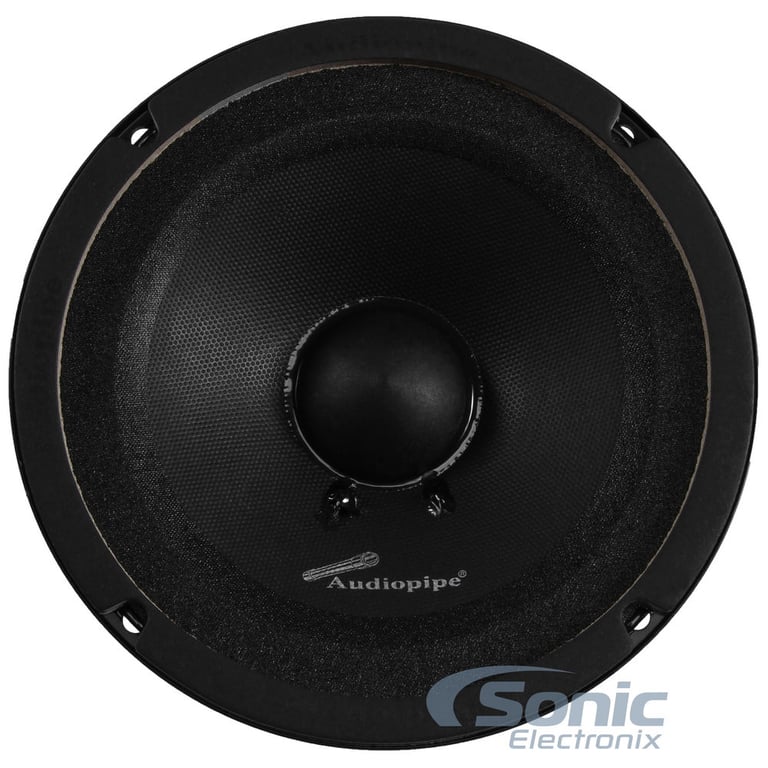

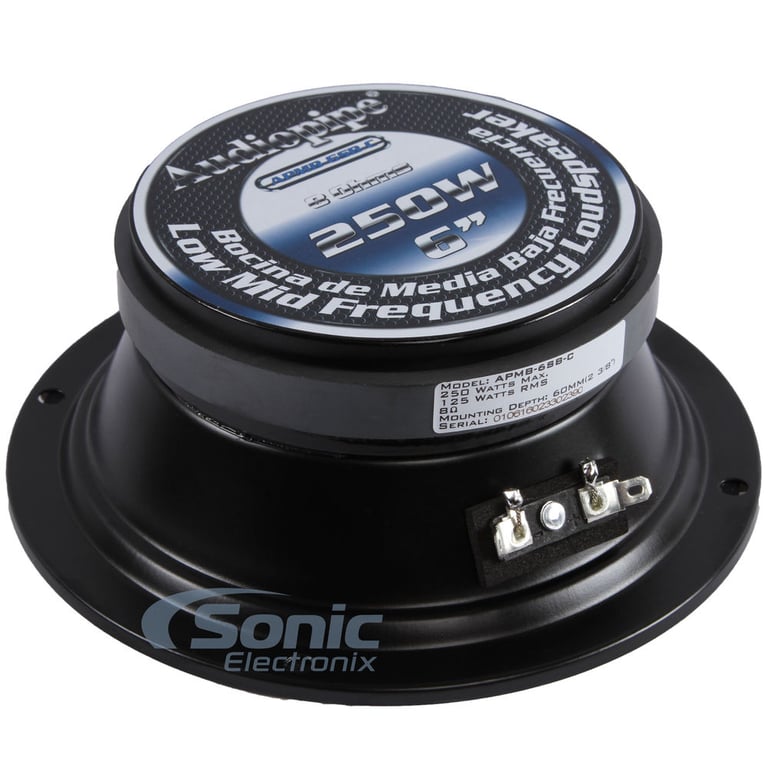

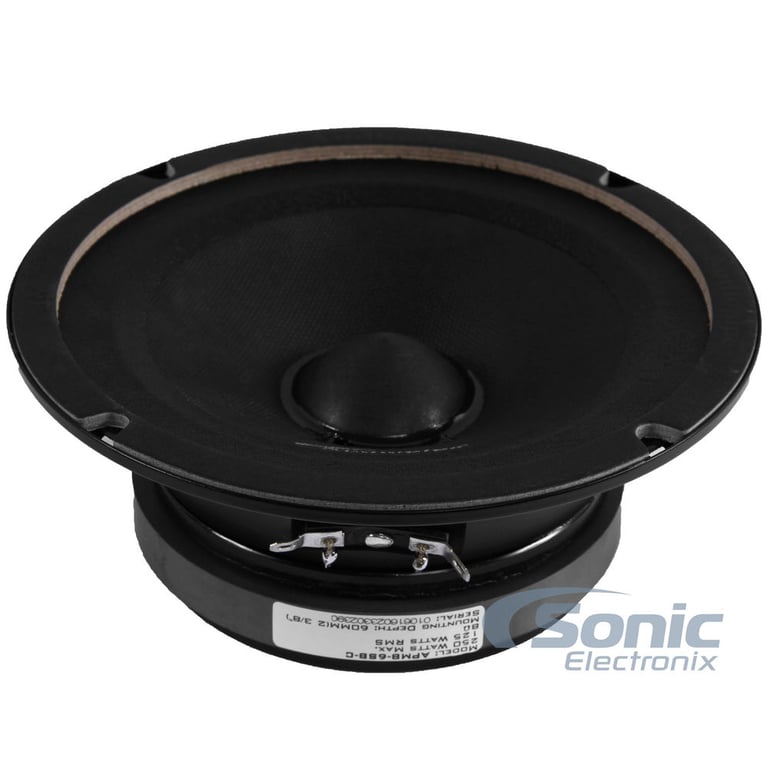

Audiopipe APMB-6SB-C

250W 6" APMB Series Low Mid Frequency Loudspeaker w/ Sealed Back - Priced Individually (One Speaker)

Audiopipe
Shop all Audiopipe
highlight-star-icon

• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 2-3/8"
• 20 Oz. Magnet
• Sealed Back Design
• Sensitivity: 99dB

Learn more about the apmb6sbc

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the 6SB speaker with an incorporated phase plug to provide quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Sealed Basket Design Sealed Basket Limits Cone Movement and Improves Speaker Life

The Audiopipe 6SB sealed back design speaker limits the cone movement by utilizing a basket design that encloses the rear of the speaker entirely. As a result of the minimal movement within, sealed back speakers are incredibly durable, very difficult to damage speakers, ensuring use for years to come.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 6SB speaker features a light weight yet incredibly stiff pressed paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear some of the best sound reproduction possible.


General Features:

  • 6" APMB Series Sealed Back Midrange Driver
  • Power Handling:
    • Peak: 250 watts
    • RMS: 125 watts
  • Recommended power range: 5 - 125 watts RMS
  • Perfect for OEM replacement or Aftermarket upgrade
  • 8 ohm impedance
    • Wire two speakers together in Parallel for a 4 ohm impedance
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Bullet dust cap ensures high quality high frequency sound
  • Pressed paper cone
  • Corrugated surround
  • Sealed basket design for improved speaker life
  • Heavy duty 20 oz. magnet
  • Durable 1.5" TIL voice coil
  • Frequency Response: 350-5,000 Hz
  • Top-mount Depth: 2-3/8"
  • Mounting Diameter: 5-11/16"
  • Sensitivity: 99dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • FS (Free Air Resonance): 470 Hz
  • RE (DC Resistance): 7.4 ohm
  • Le (Voice Coil Inductance): 0.18 mH
  • QMS (Mechanical Q Value): 2.05
  • QES (Electrical Q Value): 1.76
  • QTS (Total Speaker Q Value): 1.0
  • VAS (Equivalent Compliance): 0.3 L (0.011 cu ft.)
  • Xmax (One-Way Linear Excursion): 0.2 mm (0.008")
  • F3 (for Sealed Enclosure):
    • 0.35 cu ft.: 492 Hz
    • 0.45 cu ft.: 476 Hz
  • F3 (for Vented Enclosure):
    • 0.4 cu ft.: 460 Hz

Priced Individually

Product history:

Audiopipe APMB-6SB-C thumbnail
(newest, current model)
Audiopipe APMB-6SB thumbnail
(previous model, replaced by Audiopipe APMB-6SB-C)

Best selling similar products

PH654 small

Cerwin-Vega PH654

• 300 watts Peak Each, 150 watts RMS Each
• Polymide Horn Tweeters
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101 dB

(2)

$189.99

List price $227.99

CVP8 small

Cerwin-Vega CVP8 (Sold Individually)

• 350 watts Peak, 170 watts RMS
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$49.99

List price $59.99

AP-M61SE Pro small

Deaf Bonce Apocalypse AP-M61SE Pro

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102.80 dB

$119.90

List price $143.99

PRO-X12MBASS small

DS18 PRO-X12MBASS (Sold individually)

• 1000 watts Peak Each, 500 watts RMS Each
• Paper cone material
• Impedance: 8 ohm
• Sensitivity: 96 dB

$131.95

List price $131.95

10MB800FT small

PRV Audio 10MB800FT

• 1600 watts Peak Each, 800 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 8 ohm
• Sensitivity: 99 dB

$129.91

List price $162.39

EPICPRO8X small

AudioControl EPICPRO8X

• 350 watts Peak Each, 250 watts RMS Each
• Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99.2 dB

$129.00

List price $129.00

PRO-X6.4BMPK small

DS18 PRO-X6.4BMPK

• 500 watts Peak Each, 250 watts RMS Each
• 1" Aluminum Bullet super tweeters with ferrite magnets
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(4)

$139.95

List price $139.95

HCCA64N small

Orion HCCA64N

• 1400 watts Peak Each, 350 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99 dB

$219.95

List price $263.99

VPRO65 small

NVX VPRO65 (Sold Individually)

• 450 watts Peak Each, 225 watts RMS Each
• 1" Aluminum Bullet tweeter
• Competition Grade Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97 dB

(4)

$74.99

List price $82.99

CVMPCL8.0 small

Cerwin Vega CVMPCL8.0 (Sold Individually)

• 400 watts Peak Each, 200 watts RMS Each
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$139.99

List price $167.99

Specifications & Details


Speaker Specifications
Series
APMB Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
6"
Design
Mid-range
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
Corrugated
Peak Power Handling
250 watts
RMS Power Handling
125 watts
Sensitivity
99 dB
Frequency Response
350 - 5000 Hz
Impedance (Per Voice Coil)
8 ohm
Top-Mount Depth (Mounting Depth)
2-3/8"
Cutout Dimensions
5-11/16"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APMB-6SB-C

Weight:

4.40lbs

Internal SKU:

apmb6sbc

Internal Product ID:

122003
