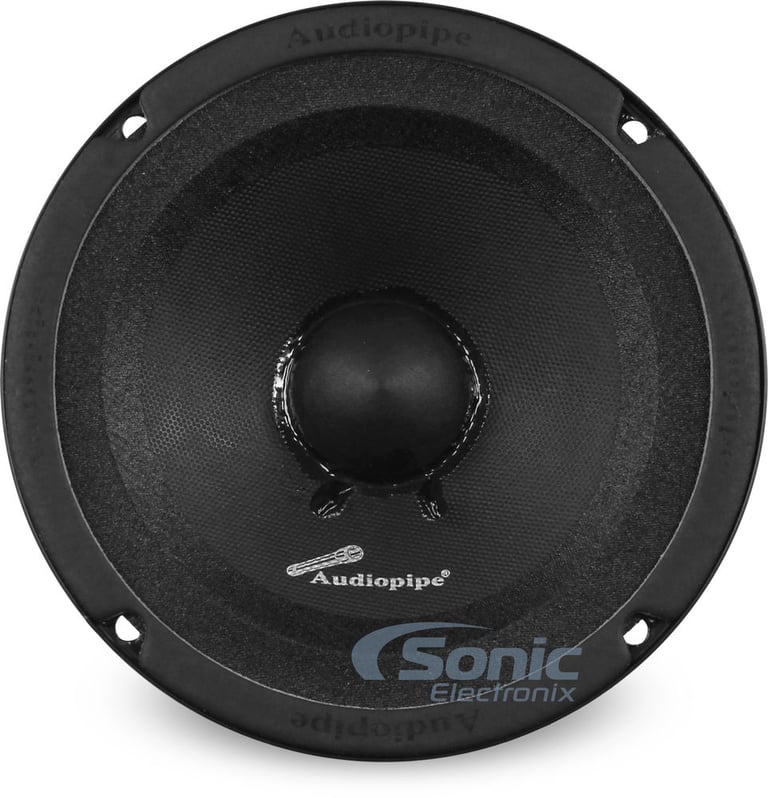

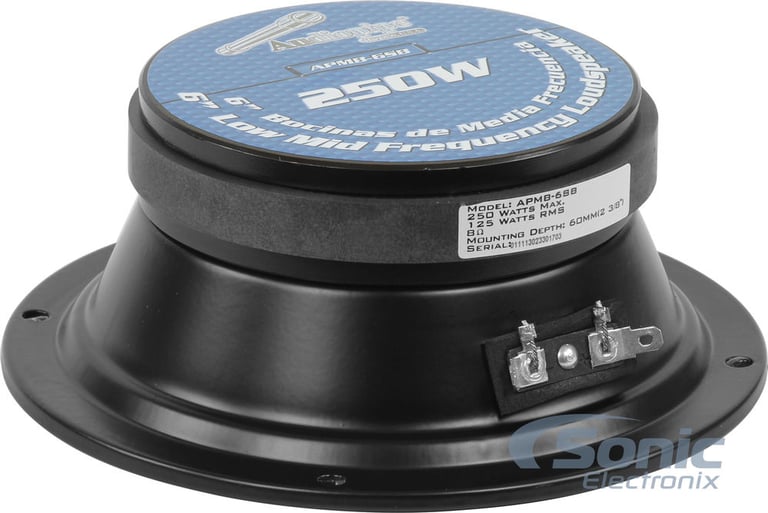

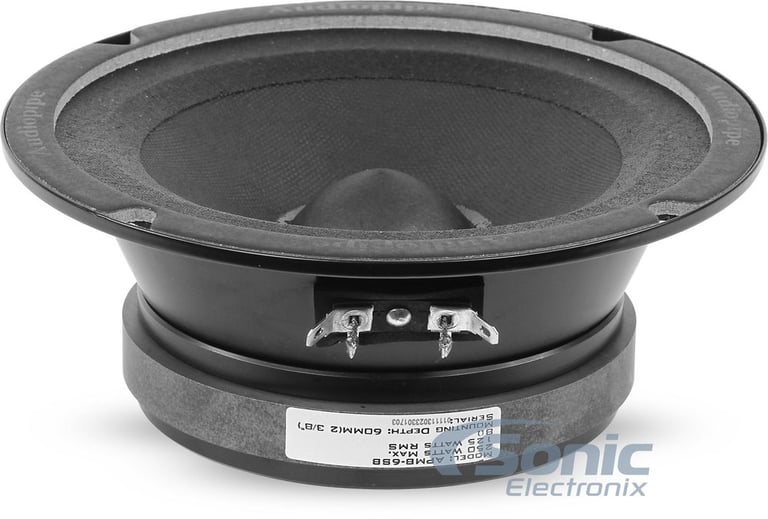

Audiopipe APMB-6SB

250W 6" APMB Series Loudspeaker w/ Sealed Back

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 2-3/8"
• 20 Oz. Magnet
• Sealed Back Design
• Sensitivity: 99dB

Learn more about the apmb6sb

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

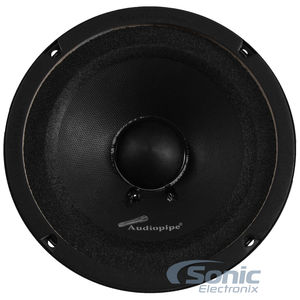

apmb6sbc thumbnail

Audiopipe APMB-6SB-C

OUR PRICE: $28.99

View item

Loading...
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

AP-M60SQL main

Deaf Bonce Apocalypse AP-M60SQL

600W Peak (300W RMS) 6.5” Apocalypse Series 4-ohm Midrange Car Speakers

4
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8
Limited time!
R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
-7.69%

$59.99

List price $64.99

P142 main

Rockford Fosgate Punch P1 P142

120W Peak (60W RMS) 4" Punch Series 2 Way Coaxial 4-ohm Speakers

11
TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

VSP4 main

NVX VSP4

450W Peak (150W RMS) 4" V-Series 2 Way Coaxial Car Speakers

17
-16.67%

$54.99

List price $65.99

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

Product Highlights


• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 2-3/8"
• 20 Oz. Magnet
• Sealed Back Design
• Sensitivity: 99dB

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the 6SB speaker with an incorporated phase plug to provide quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Sealed Basket Design Sealed Basket Limits Cone Movement and Improves Speaker Life

The Audiopipe 6SB sealed back design speaker limits the cone movement by utilizing a basket design that encloses the rear of the speaker entirely. As a result of the minimal movement within, sealed back speakers are incredibly durable, very difficult to damage speakers, ensuring use for years to come.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 6SB speaker features a light weight yet incredibly stiff pressed paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear some of the best sound reproduction possible.


General Features:

  • 6" APMB Series Sealed Back Midrange Driver
  • Power Handling:
    • Peak: 250 watts
    • RMS: 125 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Bullet dust cap ensures high quality high frequency sound
  • Pressed paper cone
  • Corrugated surround
  • Sealed basket design for improved speaker life
  • Heavy duty 20 oz. magnet
  • Durable 1.5" TIL voice coil
  • 8 ohm impedance
  • Frequency Response: 350-5,000 Hz
  • Top-mount Depth: 2-3/8"
  • Mounting Diameter: 5-11/16"
  • Sensitivity: 99dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

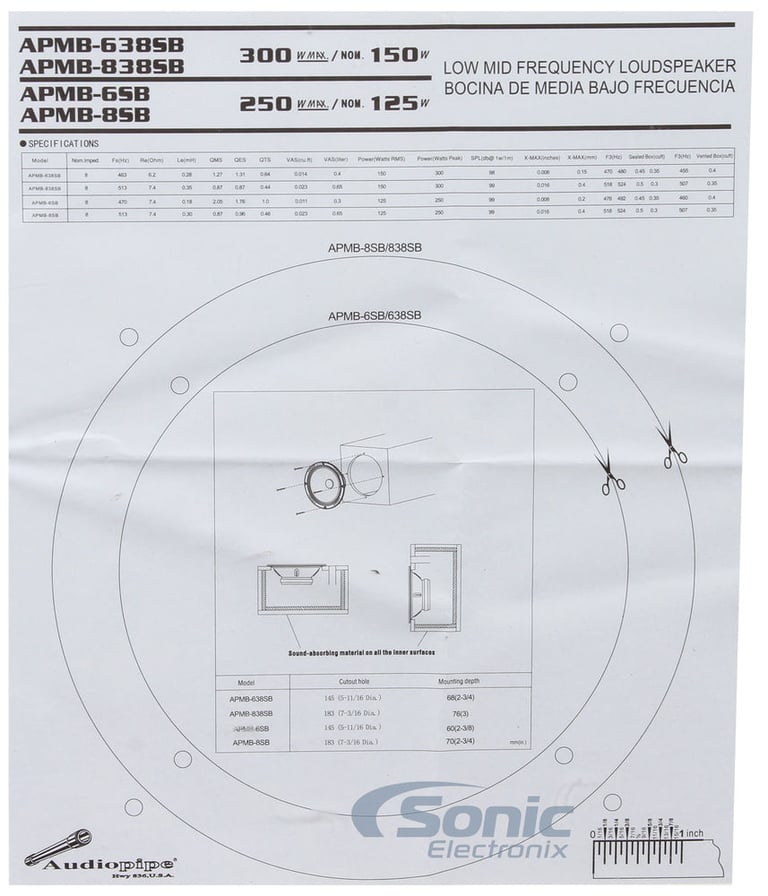

Specifications:

  • FS (Free Air Resonance): 470 Hz
  • RE (DC Resistance): 7.4 ohm
  • Le (Voice Coil Inductance): 0.18 mH
  • QMS (Mechanical Q Value): 2.05
  • QES (Electrical Q Value): 1.76
  • QTS (Total Speaker Q Value): 1.0
  • VAS (Equivalent Compliance): 0.3 L (0.011 cu ft.)
  • Xmax (One-Way Linear Excursion): 0.2 mm (0.008")
  • F3 (for Sealed Enclosure):
    • 0.35 cu ft.: 492 Hz
    • 0.45 cu ft.: 476 Hz
  • F3 (for Vented Enclosure):
    • 0.4 cu ft.: 460 Hz

Priced Per Speaker
