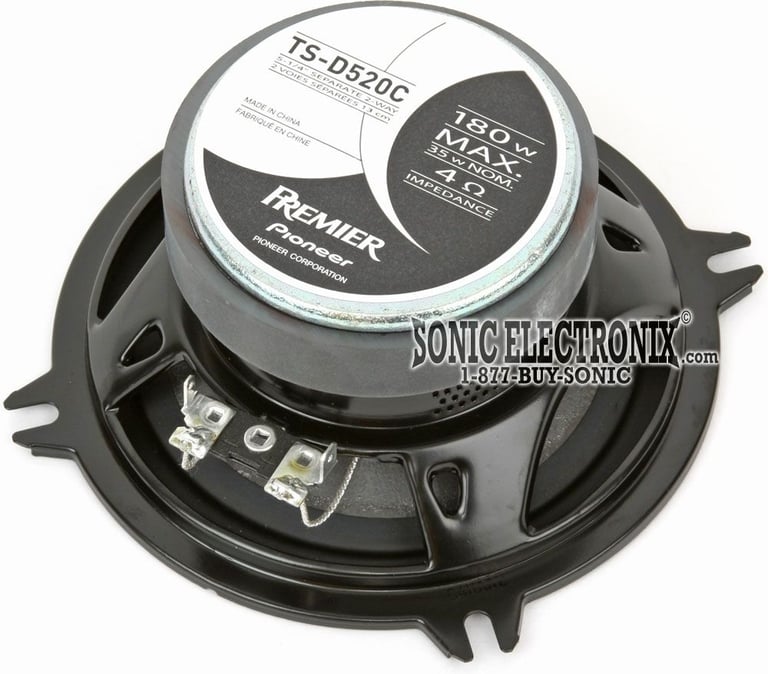

Pioneer TS-D1320C

5-1/4" 2-Way D-Series Component Car Speaker System

Pioneer
Shop all Pioneer
highlight-star-icon

• Peak Power: 180W
• RMS Power: 35W
• Dual layer IMX aramid-basalt fiber composite cone woofer
• Butyl rubber surround
• 1-1/8" Soft dome tweeter with magnetic fluid and neodymium magnet
• High-quality external crossover

Learn more about the tsd1320c

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsd1330c thumbnail

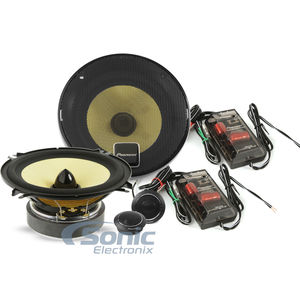

Pioneer TS-D1330C

OUR PRICE: $99.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
SOCGM-17C main

Crux SOCGM-17C Wiring Interface

Install a new car stereo and retain safety chimes and other factory features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

5
-35.71%

$66.15

List price $102.90

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17
Limited time!
CELEBRITY 100 main

JBL CELEBRITY 100 (JBLCELEBRITY100)

Single DIN Digital Audio Receiver with Bluetooth

2
-42.89%

$39.95

List price $69.95

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

DMX908S main

Kenwood eXcelon DMX908S

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius-XM Ready)

-19.05%

$849.99

List price $1050.00

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

38
-34.45%

$117.99

List price $180.00

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

Description


Pioneer brand icon

Authorized dealer

General Features

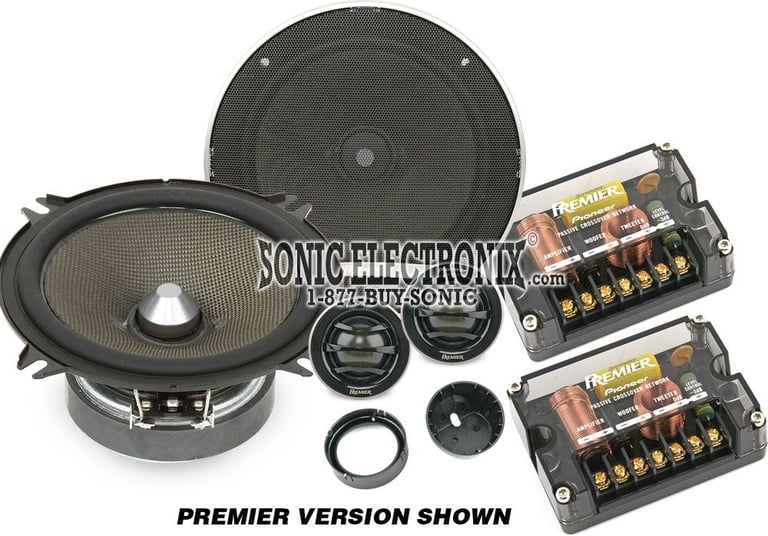

  • 5-1/4" 2-Way D-Series Component System
  • Power Handling:
    • Peak: 360 watts per set / 180 watts each side
    • RMS: 70 watts per set / 35 watts each side

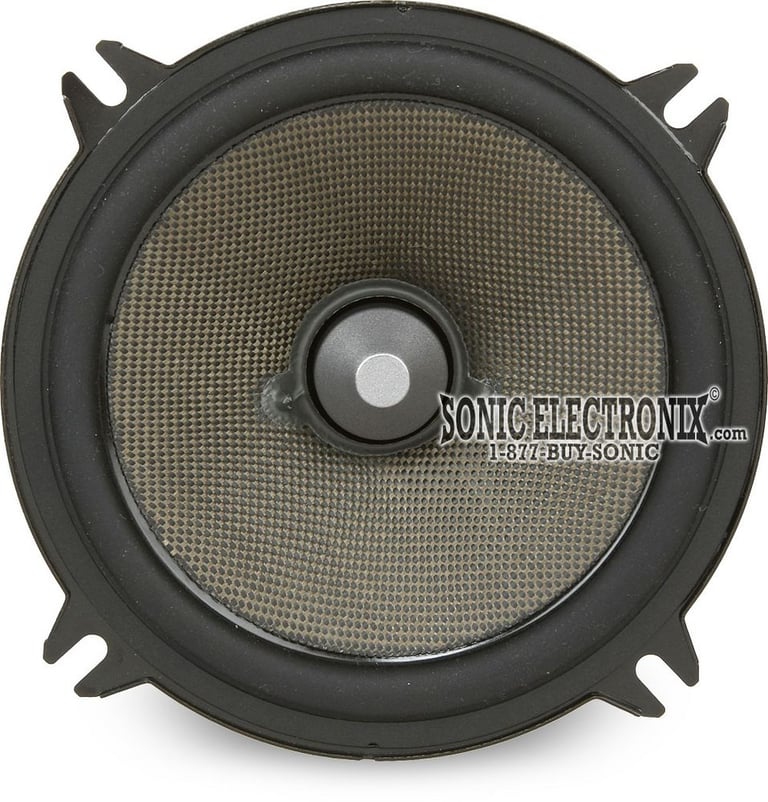

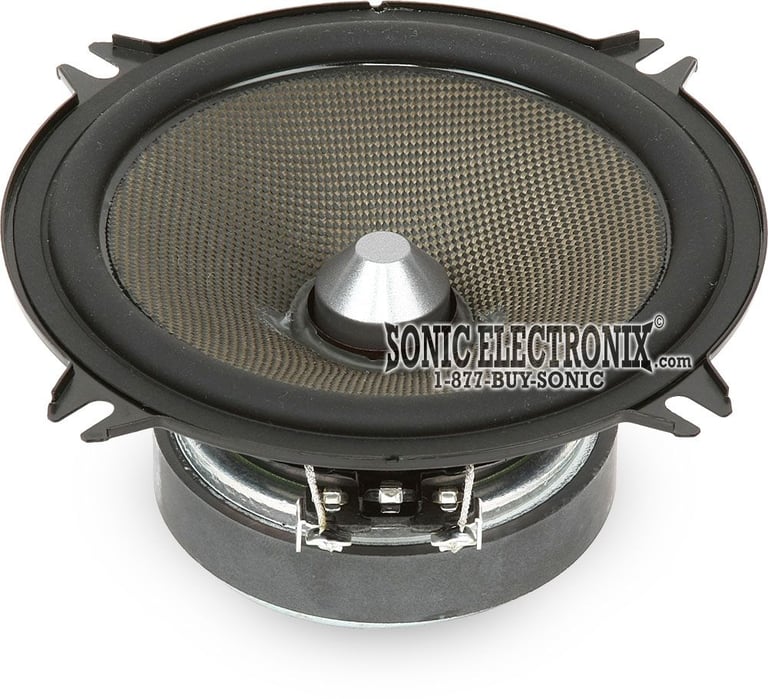

  • Dual layer IMX aramid-basalt fiber composite cone woofer
  • Butyl rubber surround

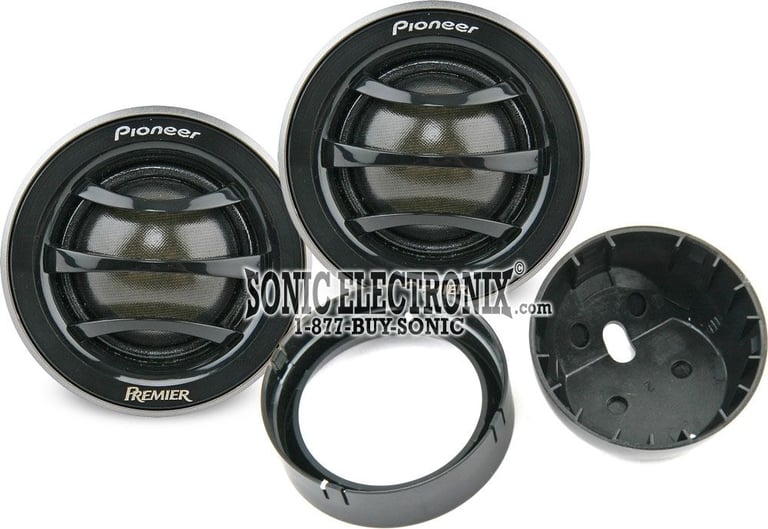

  • 1-1/8" Soft dome tweeter with magnetic fluid and neodymium magnet
  • Rear chamber design for lower crossover frequency
  • Surface/angled, flush, or invisible tweeter mounting options

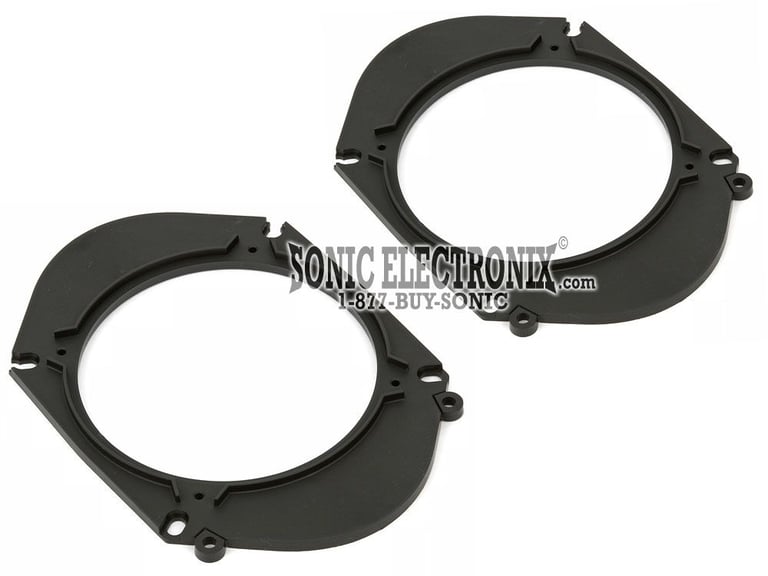

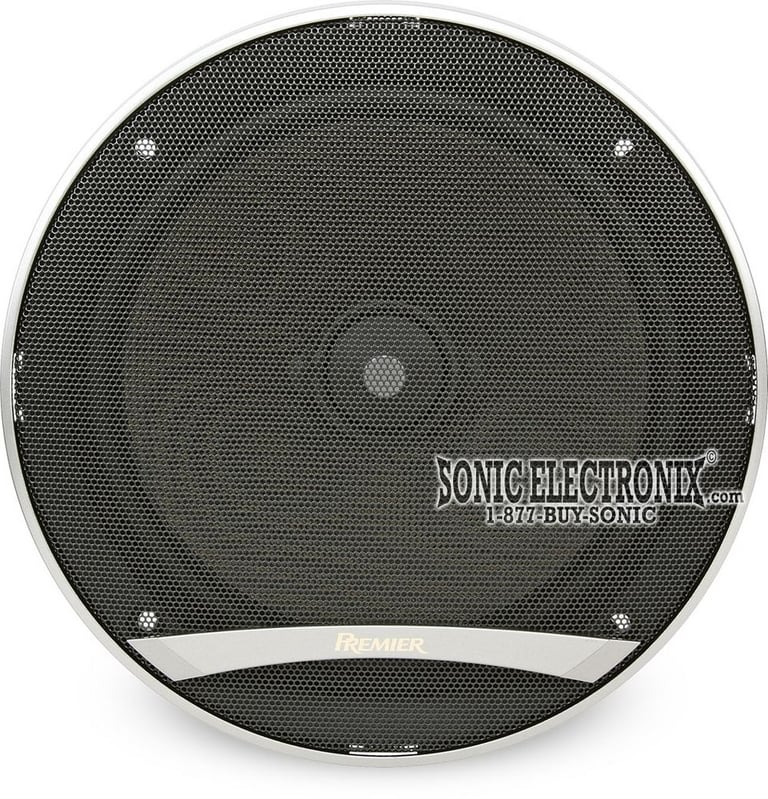

  • 6" x 8" Installation adapter and grille included
  • Deep basket for better bass reproduction
  • Glass-imide voice coil bobbin

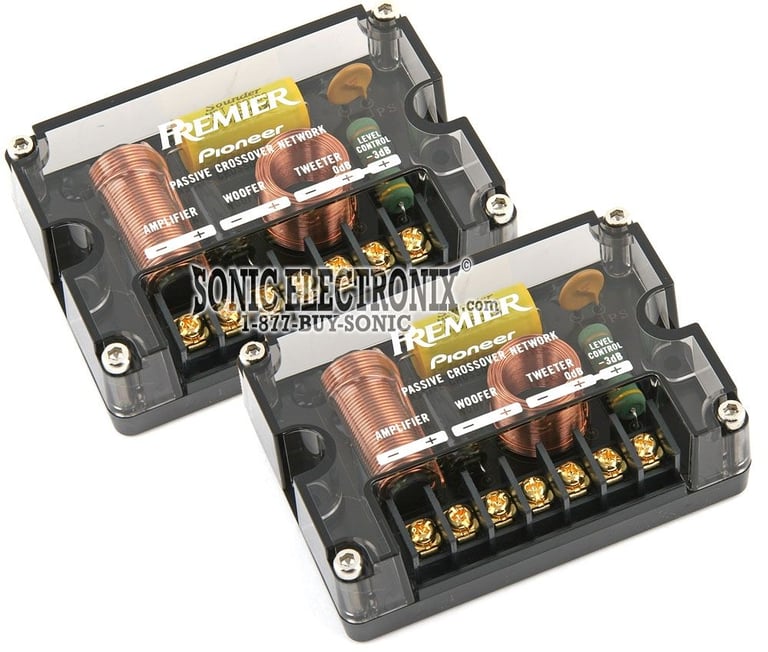

  • High-quality external crossover with 12 dB/octave high and low pass filters
  • 4 ohm impedance
  • OFC copper voice coil wire
  • Top-mount depth: 2-1/4"
  • 1-year SonicElectronix.com warranty

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Product history:

Pioneer TS-D1330C thumbnail
(newest, current model)
Pioneer TS-D1320C thumbnail
(previous model, replaced by Pioneer TS-D1330C)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

22
-35.00%

$194.99

List price $300.00


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

DSK 130.3 small

Hertz DSK 130.3

• 120 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Dome-Cone tweeters with high-energy neodymium magnets
• Water-repellent Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(25)

$200.00

List price $209.99

C2-525 small

JL Audio C2-525

• 60 watts RMS Each
• 3/4" Silk Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(9)

$254.99

List price $329.99

THUNDER51 small

MTX Audio THUNDER51

• 180 watts Peak Each, 90 watts RMS Each
• 1" Silk Soft Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(9)

$199.96

List price $239.95

XED525C small

Cerwin-Vega XED525C

• 250 watts Peak Each, 30 watts RMS Each
• 1/2" Metal Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(8)

$59.99

List price $71.99

51KSS504 small

Kicker KSS5 (51KSS504)

• 200 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(2)

$249.99

List price $279.99

H525C small

Cerwin-Vega H525C

• 300 watts Peak Each, 100 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Responsive Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB

$189.99

List price $227.99

Specifications & Details


Speaker Specifications
Series
D-Series
Priced Per
Pair
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Woofer Composition
Injection Molded Polypropylene with Aramid Fiber Composite
Peak Power Handling
180 watts
RMS Power Handling
35 watts
Sensitivity
88 dB
Frequency Response
35 - 33000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/4"
Cutout Dimensions
4-3/4" x 4-3/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-D1320C

Weight:

6.50lbs

Internal SKU:

tsd1320c

Internal Product ID:

12226

Customer Ratings & Reviews


Pioneer TS-D1320C thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.9
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

BANG 4 BUCK

Great product. Cheap, durable, sounds great. Great price. I was hooking these up and i dropped one crossover splitter. Everything still worked!!! Great product. Pioneer is stepping it up very well. I would recommend these because the value, design, and quality.

By Francisco on April 6, 2010

36 found this helpful


Clear, full sound

Currently using a 52 W peak / 17 W RMS (per channel) head unit with these in the front dash (tweeters in pillars), and Alpine 6 X 9s in the rear in a 1998 Dodge Caravan. Sound clear and with a lot of fullness. [Ordered 125 RMS (per channel amp) and will update review once installed.] Mounted the tweeters near the bottom of the front window pillars (flush mount); was concerned about sound direction (they point inward, towards each other), but they are crisp and provide great sound staging (used the -3 db crossover poles, otherwise a little too much highs); low bass is there, but can't drive it hard without distortion (will see if the amp improves that); but a normal listening levels, e.g., with other folks in the car, the low frequency bass really comes through which surprised me in a 5.25" woofer; also, I put polyfill around the woofers which seemed to tighten up the bass and stop a little buzzing I heard in the dash. Pioneer's web site said these would not fit the 1998 Dodge Caravan, and they are not a direct replacement as you need to raise the left side speaker up about 3/8" to prevent it from touching (washers under the mounting screws worked), and the right side speaker needed one mounting screw to be off-set to prevent the side of the magnet from touching (small 1" by 1/2" flat aluminum with 2 holes drilled in it worked); no interference with the top dash panel, which was easy to remove (it has 5 clips in the front; side pillars have 3 clips - remove them first; just pull carefully).

Sonic's shipping via OnTrac is EXCELLENT (much better than UPS), ordered them Christmas eve (Thursday), and I received them Monday morning - Thank you Sonic! I'll be back!

By TucsonJoel on December 30, 2009

34 found this helpful


2009 Scion XB

I have two sets of Pioneer component speaks in my XB powered by JVC amp (800w). They sound awsome and matched up very well with stock Pioneer HU. There very crisp at the high end and have excellent low end sound.

By Seadog on June 1, 2009

33 found this helpful


Great product

I've always loved pioneer and this is no different. Great item and great seller. Thanks again

By Cartidream on November 19, 2014

31 found this helpful


Good clean sound

Got these to replace the stock door speakers in my 2010 Focus. Good clean sound. these were sensitive enough to run on my stock deck and still handle well off of a new more powerful one.

By Bob on July 21, 2011

32 found this helpful


Great sound for great price

I am very happy with the sound from this component set. My 5 series sounded like crap until I added these speakers & replaced my factory amp. The service & delivery from sonic was great. thanks again guys!

By Timeplt on July 10, 2011

31 found this helpful


best speakers i have ever used

i installed these speakers in my hardbody kingcab attached to an old head unit running 50 watt x4. currently they are unamplified and they sound amazing. As the only speakers in the truck they produce great sound. as i've just installed them i cant rate durability, but i would suggest them to any one who want great quality sound. as a component system it is a little more work than a 2-way or 3-way so i cant say they were easy to install. i had to modify the plastic mounting plates to make them fit in my door panels but it was very minor.

By seth on March 21, 2010

31 found this helpful


Love em

I have these in my 99 grand prix and they sound really good. The crossover really knows how to separate the bass (lows) from the highs. If I crank the volume too high it becomes ear piercing. I have these hooked to a 4 channel pioneer amp. Great price too.

By Blackciti on May 3, 2013

31 found this helpful


Crisp

i have these in a 2000 mustang with 2 12's an i can hear these with no problem and they are so clear that you dont truly realize how loud they are until you try to talk to someone in the car lol. but these are awesome an worth it an a deal at that an mine are on a 5 channel NVXJAD900.5

By Jonathan on January 10, 2013

30 found this helpful


Great sound, low profile

I installed these in my 88 VW Vanagon and they are a huge upgrade. I installed the components in the back AC compartment and a set of these speakers in the 2-way version in the door. I needed something that would not stick out too far and these fit the bill (barely). They were just small enough to fit in both locations. The biggest install challenge was enlarging the holes in the AC box, which I did with much difficulty with a large hole saw.

With no amp, the sound quality and SPL is greatly greatly greatly improved over the stock speakers. I'm very impressed.

By Greg on September 19, 2010

30 found this helpful




GTw1000 small

Blaupunkt GTw1000

10" Single 4 ohm GT Series Subwoofer (GTW-1000)

(2)

$44.99

List price $129.99

MX280/4, XKIT84 small

JL Audio MX280/4 Amplifier with Amplifier Wiring Kit

140W RMS Class-D Weatherproof Motorcycle / ATV / SSV / UTV / Car 4-Channel Amplifier

(41)

$379.99

List price $487.98

RD500/1, XKIT42 small

JL Audio RD500/1 with Amplifier Wiring Kit

1000W Peak (500W RMS) 2-Ohm Stable Monoblock Subwoofer Amplifier

(156)

$420.74

List price $543.98

VX600/1i, XKIT42 small

JL Audio VX600/1i with Amplifier Wiring Kit

600W RMS VXi Series Class D Monoblock Amplifier with Integrated DSP

(126)

$1049.99

List price $1193.98

AW-4I-BLACK small

Klipsch AW-4I (Black)

Pro-Sport Headphones All-Weather Design

$45.00

List price $59.00

LS-VAD10004v1 small

NVX VAD10004v1 Version 1 (Like New (Open Box))

1000W RMS Full Range Class D 4-Channel Car/Marine/Powersports Amplifier

(95)

$229.99

List price $349.99

NE101P_52CVR104 small

NVX NE101P w/ Kicker 52CVR104

Single 10" Slot Ported 3/4" MDF Black Carpeted Subwoofer Enclosure – 1.5 Cu. Ft. with Polyfil and NVX Logo w/ 750W Peak (375W RMS) 10" CompVR Series Dual 4-ohm Subwoofers

(2)

$207.98

List price $261.98

F-150EX-09L small

MTX Audio Thunderform F-150EX-09L

250W RMS Loaded Single 10" Sealed Truck Enclosure for select 2009-2015 F-150

$599.95

List price $527.95

89-30-0250 small

Metra 89-30-0250

Universal DIN 1/4" Border Trim

$5.81

List price $7.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1990 Subaru Legacy

2006 Chevrolet Express 2500

2005 Lexus GS300

1999 Subaru Forester

2016 BMW X6 M

2011 Land Rover LR2

1998 GMC Suburban

1992 Mazda B Series

1997 Ford Aerostar

1997 Saturn SC2

Vehicle
Store
Delete

2008 Harley Davidson FXSTSSE2 Screamin Eagle Softail Springer

Vehicle
Store
Delete

2016 Can-Am Commander Max 1000 XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
