Rockford Fosgate P3SD2-10 Open Box Complete

600W Max (300W RMS) 10" Punch Stage 3 Shallow Mount Dual 2-Ohm Subwoofer

Rockford Fosgate
Shop all Rockford Fosgate
highlight-star-icon

• 300 Watts RMS
• 600 Watts Max
• Kevlar Fiber Semi-Pressed Paper Cone
• Compressed Sealed Poly-foam Surround
• ABS/Acrylic Dustcap Assembly
• 2.5" Voice Coil with spun-laced Nomex insulating collar
• Dual 10 AWG compression speaker terminals

Learn more about the ls-p3sd210-obc286637

We apologize

This item has been discontinued

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.



"Rock That Small Space"

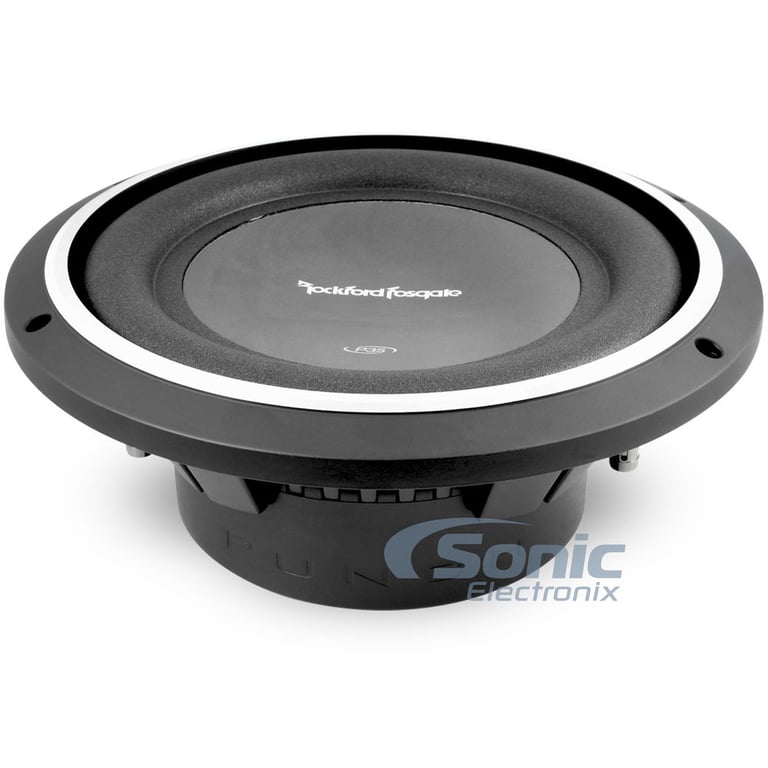

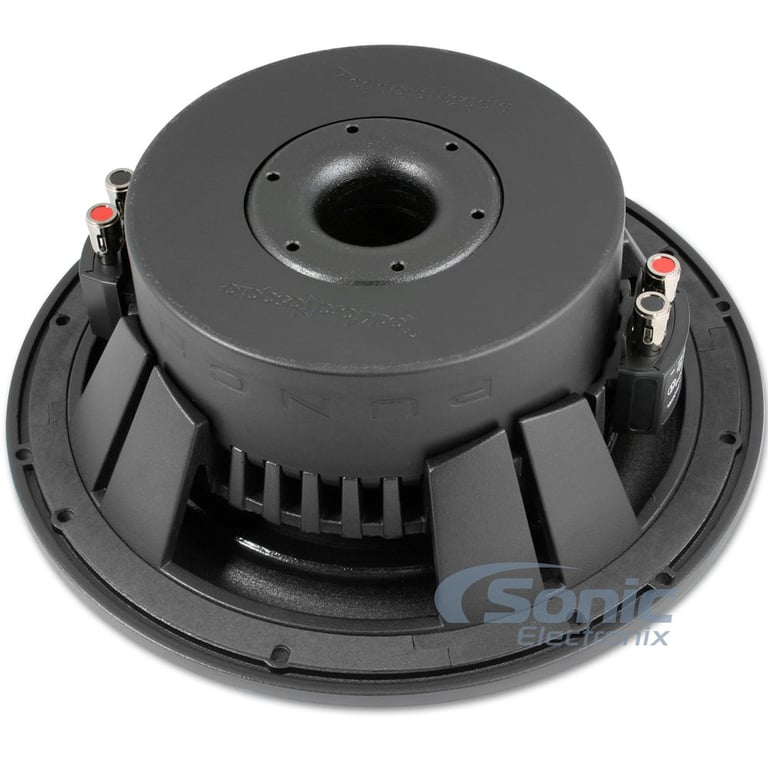

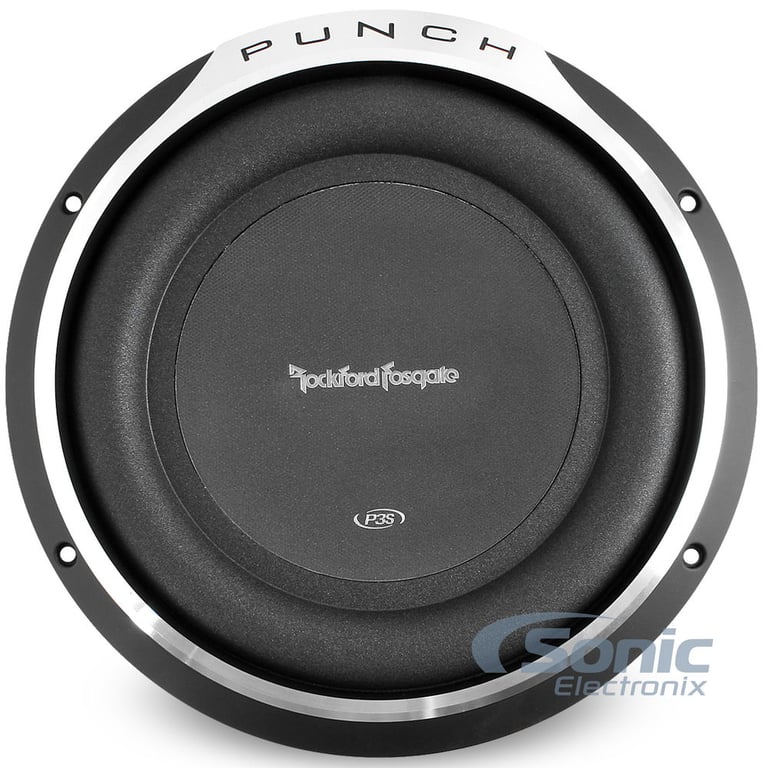

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, and some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. The P3SD2-10 Punch Series 10" Shallow Subwoofer has a peak power rating of 600 watts and a RMS rating of 300 watts. This sub will produce some earth shaking bass and is constructed with an anodized aluminum cone and a vertical attach surround technique. This woofer is also equipped with a 2-1/2" Voice coil and a protective PVC textured magnet cover. Add some bumps in your trunk and enhance your cars stereo system with this Rockford Fosgate Punch Series Subwoofer.


Anodized Aluminum Voice Coil Former

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.


CEA-2031 Rockford Fosgate Subwoofers

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.


Rockford Fosgate Stitched Tinsel Leads

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.


Rockford Fosgate VAST Surround

VAST: Vertical Attach Surround Technique

In order to increase the surface area of the cone without causing any installation issues, Rockford Fosgate designed the Vertical Attach Surround Technique (VAST). By redesigning the manner in which the surround adheres to the basket, these speakers gain up to 25% more effective radiating cone area. This improves the nominal efficiency and maximum output.



Product Features

  • Item Condition: Like New, Open Box, Complete
    Not Refurbished
  • 10" Rockford Fosgate Punch Series Shallow-mount Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Recommended power range: 100 - 300 watts RMS
  • Impedance: Dual 2 ohm
  • 2.5" Voice Coil with spun-laced Nomex insulating collar
  • Kevlar Fiber Semi-Pressed Paper Cone
  • Compressed Sealed Poly-foam Surround
  • ABS/Acrylic Dustcap Assembly
  • Tear and fatigue resistant poly-cotton spider
  • Dual 10 AWG compression speaker terminals
  • Top-mount depth: 3.50"
  • Cutout diameter: 9.06"
  • Frequency Response: 40 - 250 Hz
  • Sensitivity: 83 dB
  • Xmax: 8.4 mm
  • Magnet weight: 47 oz
  • Resonance Frequency (Fs): 40 Hz
  • Authorized Internet Dealer
  • 90 Day Sonic Electronix Warranty
Tips for Installing the P3SD2-10 Subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate P3SD2-10 Open Box Complete Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate P3SD2-10 Open Box Complete Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate P3SD2-10 Open Box Complete Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate P3SD2-10 Open Box Complete Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Punch P3 Shallow Mount Series
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
45 - 250 Hz
Sensitivity
83 dB
Xmax (millimeters)
8.4 mm
Main Cone Color
Black
Woofer Composition
Anodized Aluminum
Woofer Surround
Santoprene Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.40 cubic feet
Optimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Top-Mount Depth (Mounting Depth)
3.50"
Cutout Diameter
9.06"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
40 Hz
Equivalent Compliance (Vas)
14.3 liters
Total Speaker Q Value (Qts)
0.64
Electrical Q Value (Qes)
0.71
Electrical Resistance of Voice Coil (Re)
3.40 ohm
Mechanical Q Value (Qms)
6.20
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P3SD2-10 Open Box Complete

Weight:

11.55lbs

Internal SKU:

ls-p3sd210-obc286637

Internal Product ID:

124355
