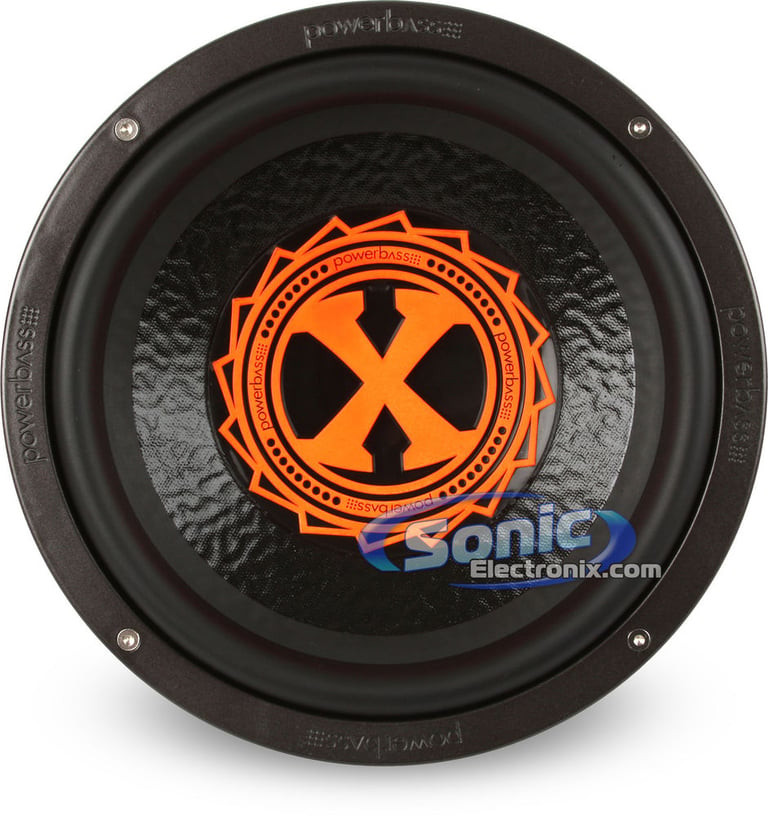

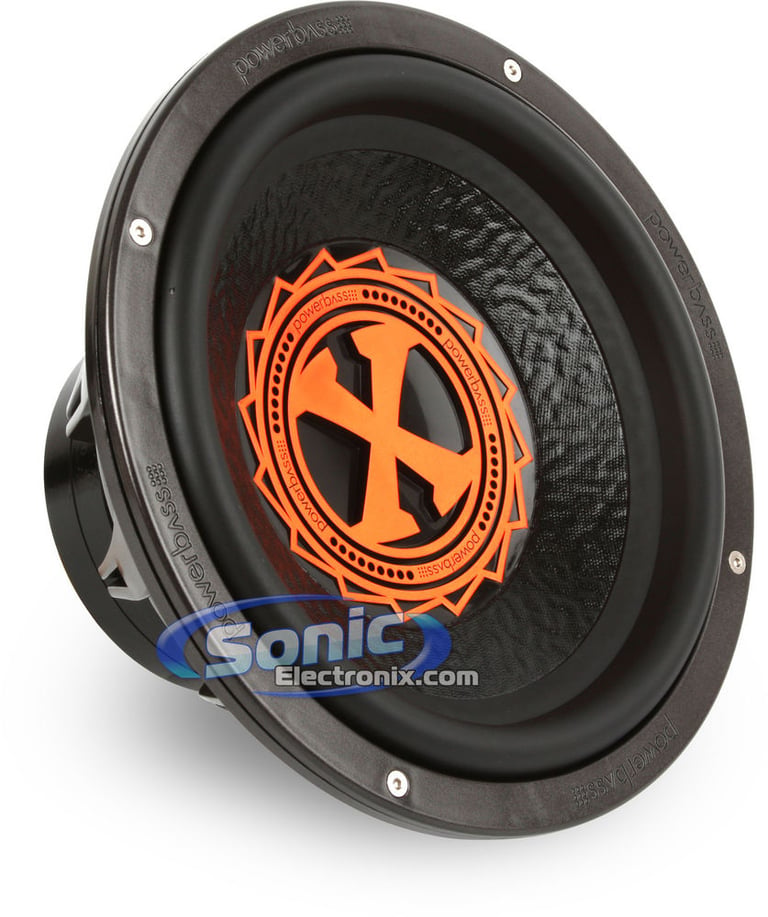

PowerBass Xtreme XL-104D

10" Dual 4 ohm XL Series Car Subwoofer

PowerBass
Shop all PowerBass
Product videos
highlight-star-icon

10" Xtreme XL Series Car Subwoofer • Dual 4 ohm • 700 Watts Max • 350 Watts RMS • 4-Layer, Non-Pressed Paper Cone • High-Roll Santoprene Surround • 164 oz. Motor Structure • Made for Sealed and Ported Enclosures

Learn more about the xl104d

We apologize

This item has been discontinued


Loading...
240-DF-US10V main

SSV Works 240-DF-US10V

Loaded Single 10" Front or Rear Underseat Sealed Enclosure for select 2018-2024 vehicles from Can-Am

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

Product Highlights


10" Xtreme XL Series Car Subwoofer • Dual 4 ohm • 700 Watts Max • 350 Watts RMS • 4-Layer, Non-Pressed Paper Cone • High-Roll Santoprene Surround • 164 oz. Motor Structure • Made for Sealed and Ported Enclosures

Description


PowerBass brand icon

Authorized dealer

High-Grade Materials

The PowerBass Xtreme XL-104D subwoofer is made with cutting edge materials that improve the sound quality of the subwoofer, as well as lengthen the life of it. On the surface, PowerBass uses a proprietary 4-layer, non-pressed paper cone with a Dynamic Damping Coating (DDC) for deeper bass without distortion. Attached to the cone is a high-roll santoprene surround which increases the cone area and excursion, while retaining exceptional linear stability. Inside the car subwoofer is a Pure EIW wire voice coil attached to a vented BASV voice coil former. Combined these result in high energy transfer and optimal performance.

Product Features:
  • 10" Xtreme XL Series Dual 4 ohm Subwoofer
  • Power Handling:
    • Peak: 700 watts
    • RMS: 350 watts
  • Impedance: Dual 4 ohm
  • 4-Layer, non-pressed paper cone with Dynamic Damping Coating (DDC) finish

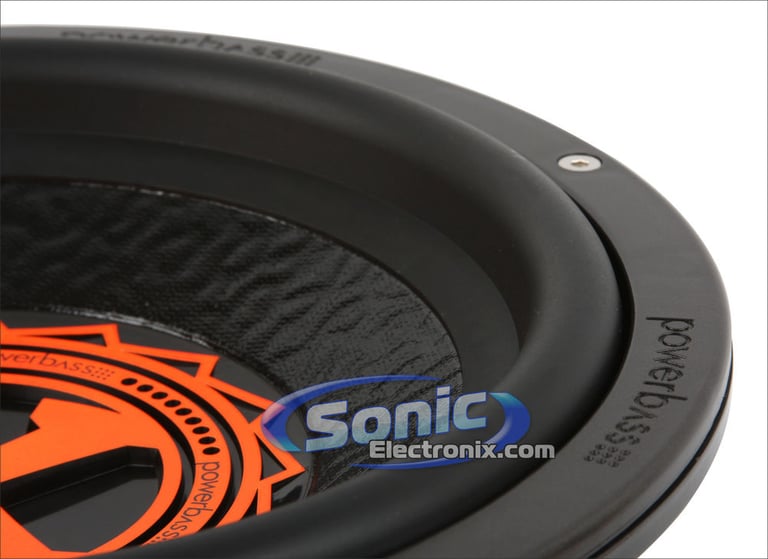

  • High-roll Santoprene surround
  • Composite polycarbonate/glass fiber basket is rigid and stable
  • Chrome push terminals guarantee optimal power transfer
  • Designed for use in both sealed and ported enclosures
  • Voice coils made with pure EIW wire for high energy transfer
  • 2" Vented BASV voice coil former

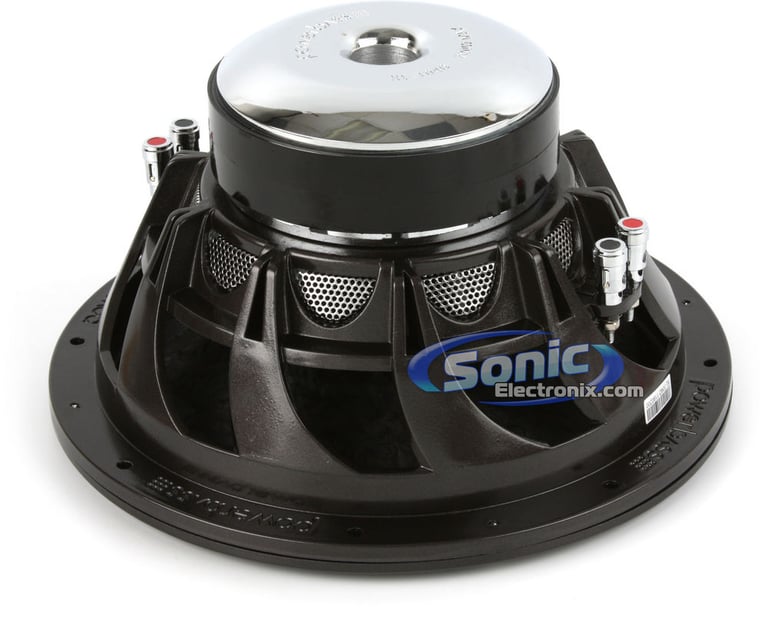

  • Xtra large 164 oz. motor structure with double stacked magnets
  • Frequency response: 35-500 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 5-1/4"
  • Also found as: Power Bass Xtreme XL 104D
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 PowerBass Xtreme XL-104D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 PowerBass Xtreme XL-104D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 PowerBass Xtreme XL-104D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 PowerBass Xtreme XL-104D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
XL Series
Subwoofer Size
10"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
35 - 500 Hz
Sensitivity
92 dB
Xmax (millimeters)
8.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Orange
Woofer Composition
Non-Pressed Paper
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.65 cubic feet
Maximum Sealed Box Volume
0.65 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/4"
Cutout Diameter
9-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XL-104D

Weight:

11.50lbs

Internal SKU:

xl104d

Internal Product ID:

26942
