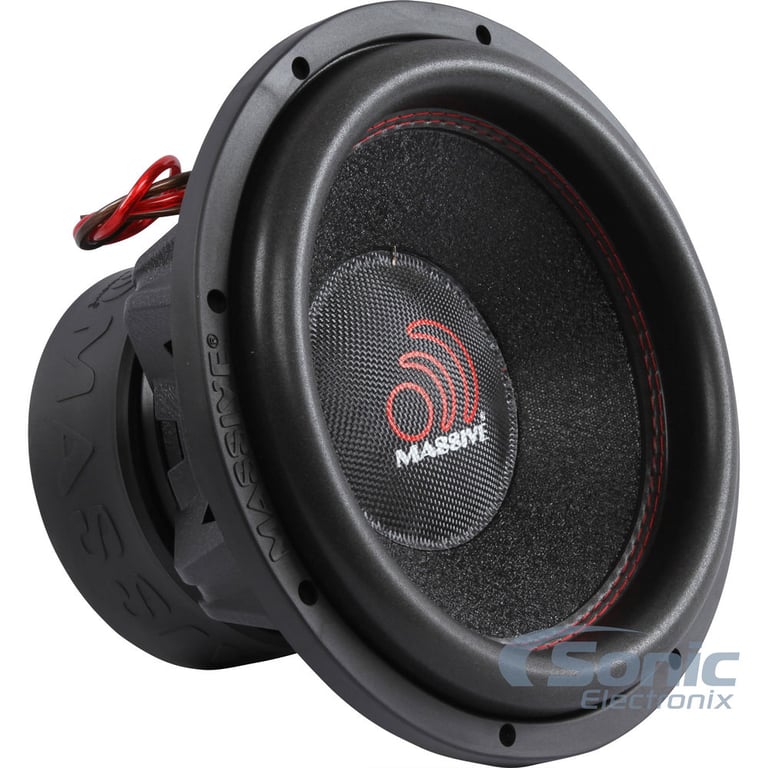

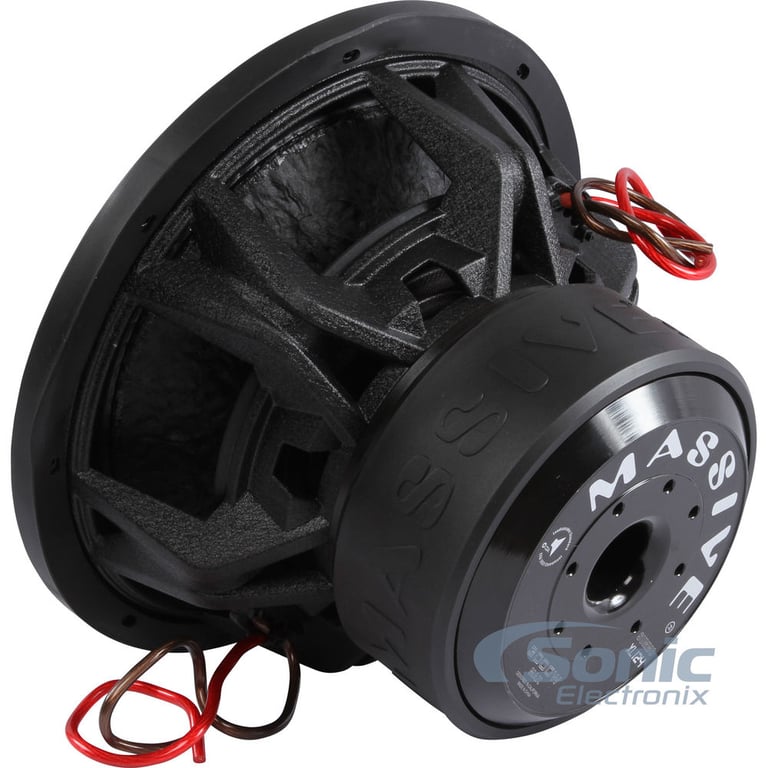

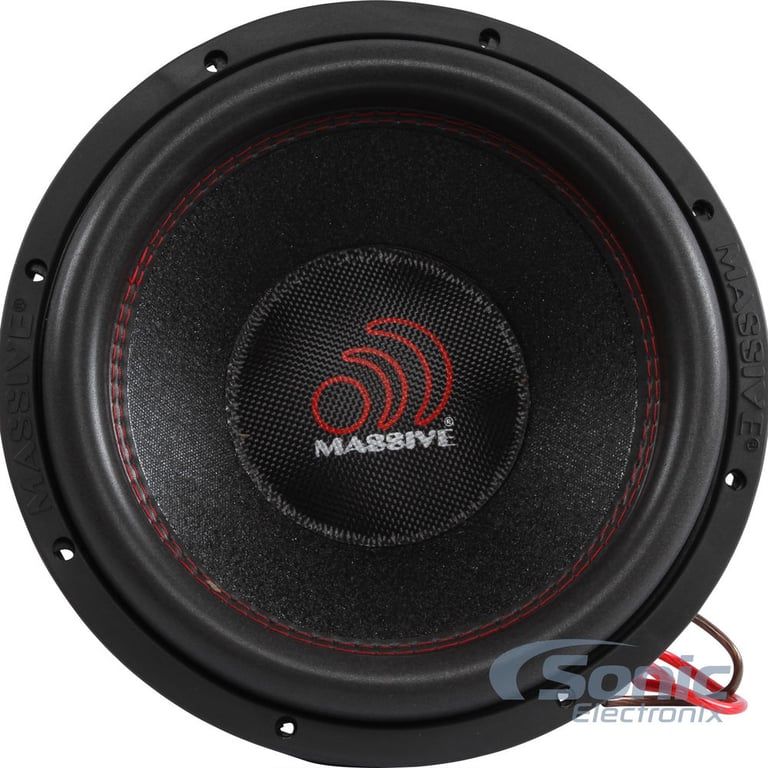

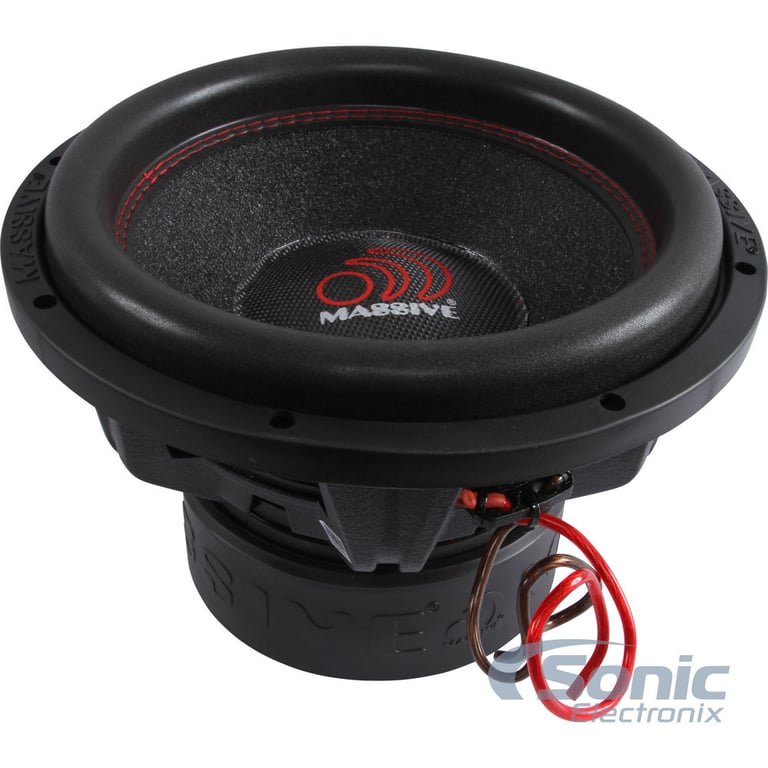

Massive Audio SUMMOXL124

3000W Peak (1500W RMS) 12" Summo Series Dual 4-ohm Car Subwoofer

highlight-star-icon

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 4 ohm
• Non-Pressed Paper Cone
• Foam Surround
• Mount depth: 7.48"
• Sensitivity: 92.1 dB

Learn more about the summoxl124

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-5700 main

Metra 99-5700 Dash Kit

Install a new Single-DIN car stereo in select 1975-2000 vehicles from Ford, Mercury, Mazda

5
-12.50%

$27.99

List price $31.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

95-5704 main

Metra 95-5704 Dash Kit

Install a new Double-DIN car stereo in select 1992-1996 E Series

1
-38.72%

$37.99

List price $61.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

Limited time!

JVC KD-T920BTS

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

3
-22.35%

$139.00

List price $179.00

Description


Massive Audio brand icon

Authorized dealer


SUMMOXL124

How it is possible to get “MO” out of a Massive Audio CEA 2031 Certified “SUMMO” subwoofer? All you got a do is just Double Stack 250 Oz Strontium Magnets on a newly designed light weight ultra-strong cast aluminum basket. Use dual 4 Ohm Black 3” anodized VC formers with Kevlar Spunlace suspended into a custom Black Anodized 1 piece milled pole-plate. (This helps increase the concentration of the magnet field) Now just add oversized dual Poly Nomex Spiders. Bond them to Kevlar fiber reinforced Non-Pressed Paper Cones that have been stitched in “Red” onto the oversized surround. Throw in some 10 gage speaker cable that’s hard wired to the tinsel leads and just bolt everything together!


Product Details:

  • 12" Dual 4 ohm Summo Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1500 watts
  • Non-Pressed Paper Cone
  • Foam Surround
  • Heavy duty industrial textured cast aluminum basket
  • Red stitched edge to the cone for added strength
  • Oversized mirror image, dual poly nomex spiders
  • Black anodized one piece pole-plate for added motor force
  • Reinforced fiberglass woven dustcap for high power applications
  • Custom tooled rubber gasket and magnet boot
  • 3" High Temperature black anodized Voice coil former
  • 13.5 mm Xmax
  • 250 oz. Triple Stacked Strontium magnet motor structure
  • Resonance Frequency (Fs): 46 Hz
  • Sensitivity: 92.1 dB
  • Recommended sealed box volume: 2.2 cubic feet - 3.2 cubic feet
  • Recommended ported box volume: 2.4 cubic feet - 3.5 cubic feet
  • Top-mount depth: 7.48"
  • Cutout diameter: 11.14"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconMassive Audio SUMMOXL124 owner’s manual

Product history:

Massive Audio SUMMOXL124-2 thumbnail
(newest, current model)
Massive Audio SUMMO 124 thumbnail
(previous model, replaced by Massive Audio SUMMOXL124)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Massive Audio SUMMOXL124 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Massive Audio SUMMOXL124 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Massive Audio SUMMOXL124 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Massive Audio SUMMOXL124 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Summo Series
Subwoofer Size
12"
Peak Power Handling
3000 watts
RMS Power Handling
1500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
92.1 dB
Xmax (millimeters)
13.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Magnet Structure
Triple Stacked
Magnet weight
250 oz.
Magnet Type
Strontium
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
2.2 cubic feet
Optimum Sealed Box Volume
1.7 cubic feet
Maximum Sealed Box Volume
3.2 cubic feet
Minimum Ported Box Volume
2.4 cubic feet
Maximum Ported Box Volume
3.5 cubic feet
Top-Mount Depth (Mounting Depth)
7.48"
Cutout Diameter
11.14"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
46 Hz
Equivalent Compliance (Vas)
14 liters
Total Speaker Q Value (Qts)
0.65
Electrical Q Value (Qes)
0.7
Electrical Resistance of Voice Coil (Re)
3.2 ohm
Mechanical Q Value (Qms)
6.769
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SUMMOXL124-2

Weight:

37.01lbs

Internal SKU:

summoxl124

Internal Product ID:

124543

Customer Ratings & Reviews


Massive Audio SUMMOXL124 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
5
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

These subs POUND!

I had 2 15" Massive Audio GTX154 and switched to 2 of these 12" SUMMOXLs and they hit so freaking hard! My whole Jeep Patriot is flexing, almost afraid that the back window is going to blow out. Have them running on a 2000 watt Hifonics Brutus amp wired to 1 ohm in a ported Atrend SPL Bass box. You will not be disappointed in these subs.

By Anonymous on September 12, 2018 Checkmark Icon Verified purchase

32 found this helpful


Very very very pleased

These subs have a physical and auditorial presence that far exceeds any sub I have ever owned. I play them at volume 10 because everything in the car starts shaking at that point and they look good. Quality subs

By 8terry13 on February 23, 2018 Checkmark Icon Verified purchase

28 found this helpful


Summo Thunder

I bought two of these and have been using them for the last couple of days. I'm running them on 800 watts rms wired at 4ohms and these subs are loud.

By Canetrane on February 23, 2018 Checkmark Icon Verified purchase

27 found this helpful


Awesome!!!

Whewww where do I start I have four of these running them on a pure audio 3K and all I'mma say is you get what you pay for once you experience these subs it ain't no going back to anything else ???????????? wish I can add more stars

By G smoker on December 24, 2020

24 found this helpful


Great product

I want to start by saying that the shipping was faster then I expected it to be and the product is “AWESOME” I am barley breaking them in and then sound amazing..... I was I little skeptical bout massive audio because I never use them but I am now a fan and want to see wat else’s there products are capable of.... I had 2 12 NVX that hit really good and hard but it was time for some new and louder and I found it.....I would definitely recommend this sub to anyone and I have not yet had any cons to say just over all a great subwoofer. Just want to thank sonic electronix for always having the best deals and fast shipping...

By James on August 31, 2020 Checkmark Icon Verified purchase

23 found this helpful


Awesome!!!

Whewww where do I start I have four of these running them on a pure audio 3K and all I'mma say is you get what you pay for once you experience these subs it ain't no going back to anything else ???????????? wish I can add more stars

By G smoker on December 24, 2020

22 found this helpful




J46BT BLU small

JBL J Series J46BT - Blue

Wireless Bluetooth Earbuds Headset Stereo In-Ear Headphones

(3)

$44.95

List price $119.95

SB2OC small

JayBird SB2OC (Orange Crush)

Wireless Sportsband Bluetooth Headphones

(1)

$91.99

List price $99.99

EDT 1350 NL small

Beyerdynamic EDT 1350 NL

Pair of Black Velour Replacement Earpads/Cushions (908363)

$24.99

List price $40.00

C-ONE HB-RED small

Beyerdynamic C-ONE HB-RED Custom One Pro Replacement Headband

Red Headband with Velcro Fastener Made of Premium Leatherette Material Original Replacement

$16.99

List price $40.00

SB2RR small

JayBird SB2 Sportsband - Runners Red (SB2RR)

Flexible Over-The-Head Semi-Open Stereo Sportsband Headphones with Wireless Apt-X Technology

(9)

$84.99

List price $99.99

SHL3100MGY small

Philips SHL3100MGY - Metallic Grey

DJ Monitoring Solid Bass Headband Headphones -

$13.49

List price $34.99

KMC 1 Orange small

Klipsch KMC 1 Orange Music Center

Portable Wireless Bluetooth Speaker with Speakerphone Operation & NFC Technology (Orange)

$299.99

List price $299.99

OnBeat Venue LT small

JBL OnBeat Venue LT (Black)

Wireless Bluetooth Lightning iPod, iPad and iPhone Connector Speaker Docking Station

$119.00

List price $239.00

Synchros Reflect BT Green small

JBL Synchros Reflect BT- Green (JBLREFLECTBTGRN)

In-ear Wireless Bluetooth Sports Headphones

$69.95

List price $120.00

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Mercury Sable

1976 Buick Regal

2016 Dodge Dart

2011 Ram 3500

1994 Ford E Series

2014 BMW 2 Series

2007 Ford Edge

2013 Ford Explorer

2000 Chevrolet S10

2004 Hyundai Accent

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
