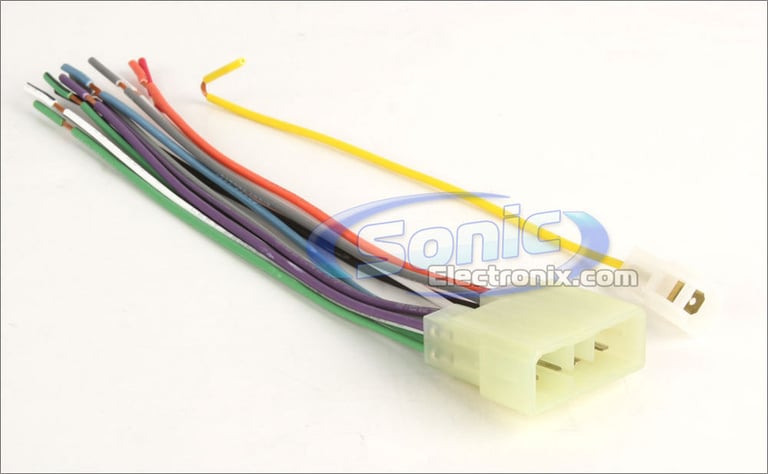

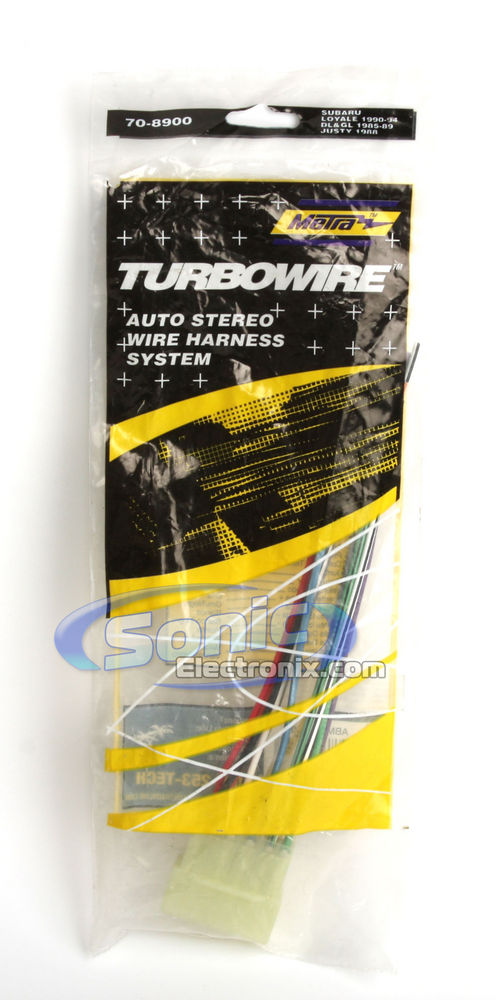

Metra 70-8900

Product Features:

• Plugs into car harness at radio
• Power/4 Speaker
• One 11-pin connector and one 1-pin connector
• Compatible with 1990-1994 Loyale, 1985-1989 DL/GL
• Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
• No cutting of factory wiring needed
• 1-year Manufacturer's warranty

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Equivalent to: Scosche SU01B
