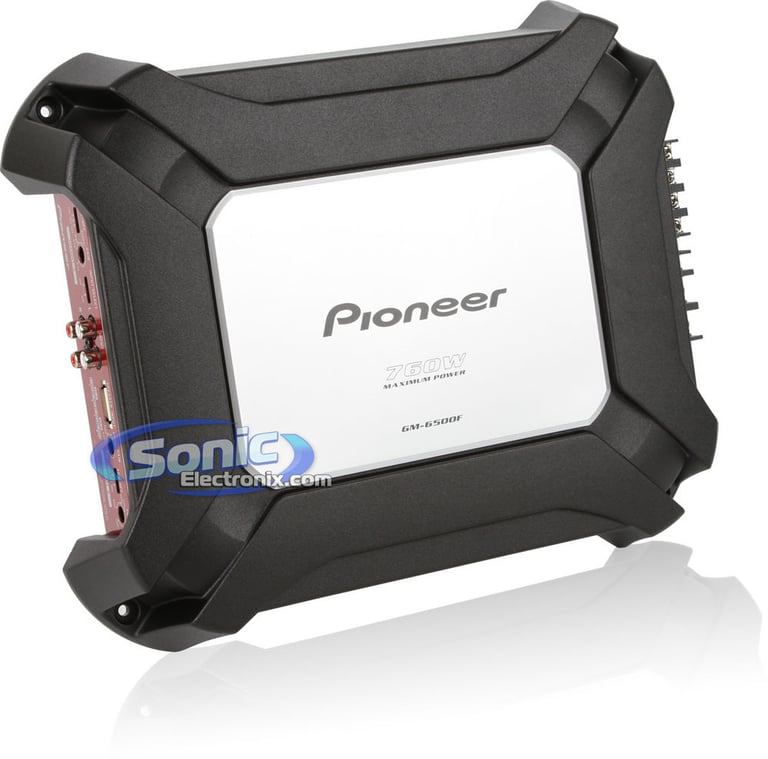

Pioneer GM-6500F

760W 4-Channel GM Series Car Amplifier w/ High-Level Speaker Inputs

760W 4-Channel GM Series Car Amplifier w/ High-Level Speaker Inputs

• Bridgeable 4-Channel
• Class AB Amplifier
• 60 Watts RMS x4-Channel @ 4 ohms
• 85 Watts RMS x 4-Channel @ 2 ohms
• Speaker Level Inputs
• LPF/HPF Crossovers
• Gain Caution Feature
• H Shaped Chassis
• CEA-2006 Compliant Amplifier

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

gma6704 thumbnail

Pioneer GM-A6704

OUR PRICE: $160.00

View item
DESCRIPTION
Pioneer

Authorized dealer

  • GM Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 60 watts x 4 chan.
    • 2 ohms: 85 watts x 4 chan.
    • Bridged, 4 ohms: 180 watts x 2 chan.
  • Max power output: 760 watts
  • MOSFET power supply
  • LED power indicator
  • 4/3/2 channel operation

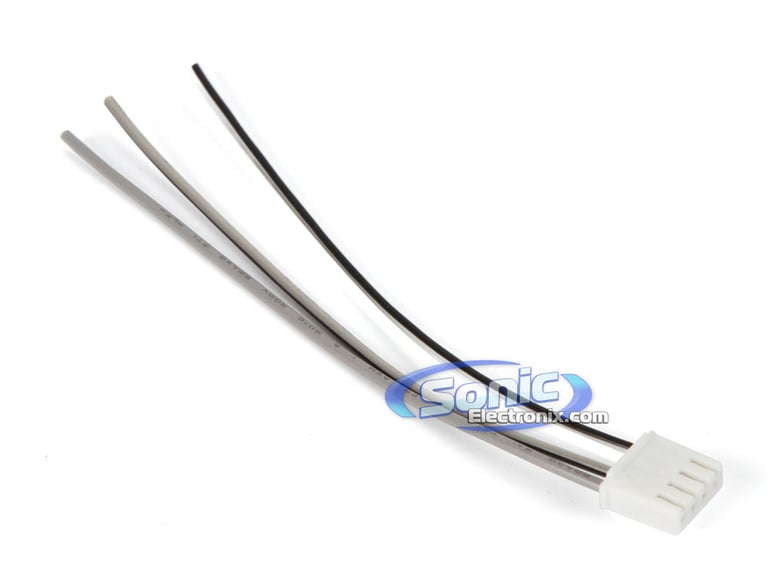

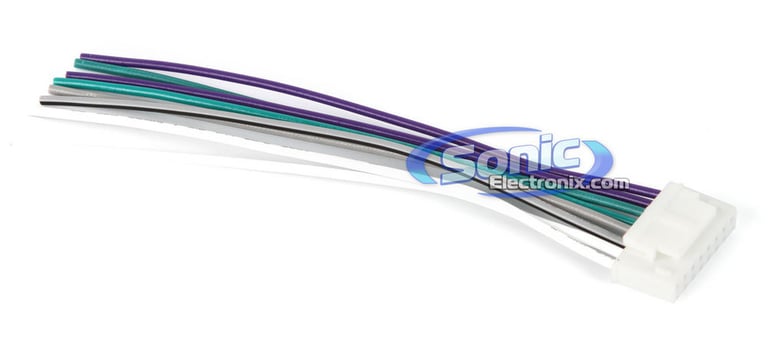

  • Built-in speaker level inputs
  • Exclusive H shaped chassis and heatsink
  • Gain control caution feature helps prevent damage to speakers

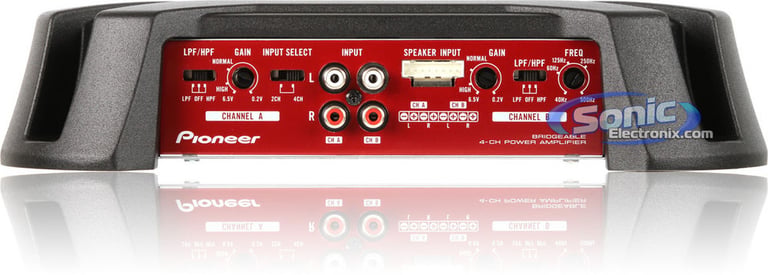

  • Low-pass filter:
    • Channel A: (cut off frequency: 80 Hz, -12 dB/octave)
    • Channel B: (cut off frequency: 40-500 Hz, -12 dB/octave)
  • High-pass filter:
    • Channel A: (cut off frequency: 80 Hz, -12 dB/octave)
    • Channel B: (cut off frequency: 40-500 Hz, -12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-70,000 Hz
  • Dimensions: 13-3/4"L x 11-3/8"W x 2-1/2"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer GM-A6704 thumbnail
(newest, current model)
Pioneer GM-A6604 thumbnail
(previous model, replaced by Pioneer GM-A6704)
Pioneer GM-6500F thumbnail
(previous model, replaced by Pioneer GM-A6604)
Pioneer GM-6400F thumbnail
(previous model, replaced by Pioneer GM-6500F)
Pioneer GM-6300F thumbnail
(previous model, replaced by Pioneer GM-6400F)
Pioneer GM-6200F thumbnail
(previous model, replaced by Pioneer GM-6300F)
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channels
RMS Power @ 2 ohms
85 watts x 4 channels
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
180 watts x 2 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Bridged Peak/Max Power
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Amplifier Specifications
Amplifier Series
Marine Certified
Amplifier Class
AB
Number of Channels
4
Total Peak Power Output
760 watts
Total RMS Power Output
360 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
Ch. A 80Hz, Ch. B 40-500Hz
Low-Pass Crossover Frequency
Ch. A 80Hz, Ch. B 40-500Hz
Signal-to-Noise Ratio
98 dB
Bass/Gain Remote
No
Fan Cooled
No

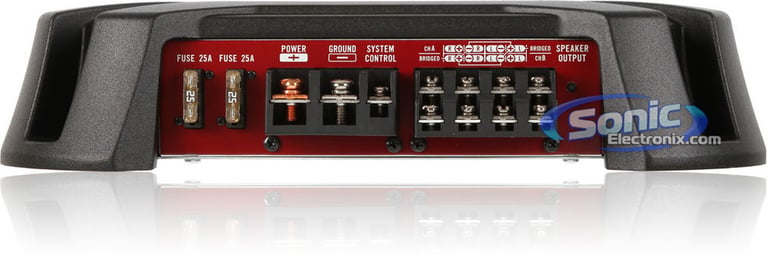

Fuse Rating
25A x 2
Total Fuse Rating
Strappable
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Amp Bluetooth Connectivity
Hi-Res Certified
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Paperwork
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
VIDEOS AND HOW - TO
REVIEWS
Pioneer GM-6500F

Pioneer GM-6500F

4.6

(5)

Write a review

Overall rating distribution

5 star
60%
4 star
40%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
4.4
Value
4.8
Features
4.4
Design
4.8
Usability
4.6

Erik

December 13, 2012

Very responsive

I'm very pleased with this amp. Great punch and clarity with no discernible distortion. I had to connect the amp to the speaker level outputs from the OEM head unit in my car which again powers four Infinity 682.9cf speakers. So any lack in sound quality is more due to the rather poor quality of the head unit (Mazda 6 2006 Non-Bose)
The amp has now been in daily use in sweltering heat and freezing cold for six months with no problems.

9

found this helpful.
Helpful? Report abuse

Aandfcolter

December 14, 2012

Best amp ever I swear!!!!

I recommend this amp for your door speakers I bump this thing for 6 hours straight, never shut up best money I've spent on car audio in a long time!!!!!!

6

found this helpful.
Helpful? Report abuse

Lewis

March 26, 2013

The best of the best

I glad I got this. Give me the punch that I need

5

found this helpful.
Helpful? Report abuse

Hambone

January 8, 2014

Great price

Small A/B amp not to pricey and it sounds great. I got it ahead of scheldule and couldn't be happier with the whole experience with Sonic.

5

found this helpful.
Helpful? Report abuse

Bender

May 4, 2012

Good amp, nice features

I have this amp, bridged running 2 Kicker C10's in ported boxes. In my tiny car they pound! Cool looking, good controls with filters

4

found this helpful.
Helpful? Report abuse
