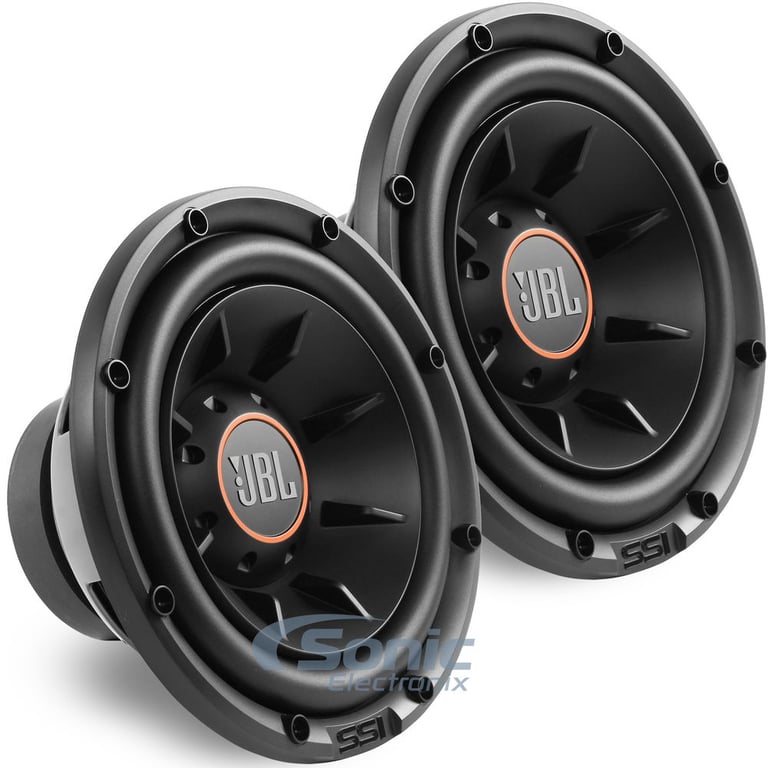

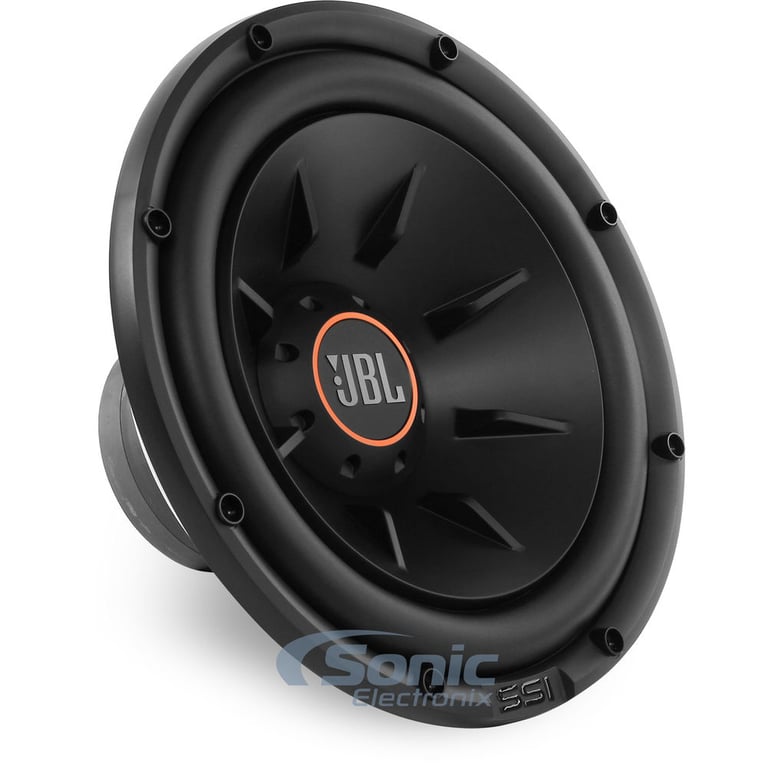

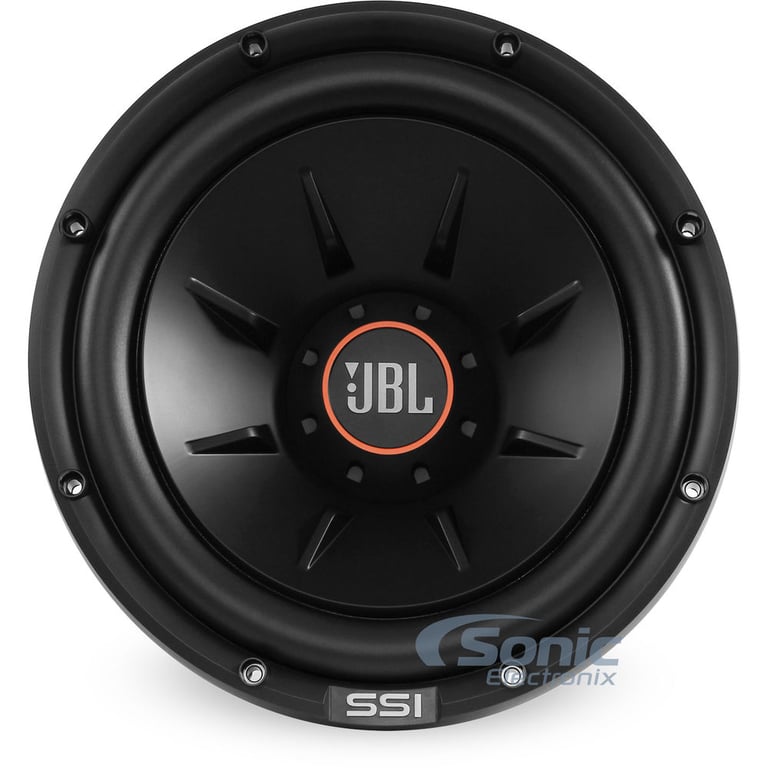

JBL S2-1224 2-Pack **Toggle between 2-Ohm & 4-Ohm Impedance!**

Two 1100w 12" Series II Subwoofers with Selectable 2-Ohm or 4-Ohm Impedance

JBL
Shop all JBL
Product videos
highlight-star-icon

• 275 Watts RMS Each
• Polypropylene Cone
• Nitrile Butadiene Rubber (NBR) Surround
• SSI (Selectable Smart Impedance)
• Oversized 2.0" Voice Coil
• Sensitivity: 93 dB

Learn more about the s21224-2

We apologize

This item has been discontinued


Loading...
BE7ACP.WX main

Boss Elite BE7ACP.WX

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

DPX395MBT main

Kenwood eXcelon DPX395MBT

Double DIN Shallow Chassis Digital Media Receiver with Bluetooth and Built-in Alexa

6
-19.52%

$169.00

List price $210.00

Product Highlights


• 275 Watts RMS Each
• Polypropylene Cone
• Nitrile Butadiene Rubber (NBR) Surround
• SSI (Selectable Smart Impedance)
• Oversized 2.0" Voice Coil
• Sensitivity: 93 dB

Description


JBL brand icon

Authorized dealer



JBL believes sound quality should never be compromised. And Series III subwoofers make sure you don't have to compromise flexibility, either. That's because the high-performance, step-up subwoofers feature SSI (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance—2 or 4 ohms—for your system, And an oversized voice coil handles more power than common voice coils.

Key Features:

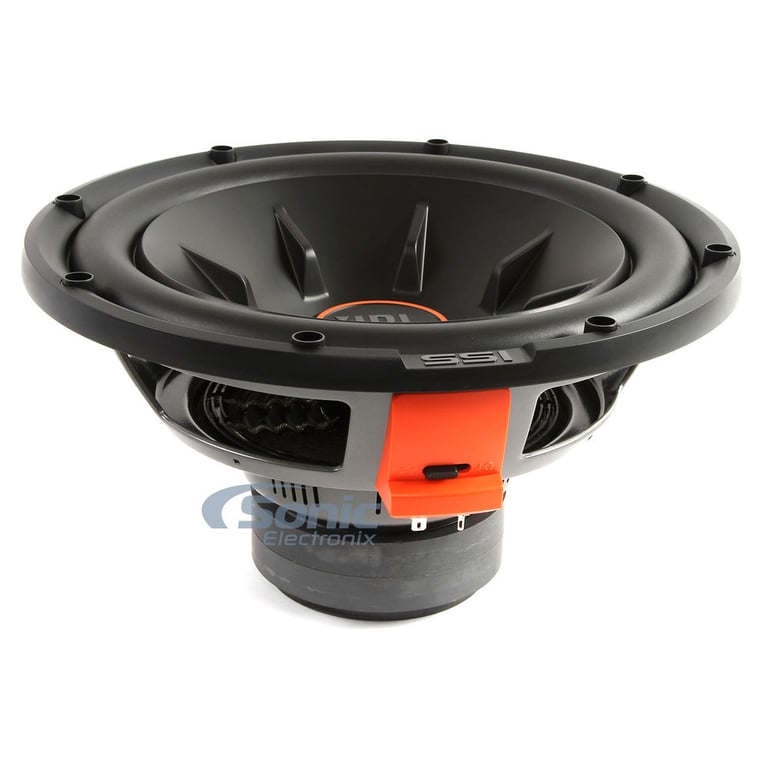

    SSI (Selectable Smart Impedance)

    Most car audio system designs call for 2- or 4-ohm impedance. Series III subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.

    Oversized voice coil

    The two-inch voice coil proves you don't have to be a heavyweight to pack a serious punch. It handles more power than conventional voice coils, yet it's lighter than three-inch voice coils. It strikes the perfect balance between thermal power handling and low mass.


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • Two 12" Series II Car Audio Subwoofers
  • Power Handling:
    • Peak: 1100 watts Each
    • Peak: 2200 watts Pair
    • RMS: 275 watts Each
    • RMS: 550 watts Pair
  • Recommended power range: 150 - 350 watts RMS Each
  • Nominal Impedance: Single 2 or 4 ohm
  • Polypropylene Cone
  • Nitrile Butadiene Rubber (NBR) Surround
  • SSI (Selectable Smart Impedance)
  • Oversized 2.0" Voice Coil
  • Spade Quck-connect Terminals

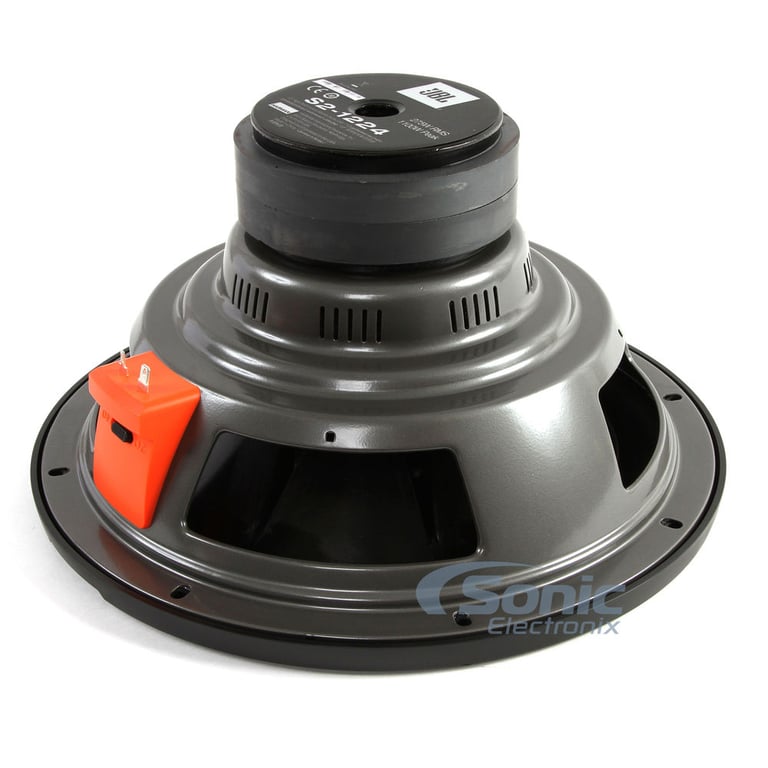

  • Stamped Steel Basket Frame
  • Top-mount depth: 6-1/2"
  • Cutout diameter: 11-1/4"
  • Frequency Response: 25 ~ 175 Hz
  • Xmax: 10.25 mm
  • Sensitivity: 93 dB
  • Sealed Enclosure Recommendation: 0.75ft³
  • Ported Enclosure Recommendation: 2.50ft³
  • *Infinite-baffle Mountable
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Per Pair

Check out the JBL S2-1224 Owner's Manual

*Infinite-baffle mounting is possible, but the subwoofer's mechanical power handling will be reduced because there will be no volume of air to stiffen the subwoofer's suspension and prevent overexcursion. If you choose infinite-baffle mounting, consider the RMS and peak power-handling ratings to be half of what is listed

Tips for Installing the your subwoofer


This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL S2-1224 2-Pack **Toggle between 2-Ohm & 4-Ohm Impedance!** Subwoofer

Mono Amp

Wiring Guide to Wire 2 JBL S2-1224 2-Pack **Toggle between 2-Ohm & 4-Ohm Impedance!** Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL S2-1224 2-Pack **Toggle between 2-Ohm & 4-Ohm Impedance!** Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL S2-1224 2-Pack **Toggle between 2-Ohm & 4-Ohm Impedance!** Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

52L7XS121 small

Kicker L7XS121 (52L7XS121)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 10-1/8"

$1399.99

List price $1499.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1100 watts
RMS Power Handling
275 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2.0"
Frequency Response
25 - 175 Hz
Sensitivity
93 dB
Xmax (millimeters)
10.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
2.50 cubic feet
Top-Mount Depth (Mounting Depth)
6.50"
Cutout Diameter
11.25"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

S2-1224_2

Weight:

26.00lbs

Internal SKU:

s21224-2

Internal Product ID:

124961

Product and How-to Videos


  • JBL Series II Car Subwoofers w/ Selectable Impedance | Product Overview
  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box

Customer Ratings & Reviews


JBL S2-1224 2-Pack **Toggle between 2-Ohm & 4-Ohm Impedance!** thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Perfect!

The following review is for S2-1224, which is a part of the bundle you are viewing.

Speaker sounds great, my son loves it! Perfect Christmas gift.

By Jason on December 30, 2016

10 found this helpful


JBL

The following review is for S2-1224, which is a part of the bundle you are viewing.

I recommend jbl for all car audio, bose sound great but jbl is "1 in my book. You can feel & hear the difference.

By Cheetah on December 7, 2016

10 found this helpful


These subs slams. Best subs I had yet

The following review is for S2-1224, which is a part of the bundle you are viewing.

Today I just got these subs installed. They are absolutely amazing out the box can't wait to break them in. If you are hesitant about these don't be cause JBL quality is as good as JL audio any day. This was a great buy I recommend you get a custom box to fit them to the right specs.

By Ronald on February 13, 2017 Checkmark Icon Verified purchase

9 found this helpful


Can Am Sub

The following review is for S2-1224, which is a part of the bundle you are viewing.

I have tried many brands of Subwoofers and the JBL has been the best. Very goog response and works well on my Maverick 1000 XRS. I would recommend this speaker to anyone. You won't be sorry!

By Poppy on February 21, 2017

8 found this helpful


best deal

The following review is for S2-1224, which is a part of the bundle you are viewing.

Great speaker, sounds good, great upgrade from my old subwoofer ..

By elgin on January 29, 2017

8 found this helpful


As advertised

The following review is for S2-1224, which is a part of the bundle you are viewing.

Great bass from 350w RMS. Came safely in secure box. Didn't look like someone played soccer with it.

By Christopher on December 27, 2016 Checkmark Icon Verified purchase

8 found this helpful


best bang for your buck

The following review is for S2-1224, which is a part of the bundle you are viewing.

ran the subs off a 500 watt Kenwood amp the subs were way louder and cleaner than 2 JL 12w0 in the same brand and size prefab boxes.

By James on January 12, 2018

7 found this helpful


Awesome sub

The following review is for S2-1224, which is a part of the bundle you are viewing.

This sub looks awesome sounds awesome and it was fairly cheap, I would highly recomend this product.

By Jared on January 4, 2018 Checkmark Icon Verified purchase

7 found this helpful


JBL S2-1224

The following review is for S2-1224, which is a part of the bundle you are viewing.

good sub i have had it for 1 month and no issues . just make sure and build a box with enough air space. the min, listed is a little to small.

By brandon on January 22, 2017 Checkmark Icon Verified purchase

7 found this helpful


So versatile!

The following review is for S2-1224, which is a part of the bundle you are viewing.

I love the fact that this product can switch between 2 ohm and 4 ohm! It makes pairing this sub with any system a breeze! Not to mention it is LOUD. Pair it with a nice amp and box and you got yourself a great system!

By Anonymous on July 29, 2018

6 found this helpful




43CVR122 2 Pack-2 small

(2) Kicker 43CVR122 COMPVR 12" 1600 Watt Car Audio Subwoofers Subs

800W Peak (400W RMS) 12" Comp VR Series Dual 2 ohm Car Subwoofer

(5)

$315.98

List price $299.98

44CVX122 2 Pack small

(2) Kicker 44CVX122 Comp VX CVX 12" 3000w Car Subwoofers Subs

1500W Peak (750W RMS) 12" Comp VX Dual 2 ohm Car Subwoofer Package

(4)

$388.00

List price $619.98

43CVT124 2 Pack-2 small

(2) Kicker 43CVT124 COMPVT 1600w 12" 4-Ohm SVC Shallow Slim Car Subwoofers Subs

400W RMS 12" Comp VT Series Single 4 ohm Car Subwoofer Package

(3)

$379.98

List price $419.98

MDR-XB21EX small

Sony MDR-XB21EX (MDRXB21EX) Extra Bass Earbuds

Specially Designed to Reproduce Powerful Bass with 9mm Dynamic Neodymium Drivers

(5)

$32.99

List price $39.99

NSW124V2,NSW124V2 small

(BOGO 10% OFF) 2 NVX NSW124v2 12" Car Subwoofers

(2) NVX 12" Car Subwoofers 700W RMS (1400W Peak) (Regularly $119.98)

(33)

$189.98

List price $239.98

M2000.4 small

Autotek Mean Machine M2000.4

2000W Mean Machine Series 4-Channel Class AB Car Amplifier

(19)

$119.95

List price $239.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2018 Kia Soul

2006 Acura RL

2005 Lamborghini Murcielago

1996 Eagle Summit

2002 Land Rover Range Rover

2010 Jeep Wrangler

2001 Saturn LW300

2011 Ford Crown Victoria

Vehicle
Store
Delete

2016 Can-Am Commander 1000 XT-P

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
