Description


Phatlabs brand icon

Authorized dealer

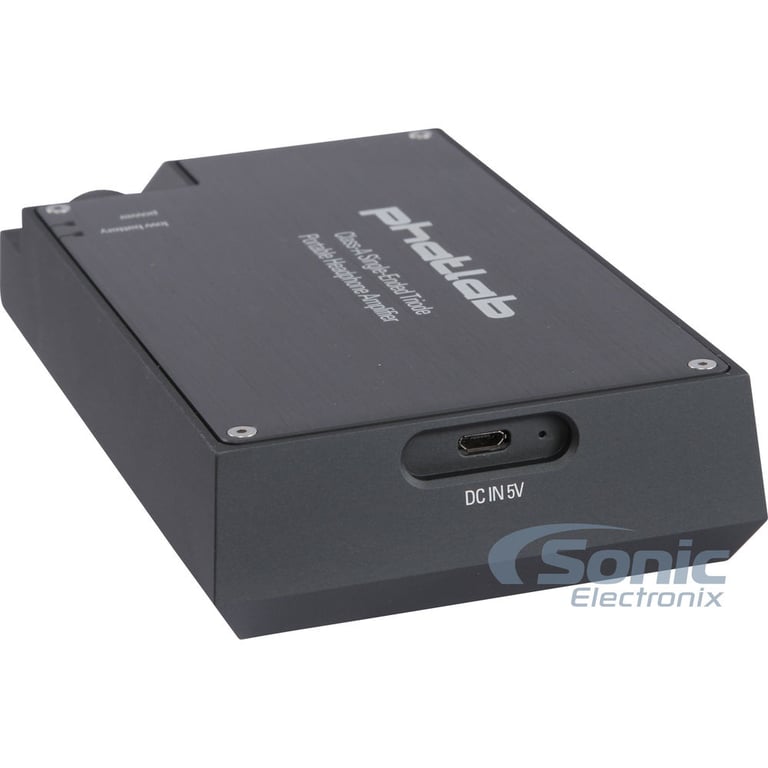

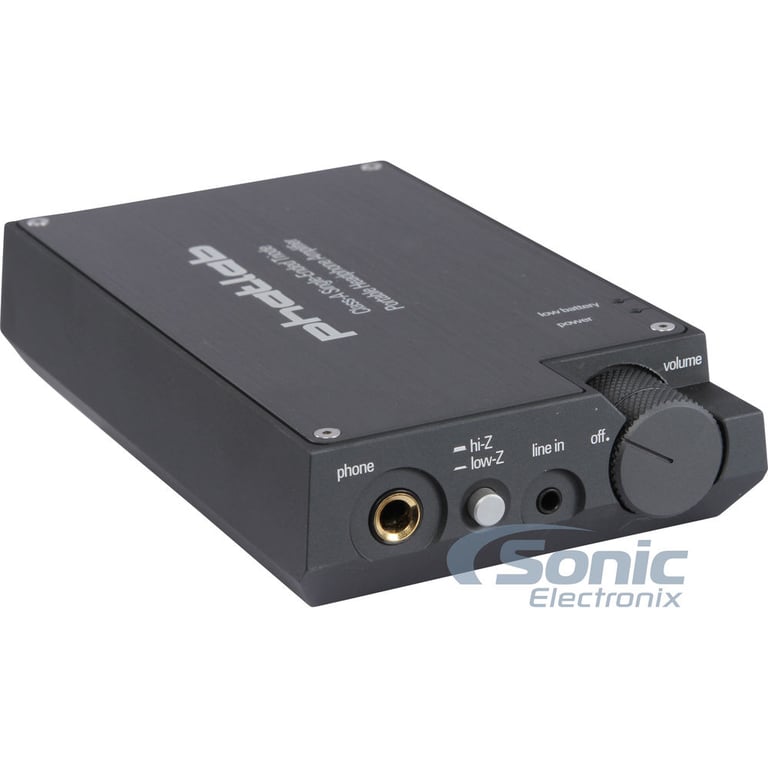

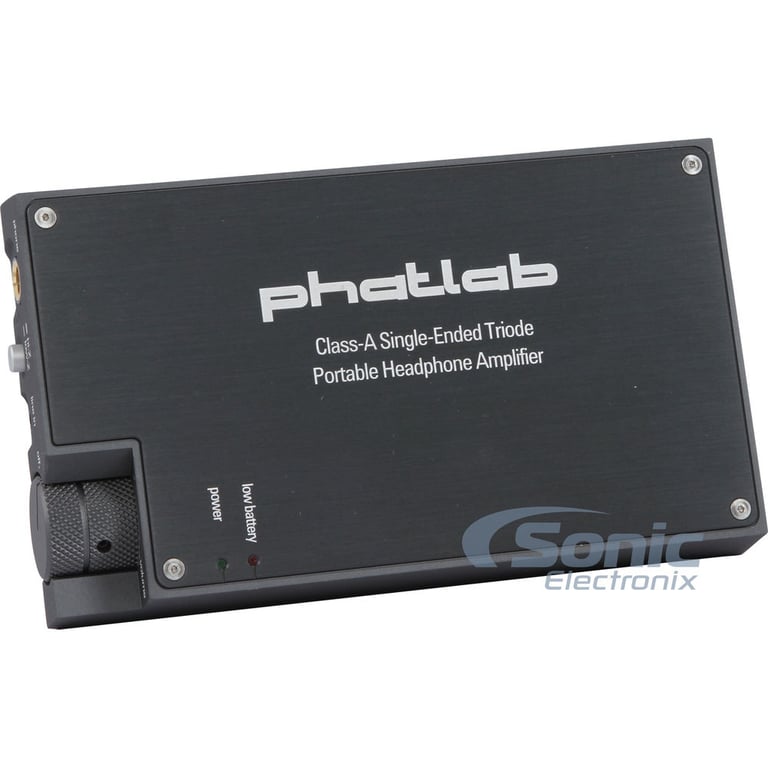

Phatlabs Phantasy

Class-A Single-Ended Triode Portable Headphone Amplifier

PHAntasy is the first member of our Portable Headphone Amplifier (PHA) series. When we kicked off the development of PHAntasy, we determined to achieve two major goals; One is to preserve the true spirit and performance of SET amplifier, pure class-A, transformer coupled output and most important of all, sensational music presentation as we ever experienced on best SET amplifier, and the other is true portability with rechargeable battery via 5V USB port. We examined every detail of SET topology and audition every possible valve candidate and come up with JAN6286, a military grade directly heated triode (DHT). We examined the topology and each element of the amplifier – JAN6286 tubes, boost converter, filament supply, Battery configuration, and Passive Components - to find the best sounding components and combination. As we put them all together we ended up with The PHAntasy, a true fantasy to audiophiles.

General Features:

  • Directly heated triode with single-ended circuit topology
  • Zero global feedback design
  • Selected military grade subminiature valve
  • Hi-efficiency wide bandwidth nickel core output transformers
  • Military and audio grade passive components
  • True impedance matching with multiple transformer taps
  • Hi/Low headphone impedance switch
  • Instant-on w/o warm up time

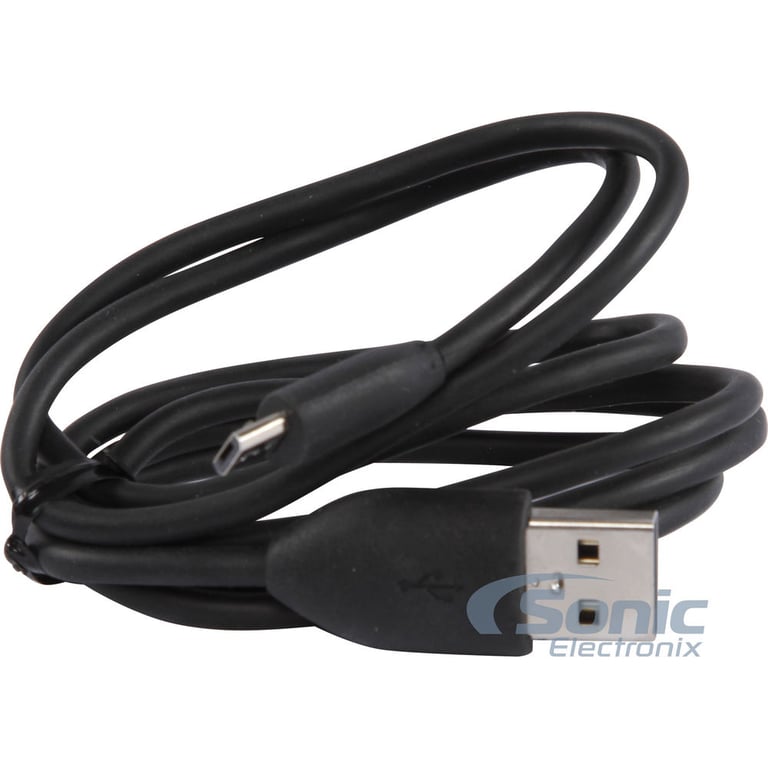

  • 5V microUSB charging port
  • Over 8-hour operation on battery and fully charge within 4-hour
  • Dimensions: 165 mm x 95 mm x 35 mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Specifications & Details


Headphone Amplifier Specifications
Frequency Response
10 - 60k Hz
Output Connection
1/4" Plug
Number of Outputs
1
Output Power
250 mW
Width
4.7"
Height
.9"
Depth
3.6"
Amplifier Style
Portable
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Phantasy

Weight:

1.40lbs

Internal SKU:

phantasy

Internal Product ID:

124981
