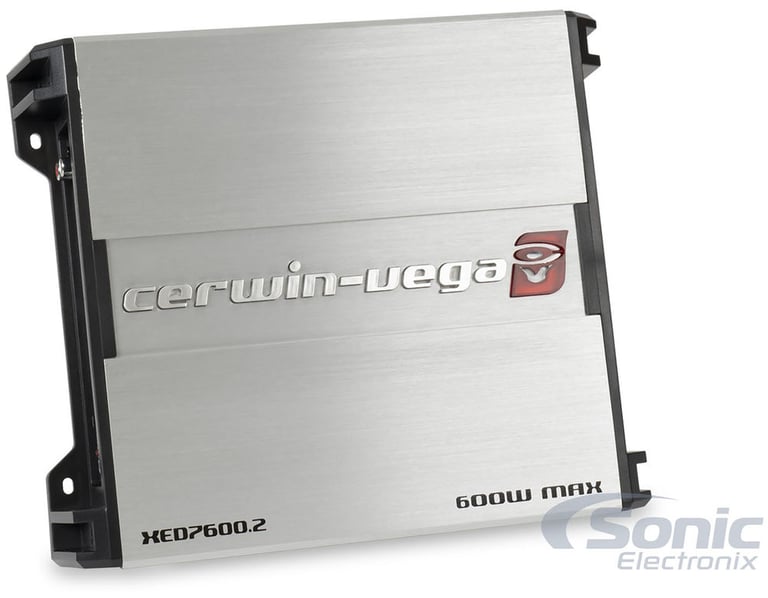

Cerwin Vega Mobile XED7600.2 Image 1 — Cerwin Vega Mobile XED7600.2

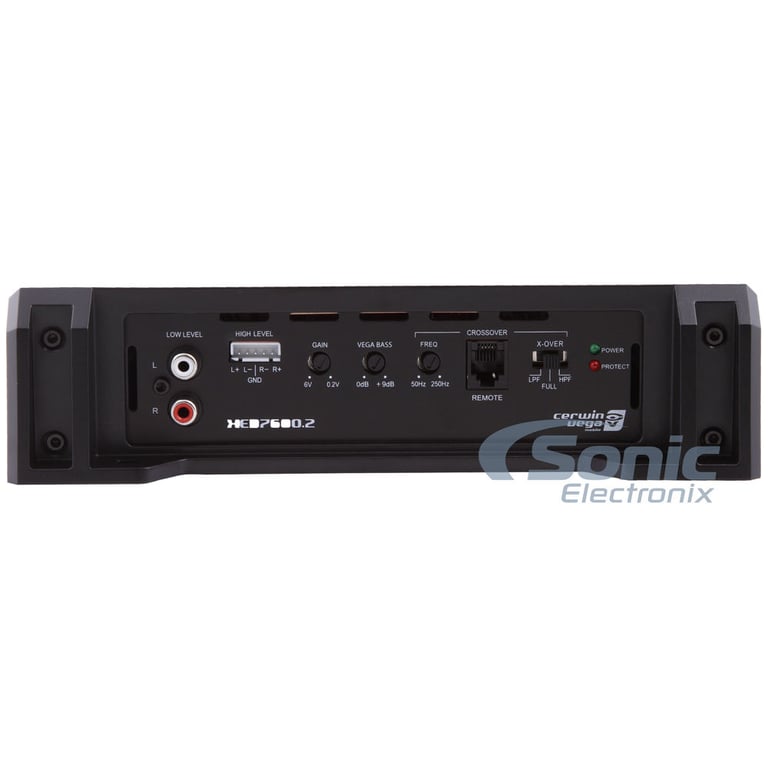

Cerwin Vega Mobile XED7600.2 Image 2 — Cerwin Vega Mobile XED7600.2

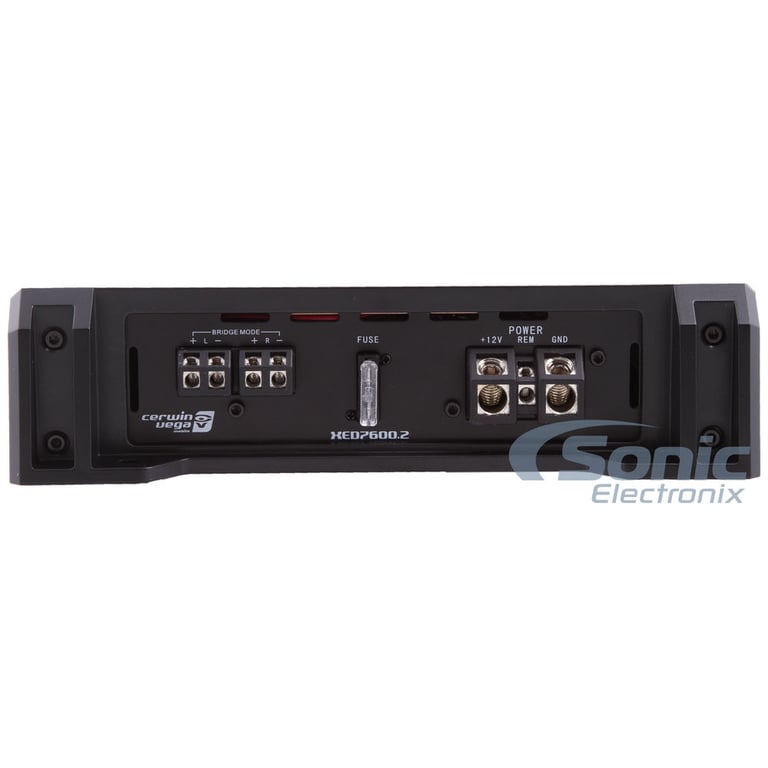

Cerwin Vega Mobile XED7600.2 Image 3 — Cerwin Vega Mobile XED7600.2

Cerwin Vega Mobile XED7600.2 Image 4 — Cerwin Vega Mobile XED7600.2

Cerwin Vega Mobile XED7600.2 Image 5 — Cerwin Vega Mobile XED7600.2

Cerwin Vega Mobile XED7600.2 Image 6 — Cerwin Vega Mobile XED7600.2

Cerwin Vega Mobile XED7600.2 Image 1

Cerwin Vega Mobile XED7600.2 Image 2

Cerwin Vega Mobile XED7600.2 Image 3

Cerwin Vega Mobile XED7600.2 Image 4

Cerwin Vega Mobile XED7600.2 Image 5

Cerwin Vega Mobile XED7600.2 Image 6

Product highlights

Product highlights

• 60W RMS x 2 @ 4 ohm
• 85W RMS x 2 @ 2 ohm
• 240W RMS x 1 @ 4 ohm, Bridged
• Total Peak Power: 600W
• High Pass, Low Pass and Full Crossover Switch
• Proprietary Vega Boost
• Aluminum Heatsink
• Dimensions: 8.875" W x 10.6" L x 2.187" H

Learn more about the xed76002

Other Ford Windstar owners bought

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

-20.50%

$159.00

List price $200.00

AVH-3500NEX main

Out of stock

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

-10.75%

$829.99

List price $930.00

Description

Authorized dealer

General Features:

Cerwin Vega XED Series XED7600.2
Class-A/B Full Range 2 ohm Stable 2-Channel Amplifier
RMS Power Rating:

4 ohm: 60 watts x 2 chan.
2 ohm: 85 watts x 2 chan.
1 ohm: ------------N/A------------
Bridged, 4 ohm: 240 watts x 1 chan.

Total power output: 600 watts
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
2 or Mono channel operation
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Input sensitivity: .2V - 5V
Frequency Response: 35 - 50000 Hz
Total Harmonic Distortion (THD): .1%
Signal to Noise Ratio: 85 dB
Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
Variable Bass Boost: 0 to +9 dB bass boost at 50 Hz
Fuse Rating: 25A x 1
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 8.875"W x 10.6"L x 2.187"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Other products for your Ford Windstar

REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

-12.14%

$477.88

List price $543.88

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

$329.99

Limited time!

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

-16.67%

$349.99

List price $420.00

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

-20.00%

$599.99

List price $750.00

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

-10.53%

$84.99

List price $94.99

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

-9.16%

$109.00

List price $119.99

Limited time!

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

-28.58%

$99.95

List price $139.95

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

$69.99

Similar Products

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 2 channel

RMS Power @ 2 ohms

85 watts x 2 channel

Bridged RMS Power

240 watts x 1 channel

Amplifier Specifications

Series

XED Series

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

600 watts

Total RMS Power Output

240 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.1%

Speaker Level Inputs

Yes

Preamp Outputs

No

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

85 dB

Bass Boost

0 - 9 dB

Remote bass/level controller

No

Fuse Rating

25A x 1

Total Fuse Rating

25

Strappable

No

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

No

Hi-Res Certified

No

What is in the box?

Paperwork

User manual
Brand sticker/decal

WITB: Amplifiers

Amplifier
Mounting screws (4)
Washers (4)
One spare fuse

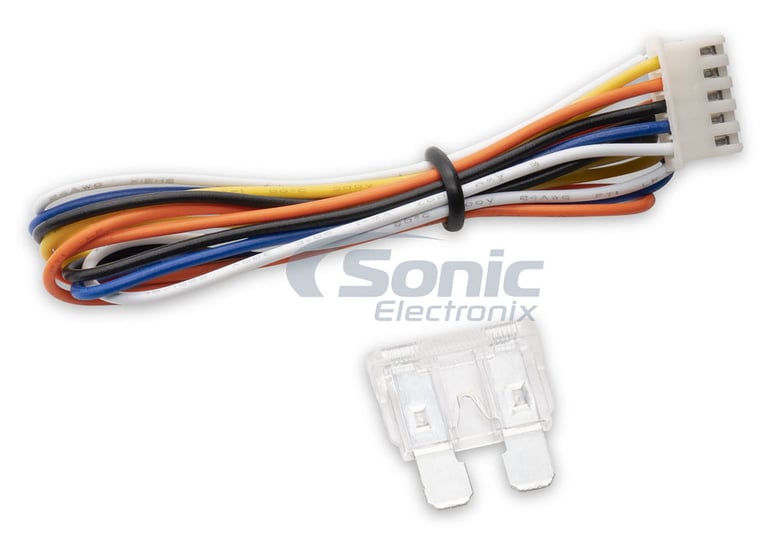

High-level input wiring harness w/ molex connector
Allen wrenches (2)

Other Accessory #1

4 lock washers

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
