Pioneer MVH-AV290BT

General Features:

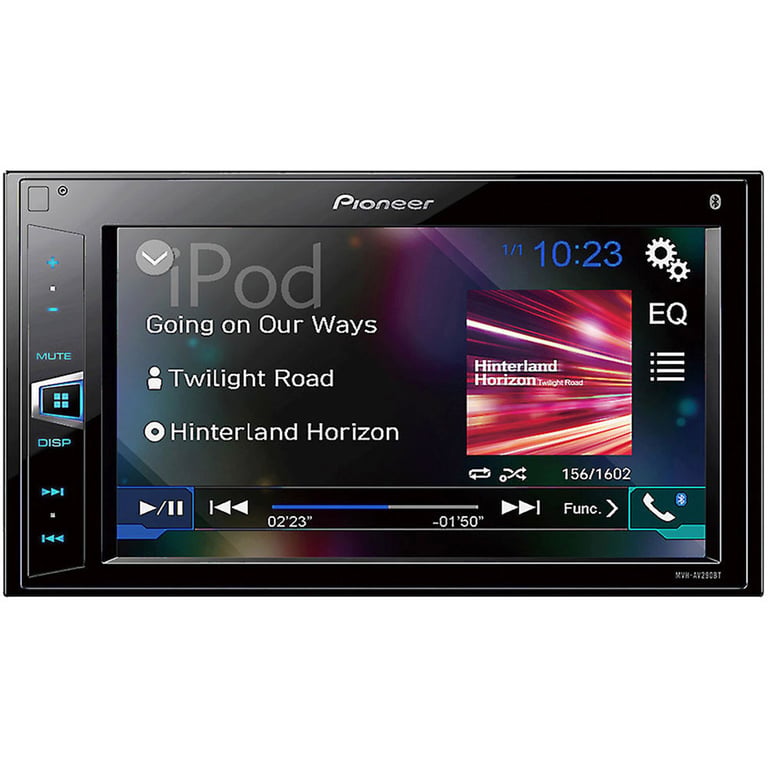

• Pioneer MVH-AV290BT Mechless In-Dash A/V Receiver
• Features the responsive, powerful and intuitive NEX user interface
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 22 watts x 4 channels, 5% THD
• CEA 2006: 14 watts x 4 channels, <1% THD
• AM/FM RDS tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 6.2" TFT Active Matrix Driving Display
• On/Off Dimmer Setting & Brightness Control
• Resolution: WVGA, 800 x 400
• Signal to Noise Ratio: 72 dB
• Dimensions: 7" W x 3-7/8" H x 6-1/2" D
• 1-year Manufacturer's Warranty

Playback and Audio Features:

• Compatible with Apple iPhone 6/6+ and iOS 8+ software
  Review manual for details
• iPod/iPhone with Lightning Connector requires standard USB to Apple Lightning connector
• Pioneer CD-IU52 available, sold separately
• Axxess AXM-I5USBMTS available, sold separately
• Available Sources: Audio Only
• iPod/iPhone with 30-Pin Connector requires Pioneer CD-IU201V
• The Pioneer CD-IU201V will take up both the 3.5mm Input and USB Input
• Available Sources: Audio & Video
• 24-bit Digital to Analog Converter
• 3.5mm Rear A/V Auxiliary Input
• Rear USB Input
• MP3/WMA/AAC/WAV and AVI/WMV Playback
• 7 preset equalizer curves: S.Bass / Powerful / Natural / Vocal / Flat / Custom 1 / Custom 2
• 5-band graphic equalizer
• ±12 dB Gain at 100Hz / 315Hz / 1.25 kHz / 3.15 kHz / 8 kHz
• Selectable-Point High-pass Filter and Low-pass Filter
• HPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz, 12 dB/octave
• LPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz, 18 dB/octave
• +6 dB to -24 dB variable gain
• Selectable Phase: Normal / Reverse
• Variable Bass Boost: 0 - +12 dB
• 2 Sets of 2V preamp outputs (front, rear/subwoofer)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth Profiles Supported:
• HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• Works with most Bluetooth enabled cell phones
• Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

• Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
• Rear RCA Video Output: Used for connection to separate monitors and other devices
