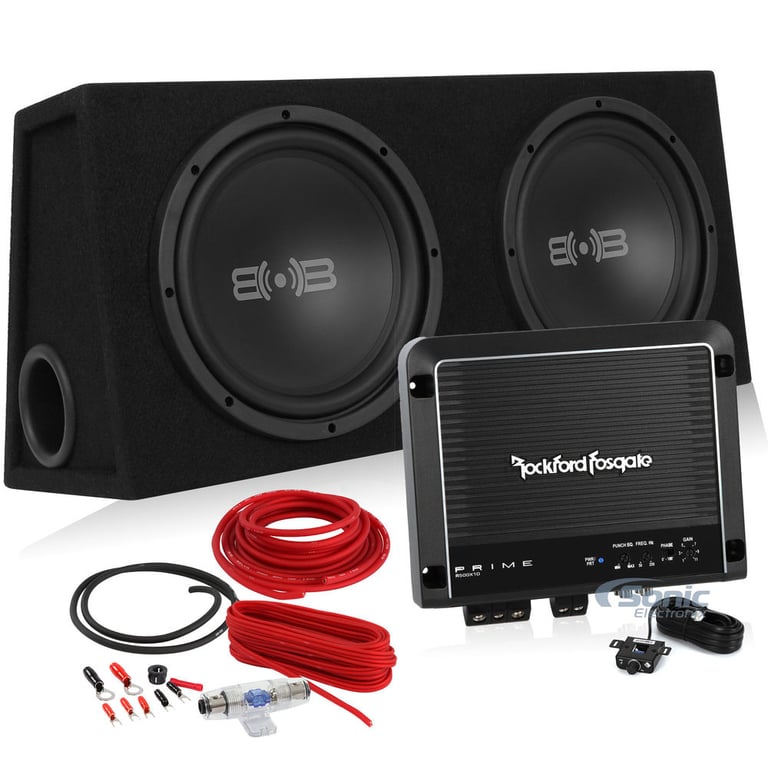

Belva + Rockford Fosgate Subwoofer/ Amplifier and Amp Wiring Combo

General Features:

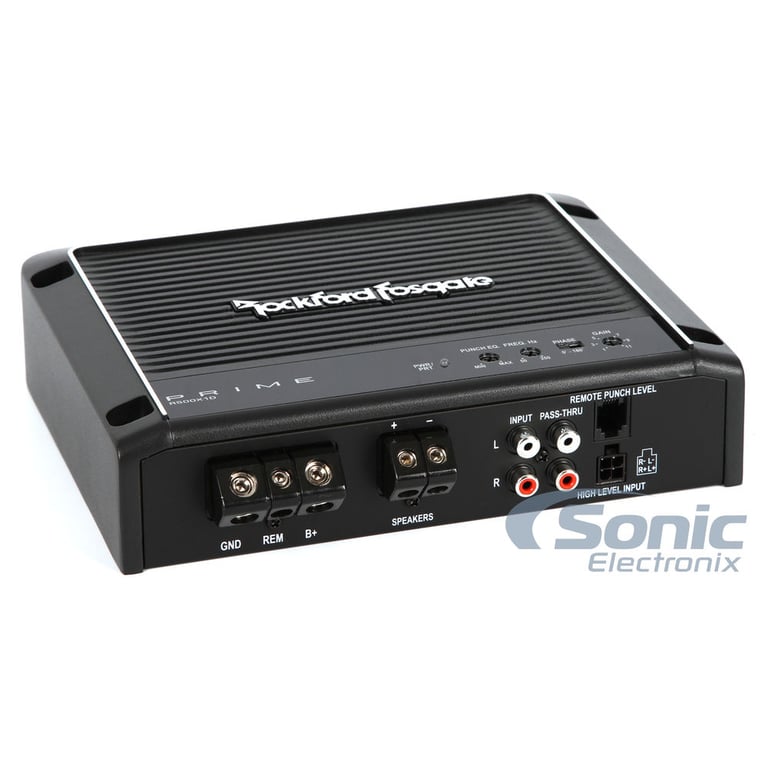

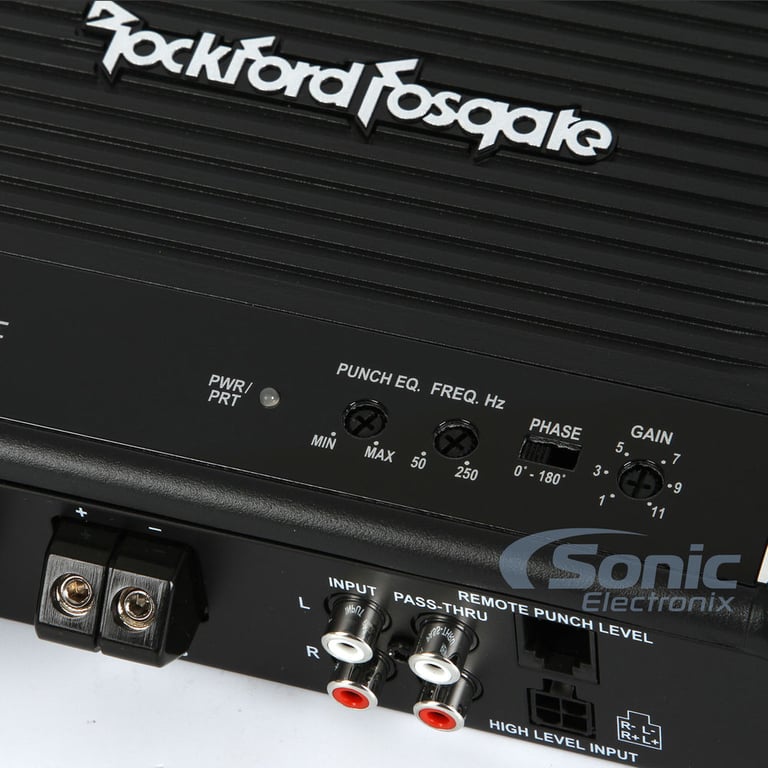

• Prime Series Class D Monoblock Car Amplifier
• RMS Power Rating:
• 4 ohm: 300 watts x 1 chan.
• 2 ohm: 500 watts x 1 chan.
• CEA-2006 compliant amplifier
• Efficient Class-D circuit topology
• 12dB/octave Butterworth crossover
• RCA pass-thru outputs
• On-board Punch EQ with +18dB boost @ 45Hz.
• High level inputs

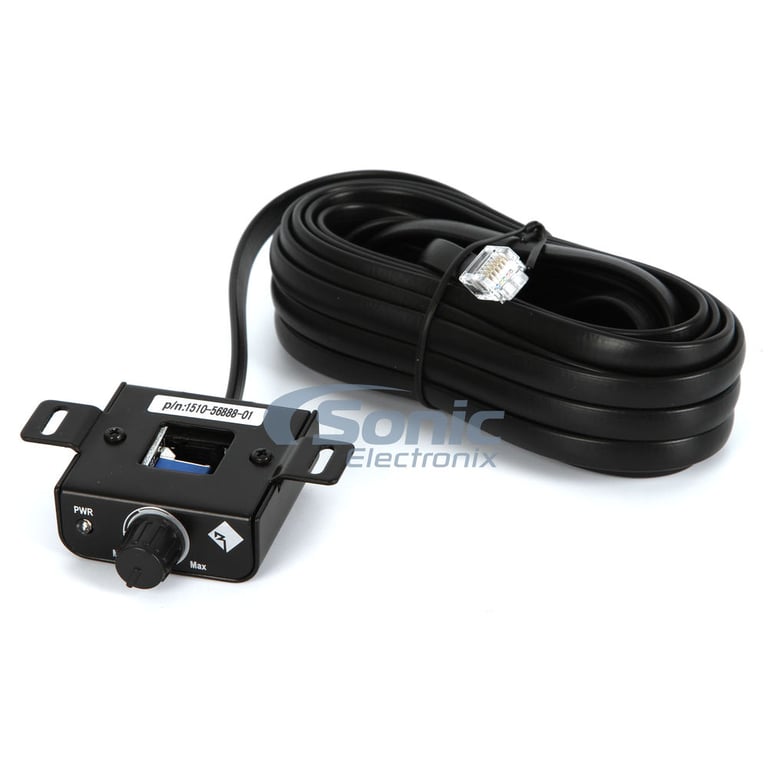

• Remote PLC (Punch Level Control)
• 0°/180° Phase Switch
• Real time output and power supply thermal sensing
• Cast aluminum heatsink
• 4 Gauge power/ground connectors
• MOSFET power supply
• Over current protection
• Short circuit protection
• Muted turn on
• Frequency Response: 20 - 250 Hz +/- 1 dB
• Efficiency: 89% @ 4-ohm
• Total Harmonic Distortion: <1.0%
• Signal to Noise Ratio: >100 dB
• Damping Factor: >200 dB
• Input Sensitivity: 150 mV - 4V
• Recommended Fuse: 50A x 1 (not included)
• 8-gauge speaker wire terminals
• 4-gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.

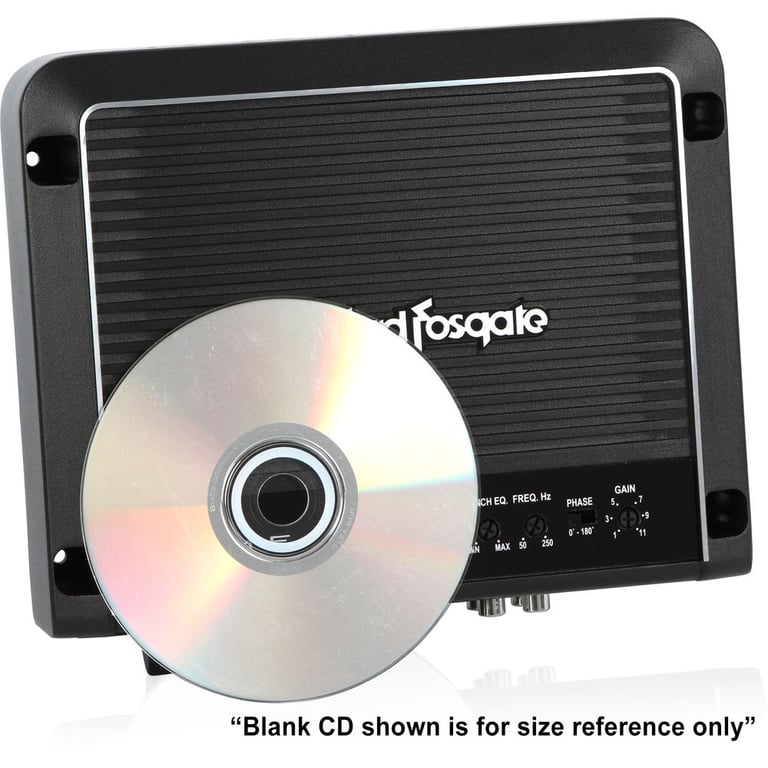

• Dimensions: 8.50"L x 6.80"W x 2.00"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

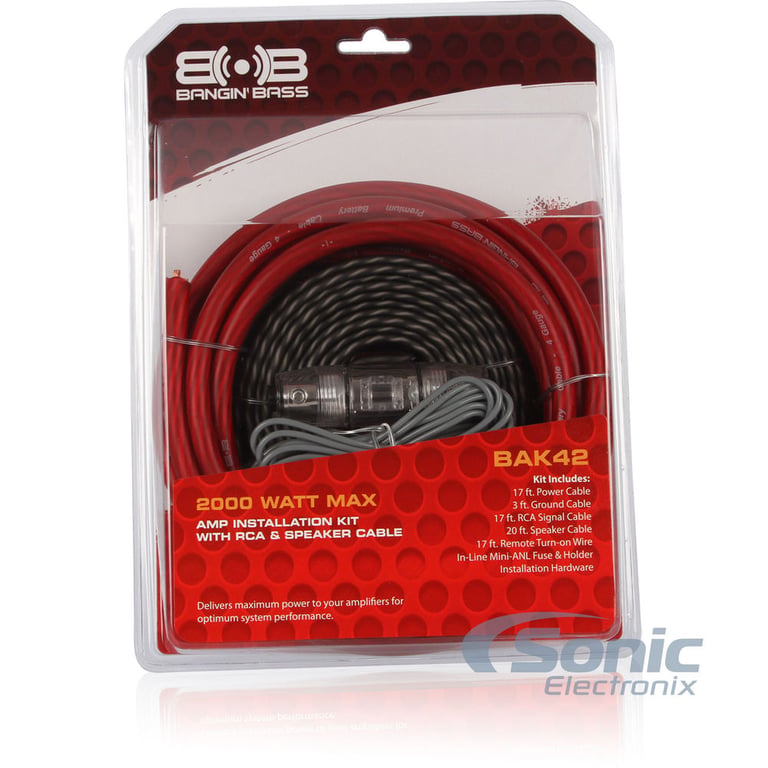

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available in Black, Blue and as a 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

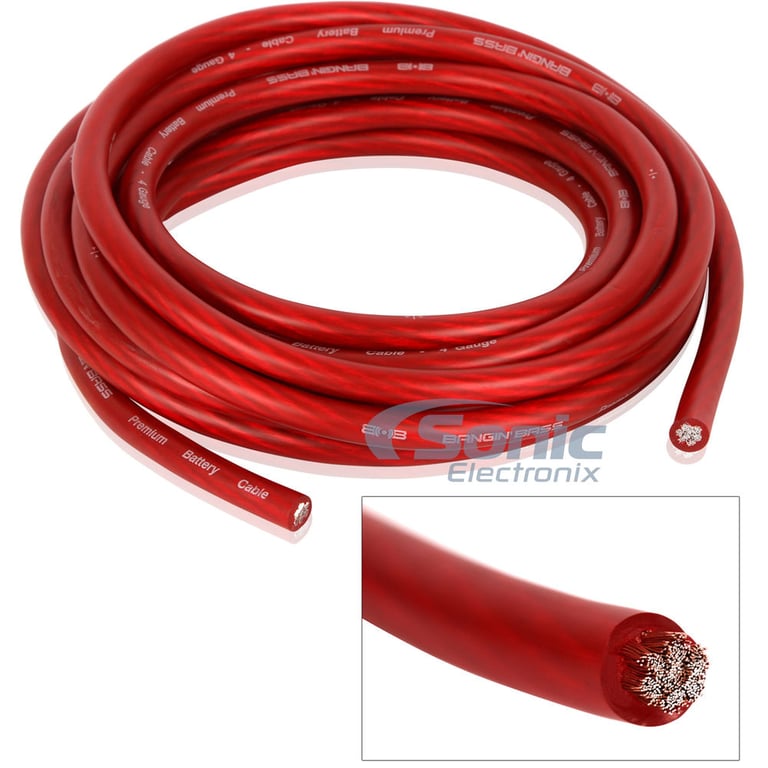

1. 17 ft. (5.2 meters) Red 4 gauge power wire

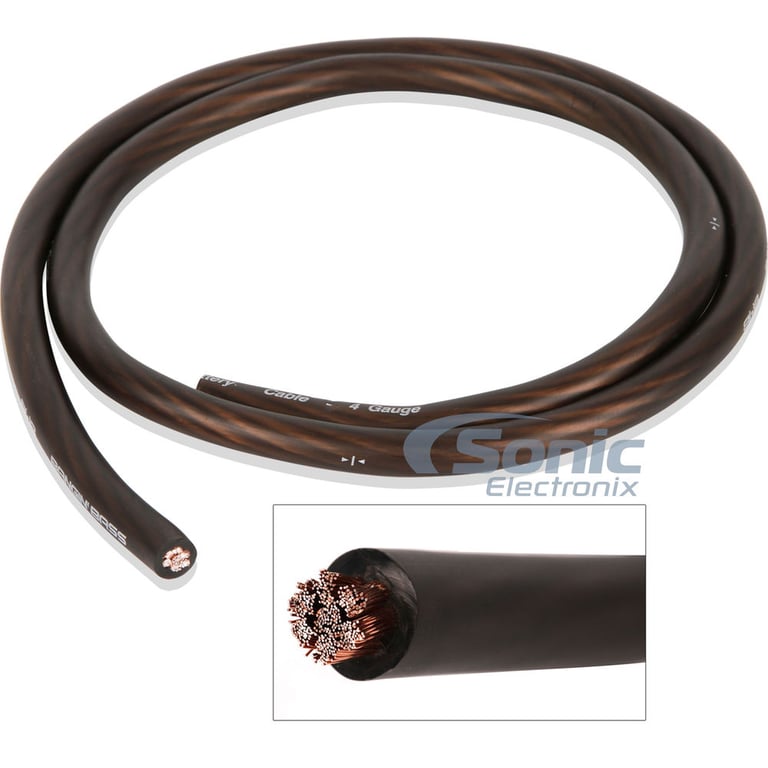

2. 3 ft. (.91 meters) Black 4 gauge ground wire

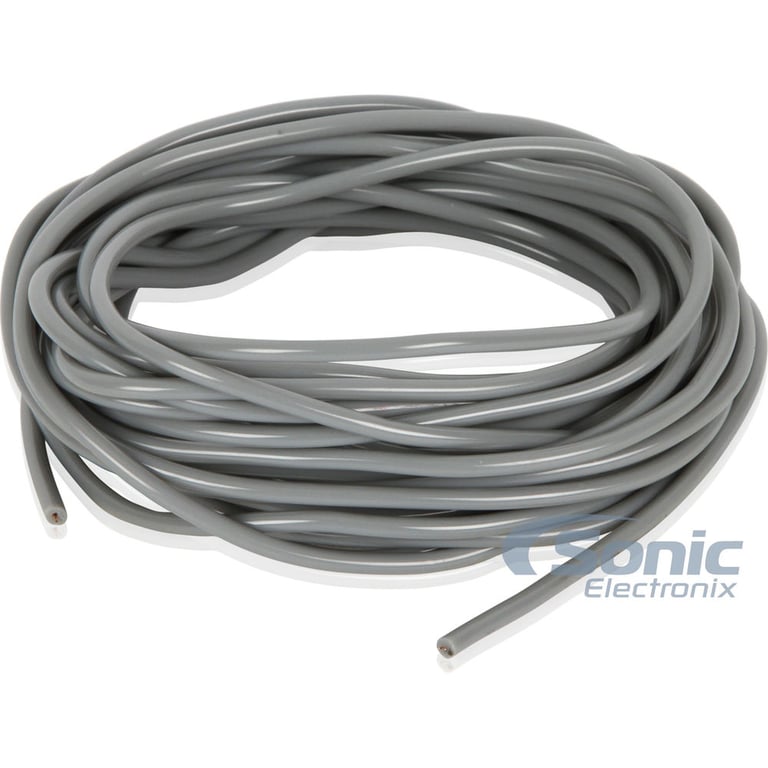

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

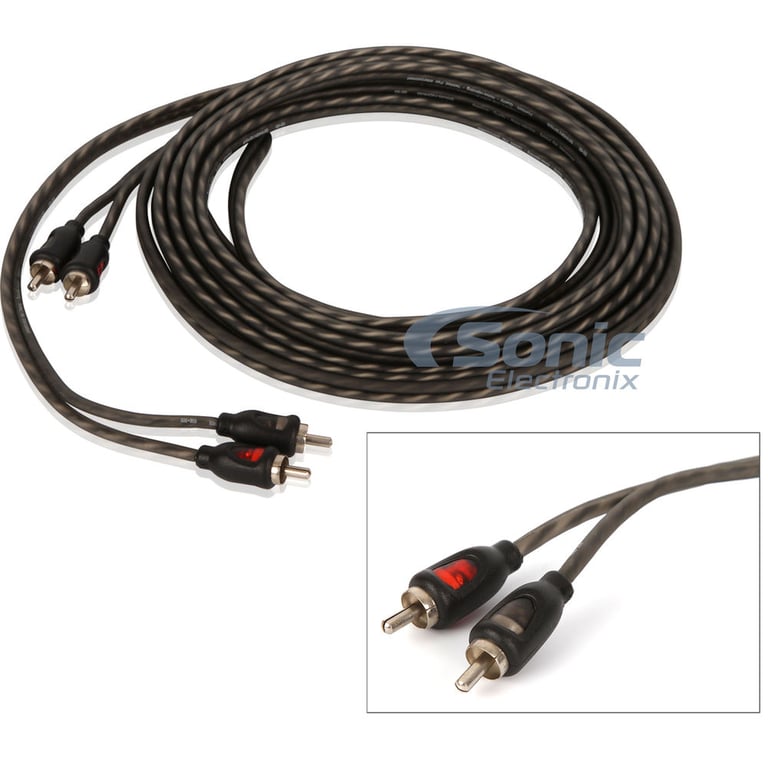

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

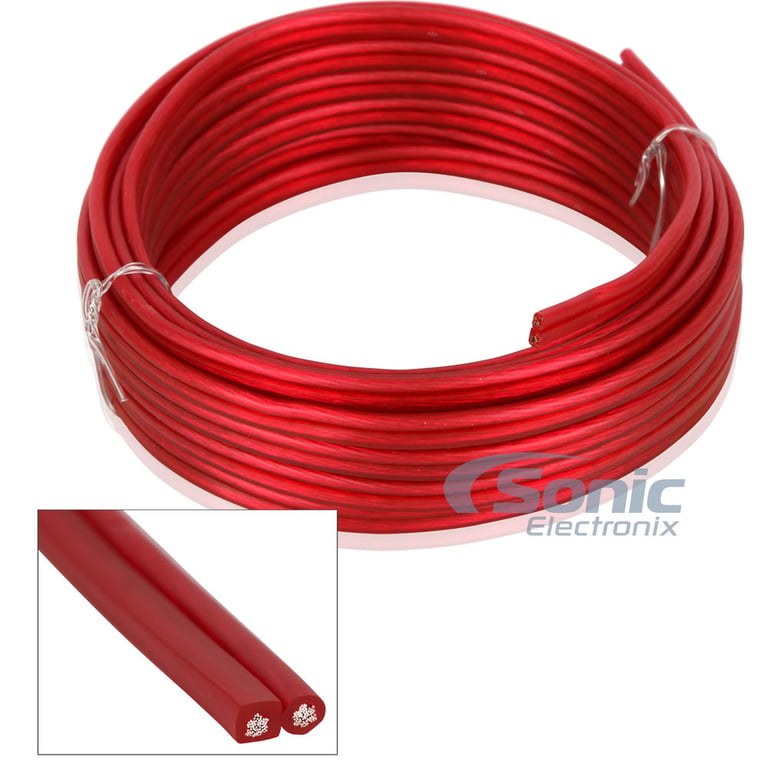

5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

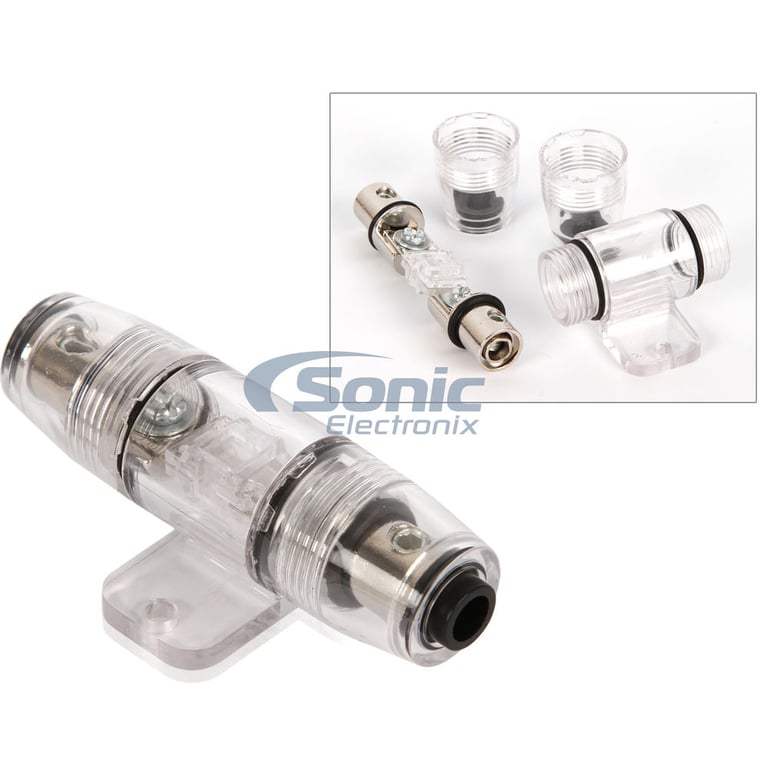

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

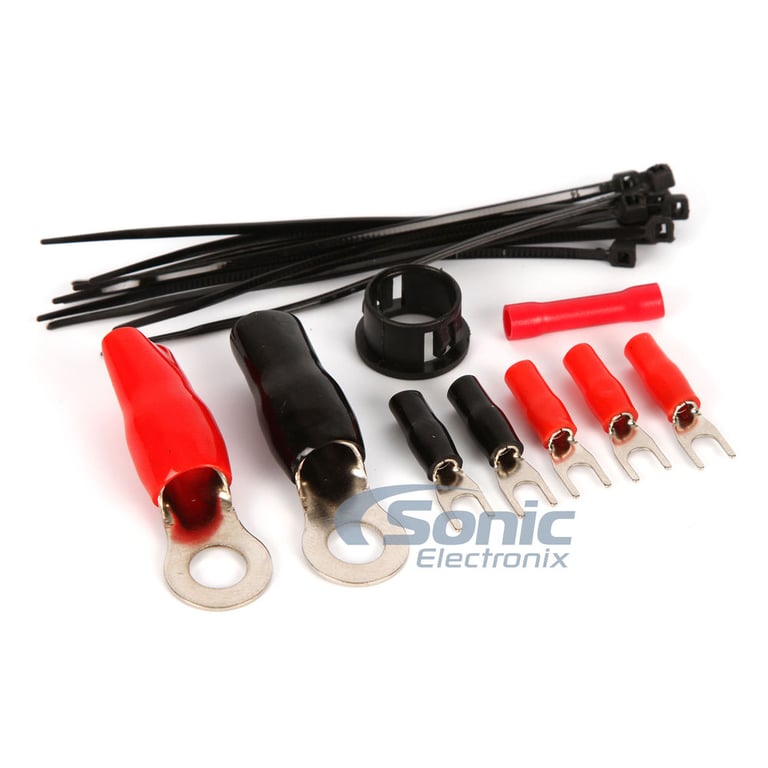

7. One Black rubber firewall grommet
8. One 4 Gauge red chrome plated ring terminals
9. One 4 Gauge black chrome plated ring terminal
10. Three 18 Gauge red Spade terminal
11. Two 18 Gauge black Spade terminal
12. One 18 Gauge red butt connector
13. Ten 4" Black zip ties

Subwoofer Features:

• Two 10" Belva Subwoofers Included
• Power Handling:
• Peak: 1000 watts total (500 watts each)
• RMS: 500 watts total (250 watts each)
• Final Impedance: 2 ohm
• Each subwoofer is 4 ohm and the system is pre-wired down to 2 ohm
• Polypropylene cone
• Durable rubber surround
• 1.5" black aluminum voice coil
• 37 oz. ferrite magnet motor structure
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

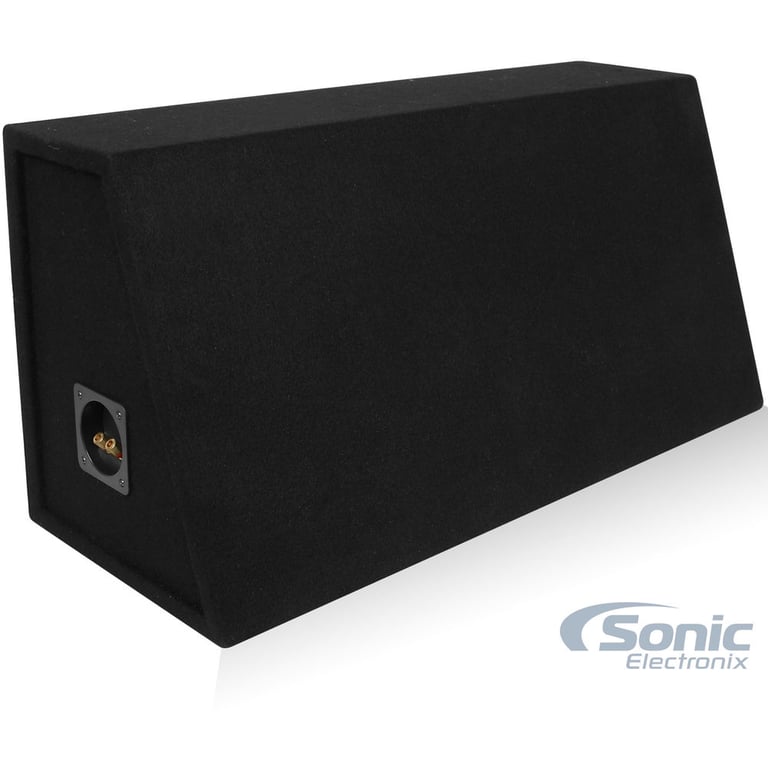

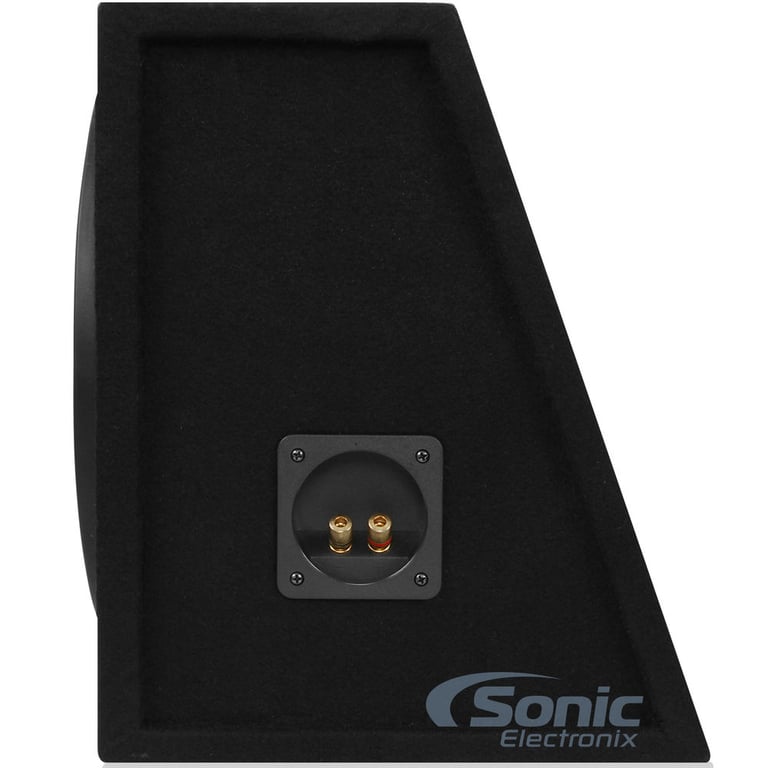

Enclosure Features:

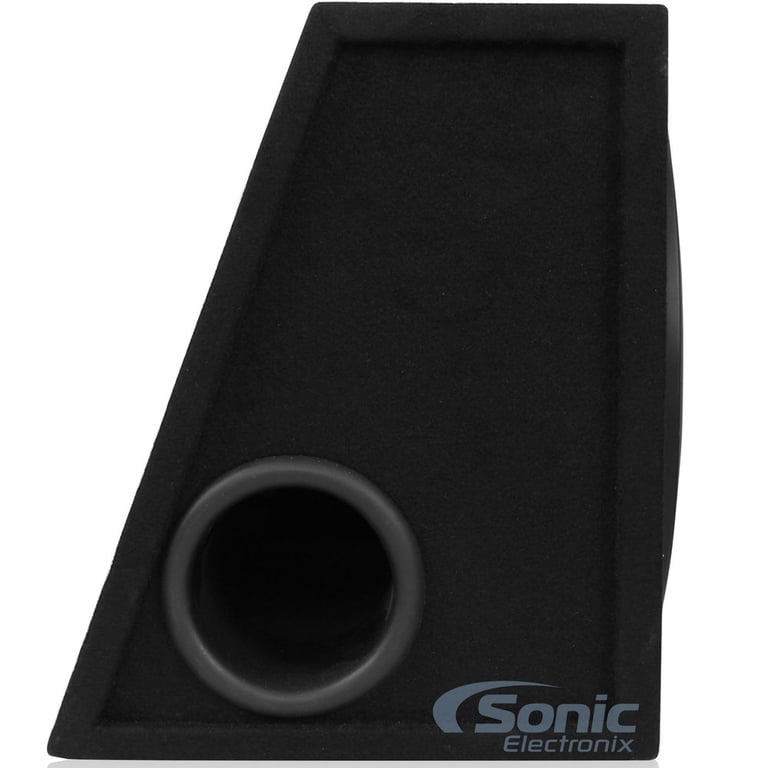

• Dual 10" Ported Subwoofer Enclosure
• Preloaded with Belva subwoofers
• Tuned perfectly to get the best bass from the BELVA subs
