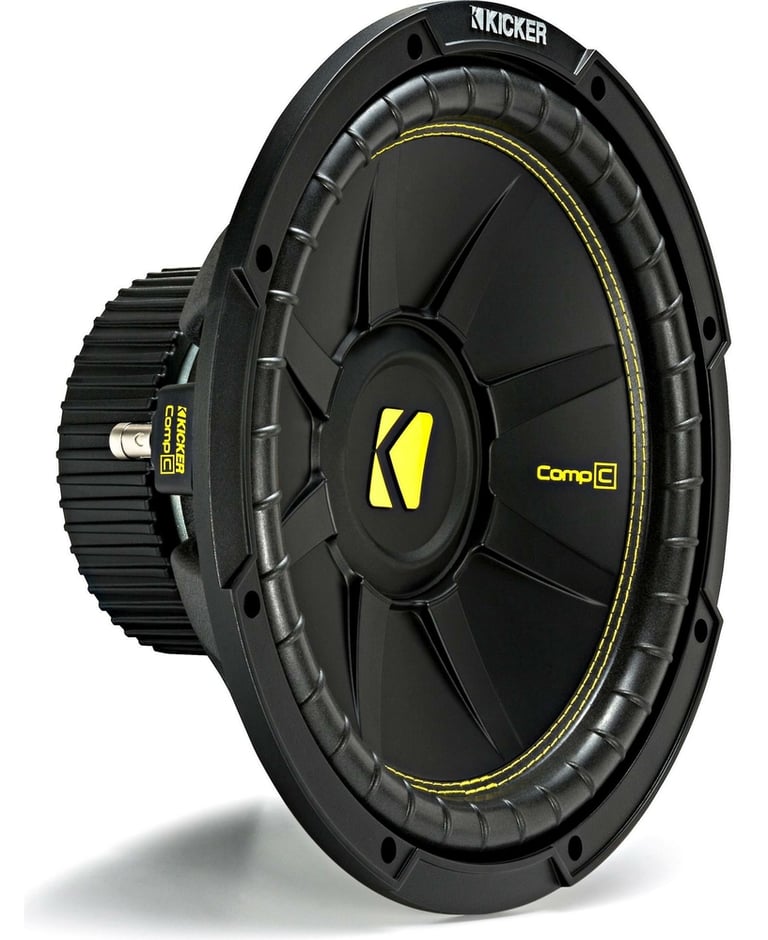

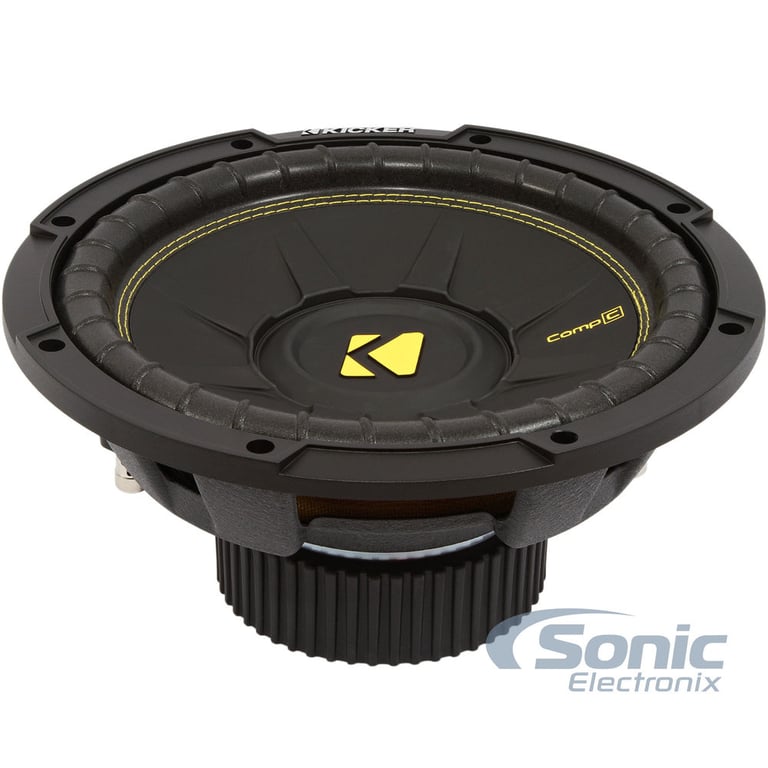

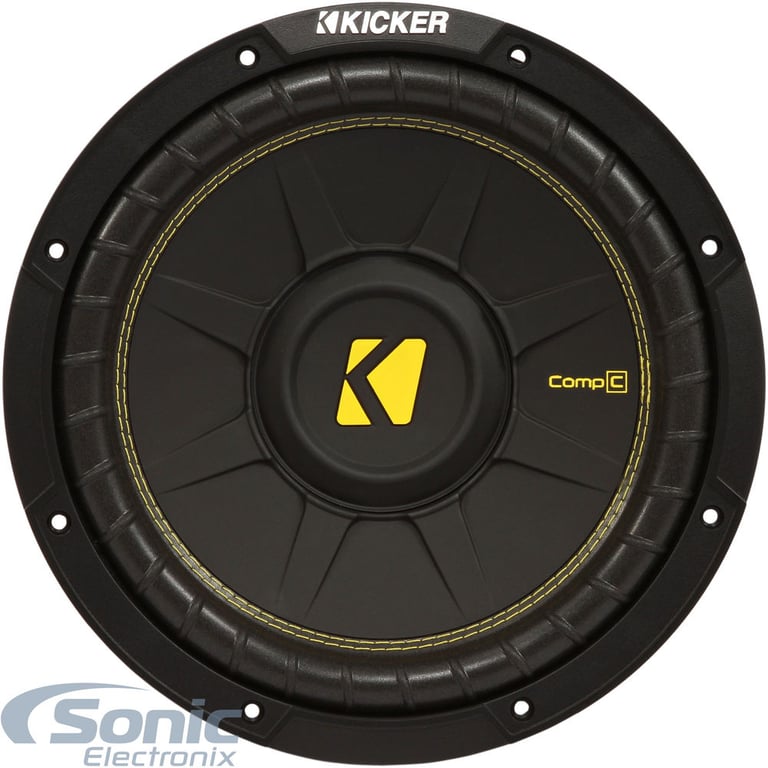

Kicker CompC CWCS124 (44CWCS124)

600W Peak (300W RMS) 12” CompC Series Dual 4-ohm Car Subwoofer

Kicker
Shop all Kicker
Limited time!
Product videos
highlight-star-icon

• Peak Power: 600 watts
• RMS Power: 300 watts
• Injection Molded Polypropylene - IMPP Cone
• Polyurethane Surround
• Impedance: Single 4 ohms
• Mount depth: 5-3/8"
• Sensitivity: 88.3 dB

Learn more about the 44cwcs124

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

50cwcs124 thumbnail

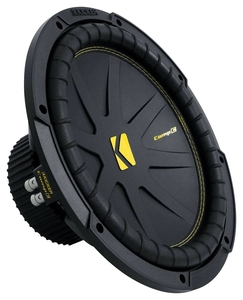

Kicker 50CWCS124

OUR PRICE: $97.96

View item

Product Highlights


• Peak Power: 600 watts
• RMS Power: 300 watts
• Injection Molded Polypropylene - IMPP Cone
• Polyurethane Surround
• Impedance: Single 4 ohms
• Mount depth: 5-3/8"
• Sensitivity: 88.3 dB

Description


Kicker brand icon

Authorized dealer

Product Details:

  • 12" Single 4 ohms CompC Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Injection Molded Polypropylene - IMPP Cone
  • Polyurethane Surround
  • Spring-Loaded Speaker Terminals
  • High Temp Voice Coil
  • Stamped Steel Basket
  • High Temperature Voice coil
  • 10.3 mm Xmax
  • magnet motor structure
  • Frequency Response: 27 - 500 Hz
  • Resonance Frequency (Fs): 30 Hz
  • Sensitivity: 88.3 dB
  • Sealed box volume: 1.25 cubic feet
  • Ported box volume: 1.75 cubic feet
  • Top-mount depth: 5-3/8"
  • Cutout diameter: 11"
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

  • Priced Individually

Product history:

Kicker 50CWCS124 thumbnail
(newest, current model)
Kicker CWCS124 thumbnail
(previous model, replaced by Kicker 50CWCS124)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker CompC CWCS124 (44CWCS124) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker CompC CWCS124 (44CWCS124) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker CompC CWCS124 (44CWCS124) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Kicker CompC CWCS124 (44CWCS124) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
CompC Series
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
Frequency Response
27 - 500 Hz
Sensitivity
88.3 dB
Xmax (millimeters)
10.3 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene - IMPP
Woofer Surround
Polyurethane
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
3.5 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/8"
Cutout Diameter
11"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
3.36 liters
Total Speaker Q Value (Qts)
.559
Electrical Q Value (Qes)
.591
Electrical Resistance of Voice Coil (Re)
3.65 ohms
Mechanical Q Value (Qms)
10.22
What is in the box?
Paperwork
User manual
Brand sticker/decal
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

CWCS124

Weight:

10.00lbs

Internal SKU:

44cwcs124

Internal Product ID:

127729

Product and How-to Videos


  • Kicker Comp C Series Subwoofers | CES 2017
  • 3 Things to Know About 2017 Comp C Subwoofers

Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

can't go wrong with a Kicker

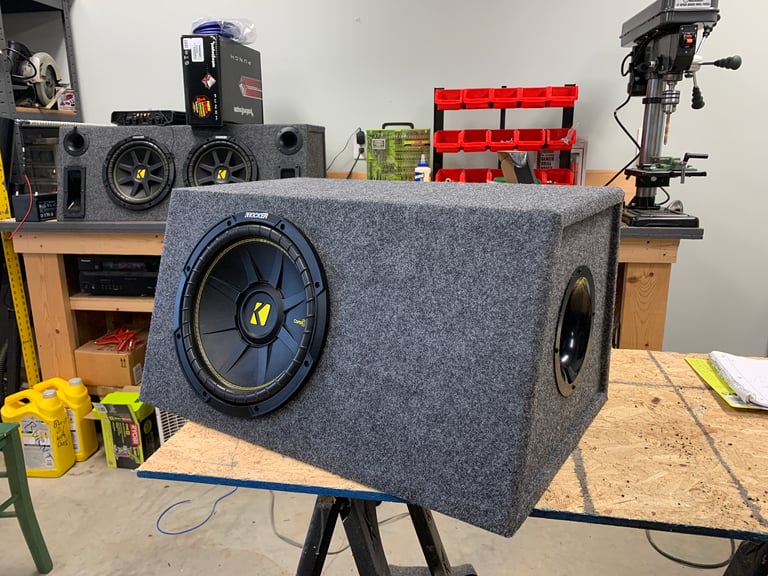

I got my single Comp C12 mounted in a 2.25 cu. ft. ported enclosure tuned to 39HZ. Which is recommended by Kicker. I have it connected to the 450-watt mono section of an NVX 5 channel amp. It's loud as all get out and is very impressive. Like most all other Kicker subs, it can handle beyond its power ratings. I would say the Comp C's are probably the closest Kicker subs that are comparable to the old Gold-lettered Kicker Comp and FreeAir series from the early 90s. I've always loved Kicker products dating all the way back to the '80s. Their stuff is hard to beat, it's at a good price point and it seems like they use high-quality materials as compared to these newer brands that have popped up all over the place.

By Brian on May 9, 2021 Checkmark Icon Verified purchase

18

found this helpful.

Bang for your Buck!

I purchased this 12' Kicker sub and didn't believe when my friends told me their Kickers were louder than my 2 Boss subs in my trunk. So now im running this 1 Kicker and with my Boss audio 2000Watt amplifier this thing knocks really good! Im actually going to purchase another sub and would so recommend this Kicker sub to anyone looking for a solid deep bass sub.

By Jerone on December 26, 2019

18
