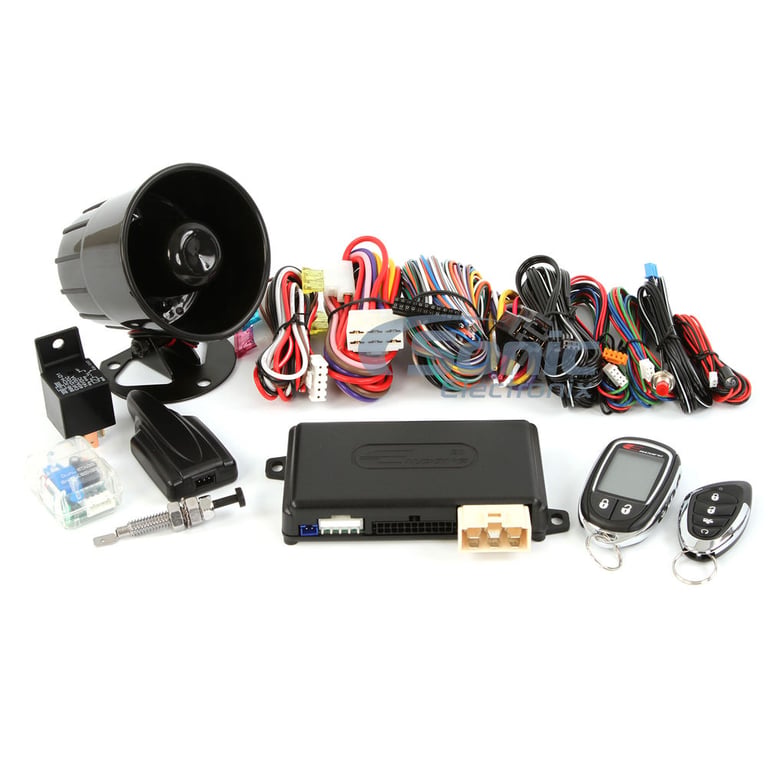

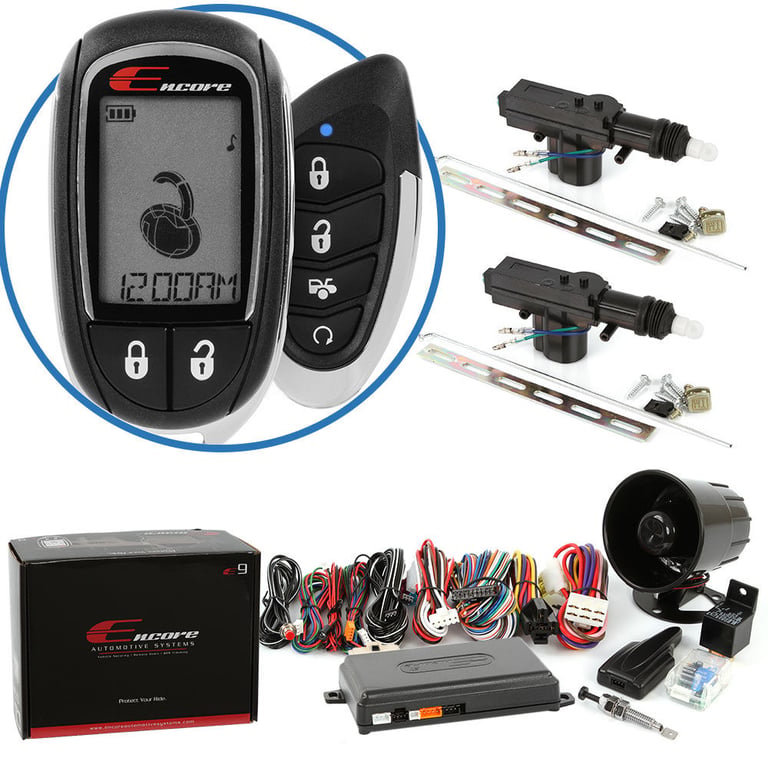

Encore E9 2-Way Remote Start Keyless Entry Car Alarm and 2-Door Power Lock Kit

General Features

• 6 Channel Alarm and Remote Car Starter with 5 on-board relays for parking lights, starter, accessories, ignition 1&2 and one additional relay / socket for starter disable
• ASK Long Range Technology
• Less susceptible to noise and interference than typical AM/FM technology
• Less power consumption than AM/FM technology = Longer battery life
• Increased range by up to 60% and faster response time
• Programmable ACC. Second ignition and second start wires

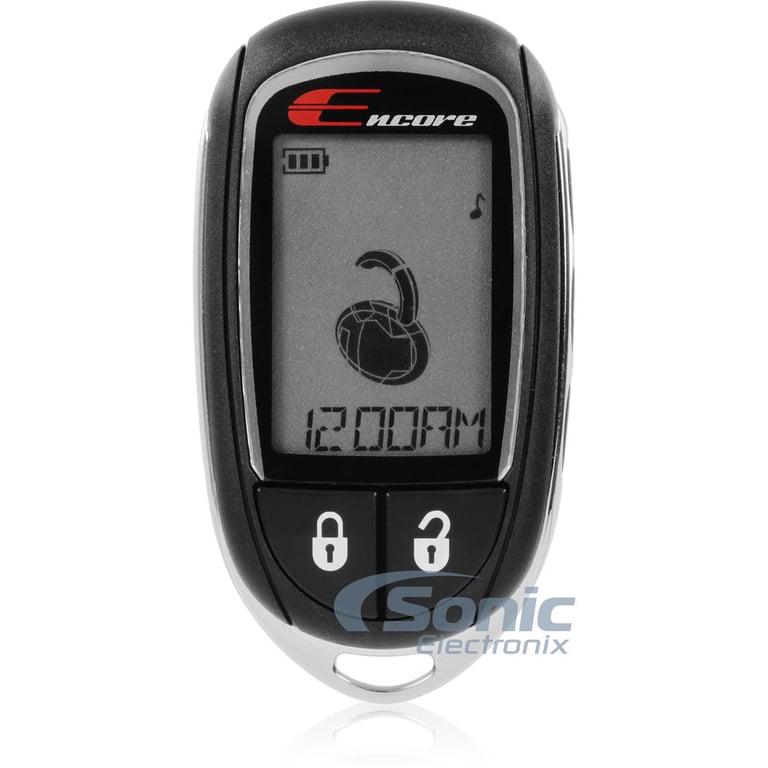

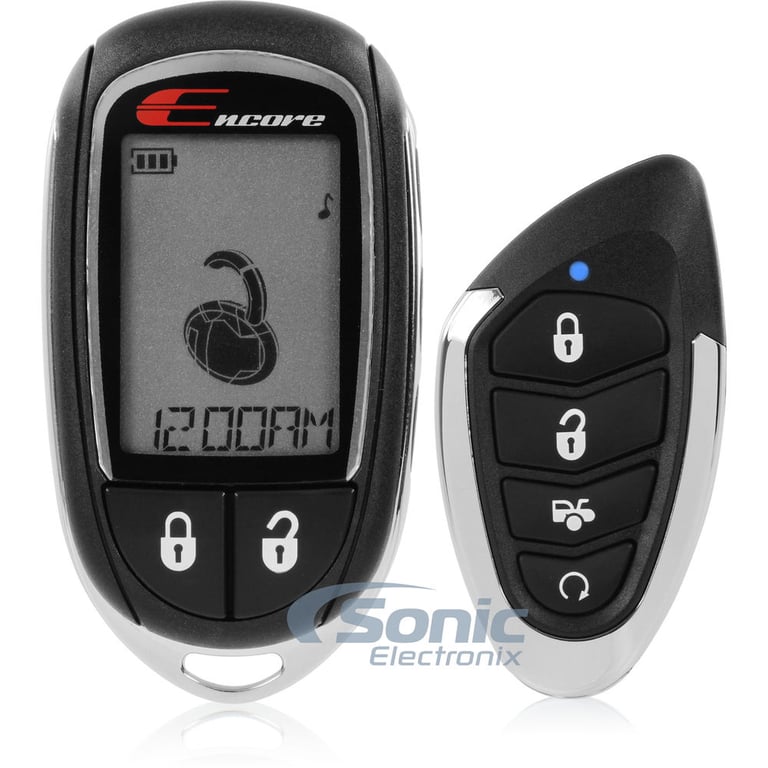

• New High-Tech chrome metal Two-Way Thin Design transmitter with key ring
• New Ultra Bright White LED Backlight
• New LCD screen with 50% more viewing area. Two-way paging with extended range technology. Unit also includes 24-hour clock with meter minder, temperature, Voltage indicator and countdown and run timer

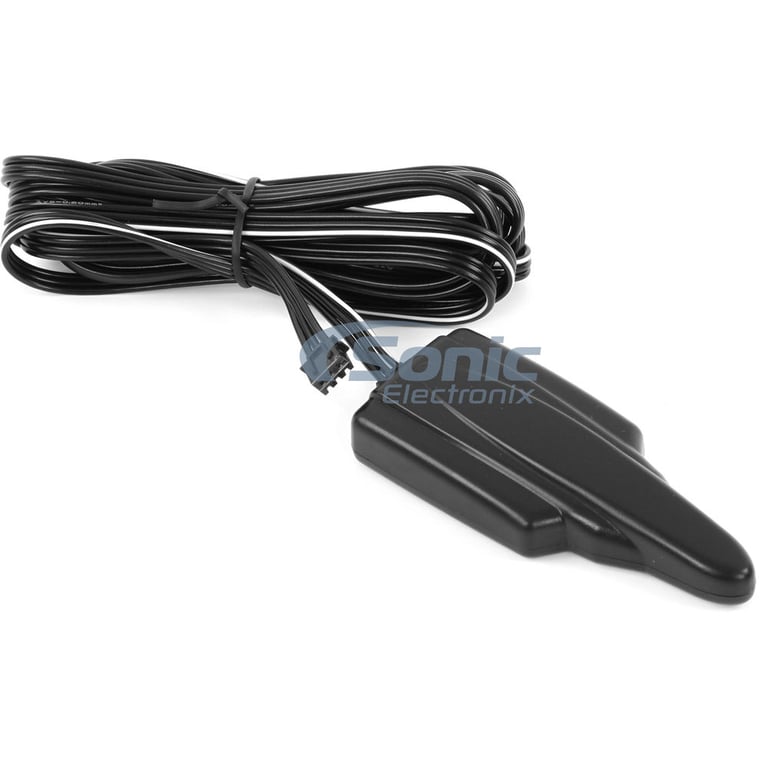

• New Design Two-way, window mount super extended range helical transceiver antenna module

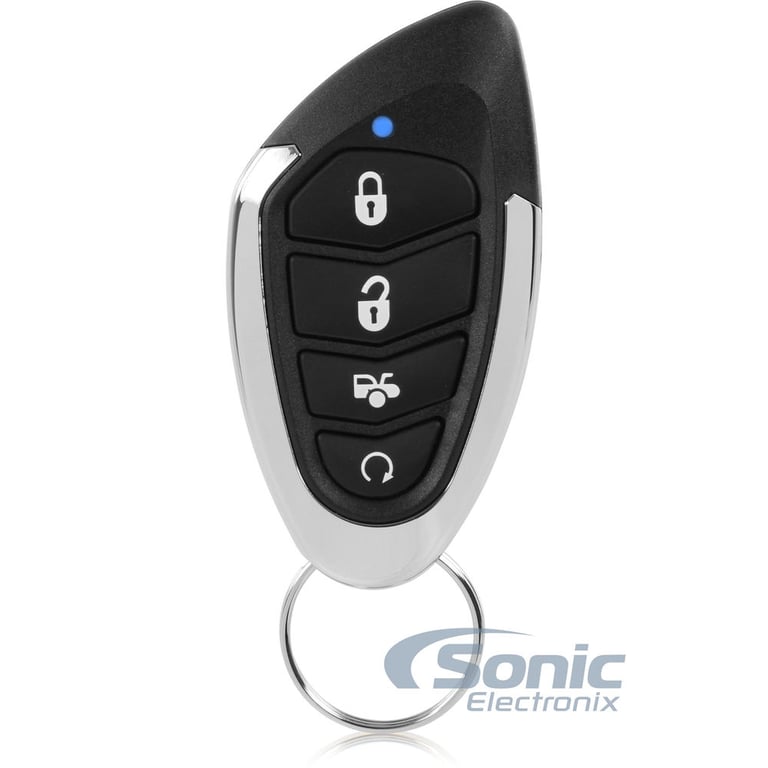

• NEW 4-button extended range METAL one way remote transmitter

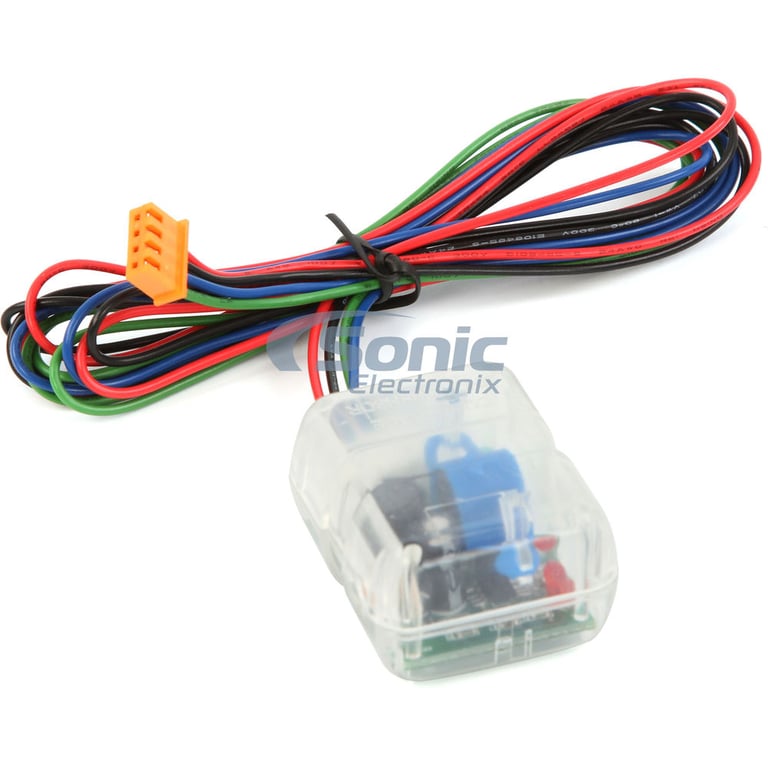

• New EAS-1 mini-size Dual Stage shock sensor
• On-board 2 way Serial and Telematics Port for i-Data Link Data Bus and Bypass module integration
• Programmable outputs, plus new starter and ignition timing sequence for improved compatibility with new vehicles
• On-board temperature and Voltage sensors for identifying in-cabin temperature and battery voltage from the LCD remote

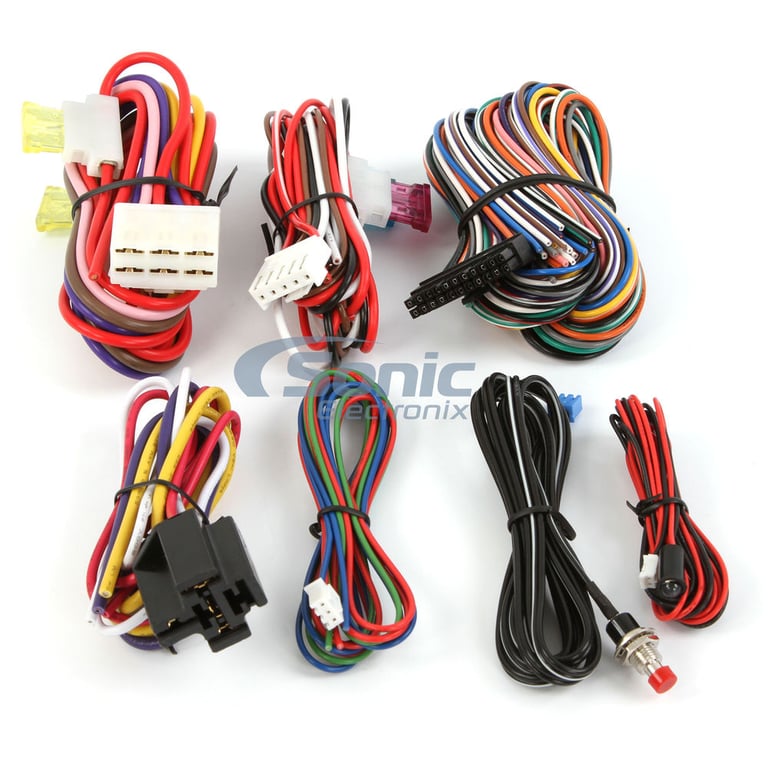

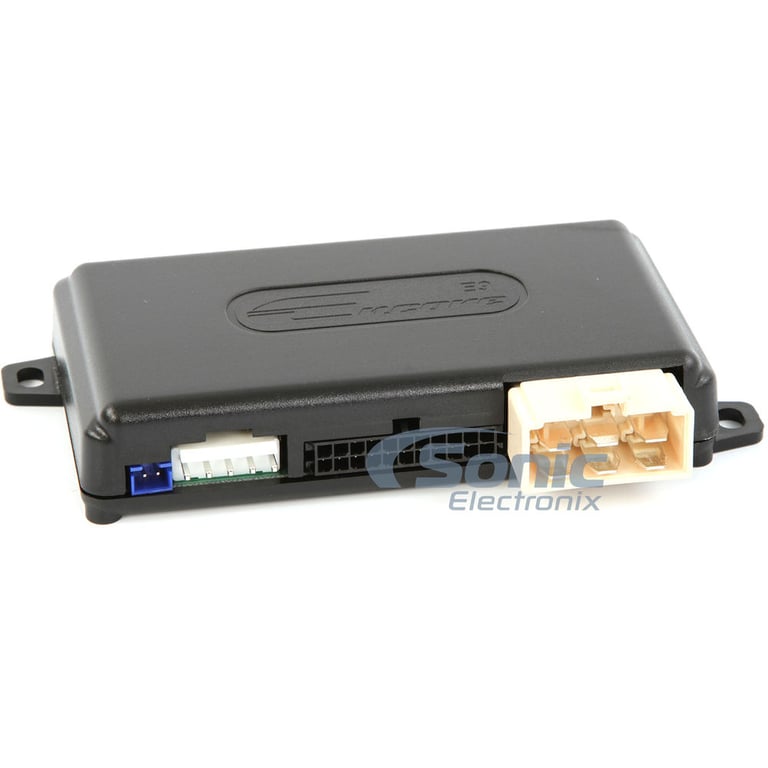

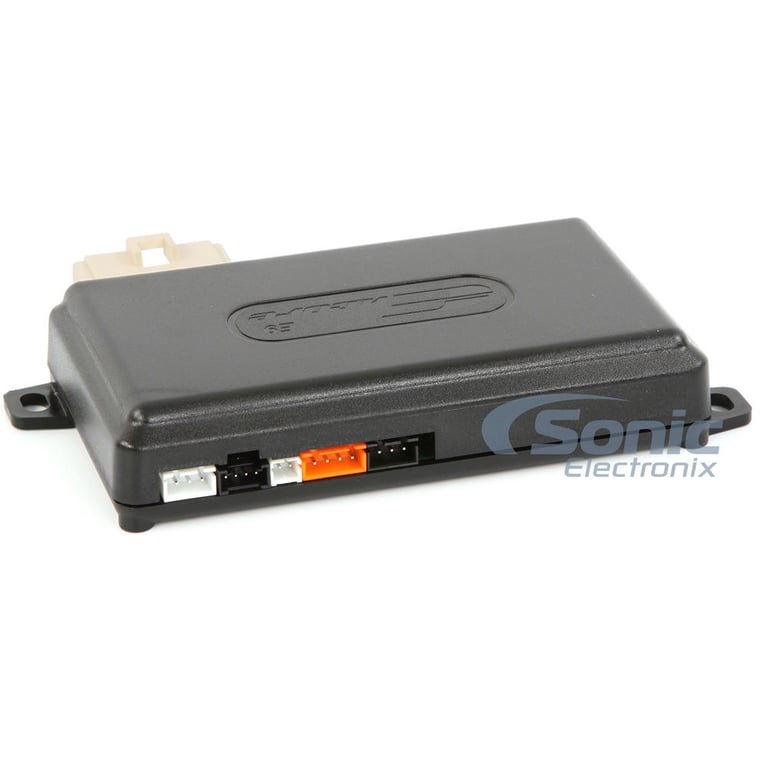

• New Main Unit Design with main wiring harness on one side. On-board 30/40 ampere micro relays that contribute to 50% reduction in main unit size to fit smaller and tight spaces under the dash of newer cars
• 5-button configuration with selectable Button Lock to prevent accidental mis-use
• Two-car Operational
• 24-hour digital clock with count down timer for parking meter reminder.The clock doubles as a temperature indicator for monitoring in-car temperature.
• Multiple audible confirmation tones as well as vibrator mode for paging
• Authorized Internet Dealer
• 1-year Manufacturer Warranty

Alarm Features

• 4 Channels of outputs
• Dedicated function buttons on LCD remote and 4-button standard mini-remote transmitter
• New Turbo Timer and window Comfort Feature.
• Code learning / Anti-scan receiver with programmable code hopping
• Back-up memory system
• Dedicated remote panic and car locator
• Selectable horn chirp timing
• Passive arming by-pass from the remote
• Parking light flash with dual polarity relay on-board

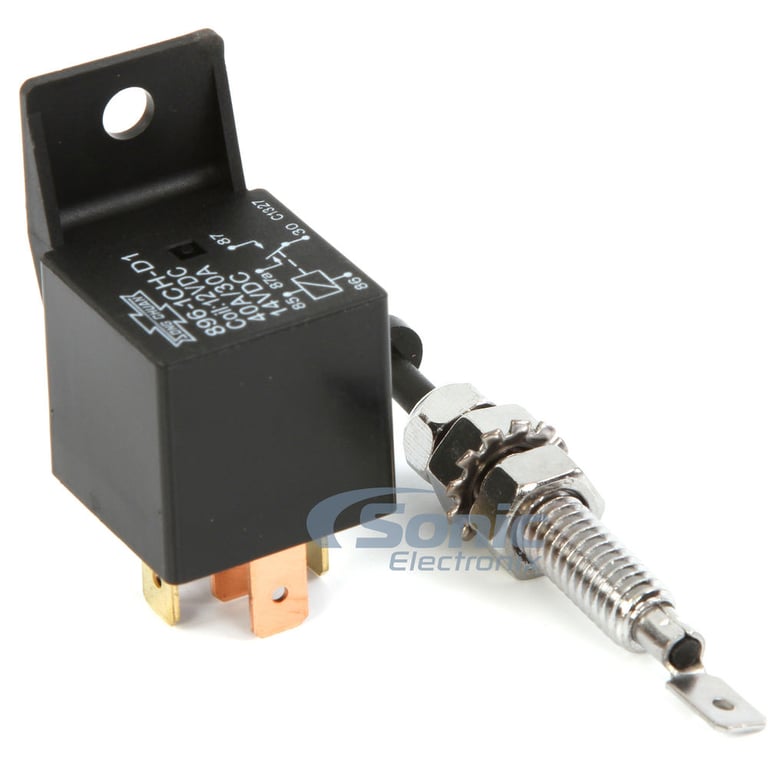

• Starter disable output with relay and socket included
• Dome light illuminated entry output
• Dual polarity (+/-) door lock outputs with optional driver's door priority two
• Step unlock
• Additional positive and negative inputs
• 500 mA grounded outputs for starter disable and door lock/unlock
• Programmable momentary, latched or timer on auxiliary channel
• Programmable manual / passive arming with true last door arming with auto
• Re-arm on
• Programmable Single / Double Pulse Unlock
• Programmable Parking lights (flash or constant)
• Programmable Pathway Illumination (on / off)
• Programmable voltage sense for delayed dome lights (on / off)
• Programmable horn and siren chirp delete
• Programmable ignition control lock and unlock
• Programmable pulse time for lock and unlock (.9 sec. / 3 sec.)

Remote Start Features

• 5 On-Board Relays:
• Selectable one or two push Safety Start
• Programmable gasoline or diesel with 10, 15, or 20 second Wait-to-Start
• Hood pin switch safety input (pin switch included)
• Selectable RPM / Voltage Start
• RPM / Voltage / Hi-Low level check
• Stick Start Mode
• Timer control start option
• Sensor control output during start
• Temporary Stop Feature
• Factory Alarm Disarm and Rearm signal output
• Programmable factory keyless door locking before and after start
• Programmable start status output with shock sensor bypass
• 45 second door / dome light bypass after ignition is turned off.
• Programmable Ignition 2 (on / off)
• Programmable 3 hour timer start
• Programmable 1 / 3 hour timer start
• Selectable Run Timer (5/10/20/30 minutes)
• Ignition control by-pass during remote start
• Selectable Gasoline / diesel

General Features:

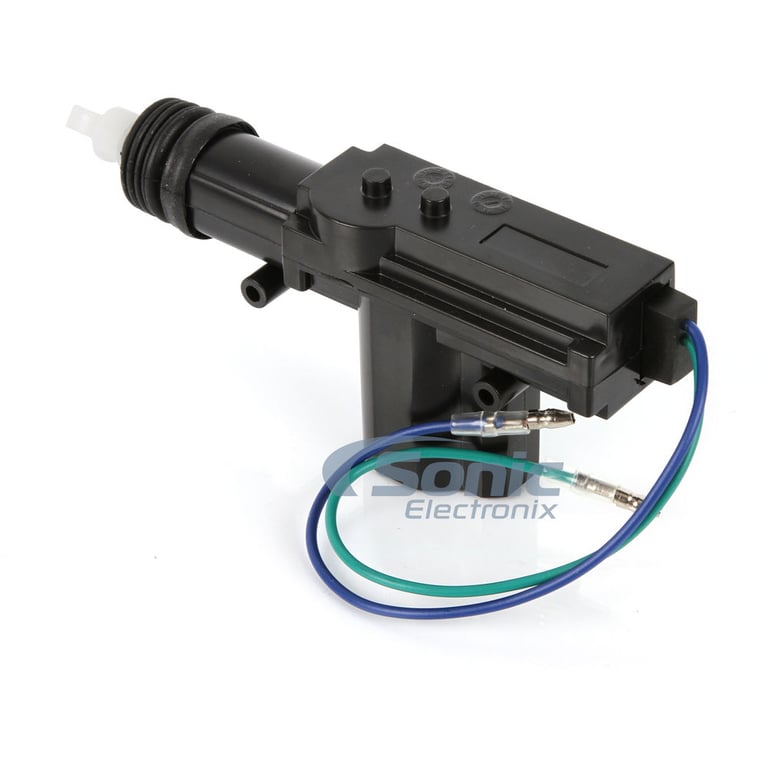

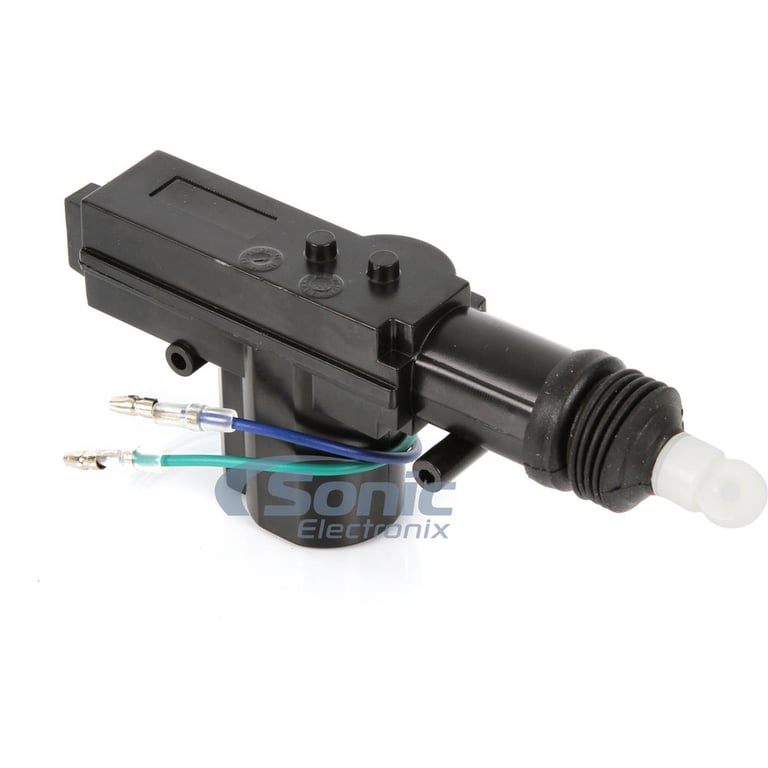

• Gun Type 2 Wire Door Lock Actuator
• For use with vehicle keyless entry security systems
• 2-wire operation

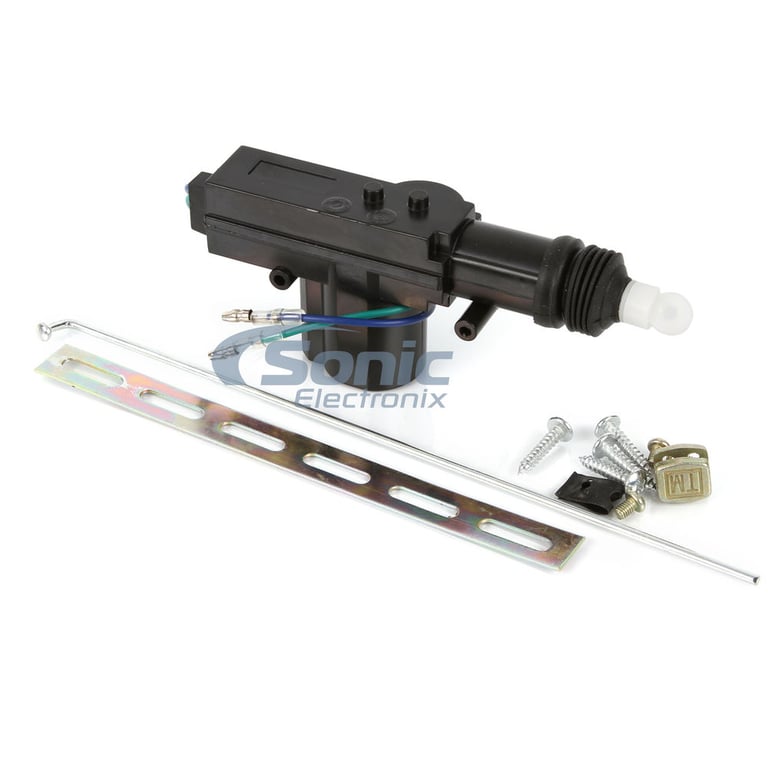

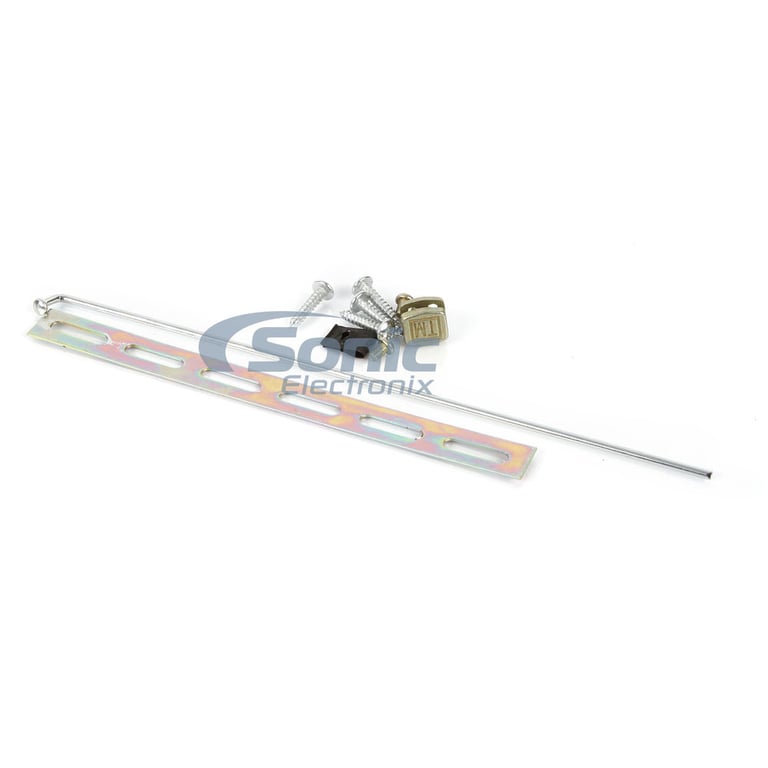

• Universal mounting hardware included
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
