See all parts that fit your 1985 EXP

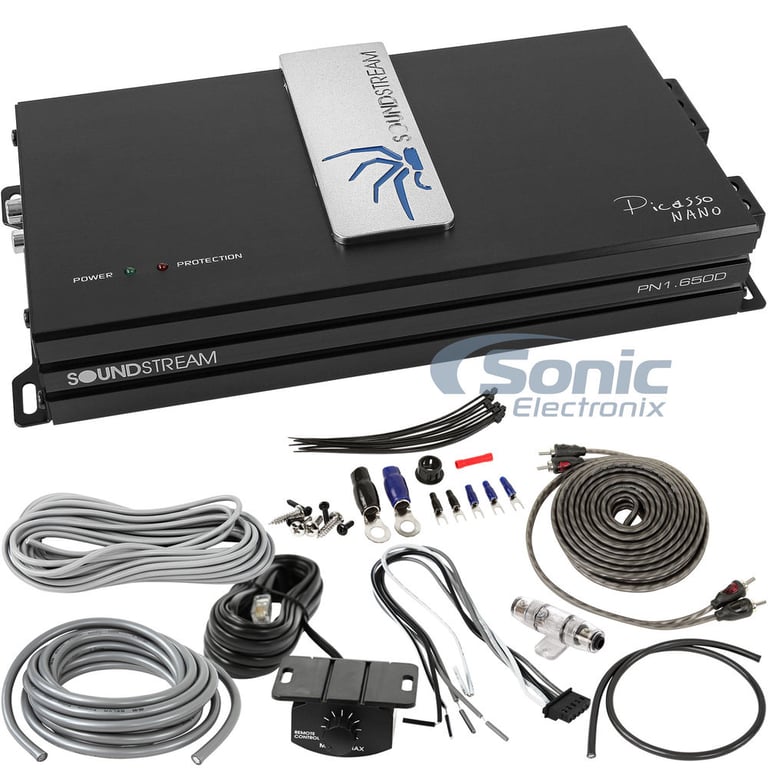

Soundstream PN1.650D Monoblock Amplifier w/ Complete 4 AWG Amp Kit

650W Monoblock Picasso Nano Class-D Amplifier + Amp Kit

highlight-star-icon

• RMS Power: 400W x 1 @ 4 ohm, 650W x 1 @ 2 ohm
• Total Peak Power: 650W
• Dash Mount Remote Bass Level Control Included
• Complete 4 Gauge 2-Channel Amplifier Installation Kit

Learn more about the pn1650d_bak42bl

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Description


Soundstream brand icon

Authorized dealer

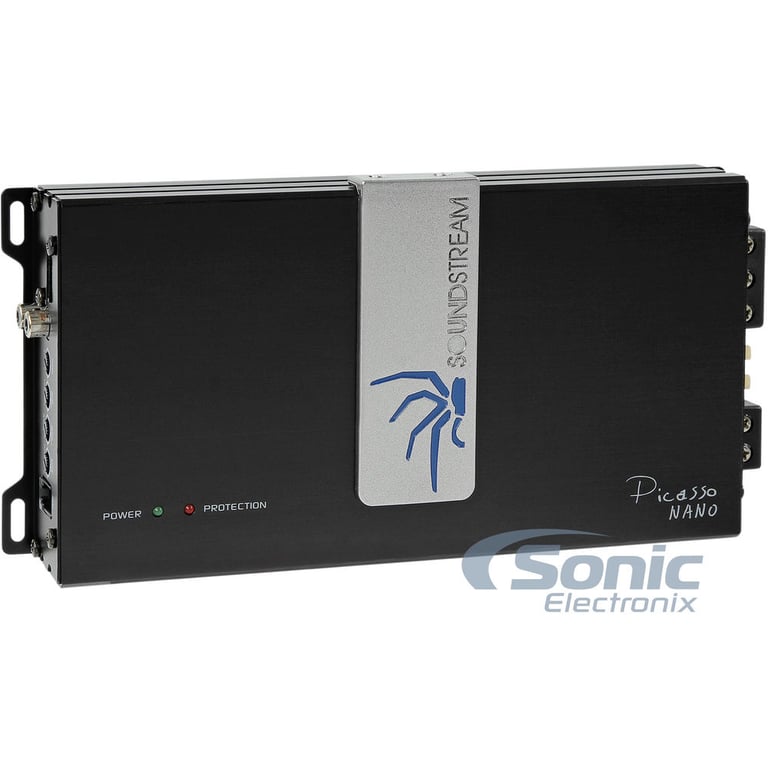

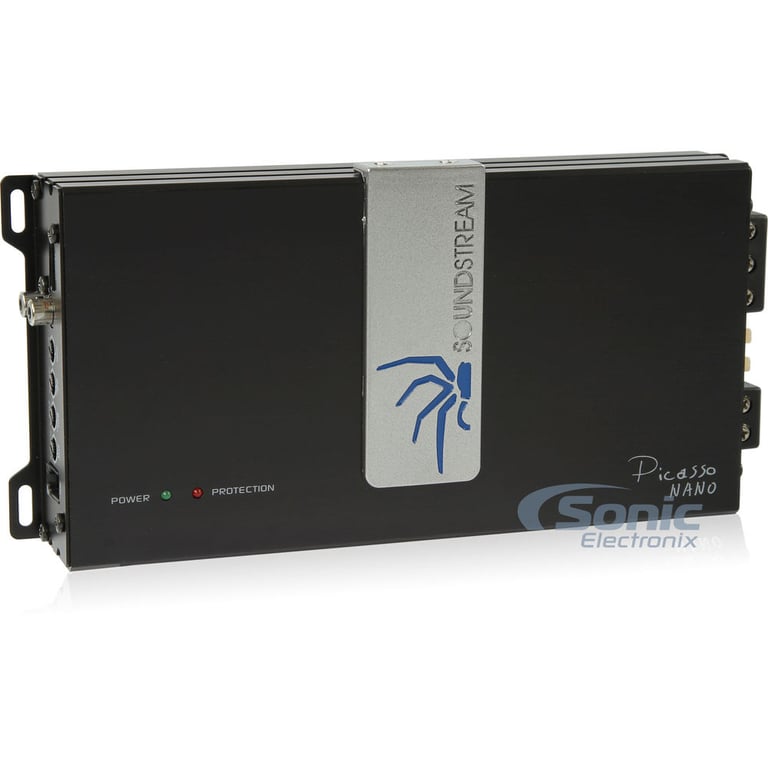

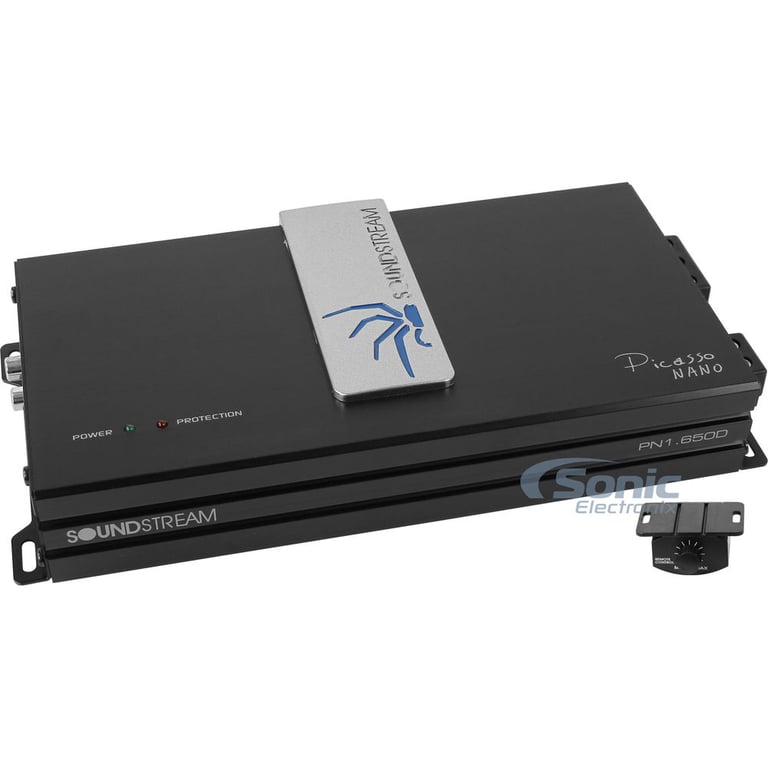

Soundstream PN1.650D

650W Monoblock Picasso Nano Class-D Amplifier
Quantity: 1

General Features:

  • Picasso Nano Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 650 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 358 watts x 4 chan.
    • 2 ohm: 582 watts x 4 chan.
  • Max power output: 650 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Heavy duty aluminum heatsink
  • Soft turn-on circuit
  • Thermal and speaker short protection circuitry

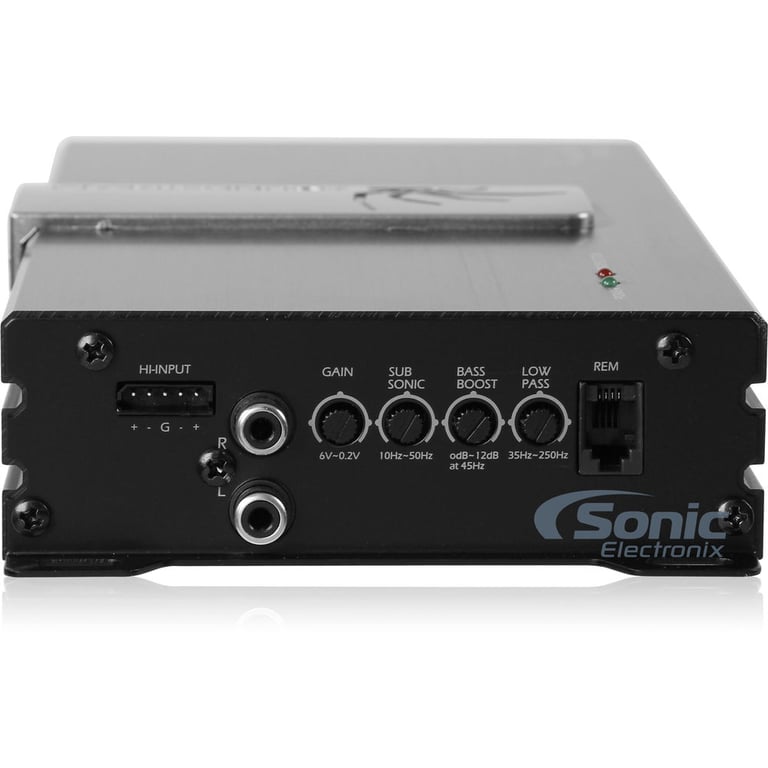

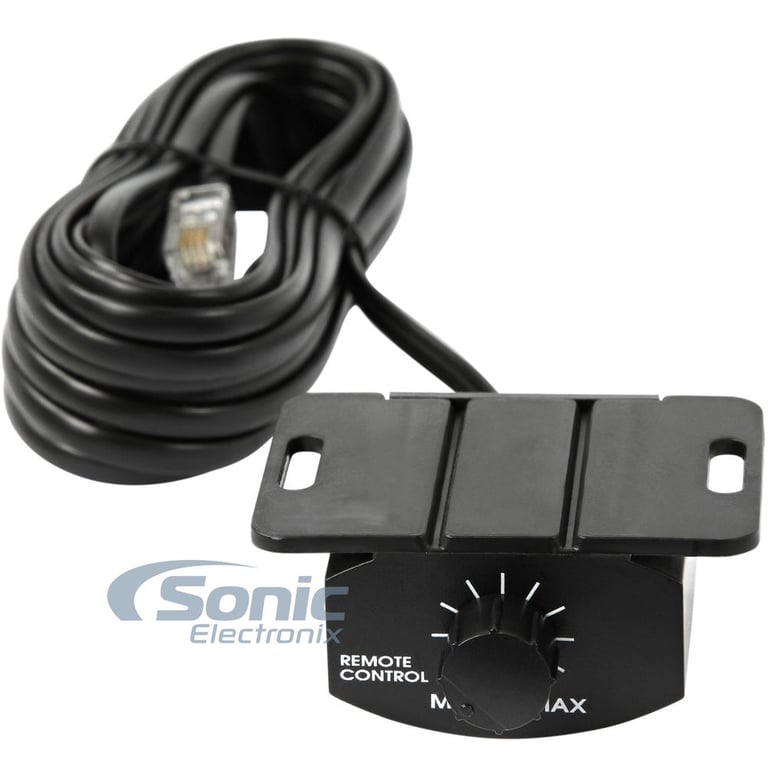

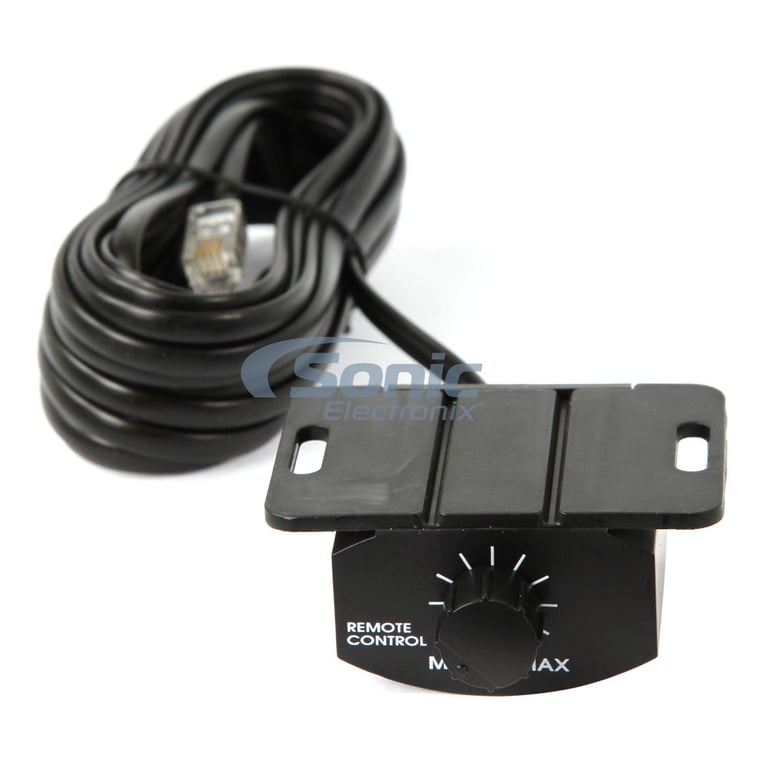

  • Dash mount remote bass level control included

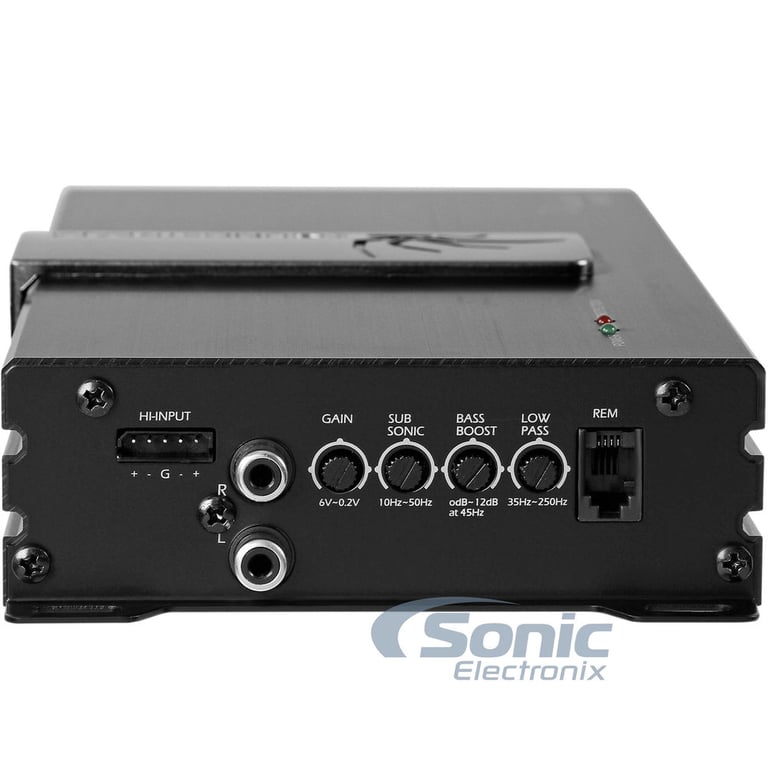

  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Mono channel operation

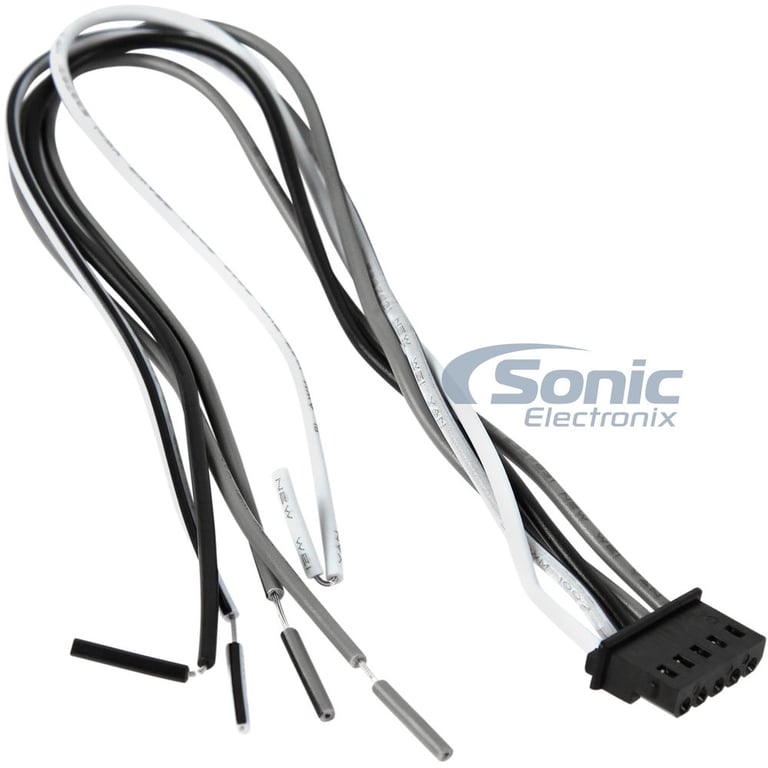

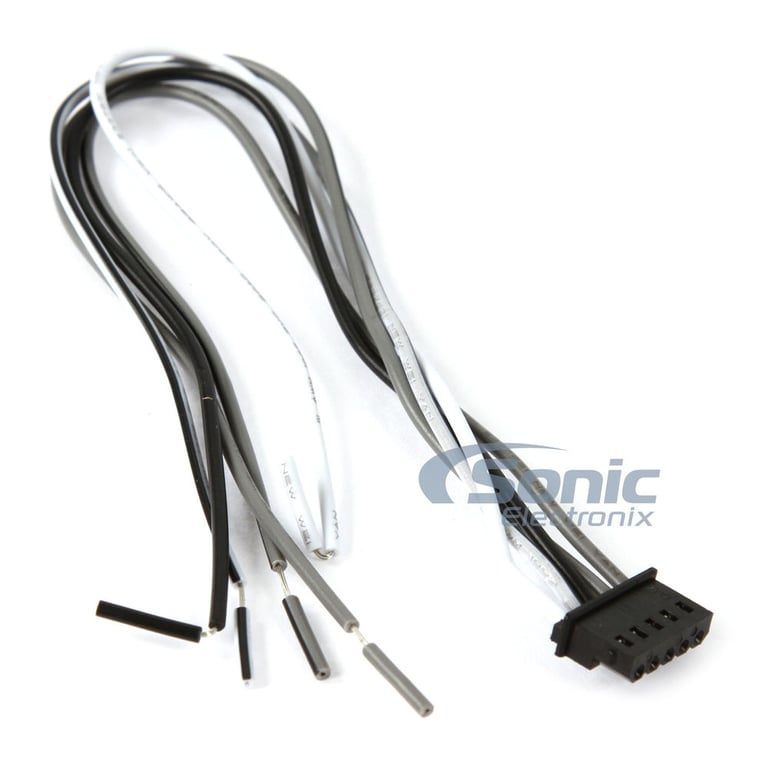

  • Speaker-level (high-level) inputs
  • Variable low-pass filter (35 - 250 Hz, 24 dB/octave)
  • Subsonic filter (12 dB at 10 - 50 Hz)
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 4.75"W x 9"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Soundstream PN1.650D Owner's Manual

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

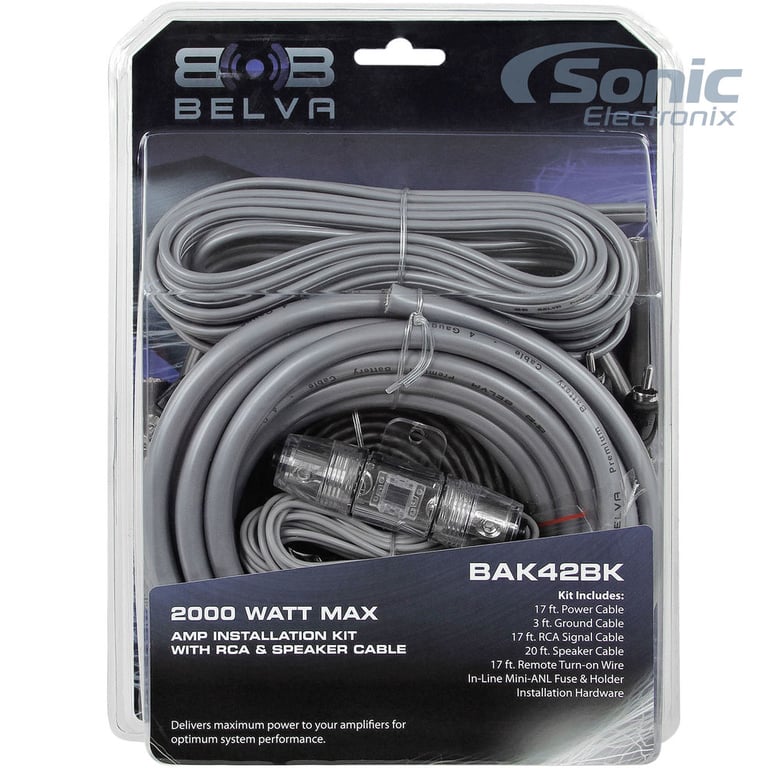

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

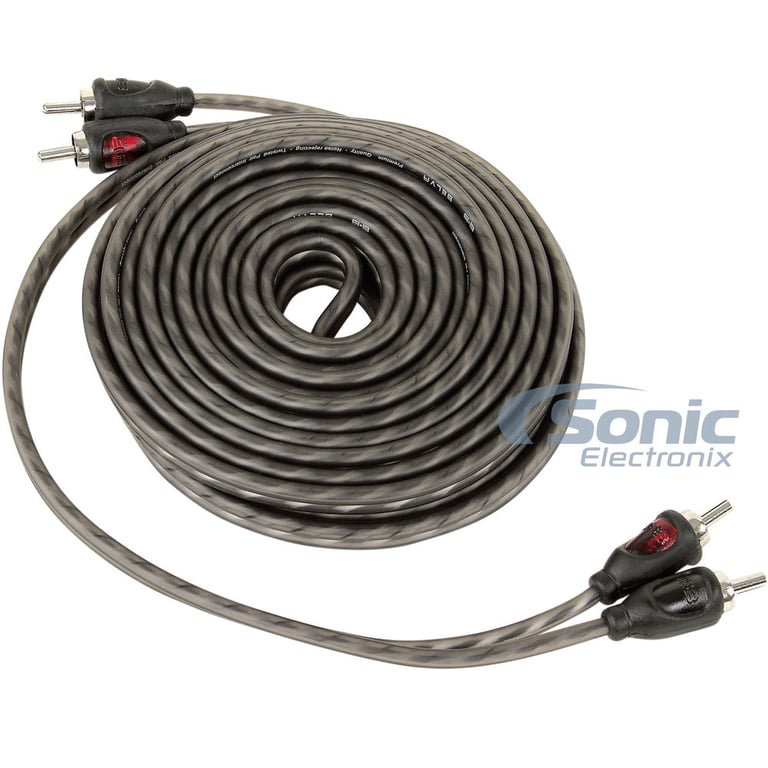

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

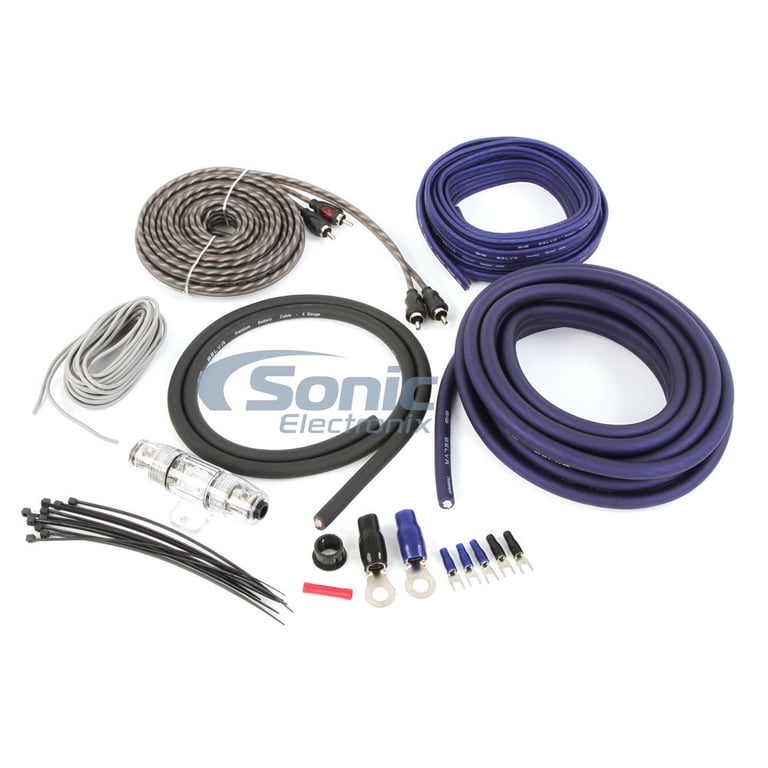

Kit includes:

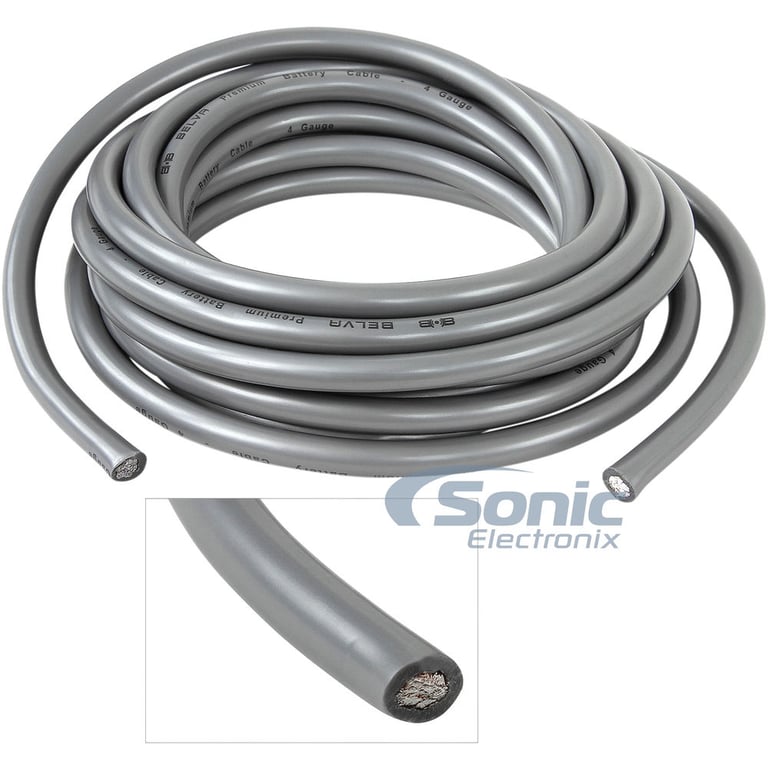

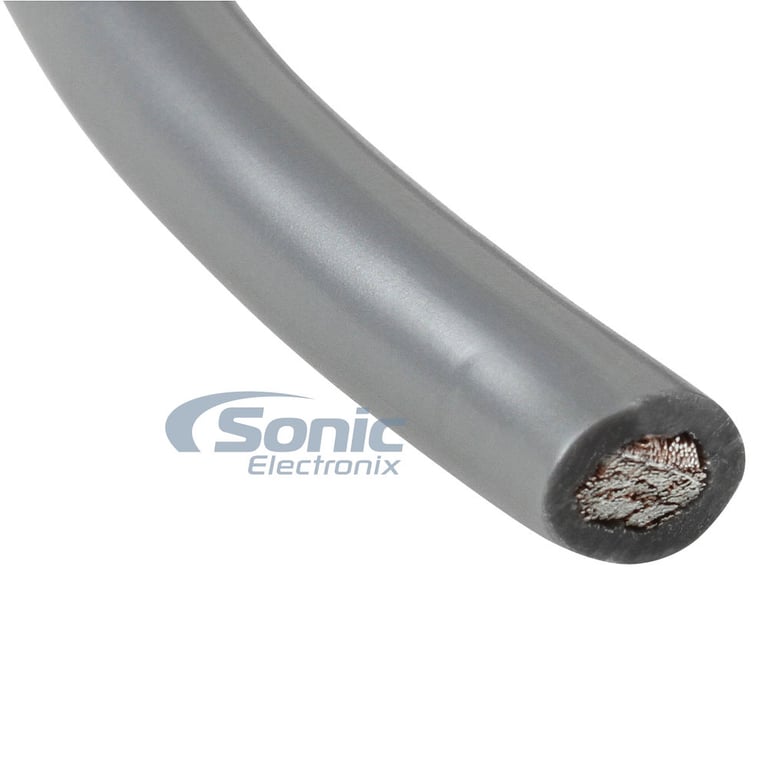

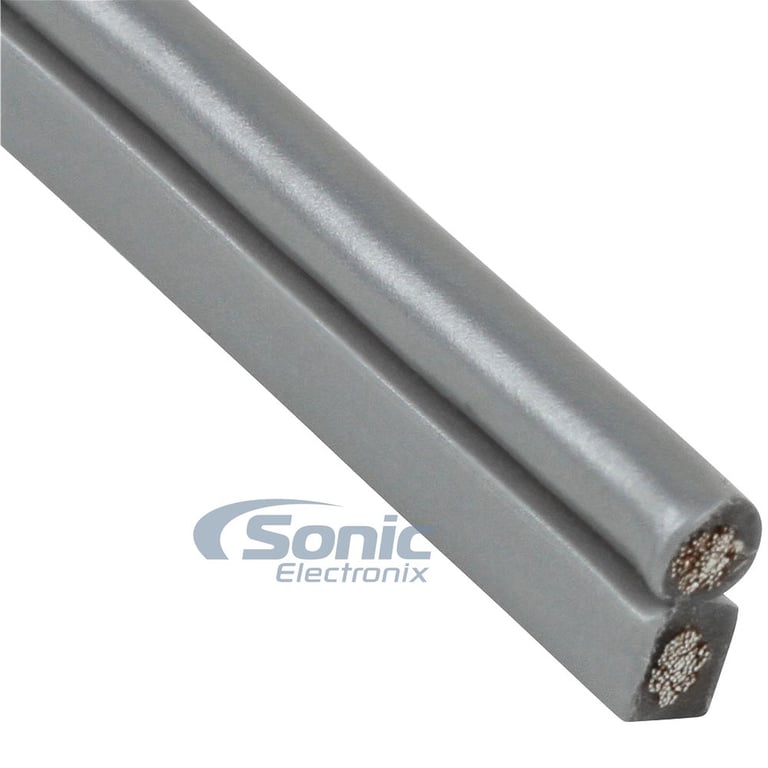

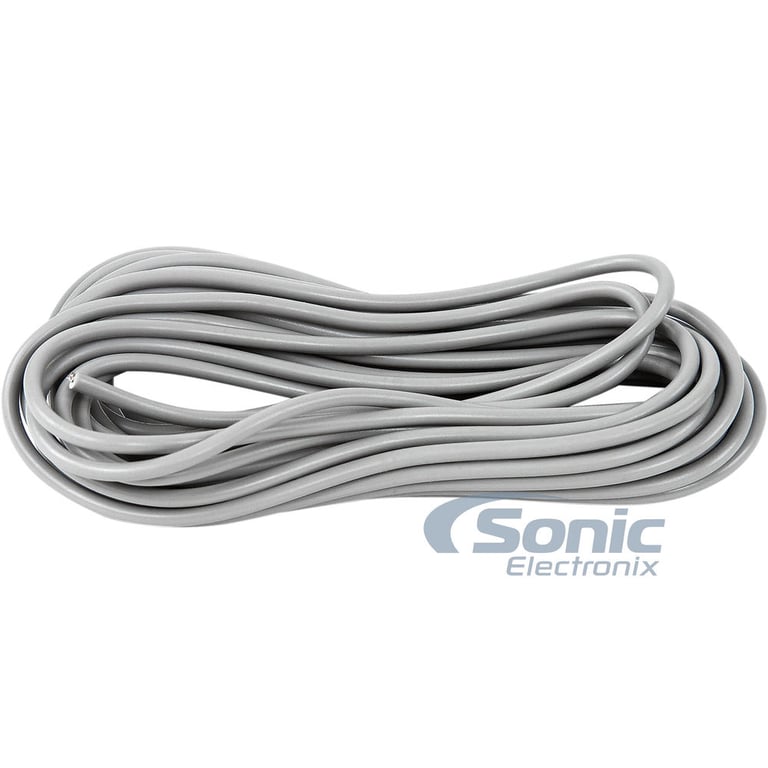

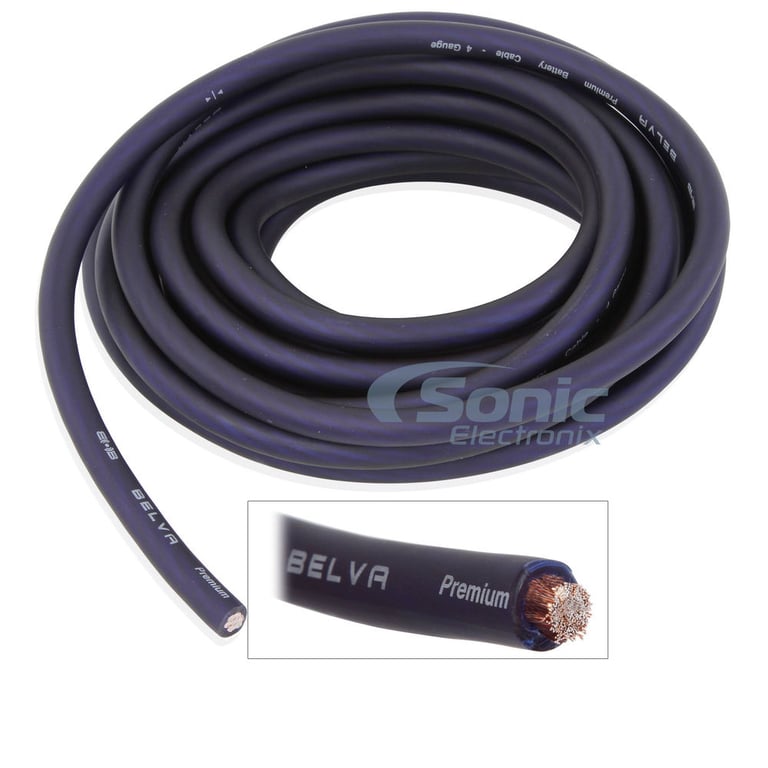

  1. 17 ft. Gray 4 gauge power wire

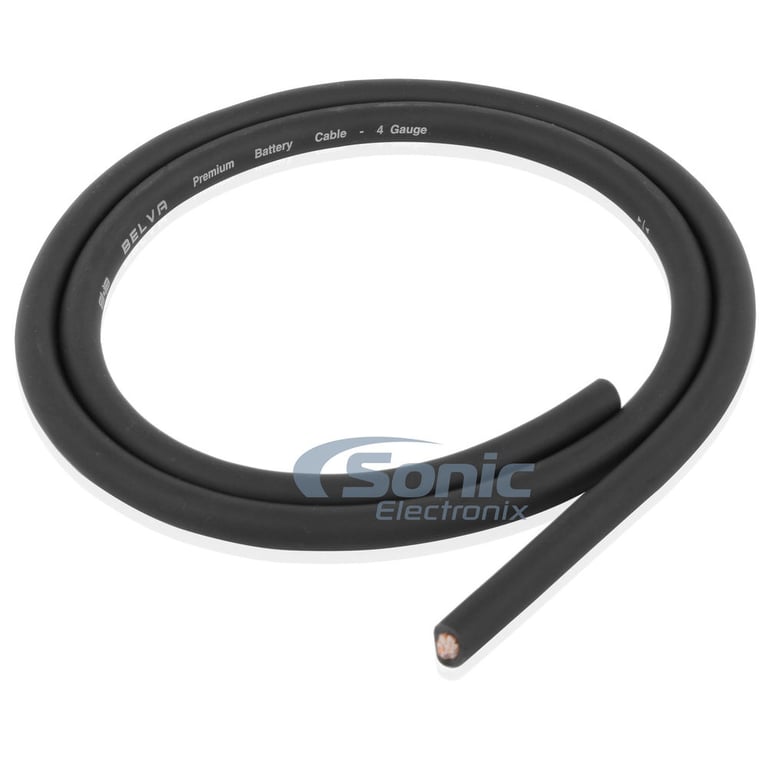

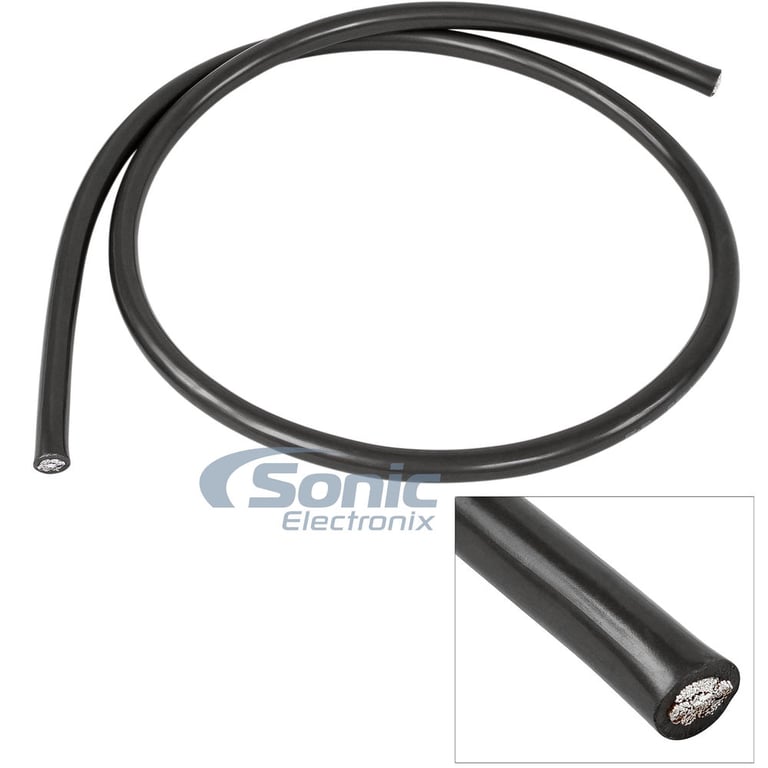

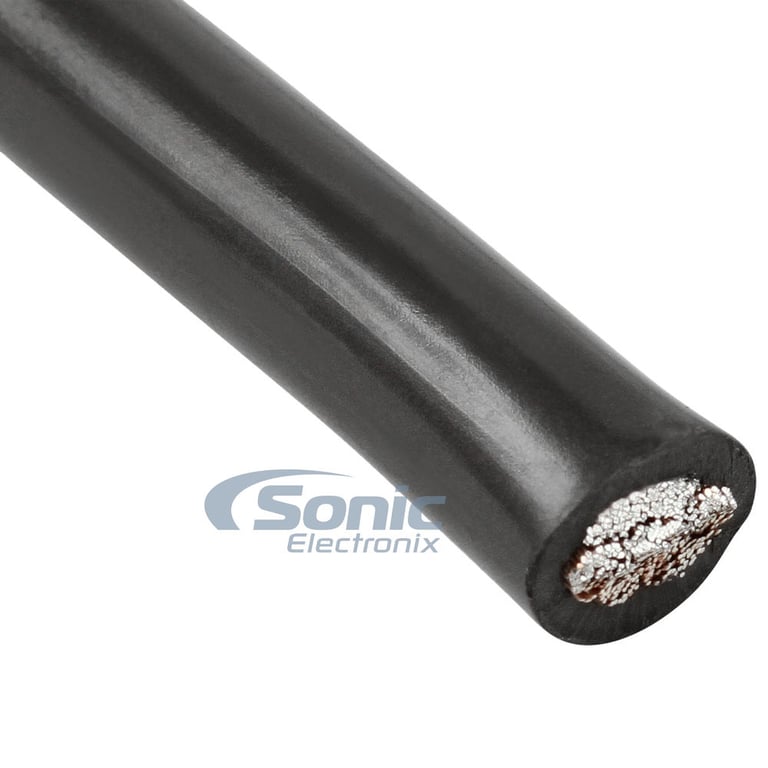

  2. 3 ft. Black 4 gauge ground wire

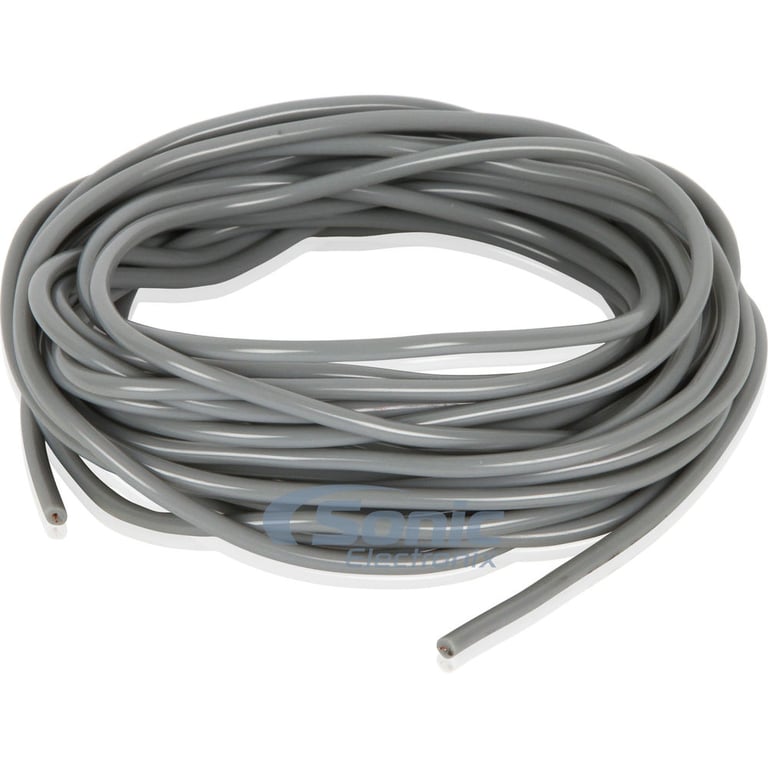

  3. 17 ft. Gray 18 gauge remote lead wire

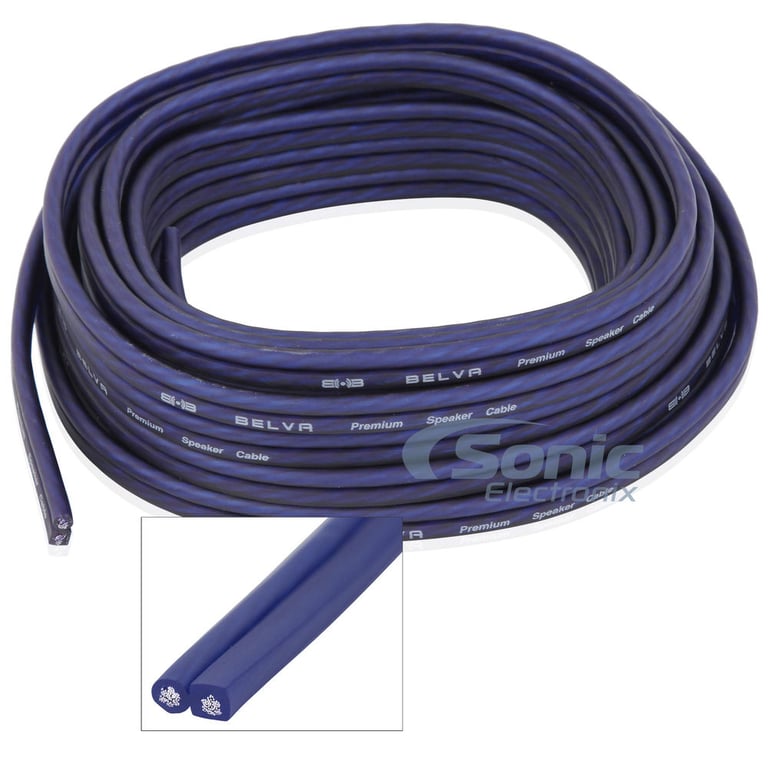

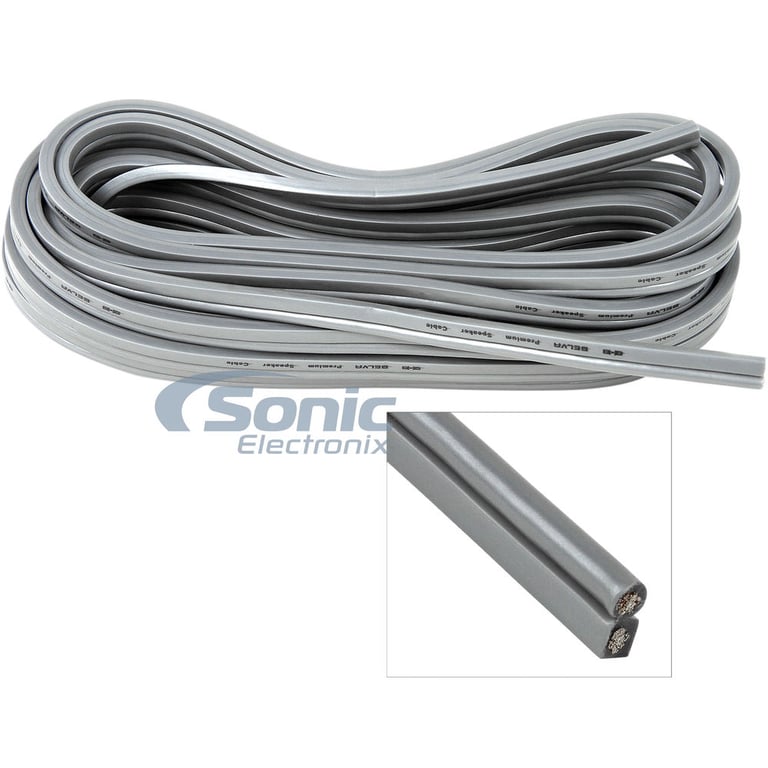

  4. 20 ft. 16 gauge speaker wire

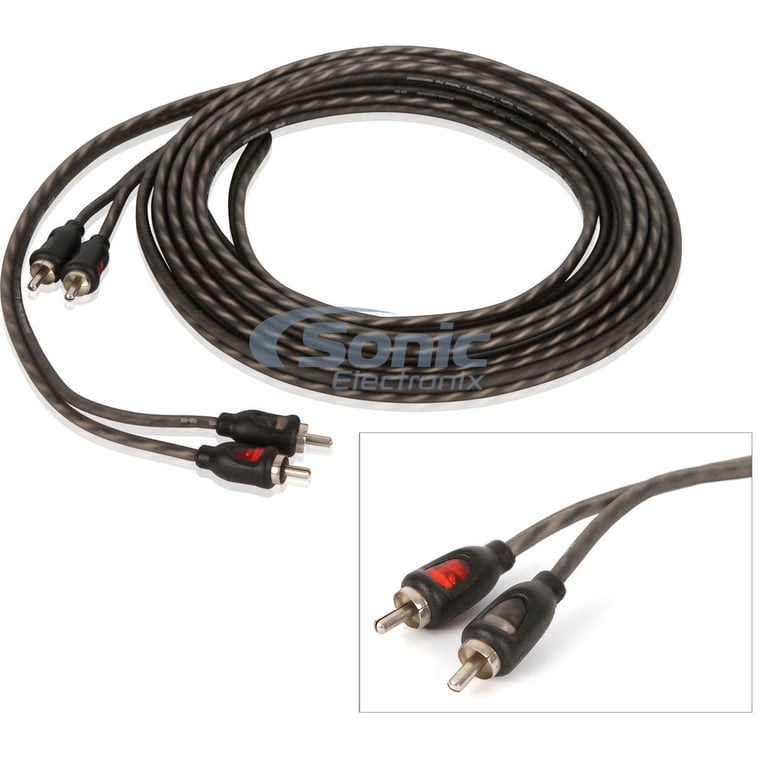

  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

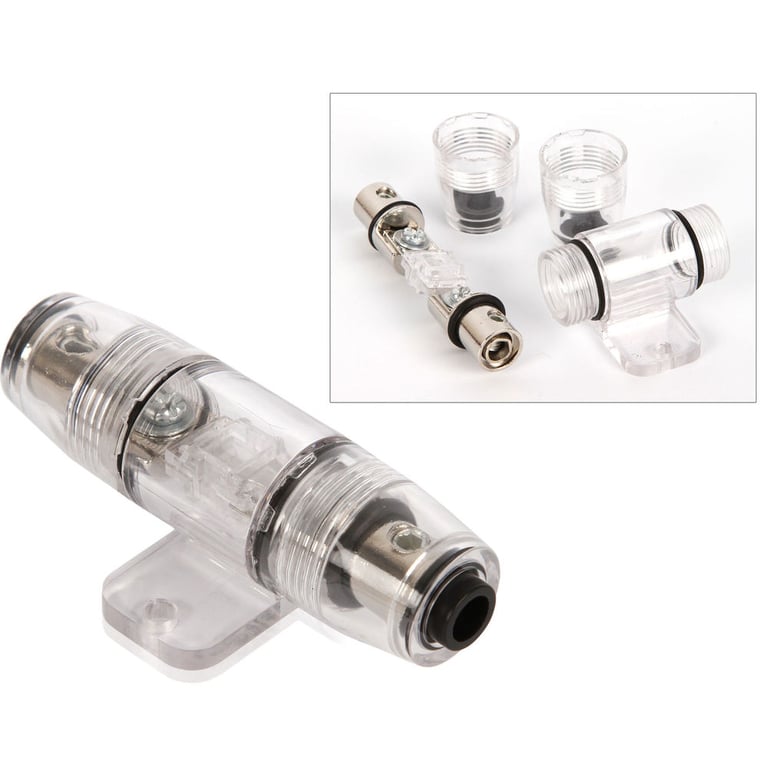

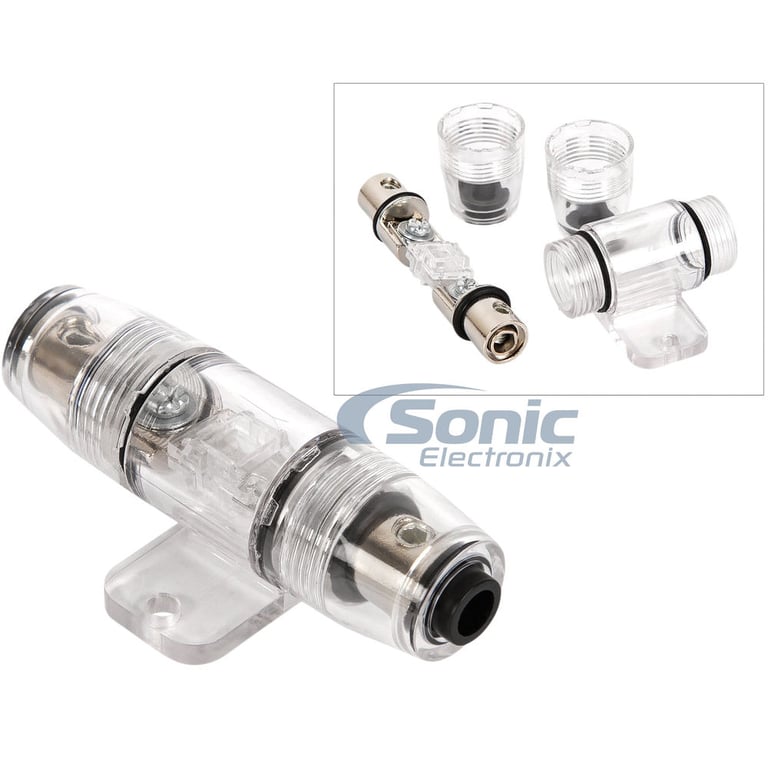

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse

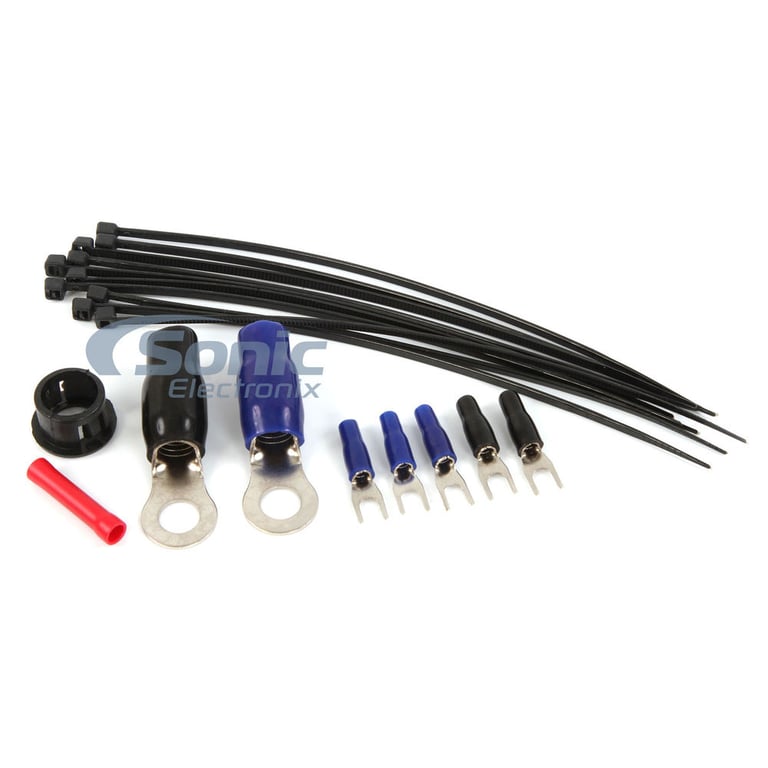

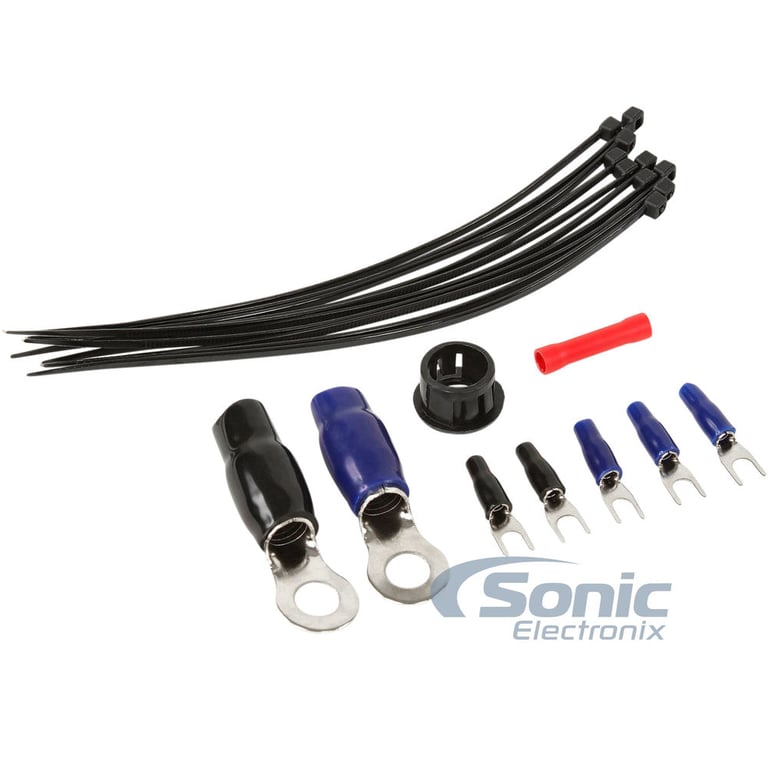

  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
650 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
650 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 50 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

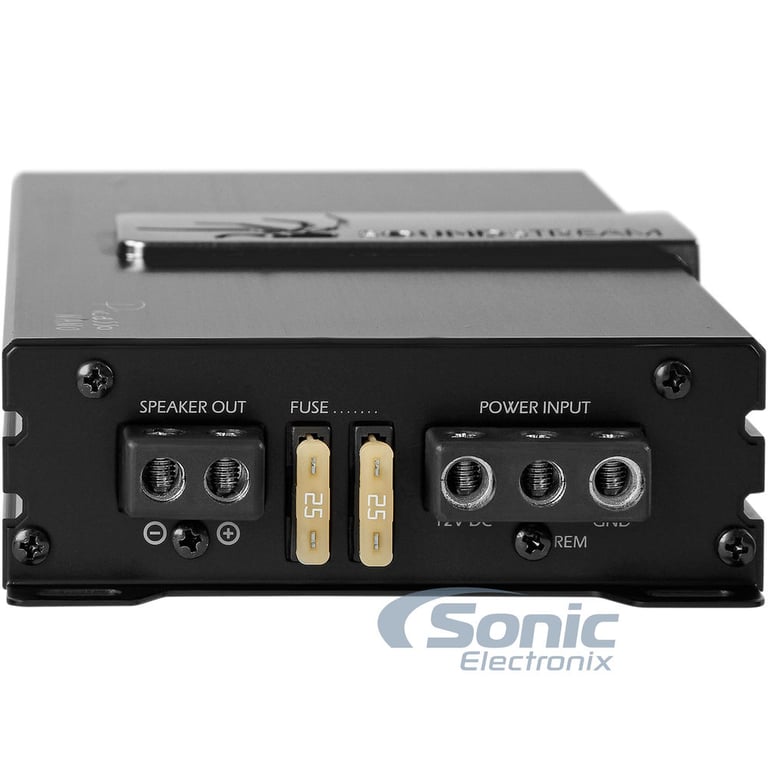

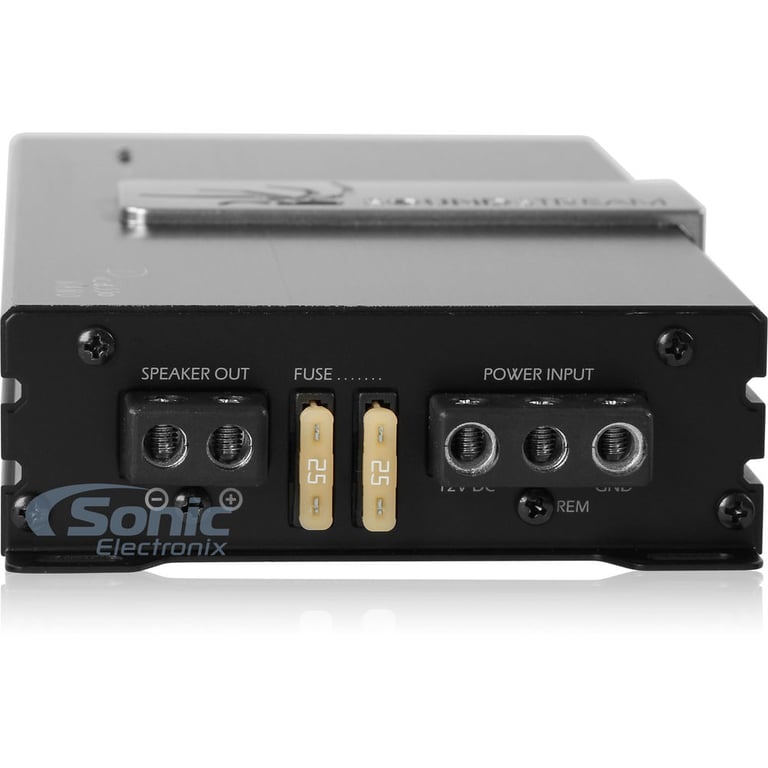

Fuse Rating
25A x 2
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
20 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PN1.650D_BAK42BL

Weight:

7.60lbs

Internal SKU:

pn1650d_bak42bl

Internal Product ID:

128901
