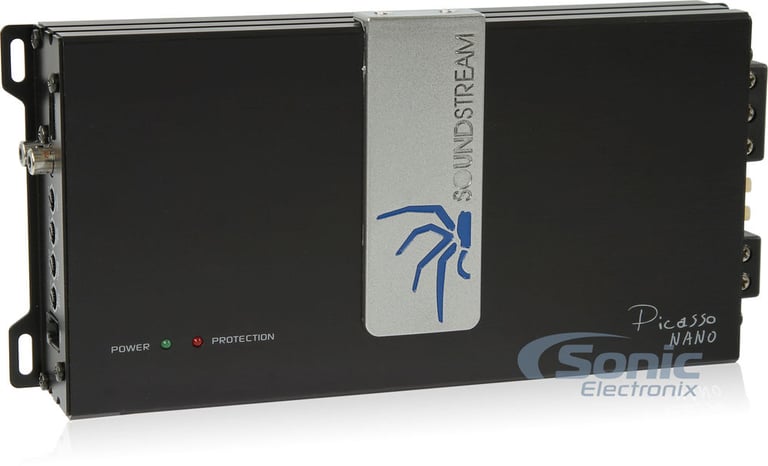

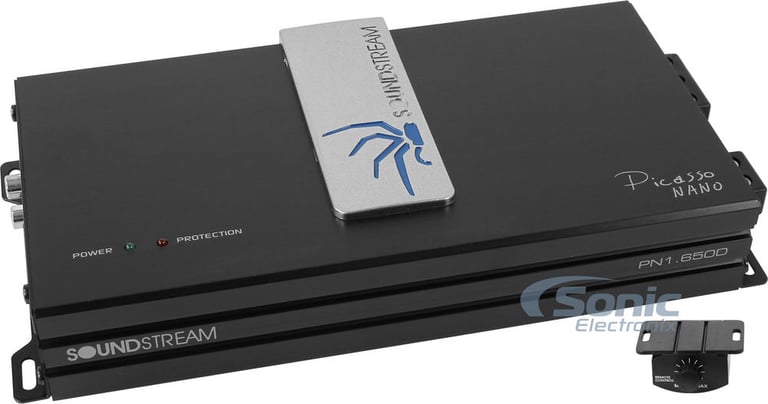

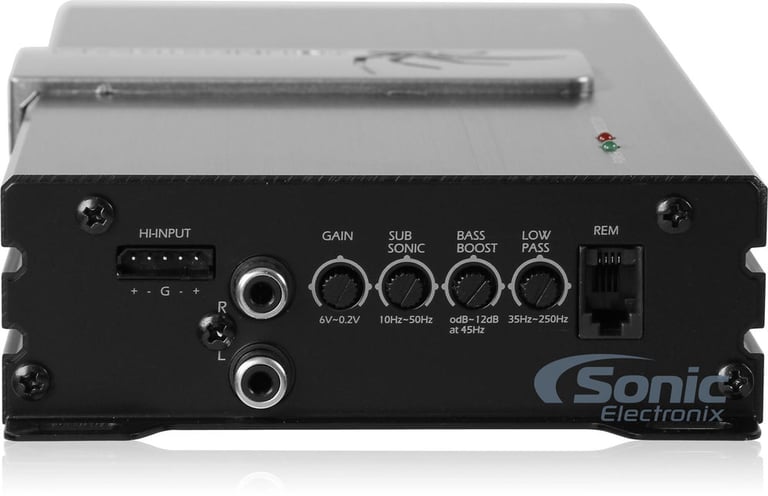

Soundstream PN1.650D

650W Monoblock Picasso Nano Class-D Amplifier

Product videos
highlight-star-icon

• RMS Power: 400W x 1 @ 4 ohm, 650W x 1 @ 2 ohm
• Total Peak Power: 650W
• Dash Mount Remote Bass Level Control Included
• Dimensions: 4.75"W x 9"L x 2"H

Learn more about the pn1650d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Product Highlights


• RMS Power: 400W x 1 @ 4 ohm, 650W x 1 @ 2 ohm
• Total Peak Power: 650W
• Dash Mount Remote Bass Level Control Included
• Dimensions: 4.75"W x 9"L x 2"H

Description


Soundstream brand icon

Authorized dealer




Sonic Electronix Power Certified Amplifier

Soundstream's PN1.650D monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings.

Impedance
Claimed Output
Certified Results
Dynamic Results
4 Ω
400W @ 14.4V
358W @ 14.13V
381W @ 14.20V
2 Ω
650W @ 14.4V
582W @ 14.05V
655W @ 14.13V



General Features:

  • Picasso Nano Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 650 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 358 watts x 4 chan.
    • 2 ohm: 582 watts x 4 chan.
  • Max power output: 650 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Heavy duty aluminum heatsink
  • Soft turn-on circuit
  • Thermal and speaker short protection circuitry

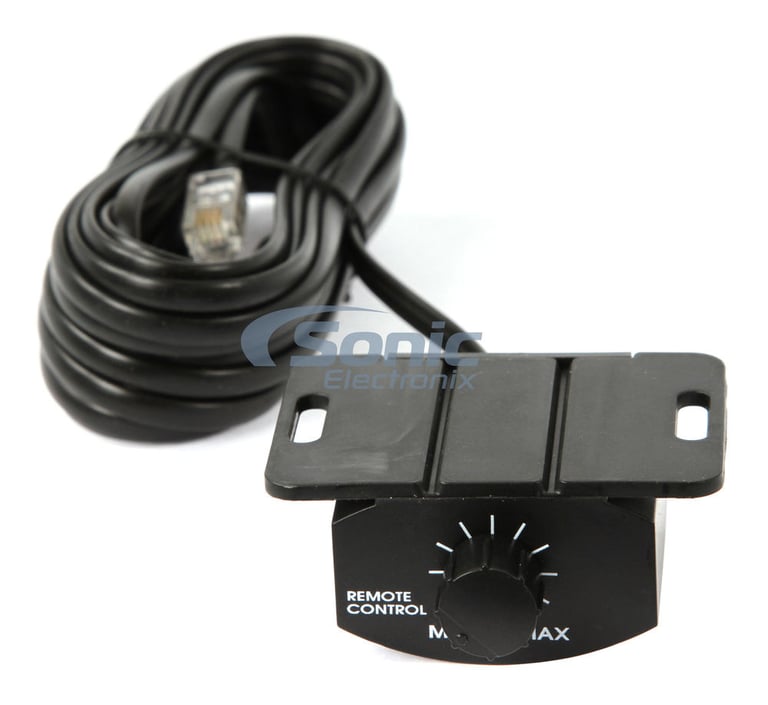

  • Dash mount remote bass level control included
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • Variable low-pass filter (35 - 250 Hz, 24 dB/octave)
  • Subsonic filter (12 dB at 10 - 50 Hz)
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 4.75"W x 9"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Soundstream PN1.650D Owner's Manual

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
650 watts x 1 channel
Amplifier Specifications
Series
Picasso-Nano Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1300 watts
Total RMS Power Output
650 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 50 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

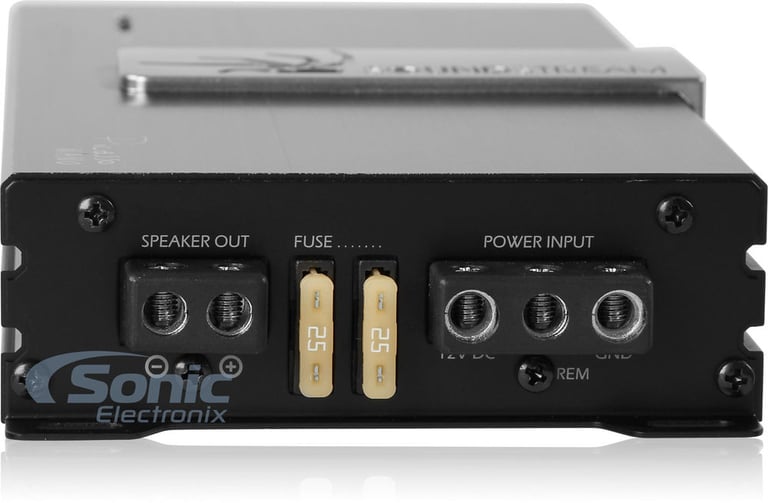

Fuse Rating
25A x 2
Total Fuse Rating
50
Strappable
No
Sonic Certified Amplifier
Yes
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)

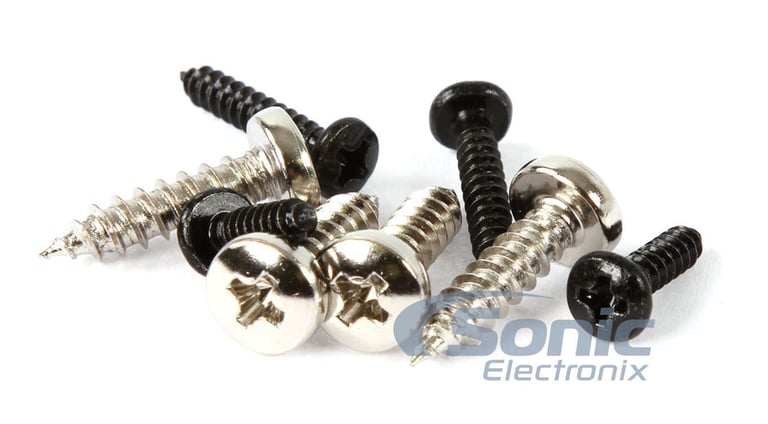

Mounting screws (4)

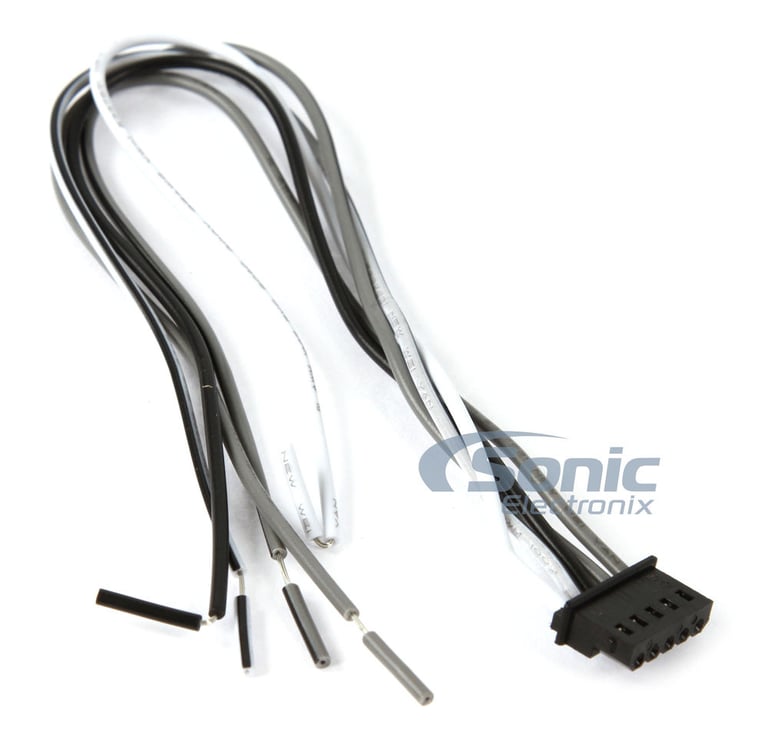

High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PN1.650D

Weight:

5.00lbs

Internal SKU:

pn1650d

Internal Product ID:

79533

Product and How-to Videos


  • SoundStream PN1.650D Amp Dyno Test | SMD D'Amore AD-1
  • Soundstream Picasso Nano Amplifiers
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Soundstream PN1.650D thumbnail image

5 star
81%
4 star
0%
3 star
19%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
4.7
Design
4.9
Usability
4.8

Customer Reviews

Sort by:

Loading...

Not bad for the price

I purchased this mono amp (Soundstream PN1.650D) to drive a Pioneer 10 inch sub in a sealed enclosure to go along my other Soundstream P4.500 4 ch amp, I have a set of Alpine SPR60C component speakers in the front door and Alpine SPR69 6x9 coax in the read deck of my compact car, the tiny PN1.650 blew me away it is powerful enough for my application and has good impact, keep in mind this is a entry lever amp. it is a good deal for someone on a budget I do recommend this amp if you don't have a lot of cash to spend.

By BigD on October 27, 2014

31 found this helpful


Amazing punch for its size... and its price

As with many things in a car audio these days, smaller is getting better all the time. This unit is driving a JBL GTO 10" sub in a sealed enclosure in a 2011 Mustang GT. I was able to attach the amp directly to a side of the enclosure. The sub is wired for 2 Ohm, and the bass in the car is enormous.

I had planned on using a much larger Hifonics, but the trunk isn't huge, and I wanted to preserve as much space, as well as fold down seats as possible, while adding a sub. This small footprint amp gets the job done! For a single sub application, with rational power needs, this amp is recommended without hesitation.

By Daniel on April 22, 2015

22 found this helpful


Good amp for the money but...

This amp sounded pretty good for the cost and considering how small it is, I am running this true a Pioneer 10" Sub in a sealed box, very nice punch for the money, very musical and not to much distortion. Everything was sounding great then one day the protection light came on and the amp never worked again! Lucky me it was still under warranty and Sonic Electronix took care of me like they do all their customers. The question is would I recommend this amp? If it works then yes! it's an awesome little amp for the money, I don't know if my situation is isolated or not, I had it professionally installed.

By David on September 2, 2015 Checkmark Icon Verified purchase

11 found this helpful


tHIS amp works great

It is small, powerful, clean sounding amp. Looks cool, works great. Tested it on a long road trip. No problems, very happy customer here.

By Andy on October 1, 2015

7 found this helpful


Good so far a little warm at 2 ohm

Powering two pioneer 12's 300 rms each wired parallel to give a 2 ohm load. Can't complain. Powering subs great my only concern is it does get warm/hotter than I'm used to but no issues as of yet 2 months in. Aside from that, nice solid compact design and great price!

By Mike on April 28, 2017

2 found this helpful


Sound stream mano d amp 650d

I bought this amp for the price it was around 100 bucks it works well with the two 10inch kickers I got it does get kind of warm was hot to the touch but I guess that is what amps just do. It was easy to hook up it really did make those 10 inch kickers come alive I was suprized how well it worked. it has worked great so far I would recommend it if your looking for a inexpensive amp sonic elextronix suggested this amp as one that would work with the woofers I had and there amp test on utube showed this little amp really dose push what it says it dose I believe that sound stream has some quality amps. For the price that they are I don't think you can beat its value and it's flawless function. besides it get hot enough to fry a egg Is the only con I have ran it to with the 30 days that I had it installed

By Dodge Dakota on October 9, 2016

1 found this helpful


Amp Rocks!

This Amp Kicks A** very powerful for how small it is. I have 2 of the now for my vehicles.

By Logan on October 18, 2024 Checkmark Icon Verified purchase


Awesome Value!

This amp has no problem powering a Kicker CVX 10" wired for 2 ohms in a ported box. The crossovers really let you dial it in so you can really push it. Clean clear bass with plenty of low end and punch! The small footprint allows you to mount this amp just about anywhere. Very happy with this purchase.

By Joe Harrison on February 4, 2020 Checkmark Icon Verified purchase


Impressive power for it's size

Having owned an older Soundstream tarantula monoblock 600 watt amp that is still running after 5 years of daily commute use I figured this was an easy bet. This little amp is surprisingly heavy for it's size, it feels like it is cut from an aluminum billet. After a 45 minute drive at high volume it barely gets warm so all that aluminum really dissipates the heat. It is made in Korea and really well built so I can recommend it.

By BluetegJoe on December 21, 2019 Checkmark Icon Verified purchase


Great value

It work great. Make my stereo sound great in my chevelle.

By Rut on April 22, 2018




BBSTEREO2 small

VIBE Audio BBSTEREO2

700W Max Class AB 2-Channel Black Box Series Car Amplifier

(2)

$89.99

List price $249.00

KD-AVX44 small

JVC KD-AVX44

"El Kameleon" In-Dash 3.6" TFT-LCD Monitor with DVD/CD/MP3 Receiver with Remote, USB, Built-in Bluetooth, and Proximity Sensors

(3)

$369.99

List price $599.99

EV4000D-OB small

SoundStorm (SSL) EV4000D Open Box

4000W Max, Evolution Series Class D Monoblock Power Amplifier with Remote Level Control

$138.99

List price $349.99

RF11EDP small

Excalibur RF11EDP

Two 1-Button Range Extender Transmitters / OEM Upgrade Kit Up to 1000 Ft.

(1)

$39.99

List price $99.99

QI24-2 small

Kicker QI24

4 Meters (13 ft.) 2-Channel Q-Series RCA Audio Interconnect Cable

(1)

$24.95

List price $39.95

PW18500RE small

Hitron PW18500RE (Red)

500 Ft Spool of 18 Gauge OFC Remote Wire

(1)

$27.99

List price $34.99

MRX-M55 small

Alpine MRX-M55

550W RMS Monoblock Class D X-Power Series Car Amplifier

(2)

$209.95

List price $329.95

micdatabkt small

TYLT MIC-DATABK-T

Black Micro USB Charge/Sync Cable

$5.00

List price $14.99

MX350.4 small

Kicker MX350.4

MX Marine Series 4-Channel Amplifier (07MX3504, 07MX350.4, MX3504)

(4)

$159.99

List price $349.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Ford Explorer

1980 Ford LTD

1979 MG Midget

2008 Ford Explorer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
