Kicker CXA400.1 with Amplifier Wiring Kit

300W RMS CX Series Monoblock Class D Subwoofer Car Amplifier

Kicker
Shop all Kicker
highlight-star-icon


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• 8 Gauge 2-Channel Complete Amplifier Installation Kit

Learn more about the 43cxa3001_xkit82

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

Lowest price in 30 days
VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-16.67%

$99.99

List price $119.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

SXE-1751S main

Alpine SXE-1751S

440W Peak (80W RMS) 6.5" SXE-Series 2-way 4-ohm Component Speakers with Mylar-Titanium Tweeters

4
-16.67%

$64.99

List price $77.99

M8XL main

Massive Audio M8XL (Sold Individually)

500W Peak (250W RMS) 8” Pro-Audio Midrange 8-ohm Speaker

-22.22%

$69.99

List price $89.99

Description


Kicker brand icon

Authorized dealer

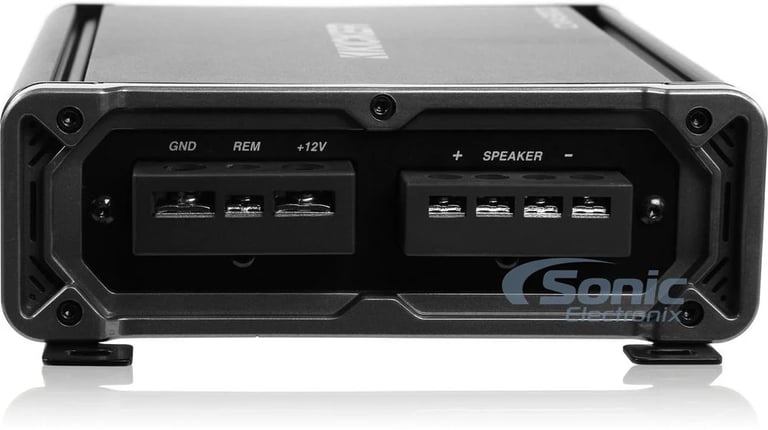

Kicker CXA400.1 (46CXA4001T)

400W RMS Class D CX-Series Monoblock Car Amplifier
Quantity: 1

Product Details:

  • CX Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 1 channel
    • 2 ohm: 300 watts x 1 channel
    • 1 ohm: 400 watts x 1 channel
  • Total RMS power output: 400 watts
  • Wired bass level remote control with optional Kicker 46CXARCT
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 1 pair of pre-amp outputs
  • Three-second turn-on/off delay to eliminate unwanted interference
  • KickEQ 6dB variable bass boost for those additional low frequencies
  • FIT+ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
  • Accepts up to 40-volt input signal
  • Small footprint for easier installation

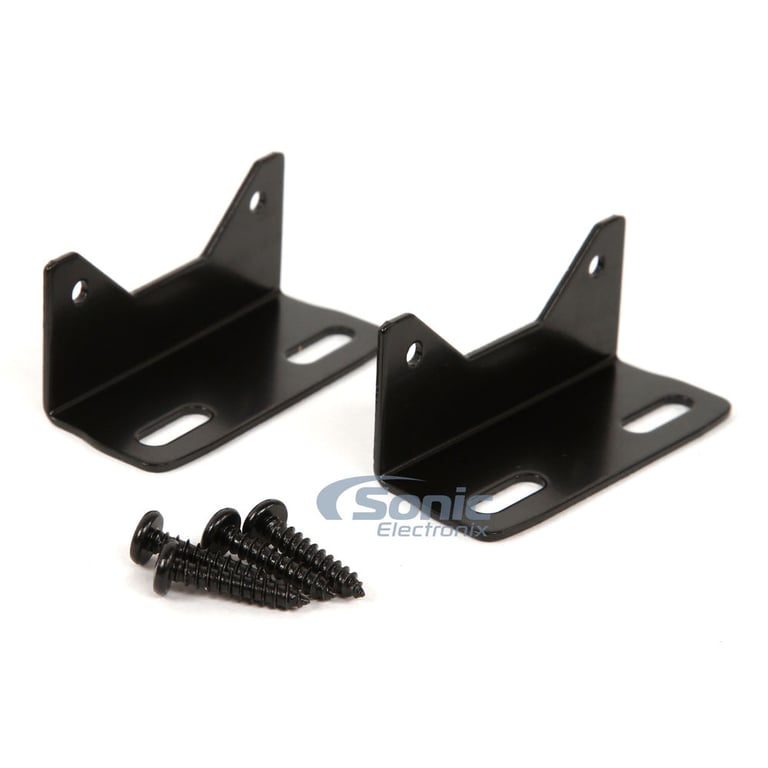

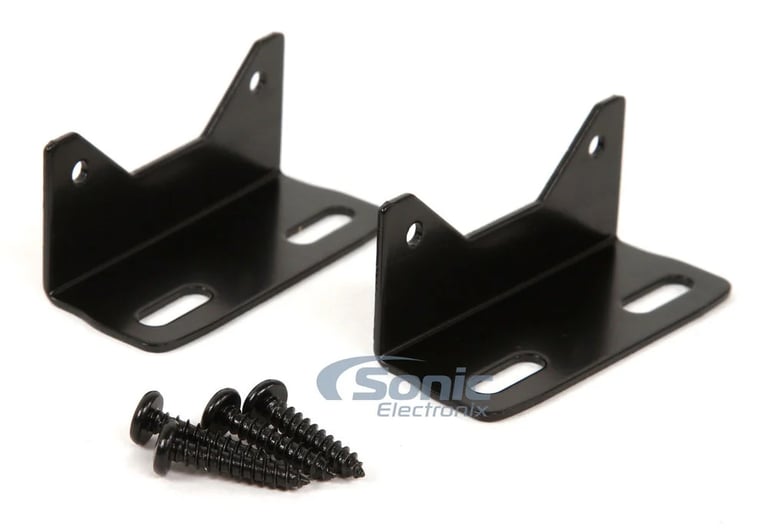

  • Vertical mounting hardware included for another unique look

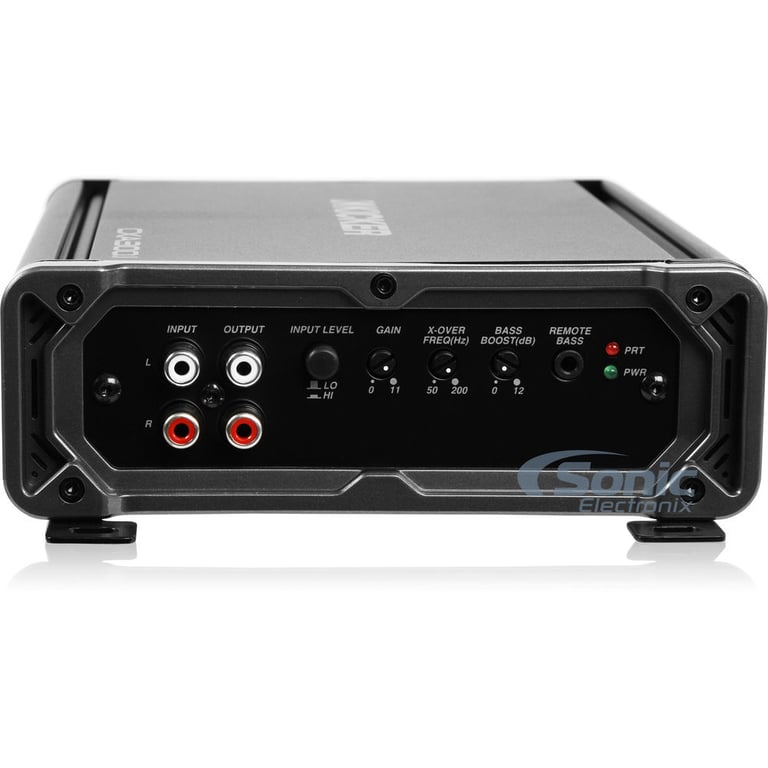

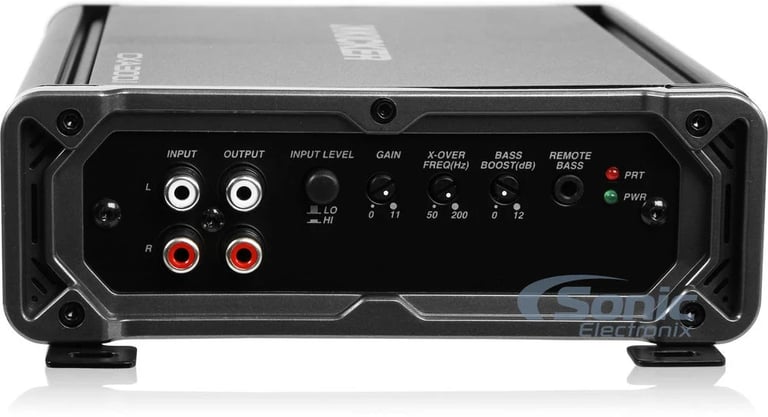

  • Input sensitivity:
    • Low level: 125mV - 5 volts
    • High level: 1 - 40 volts
  • Frequency Response: 25 - 200 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >95 dB
  • Variable low-pass filter: 50 - 200 Hz
  • Subsonic filter: 0 - 25 Hz
  • Variable Bass Boost: 0 - 6 dB
  • Fuse Rating: 40A

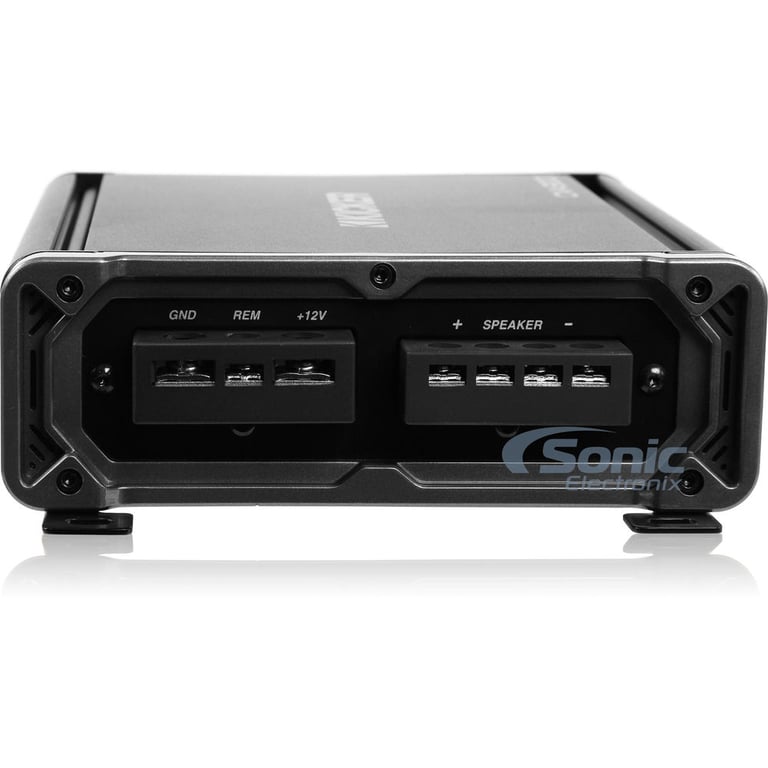

  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8-1/8" L x 6-11/16" W x 2-5/16" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: CXA400.1

NVX XKIT82

Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 800 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant

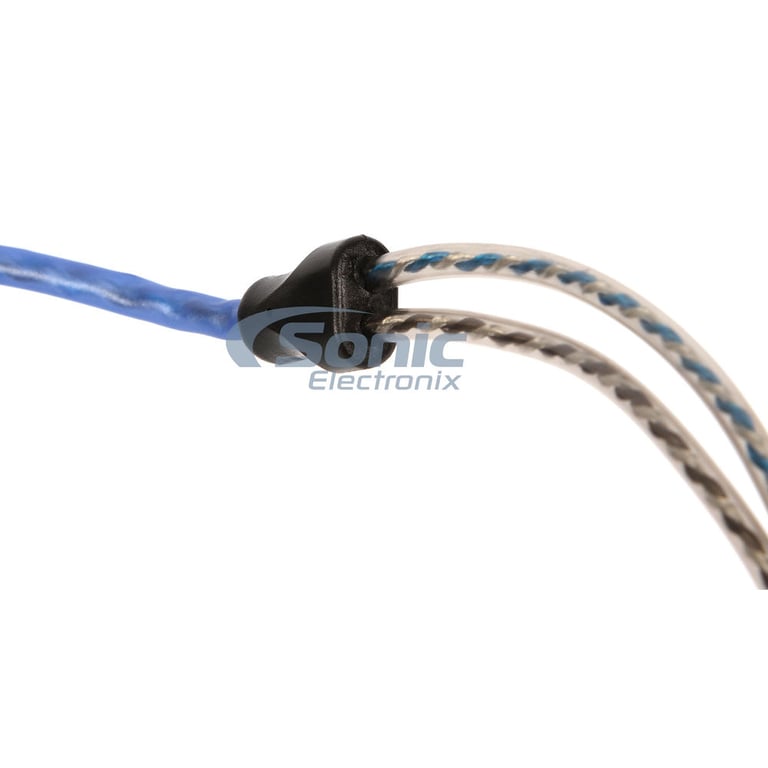

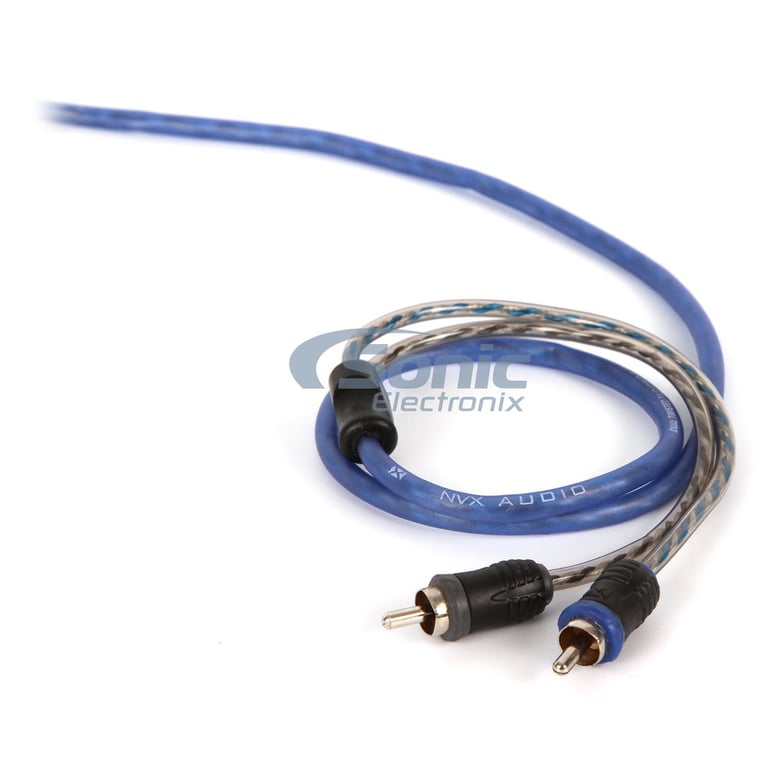

  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

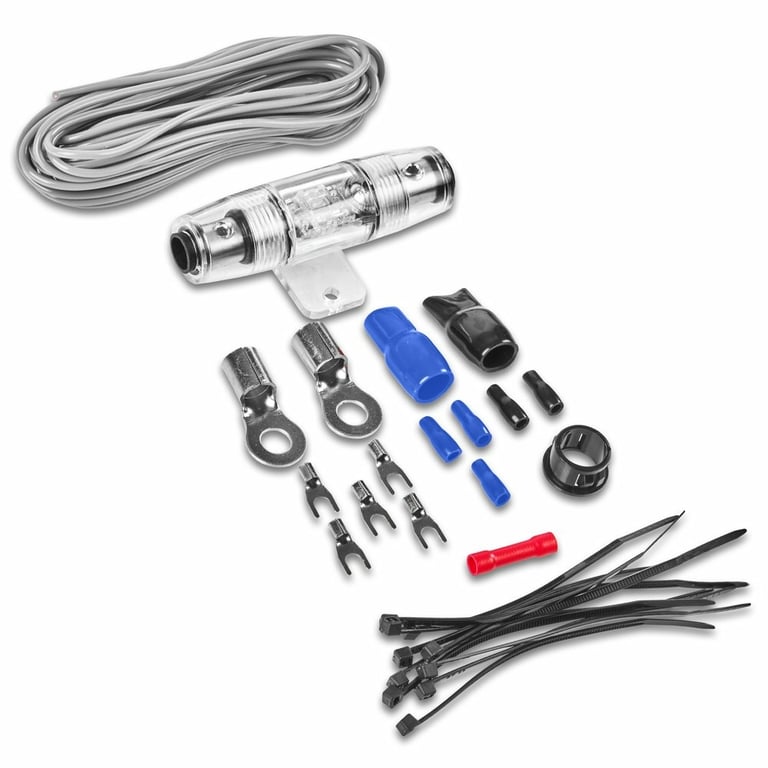

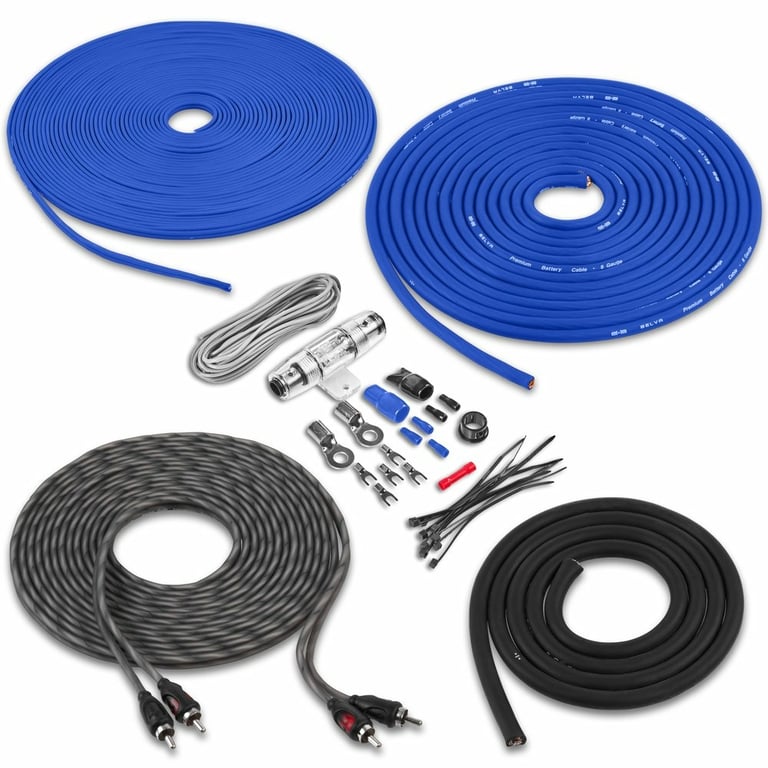

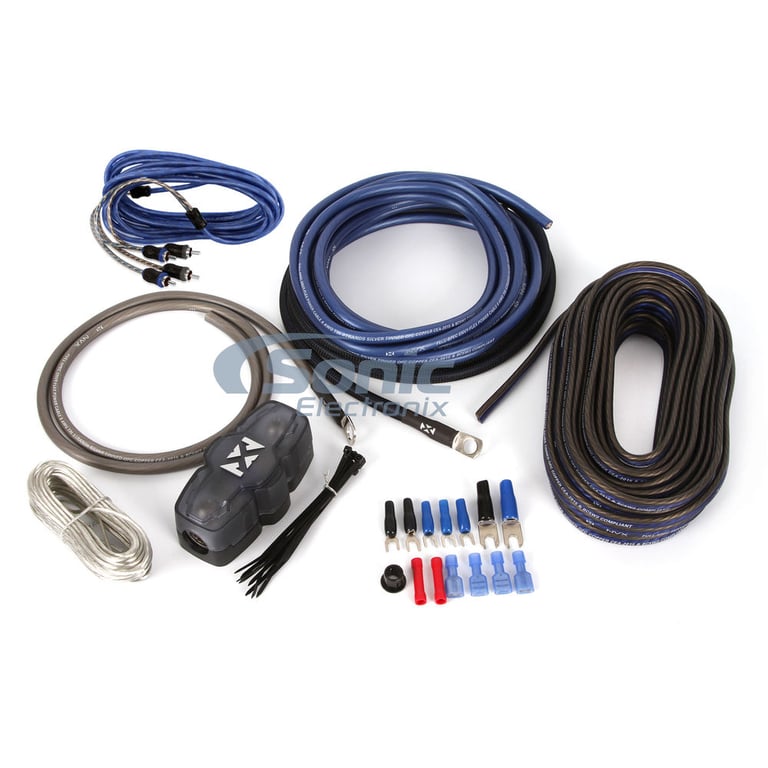

Kit includes:

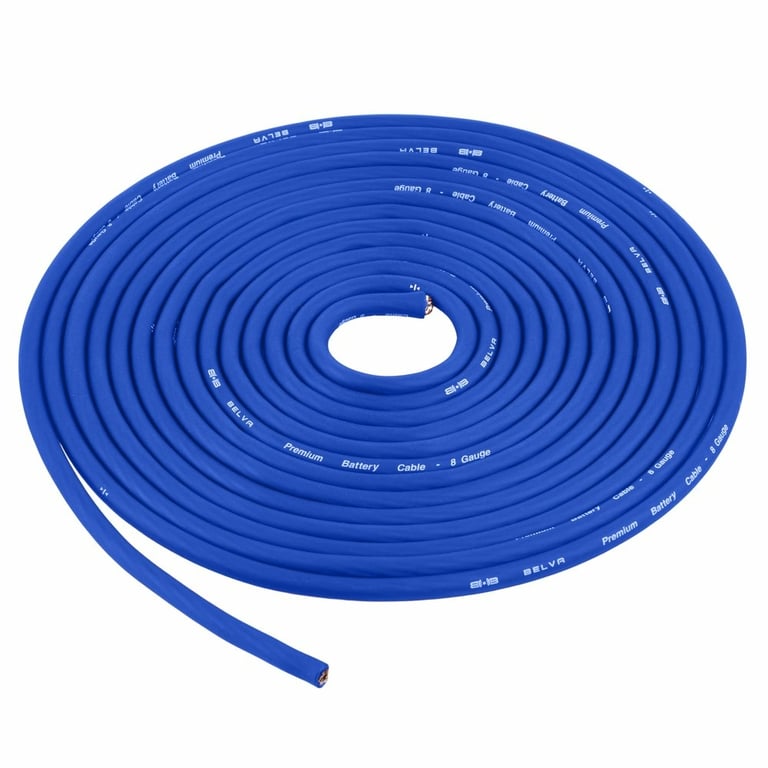

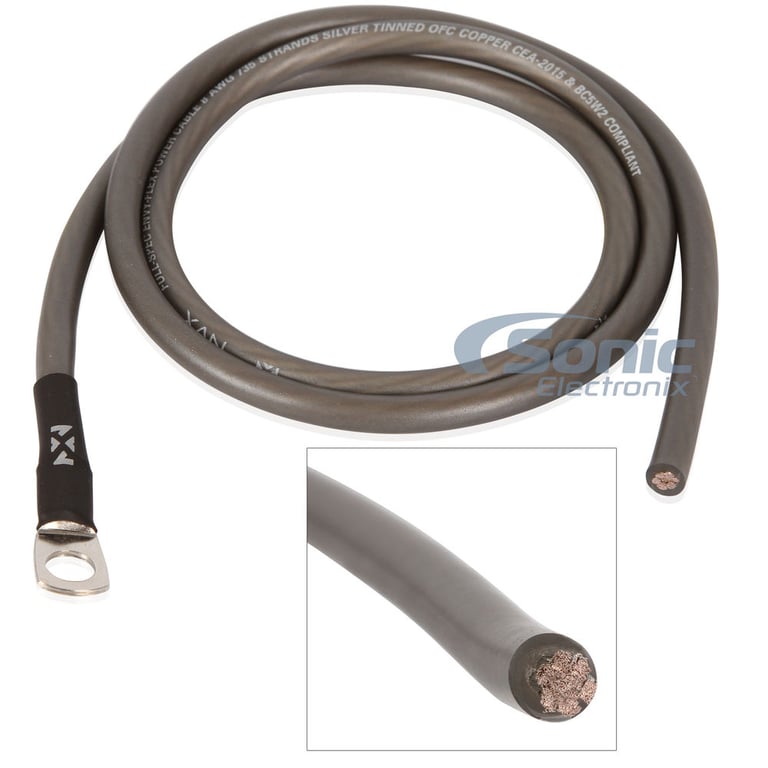

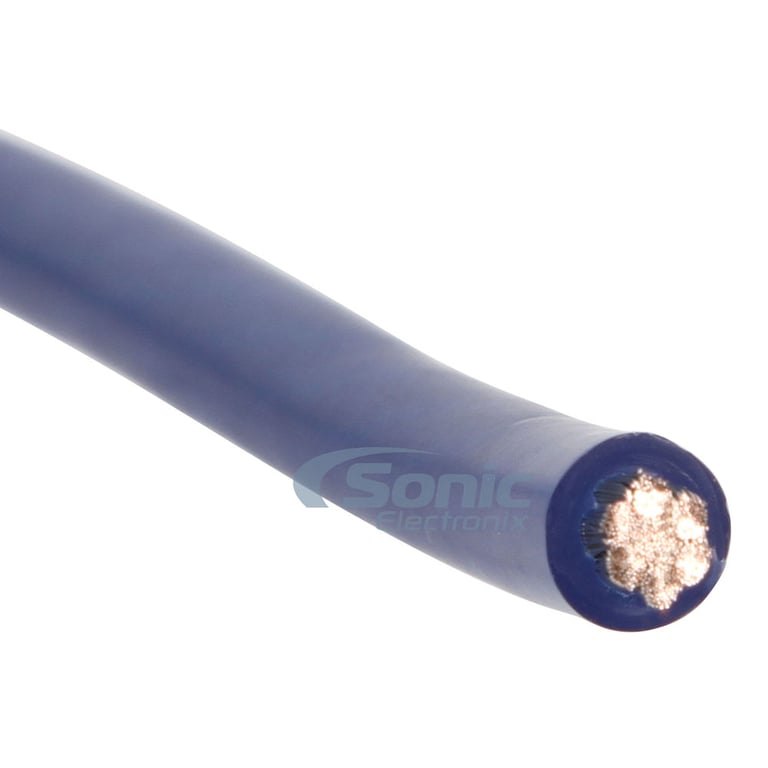

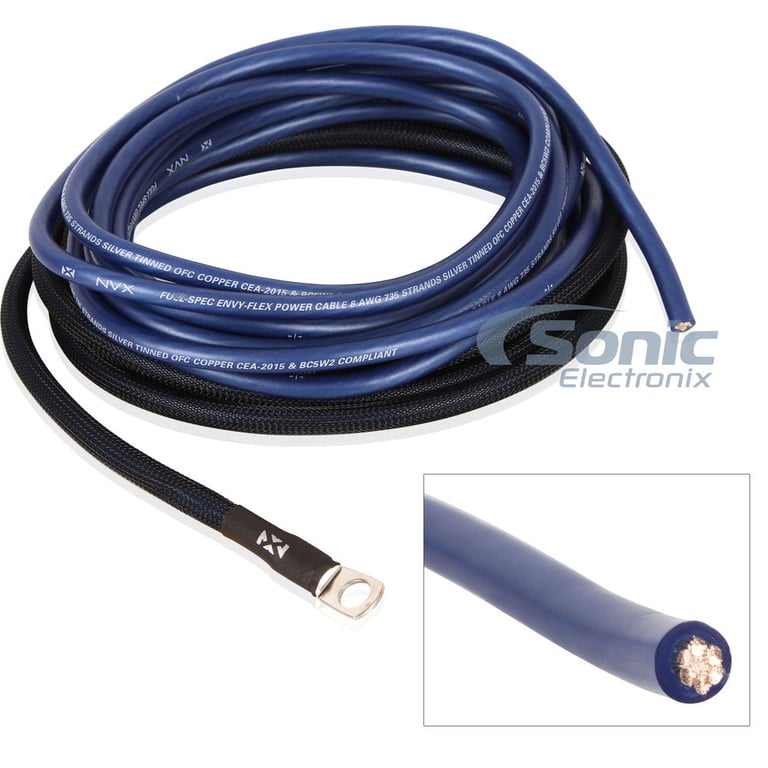

  1. 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal

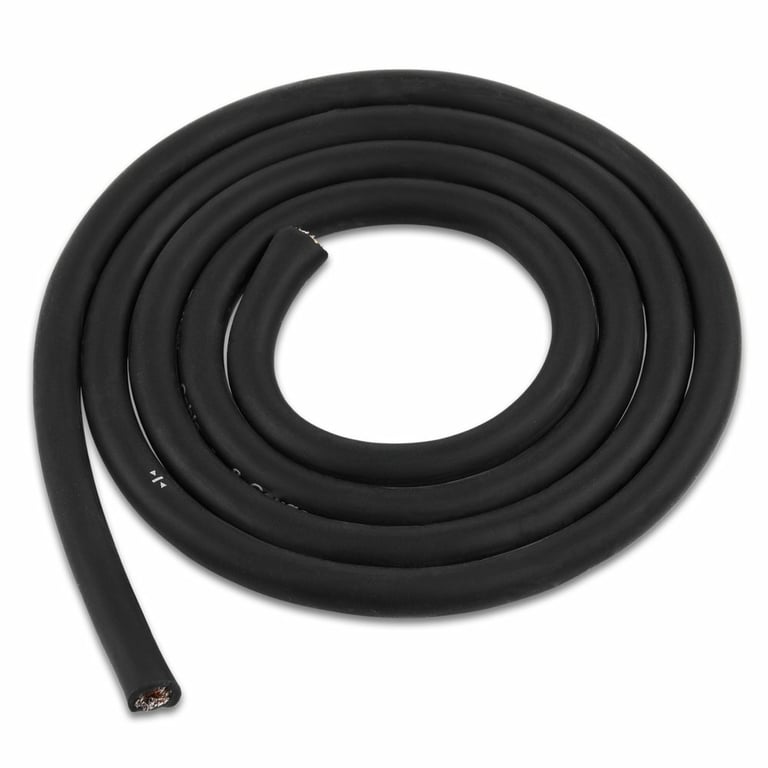

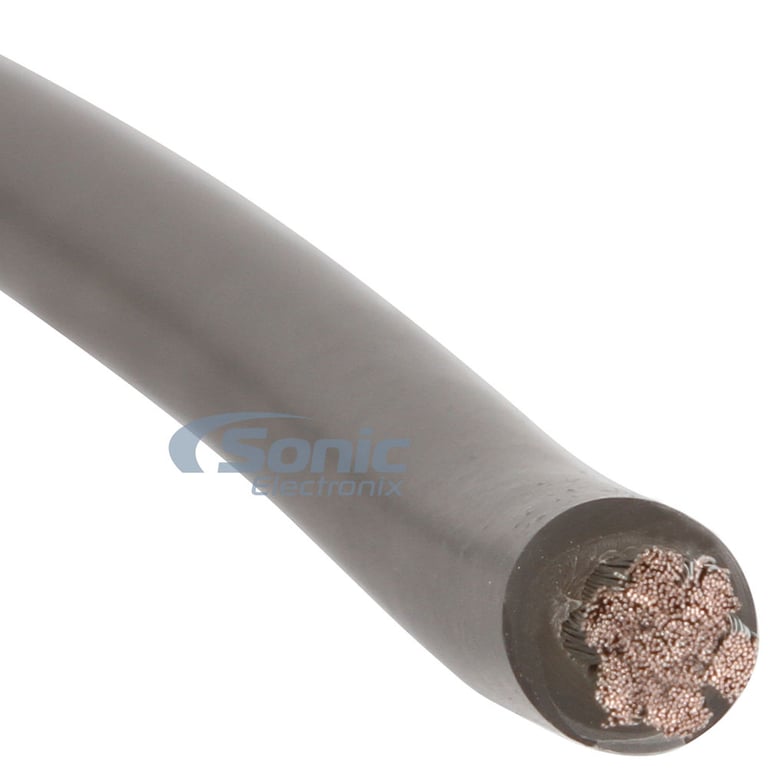

  2. 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal

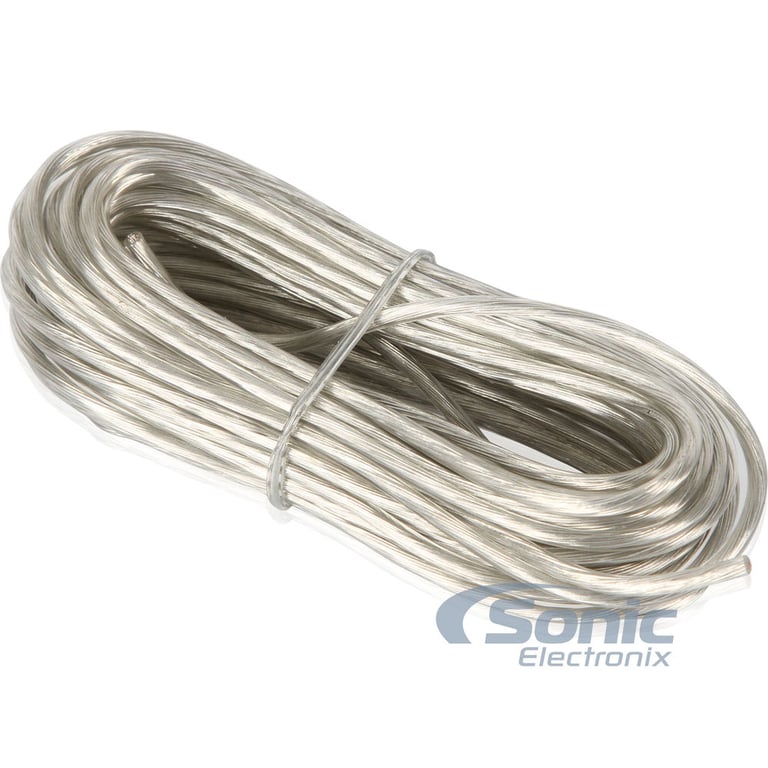

  3. 17 ft. Clear 18 gauge remote lead wire

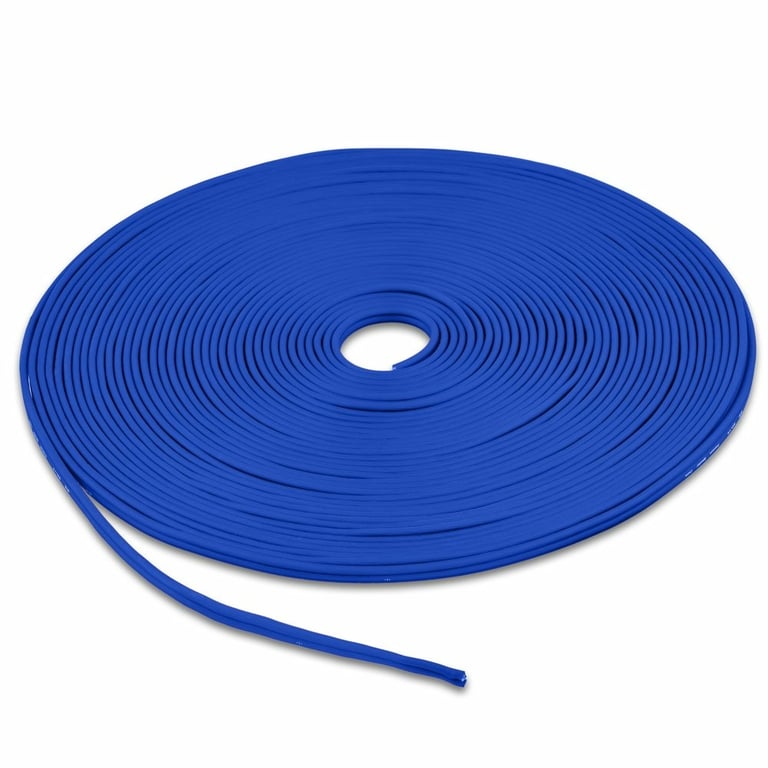

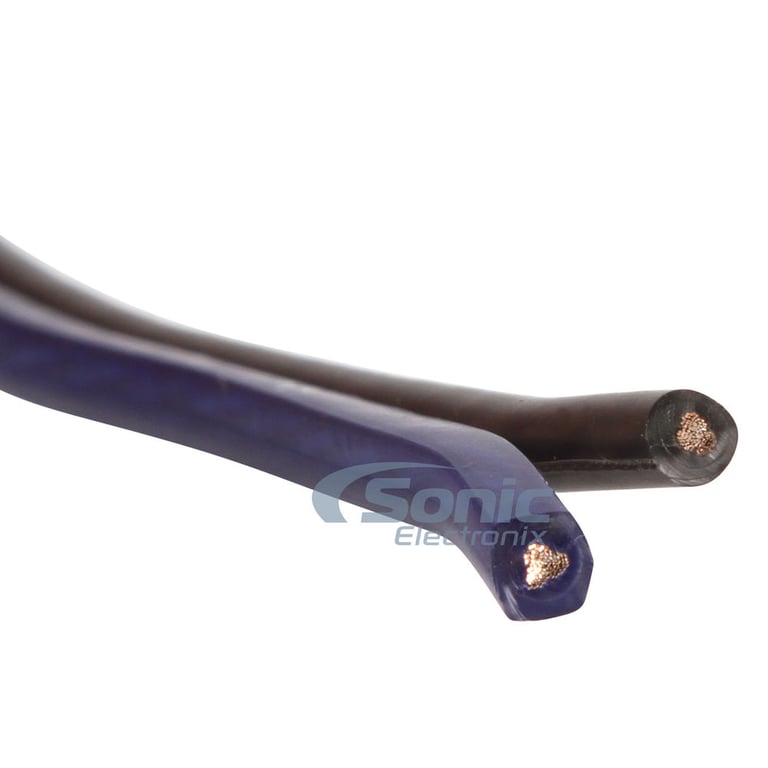

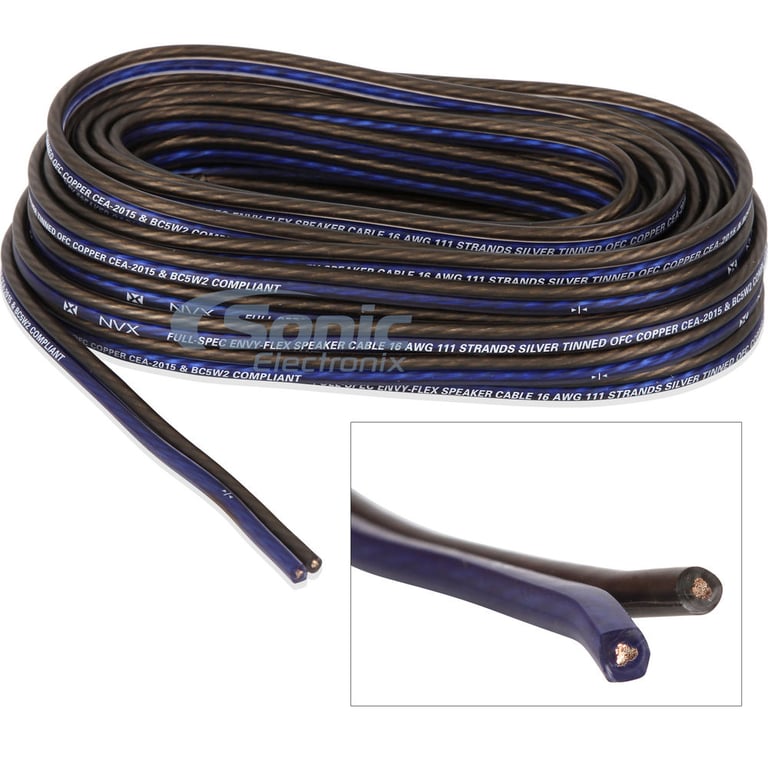

  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire

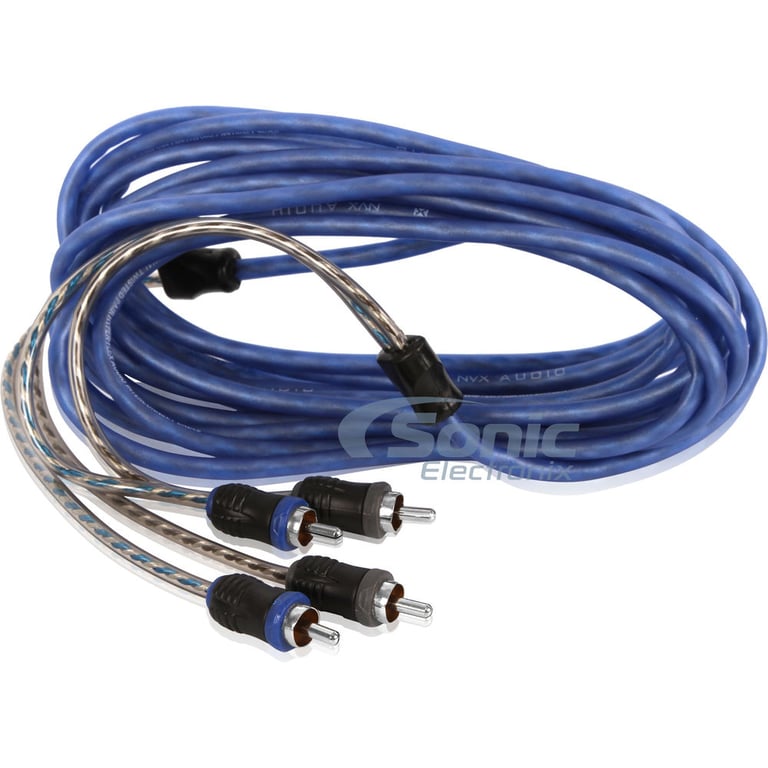

  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

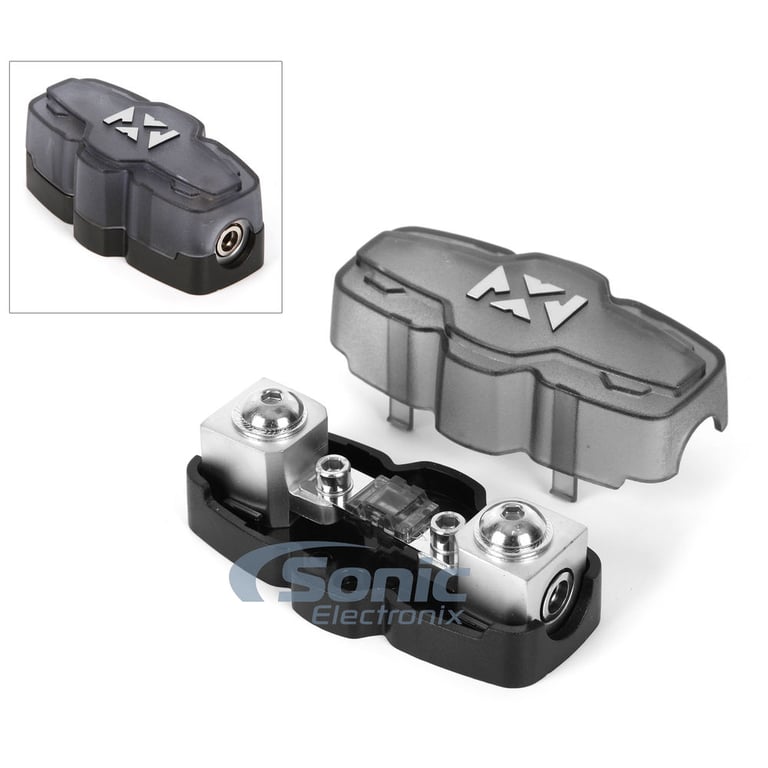

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse

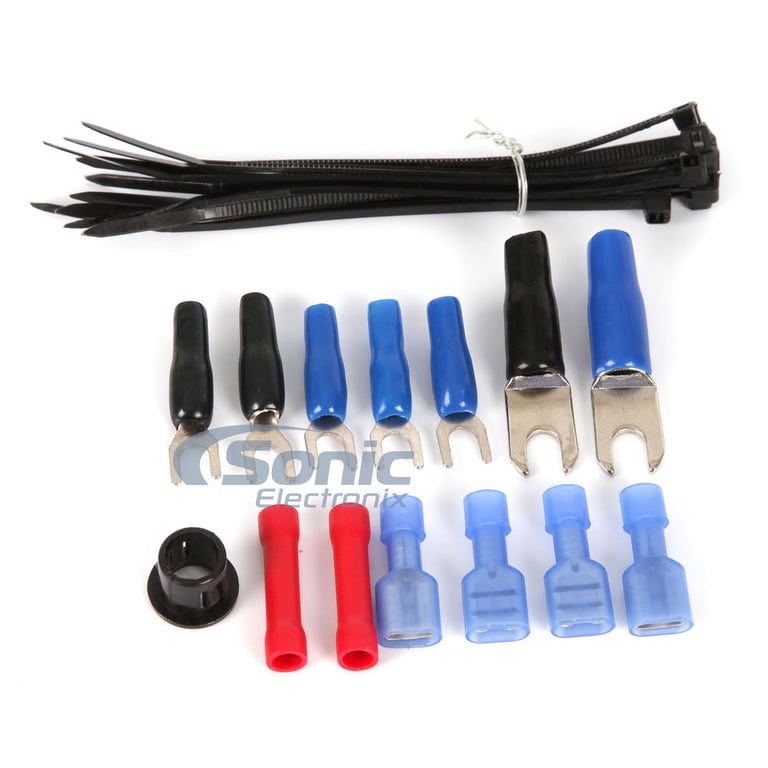

  7. One Black rubber firewall grommet
  8. Two 8 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
25 - 200 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
AFS
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XKIT82,46CXA4001T

Weight:

9.58lbs

Internal SKU:

43cxa3001_xkit82

Internal Product ID:

128903

Customer Ratings & Reviews


Kicker CXA400.1 with Amplifier Wiring Kit thumbnail image

5 star
89%
4 star
11%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.9
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Best bang for the buck

The following review is for XKIT82, which is a part of the bundle you are viewing.

DO NOT buy Non-Name brand kits that are under 50$, Get this one, NVX is a brand name and they don't cut corners on their products. This kit is everything I needed to install my 12" Rockford Fosgate sub, The gauge is true to spec, everything is fine, the RCA cables are top notch, highly recommend

By anton on March 9, 2014

154 found this helpful


Great Deal!!

The following review is for XKIT82, which is a part of the bundle you are viewing.

I dont think I can find another kit that is as good as this one. Sure is very high quality as well as the materials of the sure insulator. It just feels right. Realy heavybduty too. Just buy it. Good stuff.

By Bugatti on January 30, 2014

144 found this helpful


The Real Deal

The following review is for XKIT82, which is a part of the bundle you are viewing.

I originally purchased this kit because it was a good price and I liked the idea of having true-gauge wire. I was leery of the stuff at my local store as it looked a little cheap. Lots of plastic and not much wire. Not the case here. This is a high-quality wiring kit that gets you everything you need for a basic amp install. Convenient markings on the wire to help you lace the fuse holder and measure your speaker wire. High quality covering and wire, very flexible and plenty of length to help you do a quality job. The connectors supplied could be a little better, but they did do the job. It is nice they are stiff metal, but hand-crimping effectively was a little rough. That is a minor complaint.

I have since purchased a second kit for another amp and from now on NVX is a go-to brand for me.

By Mark on January 17, 2015

141 found this helpful


amp kit

The following review is for XKIT82, which is a part of the bundle you are viewing.

This is the first time going with NVX. Now..... NVX will be what I always go with.

By Shannon on October 1, 2014

139 found this helpful


Great ofc kit

The following review is for XKIT82, which is a part of the bundle you are viewing.

This is a great kit all of the wires including the RCA is super flexible, I would buy it again in a heartbeat

By Corey on April 26, 2014

137 found this helpful


NVX XKIT82

The following review is for XKIT82, which is a part of the bundle you are viewing.

I purchased this sub woofer set kit and it had everything needed to install the sub and all for a great price.I would recommend this kit for anyone needing the complete wire kit.

By Galen on March 3, 2014

136 found this helpful


Just what I needed, again!

The following review is for XKIT82, which is a part of the bundle you are viewing.

This amp kit is perfect for installing the 3channel JBL amp I purchased. Amazing quality for the best price out there. Do yourself a favor and look at everything NVX.

I had an extra RCA laying around so I only needed one.

By Ryan on January 19, 2014

135 found this helpful


quick turnaround

The following review is for XKIT82, which is a part of the bundle you are viewing.

When I ordered the product it was out of stock. Estimated delivery was weeks away, but it arrived just a few days later. True 8AWG OFC power and ground cable, high quality remote lead and high quality rca's and speaker leads. 10/10 would purchase again

By AK on May 17, 2015

105 found this helpful


I love it

The following review is for XKIT82, which is a part of the bundle you are viewing.

I'm glad I bought this kit it has everything I needed and the quality is excellent.

By Peter on April 26, 2015 Checkmark Icon Verified purchase

104 found this helpful


professional look

The following review is for XKIT82, which is a part of the bundle you are viewing.

I got this for free when i purchased my amp that it was recommended for. I was a little skeptical at first. But after a quick reference to my apm's manual and a little reassurance from the knowledgeable techs at sonic, i was ready. The whole kit come with everything you need and more. The quality is great and looks awesome. I also got a nvx bass knob as well. Thanks sonic.

By Keon on August 10, 2015

91 found this helpful



AVIC-U310BT small

Pioneer AVIC-U310BT Factory Refurbished

In-Dash Double DIN 4.3" Touchscreen Monitor w/ CD, MP3, WMA, AAC, SD, USB Reciever. Built-in Bluetooth and GPS Navigation

(1)

$279.99

List price $699.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Acura RDX

1974 Mercury Capri

1974 Ford Maverick

2019 Lamborghini Urus

1996 Lexus SC300

2015 Mitsubishi Lancer

2007 Aston Martin DB9

2012 Chevrolet Camaro

2016 Hyundai Veloster

2015 Lincoln MKT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
