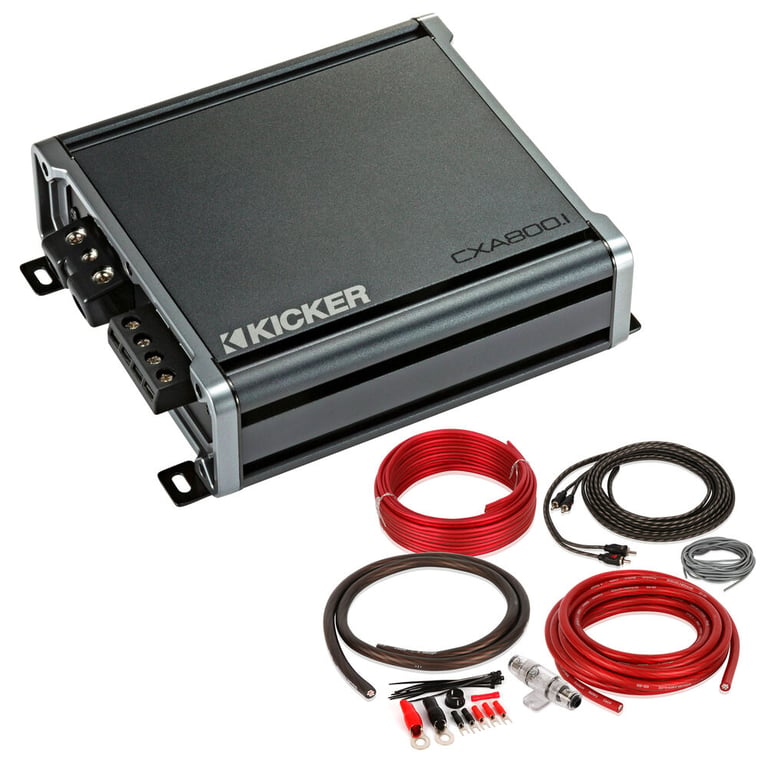

Kicker 46CXA8001 with Amplifier Wiring Kit

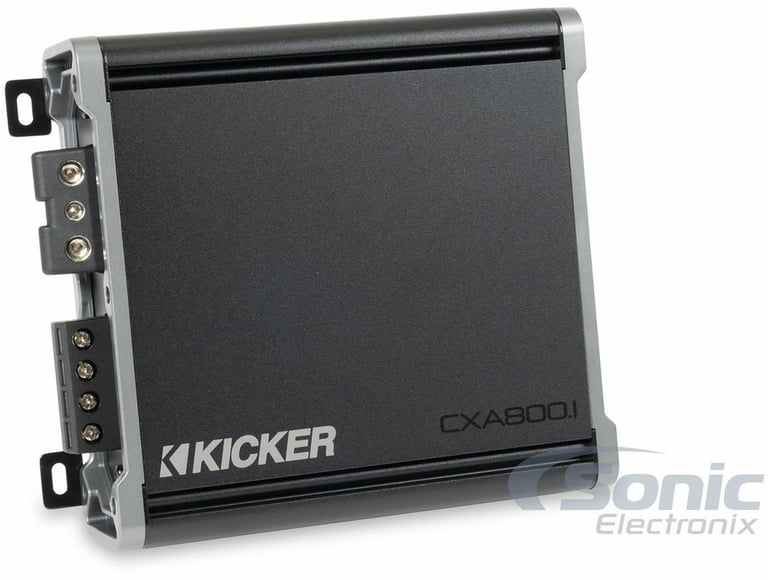

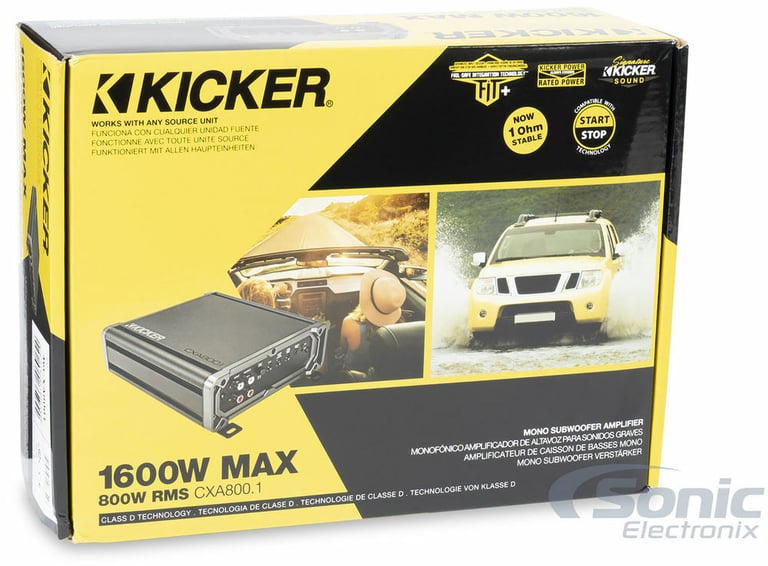

Kicker CXA800.1

This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! Using a Class-D power plant, the CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system.

General Features:

• Class-D 1-Ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 300 watts x 1 chan.
• 2 ohms: 600 watts x 1 chan.
• 1 ohm: 800 watts x 1 chan.
• Mono channel operation
• Speaker-level (high-level) inputs
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio

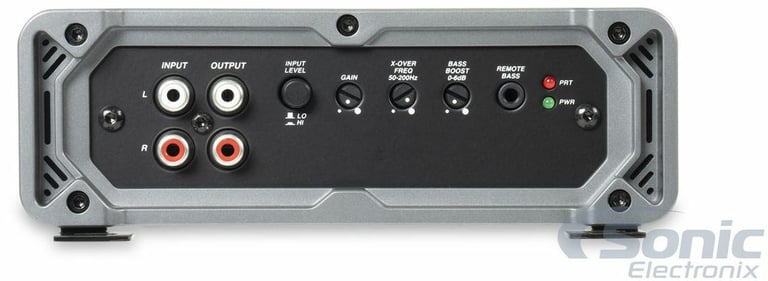

• Input sensitivity:
• Low level: 250mV-10V
• High level: 1V-40V
• Frequency Response: 25 - 200 Hz
• Signal to Noise Ratio: >95 dB
• Variable low-pass filter: 50 - 200 Hz, 12 dB/octave
• Subsonic filter: 25 Hz , 24 dB/octave
• Variable Bass Boost: 0 to +6 dB bass boost at 40 Hz

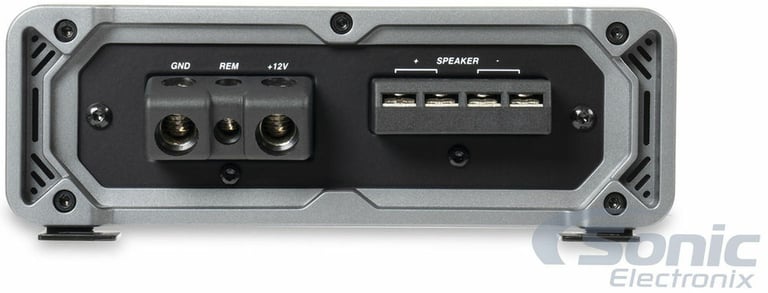

• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 6-3/4"W x 8-1/8"L x 2-3/8"H
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty

Product Details:

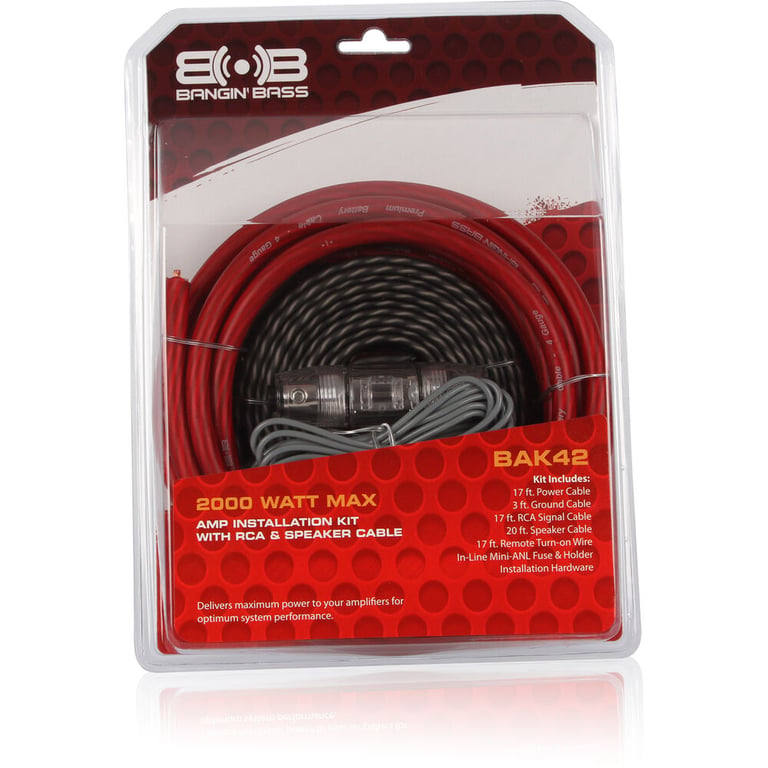

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Also available in Blue and Red
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

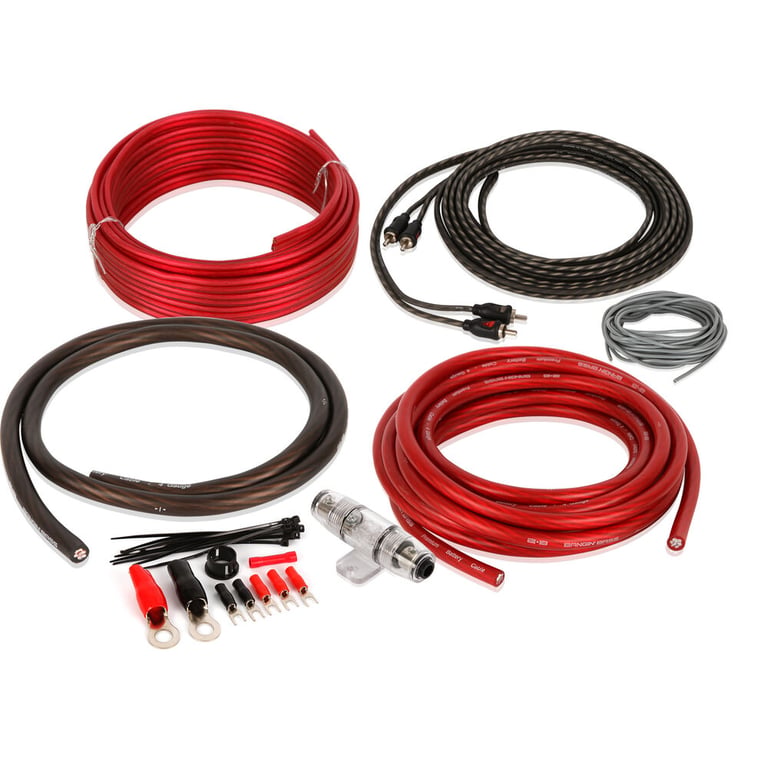

Kit includes:

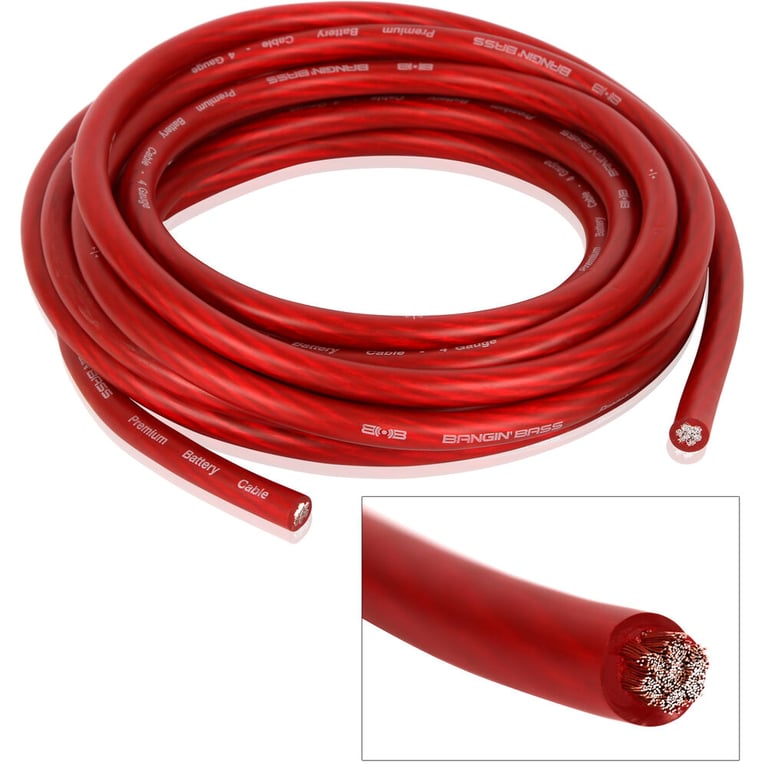

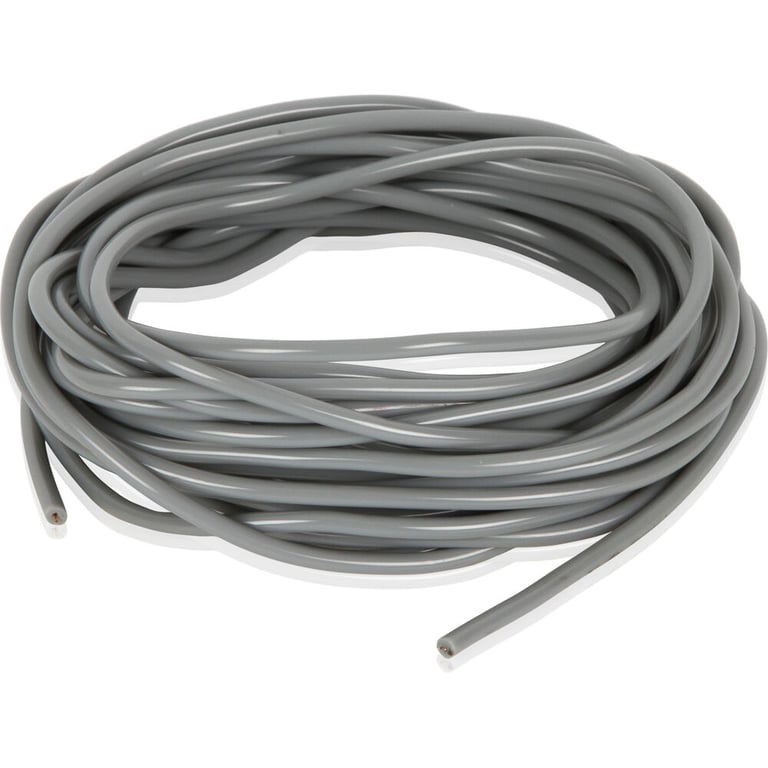

1. 17 ft. (5.2 meters) Gray 4 gauge power wire

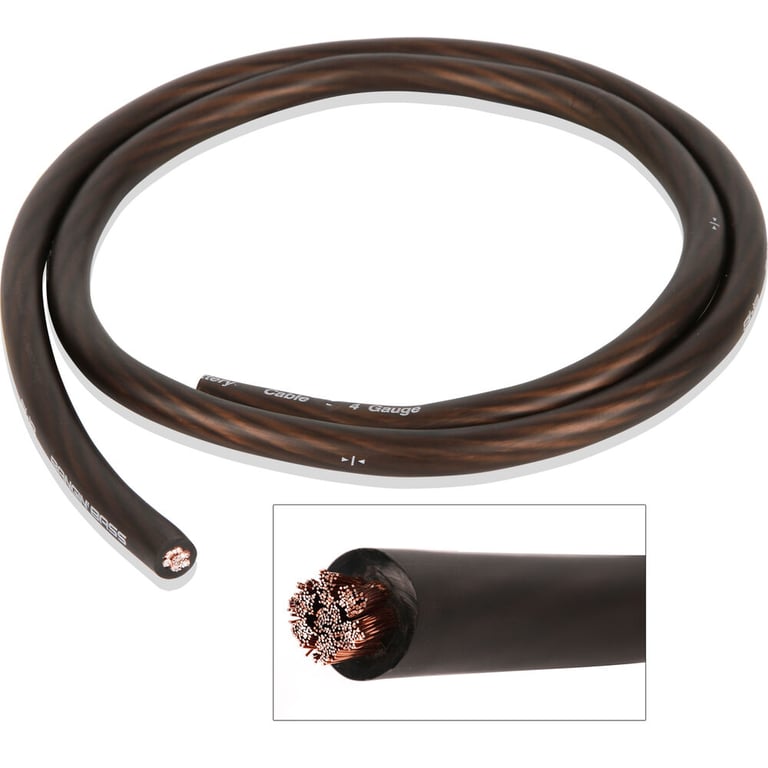

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

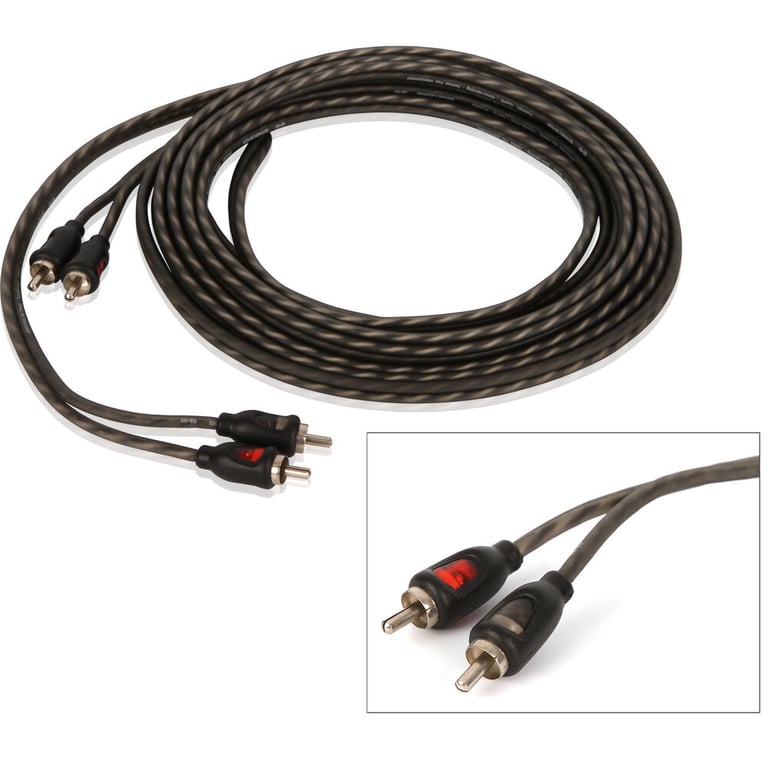

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

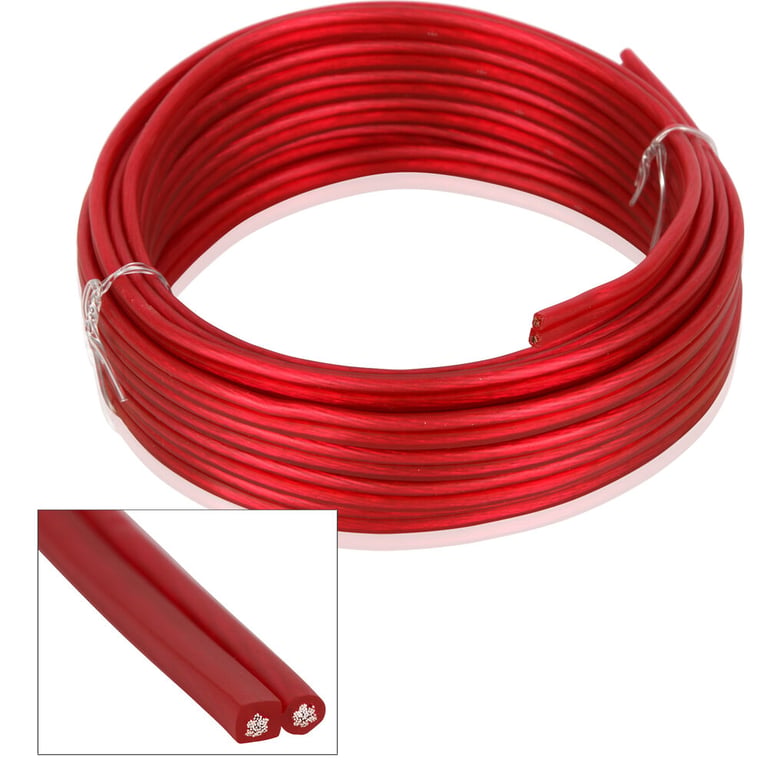

5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

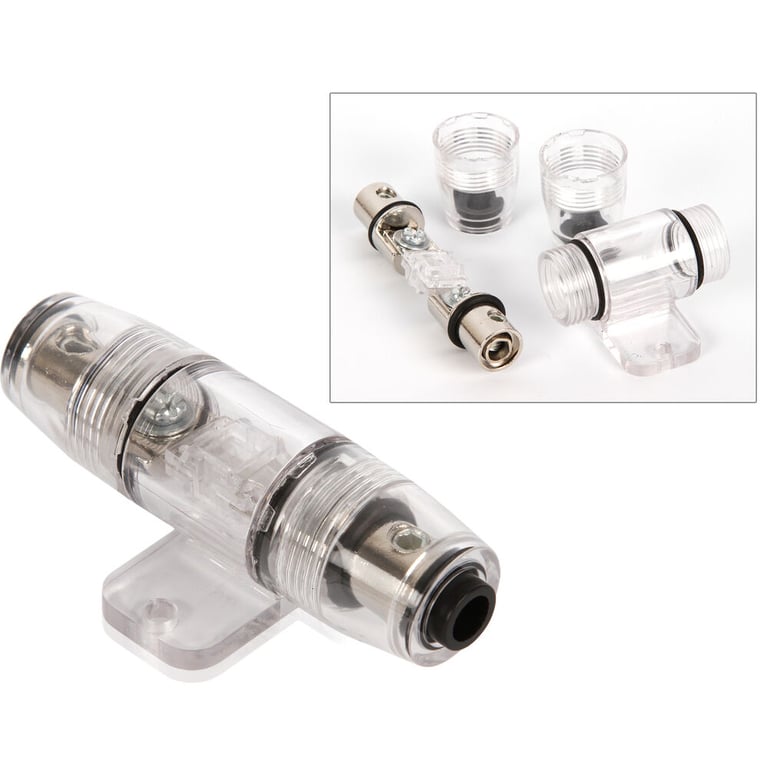

6. One MINI-ANL Fuse Holder with a 80 amp fuse
7. One Black rubber firewall grommet

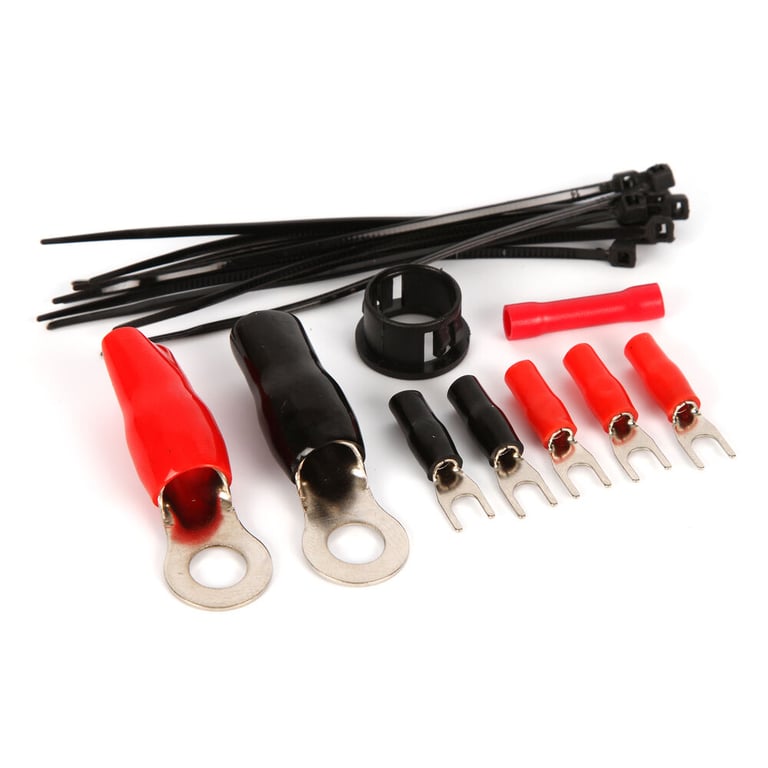

8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
