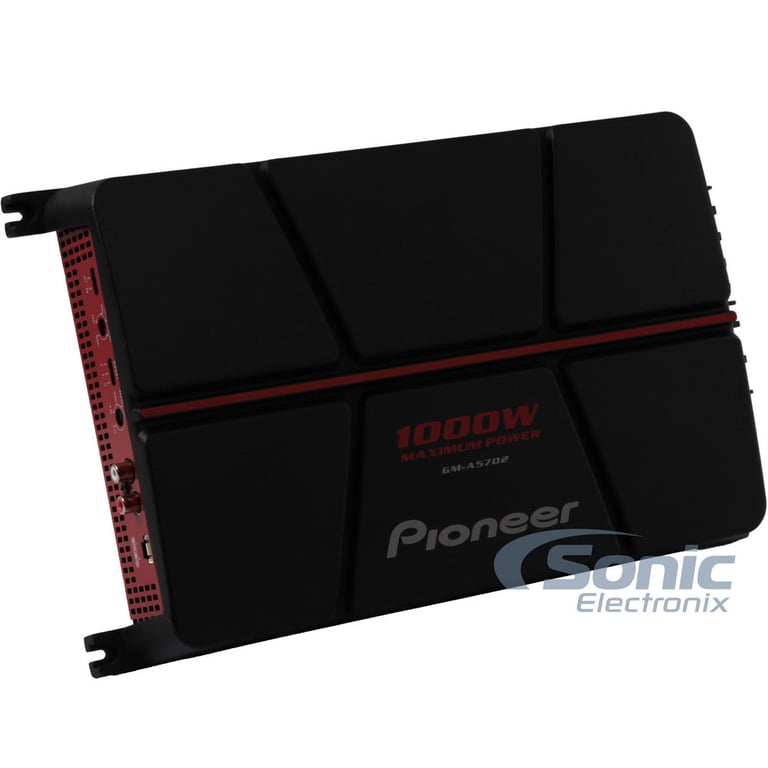

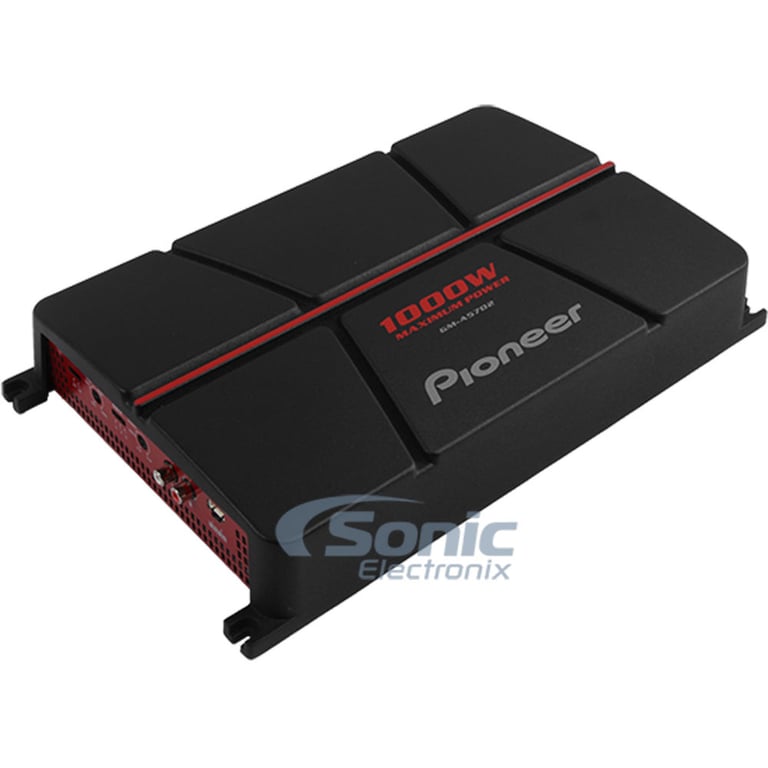

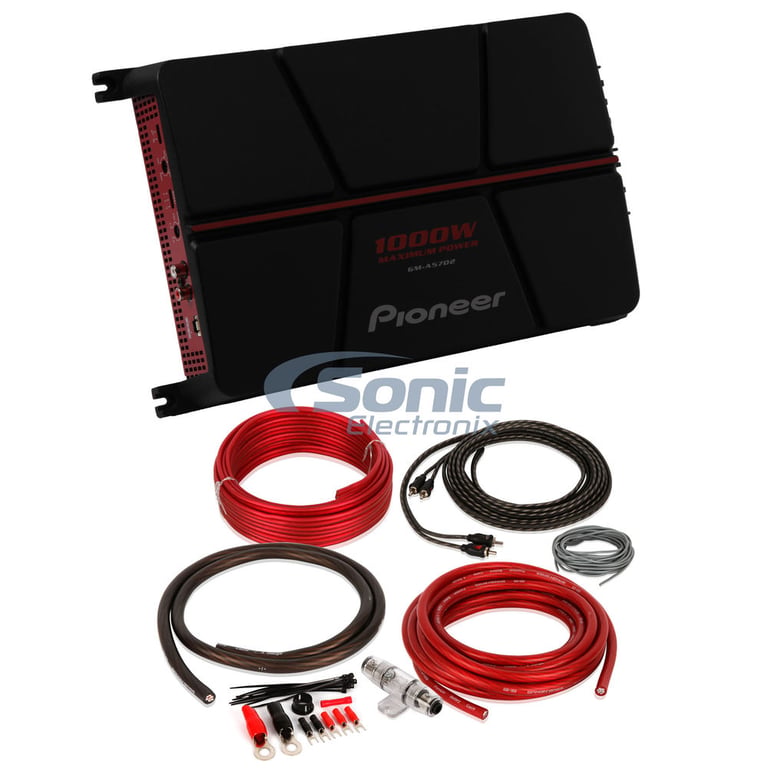

Pioneer GM-A5702 2 Channel Amplifier w/ Complete 4 AWG Amp Kit

480W RMS 2-Channel A Series Bridgeable Class AB 2-Ohm Stable Car Amplifier

Pioneer
Shop all Pioneer
highlight-star-icon

• RMS: 150W x 2 @ 4 ohm, 240W x 2 @ 2 ohm, 480W x 1 @ 4 ohm
• Total Peak Power: 1000W
• CEA-2006 Compliant
• Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H
• Complete 4 Gauge 2-Channel Amplifier Installation Kit

Learn more about the gma5702_bak42

We apologize

This item has been discontinued


Loading...
NSB710 main

American International NSB710

6.5" or 6.75" Speaker Mounting Adapters for select 1995-2019 vehicles from Nissan, Infiniti, Suzuki

17
-64.74%

$11.99

List price $34.00

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
Limited time!
DMX4710S main

Kenwood DMX4710S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM & iDatalink Maestro Ready)

2
-37.71%

$299.00

List price $480.00

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Limited time!
XAV-AX4000 main

Sony XAV-AX4000

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius XM Ready)

4
-25.33%

$448.00

List price $599.99

H7652 main

Cerwin Vega H7652

640W Peak (120W RMS) 6.5" HED Series 2-Way Coaxial 4-ohm Speakers

31
-16.67%

$69.99

List price $83.99

Description


Pioneer brand icon

Authorized dealer

Pioneer GM-A5702

1000W Peak (480W RMS) 2-Channel Bridgeable Class AB 2-Ohm Stable Amplifier
Quantity: 1

General Features:

  • Pioneer A-Series GM-A5702
  • Class-AB FullRange 2-Ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 240 watts x 2 chan.
    • Bridged, 4 ohm: 480 watts x 1 chan.
  • Max power output: 1000 watts.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Balanced Isolator Input Circuit
  • LED power (on) and protect (off) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs with Signal Sensing Turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 300mV - 6.5V
    • High level: 3V - 26V
  • Frequency Response: 10 - 70,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >96 dB

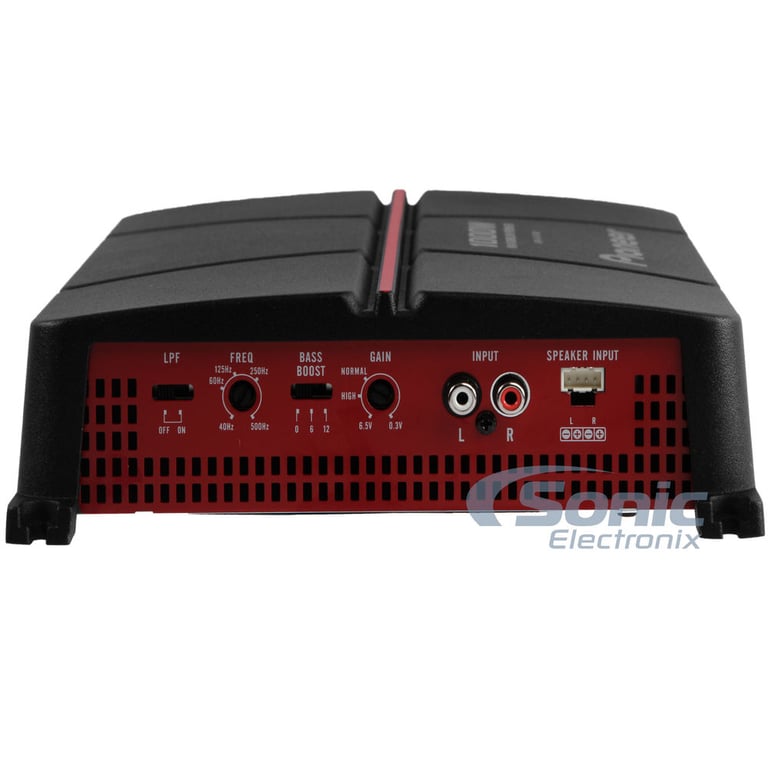

  • Selectable crossover modes: LPF / OFF
  • Variable crossover frequency 40 - 500 Hz, 12 dB/octave
  • Selectable Bass Boost: 0, +6 dB, +12 dB bass boost at 50 Hz

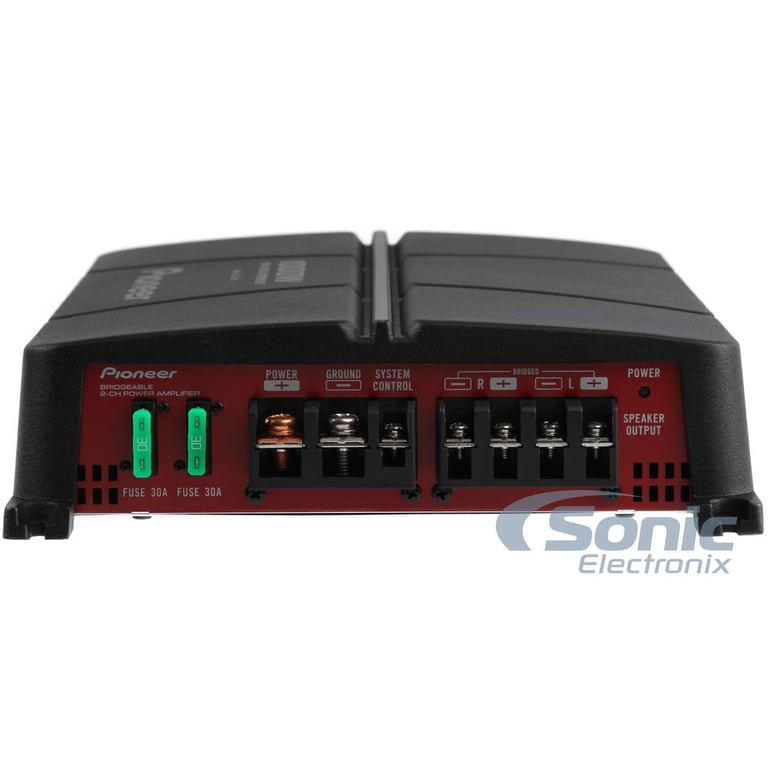

  • Fuse Rating: 30A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H
  • 1-year Sonic Electronix Warranty

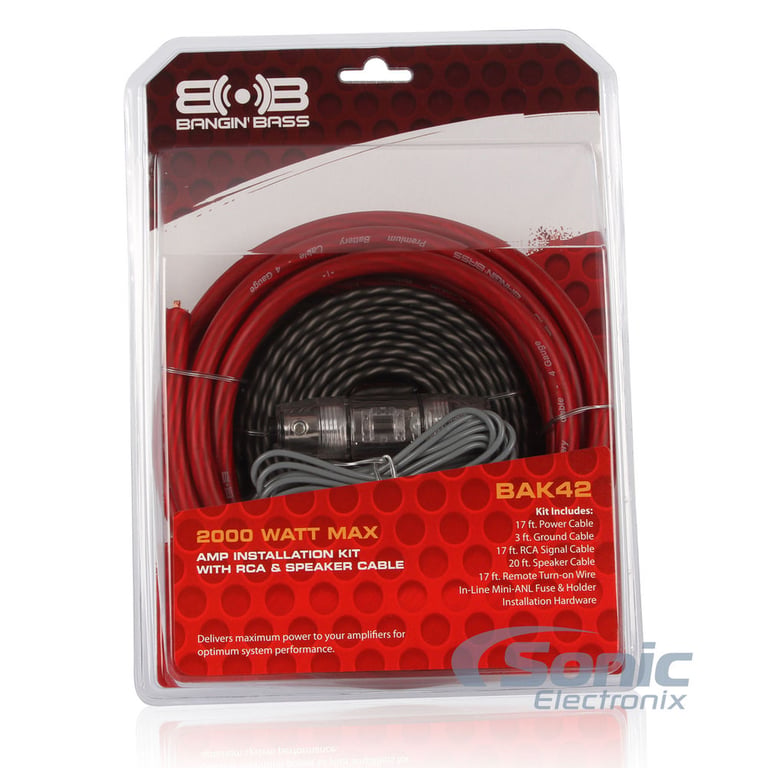

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

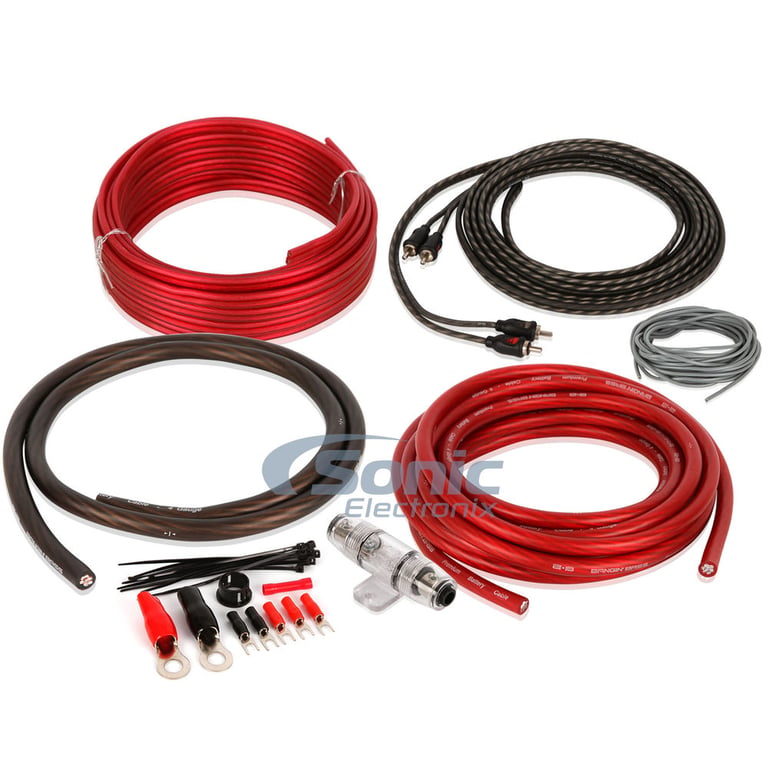

Kit includes:

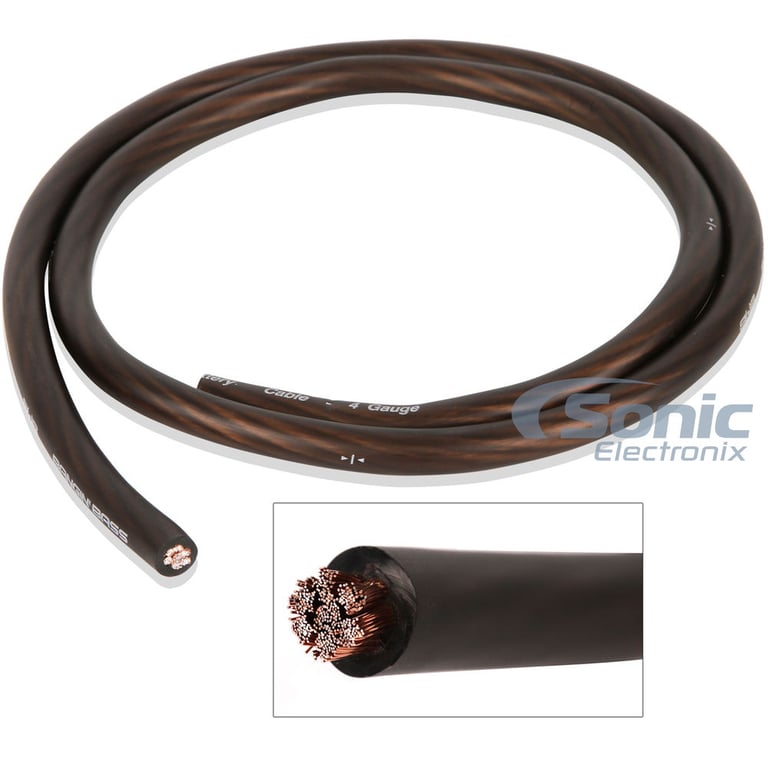

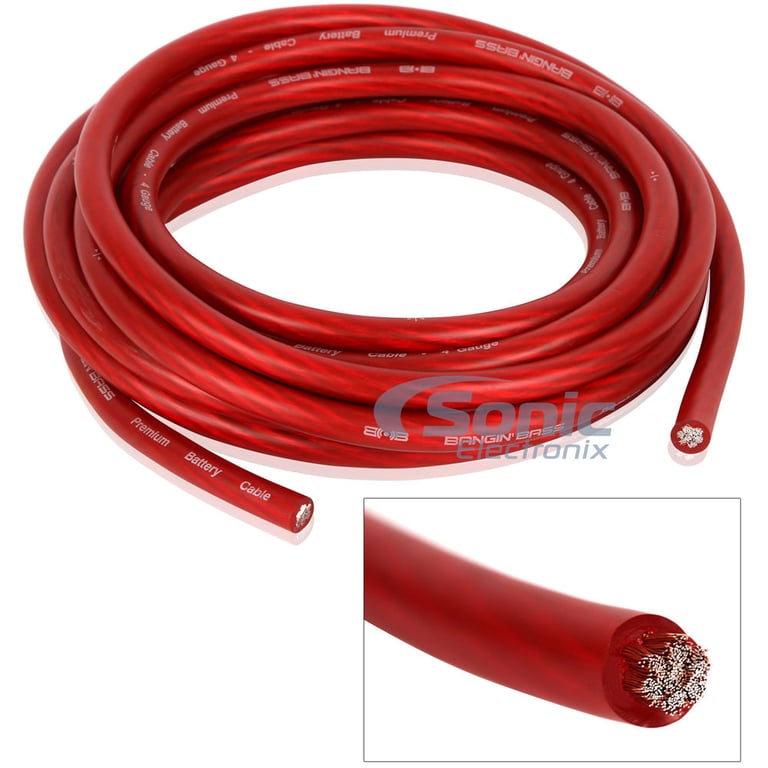

  1. 17 ft. Gray 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire

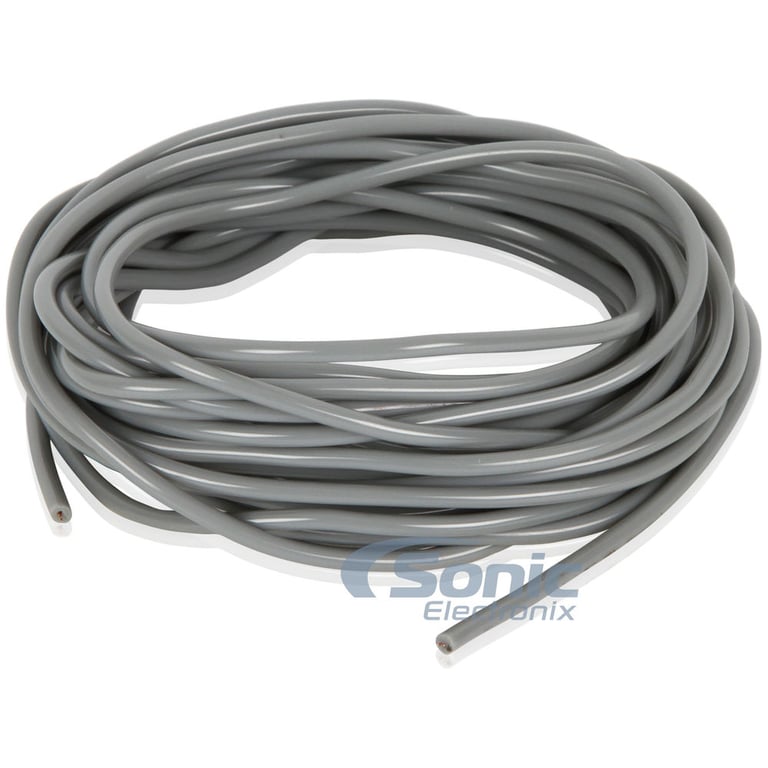

  3. 17 ft. Gray 18 gauge remote lead wire

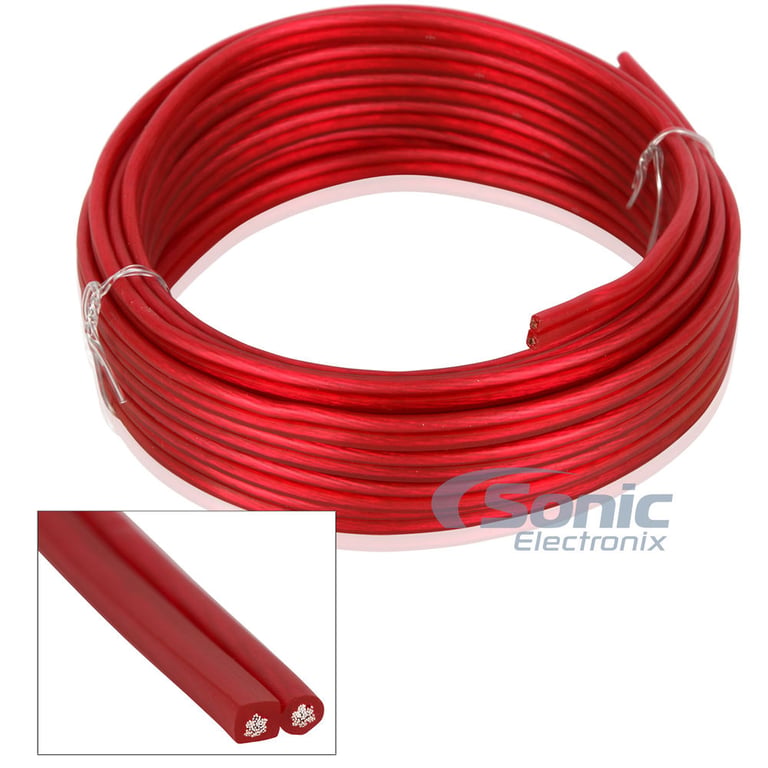

  4. 20 ft. 16 gauge speaker wire

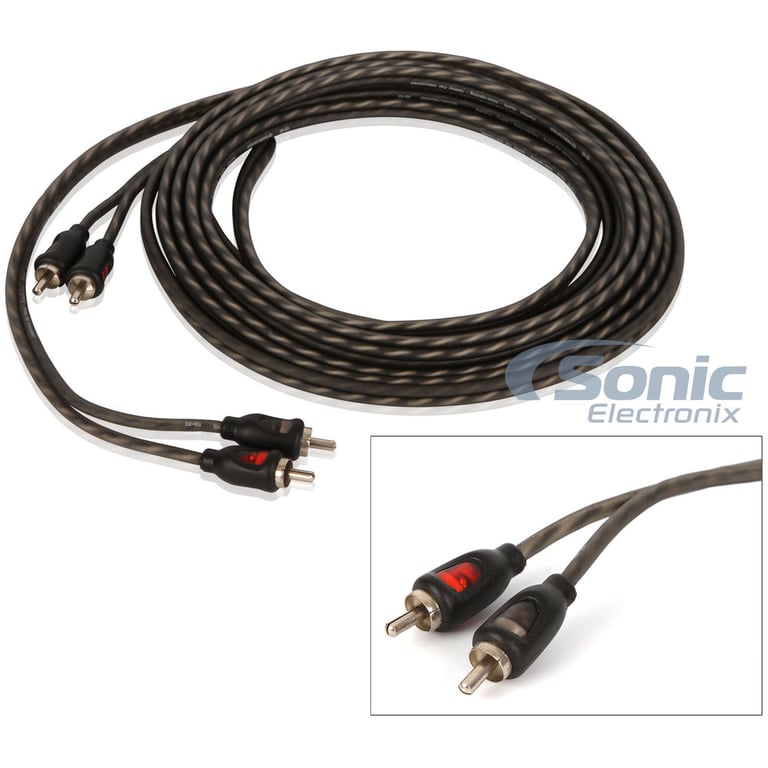

  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

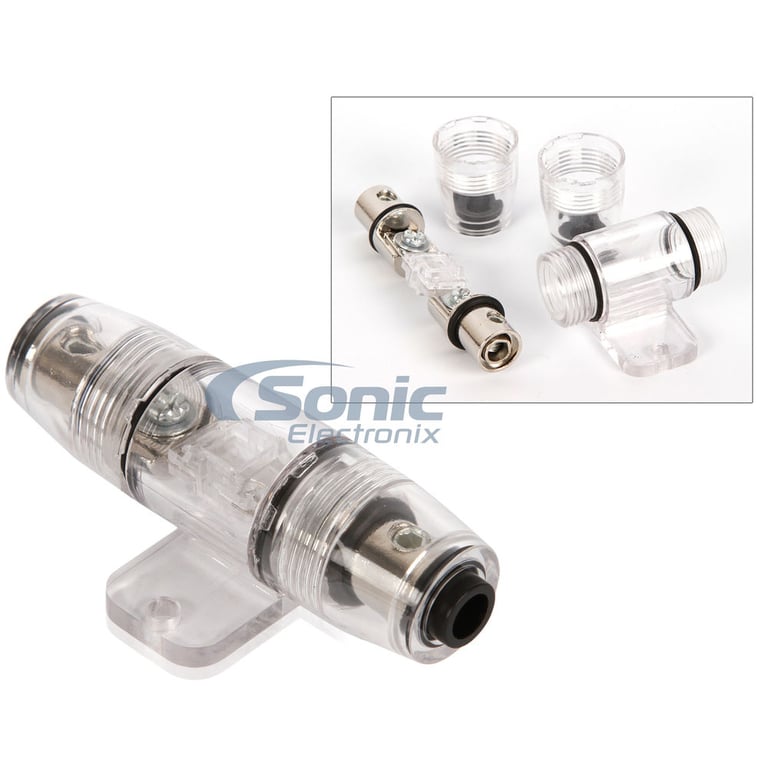

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet

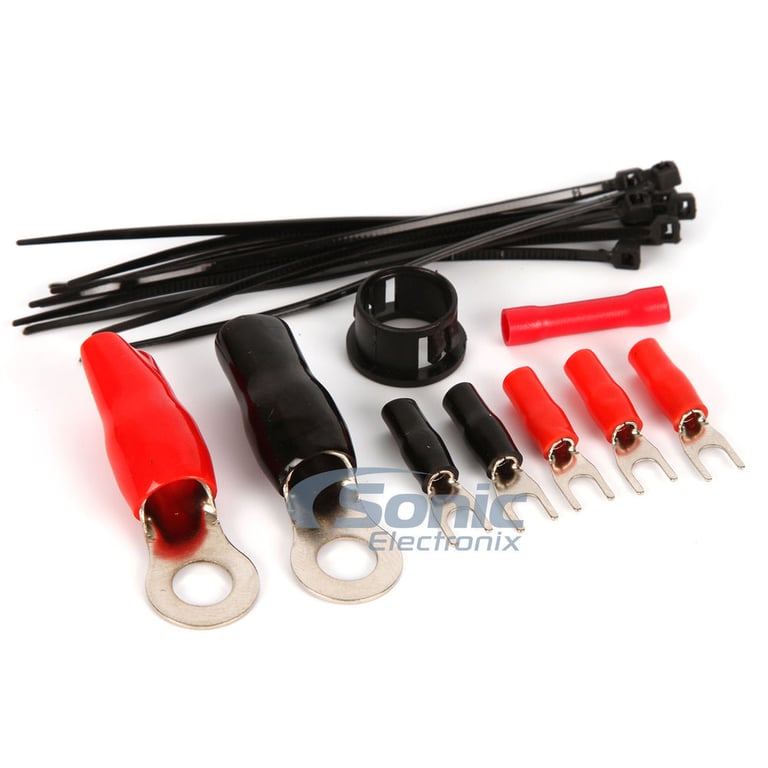

  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

DAX1050XR_MRR_FLJL1_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2018-2023 Wrangler (JL) and Gladiator
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function
• does not retain backup cam / see fitment for factory screen size

(38)

$1833.97

List price $2419.97

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
240 watts x 2 channel
Bridged RMS Power
480 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
480 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
Selectable: 0dB / 6dB / 12dB
Remote bass/level controller
No
Fuse Rating
30A x 2
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
20 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

BAK42BK,GM-A5702

Weight:

8.60lbs

Internal SKU:

gma5702_bak42

Internal Product ID:

128907

Customer Ratings & Reviews


Pioneer GM-A5702 2 Channel Amplifier w/ Complete 4 AWG Amp Kit thumbnail image

5 star
82%
4 star
12%
3 star
6%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.6
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

Quality Product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Works very well with my Rockford Fosgate sub system in my car.

By Ronald on December 11, 2014

135 found this helpful


good deal!

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Pretty decent value for the price. Worked out great, thanks.

By Brett on January 29, 2015

130 found this helpful


Usable

The following review is for BAK42BK, which is a part of the bundle you are viewing.

The wiring has done me right so far but the only thing I don't like is the speaker wires. You have to carefully split it so the wire doesn't show. Other than that minor thing everything was great and a great value!

By tyler on November 18, 2014

126 found this helpful


price is right

The following review is for BAK42BK, which is a part of the bundle you are viewing.

the price is right for this setup. the ground wire and the power wire are to big for my amp but i made them fit. better to have to much than not enough so if i upgrade to a larger amp it will be fine.

By Mark on November 13, 2014

123 found this helpful


Accessories for product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Just what I needed and made installation so much easier. Thanks

By Susie on February 9, 2015

113 found this helpful


awesome products

The following review is for BAK42BK, which is a part of the bundle you are viewing.

I run 2 12inch audiobahn exursions on this amp and it pushes them very well. The size is perfect not to big and fits right unerneath the seat or small space. The best part is it stays pretty cool even after running most the day.

By CJ on March 22, 2015

108 found this helpful


good wires

The following review is for BAK42BK, which is a part of the bundle you are viewing.

I like the wire kit I got with my amp it seems to be holding up goo it handles the power of the amp I got but I would of gave it 5 stars all the way around but I wold of like the ground at less 2 more feet for good use but over all its a nice kit

By jay on March 8, 2015

100 found this helpful


Good stuff

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Great product last a long time good value for the money.

By Brandon on December 7, 2014

106 found this helpful


Cable

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Good product fast shipping awsome seller... keep up the good work.....

By Rondell on November 9, 2015

84 found this helpful


Perfect kit

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Comes with everything you need. Works good with my 800w system

By Chad on May 14, 2020 Checkmark Icon Verified purchase

69 found this helpful



2-KFC-W112S_MMA2000.2_BAK42BK small

Kenwood 12" KFC Subs + Autotek Amp Package

2 Kenwood KFC-W112S 12" Subs, Autotek MMA 2000.2 Amp, Wiring Kit and Enclosure

$224.29

List price $589.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2010 Nissan Cube

1998 BMW 328i

2013 Mazda CX-9

2011 Hyundai Accent

2017 Chevrolet Trax

1996 Subaru Legacy

2009 Suzuki SX4

1999 Suzuki Swift

2004 Pontiac Aztek

2012 BMW 1 Series

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
