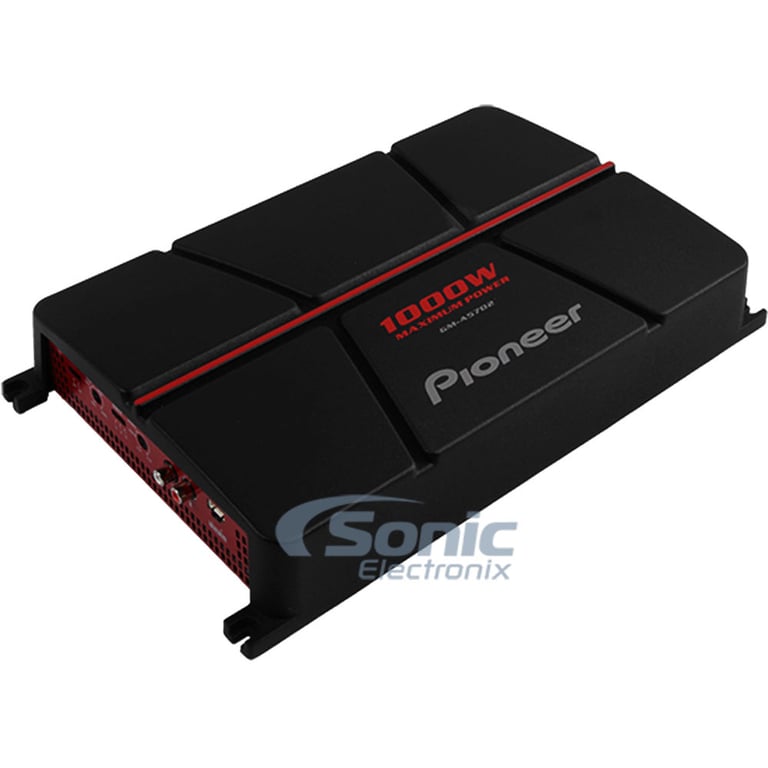

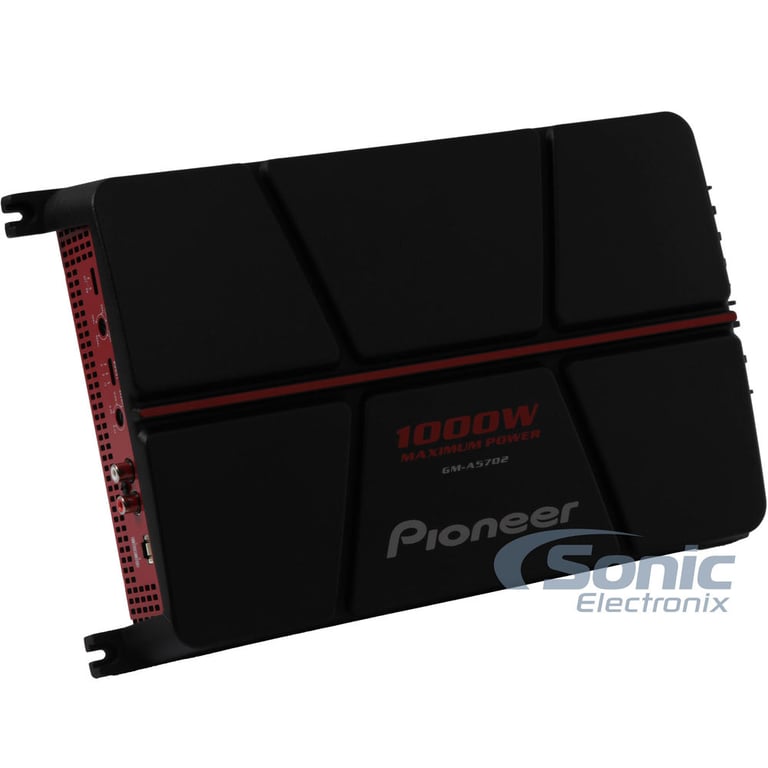

Pioneer GM-A5702

1000W Peak (480W RMS) 2-Channel Bridgeable Class AB 2-Ohm Stable Amplifier

Pioneer
Shop all Pioneer
highlight-star-icon

• RMS: 150W x 2 @ 4 ohm, 240W x 2 @ 2 ohm, 480W x 1 @ 4 ohm
• Total Peak Power: 1000W
• CEA-2006 Compliant
• Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H

Learn more about the gma5702

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

HKSB110 main

American International HKSB110

6.5" or 6.75" Speaker Mounting Adapters for select 2006-2021 vehicles from Hyundai, Kia

11
-51.31%

$18.99

List price $39.00

KAAB main

Scosche KAAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

11
-10.96%

$6.99

List price $7.85

72-7300 main

Metra 72-7300

Install New Speakers in select 1998-2021 vehicles from Hyundai, Kia, Toyota

8
-33.36%

$9.99

List price $14.99

70-7304 main

Metra 70-7304 Wiring Harness

Install a New Car Stereo in select 2010-2021 vehicles from Kia, Hyundai

14
-42.44%

$18.99

List price $32.99

82-3016 main

Metra 82-3016

Speaker Adapters to Mount Tweeter without Adapter or Modification for select 1990-2024 vehicles from Dodge, Subaru, Ram

1
-52.02%

$11.99

List price $24.99

40-KI10 main

Metra 40-KI10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

1
-41.20%

$9.99

List price $16.99

BE-KIAOPTG3-VSW104 main

NVX BE-KIAOPTG3-VSW102 BOOST Box

Custom Fit 500W RMS 10" Loaded BOOST Subwoofer Enclosure for 2011-2015 Kia Optima

1
-45.69%

$169.99

List price $312.99

95-7345B main

Metra 95-7345B Dash Kit

Install a new Double-DIN car stereo in select 2011-2013 Optima (Matte Black)

3
-48.50%

$16.99

List price $32.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Description


Pioneer brand icon

Authorized dealer

General Features:

  • Pioneer A-Series GM-A5702
  • Class-AB FullRange 2-Ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 240 watts x 2 chan.
    • Bridged, 4 ohm: 480 watts x 1 chan.
  • Max power output: 1000 watts.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Balanced Isolator Input Circuit
  • LED power (on) and protect (off) indicators
  • Soft start turn-on
  • 2 or Mono channel operation

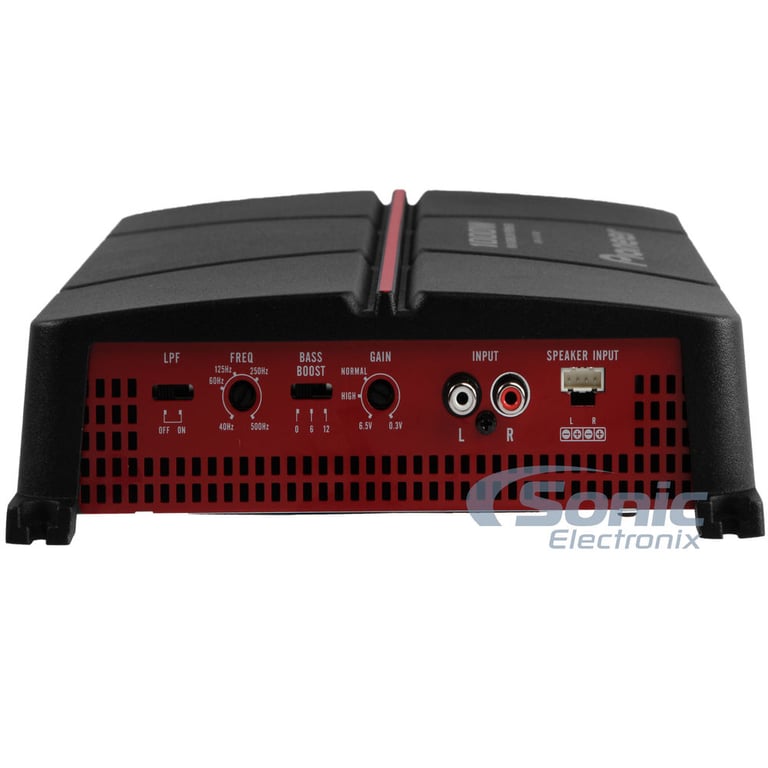

  • Speaker-level (high-level) inputs with Signal Sensing Turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 300mV - 6.5V
    • High level: 3V - 26V
  • Frequency Response: 10 - 70,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >96 dB
  • Selectable crossover modes: LPF / OFF
  • Variable crossover frequency 40 - 500 Hz, 12 dB/octave
  • Selectable Bass Boost: 0, +6 dB, +12 dB bass boost at 50 Hz

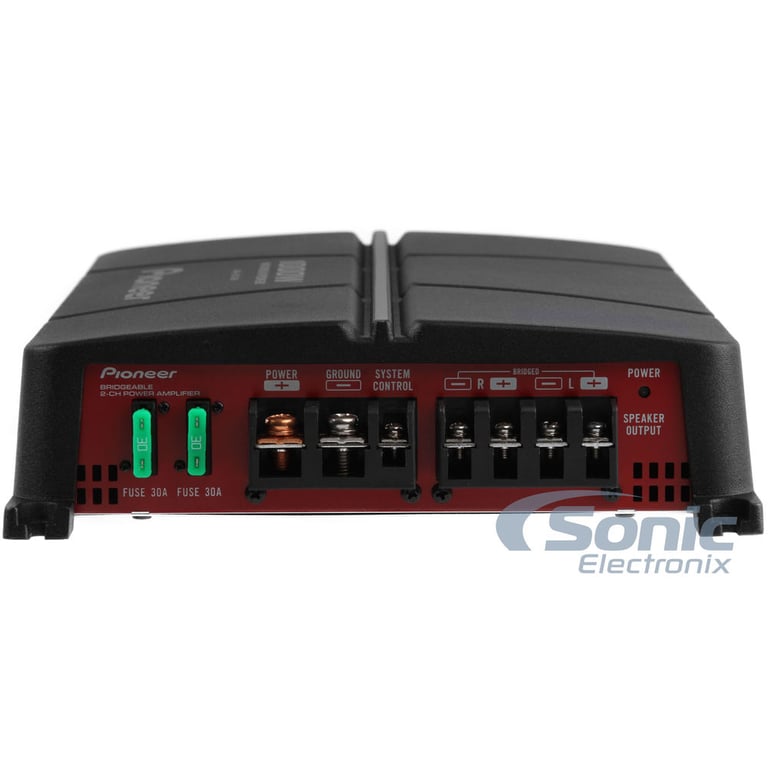

  • Fuse Rating: 30A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-3/4"W x 8-1/2"L x 2-1/2"H
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer GM-A5702 thumbnail
(newest, current model)
Pioneer GM-A5602 thumbnail
(previous model, replaced by Pioneer GM-A5702)
Pioneer GM-5500T thumbnail
(previous model, replaced by Pioneer GM-A5602)
Pioneer GM-5400T thumbnail
(previous model, replaced by Pioneer GM-5500T)
Pioneer GM-5300T thumbnail
(previous model, replaced by Pioneer GM-5400T)

Loading...
BE-KIAOPTG3-VSW104 main

NVX BE-KIAOPTG3-VSW102 BOOST Box

Custom Fit 500W RMS 10" Loaded BOOST Subwoofer Enclosure for 2011-2015 Kia Optima

1
-45.69%

$169.99

List price $312.99

PBK-BE-KIAOPTG3-VS102 main

NVX PBK-BE-KIAOPTG3-VS102 - 2011-2015 Kia Optima - Complete Bass Package

For select 2011-2016 Optima and Optima Hybrid - 10" 500W RMS Complete Amplified Subwoofer Bass Package Solution

89
-34.28%

$511.96

List price $778.96

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
240 watts x 2 channel
Bridged RMS Power
480 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
300 watts x 2 channel
Peak Power @ 2 ohms
500 watts x 2 channel
Bridged Peak/Max Power
1000 watts x 1 channel
Amplifier Specifications
Series
GM Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
480 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
Selectable: 0dB / 6dB / 12dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-A5702

Weight:

6.00lbs

Internal SKU:

gma5702

Internal Product ID:

121759

Customer Ratings & Reviews


Pioneer GM-A5702 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.8
Features
4.3
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

pioneer

not only did it meet my exptions it blew me away . thats y pioneer lasted so long.

By keith on March 1, 2018

14 found this helpful


Great product

Product is more than enough power to run my equipment. The price is also great

By Anonymous on July 17, 2019

13 found this helpful


Bad ass

Used these with a pair of 8” pro with tweeters and it’s just perfect

By Anonymous on July 3, 2019

13 found this helpful


BIG BANG FOR little buck!

Actually enough power for quick fix until get bigger amp. 4 12 inch Kenwood road series. Gets hot though.

By DUVAL BANGEM on May 4, 2020

11 found this helpful




BU-CP4-P small

Baretta USA BU-CP4-P (BU-CUP4P MAT)

Ultrasonic Parking Sensor System w/ Alert Buzzer (Black)

$34.99

List price $99.99

APL1-NAN4G-20-C3OTR small

OtterBox APL1-NAN4G-20-C3OTR (Black)

Impact Series Case for iPod nano 4G

$11.99

List price $19.95

RS &amp; HDR 160/170 Headband Pads (534471) small

Sennheiser - 534471

Authentic Original HDR 160/HDR 170/RS 160/RS 170 Headphones Cushions Replacement Headband Padding

(5)

$14.95

List price $29.95

No picture

NVX VSPTW (Open Box, Great)

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

$34.99

List price $79.99

BU-CP8-L2 small

Baretta USA BU-CP8-L2

8 Sensor Ultrasonic Parking Sensor System w/ Distance Display (Matte Black)

$114.99

List price $249.99

No picture

NVX XWS0820 (Like New (Open Box))

20 ft of 8 Gauge True Spec 100% Oxygen-Free Copper (OFC) Speaker Cable/Wire

$42.49

List price $64.99

No picture

NVX XWS12100 (Like New (Open Box))

100 ft. of True Spec 12 Gauge EnvyFlex Speaker Cable/Wire (100% Oxygen-Free Copper)

$63.74

List price $89.99

MX770-ETXv3-SG-TK small

JL Audio MX770-ETXv3-SG-TK

225W Peak (70W RMS) 7.7" MX-Series Coaxial Marine Speakers with Enclosures

(2)

$599.99

List price $749.99

Replacement HDR160/HDR170 Ear-Pads (534470) small

Sennheiser Original RS160/RS170 & HDR160/HDR170 Replacement Ear-Pads - 534470

Genuine Original Replacement Ear Cushions for RS160/RS170/HDR160/HDR170 Headphones (1-Pair)

(6)

$29.95

List price $39.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Kia Optima

2014 Mitsubishi Outlander

2015 Ford Expedition

2006 Ford Freestyle

2016 Volkswagen CC

1971 Ford Thunderbird

2015 Audi RS7

2001 Chrysler Sebring

2009 Subaru Legacy

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
