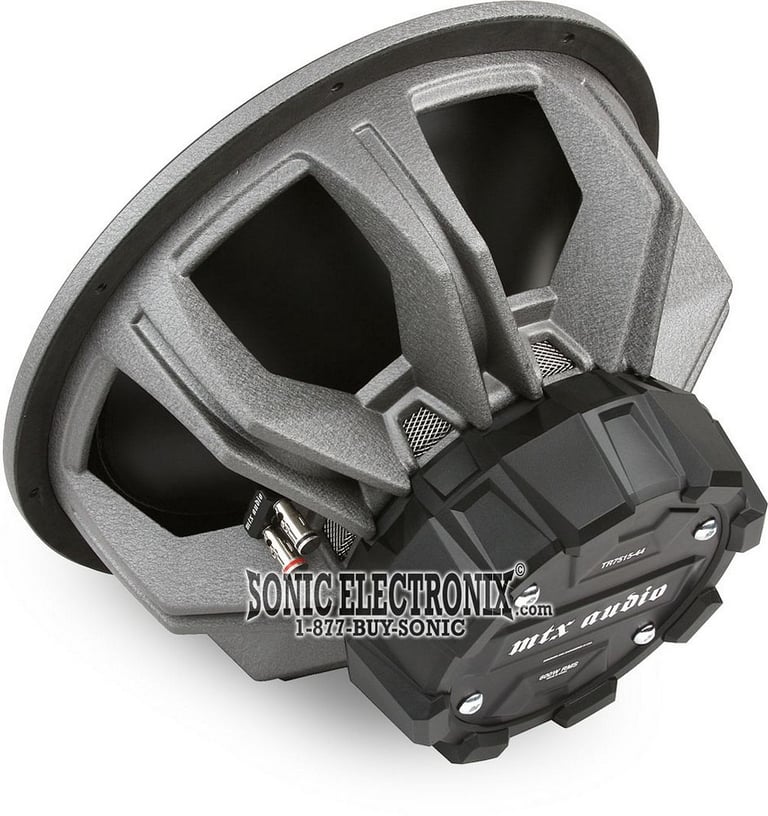

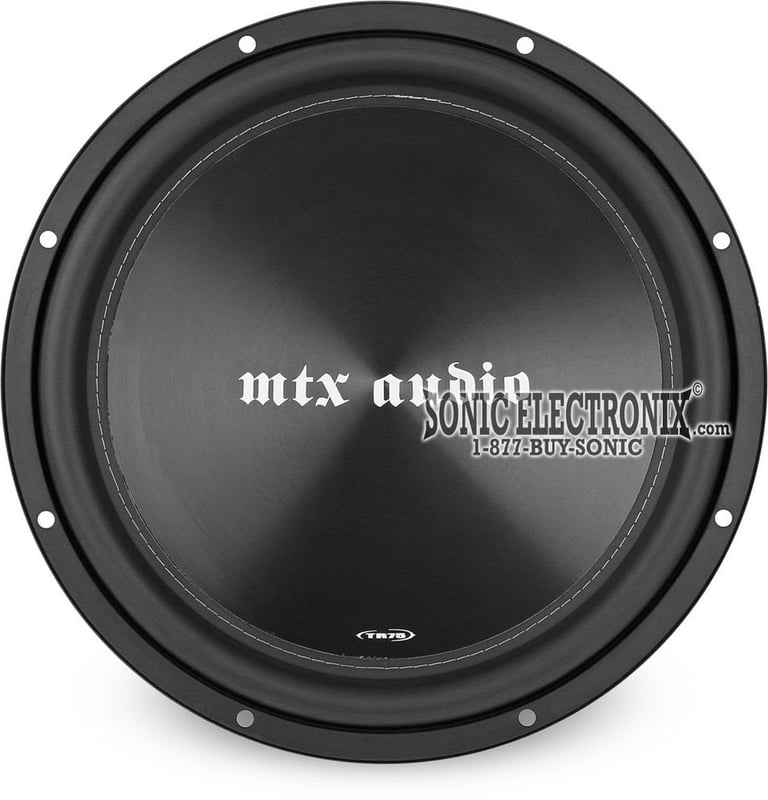

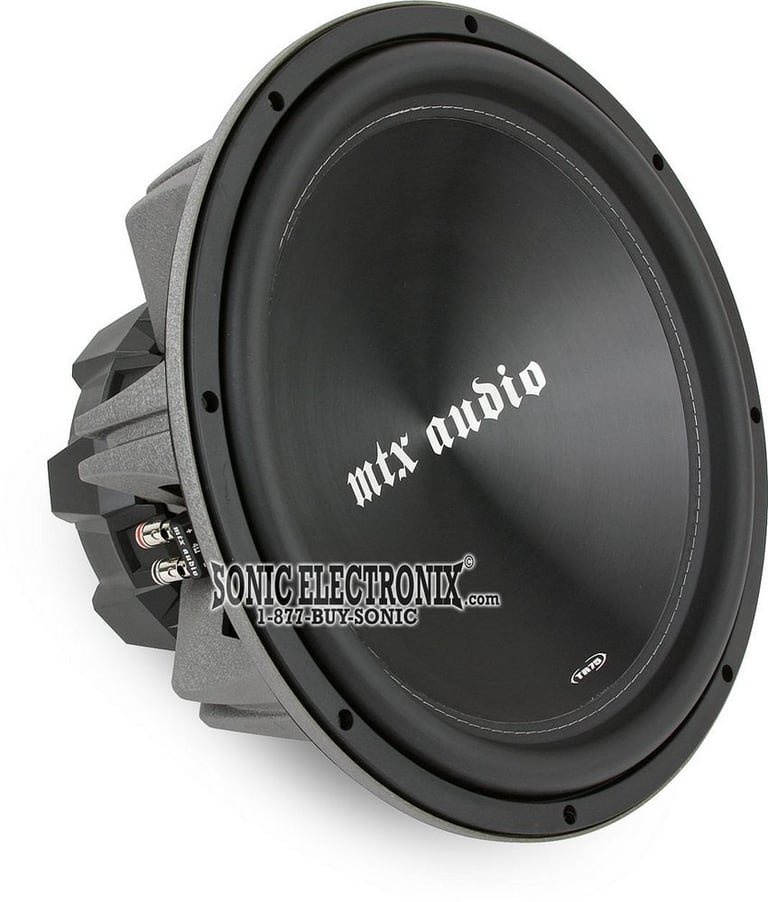

MTX Audio TR7515-22

15" Dual 2 ohm TR75 Thunder Round Series Subwoofer

MTX
Shop all MTX
Product videos
highlight-star-icon

15" Dual 2 ohm TR75 Thunder Round Series Subwoofer • 1200W Max • 600W RMS • Impedance: Dual 2 ohm • Polypropylene cone woofer • Stitched NBR surround • 2.4" High temperature voice coil • 130oz. Magnet

Learn more about the tr751522

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Product Highlights


15" Dual 2 ohm TR75 Thunder Round Series Subwoofer • 1200W Max • 600W RMS • Impedance: Dual 2 ohm • Polypropylene cone woofer • Stitched NBR surround • 2.4" High temperature voice coil • 130oz. Magnet

Description


MTX brand icon

Authorized dealer

Bass: Unleashed

The leader in the Thunder Round line-up from MTX Audio is the TR75 series. These subwoofers have a host of features designed for performance including a die cast aluminum basket, a black anodized aluminum dust cap for strength, compression molded NBR surround for extreme excursion, and 8 gauge nickel compression terminals designed to deliver big power from your amp to these subs.

The MTX Audio TR7515-44 subwoofer can handle 600 watts of RMS power. This continuous power handling gives the subwoofer the voice it needs to output high levels of bass. When powered by a compatible amplifier, it will have accurate bass response with gut-wrenching lows frequency reproduction. Etched in the front on the dust cap is the gothic-style MTX Audio logo that shows all admirers who created this beast.

Authorized MTX Dealer
  • 15" Dual 2 ohm TR75 Thunder Round Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: Dual 2 ohm
  • Polypropylene cone woofer
  • Stitched NBR surround
  • Die-cast, stamped aluminum basket
  • 8-gauge nickel compression terminals
  • Rubber magnet boot
  • ALDS (Asymmetrical Linear Drive System)
  • Flat progressive spider
  • Extended pole piece for smooth, linear, piston like drive
  • Exclusive spider plateau venting cooling system
  • 2.4" High temperature dual 2 ohm voice coil
  • 130oz. Magnet
  • Sensitivity: 90 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MTX Audio TR7515-22 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MTX Audio TR7515-22 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MTX Audio TR7515-22 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 MTX Audio TR7515-22 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
15"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.75 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
2.5 cubic feet
Maximum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
8.559"
Cutout Diameter
13.9"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

TR7515-22

Weight:

33.00lbs

Internal SKU:

tr751522

Internal Product ID:

13269
