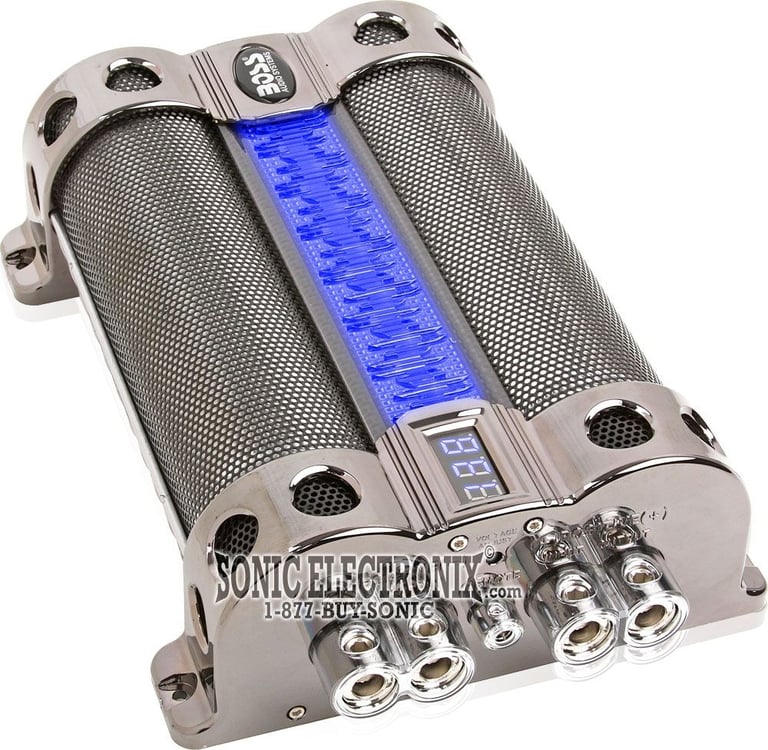

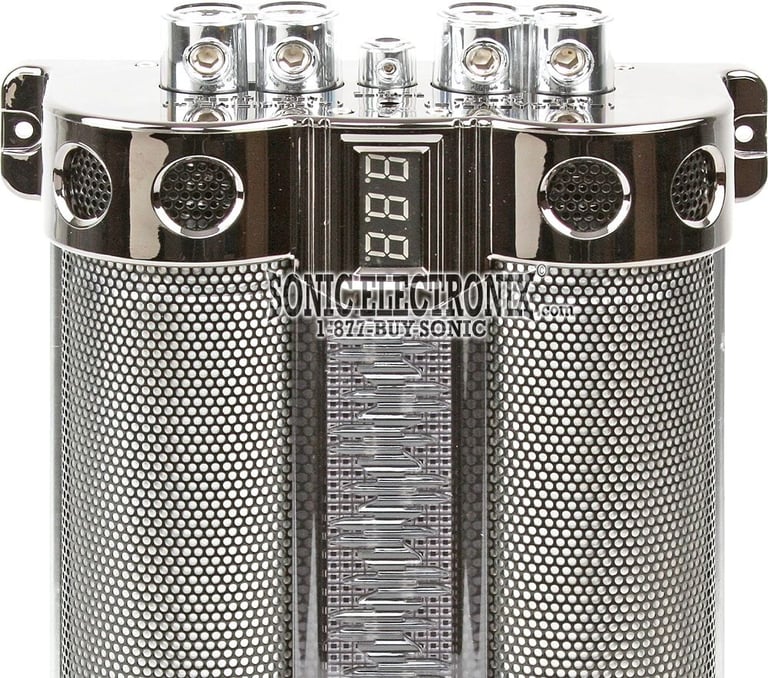

Boss CAP18

18 Farad Digital Hybrid Capacitor with Blue Illumination

Boss
Shop all Boss
Product videos
highlight-star-icon

• 18 Farad Digital Hybrid Capacitor with Blue Illumination
• 3-Digit, super bright LED voltage meter
• Voltage measure accurate to +/- 0.1VDC
• Blue illuminated window with light following played music
• Automatic sleep status when volume is low
• Warning tones protection

Learn more about the cap18

We apologize

This item has been discontinued

Product Highlights


• 18 Farad Digital Hybrid Capacitor with Blue Illumination
• 3-Digit, super bright LED voltage meter
• Voltage measure accurate to +/- 0.1VDC
• Blue illuminated window with light following played music
• Automatic sleep status when volume is low
• Warning tones protection

Description


Boss

Authorized dealer

  • 18 Farad Digital Hybrid Capacitor with Blue Illumination
  • 3-Digit, super bright LED voltage meter
  • Voltage measure accurate to +/- 0.1VDC
  • Blue illuminated window with light following played music
  • Automatic sleep status when volume is low or there is no voltage variation present
  • Warning tones for reverse polarity connection, over voltage (>17VCD), or low battery voltage (<10VDC)
  • Working voltage: 16VDC
  • Surge voltage: 20VDC
  • ESR (Equivalent Series Resistance): 0.015 ohm @ 120Hz, 25°C
  • Capacitance tolerance: +/- 10%
  • Dimensions: 11"L x 6-1/2"W x 3"H
  • 1-year Manufacturer's warranty

Specifications & Details


Capacitor Specifications
Capacitance (farads)
18 farads
Maximum Recommended Power Handling
LCD Meter Display
Yes
Maximum Input Gauge Size
4 AWG
Maximum Output Gauge Size
4 AWG
Built-In Distribution Block
No
Primary Color
Silver
Secondary Color
Blue
Illumination
Blue LED lights
Width
6-1/2"
Height
3"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CAP18

Weight:

7.50lbs

Internal SKU:

cap18

Internal Product ID:

13315

Product and How-to Videos


Customer Ratings & Reviews



5 star
44%
4 star
44%
3 star
0%
2 star
0%
1 star
11%



Durability
4.2
Value
4.5
Features
4.6
Design
4.9
Usability
4.2
Sort by:

Loading...

GOOD CAP

great amp, your car will perform as if you don,t even have a 1000rms amp hooked up. That's what i have, i say its worth the money.

By king henry on May 28, 2009

49

found this helpful.

BOSS CAP18

Fast delivery & great customer service, I recommend this website for electronics & will order in the future

By Jackie on December 23, 2008

48

found this helpful.

Nice Capacitor

No more dimming lights and rev problems with the engine. When the bass hits the engine would drop some RPM's while idling, but not anymore. Voltage goes to 13.5 and 13.1 when the bass hits. I have a 420w rms mono block along with a 70w x 4 rms amp. Not much, but enough to dim my lights and get the juice my engine needs. Installation was a breeze. Charging the capacitor was a pain. After 1 minute the resistor started smoking, and had to stop for couple seconds to let it cool. And after 10 minutes the cap was still at 8 volts (Using a multimeter). Would recommend getting a better quality, lower resistance resistor to avoid losing half your day charging it.
Overall: Perfect, works as intended

By Edwin on March 22, 2010

46

found this helpful.

Garbage

Worked for two seconds, yes I charged it up correctly before using it.

By Garbage on May 18, 2016

10

found this helpful.

After 5 years

Has been working great, but after 5 yrars it stopped working. Disconnected from my car to diagnose just to hear a rattle inside, so, as any engineer would do, I oppened it up. It uses 2 big unmarked capacitors as usual and an array of smaller 2.7V 25f capacitors. 3 of the 25f caps are bulged and the 4 one was missing, rattling inside the casing. It basically just blew up off the board leaving the corroded pins still soldered to the board. I will still attempt to buy good quality Rubicon caps and fix it. Wish me luck

By Ed on May 14, 2016

7

found this helpful.

Great product

This product has given my system an awesome boost. It worked just like it is designed to work.

By Jamesia on September 2, 2016

7

found this helpful.

great products at Sonicelectronix

I've purchased 3 amps. 1-4000 watt, 1-4 channel 2400 watt, 1- 2 channel 1000 watt. They where dimming my trucks head lights. I installed a 2 farid cap, it didn't help. So I order a Boss 18 farid cap. And I have all the juice I need and more. My amps all hit harder than ever before. Thank you for helping me with a great sound system in my little S10.

By Mike on August 24, 2015

9

found this helpful.

Boss CAP18 works better than expected

I was very skeptical about this item but it actually works, it helps with the dimming of the lights. im running a Hifonics Brutus BRX2416.1D with 2 kickers l7 subs and crunch 1500watt amp. so far im happy with the purchase but it think that I should had bought the 30farad to complete solve the dimming lights issue

By Ronalwill on February 26, 2016

5

found this helpful.

boss cap18

Works great and looks great. Was very easy to install. I would highly recommend this capacitor.

By Derek Luedke on April 15, 2016

3

found this helpful.
