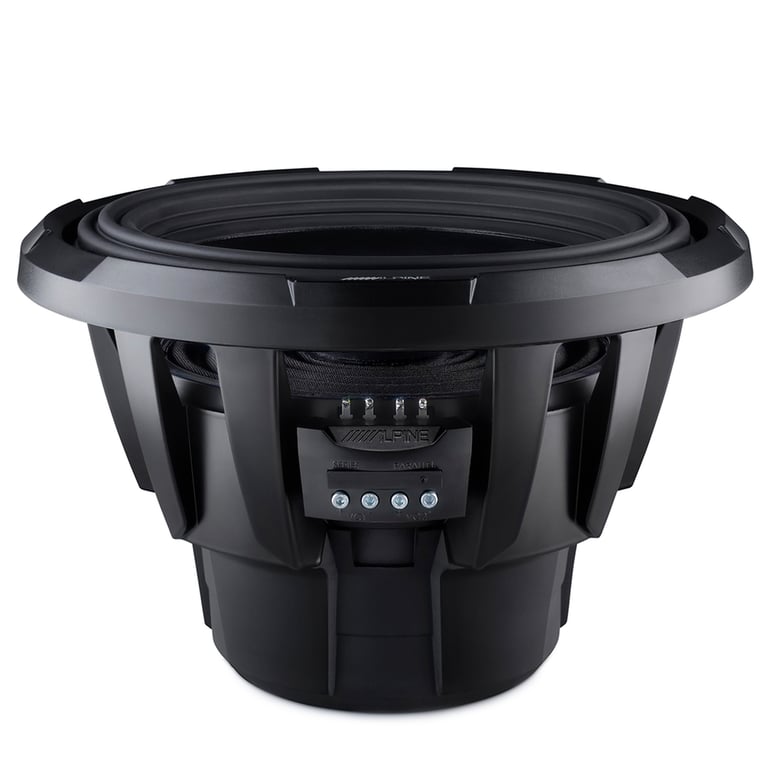

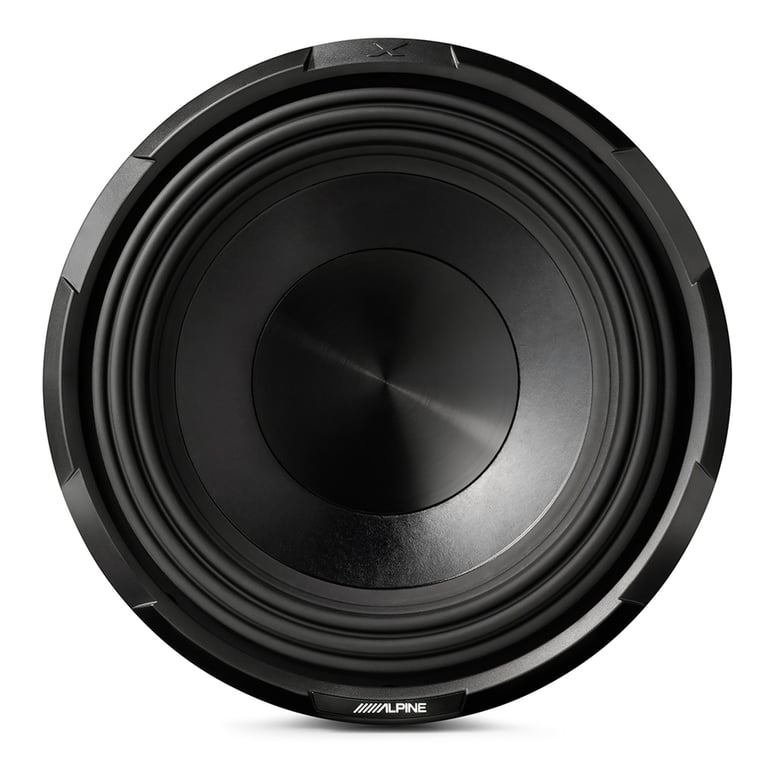

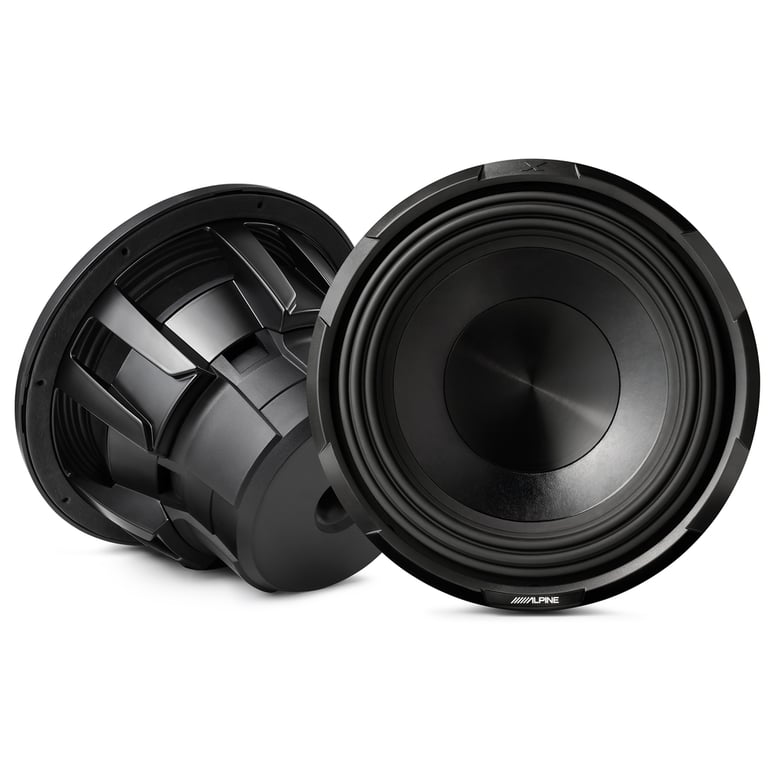

Alpine X-W12D4

2700W Peak (900W RMS) 12" X-Series Dual 4-Ohms Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• Peak Power: 2700 watts
• RMS Power: 900 watts
• Polypropylene-Mica Cone
• High Roll Foam Surround
• Impedance: Dual 4 ohm
• Mount depth: 7.2"
• Sensitivity: 84.3 dB

Learn more about the alp-xw12d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Description


Alpine brand icon

Authorized dealer

Product Details:

  • 12" Dual 4 ohm X-Series Subwoofer
  • Power Handling:
    • Peak: 2700 watts
    • RMS: 900 watts
  • Polypropylene-Mica Cone
  • High Roll Foam Surround

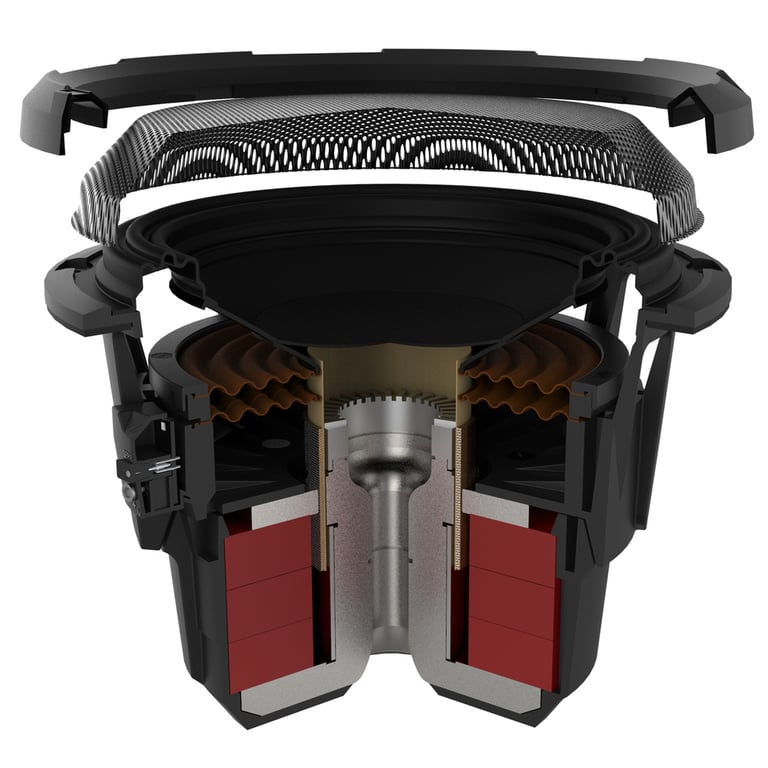

  • Dual-spider cone and patented H.A.M.R. rubber surround
  • Grille and trim ring included
  • Aluminum frame cast with rock-solid platform
  • 2.6" High Temperature Voice coil
  • 24 mm Xmax

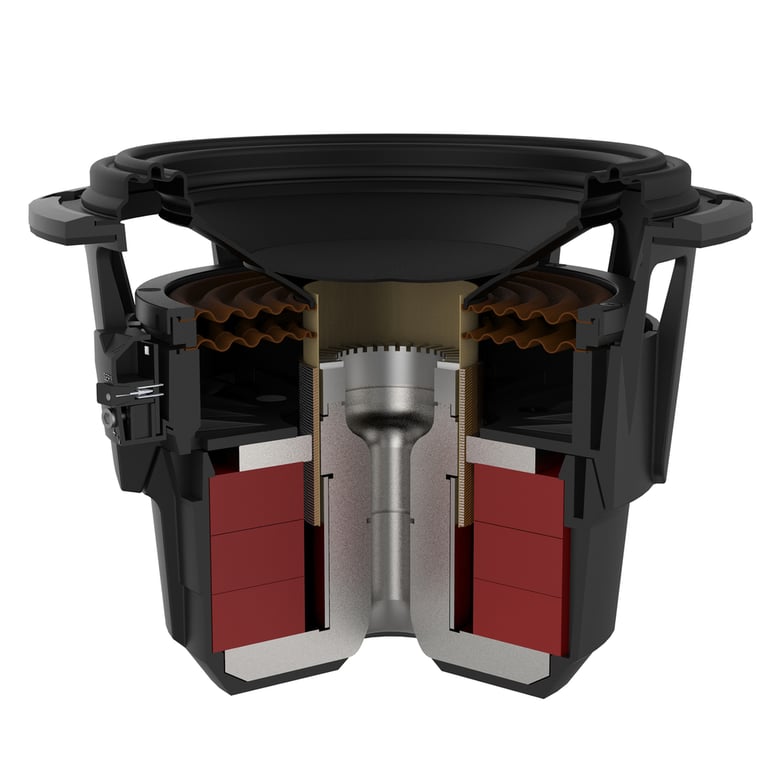

  • 174 oz. Triple Stacked magnet motor structure
  • Frequency Response: 23 - 200 Hz
  • Resonance Frequency (Fs): 27 Hz
  • Sensitivity: 84.3 dB
  • Sealed box volume: 0.4 cubic feet
  • Ported box volume: 1.0 cubic feet
  • Top-mount depth: 7.2"
  • Cutout diameter: 11.06"
  • Authorized Internet Dealer
  • Protective subwoofer grille: Yes - Included
  • 1-year Sonic Electronix Warranty

  • Priced Individually

Product history:

Alpine X-W12D4 thumbnail
(newest, current model)
Alpine SWX-1243D thumbnail
(previous model, replaced by Alpine X-W12D4)
Alpine SWX-1242D thumbnail
(previous model, replaced by Alpine SWX-1243D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine X-W12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine X-W12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine X-W12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine X-W12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
X-Series
Subwoofer Size
12"
Peak Power Handling
2700 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.6"
Frequency Response
23 - 200 Hz
Sensitivity
84.3 dB
Xmax (millimeters)
24 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene-Mica
Woofer Surround
High Roll Foam
Magnet Structure
Triple Stacked
Magnet weight
174 oz.
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.4 cubic feet
Optimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.65 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
7.2"
Cutout Diameter
11.06"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27 Hz
Equivalent Compliance (Vas)
56 liters
Total Speaker Q Value (Qts)
0.56
Electrical Q Value (Qes)
0.62
Electrical Resistance of Voice Coil (Re)
3.6+3.6 ohm
Mechanical Q Value (Qms)
5.63
What is in the box?
Paperwork
User manual
Warranty/Registration card
Quick start guide
WITB: Subwoofers
Subwoofer
Grille (attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

X-W12D4

Weight:

20.00lbs

Internal SKU:

alp-xw12d4

Internal Product ID:

133717

Customer Ratings & Reviews


Alpine X-W12D4 thumbnail image

5 star
85%
4 star
12%
3 star
1%
2 star
1%
1 star
1%



Durability
4.8
Value
4.7
Features
4.8
Design
4.8
Usability
4.8

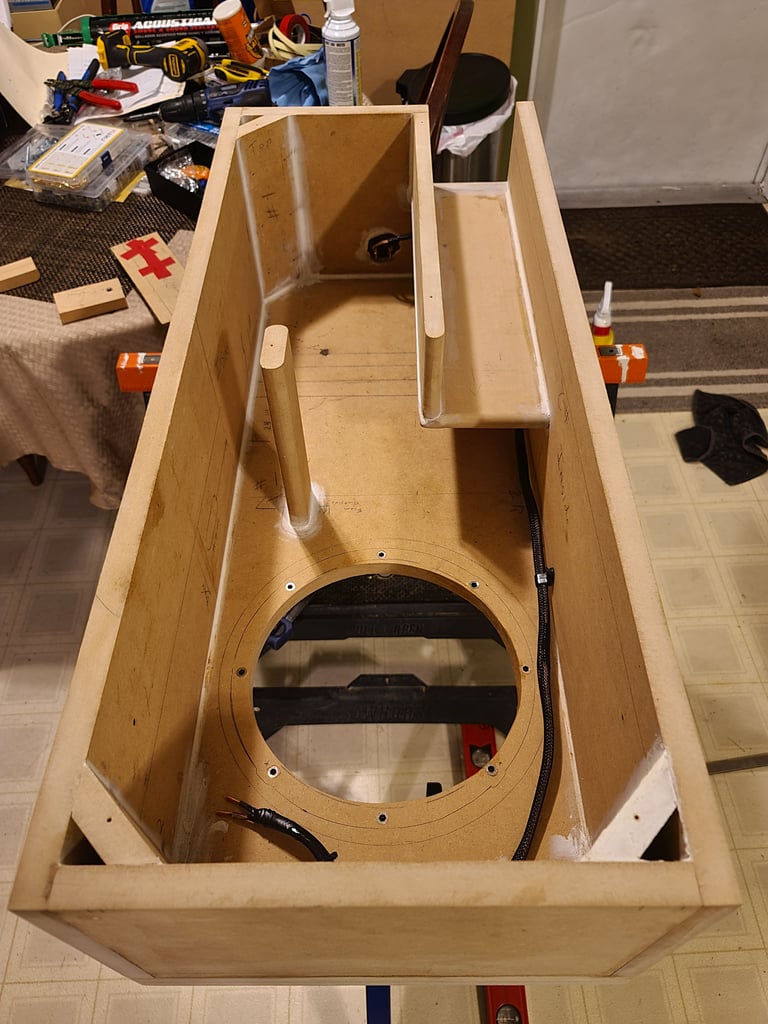

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Alpine's Top of the Line

The following review is for a previous version (SWX-1243D).

I've had this subwoofer for about 3 weeks now and I must say that this is a great subwoofer. I've only owned a few speakers in my life and this is the best one. I replaced an Alpine Type-R in a ported box with this Type-X in a sealed box and I got the best of both worlds. The Type-R was loud but the sound quality lacked because at higher volumes, transitions between bass notes were slurred. The Type-X in a sealed box gave me the sound quality I was looking for, each bass note is very cleared and crisp, and the lows are unbelievable. I also got the loudness of the Type-R with it. Best of both worlds in my opinion. Now don't get me wrong, the Type-R was louder, but if you're looking for a sound quality oriented subwoofer, loudness is not the first thing to look for, however, the Type-X does get loud. Overall, this will probably be the last subwoofer I buy, and if I do buy another, it'll be a second Type-X. For the price, you can't beat this subwoofer. Period.

By Ian on July 24, 2011

25 found this helpful


Great sub

The following review is for a previous version (SWX-1243D).

Amazing sub, hits way better than my old type r and the sq is awesome. Great shipping from sonic for sure.

By Jerrod on March 16, 2014

21 found this helpful


Terrific As Always

The following review is for a previous version (SWX-1243D).

As a returning customer, it doesn't surprise me that my sub was shipped with care and on time. The prices that sonic offers are also the best you will find. Now the sub, I replaced my Alpine Type R 12 (also purchased from here) with this 12 inch Type X and the difference in both sound quality and projection is amazing. I have never been let down by any products made by Alpine. The Type R sounded really good, but this Type X in a custom made ported box sounds awesome. The kind of bass you can really feel in and out of my truck, and the gain on my alpine Mrx-m100 is turned only halfway up. Once again thanks for the great service.

By Ryan on March 30, 2014

18 found this helpful


Boom Boom Bass

The following review is for a previous version (SWX-1243D).

If you bass in ya face then this is for you. Boom Boom, Boom Boom, Boom Boom.

By BassInYaFace on January 3, 2014

18 found this helpful


Great sub!!

The following review is for a previous version (SWX-1243D).

man i love this sub!!!! i just have one in my car powered by the power acoustik A3000DB and it hits!!!!

By Alex on February 9, 2009

17 found this helpful


GEEEZZZZ

The following review is for a previous version (SWX-1243D).

I just hooked one of these up in my 01 prelude at a 2ohm load running about 2000 to it and it freaking slams...I was just used to my Rockford p3 at 800 watts...This sub is very loud..my favorite sub I have owned so far... I have had SWS's and SWR's and my Rockford p3 and I had a w7 that got stolen and I still like the type x way better than the w7. And I paid twice the amount for the w7...

By Gregory on February 2, 2009

16 found this helpful


love it!!!!

The following review is for a previous version (SWX-1243D).

Love this sub. Sounds great and for the price it can't be beat. I have it in a 2.0 cubic feet box and it vibrates my whole truck. Thinking of getting another one!!!

By shane on March 18, 2014

16 found this helpful


Excellent subwoofer!

The following review is for a previous version (SWX-1243D).

These subs are amazing. I have them fully powered and they are by far the loudest subs in my area. Also, these subs put out very clean-tight bass. I would highly recommend these subs to a friend. I pound these subs all the time and they haven't skipped a beat.

By Andy on February 6, 2012

15 found this helpful


gods gift for a perfect system

The following review is for a previous version (SWX-1243D).

I own 1 of these and hooked it up to my jbl amp which is 1000 watts rms at 2 ohms. this is exceptional because the type x sub is also 1000 watts rms at 2 ohms. I have it in my 2005 mustang gt and i feel like either my brain will melt or my throat will vibrate to pieces. this sub is so clear and so hard hitting it is ridiculous. the low bass is so deep it is unbelievable. i have it in a 2 cubic foot box and it is at 155 db don't believe me well buy one and prove me wrong. this 1 12 inch sub hits harder and is louder then my previous 2 15 inch subs combine. my grandfather was in his house 1/4 mile away with the air conditioner on and a radio playing and still he could feel and hear the 12 inch type x subwoofer bumping the country. yes i said country music. when i play hip hop music such as the song "a millie" well forget about it i might as well take my trunk and rip it off lol. will my warranty for the sub cover my trunk haha. I definitely give this sub a perfect score. BUY THIS SUB ASAP AND BE AMAZED.

By Kevin W on October 3, 2009

15 found this helpful


Awesome Bass!

The following review is for a previous version (SWX-1243D).

I have two 12" Type-X subs ported hooked up with an M-2000. Front type-R component system and 6x9's in the back hooked up with a PDX-400. All Alpine with an Alpine deck. Stinger cables, upgraded alternator and with two upgraded batteries. System bumps for two subs I am pleased. My amp isn't even all the way up. I know people hate on Alpine but I am satisfied. The price on this site are pretty legit because Alpine employee discounts are about the same rate.

By Dean on November 3, 2010

15 found this helpful




No picture

Panasonic CQ-DF402U

$149.99

List price $299.99

EV-790 small

Eiger Vision EV-790

Double DIN 7" TFT-LCD Touchscreen Monitor with DVD/CD/MP3 Multimedia Receiver and Remote

$249.99

List price $399.99

APVB-12ET small

Audiopipe APVB-12ET

Single 12" Vented Subwoofer Enclosure Loaded w/ TS-AR12 750W Subwoofer

$109.99

List price $179.99

AK4 small

Install Bay 4 Gauge Amplifier Power Wiring Kit (AK4)

Amplifier Installation Power Kit with RCA Interconnect Cables and Fuse Holder with Fuse

(119)

$57.99

List price $64.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Suzuki Sidekick

1992 GMC Typhoon

1996 Lexus LS400

2002 Volvo V70

2012 Jaguar XJ

1986 Ford LTD Crown

2017 Mazda 3

2015 Lexus ES300h

2003 Porsche 911 Carrera

1989 Ford E Series

Vehicle
Store
Delete

2017 Harley Davidson FLHX Street Glide

1988 BMW K100RT

Vehicle
Store
Delete

2017 Can-Am Defender DPS HD5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
