2004-2008 Ford F-150 Ext Super Cab Truck 700w RMS Subwoofer Bass Package With Enclosure Amplifier And Wiring Kit

General Features:

• 10" Dual 4-Ohm N-Series Subwoofer
• Power Handling:
• RMS: 200-350 watts
• Ultra-Light Non Pressed Paper Cone ensures accurate, responsive performance even at high volume levels
• Custom Blended High-Roll Foam Surround for extended excursion
• Specially designed high excursion strain-relieved tinsel leads
• 2” High Temperature Aluminum Voice Coil
• Top-mount depth: 4.20"
• Frequency Response: 20 - 200Hz
• Sensitivity: 84.8 dB
• High strength steel basket retains exceptional rigidity to minimize distortion
• Chrome plated, spring loaded push terminals for easy, secure installations
• High energy ferrite magnet motor structure allows for greater power handling and voice coil control during high excursions
• Subwoofer grille sold separately - NV10GR
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Enclosure Recommendations:

• Ported Enclosure:
• Recommended Volume: 1.25 ft³
• Tuning Frequency: 34 Hz
• Ideal Power RMS: 300W
• F3 (Hz): 31
• Sealed Enclosure:
• Recommended Volume: .75 ft³
• Ideal Power RMS: 350W
• F3 (Hz): 43
• FC (Hz): 49
• QTC: 0.862

General Features:

• Dual 10" Subwoofer Enclosure
• Designed specifically for 2004-08 Ford F150 Extended Cab & Super Crew Cab Trucks
• Premium carpeted finish
• 3/4" Mounting Baffle
• Hardwood MDF construction
• Rounded edges
• Glued and Braced construction
• Subwoofer mounting depth: 5.5"
• Box volume: 0.7 cubic feet (per chamber)
• Also Available in Tough Guard Finish
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

• Belva BB Series Version 2 BB2000Dv2
• Class-D 1-Ohm Stable Monoblock Car Amplifier
• RMS Power Rating:
• 4 ohm: 540 watts x 1 chan.
• 2 ohm: 900 watts x 1 chan.
• 1 ohm: 1200 watts x 1 chan.
• Max power output: 2000 watts
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Input sensitivity: 100mV-6mV
• Frequency response: 20-30,000 Hz
• Variable low-pass filter: 40 - 180 Hz
• Subsonic filter: Off - 50 Hz
• Variable Bass Boost: 0 to +12 dB bass boost at 30 - 80 Hz
• Fuse Rating: 40 A x 3
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 12-1/2"W x 8-1/4"D x 2-1/4"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available as 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

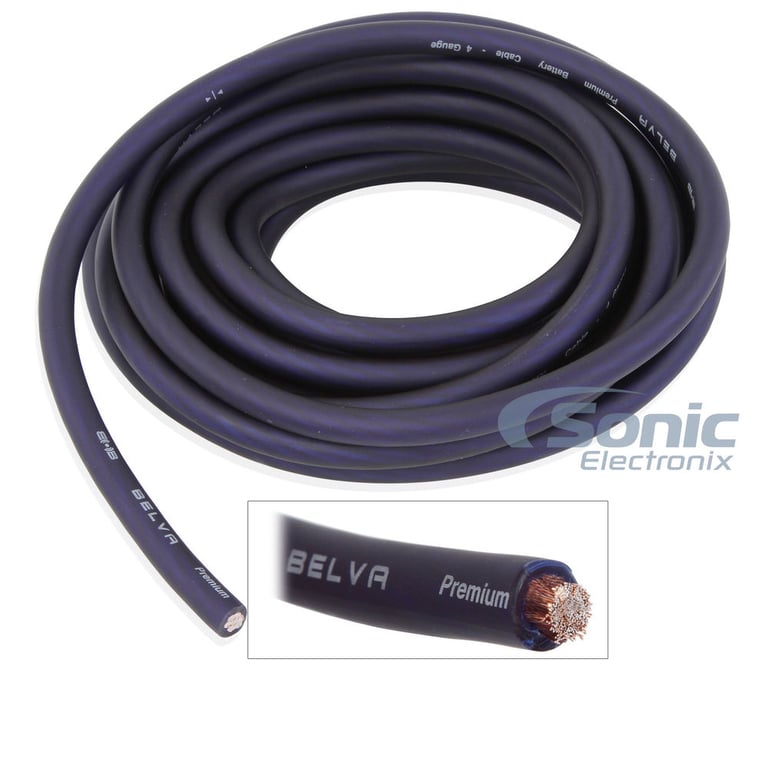

1. 17 ft. (5.2 meters) Blue 4 gauge power wire
2. 3 ft. (.91 meters) Black 4 gauge ground wire

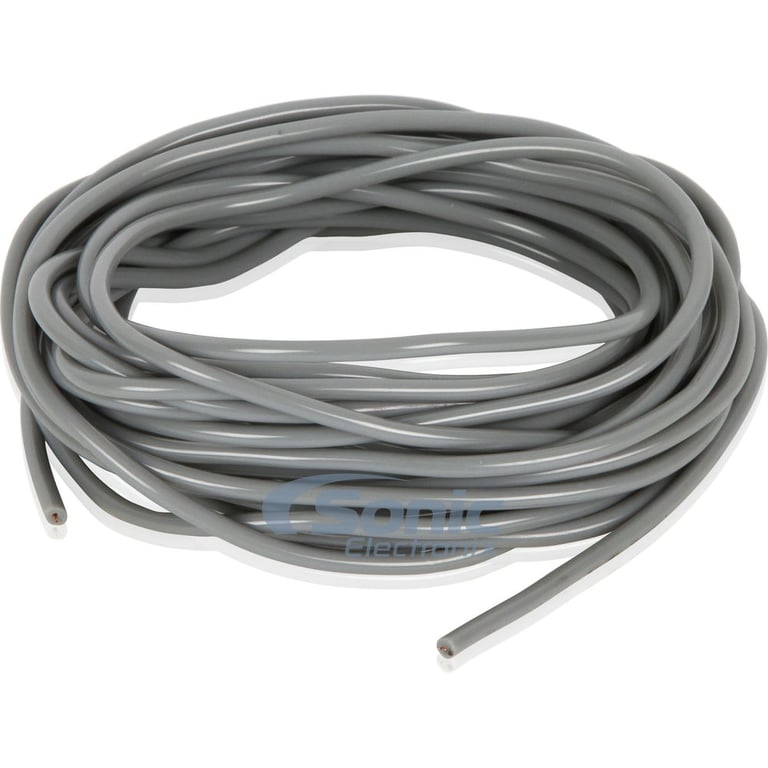

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) Speaker cable

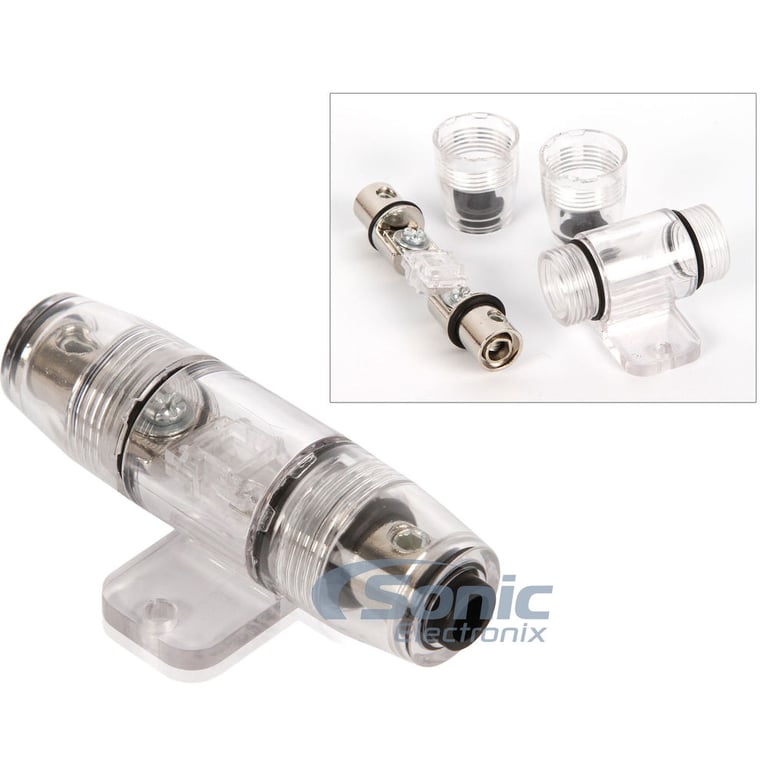

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

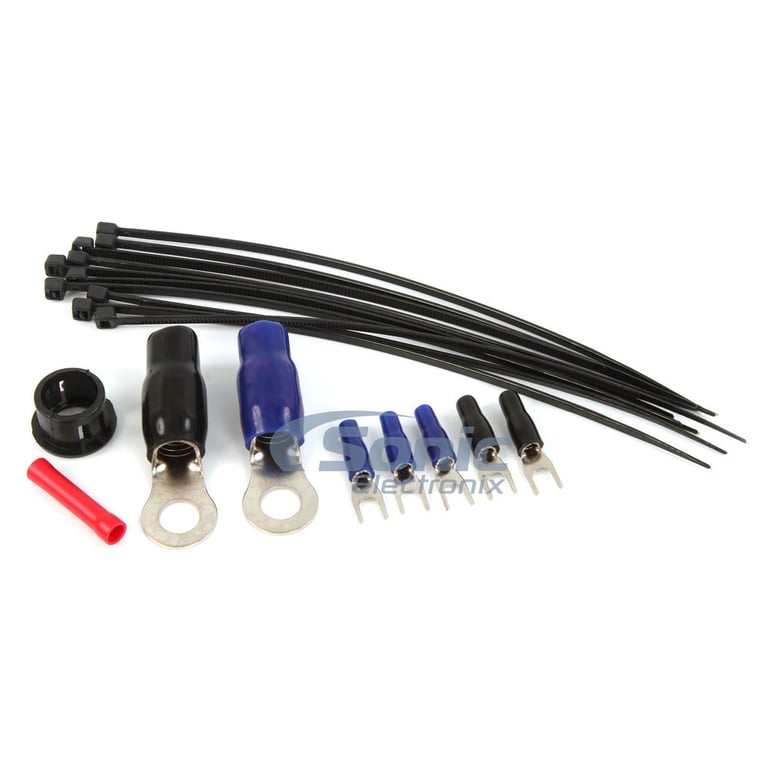

7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
