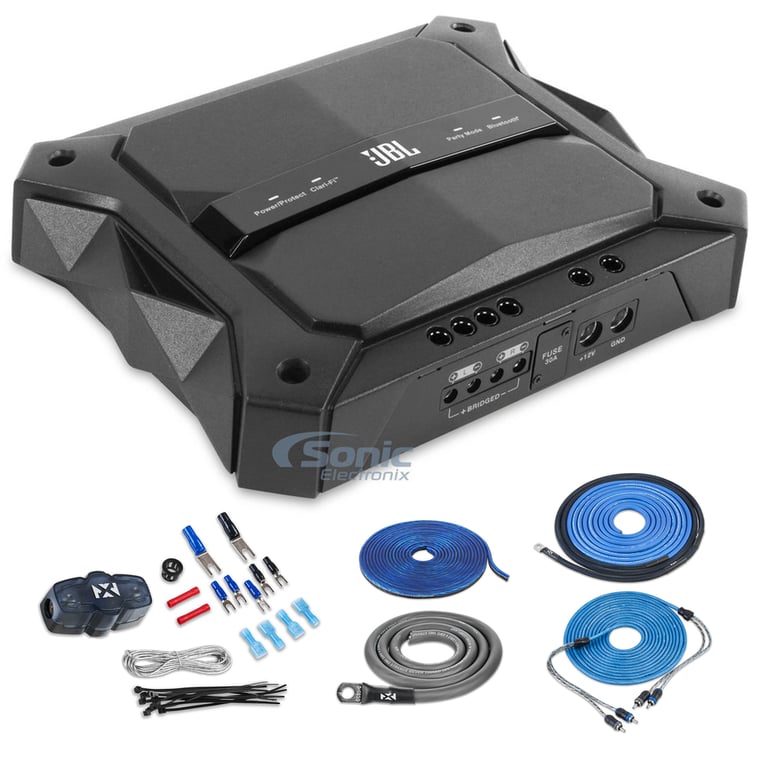

JBL GTR-102 with FREE 100% Copper True Spec Installation Kit

General Features:

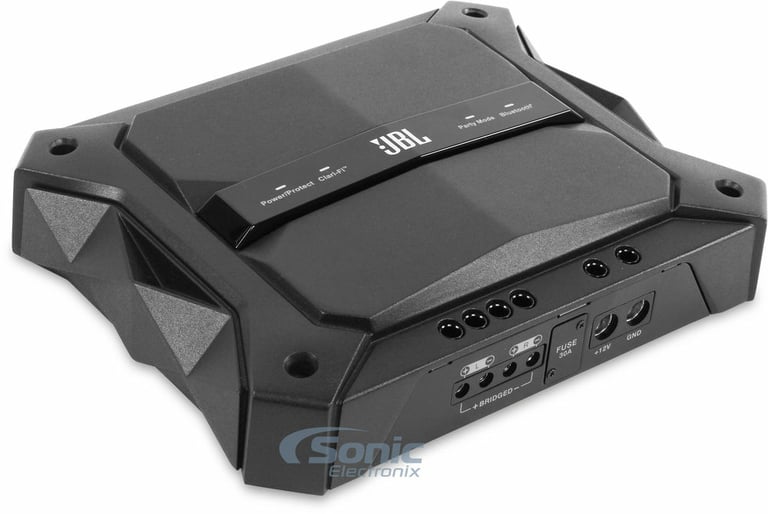

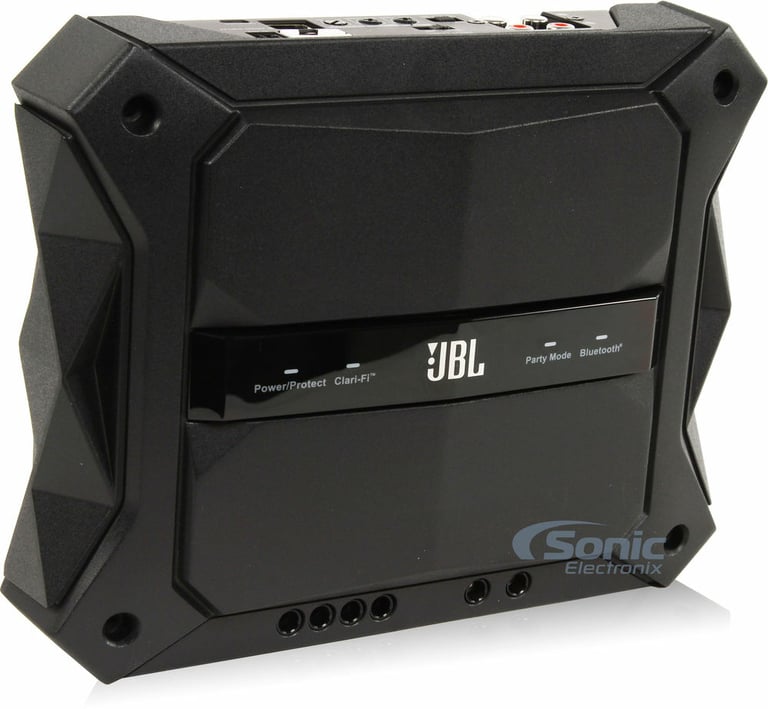

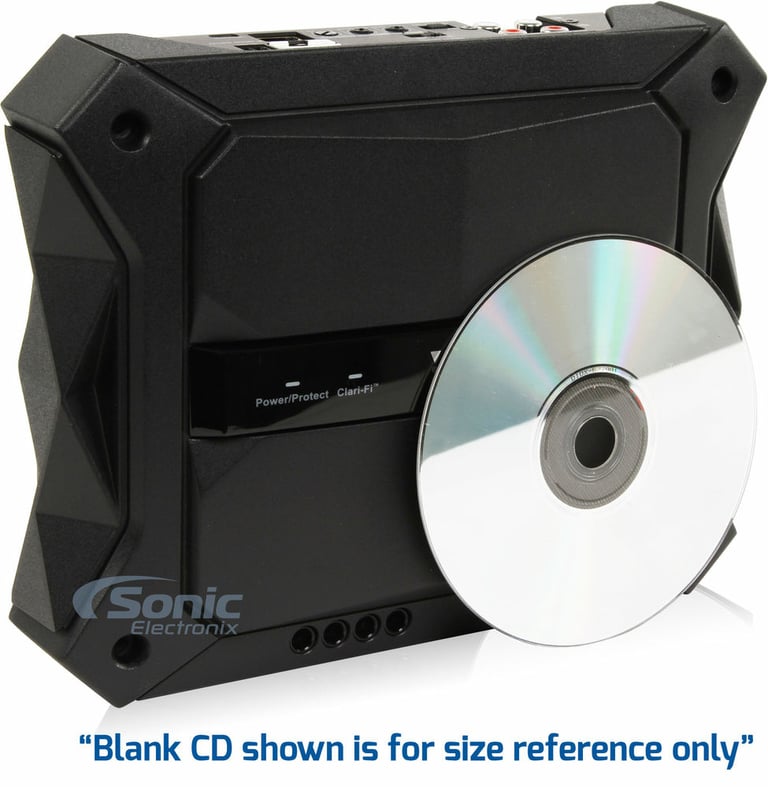

• JBL GTR-102
• Class-D FullRange 2-Ohm Stable 2-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 100 watts x 2 chan.
• 2 ohm: 120 watts x 2 chan.

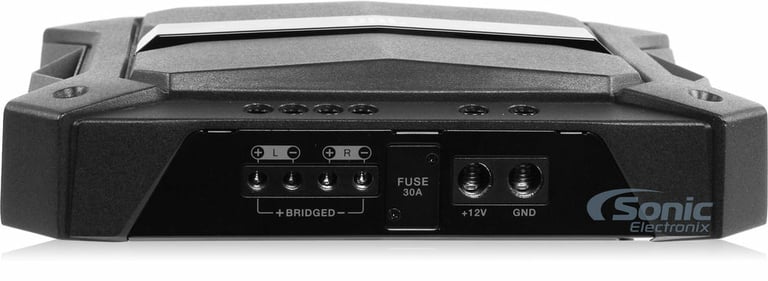

• Bridged, 4 ohm: 240 watts x 1 chan.
• Total power output: 700 watts Peak
• Pulse Width Modulated MOSFET power supply
• 2 or mono channel operation
• Speaker-level (high-level) inputs

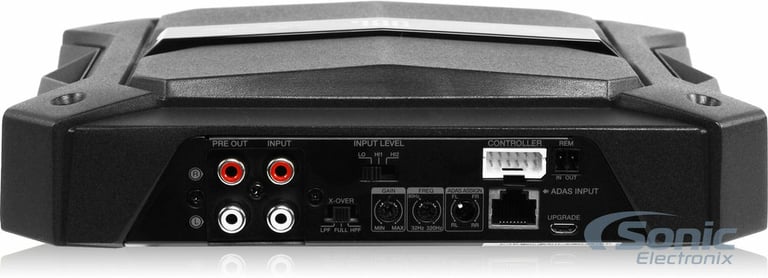

• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Bluetooth Streaming: wireless audio streaming from phones and other devices. Receive phone calls by touching a button on the control panel. Plays through the car audio system.
• Party Mode - Bluetooth multi-device pairing so anyone in the car can control the music
• Clari-fi Technology: A predictive algorithm that analyzes music files and improves highly compressed digital music files in real time.

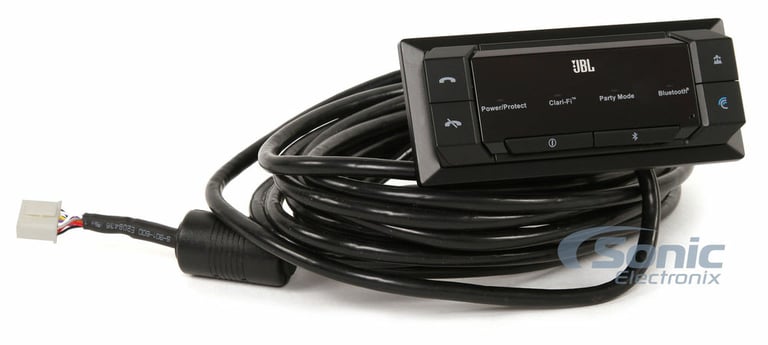

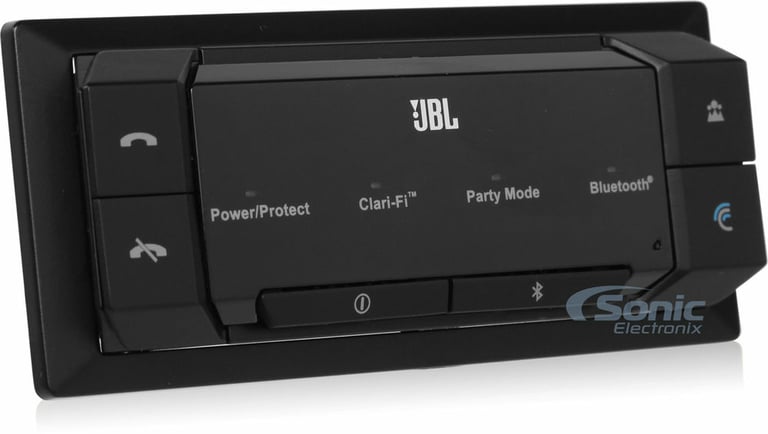

• Cabin mounted control panel: has an omni-directional microphone and puts functions at your fingertips. Activate Bluetooth pairing, accept/end phone calls, select Party Mode and cancel Clari-Fi
• ADAS Input: The ADAS input will override the audio signal when connected to Advanced Driver Assistant System (ADAS) accessories for safety.
• Upgradable firmware via the mini-USB port
• Variable Line and Speaker Level Inputs: 0.2 - 20V
• Signal to Noise Ration: >75 dB
• Variable high-pass filter: 32 - 320 Hz, 24 dB/octave
• Variable low-pass filter: 32 - 320 Hz, 24 dB/octave
• Fuse Rating: 30 A x 1
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

What's in the Box

• GTR-102 Amplifier
• Cabin-mounted control panel

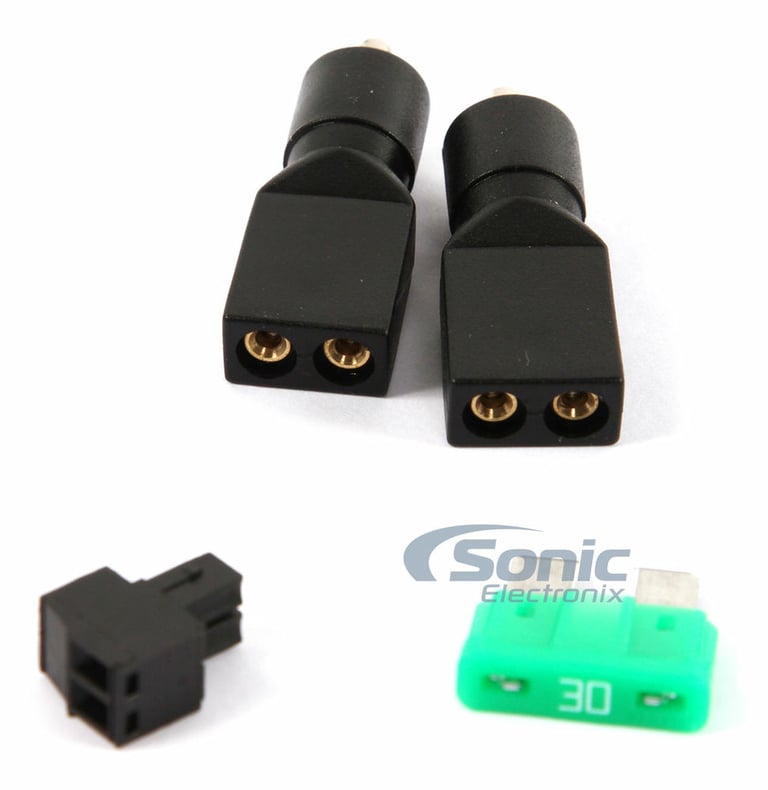

• 2 spare fuses
• Owner’s manual

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
