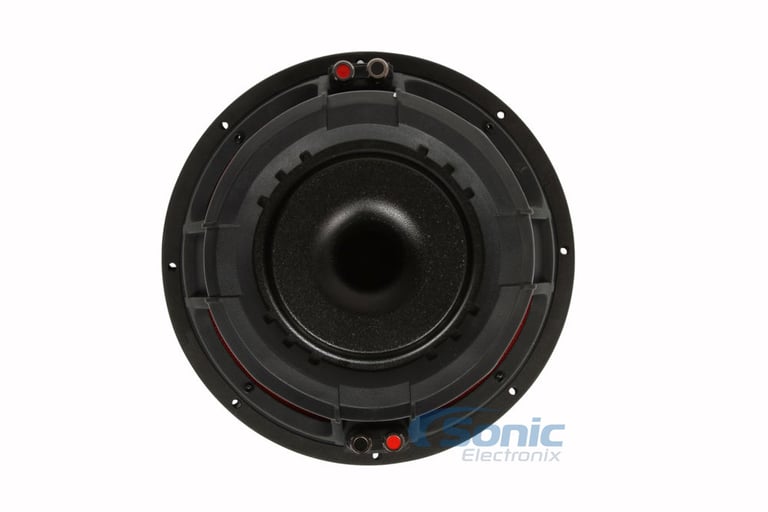

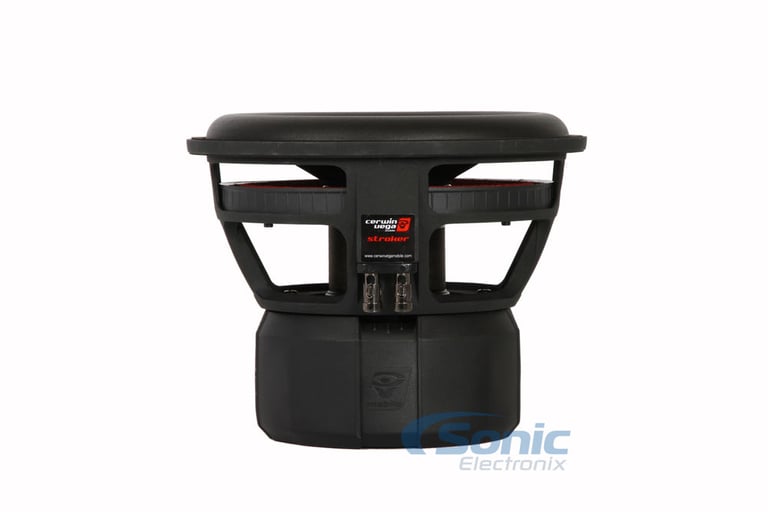

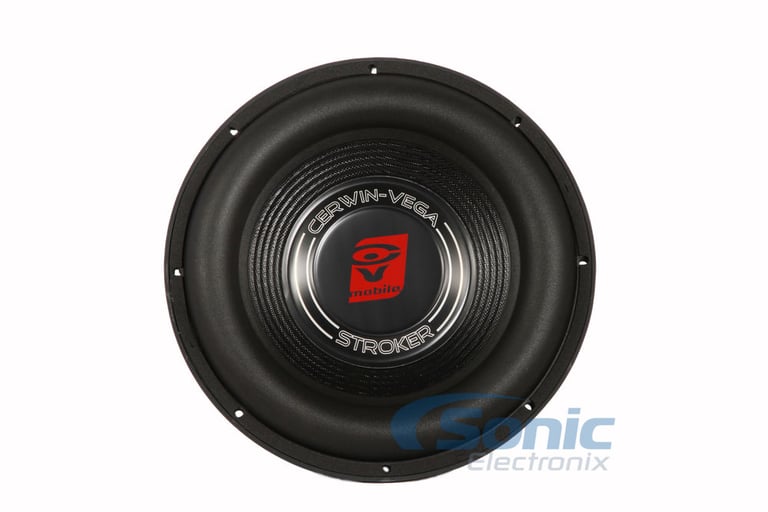

Cerwin Vega ST122D

2000W Max (1000W RMS) 12" Stroker Series Dual 2 ohm Car Subwoofer

highlight-star-icon

• 2000 Watts Max
• 1000 Watts RMS
• Ribbed, Semi-Pressed Paper Cone
• 3" 4-Layer Voice Coil
• Heavy Industrial Strength Textured Basket Frame
• Klippel DA Optimized Motor and Suspension
• Elevated Motor Structure Cooling Design

Learn more about the st122d

We apologize

This item has been discontinued


Loading...
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

70-1784 main

Metra 70-1784

Install a New Car Stereo in select 1980-2020 vehicles from Volkswagen, Audi, Ram

16
99-9107B main

Metra 99-9107B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2002-2009 S4 and A4 and RS4 (Matte Black)

8
-58.83%

$27.99

List price $67.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

JVC KW-R950BTS

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

6
-10.58%

$169.00

List price $189.00

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 12" Dual 2 ohm Stroker Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Ribbed design on treated semi-pressed paper cone
  • Elevated motor structure cooling design
  • Super high temperature aluminum voice coil former
  • Heavy industrial strength textured basket frame
  • Nickel-plated push terminals
  • 3-inch 4-layer voice coil
  • Klippel DA optimized motor and suspension symmetry
  • Top-mount depth: 8.1"
  • Cutout diameter: 11.12"
  • Sensitivity: 84.6 dB
  • Resonance Frequency (Fs): 29Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin Vega ST122D Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin Vega ST122D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin Vega ST122D Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Cerwin Vega ST122D Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Stroker Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
84.6 dB
Xmax (millimeters)
16.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Pulp Fiber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
8.1"
Cutout Diameter
11.12"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29 Hz
Equivalent Compliance (Vas)
39.2 liters
Total Speaker Q Value (Qts)
.44
Electrical Q Value (Qes)
.51
Electrical Resistance of Voice Coil (Re)
3.3 ohm
Mechanical Q Value (Qms)
3.3

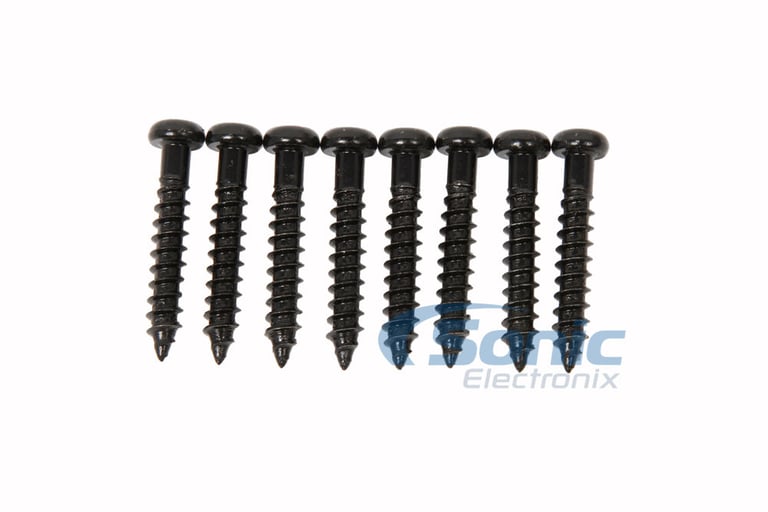

What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ST122D

Weight:

18.00lbs

Internal SKU:

st122d

Internal Product ID:

135695
