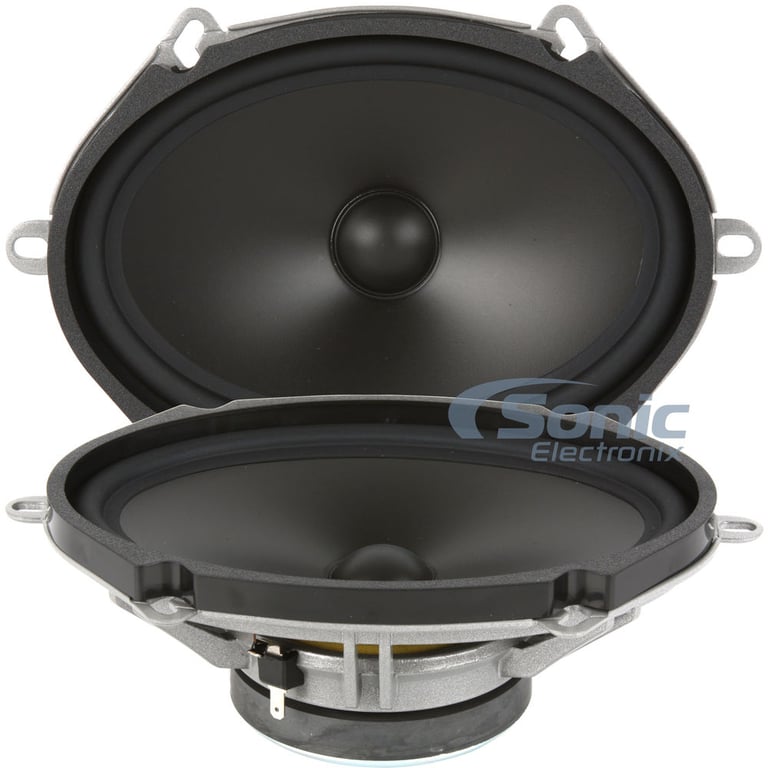

JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair) Image 1 — JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair)

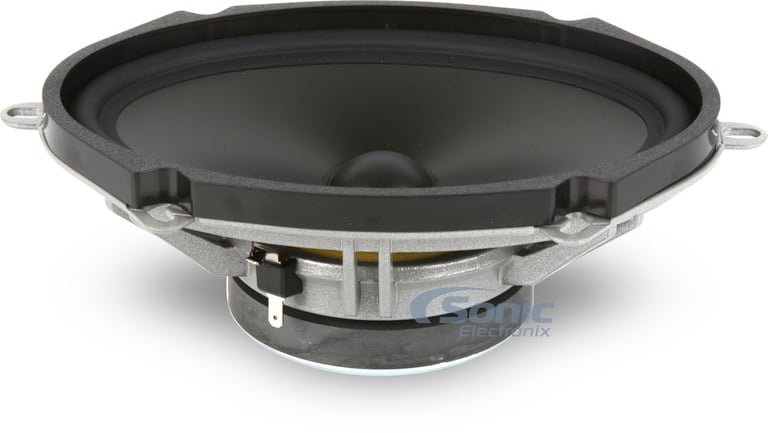

JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair) Image 2 — JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair)

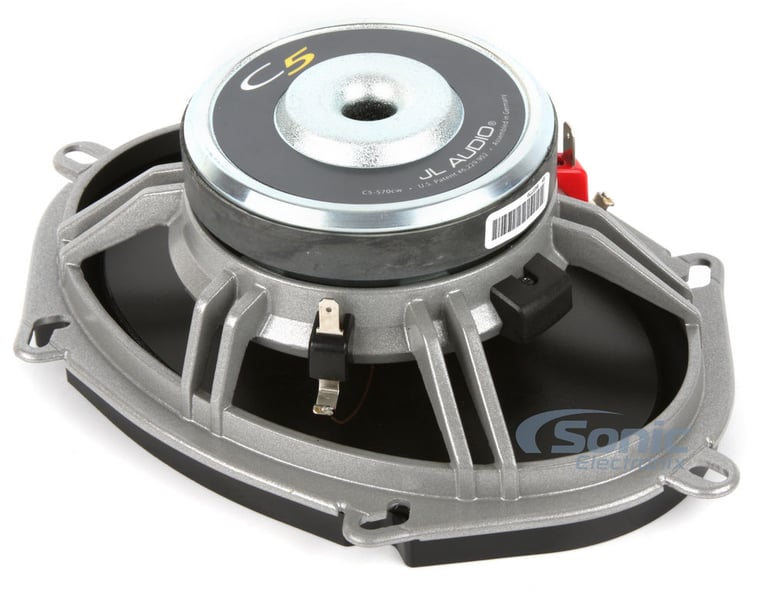

JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair) Image 3 — JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair)

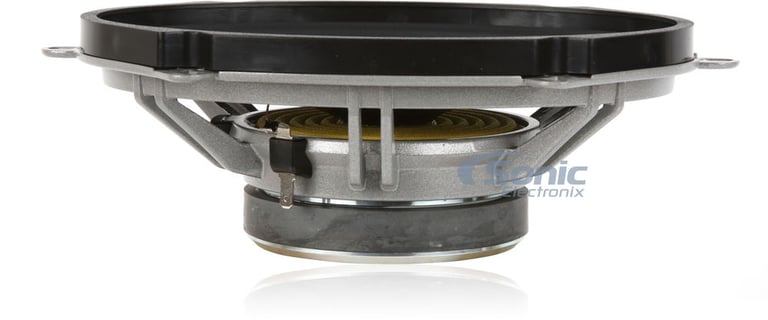

JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair) Image 4 — JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair)

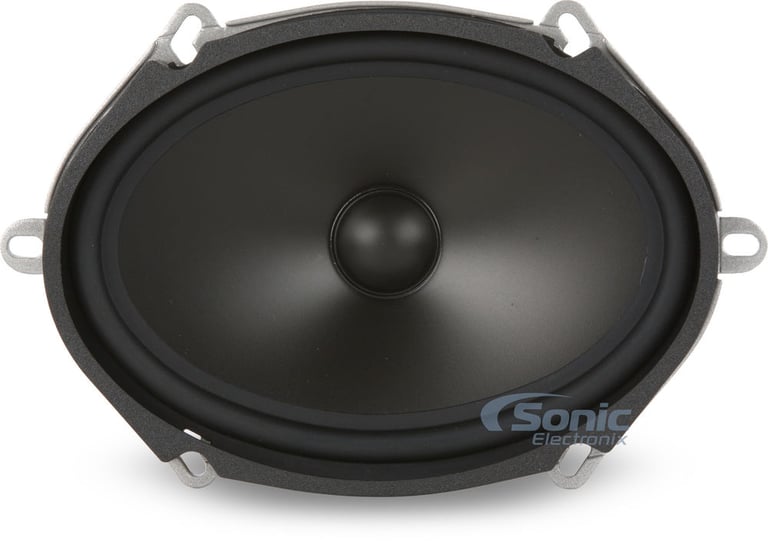

JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair) Image 5 — JL Audio C5-570cw 5" x 7" Mid-Woofers (Pair)

Product highlights

• 75 Watts RMS
• Kurt MuEller designed cone and suspension
• Mineral-Filled Polypropylene Woofer
• Patented Elevated Frame Cooling
• DMA-Optimized Motor System
• Symmetrical Rolled Spider

Learn more about the c5570cw_pair

Other products for your Ford Elite

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

Add to cart

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

$179.95

Add to cart

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

-10.10%

$257.99

List price $286.99

Add to cart

Out of stock

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

Notify Me

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Add to cart

Description

Authorized dealer

JL Audio Evolution® C5 Series Component Woofer

Evolution™ C5 is serious product, engineered by JL Audio to meet the demands of the toughest acoustic and environmental conditions in the high-fidelity world. It is not about cute buzzwords or the exotic material of the month... it's all about making your music come alive with realism and excitement. C5 woofers and tweeters¹ are precision-built in Germany alongside JL's flagship ZR components, incorporating their exclusive DMA-optimized motor and patented Elevated Frame Cooling technologies. Particular emphasis has been placed on off-axis response and dynamic stability which might not be that important during a five minute evaluation on a demo board, but makes all the difference when installed in your car. The woofers feature renowned Kurt Müller designed cone and suspension.

Unparalleled Build and Precision

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, Evolution C5 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate low end. In addition, JL Audio turns to their partners at Germany's Dr. Kurt Müller & Co. for critical cone and suspension elements that provide unparalleled woofer performance.

Product Features:

5" x 7" / 6" x 8" Evolution C5 Series Component Woofers;
Power Handling:

Peak: 225 watts each
RMS: 75 watts each

Recommended Power Range: 25 - 150 watts per channel
Mineral-Filled Polypropylene Cone
Butyl Rubber Surround
Cast Alloy Frame/Basket
Elevated Frame Cooling
Ferrite Woofer Magnet
1.00" Voice Coil on Kapton® Former
Low-Profile, Symmetrical Roll Spider
Dynamic Motor Analysis (DMA) Optimized Motor
Top-mount depth: 2.45"
Frame Outer Diameter: 5.47" x 7.68"
Nominal Impedance: 4 ohm
Efficiency: 90.5 dB @ 1 watt / 1 meter
Frequency Response: 48 Hz - 5 KHz ± 3 dB
Authorized Internet Dealer
1-year Manufacturer's Warranty

Priced Per Pair.
(No Tweeters Included!)

Check out the JL Audio C5-570x Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Speaker Specifications

Series

C5 Series

Priced Per

Pair

Number of Speakers

Speaker Size

5" x 7" (also mounts in most 6" x 8" locations)

Design

Subwoofer

Tweeter Design

N/A

Tweeter Size

N/A

Tweeter Composition

N/A

Woofer Composition

Mineral-Filled Polypropylene

Woofer Surround

Butyl Rubber

Peak Power Handling

225 watts

RMS Power Handling

75 watts

Sensitivity

90.5 dB

Frequency Response

48 - 5,000 Hz

Impedance (Per Voice Coil)

4 ohm

Shallow Mount Installation

Top-Mount Depth (Mounting Depth)

2.45"

Cutout Dimensions

Not Specified by Manufacture

General specifications

Marine Certified

Hi-Res Certified

Color

Black

Speaker Grilles

What is in the box?

Paperwork

User manual

WITB: Speakers

Speakers (2)

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		50%
4 star		50%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.5
Value		4.5
Features		4.5
Design		5
Usability		4.5

Customer Reviews

Sort by:

JL C5-570cw Great for Midbass

The following review is for C5-570cw-RP, which is a part of the bundle you are viewing.

I have four of these in a component configuration in a Toyota Tacoma with separate tweeters/crossovers. The bass is supplied by two 12" subs.

The JL C5's fit in the stock locations & offer superb midbass. These speakers take a pounding, but require a good power supply to best realize their performance. Highly recommended!

By flyinlow on May 1, 2013

16 found this helpful

Report abuse

Awesome deal I got, just what I needed.

The following review is for C5-570cw-RP, which is a part of the bundle you are viewing.

I bought this particular speaker to replace my stock sub and I gotta say I'm lovin every beat from it. Perfect fitment, sound quality from the Bass side is just what I needed and most of all a great price. Being that I only needed one you guys came through and met my demand. Thanks again and a pleasure doing business with you.

By Gil on September 2, 2012

15 found this helpful

Report abuse
