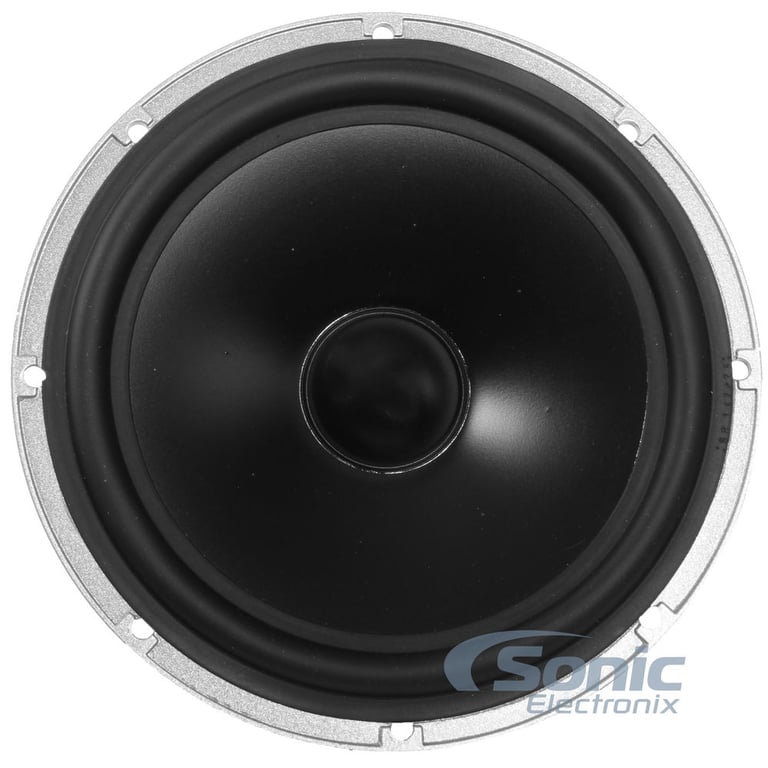

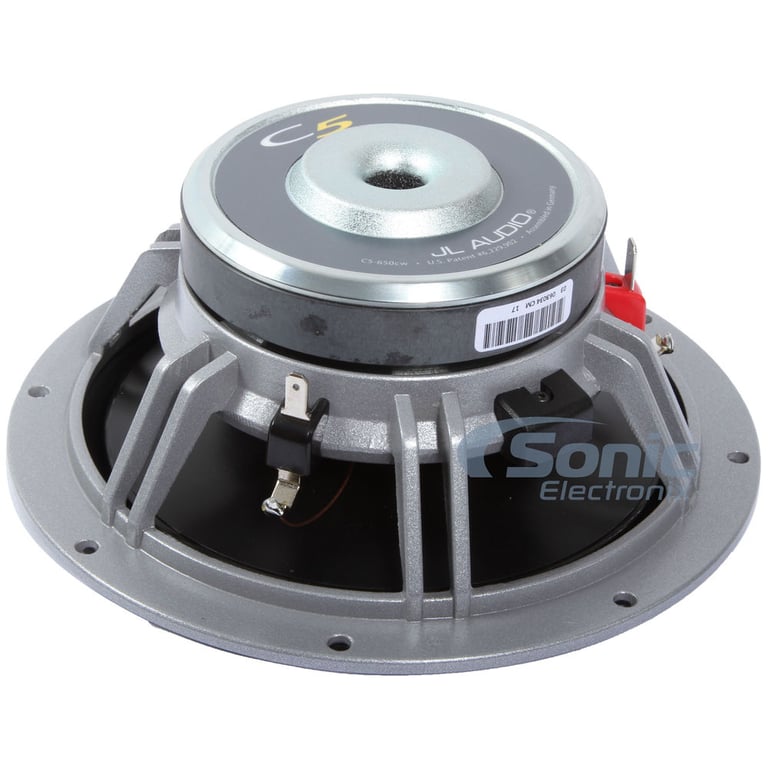

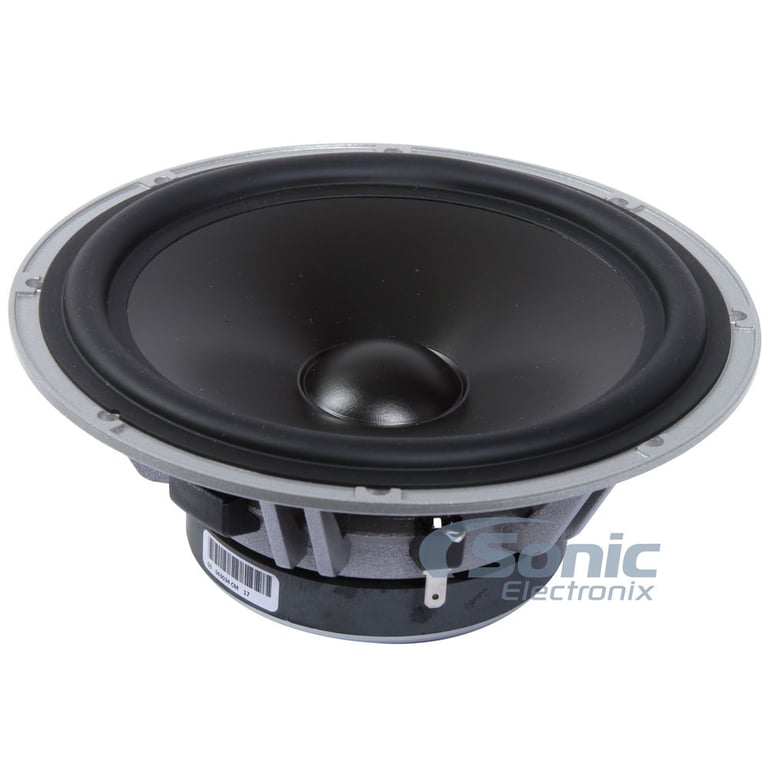

JL Audio C5-650cw-RP (Sold Individually)

225W 6.5" Evolution C5 Series Component Woofer

JL Audio
Shop all JL Audio
EXCLUSIVE
highlight-star-icon

• 75 Watts RMS
• Kurt MuEller designed cone and suspension
• Mineral-Filled Polypropylene Woofer
• Patented Elevated Frame Cooling
• DMA-Optimized Motor System
• Symmetrical Rolled Spider

Learn more about the c5650cwrp

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


JL Audio brand icon

Authorized dealer

JL Audio Evolution C5 Series Component Woofer

Evolution™ C5 is serious product, engineered by JL Audio to meet the demands of the toughest acoustic and environmental conditions in the high-fidelity world. It is not about cute buzzwords or the exotic material of the month... it's all about making your music come alive with realism and excitement. C5 woofers and tweeters¹ are precision-built in Germany alongside JL's flagship ZR components, incorporating their exclusive DMA-optimized motor and patented Elevated Frame Cooling technologies. Particular emphasis has been placed on off-axis response and dynamic stability which might not be that important during a five minute evaluation on a demo board, but makes all the difference when installed in your car. The woofers feature renowned Kurt Müller designed cone and suspension.

JL Audio Linearity and Control

Unparalleled Build and Precision

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, Evolution C5 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate low end. In addition, JL Audio turns to their partners at Germany's Dr. Kurt Müller & Co. for critical cone and suspension elements that provide unparalleled woofer performance.


Product Features:







  • 6.5" Evolution C5 Series Component Woofer¹
  • Power Handling:
    • Peak: 225 watts
    • RMS: 75 watts
  • Recommended Power Range: 25 - 150 watts per channel
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Cast Alloy Frame/Basket
  • Elevated Frame Cooling
  • Ferrite Woofer Magnet
  • 1.00" Voice Coil on Kapton Former
  • Low-Profile, Symmetrical Roll Spider
  • Dynamic Motor Analysis (DMA) Optimized Motor
  • Top-mount depth: 2.54"
  • Cutout Dimensions: 5.56"
  • Nominal Impedance: 4 ohm
  • Efficiency: 89.5 dB @ 1 watt / 1 meter
  • Frequency Response: 48 Hz - 5 KHz ± 3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually
    (No Tweeter Included!)

Check out the JL Audio C5-650x Owner's Manual

Product history:

JL Audio C5-650cw-RP thumbnail
(newest, current model)
JL Audio C5-650cw thumbnail
(previous model, replaced by JL Audio C5-650cw-RP (Sold Individually))

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Best selling similar products

TS-M651PRO small

Pioneer TS-M651PRO

• 500 watts Peak, 120 watts RMS
• Lightweight Rigid Pulp cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

$149.99

List price $150.00

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

PPROV2-8 small

Rockford Fosgate Punch Pro V2 PPROV2-8

• 150 watts Peak Each, 75 watts RMS Each
• Curvilinear Pressed Pulp cone material
• Impedance: 4 ohm
• Sensitivity: 94.5 dB

$229.99

List price $229.99

PPROV2-69 small

Rockford Fosgate Punch Pro V2 PPROV2-69

• 150 watts Peak Each, 75 watts RMS Each
• Curvilinear Pressed Pulp cone material
• Impedance: 4 ohm
• Sensitivity: 93.5 dB

$269.99

List price $269.99

AP-M61SE small

Deaf Bonce Apocalypse AP-M61SE

• 260 watts Peak Each, 130 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101.5 dB

(8)

$109.90

List price $109.90

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$144.99

List price $169.99

CF-350mt small

JL Audio CF-350mt

• 3-1/2" CF Series Midtweeters
• 35 watts RMS Each
• 4 ohm Impedance

(4)

$179.99

List price $229.99

Specifications & Details


Speaker Specifications
Series
C5 Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
6-1/2"
Design
Mid-range
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
225 watts
RMS Power Handling
75 watts
Sensitivity
89.5 dB
Frequency Response
48 - 5,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2.54"
Cutout Dimensions
5.56"
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
WITB: Speakers
Speaker
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C5-650cw-RP

Weight:

9.00lbs

Internal SKU:

c5650cwrp

Internal Product ID:

137631
