JL Audio SB-C-PTCRSR/10W1v2

Chrysler PT Cruiser 2000-up, 10" 4 ohms Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 10W1v2-4 Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

10" 4 ohm Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 10W1v2-4 Subwoofer • For 2000-Up Chrysler PT Cruiser • Installs inside driver side cargo area trim panel • Fabric covered, steel mesh grille included

Learn more about the sbcptcrsr10w1v2

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Product Highlights


10" 4 ohm Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 10W1v2-4 Subwoofer • For 2000-Up Chrysler PT Cruiser • Installs inside driver side cargo area trim panel • Fabric covered, steel mesh grille included

Description


JL Audio brand icon

Authorized dealer

Subwoofer Features:

  • 10" Single 4 Ohm W1v2 Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Injection-molded, metallic-finish polypropylene cone woofer
  • Rubber surround with stress-relief
  • Customizable trim ring
  • Vented reinforcement collar
  • Elevated frame cooling technology enhances power handling and sound quality
  • DMA-Optimized motor system improves dynamic motor behavior
  • Insert molded suspension/coil/terminal sub-assembly
  • Floating cone attach method
  • Interlocking cone and dust cap enhances mechanical integrity and cone rigidity
  • 1-year SonicElectronix.com warranty (subwoofer only)

Enclosure Features:

  • Wired for 4 ohm
  • For 2000-Up Chrysler PT Cruiser

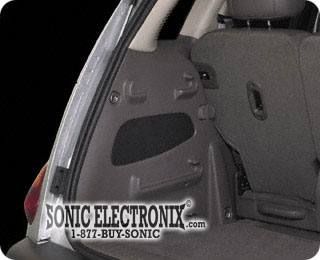

  • Installs inside driver side cargo area trim panel
  • Fabric covered, steel mesh grille included
  • Stealthbox® installs with absolutely no loss of cargo space!
  • If equipped with Mopar® optional subwoofer you will need to purchase standard side panel from the Chrysler parts department
  • Minimal modification of the side panel is required
  • Will not fit vehicles equipped with OEM Satellite Radio, optional GM Cargo Organizer or Air Compressor/Inflator Kit
  • Will not fit convertible models

Please Note: Some JL Audio Stealthboxes are not designed to perfectly match OEM colors. Some colors will contrast with OEM colors in order to provide a stylish setup. If you are looking for the closest color match, please select the JL Audio Stealthbox color that is as close to your OEM color as possible and indicate your vehicle's interior color when ordering.

*JL Audio Stealthboxes are special-ordered for each customer and usually ship within 7-14 business days. As such, orders for Stealthboxes cannot be canceled unless it is unavailable.


Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-J-GCHWK2/10W3v3/BK small

JL Audio Stealthbox® SB-J-GCHWK2/10W3v3/BK

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs into passenger-side rear cargo panel

(3)

$1199.99

List price $1199.99

Specifications & Details


Subwoofer Specifications
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
300 watts
Peak Power Handling
600 watts
Woofer Surround
Rubber
Woofer Composition
Injection Molded Polypropylene
Sensitivity
86 dB
Xmax (millimeters)
14 mm
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
1
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SB-C-PTCRSR/10W1v2

Weight:

50.00lbs

Internal SKU:

sbcptcrsr10w1v2

Internal Product ID:

13824
