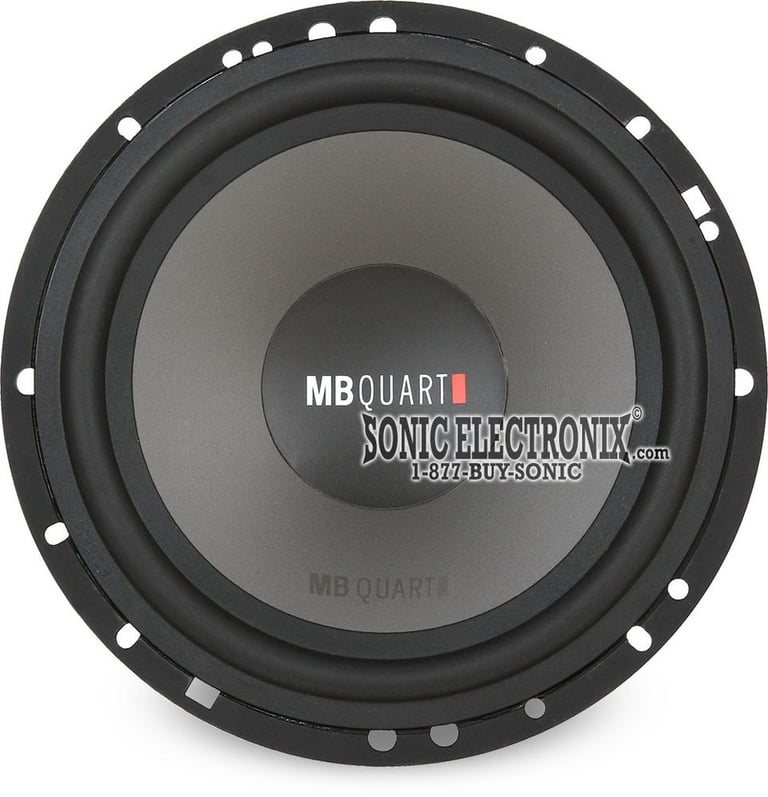

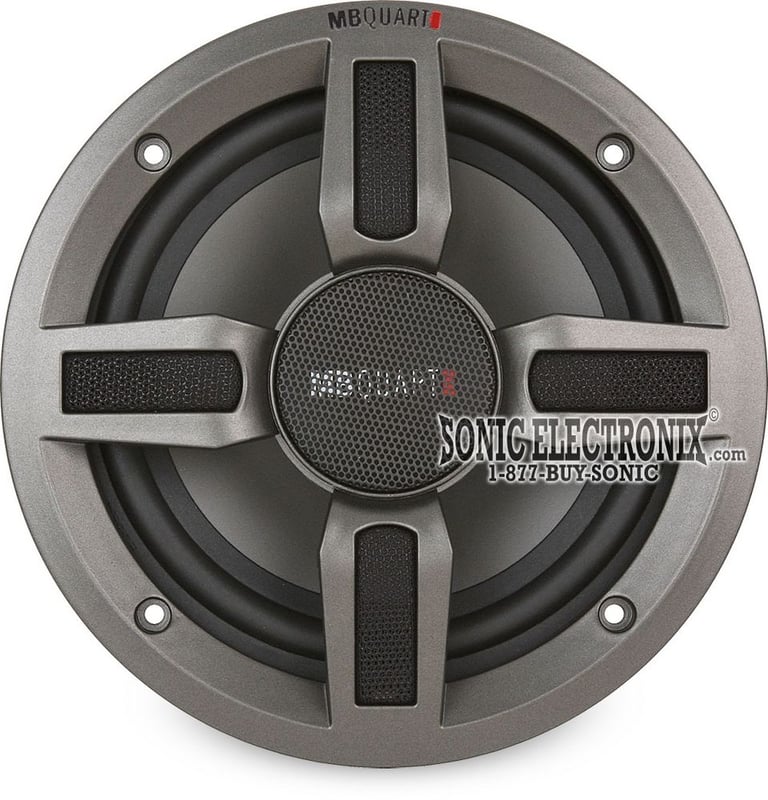

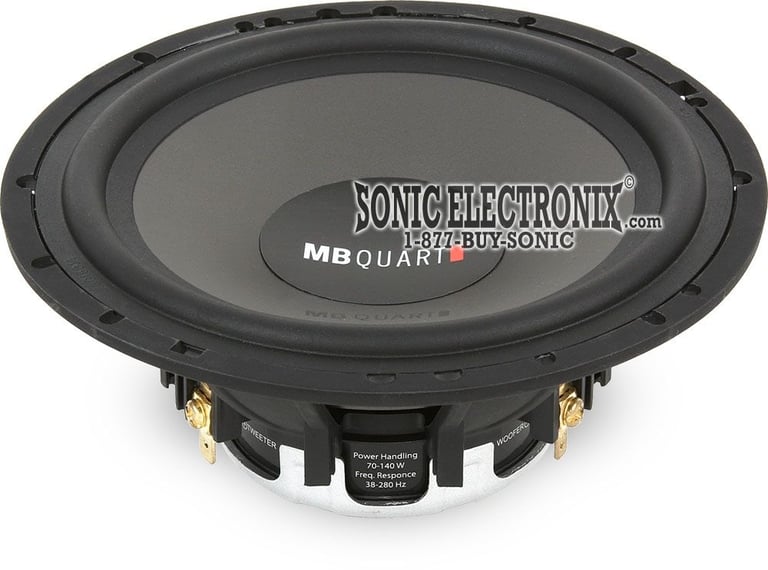

MB Quart PVI 164 (PVI164)

6-1/2" Premium Midbass Drivers w/ Crossover for Add-on to PVI213, PVI216 and Other Components

MB Quart
Shop all MB Quart
highlight-star-icon

6-1/2" Premium Series Midbass Drivers with Crossover • 140W Max • 70W RMS • Polypropylene cone woofer • Rubber surround • Gold-plated connectors • Premium Performance-crossovers with new and unique FleXX Mount system for limitless mounting possibilities

Learn more about the pvi164

We apologize

This item has been discontinued


Loading...
95-5818 main

Metra 95-5818 Dash Kit

Install a new Double-DIN car stereo in select 1997-2004 vehicles from Ford, Lincoln

48
-11.54%

$22.99

List price $25.99

70-5600 main

Metra 70-5600 Wiring Harness

Install a new car stereo in select 1995-1998 vehicles from Ford, Mercury, Lincoln

6
99-5801 main

Metra 99-5801 Dash Kit

Install a new Single-DIN car stereo in select 1997-1998 F-250 and F-150 and Expedition

2
-38.65%

$26.99

List price $43.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Limited time!
46CSS684 main

Kicker CSS68 (46CSS684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Component 4-ohm Speakers

8
-28.02%

$143.96

List price $199.99

Description


MB Quart brand icon

Authorized dealer

  • 6-1/2" Premium Series Midbass Drivers with Crossover
  • Power Handling:
    • Peak: 280 watts per pair / 140 watts each
    • RMS: 140 watts per pair / 70 watts each
  • Polypropylene cone woofer
  • Rubber surround
  • Magnet system with silver lacquered specially designed metal cover for additional cooling and protection
  • Connection terminals gold-plated allowing for the best possible signal transfer

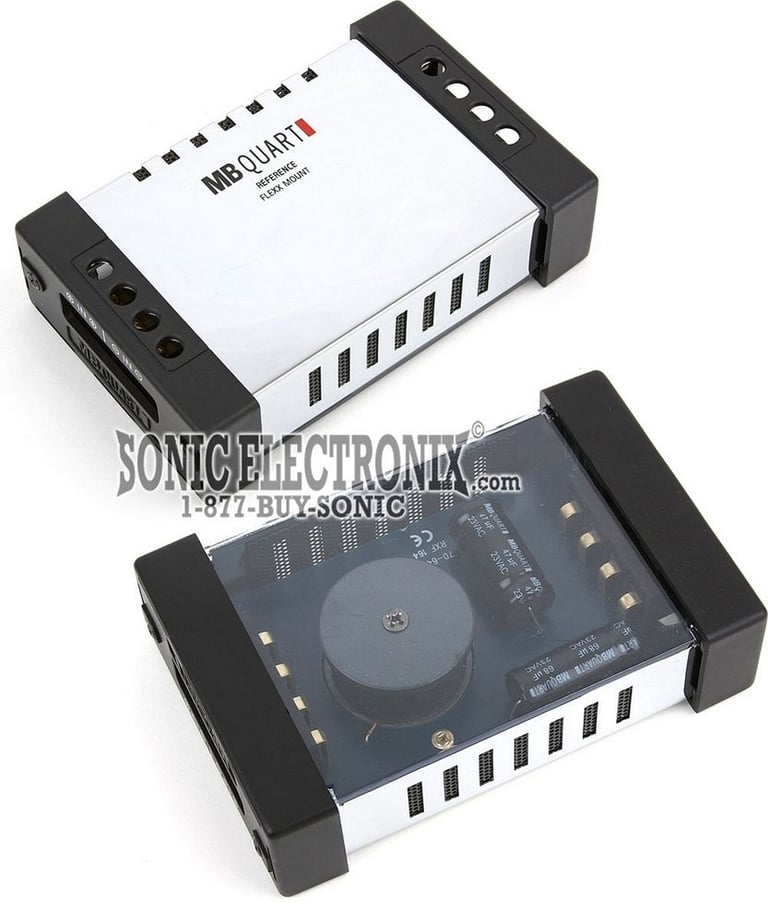

  • Premium Performance-crossovers with new and unique FleXX Mount system for limitless mounting possibilities
  • Bi-wiring and bi-amping capable
  • Crossover filter (250 Hz)
  • 4 ohm impedance
  • 1" Voice coil
  • Top-mount depth: 2-1/2"
  • 1-year SonicElectronix.com warranty

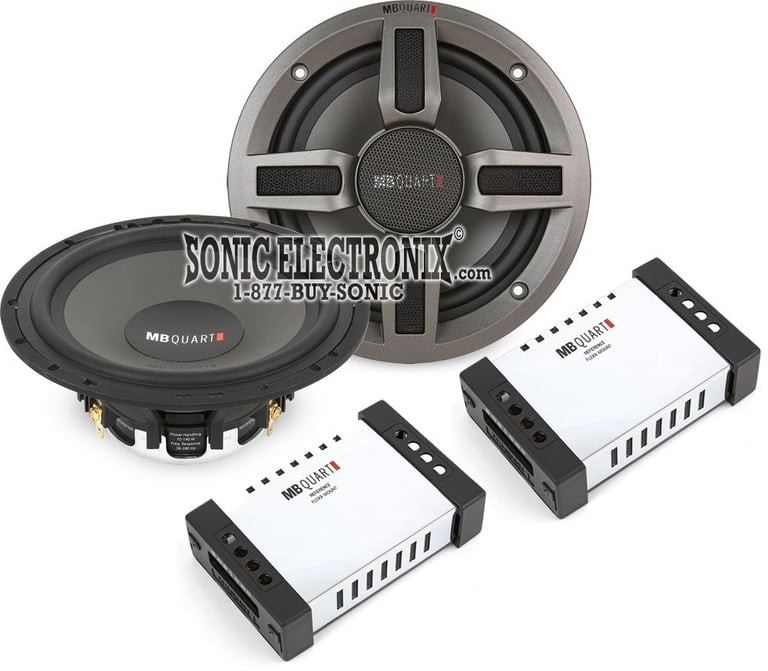

  • Priced Per System: 2 midwoofers and 2 crossover networks.

Product history:

MB Quart PVI-164 thumbnail
(newest, current model)
MB Quart PCE164 thumbnail
(previous model, replaced by MB Quart PVI 164 (PVI164))

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

AVH-2550NEX main

Pioneer AVH-2550NEX

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, and Android Auto (SiriusXM Ready)

-13.33%

$650.00

List price $750.00


Best selling similar products

CF-350mt small

JL Audio CF-350mt

• 3-1/2" CF Series Midtweeters
• 35 watts RMS Each
• 4 ohm Impedance

(4)

$229.99

List price $229.99

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

AP-M61SE small

Deaf Bonce Apocalypse AP-M61SE

• 260 watts Peak Each, 130 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101.5 dB

(8)

$109.90

List price $109.90

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$169.99

List price $169.99

51KSC2704 small

Kicker KSC270 (51KSC2704)

• 100 watts Peak Each, 50 watts RMS Each
• Composite Paper cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

(3)

$59.99

List price $69.99

AP-M67AN small

Deaf Bonce Apocalypse AP-M67AN

• 600 watts Peak Each, 300 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102 dB

(2)

$449.90

List price $449.90

AP-M60SQL small

Deaf Bonce Apocalypse AP-M60SQL

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97.5 dB

(4)

$119.90

List price $119.90

P3V2-25 small

Rockford Fosgate Punch P3 P3V2-25

• 150 watts Peak Each, 75 watts RMS Each
• 20-40% Mica reinforced Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 82 dB

$224.99

List price $299.99

XQS3v2 small

NVX XQS3 v2 (XQS3v2)

• 100 watts Peak Each, 50 watts RMS Each
• tweeters
• Carbon Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

$129.99

List price $155.99

Specifications & Details


Speaker Specifications
Speaker Size
6-1/2"
Design
Mid-range
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Peak Power Handling
140 watts
RMS Power Handling
70 watts
Sensitivity
87 dB
Frequency Response
38 - 280 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/2"
Cutout Dimensions
6" x 6"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PVI-164

Weight:

10.00lbs

Internal SKU:

pvi164

Internal Product ID:

13945

Customer Ratings & Reviews


MB Quart PVI 164 (PVI164) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Nice set up

I have these and the MB Quart PVI 216's componet set being pushed by a RF T400 & the sound is extremely clear! They sound great & they are a match made in heaven! I would most definetely recommend them and purchase them from sonic electronix!

By Ross on March 20, 2011

5 found this helpful


Great value love them

Love the sound quality highs are a tad harsh but you can plug the tweets in the low side of the xover tones them down a bit.

overall can't go wrong with these.
