MA Audio MA122D4

12" Dual 4 ohms D4 Series Subwoofer

MA Audio
Shop all MA Audio
Product videos
highlight-star-icon

12" Dual 4 ohm D4 Series Subwoofer • 800W Max • 400W RMS • Heavy-duty non pressed paper cone woofer with PVA (Poly Vinyl Acetate) emulsion treatment • Double stitched rubber surround with "Glafibe" glass fiber

Learn more about the ma122d4

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Product Highlights


12" Dual 4 ohm D4 Series Subwoofer • 800W Max • 400W RMS • Heavy-duty non pressed paper cone woofer with PVA (Poly Vinyl Acetate) emulsion treatment • Double stitched rubber surround with "Glafibe" glass fiber

Description


MA Audio brand icon

Authorized dealer

  • 12" Dual 4 ohm D4 Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Dual 4 ohm
  • Heavy-duty non pressed paper cone woofer with PVA (Poly Vinyl Acetate) emulsion treatment
  • Double stitched rubber surround with "Glafibe" glass fiber reinforcement

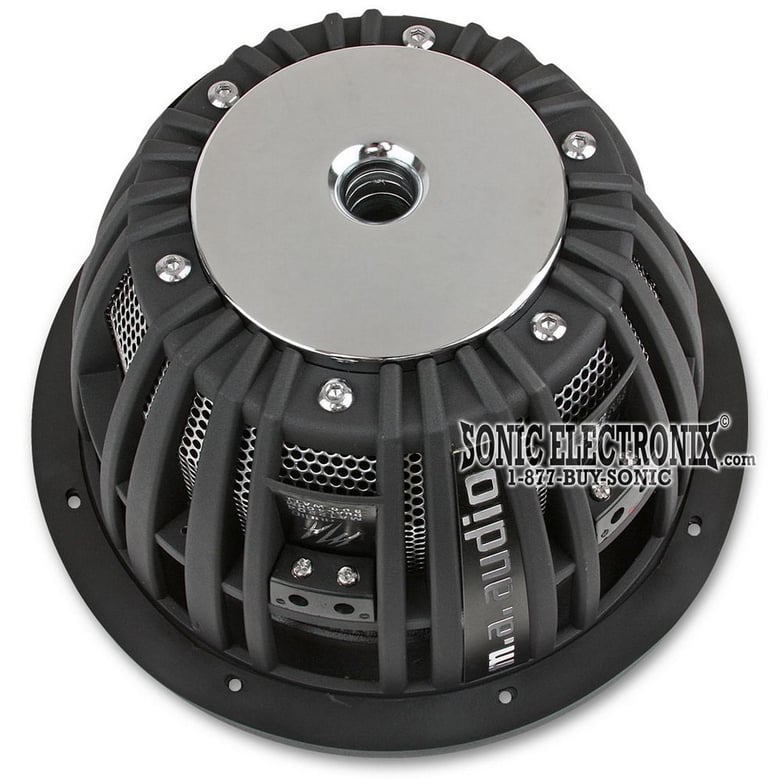

  • Coilvent T-yoke keeps voice coil cool while operating at high power
  • Patented thermo-cooling motor structure
  • Rigid polypropylene dust cap
  • Die-cast aluminum basket frame
  • Dual laminated progressive Dupont spider
  • Platinum plated block terminals
  • Rubber sealant gasket
  • Dual 4 ohm high temperature copper-coated aluminum voice coils
  • 180oz. Double stacked magnet
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

2008 MA Audio New Release

Product history:

MA Audio MA122D4 thumbnail
(newest, current model)
MA Audio MA10D4 thumbnail
(previous model, replaced by MA Audio MA122D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MA Audio MA122D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MA Audio MA122D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MA Audio MA122D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MA Audio MA122D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
89 dB
Xmax (millimeters)
22 mm
Woofer Composition
Non-Pressed Paper with PVA Treatment
Woofer Surround
Rubber with Glass Fiber Reinforcement
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6.1"
Cutout Diameter
11.2"

Item Details


Manufacturer:

Model Number:

MA122D4

Weight:

20.00lbs

Internal SKU:

ma122d4

Internal Product ID:

14064
