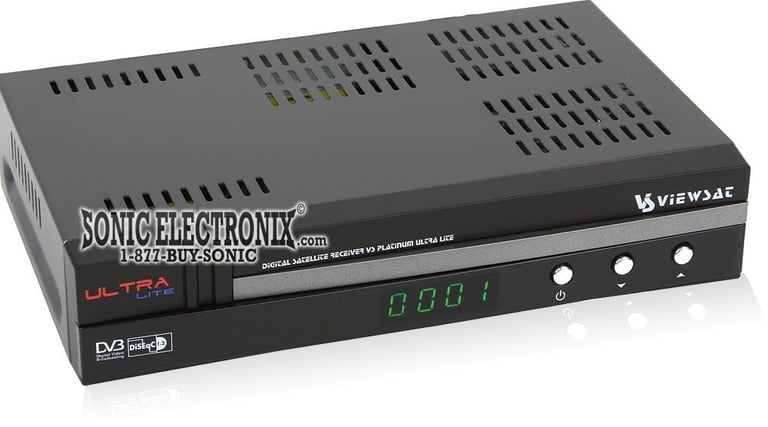

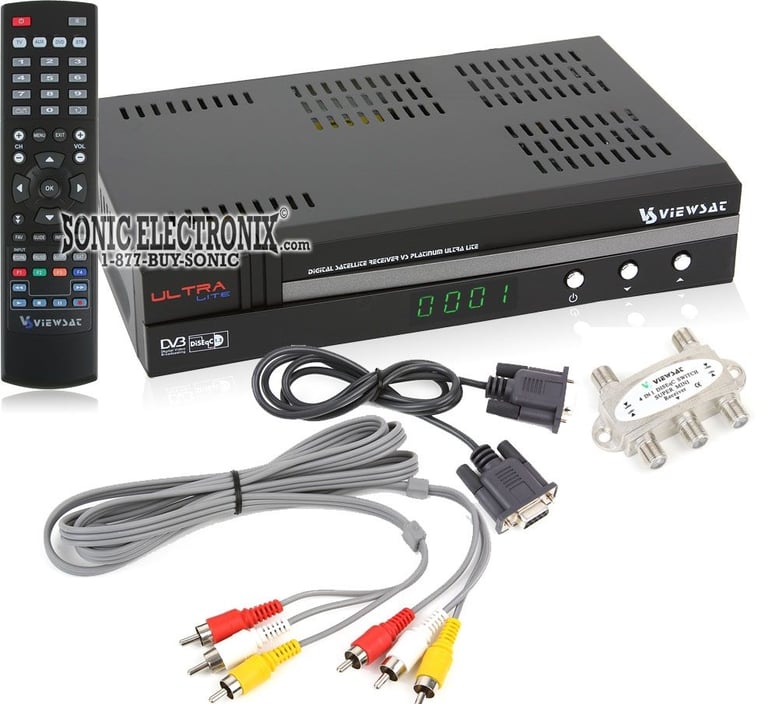

ViewSat VS Ultra Lite

General Features:

• FTA, Free to Air Receiver with PVR and Remote
• Input Frequency 950-2150MHz
• 200 MHz Conexant Processor
• 32 MB SDRAM
• Supports 7 Day EPG (Electronic Program Guide)
• Supports PIG (Picture in Graphic)
• Supports SCPC & MCPC from C / Ku-band
• 1 LNB Input Tuner with Loop Through IF Signal
• Tuner Symbol Rate: 1-45MS/s

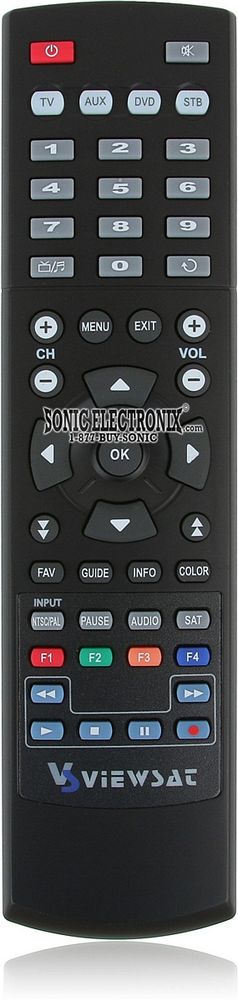

• Classic Viewsat universal Remote Control
• Fast Booting & Auto Scan
• Hardware Driven Blindscan
• 4000 Channel Programmable (TV & Radio)
• Fast Channel Changing
• User Friendly 256 Colors OSD & Easy GUI
• Multi OSD Language supported
• Radio Channel Screen Saver
• Favorite Channel List Programmable
• Master PIN Code Function & Parental Lock Function
• 100 Step Volume Control
• Automatic Detection of Forward Error Correction
• USB Host Interface (Only for USB Memory Stick)
• S/W Upgrade Supported by USB Port

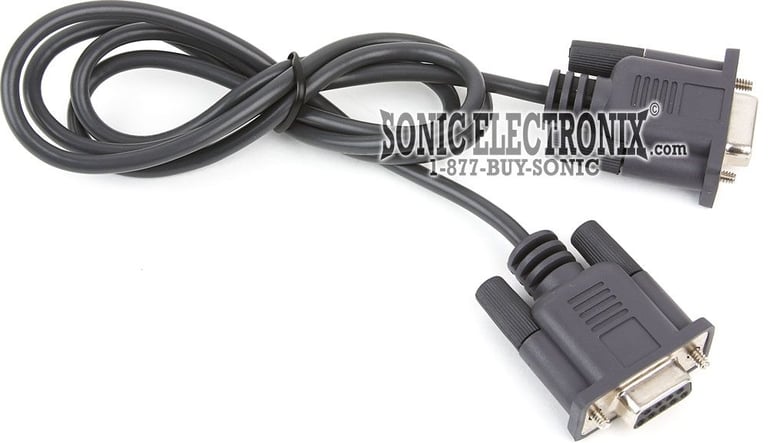

• Window Based S/W Download Program Supported by RS232 Serial Port
• Set to Set Download (Main Program, Channel Data)
• 4:3, 16:9 Letter Box & Teletext using OSD

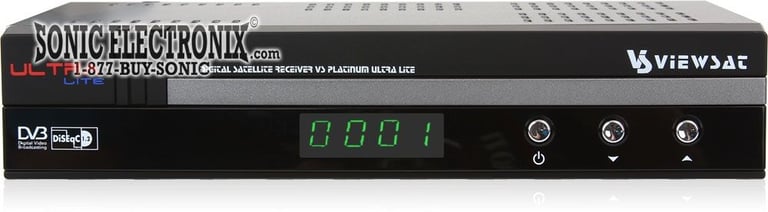

• 7 Segment-4 Digit Display
• 3 Keys on Front Panel
• (Power On/Off, Channel Up/Down)
• Various LNB Polarity Control
• 22 KHz Switching Control

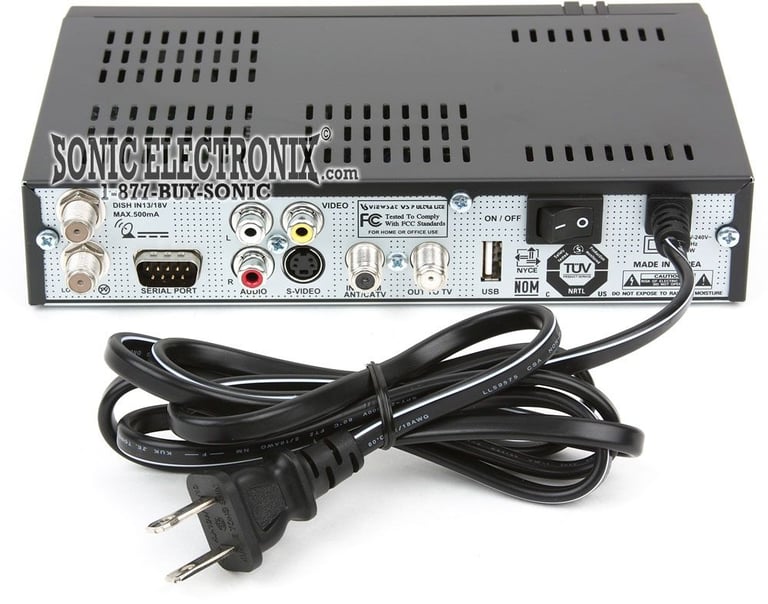

• S-VIDEO Output

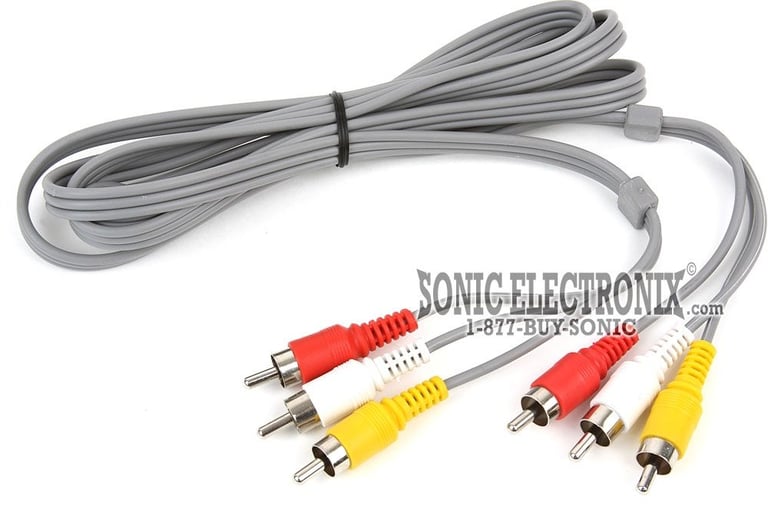

• 3 RCA outputs (2 Audio L/R and 1 Video)
• RF-Modulator Output
• Rear Power Switch
• 1-year SonicElectronix.com warranty

Specifications:

• Tuner
• Input Frequency: 950 ~ 2150MHz
• Input Signal Level: -65 ~ -25dBm
• Input Impedance: 75ohm Unbalanced
• Connector Type: ‘F’Type Female
• LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
• 22KHz Tone: Frequency 22± 4KHz, Amplitude 0.6±0.2Vpp

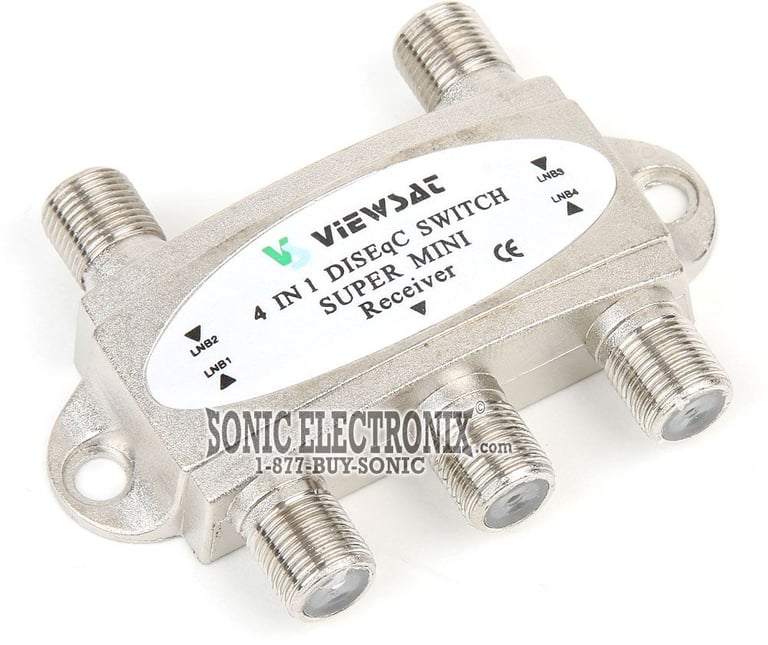

• DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
• Channel Selection: PLL Frequency Synthesizer
• Demodulator
• Type: QPSK Demodulation (DVB-S)
• Symbol Rate: 1 ~ 45 MS/s
• Inner FEC: Viterbi Convolutional Coding
• Rate 1/2, 2/3, 3/4, 5/6, 7/8
• Outer FEC: Reed Solomon Coding(204,188) T=8
• Video Decoder
• System Decoding: MPEG-2 ISO/IEC 13818-2
• Profile and Level: MPEG-2 MP@ML
• Data Rate: 1 ~15 MB/s
• Video Formats: 4:3(Normal) & 16:9 (Widescreen)
• Audio Decoder
• System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
• Audio Mode: Mono, Dual, Stereo, Joint Stereo
• Sampling Frequency: 32, 44.1, 48 KHz
• Audio/Video Output
• Audio Output: 2 RCA Cinch
• Video Output: 1 RCA Cinch
• S-Video: 1 S-VIDEO
• RF Modulator
• Modulator Output: CH3~4
• Video Type: NTSC
• Output Connector: “F” Type Female
• Ant. IN Connector: “F” Type Female
• 8. Serial Data Interface
• Signal: RS-232, Max. 115200 bps
• Connector Type: 9 Pin D-Sub (male)
