300W Complete Dual + Visonik Bass Starter Package

Visonik V105S 10" Subwoofer + Dual PBA2150 Amp + 8 Gauge Amp Kit + 10" Sealed Sub Box

Dual
Shop all Dual
Product videos
highlight-star-icon

Bridgeable 2-Channel Class AB Car Amplifier • 300W Max 10" Subwoofer • 300W x 1 Channel Max Output Amplifier • 10" sealed box + 8 gauge amplifier install kit included • Matched setup, tested and perfect for those interested in adding bass for a small amount of money

Learn more about the pba2150_v105s_combo

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Product Highlights


Bridgeable 2-Channel Class AB Car Amplifier • 300W Max 10" Subwoofer • 300W x 1 Channel Max Output Amplifier • 10" sealed box + 8 gauge amplifier install kit included • Matched setup, tested and perfect for those interested in adding bass for a small amount of money

Description


Dual brand icon

Authorized dealer

This setup has been thoroughly tested by the Sonic Electronix technical department. The amplifier is a perfect match in both wattage and performance for the Visonik 10" sub.

We recommend this setup for those looking for their first subwoofer or those looking to add nice bass and low frequencies to their system for a full, complete sound.

We promise this amp and sub will sound great and all parts include a 1-year warranty.

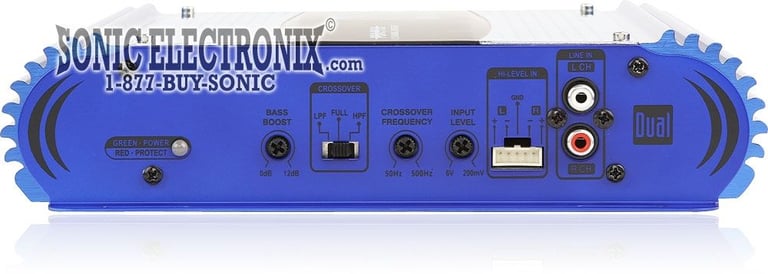

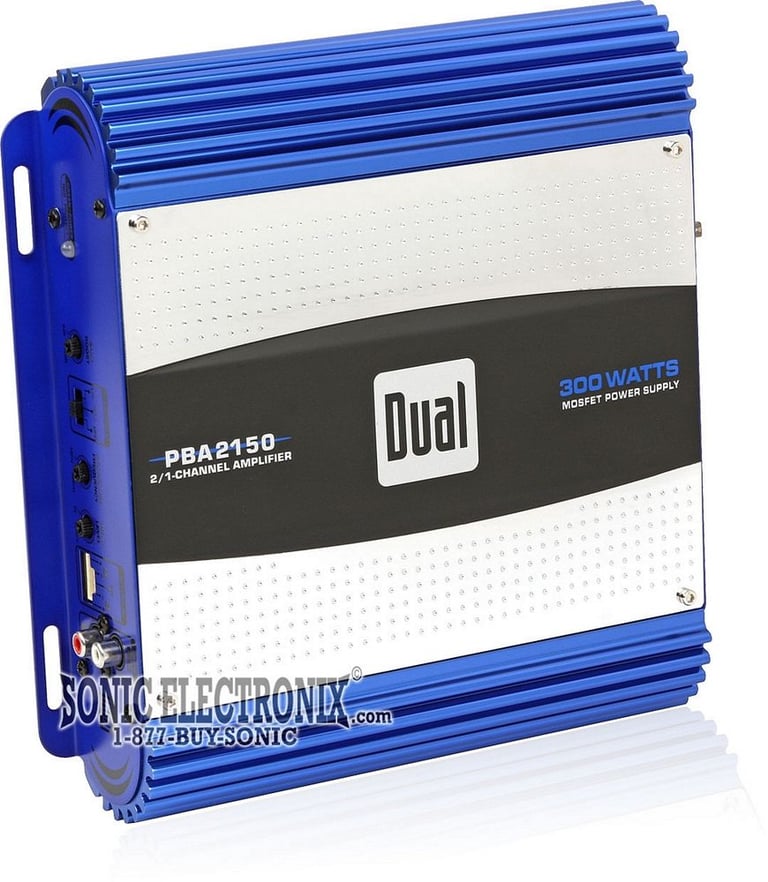

Dual PBA2150 Amplifier Key Features:

  • Bridgeable 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • Bridged, 4 ohm: 150 watts x 1 chan.
  • Max power output: 300 watts x 1 chan.
  • PWM MOSFET Power supply
  • Bi-color LED power and protection indicators
  • Tuned Bass EQ (0-12 dB bass boost at 45 Hz)
  • Speaker short circuit, reverse polarity protection, and auto-reset thermal overload protection circuitry

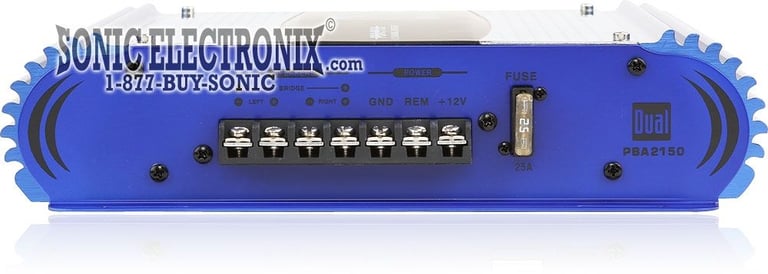

  • Barrier strip connection terminals
  • Extruded aluminum heatsink
  • Speaker level inputs
  • Preamp RCA Outputs
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-500 Hz, 24 dB/octave)
  • Frequency response: 20-20000 Hz
  • Dimensions: 8.9"L x 9.17"W x 2.13"H
  • 8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

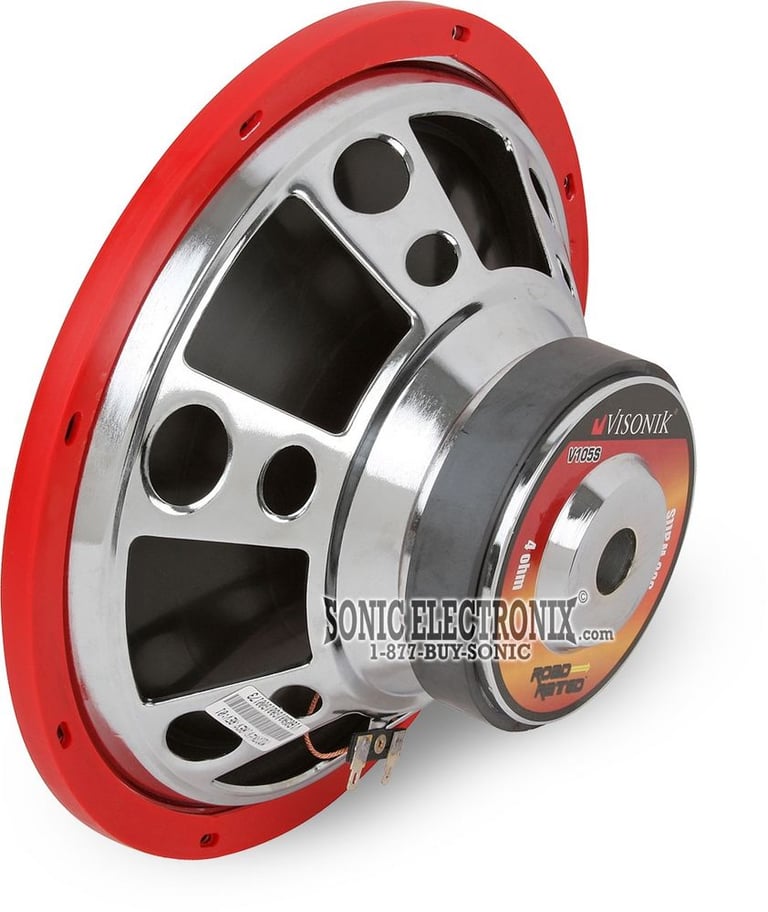

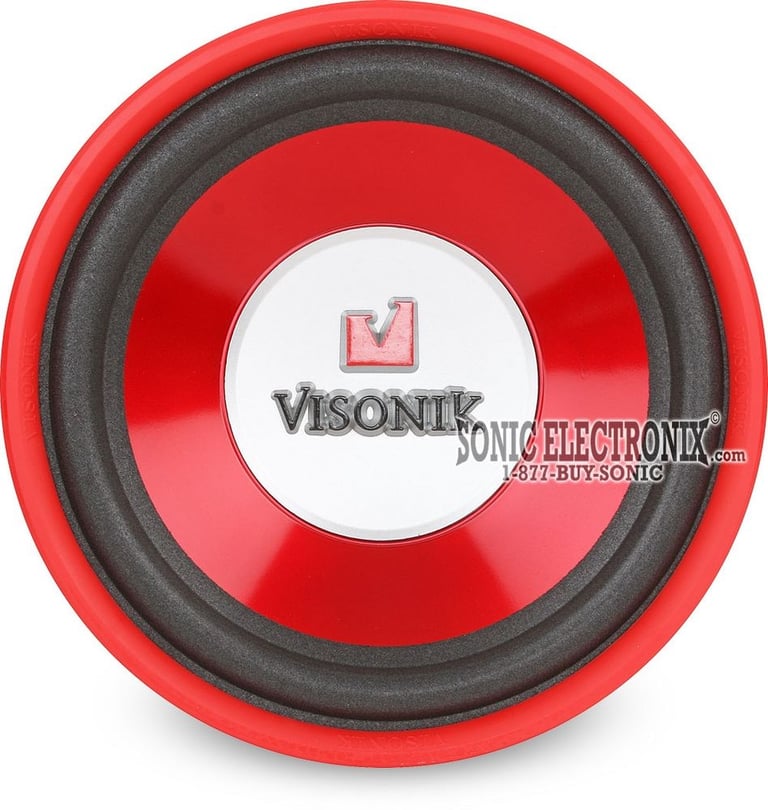

Visonik V105S 10" Subwoofer Key Features:

  • 10" Single 4 Ohm Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Impedance: 4 Ohm
  • Polypropylene woofer cone
  • High profile treated foam surround
  • Dual laminated cotton spider
  • Vented Bumped Back Plate: Allows more excursion without bottoming out
  • Stamped steel basket
  • 50oz. Single stacked magnet
  • 1-year Manufacturer's warranty

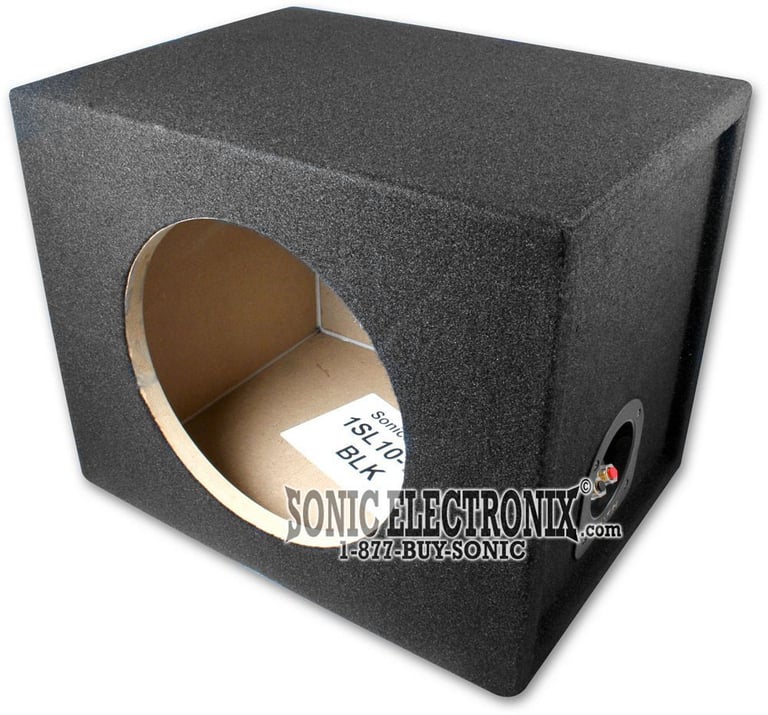

1SL10-1.0 Black Subwoofer Box Key Features:

Sonic Sub Boxes are custom built to fit your application. Enclosures are made with only the highest quality materials, including 3/4” MDF, to ensure your subwoofer enclosures can handle the test of time and the thump of your new subs.

  • Gray and Black carpets are stocked. You can request a specific color; however, we will ship the other color if the one requested is not in stock.
  • Single 10" Sealed MDF Enclosure
  • Holds one 10" subwoofer
  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Durable BLACK carpeting
  • Gold Terminals
  • Internal Box Volume: 1.01 Cubic ft.
  • Dimensions: 13"D x 16"W x 12"H

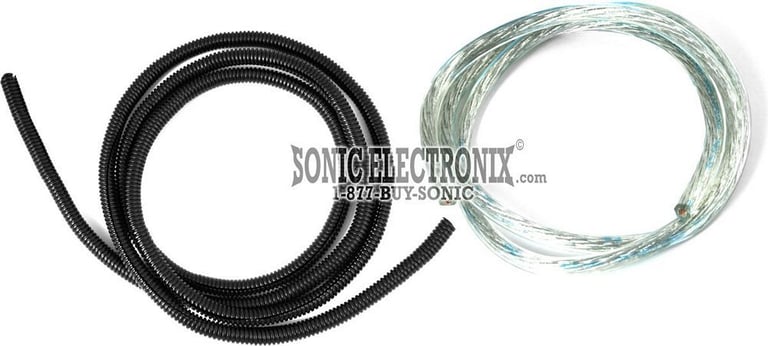

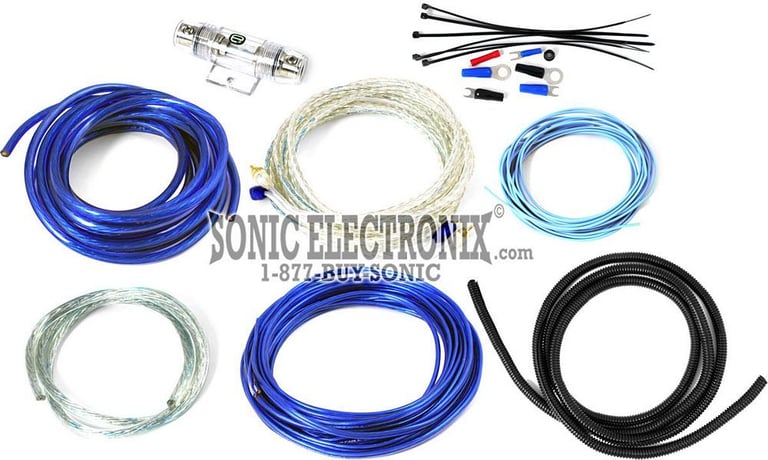

Scosche e2 E400 Amp Kit Key Features:

  • e2 400W Single Amplifier Wiring Kit
  • AGU Fuse Holder
  • 6' Protective Wire Loom
  • 17' - 6.5mm Hex Power Cable
  • 3' - 6.5mm Hex Ground Cable
  • 20' - 3mm Speaker Cable

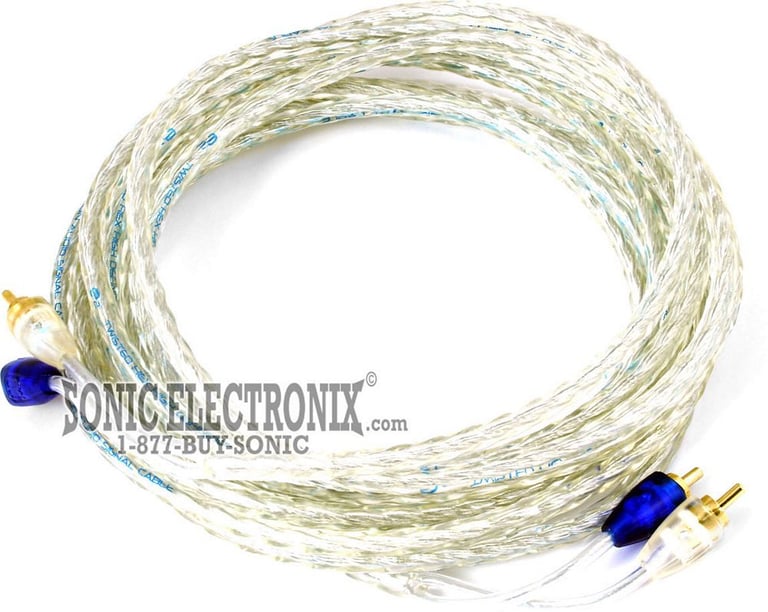

  • 17' - 2-Channel Twisted Hex RCA Interconnec Audio Cables
  • 17' - Remote Turn-On Wire
  • Installation Hardware Kit
Note: Many companies claim their wire is 8 gauge when in reality it is 10 gauge or even less wire, and more plastic insulation to present an illusion of 8 gauge. Scosche did not want to make a false representation of their quality product so they specify their wire in millimeters, not the standard gauge system. We have decided that to present fair competition to the likes of "house brand" wire, and other unfair manufacturers which label their 6.5mm (or less) as 8 gauge.

Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

1
-17.26%

$239.95

List price $290.00

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

Specifications & Details


Amplifier Power Specifications
Bridged RMS Power
150 watts x 1 channel
Peak Power Output
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
300 watts
Total RMS Power Output
150 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
75 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
25A x 1
Subwoofer Specifications
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
150 watts
Peak Power Handling
300 watts
Woofer Surround
Treated Foam
Woofer Composition
Polypropylene
Sensitivity
87.3 dB
Frequency Response
30 - 500 Hz
Xmax (millimeters)
9.76 mm
Top-Mount Depth (Mounting Depth)
4-13/16"
Cutout Diameter
9-1/4"

Item Details


Manufacturer:

Model Number:

V105S+PBA2150+Amp-Kit+Sub-Box

Weight:

37.00lbs

Internal SKU:

pba2150_v105s_combo

Internal Product ID:

14206

Product and How-to Videos


Customer Ratings & Reviews


300W Complete Dual + Visonik Bass Starter Package thumbnail image

5 star
58%
4 star
22%
3 star
8%
2 star
7%
1 star
5%



Durability
4.2
Value
4.5
Features
4
Design
4.3
Usability
4.5

Customer Reviews

Sort by:

Loading...

Great wires for the DIY

The following review is for E400, which is a part of the bundle you are viewing.

I would recommend the product. It has everything you need to wire up an amplifier.

By Sam on July 21, 2010

57 found this helpful


Great buy

The following review is for E400, which is a part of the bundle you are viewing.

I used this instead of the harness that was supplied with my setup, it seems to be feeding my 350 watt visonik very well, not only does it work well it looks nice also, but I will do business with sonicelectronix from here out best company to deal with quick shipping and great buys.

By william on December 5, 2007

55 found this helpful


Complete, includes everything you need

The following review is for E400, which is a part of the bundle you are viewing.

This is a great kit! It includes everything you need, as well as great instructions. I really had no idea what I was doing, so the instructions were very helpful. There was plenty of wiring, and the material seemed to be of good quality.

By Dean on July 9, 2009

54 found this helpful


Nice looking. Not copper.

The following review is for E400, which is a part of the bundle you are viewing.

Did the job nicely. My expectations were not high for this product due to the low price. Very nice looking jackets on the power/ground cables. The RCA cable looks decent at best. The length of the power cable was cutting it real close so I had to be ultra conservative on the routing to make it work out. Make sure of your length requirements!! Otherwise it's in and does the job just fine.

By Jared on August 30, 2014

53 found this helpful


Great Buy

The following review is for E400, which is a part of the bundle you are viewing.

Bought the amp kit after reviewing many others. Great price and works flawless. Comparable to another larger, more expensive, name brand kit that I bought afterwards. Great kit for basic systems.

By Louder Than Boom on November 2, 2010

55 found this helpful


itll do the job

The following review is for E400, which is a part of the bundle you are viewing.

its a wiring kit...itll do the job you want it to. theres not much i can say about them other than theyre still going strong today.

By Chadd on June 23, 2011

51 found this helpful


Great value

The following review is for E400, which is a part of the bundle you are viewing.

great value for your money

By Jose on April 27, 2010

49 found this helpful


Great Buy!

The following review is for E400, which is a part of the bundle you are viewing.

Great wire, has been working very well for the past while. Great bang for your buck.

By Jan on June 8, 2014

50 found this helpful


terrific product

The following review is for E400, which is a part of the bundle you are viewing.

I have a compact sedan and these wires were more than long enough to hook up my sub and amp. The fuse housing is tough and durable and splash proof. Good looking wires.

By jose on July 12, 2010

46 found this helpful


Works good for the price, comes with everything you'll need.

The following review is for E400, which is a part of the bundle you are viewing.

I bought this after searching threw the net for the best price, not looking for anything for extreme power so the gauge of wire wasn't the biggest deal. It is exact in size and doesn't count the plastic. The connectors supplied for the amp were a little big so i had to cut them into forks. Have it hooked it with Alpine Amp (MRP-M500), Alpine Sub (SWE-1043), paired with an Alpine Head Unit (CDE-102) and 4 Polk Audio Speakers (db651s). Loud enough to cause my fuel line to start leaking and definitely sounds good with 8 Gauge. Would buy again.

By ShootenEmUp on March 25, 2010

45 found this helpful




Beats Studio (Purple) small

Beats By Dr. Dre STUDIO (Purple)

Pro Studio High-Definition Active Noise Cancelling Headphones with In-Line Smartphone Microphone

$199.00

List price $349.95

Beats Studio (Green) small

Beats By Dr. Dre STUDIO (Green)

Pro Studio High-Definition Active Noise Cancelling Headphones with In-Line Smartphone Microphone

$199.00

List price $349.95

RP-HJE120-V small

Panasonic RP-HJE120-V - Violet

Earbuds with ErgoFit Design for a Comfortable Fit and Colors Matching iPod Nano 5th Generation

(2)

$9.99

List price $9.99

RP-HJE120-A small

Panasonic RP-HJE120-A - Blue

Earbuds with ErgoFit Design for a Comfortable Fit and Colors Matching iPod Nano 5th Generation

(1)

$9.99

List price $9.99

RP-HJE120-D small

Panasonic RP-HJE120-D - Orange

Earbuds with ErgoFit Design for a Comfortable Fit and Colors Matching iPod Nano 5th Generation

(12)

$5.99

List price $9.99

C5-650x small

JL Audio C5-650x

(450W Max) Evolution C5 Series 6.5" 2-Way Coaxial Speaker System

(7)

$549.99

List price $599.99

RP-HJE120-G small

Panasonic RPHJE120G (RP-HJE120-G) Green In-Ear Headphones/Earbuds

Earbuds with ErgoFit Design for a Comfortable Fit and Colors Matching iPod Nano 5th Generation

(4)

$9.99

List price $9.99

MDR-XB400iP small

Sony MDR-XB400iP - Blue

On-Ear XB Series Extra Bass Headphones with iPhone/iPod Mic + Remote Control & Powerful 30mm Drivers

(1)

$54.99

List price $69.99

MH BEATS PI OE small

Beats by Dr. Dre (MH BEATS PI OE)

High-Definition Studio Over Ear Headphones with Power Isolation Technology

(4)

$299.95

List price $349.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 BMW 745i

2000 Dodge Dakota

2019 Nissan NV

2020 Kia Rio

2003 Chevrolet SSR

1986 Jeep Custom Wagoneer

2021 Volvo V60

1980 BMW 528i

1987 Dodge B Series

2007 Nissan Sentra

Vehicle
Store
Delete

2019 Can-Am Defender MAX HD8 DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
